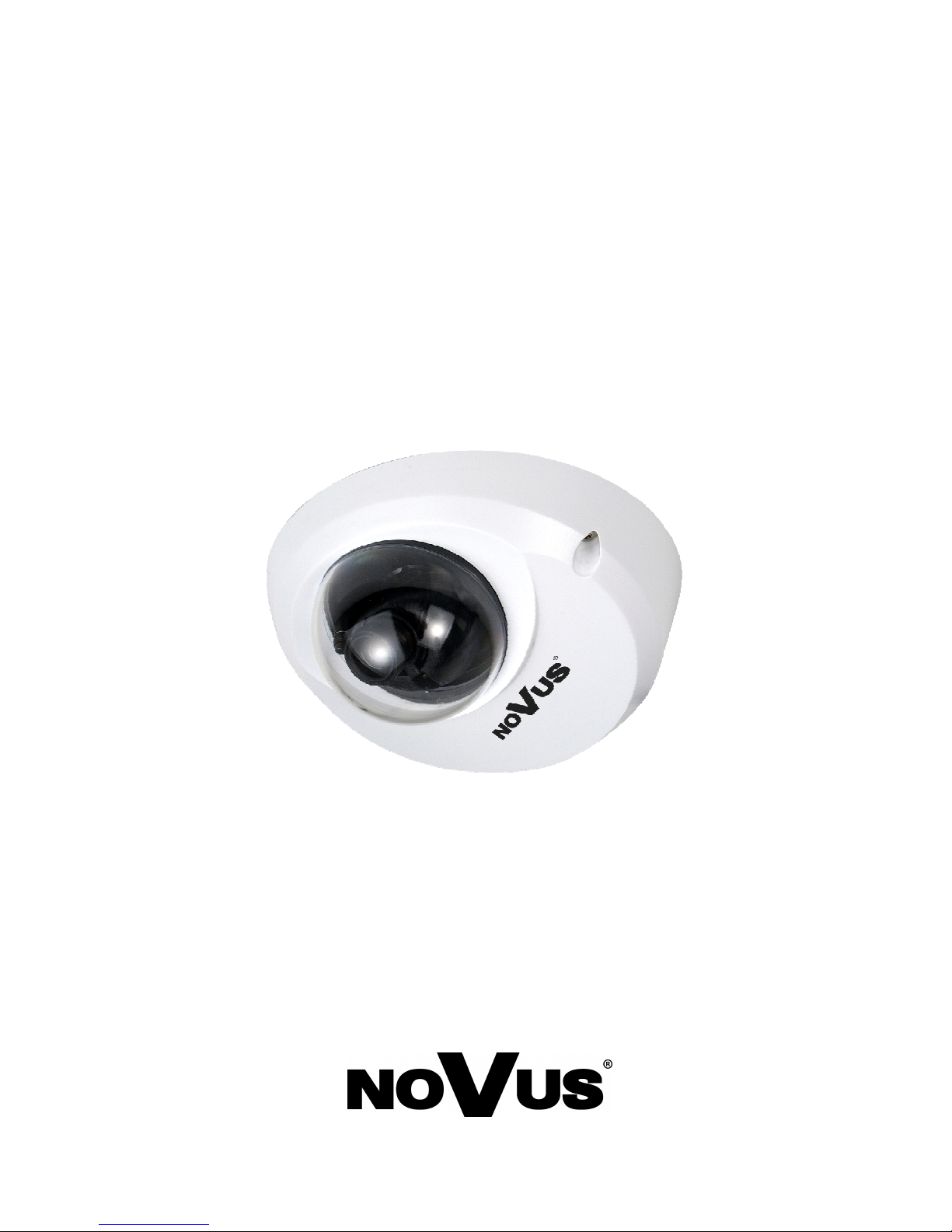

Novus NVIP-2C2011D-P User manual

U s e r ’s m a n u a l
NVIP-2C2011D-P

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
2
IMPORTANT SAFEGUARDS AND WARNINGS
EMC (2004/108/EC) and LVD (2006/ 5/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of the following directives and national regulations
implementing the directives:
• Electromagnetic compatibility EMC 2004 108 EC.
• Low voltage LVD 2006 95 EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as
75VDC and 1500VDC.
WEEE Directive 2002/ 6/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic
Equipment (2002 96 EC) and further amendments. By ensuring this product is disposed of correctly, you will
help to prevent potential negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. It shall be handed over to the applicable collection point for used up electrical and
electronic equipment for recycling purpose. For more information about recycling of this product, please contact
your local authorities, your household waste disposal service or the shop where you purchased the product.
RoHS Directive 2002/95/EC
Out of concern for human health protection and friendly environment, we assure that our products
falling under RoHS Directive regulations, regarding the restriction of the use of hazardous
substances in electrical and electronic equipment, have been designed and manufactured in
compliance with the above mentioned regulations. Simultaneously, we claim that our products have
been tested and do not contain hazardous substances whose exceeding limits could have negative
impact on human health or natural environment
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed for self
installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices
during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN
USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES
NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE
CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR
THE RESULTS OF SUCH AN ACTION.

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and operating
instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is
necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s
manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,
damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not
recommended since it may lead to heat build-up and damaging the device itself as a consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly
mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted
by qualified personnel with proper authorization, in accordance with this user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with those
specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera
from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
4
TABLE OF CONTENTS ..................................................................................................... 4
1. FOREWORD INFORMATION ................................................................................... ..6
1.1. General Characteristics ........................................................................................ 6
1.2. NVIP-2C2011D-P tech specification .............................................................. ...7
1.3. Camera dimension ........................................................................................... ...8
1.4. Package contents ............................................................................................... ...9
2. START-UP AND INITIAL IP CAMERA CONFIGURATION ............................... 10
2.1. Description of connectors and control tools ...................................................... 10
2.2. NVIP-2C2011D-P mounting ............................................................................. 11
2.3. Starting the IP camera ........................................................................................ 12
2.4. Initial configuration via the Web browser ......................................................... 13
3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................ 14
3.1. Recommended PC specification for web browser ............................................. 14
3.2. Connection with IP camera via the Internet Explorer ........................................ 14
3.3. Connection with IP camera via the other browser ............................................. 16
4. WWW INTERFACE - WORKING WITH IP CAMERA ......................................... 18
4.1. Displaying live pictures. ..................................................................................... 18
5. ELECTRIC CONNECTORS AND ACCESORIES ................................................. 20
5.1. Connecting power supply to the camera. .......................................................... 20
5.2. SD card installation ........................................................................................... 20
6. RESTORING FACTORY DEFAULTS ..................................................................... 21
6.1. Restoring software factory defaults .................................................................... 21
6.2. Restoring hardware factory defaults in IP cameras ........................................... 21
TABLE OF CONTENTS

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
5
TABLE OF CONTENTS

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
6
1. FOREWORD INFORMATION
1.1. General Characteristics
• Imager resolution: 2.0 megapixels 16:9 ratio (FullHD)
• Electronic day night function
• Min. Illumination from 0,1 lx F=1.5
• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions
• Digital Slow Shutter (DSS)
• Digital Noise Reduction (DNR)
• Lens:, f=4 mm
• Privacy zones: 5
• Compression: H.264, M-JPEG
• Max video processing resolution: 1920x1080
• dual streaming: compression, resolution, speed and quality defined individually for each video
stream
• RTP RTSP protocol support for video transmission
• Pre- & post-alarm functions
• Hardware motion detection
• Built-in webserver: camera configuration through the website
• microSD SDHC card support
• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,
triggering alarm output, saving file on SD SDHC card, HTTP notification
• Network protocol support : HTTP, TCP IP, IPv4 v6, UDP, HTTPS, Multicast, FTP, DHCP,
DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS,
• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,
playback and remote IP devices administration
• Small size dome enclosure
• Power supply: PoE (Power over Ethernet)
FOREWORD INFORMATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
7
1.2. NVIP-2C2011D-P specification
* Frame rate available for a specific camera configuration (details in the user’s manual)
Model NVIP-2C2011D-P
Pick-up Element 1/2.7" (16:9) Progressive can CMO
Imager Resolution 2 megapixels
Min. Illumination Color: 0.1 lux / F 1.5
/N Ratio > 50 dB (AGC Off)
Electronic hutter Auto / Manual (1/1.5 ~ 1/10 000 s)
Digital low hutter (D ) 1/25 s ~ 1 s
Wide Dynamic Range (WDR) Lo /Mid /Hi / Off
White Balance Auto / ATW / Manual (RGB)
ynchronization Internal
Day/Night witching Auto
Lens type f = 4.0 mm (F 1.5)
Angle of View (H) 78
Image function DNR – digital noise reduction,
Resolution 1920 x 1080, 1280 x 1024, 1280 x 720,1024 x 768,
800 x 600,720x576,640 x 480, 352x288
Frame Rate Up to 25 fps for a single video stream*
Multi treaming 2 streams
Video Compression H.264/M-JPEG
Audio Compression G.711 / G.726
Motion Detection Hardware
ystem reaction to alarm
event
E-mail with attachment, saving file on FTP, saving file to D
card, alarm output activation, HTTP notification
Pre/Post Alarm Pre-alarm: up to 20 frame of picture or 3sec
Post-alarm: up to 20 frame of picture or 9999sec
Video aving Files AVI( D card), JPEG(FTP)
imultaneous connection 10
Time ynchronization Automatic time synchronization with NTP server
Network Protocols upport HTTP, TCP/IP, IPv4/v6, UDP, HTTP , Multicast, FTP, DHCP,
DDN , NTP, RT P, RTP, UPnP, NMP, Qo ,
oftware NM
User Authorization Password protected camera access and its configuration, HTTP ,
IP filtering, IEEE 802.1X
Privacy Zones 5
Audio input Internal microphone
External Ports 1xEthernet - RJ-45 connector, 10/100 Mbit/s, 1xmicro D/ DHC
Power upply PoE(IEEE 802.3af)
Power Consumption 3,5W
Operating Temperature -10°C ~ 50°C
Dimensions (mm) 111mm (∅ ) 48 mm (H)
Weight 0,2 kg
FOREWORD INFORMATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
8
FOREWORD INFORMATION
1.3. Camera dimensions

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
9
1.4. Package contents
After you open the package make sure that the following elements are inside:
• IP camera
• 230 VAC 12 VDC power supply
• Accessories bag
• Short version of user’s manual
• CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
1.4. Package contents
After you open the package make sure that the following elements are inside:
• IP camera
• Accessories bag
• Short version of user’s manual
• CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
FOREWORD INFORMATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
10
2. START-UP AND INITIAL IP CAMERA CONFIGURATION
2.1. Description of connectors and control tools
NVIP-2C2011D-P
1. Reset button
2. Lens
3. Microphone

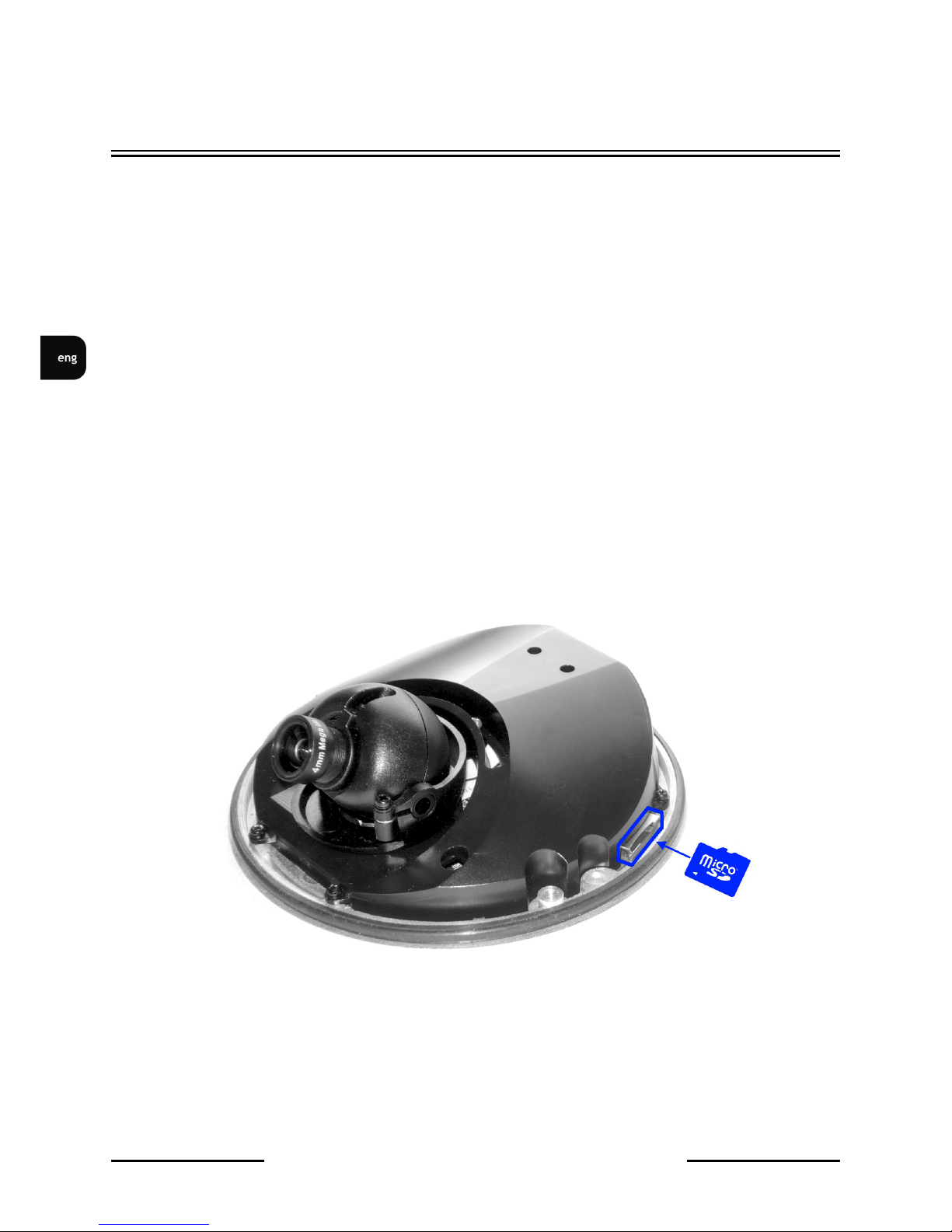

4. MicroSD card slot
5. Port Ethernet 100 Mb s (RJ-45 connector)
6. Lens protecting cap
7. Horizontal adjustment screws
8. Vertical adjustment screws
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
11
2.2. NVIP-2C2011D-P mounting

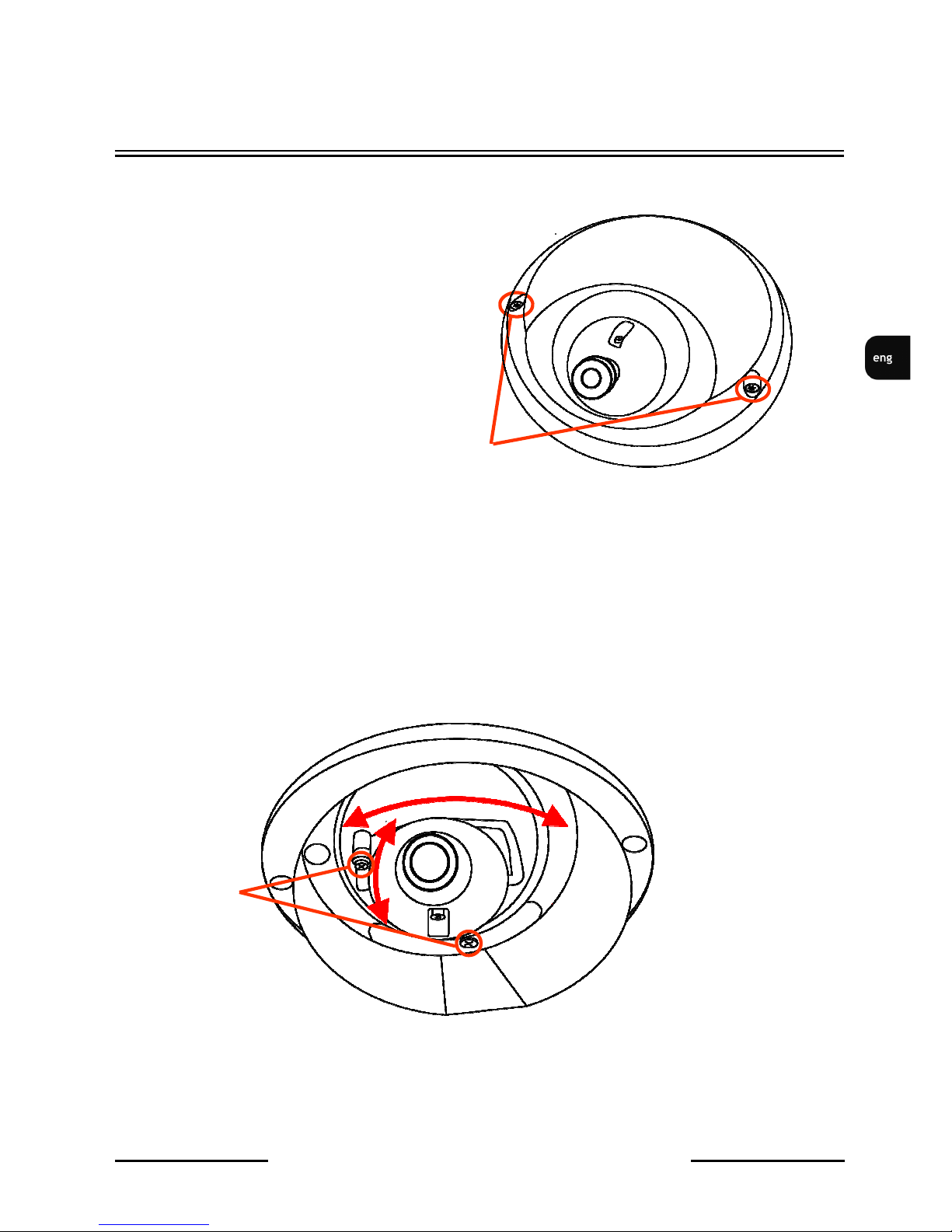

To mount a camera please follow the instructions below:
• Unscrew the dome from the camera (2 “A” screws).
• Put the camera’s base to wall ceiling.
• Taking holes at the bottom of the camera’s base as a pattern, please mark the drilling holes
for screws and cables (using a punch, for example).
• Drill 2 holes, in accordance with camera’s base hole placement.
• Drill cable hole in the mounting place.
• Mount the camera using included screws.
• Loosen the vertical and horizontal adjustment screws.(„B” screws).
• Point the camera to a desired scene in accordance with figures below
•
•
• Block vertical horizontal adjustment screws.
• Adjust zoom and focus loosening the zoom focus blocking screws.
• Put dome onto the camera’s base and secure it using screws.
A
B
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
12
2.4. Starting the IP camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network switch
with PoE support (IEEE 802.3af).
After connecting power supply green LED should light on. Initialization process is then started which
takes about 30 seconds. You can then proceed to connect to the camera via web browser.
If the connection is successfully established, orange LED blinks with a frequency proportional to the
quantity of data sent. Connecting via web browser is then possible. If connection isn’t established (the
network cable is disconnected) green and orange LEDs aren't active, solid light means that network
connection is ok but camera doesn't receive or send any data, with possible PC network settings error.
The recommended way to start an IP camera and perform its configuration is a connection directly to
the network switch which is not connected to other devices. To obtain further information about
network configuration parameters (IP address, gateway, network mask, etc.) please contact your
network administrator.
• Connection utilizing network switch with PoE support
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors (e.g. NVS-110E/P) is advised. Any damages resulting from surges are not eligible for
service repairs.
.
Computer IP Camera
Power supply and
network transmission
Network transmission
Network witch
PoE
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
13
2.5. Initial configuration via the web browser
The default network settings for NVIP-2… IP camera series are :
1. IP address= 1 2.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 1 2.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
14
3. NETWORK CONNECTION UTILIZING WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming smooth image display in
1920x1080 resolution and 25 fps speed.
1. CPU Intel Pentium IV 3 GHz or newer
2. RAM Memory min. 512 MB
3. VGA card (any displaying Direct 3D with min. 128 MB RAM memory)
4. OS Windows XP / VISTA
5. Direct X version .0 or newer
6. Network card 10/100/1000 Mb/s
3.2. Connection with IP camera via the Internet Explorer
You have to enter camera IP address in the Internet Explorer address bar. If IP address is correct user
login window will be displayed:
Default user is root and default password is pass.
For safety reasons, it is recommended to change default user name and password.
When you log on to the camera, web browser will download the applet for displaying images from the
camera. Depending on the current Internet Explorer security settings it may be necessary to accept
an ActiveX control. To do this, click the right mouse button on the message, select "Install Active X
control" and then click Install. After successfully NVIP Viewer plug in downloading run and install it
on a computer.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
15
If the installation fails, changing security settings for the IE browser is required. In order to do that,
please choose: Tools > Internet options > Security tab > Custom level and:
• Under Download unsigned ActiveX controls - select either Enable or Prompt
• Under Initialize and script ActiveX controls not marked as safe - select Enable or Prompt
You can also add the camera’s IP address to “trusted zone and set lowest security level for it.
In addition, when working in Windows Vista 7 the ActiveX applet may be blocked by Windows
Defender or User account control. In such case you should allow to run this applet, or simply disable
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
16
3.3. Connection with IP camera via other browser eg. Chrome, Mozilla Firefox, Safari )
It is also possible to connect to the camera using Mozilla Firefox, but this browser doesn't offer full
functionality of the camera, so the recommended browser is Internet Explorer.
The first run of the IP camera in browser is very similar to the IE version. After you type the correct IP
address you have to write correct username and password. The default user is root and password is
pass.
Next, blank screen is displayed. Then you have to install the missing Quick Time plug-in from site:
http: www.apple.com quicktime download
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
17
After downloading and running it, a window depicting installation of particular components is then
displayed. After proper installation pictures from the camera should become visible
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
18
4. WWW INTERFACE - WORKING WITH IP CAMERA
4.1. Displaying live pictures
1. Main tabs
Home — live view page
System — camera settings ( IP, recording, sending alarm messages, motion detection)
Streaming — streaming settings for audio and video audio
Camera — picture settings
Logout
2. Language selection.
3. Video format selection.
4. ActiveX settings for live video.
- Display mode in web browser
- Full screen view
- Microphone - enable audio from microphone
- Speaker - enable audio sending to the camera
1.
2.
3.
4.
5.
WWW INTERFACE - WORKING WITH IP CAMERA

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
19
5. Video streaming information.
Right mouse button click on the live screen view displays additional information about actual video and
audio transition parameters.
- Snapshot - saves the current frame in JPEG format
- Video Streaming pause play button
- Web recording to AVI button
WWW INTERFACE - WORKING WITH IP CAMERA

NVIP-2C2011D-P User’s manual(short form) ver.1.0
All rights reserved © AAT Holding sp. z o.o.
20
5. ELECTRIC CONNECTORS AND ACCESORIES
5.1. Connecting power supply to the camera.
The camera is supplied by using RJ45 network socket. To run NOVUS IP camera you have to connect
ethernet cable between camera and network switch with PoE support (IEEE 802.3af). You can also use
a power injector compatible with IEEE 802.3af standard.
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors (e.g. NVS-110E/P) is advised. Any damages resulting from surges are not eligible for
service repairs.
5.3. SD card installation
Camera supports SD and SDHC cards with their capacity up to 16GB. In order to install the card
properly, please follow the instructions below:
• Format the card in FAT32 file system using a PC computer
• Turn the camera off
• Mount SD card in the socket located at the camera’s rear, according to the picture:
• Turn the camera on
• Check the SD card by checking its capacity in the STORAGE MANAGEMENT tab.
ELECTRIC CONNECTORS AND ACCESORIES
