U s e r ’s m a n u a l
NDR-BA3208
NDR-BA3416

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
2
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of following directives and national
regulations implementing the directives:
 Electromagnetic compatibility EMC 2004/108/EC.
 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well
as 75VDC and 1500VDC.
WEEE Directive 2002/96/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European Directive on Waste Electrical and Electronic
Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly,
you will help to prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. It shall be handed over to the applicable collection point for the
waste electrical and electronic equipment for recycling purpose. For more information about recycling
of this product, please contact your local authorities, your household waste disposal service or the shop
where you purchased the product.
RoHS Directive 2002/95/EC
Concerning for human health protection and friendly environment, we assure that our products falling
under RoHS Directive regulations, regarding the restriction of the use of hazardous substances in
electrical and electronic equipment, were designed and manufactured in compliance with mentioned
regulation. Simultaneously, we claim that our products were tested and do not contain hazardous
substances exceeding limits which could have negative impact on human health or natural
environment.
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
The manufacturer is not responsible for defects and damages resulted from improper or inconsistent
with user’s manual installation of the device in the system.
IMPORTANT SAFEGUARDS AND WARNINGS

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
3
ATTENTION!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT PROVISIONED FOR THE GIVEN
PRODUCT IN ITS USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR THAT ARISES FROM THE NORMAL APPLICATION OF THE PRODUCT, ITS
MANUFACTURER MUST BE CONTACTED OR THE RESPONSIBILITY OF THE
MANUFACTURER FOR THE RESULTS OF SUCH AN ACTION SHELL BE EXCLUDED.
1. The installation of this device should be made by a qualified service person or a professional safety
system installer.
2. Device mustn’t be placed in places where ventilating holes are partially or fully covered.
3. User’s interference inside the device is not allowed and is unnecessary as it does not have any
systems which require adjusting or which are suitable for self-repair. You mustn’t dismantle the
recorder or remove any single fastening screws. If any repairs are necessary contact the service.
The device must be take care of and protected against any mechanical damage.
4. The device has to be protected against humidity and dust. In case the recorder had a contact with
water react immediately: switch off the power supply and contact the authorised Novus service. If
the device gets dirty it might get damaged or electrocute someone.
5. The device can only be cleaned with a damp cloth after the power supply has been switched off.
Avoid strong detergents (liquids and sprays). Mild detergents can be used if the recorder becomes
very dirty.
6. Power supply unit cords and signal cords should be laid in a way that eliminates the risk of
mechanical damage; special attention should be paid to the plug. Be careful not to overload sockets
and extension cords so that there is no fire.
7. To avoid devices’s damage vision and control signals should be equipped with systems protecting
against disturbances, over voltage and atmospheric discharge that are in compliance with Polish
regulations. It is also advised to use ground loop isolators.
8. The device mustn’t be used in conditions which do not fulfil operating requirements as far as power
supply, relative humidity or air temperature are concerned.
9. You cannot allow any metal objects get inside the recorder. It might cause serious damage. If a
metal object gets inside the device contact the authorised Novus service immediately.
10. The manufacturer does not bear responsibility for damage or loss of data stored on HDDs or other
media occurred during the usage of the product.
Attention!
Technical changes reserved without prior notice and printing errors possible.
IMPORTANT SAFEGUARDS AND WARNINGS

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
4
1. FOREWORD INFORMATION
1.1. Main characteristics
 Quadruplex: simultaneous recording, live monitoring, playback or backup and networking
 Linux-based operating system
 Real-time display
 1080p HDMI socket
 Recording speed up to 25 FPS per analog channel
 NDR-BA3208 - 1 video and audio channel for NOVUS IP 3000 series camera with recording
speed up to 25 fps for 1280x720 resolution. Supported resolution up to 1920x1080*
 NDR-BA3416 -2 video and audio channels for NOVUS IP 3000 series cameras with recording
speed up 50 fps for 1280x720 resolution. Supported resolution up to 1920x1080*
 H.264 compression
 Recording resolution: 1920 x 1080, 1280 x 720,960 x 576, 720 x 576, 720 x 288, 360 x 288
 Advanced schedule recording & motion detection functions
 Pre-alarm & post-alarm functions
 Audio recording
 PTZ control directly from the device or via the network
 Control protocols: N-Control, Pelco-D, Pelco-P and other
 Supports remote control by NV-KBD30, NV-KBD50 and NV-KBD70 keyboards
 Supports up to or 1 SATA HDD
 S.M.A.R.T function
 Backup onto USB Flash Memory through USB port & via the network
 Backup as *.AVI files
 Advanced search of recorded images (by time or event)
 Networking (live monitoring, playback, archiving & alarm event e-mail notification, changing
DVR’s settings via the IE browser)
 Dual stream; two independent network streams (SUBSTREAM and MASTERSTREAM) for
each channel
 Software: CMS application for remote administration, live monitoring and recorded data search,
NMS for live monitoring ,recorded data search and integration with NOVUS IP cameras.
B-Viewer application for remote administration, live monitoring and recorded data search
 User friendly, multi-lingual graphical user interface
 Mobile platforms supported
 Mask function
 Event log
 Snapshot function exporting current frame to the .jpg file
 Supports settings import/export
 IP addresses filtering function
 PC mouse control (in-set included)
 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included)
* Support for IP Camera is available for DVRs with firmware version 3.4.0
FOREWORD INFORMATION

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
5
1.2. NDR-BA3208 and NDR-BA3416 recorder’s technical data
* DVR is compatible with NOVUS IP 3000 series cameras.
** When more then one channel is in playback number of fps is reduced by half
FOREWORD INFORMATION
Model NDR-BA3208 NDR-BA3416
Operation Mode Quadrupleks
Operating
System Linux
Video Input
(Analog) 8 x BNC 16 x BNC
Network
cameras Up to 1 channel 1920x1080 (video + audio)* Up to 2 channels1920x1080 (video + audio)*
Video Output Main (split screen, full screen, sequence):
1 x BNC, 1 x VGA, 1 x HDMI
Audio Input 2
Audio Output 1
Analog
Recording speed
Up to : 100 fps (960 x 576)**
200 fps (720 x 576)**
200 fps (720 x 288)**
200 fps (360 x 288)**
Up to : 100 fps (960 x 576)**
100 fps (720 x 576)**
200 fps (720 x 288)**
400 fps (360 x 288)**
IP Recording
speed Up to : 12 fps (1920 x 1080) 25 fps (1280 x 720) Up to : 24 fps (1920 x 1080) 50 fps (1280 x 720)
IP Stream size Up to 12 Mb/s for the systemUp to 6 Mb/s for the system
Compression H.264
Recording
Resolution 360 x 288, 720 x 288, 720 x 576, 960 x 576, 1280 x 720, 1920 x 1080
Recording Mode Time-lapse, Motion detection, Schedule
Display Speed Up to 200 fps (real time) Up to 400 fps (real time)
Display Screen 1, 4, 6, 9, 1+5, 1+7, sequence, digital zoom
of a selected screen area: 4x 1, 4, 6, 8, 18, 1+5, 1+7, 1+12, sequence, digital zoom of a selected screen area: 4x
Motion Detection 22 x 15 grid, with sensitivity defined individually for each channel
Video Loss
Detection Yes
Schedule
Recording individual settings for: each day, each camera, possibility of combining individual recording modes
Recorded Data
Search By date/time, events (Alarm, Motion detection)
Event History
Log Yes
Time
Synchronization Automatic time synchronization with NTP server
HDD Supports 1 HDD SATA
Backup HDD or USB Flash Memory through USB port, through the network
External Ports 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s, 2 x USB 2.0 - for Flash Memory and PC mouse,
1 x RS-485 - for PTZ cameras or PTZ keyboard
PTZ Control Directly from the device or via the network
Protocol N-Control, Pelco-D, Pelco-P and others
Control Front panel, NV-KBD30, NV-KBD50 and NV-KBD70 keyboards,IR remote control, Network ,
USB PC mouse (included)
Menu Multi-lingual On Screen Display (OSD)
Software CMS,B-viewer, Internet Explorer, SuperLivePro (iPhone, Android),
SuperLiveHD (iPhone, Android)
User
Authorization Creation of user accounts with varying privileges, password protection
Power Supply 12 VDC (100~240 VAC/12 VDC PSU in-set included)
Power
Consumption max. 25 W with HDD
Operating
Temperature 0°C ~ 50°C
Relative
Humidity 10% ~ 90% (non-condensing)
Dimensions
(mm) 300 (W) x 65 (H) x 270 (D)
Weight 2 kg (without HDD)

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
6
1.3. Package contents
Unpack the device carefully. After unpacking, please ensure that package contains the following items:
If any of the elements has been damaged during transport, pack all the elements back into the original
packaging and contact your supplier.
WARNING!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning on the device immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
Mouse
Short user’s
manual
Power supply
12VDC
Screws
FOREWORD INFORMATION
Power cord
HDD SATA
cable
CD with a full version of user’s
manual and software tools
NDR-BA3208 DVR
NDR-BA3416 DVR

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
7
2. STARTING THE DEVICE
2.1. Electrical connection and other rear panel elements of NDR-BA3208 DVR
1. AUDIO IN: Audio (mono) inputs for connecting microphones with pre-amplifiers
2. VIDEO IN: 8 video inputs for connecting video signal sources to the DVR.
3. AUDIO OUT: Audio out port for connecting local speaker with pre-amplifier.
4. VIDEO OUT: Main monitor connector.
5. VGA: Main monitor connector, VGA type. Please use signal cable provided with
the monitor when using aforementioned connection type.
6. HDMI MONITOR: Main monitor connectors, use the HDMI cable to connect to a 1080p 60Hz
(1920x1080) monitor.
7. LAN: RJ-45 connector port for connecting to the local network and internet.
8. USB: USB 2.0 port for external Flash memory and mouse connection.
9. DC12V: 12V DC power socket for connecting included power adaptor.
10. RS-485: RS-485 bus port for connecting external keyboard or PTZ cameras
(K/D: A+, B-)
Note:
OSD menu will be displayed on the VGA monitor by default. To switch the OSD display from VGA to
HDMI or BNC, please press and hold the ESC button for 5sec.
STARTING THE DEVICE
1 2 3 4 5 6 7 8 9 10

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
8
STARTING THE DEVICE
14
2.2. Electrical connection and other rear panel elements of NDR-BA3416 DVR.
1. RS-485: RS-485 bus port for connecting external keyboard or PTZ cameras
(K/D: A+, B-) .
2. AUDIO IN: Audio (mono) inputs for connecting microphones with pre-amplifiers.
3. VIDEO IN: 16 video inputs for connecting video signal sources to the DVR.
4. HDMI MONITOR: Main monitor connectors, use the HDMI cable to connect to a 1080p 60Hz
(1920x1080) monitor.
5. VGA: Main monitor connector, VGA type. Please use signal cable provided with
the monitor when using aforementioned connection type.
6. LAN: RJ-45 connector port for connecting to the local network and internet.
7. USB: USB 2.0 port for external Flash memory and mouse connection.
8. DC12V: 12V DC power socket for connecting included power adaptor.
9. AUDIO OUT: Audio out port for connecting local speaker with pre-amplifier.
10. VIDEO OUT: Main monitor connector.
11. POWER SWITCH: DVR power switch.
Note:
OSD menu will be displayed on the VGA monitor by default. To switch the OSD display from VGA to
HDMI or BNC, please press and hold the ESC button for 5sec.
2 3 4 5 61 7 8
9 10 11

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
9
STARTING THE DEVICE
14
2.3. Network wiring
Although connection DVR to one IP camera with straight Ethernet cable is possible we strongly advise
to use additional network switch. By using Ethernet cables connect the cameras and NVR to the
switch, like on image below. Please notice that the Ethernet connection is effective within 100 meter
distance.

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
10
2.4. HDD mounting
NDR-BA3208 and NDR-BA3416 support up to 1 internal SATA HDD.
WARNING!
In order to find information regarding the compatible models of HDDs and their maximum
capacities, please contact Novus distributor or check the information presented at
www.novuscctv.com. AAT HOLDING Company is not responsible for any problems resulting
from using not recommended hard drives.
The list of compatible HDDs contains all the HDDs that can be used with a given DVR including
HDDs designed for office use - so called desktop disks. However, due to the fact that reliability of
the recording process and data safety are paramount factors of any CCTV system, we strongly
advise to use HDDs designed for continuous (24/7) operation.
In order to mount HDD, please unscrew the screws as depicted below, then please remove the DVR's
cover first by sliding into the rear-end and then lifting it.
WARNING!
Prior to removing cover of the DVR please unplug the power cord first! If the DVR is powered
up, please shutdown the DVR's system using LOGOUT & SHUTDOWN menu, prior to
unplugging the power.
STARTING THE DEVICE

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
11
After removing top cover of the DVR, please mount the HDD to the DVR bottom using included
screws (4 pieces for each HDD), and connect power and signal cables.
After connecting an HDD(s), please put the top cover onto the DVR and turn the device on in order to
check the operation of particular components and to format the HDDs.
WARNING!
You need to format disks if they were used in a different device. All data saved on HDD prior to
format will be lost. Mounted HDDs should be the same model.
STARTING THE DEVICE

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
12

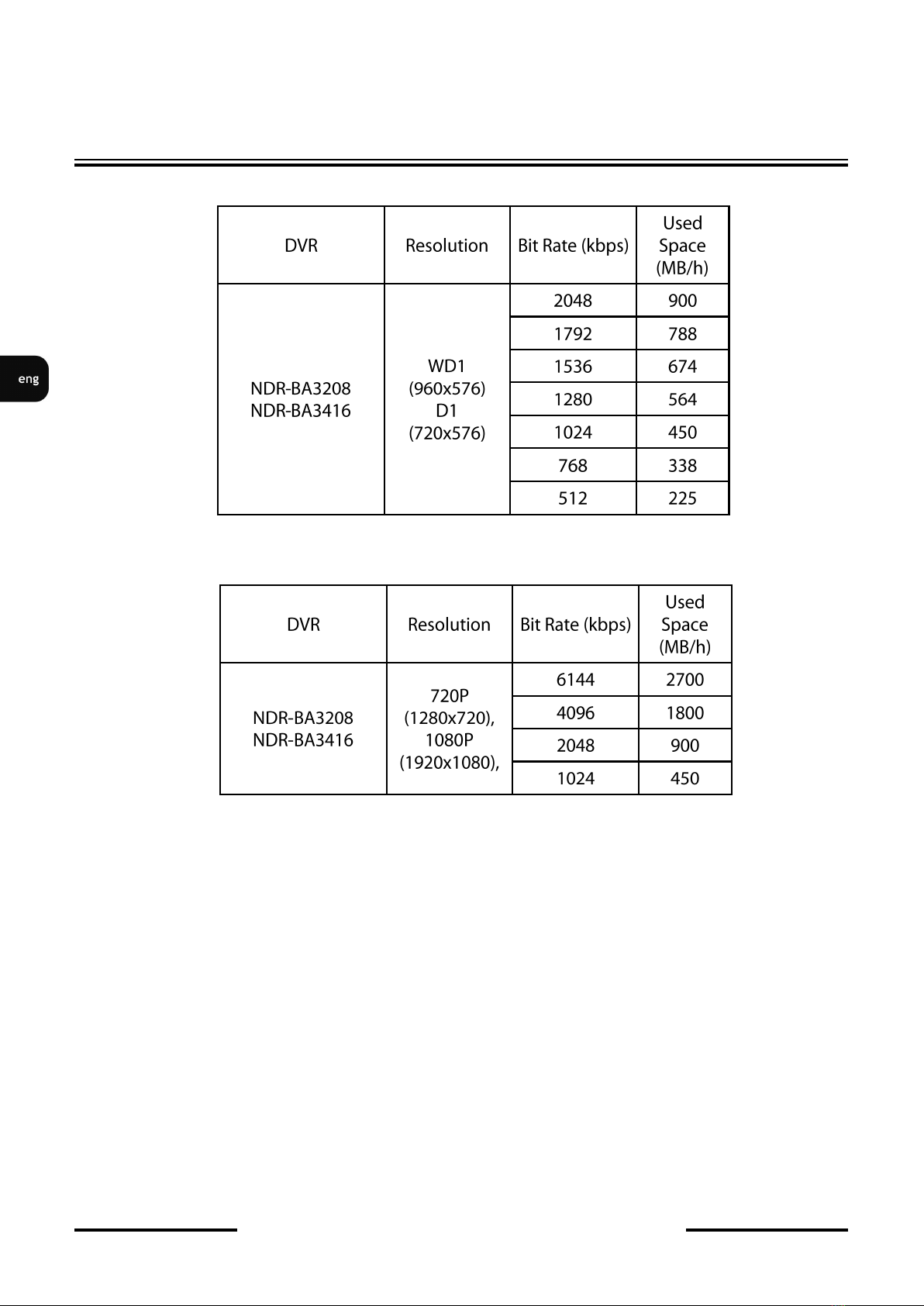

Analog cameras recording capacity table:
The size of the IP camera recording depends on the size of the bitrate set in the camera. The table
below shows an example of bitrate for IP cameras
“Total Recording capacity” = “Used space per hour (MB/h)” × “recording time” × “channel numbers”
For instance: computing space for 4 x cameras that are to record in WD1 with Lowest video quality,
and 1 x 720P IP camera with bitrate set to 1024 kbps and 30-day recording capacity requires the
calculation below:
Total Recoding capacity =338 (MB/h) X 24(hours/day) X30(days) X4(channels) + 450 (MB/h) X 24
(hours/day) X30(days) = 648000MB + 324000 MB = 972000 ~ 980 GB
2.4. Turning on the power
Connect power cord to the DVR to start the unit. Initialization lasts for approximately 60 seconds.
During this time executing any device functions and pressing any buttons is prohibited. To shut the
device down please use its menu.
Note:
OSD menu will be displayed on the VGA monitor default. To switch the OSD display from BNC to
VGA, please press and hold the ESC button.
STARTING THE DEVICE

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
13
3. RECORDER’S OPERATION
3.1. Front panel description
1. REC pressing the REC button starts recoding of all camera channels. Enabling panic
starts simultaneous recording on all camera channels.
In PTZ control mode button is used for FOCUS adjustment.
2. PLAY / PAUSE pressing the PLAY during “live” mode enters playback mode. Subsequent
pressing pauses the playback.
In PTZ control mode button is used for IRIS adjustment.
3. REW Consecutive presses in playback mode switch playback speed between RWx8,
RWx16, RWx32, FFx1.
4. FF Consecutive presses in playback mode switch playback speed between FFx1,
FFx2, FFx4, FFx8, FFx16, FFx1/4, FFx1/2.
In PTZ control mode button is used for SPEED adjustment.
5. MENU pressing the MENU button enters recorder’s settings menu (after correct login).
Menu functions are detailed in the following chapters of this manual.
In PTZ control mode button is used to increase value of a particular field.
6. BACKUP pressing the button allows you to enter the backup menu.
In PTZ control mode button is used to decrease value.
7. ESC / STOP Pressing the button either exits menu or moves to a higher-level menu. When
pressed during playback, leaves playback mode. Holding the ESC switches
OSD menu displaying between VGA and BNC outputs.
8. NAVIGATION BUTTONS: navigate through DVR menu and change values of particular
parameters
9. USB USB 2.0 port for backing up the recordings either to external HDDs or Flash
drives. Length of connecting cable should not exceed 30 cm;
10. LED: LEDs indicating DVR’s status:
- Power - power supply indicator - Net - network operation
- HDD - HDD operation indicator - Play - playback
- Backup - archiving data - REC - recording
11. IR DETECTOR IR remote controller receiver. Do not cover.
RECORDER’S OPERATION
11
10
1 3 2 4 5 6 7
9 8

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
14
3.2. Controlling via USB mouse
DVR features the possibility of controlling the DVR using an USB mouse connected to the USB port.
Functions described below are available in „live” mode.
Double-clicking on any camera in 2x2, 3x3 and similar display modes switches the display to full-
screen mode. Subsequent double-click returns to previous display mode.
During configuration, selection of particular options is performed via the left mouse button.
Depending on DVR operating mode, pressing right mouse button hides current menu or returns to
previous menu.
3.3. Controlling via IR remote controller
An IR remote controller NV-RCDVRB-II remote controller can be bought separately as accessory for
NDR-BA3208 and NDR-BA3416 DVRs. Range is dependent on the battery level and varies from a
few to a few tens of meters.
Description of IR remote controller function:
RECORDER’S OPERATION
REC Enable manual records
SEARCH Starts search
MENU DVR menu
EXIT Exit current interface
ENTER Confirm the choise or setup
◄►▲▼ Navigates around the DVR menu or controls
PTZ camera movements
ZOOM Digital zoom of image
PIP Starts picture in picture mode
Play/Pause/Stop/Previous
Section/Next Section/Rewind/Fast Forward
MULTI Changes display mode.
NEXT Swith to next split screen mode
SEQ Starts sequence display
INFO Displays information menu

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
15
4. RECORDER’S MENU
DVR features multi-layered, on-screen displayed menu used for setting the device up.
Multi-lingual OSD is displayed using one of the following languages: English, Polish, Spanish,
Slovak, Czech, Turkish, Dutch, Russian, Italian, French, Greek and other.
In order to access the DVR settings menu, please press the MENU button or select MENU from
additional menu called by pressing the right mouse button..
4.1. Startup wizard
Prior to using DVR for the first time, initial setup is strongly advised. That includes setting parameters
such as time and date, language version, camera, audio, remote control, record mode, network and
password.
A wizard is displayed after device start-up, in order to facilitate setup:
Navigate around the menu using arrow buttons or USB mouse.
To confirm your choice, to enter sub-menus and edit value fields use ENTER button or left mouse
click.
To leave setup mode or to leave sub-menus/value editing use the EXIT button or right mouse click.
Click the Exit button or press the ESC button on the front panel to escape from a start up menu

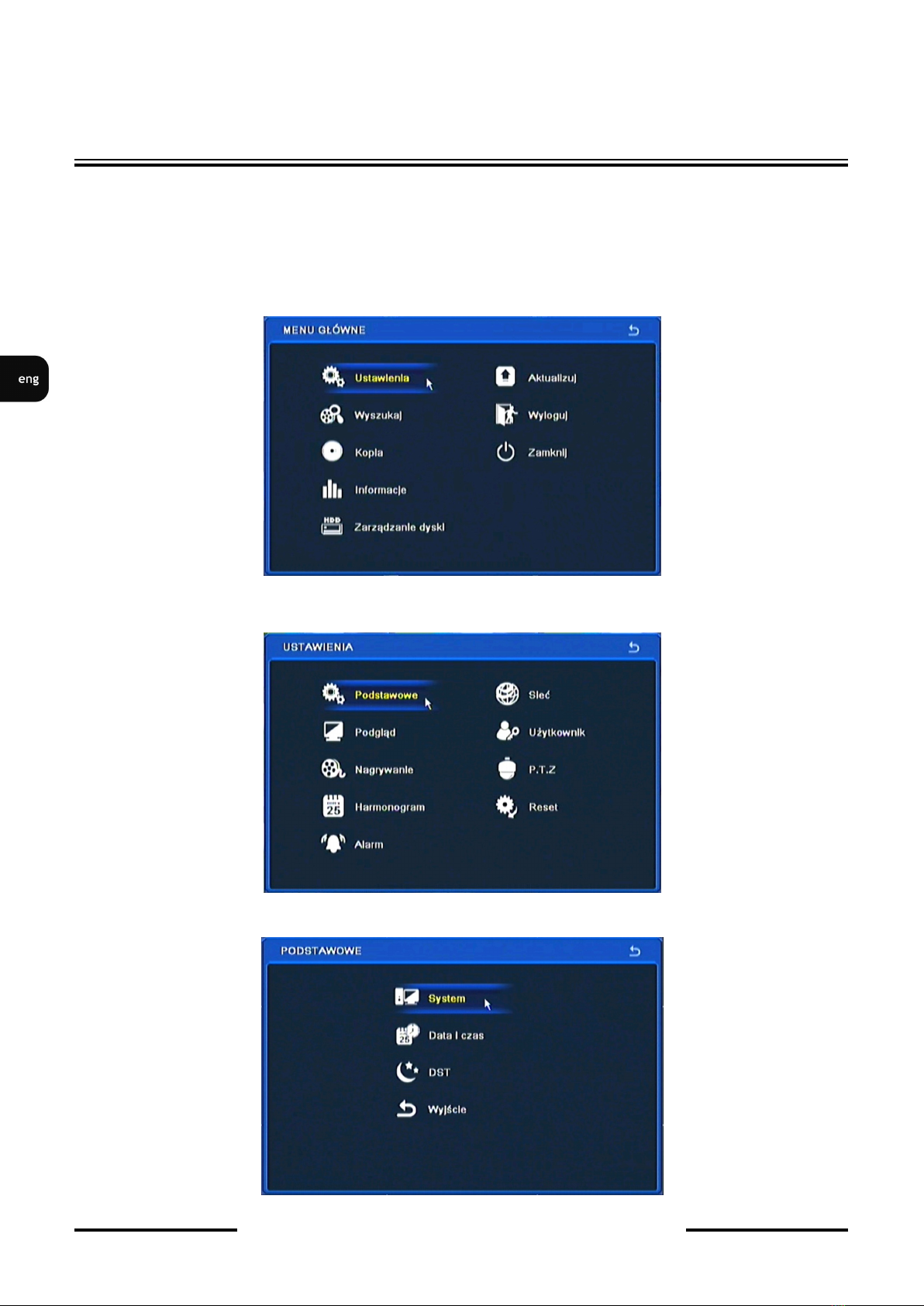

wizard. Go to MAIN MENU / SETUP / BASIC / SYSTEM menu and check off Startup Wizard if you
don't want to show the wizard menu next time system is loaded.
Setting Device, Language, Date time format, Time Zone and Date and Time other settings. Click Next
button to display the next setup window.
RECORDER’S MENU

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
16
This window allows user to configure network settings such as; HTTP Port, Server Port, IP Address,
Subnet Mask, Gateway, Preferred and Alternate DDNS Server. Alternatively, select the Obtain an IP
address automatically to get address from DHCP Server.
Click the Next button to display next setup window, depicted below:
In this window you can setup recording Resolution for all channels (WD1 / D1 / HD1(2 CIF) / CIF
resolutions available), recording speed (FPS) and Quality for each channel separately.
Remaining FPS displayed below informs about available framerate.
After setup, click the NEXT button to go to next setup window.
Note:
In NDR-BA3208 and NDR-BA3416 for WD1 (960 x 576)recording you have to check 960H MODE
checkbox in MAIN MENU/ SETUP/BASIC/SYSTEM
RECORDER’S MENU

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
17
For proper recorder operation, please format the installed HDD using this window.
Additional information like HDD Size, Free space etc. are also available here.
When HDD formatting is complete, click the Finish button to end setup wizard and open the LOGIN
window.
4.2. Menu operating
To navigate or access DVR menus, you should log in first. The Login screen, depicted below,
appears:
Type in the username and password by pressing the appropriate combination of channel number
buttons or using a mouse and the virtual keyboard, then confirm it with LOGIN button.
Default password of admin account is 123456. For safety reasons, it is recommended to change
default user name and password.
Press the Cancel button to exit the LOGIN window. Cameras are then displayed on the screen but no
access to the DVR setup menu is given.
RECORDER’S MENU

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
18
To disable LOGIN window display during next start-up, please go to the MAIN MENU / BASIC /
SYSTEM and check off the Password Check.
To prevent unauthorized access, it is recommended to log out when you leave the screen. In the
monitoring screen, click MENU in the bottom left corner and select LOG OFF.
To shutdown DVR you should click MENU in the bottom left corner of the screen and press
SHUTDOWN, or press the POWER button on the remote control.
Detailed information about configuration of recorders available in full version of user's manual
located on the attached CD-ROM and at the www.novuscctv.com website
Note:
If you turn off the system in an abnormal manner such as removing the power cord while the system
is in operation, the disk may acquire or increase the numbers of bad sectors, causing data loss and
shortened life cycle of the disk.

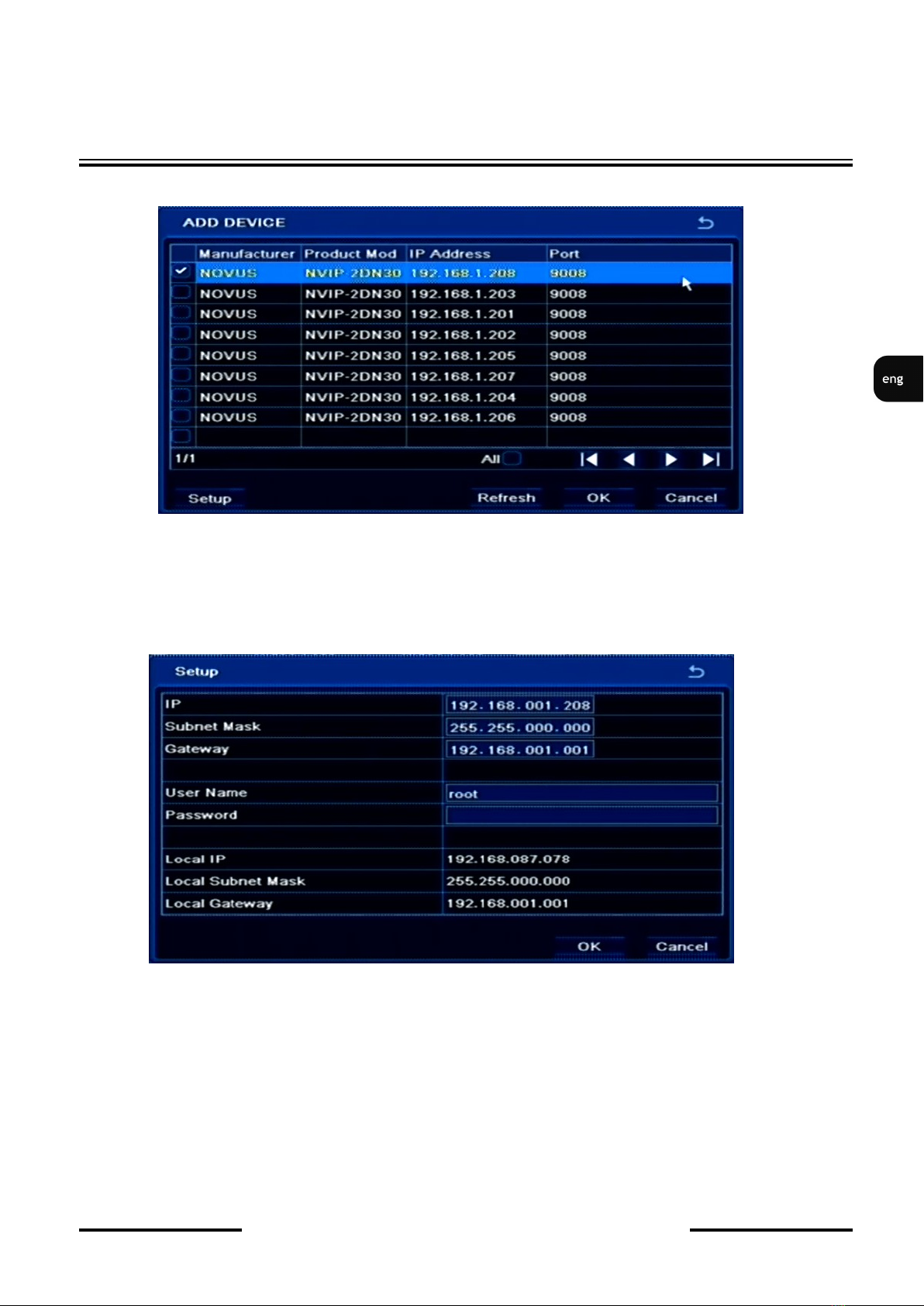

4.3 Configuring IP camera channel
It’s strongly advisable to configure IP camera with PC computer and check DVR network
configuration before connecting camera to DVR.
To configure IP address for DVR select MAIN MENU / SETUP / NETWORK / NETWORK
If you are using DHCP sever for IP address management select OBTAIN IP ADDRESS
AUTMATICALY check box. If you are not using dhcp server uncheck this box
To configure IP settings manually you use the following fields.
 IP Address - to set DVR IP address ( by default 192.168.1.100)
 Subnet mask - to set IP subnet mask (by default 255.255.255.0)
 Gateway - to set gateway (by default 192.168.1.1) - not needed if DVR and camera are in the
same IP network
Press APPLY button to save the settings.
Note :
Before configuring IP camera channel make sure that DVR and IP cameras addresses and subnet
mask of the DVR and the IP cameras are in the same network
subnet (e.g. for the NVR IP address 192.168.1.100, and mask 255.255.255.0 appropriate address for
the camera ranges from 192.168.1.1 to 192.168.1.254, for example 192.168.1.201). It is not allowed
to set the same addresses for multiple devices
RECORDER’S MENU

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
19
To configure IP camera channel please go to MAIN MENU / IP CAMERA and click SEARCH button.
DVR will display list of found cameras. To add camera select checkbox next to desired camera and
press OK button. Then you should provide valid username and password to for camera. Highlight
camera by clicking left muse button on camera on the list and press SETUP button.
Fill in User Name and Password fields with valid values ( default user name / password for NOVUS
IP cameras is root / pass ) and press OK button.
After providing username and password press APPLY button to save settings for IP cannels.
To delete unwanted channel configuration highlight camera on list using left muse button and press
DELATE button.
You can leave DEVICE MANGMENT menu with EXIT button . DVR will ask to save configuration
changes. Press OK if you want to save configuration.
Note :
More detailed information about DVR configuration is available in full version of the manual at
www.novuscctv.com .
RECORDER’S MENU

NDR-BA3208,NDR-BA3416
User’s manual ver.1.1 (short)
All rights reserved © AAT Holding sp. z o.o.
20
4.4. Setting English language.
The procedure presented below shows how to go back to the English language in the NOVUS DVRs
menu in case of selecting any other language by mistake.
1. To open main menu press the MENU button on the DVR’s front panel, and select the first
position.
2. Next, select the first position.
3. Next, select the first position again.
RECORDER’S MENU
