Novus NVIP-2DN3030H/IR-1P-II User manual

U ser’s manual
( short form)
NVIP-2DN3030H/IR-1P-II

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
2
IMPORTANT SAFEGUARDS AND WARNINGS
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with requirements of the following directives and
national regulations implementing the directives:
Electromagnetic compatibility EMC 2004/108/EC.
Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical equipment
designed for use with a voltage rating of between 50VAC and 1000VAC as well as 75VDC and
1500VDC.
WEEE Directive 2012/19/EU
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European 1000VAC Directive on Waste Electrical
and Electronic Equipment (2012/19/EU) and further amendments. By ensuring this product is
disposed of correctly, you will help to prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. It shall be handed over to the applicable collection point for
used up electrical and electronic equipment for recycling purpose. For more information about
recycling of this product, please contact your local authorities, your household waste disposal service
or the shop where you purchased the product.
RoHS Directive 2011/65/EU
Out of concern for human health protection and friendly environment, we assure that our
products falling under RoHS Directive regulations, regarding the restriction of the use of
hazardous substances in electrical and electronic equipment, have been designed and
manufactured in compliance with the above mentioned regulations. Simultaneously, we
claim that our products have been tested and do not contain hazardous substances whose
exceeding limits could have negative impact on human health or natural environment
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damaging data on a disk or other devices:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other
devices during device operation.
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING
THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
3
IMPORTANT SAFEGUARDS AND WARNINGS
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO
USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE
PERSONNEL MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary.
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual.
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden.
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,
bath tubs, damp basements).
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)
is not recommended since it may lead to heat build-up and damaging the device itself as a
consequence.
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to
supply the camera from a power sources with unknown parameters, unstable or not meeting
producer’s requirements.
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual.

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
4
TABLE OF CONTENTS.................................................................................................4
1. FOREWORD INFORMATION..................................................................................5
1.1. General characteristics .....................................................................................5
1.2. Technical specification ....................................................................................6
1.3. Camera dimension ...........................................................................................7
1.4. Package contents..............................................................................................7
2. START-UP AND INITIAL IP CAMERA CONFIGURATION ................................8

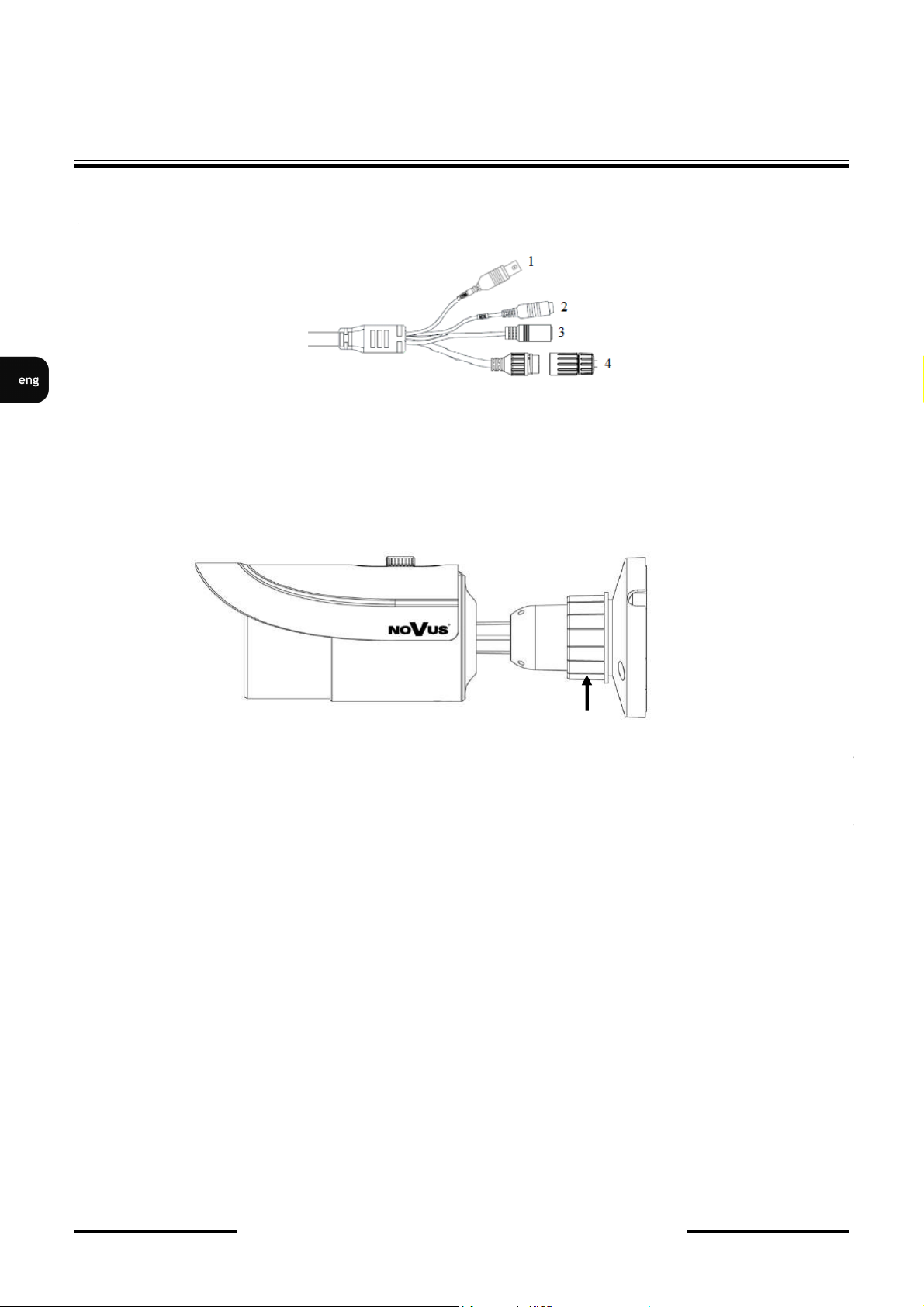

2.1. Description of connectors and control tools......................................................8
2.2. Cameras mounting ...........................................................................................9
2.3. Desiccant mounting guide ..............................................................................10
2.4. Starting the IP camera ....................................................................................10
2.5. Initial configuration via the web browser........................................................12
3. NETWORK CONNECTION UTILIZING WEB BROSWER ...............................13
3.1. Recommended PC specification for web browser............................................13

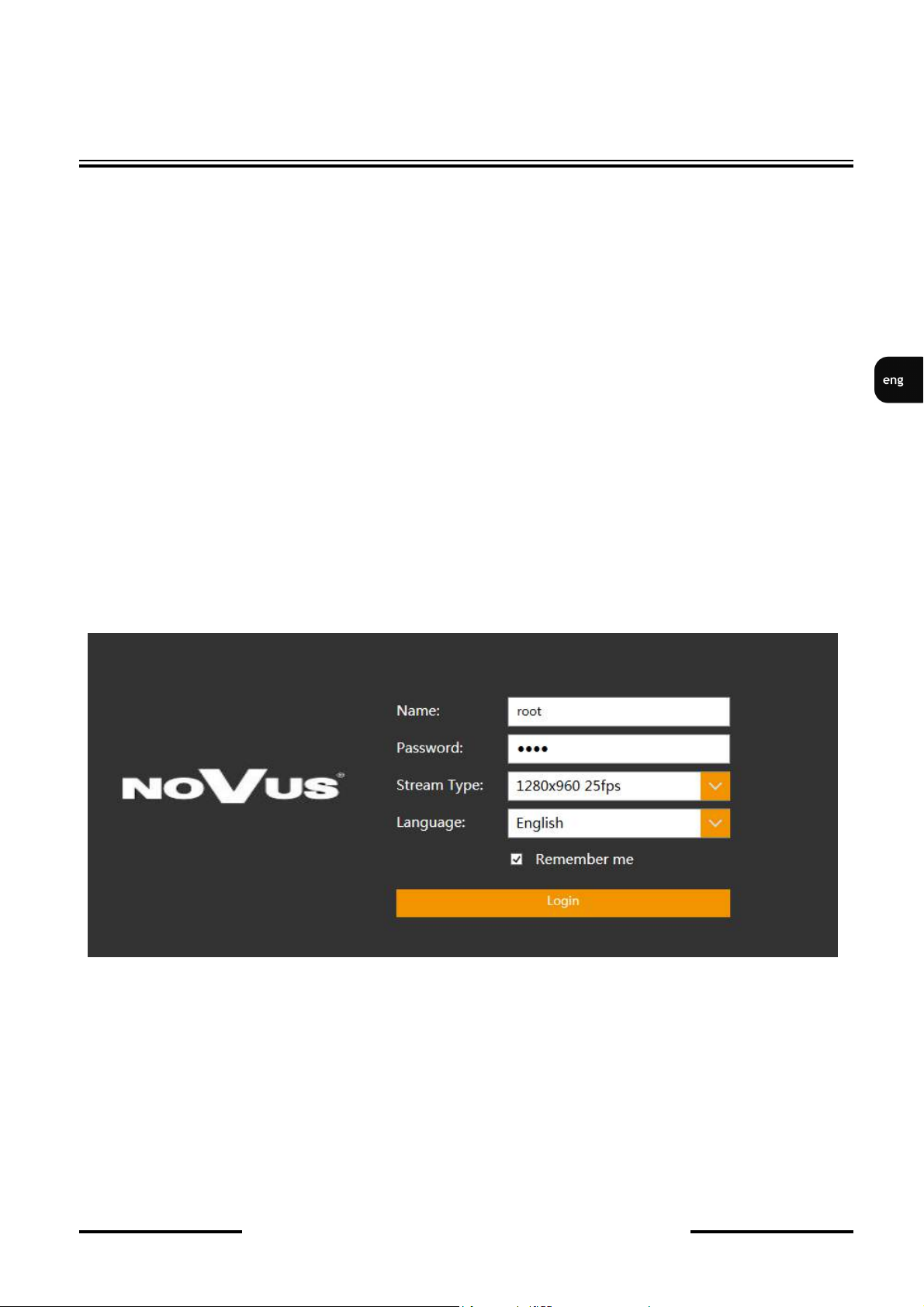

3.2. Connection with IP camera via web browser...................................................13
4. USING AND CONFIGURING..................................................................................15

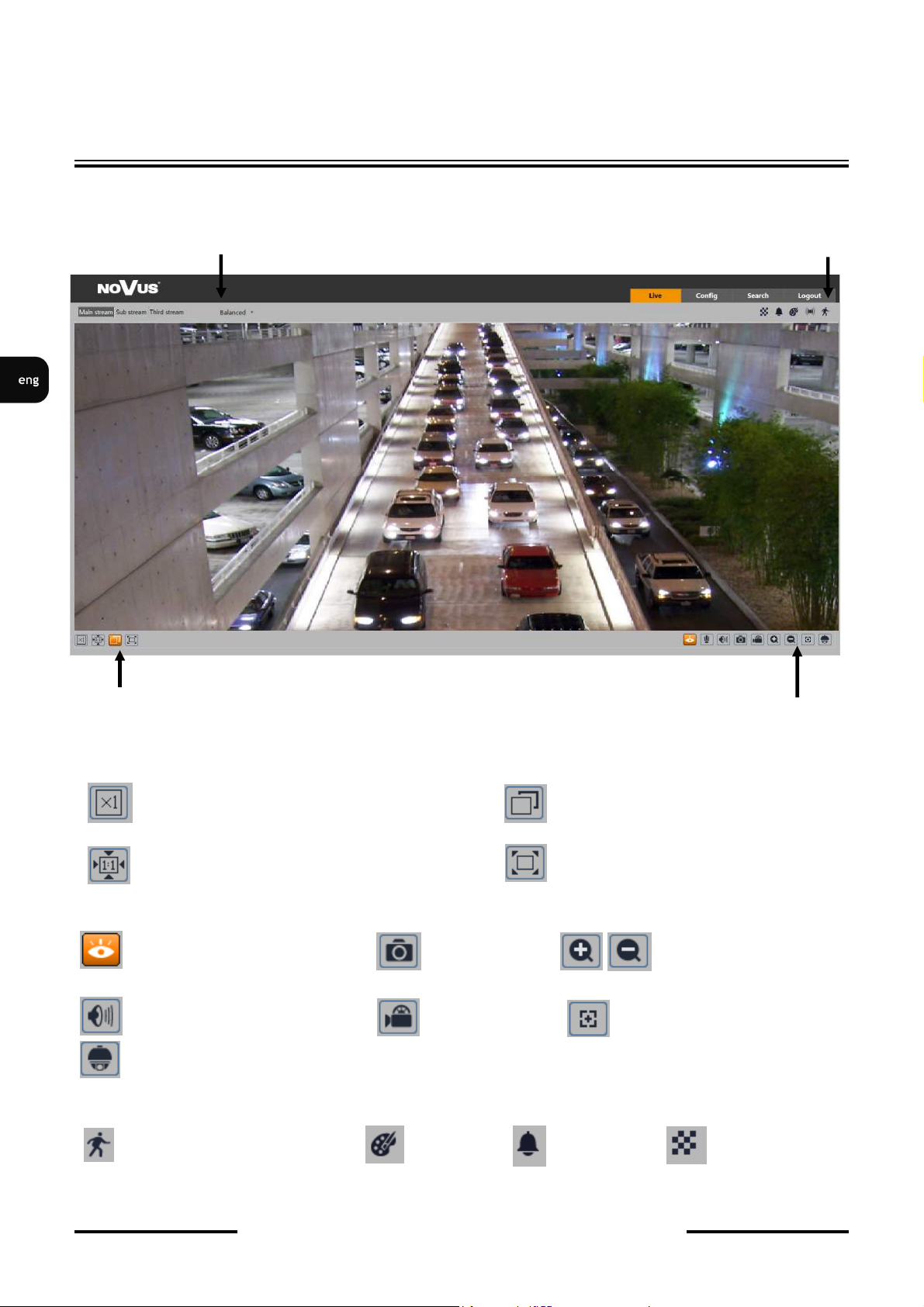

4.1. Displaying live pictures...................................................................................15
5. ELECTRIC CONNECTORS AND ACCESORIES ...............................................16

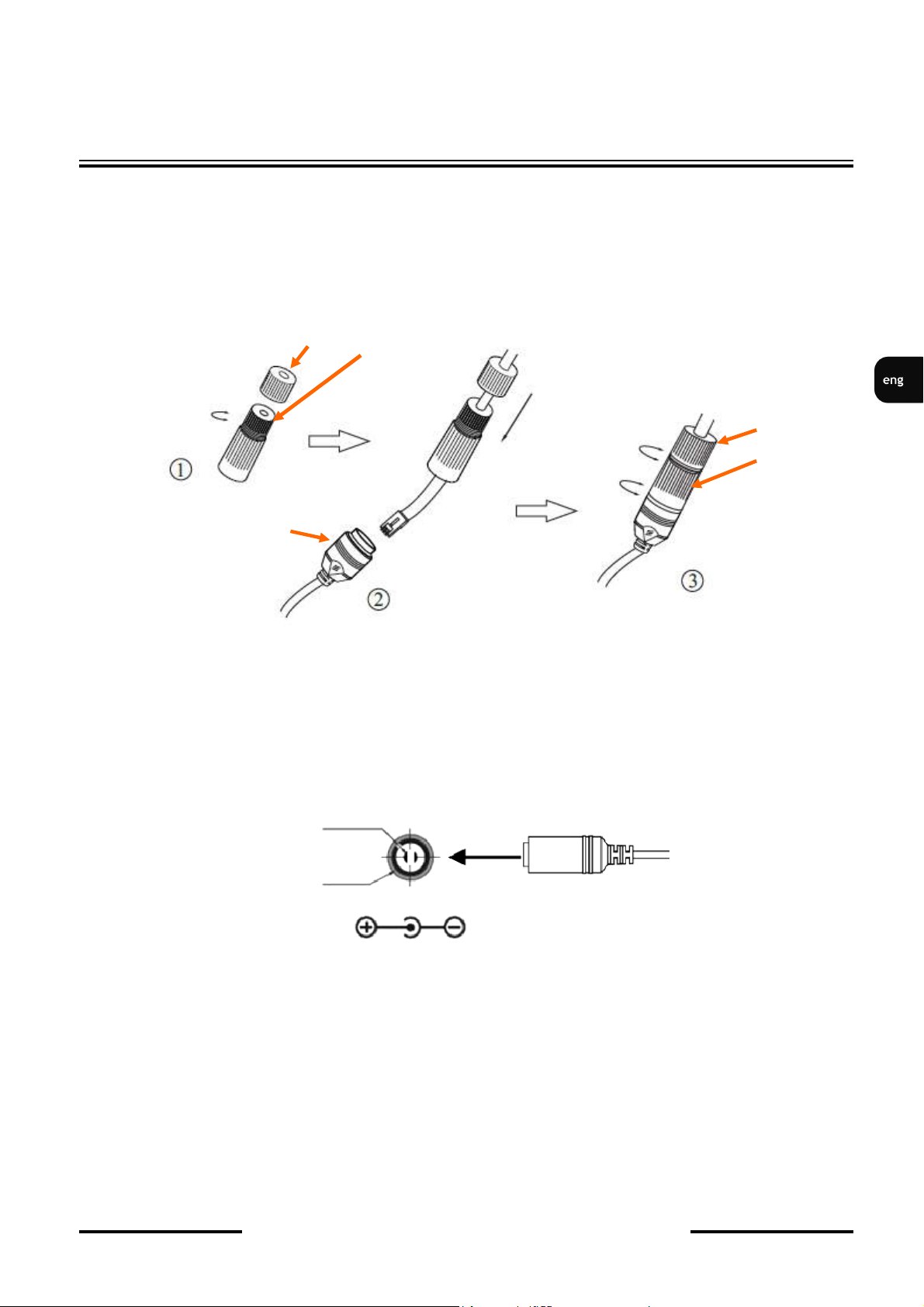

5.1. Connecting power supply to the camera. ........................................................16
5.2. Connecting audio input ..................................................................................16
6. RESTORING FACTORY DEFAULTS ..................................................................17
6.1. Restoring software factory defaults .................................................................17
6.2. Restoring hardware factory defaults in IP cameras .........................................17
TABLE OF CONTENTS

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
5
1. FOREWORD INFORMATION
1.1. General Characteristics
 Imager resolution: 2 megapixels
 Mechanical IR cut filter, IR operation capability
 Min. Illumination from 0 lx with IR LED on
 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions
 Digital Noise Reduction (DNR)
Lens type: varifocal, f=2.8 mm/F=1.6
 Built-in LED illuminator: 36 pcs LED
 Compression: H.264, H.265/ MJPEG
 Max video processing resolution: 1920 x 1080
 Multi streaming: compression, resolution, speed and quality defined individually for each video
stream
 ROI functions
 Private Zones
 RTSP protocol support for video transmission
 Post-alarm functions
 Audio input
 BNC output
 Built-in webserver: camera configuration through the website
 Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server
 Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,
playback and remote IP devices administration
 Video Content Analysis (VCA):
Exception
Line Crossing
Intrusion
 Power supply: 12VDC, PoE (Power over Ethernet)
FOREWORD INFORMATION

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
6
1.2. Technical specification
FOREWORD INFORMATION
Image Sensor 2 MPX CMOS sensor 1/2.7” APTINA
Number of Effective Pixels 1920 (H) x 1080 (V)
Min. Illumination 0.09 lx/F1.6 - color mode,
0 lx (IR on) - B/W mode
Electronic Shutter auto: 1/25 s ~ 1/100000 s
Wide Dynamic Range (WDR) yes (double scan sensor), 120dB
Digital Noise Reduction (DNR) 3D
Lens
Lens Type standard, f=2.8 mm/F1.6
Day/Night
Switching Type mechanical IR cut filter
Switching Mode auto, manual, time
Switching Level Adjustment yes
Switching Schedule yes
Visible Light Sensor yes
Network
Stream Resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)
Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resolutions
Multistreaming Mode 3 streams
Video/Audio Compression H.264, H.265, MJPEG/G.711
Number of Simultaneous Connections max. 4
Bandwidth 9 Mb/s in total
Network Protocols Support HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP
ONVIF Protocol Support Profile S (ONVIF 2.3)
Camera Configuration from Internet Explorer, Firefox, Chrome, Opera browser
languages: Polish, English, Russian, and others
Compatible Software NMS
Other functions
Privacy Zones 4
Motion Detection yes
Region of interest (ROI) 4
Video Content Analysis (VCA) tamper, line cross, zone entrance
Image Processing 90˚ image rotation, 180˚ image rotation, sharpening, mirror effect
Prealarm/Postalarm -/up to 120 s
System Reaction to Alarm Events e-mail with attachment, saving file on FTP server
IR LED
LED Number 36
Range 30 m
Angle 90°
Interfaces
Video Output BNC, 1.0 Vp-p, 75 Ohm - maintenance only
Audio Input/Output 1 x Jack (3.5 mm)/-
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Installation parameters
Dimensions (mm) with bracket: 87 (Ф) x 219 (L)
Weight 0.6 kg
Degree of Protection IP 66 (details in the user’s manual)
Enclosure aluminium, white, fully cable managed wall mount bracket in-set included
Power Supply PoE, 12 VDC
Power Consumption 3 W, 5 W (IR on)
Operating Temperature -20°C ~ 50°C

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
7
FOREWORD INFORMATION

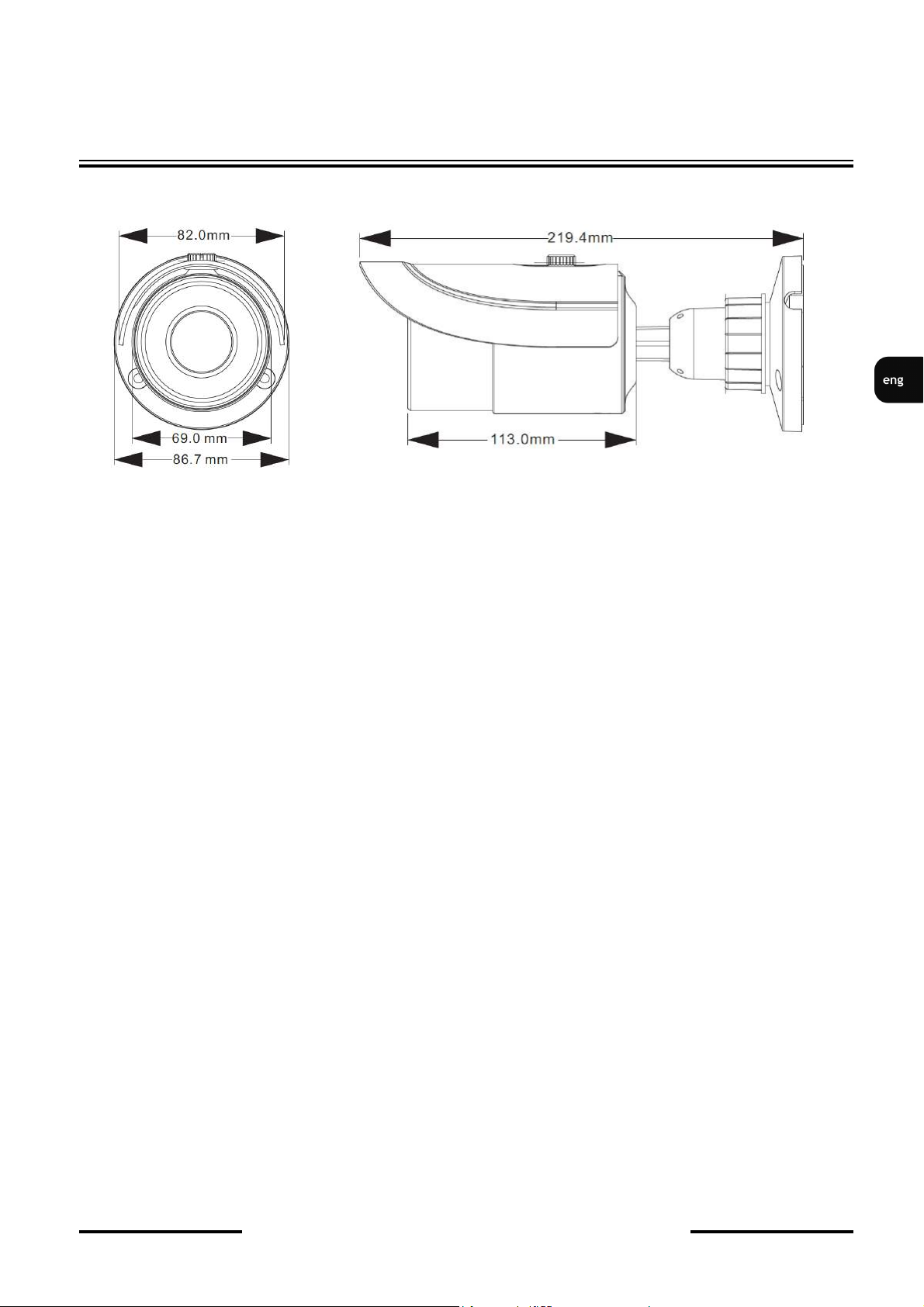

1.3. Camera dimensions
1.4. Package contents
After you open the package make sure that the following elements are inside:
 IP camera
 Accessories bag
 Short version of user’s manual
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches
the temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
8
1.4. Package contents
After you open the package make sure that the following elements are inside:
 IP camera
 230 VAC / 12 VDC power supply
 Accessories bag
 Short version of user’s manual
 CD containing manual and software
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
CAUTION!
If the device was brought from a location with lower temperature, please wait until it reaches the
temperature of location it is currently in. Turning the device on immediately after bringing it
from a location with lower ambient temperature is forbidden, as the condensing water vapour
may cause short-circuits and damage the device as a result.
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2. START-UP AND INITIAL CAMERA CONFIGURATION
2.1 Description of connectors and control tools
1. BNC output
2. Audio input
3. Power supply 12VDC
4. 100 Mb/s Ethernet port (RJ-45 hermetic connector)
2.2. Cameras mounting
To mount a camera please follow the instructions below:
 Put the bracket to the wall in a desired mounting place (with cable hole). Taking the bracket’s
base screw holes as a pattern, mark future drilling holes for screws using a punch.
 Drill holes in accordance with previously done markings and base hole placement.
 Mount the camera with bracket on the ceiling/wall with three supplied self tapping screws.
 Loosen nut “A”.
 Adjust camera position.
 Power camera and adjust zoom and focus.
 Tighten nut “A”.
CAUTION!!!
The declared degree of protection of the camera relates to its housing and does not take into
account the possibility of moisture infiltration into the interior of the camera by connecting
cables. Connection cables protection through i.e. sealing up is the responsibility of the camera
installer. The manufacturer is not liable for any damages to the camera caused as a result of
failing in performing that activity by installer, which also means that camera damaged in that
way is not subject to warranty repairs
START-UP AND INITIAL CAMERA CONFIGURATION
A

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
9
2.3. Connecting ethernet cable
To maintain tightness of ethernet cable connection, please follow instruction below:
1. Loosen the nut (a) from the main element (b).
2. Run power cable (without RJ-45 connector) though both elements. Then crimp the cable with RJ-45
connector.
3. Connect the cable to the hermetic connector (c), screw main cover (b), then screw the nut (a).
WARNING! 12VDC power connector is not hermetic. User should seal power connector by himself.
2.4. Connecting power supply to the camera.
Camera can be supplied using external power supply unit corresponding with the camera parameters or
by using RJ45 network socket and PoE (802.3at Type 1 ) power supply unit.
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user’s
manual.
CAUTION:
Do not use power supplies and POE adapters not compatible with IEEE 802.3af standard!
Damage resulting from the use of improper power supply is not covered under warranty!
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
START-UP AND INITIAL CAMERA CONFIGURATION
a b
a
b
c
12 VDC +
12 VDC -
Camera 12 VDC power supply

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
10
2.5. Starting the IP camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network switch.
To power it up you can connect it directly via power supply adapter with parameters compatible with
camera power supply specification, or camera can be powered with PoE (IEEE 802.3af ) compatible
switch.
After connecting power supply it takes about 30 seconds to start camera. Then You can proceed to
connect to the camera via web browser.
The recommended way to start an IP camera and perform its configuration is a connection directly
to the network switch which is not connected to other devices. To obtain further information about
network configuration parameters (IP address, gateway, network mask, etc.) please contact your
network administrator.

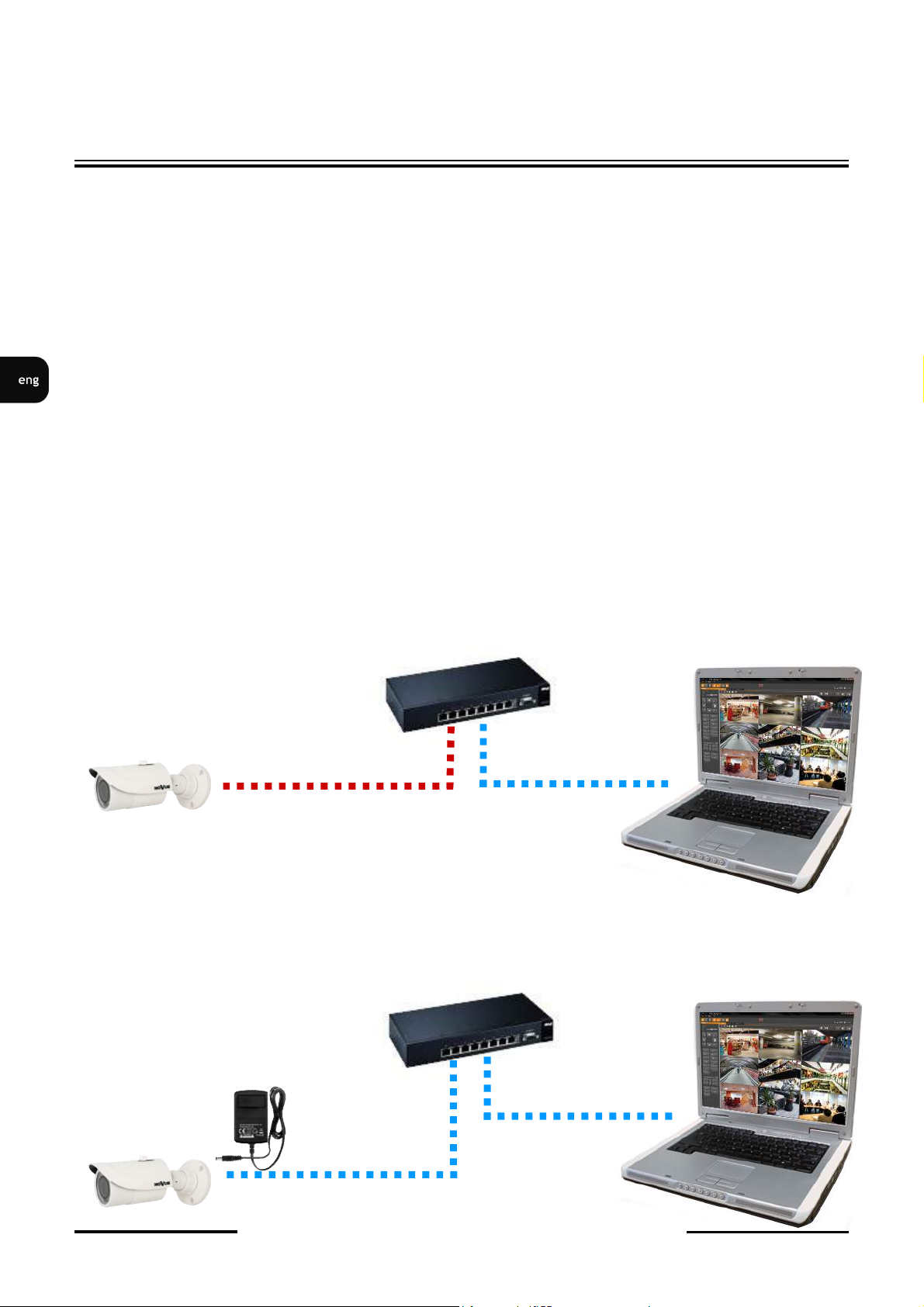

 Connection utilising network switch with PoE support
 Connection utilising external power supply and network switch
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission
Network Switch Computer
Network transmission
Power supply and
network transmission
Computer
IP Camera
Network Switch
PoE
Network transmission

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
11

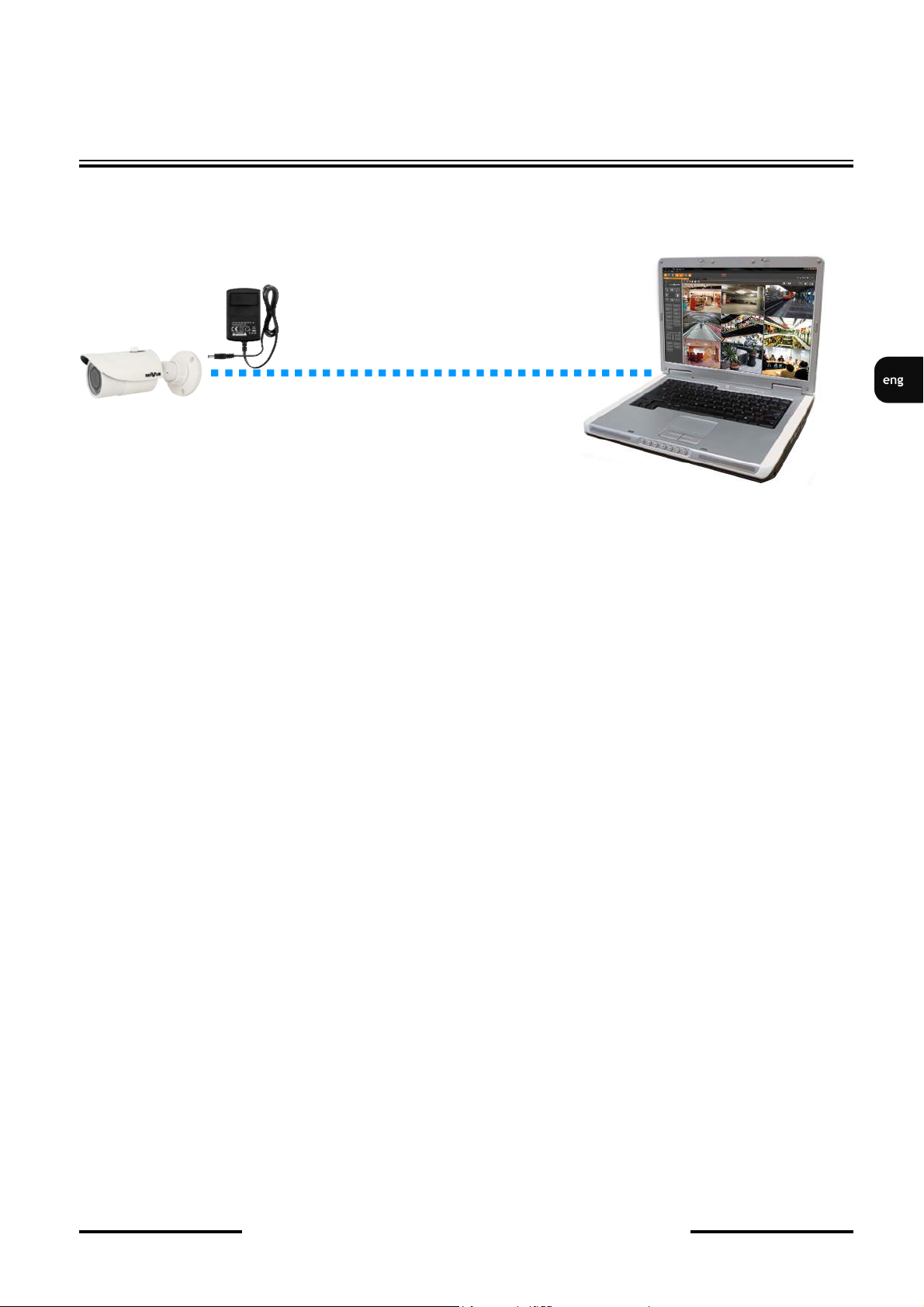

 Connection utilising external power supply directly to the computer
Information:
Power supply adapter is not included. Please use power adapter with parameters specified in user ‘s
manual.
Caution:
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
2.5. Initial configuration via the web browser
The default network settings for IP camera is :
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CAMERA CONFIGURATION
IP Camera
Network transmission - cross over cable
Computer

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
12
3. NETWORK CONNECTION UTILIZING WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming smooth image display
in 1920x1080 resolution and 30 fps speed.
1. CPU Intel Core i3 3GHz or newer
2. RAM Memory min. 4 GB
3. VGA card (displaying Nvidia GeForce 512MB Ram or equivalent )
4. OS Windows 7/8/8.1/10
5. Network card 100/1000 Mb/s
3.2. Connection with IP camera via web browser
You have to enter camera IP address in the address bar. When you connect to the camera, web browser
will download the applet for displaying images from the camera. In Internet Explorer it may be
necessary to accept an ActiveX control. To do this, click the right mouse button on the message, select
"Install Active X control" and then click Install. After successfully NetIPCamera plug in downloading
run and install it on a computer.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
13
If the installation fails, changing security settings for the IE browser is required. In order to do that,
please choose: Tools > Internet options > Security tab > Custom level and:
 Under Download unsigned ActiveX controls - select either Enable or Prompt
 Under Initialize and script ActiveX controls not marked as safe - select Enable or Prompt
You can also add the camera’s IP address to “trusted zone” and set lowest security level for it.
In addition, when working in Windows 7, 8, 8.1, 10 the ActiveX applet may be blocked by Windows
Defender or User account control. In such case you should allow to run this applet, or simply disable
these functions.
After successful installation login window will be displayed. Default user is root and default password
is pass. For safety reasons, it is recommended to change default user name and password.
NETWORK CONNECTION UTILIZING WEB BROWSER

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
14
4. USING AND CONFIGURING
4.1 The Remote Preview Interface
1. View settings
Original size Automatic Size
Fill screen Full Screen
2. Camera functions
Live View On/Off Take a snapshoot Zoom In/out (digital)
On/Off Sound Record Video
PTZ panel – unavailable
3. Live view alarms
Motion detection Color change Clarity change Scene change
4. Camera buffer
There is three possible options of view: REAL-TIME, BALANCED, FLUENT
REMOTE PREVIEW
Focus, Zoom settings
1 2
3
4

NVIP-2DN3030H/IR-1P-II - User’s manual (short form) ver 1.0.
All rights reserved © AAT Holding S.A.
15
ELECTRIC ACCESORIES
4.2. Connecting audio input
Camera audio input allows to connect active microphone (with individual power supply).
5. RESTORING FACTORY DEFAULTS
NOVUS IP cameras allow to restore defaults via:
 software (web browser level)
 software (NMSiptool level)
5.1. Restoring factory defaults by software means (web browser level)
User can restore default settings of the IP camera. To restore to default settings go to: “Advanced
Config -> Config Backup & Restore” tab. Process of restoring takes about two minutes.
5.2. Restoring factory defaults by software means (NMSiptool level)
NMSip (version 1.23.4 or later) allows to restore factory defaults. To restore settings find camera via
NMSiptool, click right mouse button and choose “ Restore default configuration”. Next, within 30
seconds, it is required to turn the camera power off and on.

2017-07-01 MF, JB
AAT Holding S.A., ul. Puławska 431, 02-801 Warszawa, Polska
tel.: [phone], faks: 22 546 07 59
www.novuscctv.com

i ns tr u k c j a o b s łu gi
( sk r ó co na )
NVIP-2DN3030H/IR-1P-II

NVIP-2DN3030H/IR-1P-II - Skrócona instrukcja obsługi wer. 1.0
Wszelkie prawa zastrzeżone © AAT Holding S.A.
2
UWAGI I OSTRZEŻENIA
Dyrektywy EMC (2004/108/EC) i LVD (2006/95/EC)
Oznakowanie CE
Nasze produkty spełniają wymagania zawarte w dyrektywach oraz przepisach krajowych
wprowadzających dyrektywy:
Kompatybilność elektromagnetyczna EMC 2004/108/EC.
Niskonapięciowa LVD 2006/95/EC. Dyrektywa ma zastosowanie do sprzętu elektrycznego
przeznaczonego do użytkowania przy napięciu nominalnym od 50VAC do 1000VAC oraz od 75VDC
do 1500VDC.
Dyrektywa WEEE 2012/19/UE
Informacja dla użytkowników o pozbywaniu się urządzeń elektrycznych i elektronicznych
Niniejszy produkt został oznakowany zgodnie z Dyrektywą WEEE (2012/91/UE) oraz
późniejszymi zmianami, dotyczącą zużytego sprzęt u elektrycznego
i elektronicznego. Zapewniając prawidłowe złomowanie przyczyniają się Państwo
do ograniczenia ryzyka wystąpienia negatywnego wpływu produktu na środowisko i zdrowie ludzi,
które mogłoby zaistnieć w przypadku niewłaściwej utylizacji urządzenia.
Symbol umieszczony na produkcie lub dołączonych do niego dokumentach oznacza,
że nasz produkt nie jest klasyfikowany jako odpad z gospodarstwa domowego. Urządzenie należy
oddać do odpowiedniego punktu utylizacji odpadów w celu recyklingu. Aby uzyskać dodatkowe
informacje dotyczące recyklingu niniejszego produktu należy skontaktować się
z przedstawicielem władz lokalnych, dostawcą usług utylizacji odpadów lub sklepem, gdzie nabyto
produkt.
Dyrektywa RoHS 2011/65/UE
Informacja dla użytkowników dotycząca ograniczenia użycia substancji niebezpiecznych w
sprzęcie elektrycznym elektronicznym.
W trosce o ochronę zdrowia ludzi oraz przyjazne środowisko zapewniamy, że nasze
produkty podlegające przepisom dyrektywy RoHS, dotyczącej użycia substancji
niebezpiecznych w sprzęcie elektrycznym i elektronicznym, zostały zaprojektowane
i wyprodukowane zgodnie z wymaganiami tej dyrektywy. Jednocześnie zapewniamy, że
nasze produkty zostały przetestowane i nie zawierają substancji niebezpiecznych
w ilościach mogących niekorzystnie wpływać na zdrowie człowieka lub środowisko naturalne.
Informacja
Urządzenie, jako element profesjonalnego systemu telewizji dozorowej służącego do nadzoru
i kontroli, nie jest przeznaczone do samodzielnego montażu w gospodarstwach domowych przez osoby
nie posiadające specjalistycznej wiedzy.
Wyłączenie odpowiedzialności w przypadku uszkodzenia danych zawartych na dysku lub innych
urządzeniach:
Producent nie ponosi odpowiedzialności w razie uszkodzenia lub utraty w trakcie eksploatacji Produktu
danych zawartych na dyskach lub innych urządzeniach.
Obowiązek konsultowania się z Producentem przed wykonaniem czynności nieprzewidzianej
instrukcją obsługi albo innymi dokumentami:
Przed wykonaniem czynności, która nie jest przewidziana dla danego Produktu w instrukcji obsługi,
innych dokumentach dołączonych do Produktu lub nie wynika ze zwykłego przeznaczenia Produktu,
należy, pod rygorem wyłączenia odpowiedzialności Producenta za następstwa takiej czynności,
skontaktować się z Producentem.

NVIP-2DN3030H/IR-1P-II - Skrócona instrukcja obsługi wer. 1.0
Wszelkie prawa zastrzeżone © AAT Holding S.A.
3
WARUNKI BEZPIECZEŃSTWA
UWAGA!
ZNAJOMOŚĆ NINIEJSZEJ INSTRUKCJI JEST NIEZBĘDNYM WARUNKIEM PRAWIDŁOWEJ
EKSPLOATACJI URZĄDZENIA. PROSIMY O ZAPOZNANIE SIĘ Z NIM PRZED
PRZYSTĄPIENIEM DO INSTALACJI I OBSŁUGI REJESTRATORA.
UWAGA!
NIE WOLNO DOKONYWAĆ ŻADNYCH SAMODZIELNYCH NAPRAW. WSZYSTKIE
NAPRAWY MOGĄ BYĆ REALIZOWANE JEDYNIE PRZEZ WYKWALIFIKOWANYCH
PRACOWNIKÓW SERWISU.
1. Przed zainstalowaniem i rozpoczęciem eksploatacji należy dokładnie zapoznać się z niniejszą
instrukcją obsługi i zawartymi w niej wymogami bezpieczeństwa;
2. Uprasza się o zachowanie instrukcji na czas eksploatacji kamery na wypadek konieczności
odniesienia się do zawartych w niej treści;
3. Należy skrupulatnie przestrzegać wymogów bezpieczeństwa opisanych w instrukcji, gdyż mają one
bezpośredni wpływ na bezpieczeństwo użytkowników i trwałość oraz niezawodność urządzenia;
4. Wszystkie czynności wykonywane przez instalatorów i użytkowników muszą być realizowane
zgodnie z opisem zawartym w instrukcji;
5. W czasie czynności konserwatorskich urządzenie musi być odłączone od zasilania;
6. Nie wolno stosować żadnych dodatkowych urządzeń lub podzespołów nie przewidzianych
i nie zalecanych przez producenta;
7. Nie wolno używać kamery w środowisku o dużej wilgotności (np. w pobliżu basenów, wanien,
w wilgotnych piwnicach);
8. Nie należy instalować tego urządzenia w miejscu, gdzie nie można zapewnić właściwej wentylacji
(np. zamknięte szafki, itp.), co powoduje zatrzymanie się ciepła i w konsekwencji może
doprowadzić do uszkodzenia;
9. Nie wolno umieszczać kamery na niestabilnych powierzchniach. Kamera musi być instalowany
przez wykwalifikowany personel o odpowiednich uprawnieniach według zaleceń podanych
w niniejszej instrukcji;
10.Urządzenie może być zasilane jedynie ze źródeł o parametrach zgodnych ze wskazanymi przez
producenta w danych technicznych serwera wideo. Dlatego też, zabrania się zasilania kamery
ze źródeł o nieznanych, niestabilnych lub niezgodnych z wymaganiami określonymi przez
producenta parametrach;
Ponieważ produkt jest stale ulepszany i optymalizowany niektóre parametry i funkcje opisane w
załączonej instrukcji mogły ulec zmianie.
Prosimy o zapoznanie się z najnowszą instrukcją obsługi znajdującą się na stronie www.novuscctv.com
Instrukcja obsługi znajdującą się na stronie www.novuscctv.com jest zawsze najbardziej aktualną
wersją.

NVIP-2DN3030H/IR-1P-II - Skrócona instrukcja obsługi wer. 1.0
Wszelkie prawa zastrzeżone © AAT Holding S.A.
4
SPIS TREŚCI
SPIS TREŚCI...................................................................................................................4
1. INFORMACJE WSTĘPNE.........................................................................................5
1.1. Charakterystyka ogólna....................................................................................5
1.2. Dane techniczne ..............................................................................................6
1.3. Wymiary kamery .............................................................................................7
1.4. Zawartość opakowania.....................................................................................7
2. URUCHAMIANIE I WSTĘPNA KONFIGURACJA KAMERY IP.........................8
2.1. Opis złącz elektrycznych oraz elementów regulacyjnych..................................8
2.2. Podłączenie kabla sieciwego ............................................................................8
2.3. Montaż kamery ...............................................................................................9
2.4. Uruchomienie kamery IP................................................................................10
2.5. Konfiguracja parametrów przy użyciu przeglądarki internetowej....................11
3. POŁĄCZENIA SIECIOWE ZA POMOCĄ PRZEGLĄDARKI WWW ................12
3.1. Zalecana konfiguracja komputera PC do połączeń przez przeglądarkę WWW.12
3.2. Połączenie sieciowe z kamerą IP za pomocą przeglądarki WWW ...................12
4. INTERFEJS WWW - PRACA Z KAMERĄ............................................................14
4.1. Widok zdalnego podglądu...............................................................................14
5. POŁĄCZENIA ELEKTRYCZNE I ZŁĄCZA AKCESORIÓW.............................15
5.1. Podłączenie zasilania kamery..........................................................................15
5.2. Podłączenie audio kamery ..............................................................................15
6. PRZYWRACANIE USTAWIEŃ FABRYCZNYCH KAMERY.............................16
6.1. Programowe przywracanie ustawień fabrycznych kamery IP ..........................16
6.2. Przywracanie ustawień fabrycznych kamery IP z poziomu NMSiptool............16
