Novus NVIP-4H-6532M/F-II User manual

Quick start guide
NVIP-4H-6532M/F-II

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
2
NVIP-4H-6532M/F-II Quick start guide version 1.0
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
Excluding of responsibility in case of damage to data contained on disks and/or other data
carriers:
The manufacturer does not bear any responsibility in case of damaging or losing data on a disks and/or
other data carriers.
Obligation to consult with the Manufacturer before performing an activity not provided for in
the operating manual or other documents:
Before performing an activity that is not provided for in a given Product in the manual, other
documents attached to the Product or does not result from the normal purpose of the Product, please
contact the Manufacturer under the pain of excluding the Producer's liability for the consequences of
such an activity.
IMPORTANT SAFEGUARDS AND WARNINGS
Pictures in this publication showing camera views can be simulations. Actual camera
images may vary depending on the type, model, settings, observation area, or
environmental conditions.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE
COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States
relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)
(OJ L 197, 24.7.2012, p. 38–71,with changes).
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).
COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending
Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards
the list of restricted substances.
DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
3
NVIP-4H-6532M/F-II Quick start guide version 1.0
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-
SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,
bath tubs, damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)
is not recommended since it may lead to heat build-up and damaging the device itself as a
consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the datasheet. Therefore, it is forbidden to supply the camera from
a power sources with unknown parameters, unstable or not meeting producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full
manual
IMPORTANT SAFEGUARDS AND WARNINGS

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
4
NVIP-4H-6532M/F-II Quick start guide version 1.0
TABLE OF CONTENTS.....................................................................................................4
1. FOREWORD INFORMATION.....................................................................................5
1.1. General characteristics.........................................................................................5
1.2. Technical specification .......................................................................................6
1.3. Camera dimensions .............................................................................................8
1.4. Package contents..................................................................................................8
2. START-UP AND INITIAL CONFIGURATION .........................................................9
2.1. Description of electrical connectors ....................................................................9
2.2. Ethernet cable connecting ...................................................................................9
2.3. Arrangement of connectors and control elements .............................................10
2.4. Power supply connection ..................................................................................10
2.5. Camera installation............................................................................................11
2.6. Starting the camera ...........................................................................................12
2.7. Initial configuration via the web browser.........................................................13
2.8. Security recommendations for network architecture and configuration .........14
3. NETWORK CONNECTION USING WEB BROSWER .........................................15
3.1. Recommended PC specification for web browser .............................................15
3.2. Connection with IP camera via web browser.....................................................15
4. WWW INTERFACE - WORKING WITH THE CAMERA ....................................19
4.1. The remote preview interface ............................................................................19
5. SD CARD INSTALLATION .......................................................................................20
6. FACTORY SETTINGS RESTORING ......................................................................21
6.1. Software factory settings restoring via web browser .........................................21
6.2. Software factory settings restoring via NMS IPTool……… ...………………..21
6.3. Hardware factory settings restoring ......................………………..…………...21
TABLE OF CONTENTS

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
5
NVIP-4H-6532M/F-II Quick start guide version 1.0
1. FOREWORD INFORMATION
1.1. General Characteristics
• Sensor resolution: 4.0 megapixels
• Mechanical IR cut filter (IR operation capability)
• Min. illumination from 0.005 lx/F1.6 - color mode, (0 lx IR on)
• Wide Dynamic Range (WDR)
• Digital Slow Shutter (DSS)
• Digital Noise Reduction (DNR)
• Defog Function (F-DNR)
• Highlight Compensation (HLC)
• Back Light Compensation (BLC)
• Reduction of image flicker (Antiflicker)
• Motorized, auto-iris function, f=7 ~ 22 mm/F1.6
• Built-in IR illuminator: 4 LEDs
• Video/audio compression: H.264, H.264+, H.265, H.265+, MJPEG/G.711
• Max. video resolution up to 2592 x 1520
• Operation in tri-stream mode: ability to define compression, resolution, speed and quality for
each stream
• ONVIF Protocol Support
• RTSP protocol support for video transmission
• ROI zones
• Privacy Zones
• MicroSD Card Slot, capacity up to 256 GB
• Audio input and output
• Alarm input and output
• Hardware reset button
• Video content analysis based on Deep Learning with Human/Vehicle object classification
• Wide range of responses to alarm events: e-mail with attachment, SD card, FTP server, alarm
output activation
• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,
playback and remote IP devices administration
• Power supply: 12 VDC / PoE
FOREWORD INFORMATION

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
6
NVIP-4H-6532M/F-II Quick start guide version 1.0
1.2. Technical specification
FOREWORD INFORMATION
Image Sensor 4 MPX CMOS sensor 1/3” SmartSens
Number of Eecve Pixels 2688 (H) x 1520 (V)
Min. Illuminaon 0.005 lx/F1.6 - color mode,
0 lx (IR on) - B/W mode
Electronic Shuer auto/manual: 1/2 s ~ 1/100000 s
Digital Slow Shuer (DSS) up to 1/2 s
Wide Dynamic Range (WDR) yes 120dB
Digital Noise Reducon (DNR) 2D, 3D
Defog Funcon (F-DNR) yes
Highlight Compensaon (HLC) yes
Back Light Compensaon (BLC) yes
Reducon of image icker (Anicker) yes
LENS
Lens Type motorized, auto-iris funcon, f=7 ~ 22 mm/F1.6
Auto-focus zoom trigger, day/night mode trigger, manual trigger
DAY/NIGHT
Switching Type mechanical IR cut lter
Switching Mode auto, manual, me
Switching Level Adjustment yes
Switching Delay 2 ~ 120 s
Switching Schedule yes
Visible Light Sensor yes
NETWORK
Stream Resoluon 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full
HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x 240
Frame Rate 30 fps for each resoluon,
60 fps for 1920 x 1080 (Full HD) and lower resoluons
Mulstreaming Mode 3 streams
Video/Audio Compression H.264, H.264+, H.265, H.265+, MJPEG/G.711
Number of Simultaneous Connecons max. 10
Bandwidth 50 Mb/s in total
Network Protocols Support
HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP,
RTSP, RTP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP,
HTML5, RTMP
ONVIF Protocol Support Prole S/G
Camera Conguraon from Internet Explorer, Firefox, Chrome, Opera, Edge browser
languages: Polish, English, Russian, and others
Compable Soware NMS, N Control 6000
Mobile applicaons SuperLive Plus (iPhone, Android)

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
7
NVIP-4H-6532M/F-II Quick start guide version 1.0
FOREWORD INFORMATION
OTHER FUNCTIONS
Privacy Zones 4 video mask type: single color or 4 video mask type: mosaic
Moon Detecon yes
Region of interest (ROI) 8
Video Content Analysis (VCA)
tamper, abandoned object, object disappearance, line cross,
zone entrance, zone exit, object counng, face detecon,
detecon of people not wearing masks, cross counng, heat
map, Scene Change, Video Blurred, Video Color Cast, objects
disnguishing, people counng, vehicle counng, intrusion
detecon
Image Processing
90˚ image rotaon, 180˚ image rotaon, sharpening, mirror
eect, corridor mode, vercal ip, horizontal ip, lens
distoron correcon
Prealarm/Postalarm up to 6 s/up to 120 s
System Reacon to Alarm Events e-mail, e-mail with aachment, saving le on FTP server,
saving le on SD card, alarm output acvaon
Restoring default sengs via web browser, using reset buon, via NMS IPTool
soware
IR LED
LED Number 4
Range up to 100 m (depends on current opcal zoom value)
Smart IR yes (soware support)
INTERFACES
Video Output BNC, 1.0 Vp-p, 75 Ohm
Audio Input/Output 1 x Jack (3.5 mm)/1 x Jack (3.5 mm)
Alarm Input/Output 1 (NO/NC)/1 relay type (max. 1A 30VDC/0,5A 125VAC)
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot microSD - capacity up to 256GB
INSTALLATION PARAMETERS
Dimensions (mm) with bracket: 101 (W) x 89 (H) x 280 (L)
Weight 1.1 kg
Degree of Protecon IP 67 (details in the user’s manual)
Enclosure aluminium, white or grey, fully cable managed wall mount
bracket in-set included , IK10 impact rang
Power Supply PoE, 12 VDC
Surge protecon TVS 4000 V
Power Consumpon 7 W, 9.5 W (IR illuminator on)
Operang Temperature -30°C ~ 60°C
Humidity max. 95%, relave (non-condensing)

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
8
NVIP-4H-6532M/F-II Quick start guide version 1.0
FOREWORD INFORMATION
1.3. Camera dimensions
1.4. Package contents
After opening, make sure that the following elements are inside:
• IP camera
• Accessories bag
• Short version of user’s manual
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.
Attention:
If the device was brought from a location with lower temperature, please wait until it reaches the tem-
perature of location it is currently in. Turning the device on immediately after bringing it from a loca-
tion with lower ambient temperature is forbidden, as the condensing water vapour may cause short-
circuits and damage the device as a result.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
9
NVIP-4H-6532M/F-II Quick start guide version 1.0
START-UP AND INITIAL CONFIGURATION
2. START-UP AND INITIAL CONFIGURATION
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2.2. Ethernet cable connecting
To maintain tightness of ethernet cable connection, please follow instruction below:
1. Unscrew the nut (b) from the connector cover (a), put the sealing ring on the socket (c)
2. Route the network cable through parts (a) and (b). Insert the RJ-45 plug into the socket (c)
3. Screw the connector cover (a) onto the socket (c). Press the cable seal (d) into the upper part of the
connector cover (a) as far as it will go - the seal has a cut enabling it to be put on the cable.
4. Tighten the nut (b) as far as it will go.
Attention:
The other connectors are not hermetic. The user should ensure their tightness on his own.
2.1. Description of electrical connectors
1. 100 Mb/s Ethernet port (PoE RJ-45 connector)
2. Audio output (HP)
3. Audio input (MIC)
4. BNC CVBS video output
5. Alarm connector:
1. Alarm output COM
2. Alarm output
3. Alarm input
4. Alarm input GND
6. Power supply 12VDC
1
2
3
4
5
6
ba
b
a
c
d

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
10
NVIP-4H-6532M/F-II Quick start guide version 1.0
2.3. Arrangement of connectors and control elements

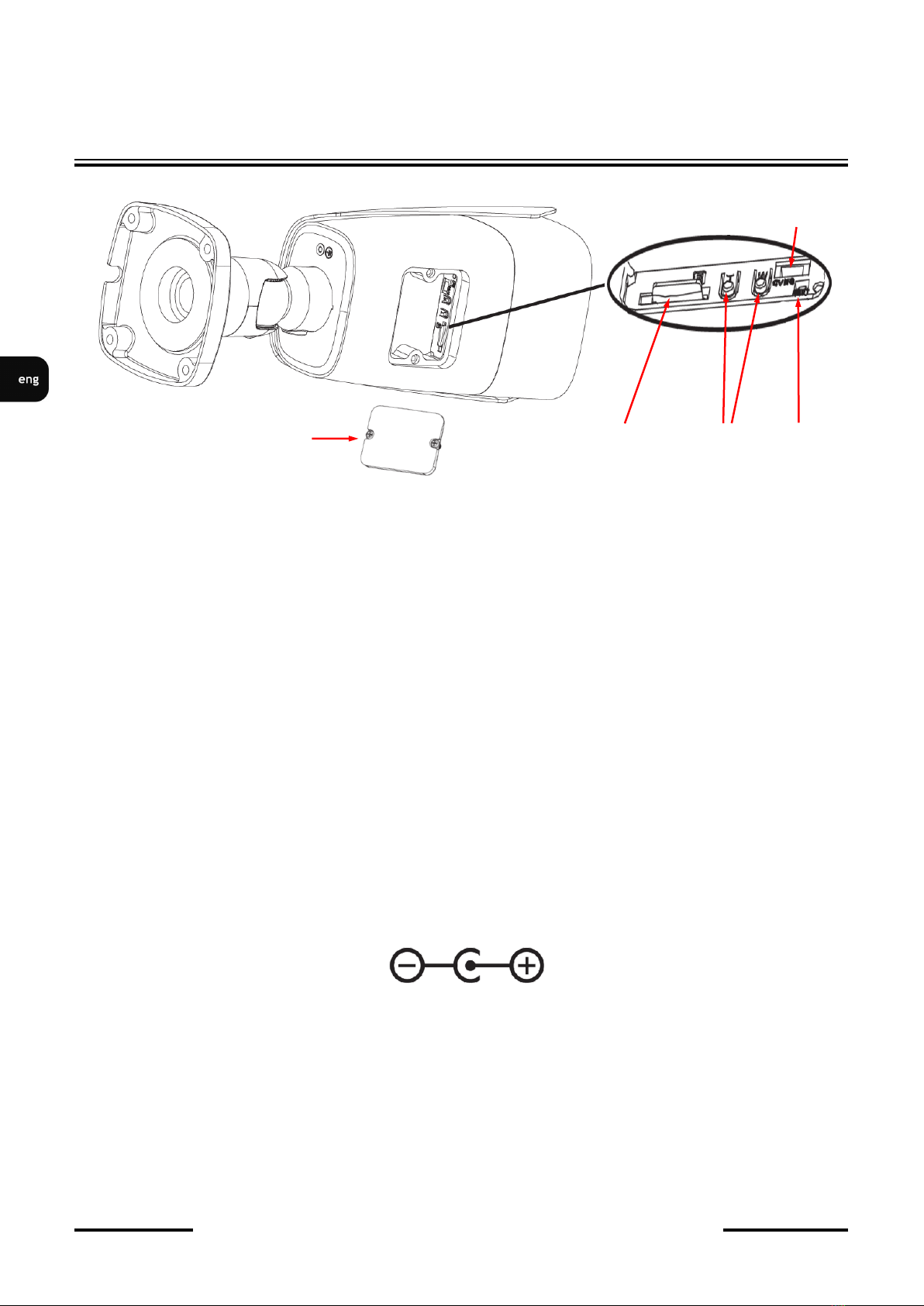

1. Cover covering connectors and buttons. To gain access to the adjustment elements, unscrew the two
screws securing the cover.
Caution! Be careful not to damage or lose the cover gasket. Lack of gasket or its damage may cause
the camera to get wet and consequently its failure.
The following items are located under the cover:
2. Micro SD memory card slot
3. Lens adjustment buttons: T - zoom + adjustment, W - zoom - adjustment
4. CVBS socket. Not active on this model.
5. RESET button.
2.4. Power supply connection
The camera can be powered from a commercially available DC power supply, provided that it meets
the technical requirements of the camera. The source must provide stabilized 12VDC voltage, must
allow the consumption of at least 12W of power, and have a barrel DC 2.1/5.5 plug with the correct
polarity of the contacts:
It is also possible to power the camera via the RJ45 network socket, using PoE + technology (IEEE
802.3af or IEEE 802.3at).
Caution!
It is forbidden to use PoE devices (power supplies, adapters, etc.) that do not comply with the
IEEE 802.3af standard, commonly known as "passive PoE power supplies" to power the camera.
Damage resulting from the use of unsuitable power sources is not covered under the warranty.
START-UP AND INITIAL CONFIGURATION
1
4
235

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
11
NVIP-4H-6532M/F-II Quick start guide version 1.0
START-UP AND INITIAL CONFIGURATION
2.5. Camera installation
1. Place the mounting template on the surface on which the camera is to be installed and mark the
drilling points.
2. Drill holes for mounting screws and cables in the marked places
3. Drill a hole for the signal cable at the connection point (if necessary)
4. Connect the cables and fix the camera foot using the provided pegs and screws
5. Loosen the lock screws "A"
6. Adjust the camera position
7. Tighten the "A" lock screws
8. Adjust the field of view with buttons "T" and "W" (described in point 2.3.)
Caution!
Pay particular attention to the surface to which is attached the camera to have the appropriate capacity.
Caution!
In the case of installation on uneven / rough surfaces, it is recommended to additionally seal the place
of mounting the camera foot with sealing compound. Pay particular attention to the mounting holes
and if they are through, they should also be sealed.
Caution!
The declared tightness class of the camera applies to its housing and does not take into account the
possibility of moisture penetrating the camera through the connection cables. Securing the cables by
e.g. sealing them with an appropriate mass or hiding them in a sealed container is the responsibility of
the person installing the camera. The manufacturer is not responsible for any damage or damage to the
camera caused by failure to fulfill the above-mentioned obligation, which at the same time means that
they are not subject to warranty repairs.
A

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
12
NVIP-4H-6532M/F-II Quick start guide version 1.0
2.6. Starting the camera
To run NOVUS IP camera you have to connect ethernet cable between camera and network switch.
To power it up you can connect it directly via power supply adapter with parameters compatible with
camera power supply specification, or camera can be powered with PoE (IEEE 802.3af ) compatible
switch.
After connecting power supply it takes about 30 seconds to start camera. Then You can proceed to
connect to the camera via web browser.
The recommended way to start an IP camera and perform its configuration is a connection directly
to the network switch which is not connected to other devices. To obtain further information about
network configuration parameters (IP address, gateway, network mask, etc.) please contact your
network administrator.

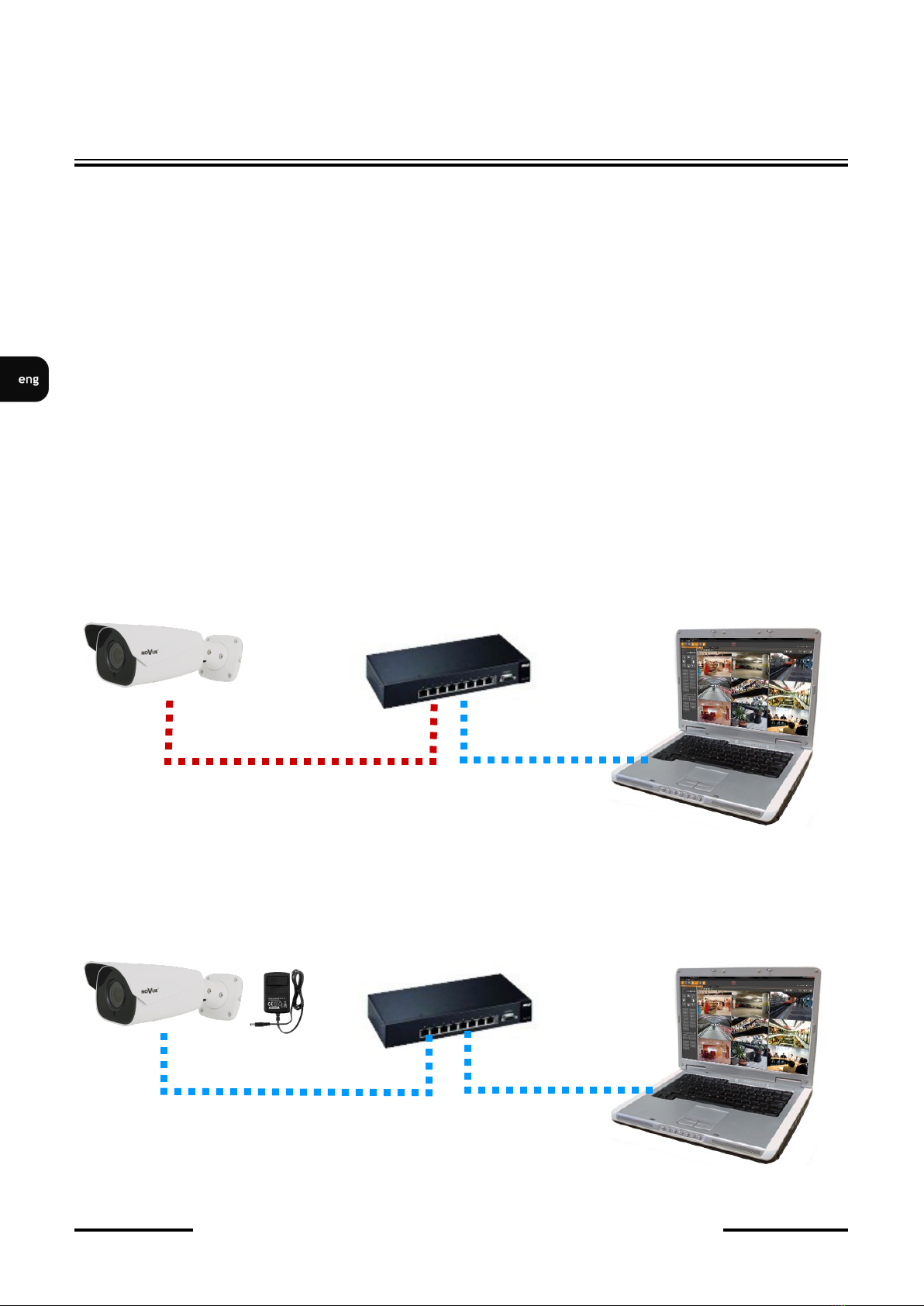

• Connection utilising network switch with PoE support
• Connection utilising external power supply and network switch
START-UP AND INITIAL CONFIGURATION
PCIP camera
Power and data transmission Data transmission
PoE switch
IP camera
Data transmission Data transmission
Switch PC

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
13
NVIP-4H-6532M/F-II Quick start guide version 1.0
• Connection utilising external power supply directly to the computer
Caution!
In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge
protectors is advised. Any damages resulting from surges are not eligible for service repairs.
2.7. Initial configuration via the web browser
The default network settings for 6000 IP camera series are :
1. IP address= 192.168.1.200
2. Network mask - 255.255.255.0
3. Gateway - 192.168.1.1
4. User name - root
5. Password - pass
Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can
operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from
192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for
camera and PC computer
You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera
yourself or select DHCP mode (DHCP server is required in this method in target network) by using
web browser or by NMS software. When you use DHCP server check IP address lease and its linking
with camera MAC address to avoid changing or losing IP address during device operation or network/
DHCP server breakdown. You have to remember to use a new camera IP address after changing
network parameters.
After network setting configuration has been done, the camera can be connected to a target network.
START-UP AND INITIAL CONFIGURATION
PCIP camera
Data transmission - Ethernet crossover cable

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
14
NVIP-4H-6532M/F-II Quick start guide version 1.0
2.8. Security recommendations for network architecture and configuration
Caution!
Below are shown security recommendations for network architecture and configuration of
CCTV systems that are connected to the Internet to reduce the risk of unauthorized interference with
the system by a third party.
1. Absolutely change the default passwords and user names (if the device gives this possibility) of
all applied network devices (recorders, cameras, routers, network switches, etc.) to the
severely complexity password. Use lowercase and uppercase letters, numbers, and special characters
if there is such possibility.
2. Depending on the available functionality in the order to restrict access to the used network devices at
the administrator account level, it is recommended to configure the users accounts accordingly.
3. Do not use DMZ function (Demilitarized zone) in your router. Using that function you open the
access to recorder system from the Internet on all ports, which gives possibility for an unauthorized
interference with the system.
Instead of DMZ use port forwarding redirect only the ports which are necessary for the performance
of the connection (detailed information about ports of communication in different models of recorders,
cameras, etc. can be found in the operating instructions).
4. Use routers with firewall function and make sure it is enabled and properly configured.
5. It is recommended to change the default network communication port numbers of used devices
if there is such possibility.
6. If used network devices has aUPnP feature and it is not used, turn it off.
7. If used network devices has aP2P feature and it is not used, turn it off.
8. If used network devices support HTTPS protocol for connection, it is recommended to use it.
9. If used network devices support IP filtering for authorized connections function, it is recommended
to use it.
10. If used recorder has two network interfaces it is recommended to use both of them to physically
separate network for cameras and network for Internet connection. The only device in the system,
accessible from Internet will be recorder - there will be no physically access directly to any camera.
START-UP AND INITIAL CONFIGURATION

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
15
NVIP-4H-6532M/F-II Quick start guide version 1.0
3. NETWORK CONNECTION USING WEB BROSWER
3.1. Recommended PC specification for web browser connections
Requirements below apply to connection with an IP camera, assuming smooth image display in
2592 x 1520 resolution and 30 fps speed.
1. CPU Intel i7 3 GHz or faster
2. RAM Memory min. 6 GB
3. VGA card Nvidia GeForce 1GB
4. OS Windows 7 / 8 / 8.1 / 10
5. Network card 100/1000 Mb/s
3.2. Connection with IP camera via web browser
• Connecting to the camera for the first time

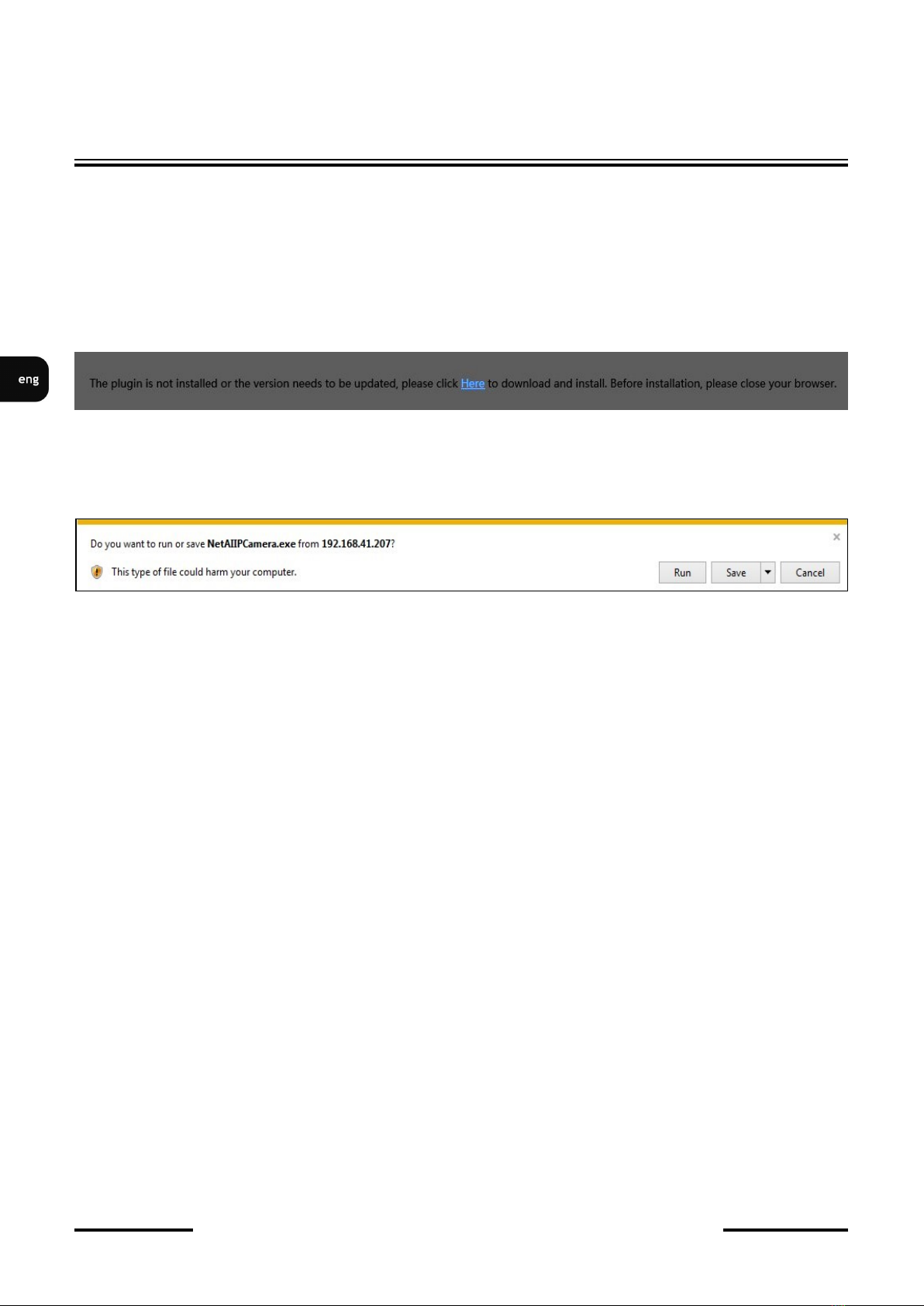

Enter the IP address of the camera (default 192.168.1.200) in the address bar of the web browser. If the
address is correct and the target device is currently available, the first connection window will be
displayed. In this window, user should read the privacy statement and after reading it, select the
checkbox next to the Already Read button, and press this button.
The acceptance of the privacy statement cannot be omitted. This window only appears the first time
you log in, but it can be displayed again at any time.
Access to the privacy statement can be found in the menu Config > System > Basic information >
Privacy statement.
NETWORK CONNECTION USING WEB BROWSER

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
16
NVIP-4H-6532M/F-II Quick start guide version 1.0
• Device Activation
After accept privacy statement, device activate window appears. In In this window, user should set a
password for the administrator account (root).
Leaving the "Activate Onvif user" check box selected, will result in the simultaneous establishment of
the Onvif account password, the same as the password for the administrator account.
The password must be between 8 and 16 characters long. When entering a new password, its strength is
displayed on an ongoing basis by the security level indicator. For maximum security, use upper and
lower case letters, numbers and special characters. After entering the correct password twice and
confirming it with the OK button, the administrator password for the web account (and the Onvif
account, depending on your choice) will be saved. The activation window will close and the user will
be taken to the login screen.
NETWORK CONNECTION USING WEB BROWSER
If the user deselects the "Activate Onvif user" checkbox during activation, the Onvif account
will remain with the default login data (login: root and password: pass).
For security reasons, it is recommended to set the same password for both the Onvif account and
the web account.
The Web account is the administrator account created during the activation of the device. It
means that the user logging in, by using the root login and a predefined password and have
access to the full functionality and all available settings in the camera. The account is also used
to log in to the camera via the 6000 series network recorders and NMS (Novus Management
System) software using the LongPolling event method.
The Onvif account is an account used to log in to the camera via the NMS software (Novus
Management System) or using the Onvif or the RTSP protocol. This account is created
automatically during activation of the device, and the default login data are login: "root" and
password: "pass".

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
17
NVIP-4H-6532M/F-II Quick start guide version 1.0
• Logging in to the camera for the first time
In this window, in order to login to camera, enter the user name root and the newly set administrator
password. In the Stream type field user can select the stream that is displayed in the live view window
after login. The Language field allows to change the interface language. The Forget Password option
allows to log in to the camera if you forget the administrator password and for this is required to know
the answers to the security questions (set in the next step).
After entering appropriate data, click the Login button to login to the web panel of the camera.
• Safety questions
The next step in logging in for the first time is entering answers to the security questions.
In the window that appears, select questions from among those available on the list and enter your own
answers. Knowing the right answers is essential to recovering the administrator password.
NETWORK CONNECTION USING WEB BROWSER
This step cannot be omitted. The security question window is displayed only during the first
login, and the only possibility to change the given answers is to restore the factory settings and
go through all stages of the first connection with the camera.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
18
NVIP-4H-6532M/F-II Quick start guide version 1.0
• Plug-in installation
Caution!
To ensure the correct operation of the function of saving photos and videos on the computer disk, the
web browser should be run with administrator rights.
If the browser asks for it, install the NetAIIPCamera plug-in, which is necessary for the proper
operation of the camera menu. The lack of the correct add-on is indicated by the following message:
Click on the "Here" link to start downloading the add-on, then use your browser dialog to install it.
In the window, click the Run button, and then follow the instructions of the installer. After the
installation is completed, the browser window should be refreshed.
If other tabs were open in the browser window when installing the add-on, the installer will ask you to
close the browser. Then, after completing the installation, restart the IE browser and connect to the
camera.
Caution:
When working on Windows 7/8/8.1/10, it is possible to block the ActiveX add-on by Windows
Defender and User Account Control. In this case, you should allow the add-in to run.
Caution:
If the installation performed in the above-mentioned manner fails, it is recommended to change the
browser security level. To do this, select the menu: Tools -> Internet Options -> Security -> Custom
level and then change:
• Downloading unsigned ActiveX controls: set to "Enable" or "Prompt"
• Initialize and script ActiveX controls not marked as safe for execution: set to "Enable" or
"Prompt"
You can also add the IP address of the camera to the Trusted sites zone and set the zone to a low
security level.
NETWORK CONNECTION USING WEB BROWSER

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
19
NVIP-4H-6532M/F-II Quick start guide version 1.0
WEB INTERFACE - WORKING WITH THE CAMERA
4. WEB INTERFACE - WORKING WITH THE CAMERA
4.1. The remote preview interface
1. Selection of the stream to be displayed in the preview window and set the buffer size of the camera.
2. Camera operation mode selection and configuration buttons:
Live - enables the live stream preview
Config - displays the camera configuration panel
Search - displays the panel for searching and playing back recordings from the memory card
Statistics - displays the statistics panel
3. Camera access icons. From left: information about the logged in user, logging out of the camera
4. Alarm event icons display panel:
From left to right: memory card recording indicator, color change, image blur, scene change,
leaving the area, entering the area, crossing the line, counting the line crossing, intrusion, face
recognition, heat map, counting the area intrusion, object abandoned/missing, motion detection.
The occurrence of a given event is signalled with a flashing red color.
567
21
4
3

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
20
NVIP-4H-6532M/F-II Quick start guide version 1.0
SD CARD INSTALLATION
5. Image adjusting buttons:
From left to right: original size, original aspect ratio, automatic window fit, full screen.
6. Live view window.
Double-clicking the left mouse button on the preview window turns the display of the image on and
off in full screen.
7. Buttons for controlling camera functions:
From left to right: turns on/off live view, turns on audio transmission to the camera, turns on audio
monitoring, takes a photo, enables/disables recording, digital zoom buttons, enables/disables the PTZ
panel, turns on the lens control panel (zoom and focus), enables/disables the panel displaying photos of
recognized faces with details (provided the recognized face is in the database), enables/disables the
display of image analysis lines and zones
5. SD CARD INSTALLATION
The camera supports micro SD/SDHC cards up to 256 GB. In order to install the card:
• Turn off the power of the camera
• Remove the cover at the bottom of the housing
• Install the SD card in the appropriate slot (indicated by the arrow A in the figure below)
• Attach the cover paying attention to the correct position of the gasket
• Turn on the camera
• Check if the card is installed correctly by verifying its size in the tab "Settings -> System -> SD
card".
A B
