Novus NVIP-5VE-4511/FWLAD User manual

Quick start guide
NVIP-5VE-4511/FWLAD
NVIP-5H-4511/FWLAD

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
2
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Exclusion of liability in the event of damage to data contained on disks or other devices or media:
The manufacturer is not liable in the event of damage or loss of data contained on disks or other
devices or carriers during the operation of the Product.
Obligation to consult the Manufacturer before performing any action not provided for in the
instruction manual or other documents:
Before performing an action that is not provided for a given Product in the user manual, other
documents attached to the Product or does not result from the normal purpose of the Product, it is
necessary, under pain of exclusion of the Manufacturer's liability for the consequences of such action,
to contact the Manufacturer.
CAUTIONS AND WARNINGS
Pictures in this publication showing camera views can be simulations. Actual camera
images may vary depending on the type, model, settings, observation area, or
environmental conditions.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE
COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States
relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)
(OJ L 197, 24.7.2012, p. 38–71, with changes).
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).
COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending
Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards
the list of restricted substances.
DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
3
1. Please read this manual carefully before installation and operation;
2. Please keep this manual for the lifespan of the device in case referring to the contents of this
manual is necessary;
3. It is necessary to comply with the safety requirements described in the manual, as they have a
direct impact on the safety of users and the durability and reliability of the device;
4. All activities performed by installers and users must be carried out as described in the manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. It is not allowed to use any additional devices, components or accessories not provided for and not
recommended by the manufacturer;
7. Do not install this device in places where proper ventilation cannot be provided (e.g. closed
cabinets, etc.), as this may cause heat build-up and may result in damage;
8. Do not place the device on unstable surfaces. Installation must be carried out by qualified
personnel with appropriate permissions in accordance with the recommendations provided in this
manual;
9. The device may be powered only from sources with parameters compliant with those indicated by
the manufacturer in the technical data;
SAFETY REQUIREMENTS
Before using the device, read the instruction manual in order to ensure proper and safe operation
of the device. Failure to comply with the instructions may lead to damage to the device and/or
safety violations.
The user may not repair the device himself. Repairs and maintenance of the device may only be
performed by qualified service personnel.
The device, which is an element of a professional CCTV system used for supervision and
control, is not intended for self-assembly in households by persons without specialist
knowledge.
As the product is constantly improved and optimised, some of its parameters and functions may have
changed from those described in this manual. If in doubt, please refer to the user manual at
www.novuscctv.com
The user manual located at www.novuscctv.com is always the most up-to-date version.

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
4
FOREWORD INFORMATION
1. TECHNICAL SPECIFICATION COMMON TO BOTH CAMERAS
Image Sensor 5 MPX CMOS sensor 1/2.7” SmartSens
Number of Eecve Pixels 2880 (H) x 1620 (V)
Min. Illuminaon 0.002 lx/F1.0 - color mode,
0 lx (IR on) - B/W mode
Electronic Shuer auto/manual: 1/5 s ~ 1/20000 s
Digital Slow Shuer (DSS) up to 1/5 s
Wide Dynamic Range (WDR) yes (double scan sensor)
Digital Noise Reducon (DNR) 2D, 3D
Highlight Compensaon (HLC) yes
Back Light Compensaon (BLC) yes
Reducon of image icker (Anicker) yes
LENS
Lens Type xed focal, f=2.8 mm/F1.0
DAY/NIGHT
Switching Type mechanical IR cut lter
Switching Mode auto, manual, me
Switching Delay 1 ~ 36 s
NETWORK
Stream Resoluon 2880 x 1620, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080
(Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)
Frame Rate 30 fps for each resoluon
Mulstreaming Mode 3 streams (main stream, sub stream, third stream)
Video/Audio Compression H.264, H.264+, H.265, H.265+/G.711
Number of Simultaneous Connecons max. 3 connecons, (max. 40 streams in total)
Bandwidth 30 Mb/s in total
Network Protocols Support HTTP, TCP/IP, IPv4/v6, HTTPS, FTP, DHCP, DNS, DDNS, NTP,
RTSP, RTP, UPnP, SMTP, P2P, HTML5
Camera Conguraon from Internet Explorer, Firefox, Chrome, Safari, Edge browser
languages: Polish, English, and others
Compable Soware NOVUS MANAGEMENT SYSTEM VSS,
NOVUS MANAGEMENT SYSTEM AC
Mobile applicaons RxCamView (iPhone, Android)

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
5
FOREWORD INFORMATION
OTHER FUNCTIONS
Privacy Zones 4 video mask type: single color
Moon Detecon yes
Region of interest (ROI) 8
Audio Detecon yes
Video Content Analysis (VCA)
abandoned object, object disappearance, line cross, zone
violaon, mul loiter, face detecon, cross counng, heat
map, queue length detecon, objects disnguishing, target
counng by area
Image Processing 180˚ image rotaon, corridor mode, vercal ip, horizontal
ip
Prealarm/Postalarm up to 5 s/up to 30 s
System Reacon to Alarm Events
e-mail with aachment, saving le on FTP server, saving le
on SD card, saving in the cloud storage, push nocaon,
acve deterrent funcons
Determent
white LEDs, steady/ashing light, red and blue LEDs, ashing
light, audio signaling device (siren), built-in speaker
(predened or custom voice messages)
Restoring default sengs via web browser, using reset buon
LICENCE PLATE RECOGNITION (LPR)
Autonomous operaon mode yes - recognion funcon implemented in the camera
Capacity of License Plate Database up to 10000 license plates, on all lists.
Types of recognized number plates all countries of the European Union
Data recorded in the camera base
recognion date/me, number of recognised licence plate,
image of recognised licence plate, presence on the "white
list" or "black list"
Reacons for the licence plate recognion e-mail with aachment, saving le on FTP server, saving a
le in the cloud
IR LED
LED Number 1
Range 25 m
Smart IR yes (hardware support)
WHITE LIGHT ILLUMINATOR
LED Number 2, warm white color
Range 20 m
Smart Light yes (hardware support)
INTERFACES
Audio Input/Output built-in microphone/speaker
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot microSD - capacity up to 256GB

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
6

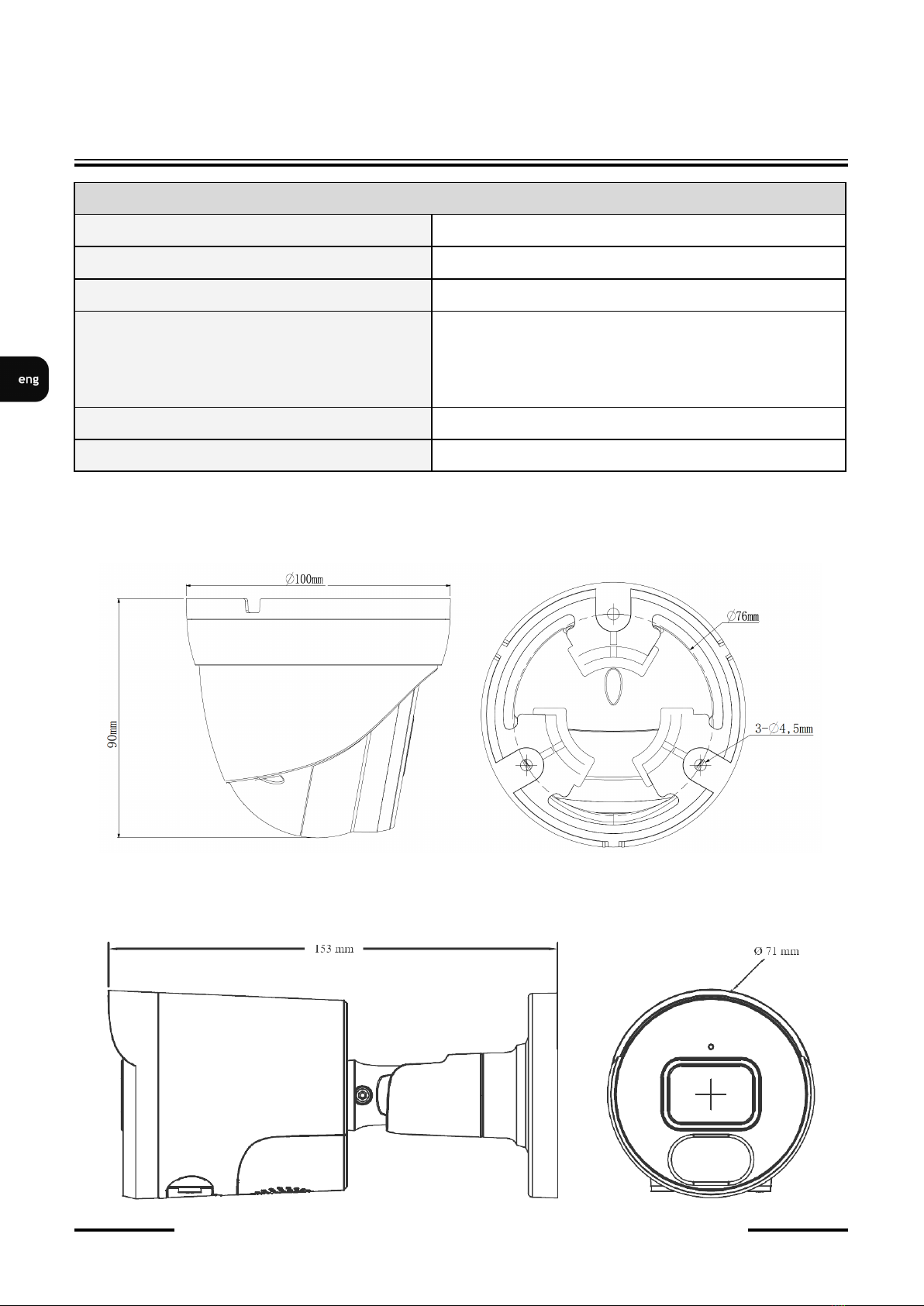

1.1 Camera housings
NVIP-5VE-4511/FWLAD, vandal-proof aluminium housing, white. Weight 0.43 kg
NVIP-5H-4511/FWLAD, aluminium, white, fully cable managed wall mount bracket in-set included.
Weight 0.36 kg
START-UP AND INITIAL CONFIGURATION
INSTALLATION PARAMETERS
Degree of Protecon IP 66 (details in the user’s manual on page 8)
Power Supply 12 VDC, PoE (IEEE 802.3af, Class 3)
Surge protecon TVS 4000 V
Power Consumpon
2 W,
3.4 W (IR illuminator on),
4.6 W (white light illuminator on),
6 W (acve deterrence funcons enabled)
Operang Temperature -35°C ~ 60°C
Humidity max. 95%, relave (non-condensing)

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
7
Caution:
If the device was brought from a room with a lower temperature, wait until it reaches the
temperature of the room in which it is to work. Do not switch the device immediately after
bringing from a cooler place. The condensation of water vapor can cause short circuits and
consequently damage the device.
2. START-UP AND INITIAL CONFIGURATION
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2.1. Description of the camera's electrical connectors
1. 12VDC camera power socket
2. 100 Mb/s Ethernet port (hermetic RJ-45 socket)
2.2. Connecting ethernet cable
To maintain hermeticity network cable connection, follow the instructions below:
1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)
2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the
socket (c)
3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push
in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.
4. Tighten up to the stop nut (b)
START-UP AND INITIAL CONFIGURATION
1
2
ba
b
a
c
d

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
8
START-UP AND INITIAL CONFIGURATION
2.3. Power supply connection
The camera can be powered from a commercially available DC power supply, provided that it meets
the technical requirements of the camera. The source must provide stabilized 12VDC voltage, must
allow the consumption of at least 10W of power, and have a barrel DC 2.1/5.5 plug with the correct
polarity of the contacts:
It is also possible to power the camera via the RJ45 network socket, using PoE + technology (IEEE
802.3af, Class 3).
Caution!
Do not use power supplies and POE adapters that do not comply with the IEEE 802.3at standard,
the so-called "passive POE" power supplies. Damage resulting from the use of an unsuitable
adapter is not covered by the warranty!
2.4. Protection against water ingress
The declared degree of protection applies only to camera housing and the location where the
connection cable enters the inside of the housing.
This means that the connection cable, including sockets, connectors, switches, buttons, and other
elements on this cable, as well as other camera equipment/construction elements (such as hoods,
brackets, supports, etc.), are not waterproof. It is the responsibility of the person installing the camera
to protect the elements that require it (and in any case the connection cable) against moisture.
The manufacturer is not responsible for any damages or camera malfunctions resulting from failure to
comply with the above obligation, which also means that they are not covered by the warranty repairs.
The RJ-45 socket cover included in the camera accessories (depending on the version/model) is not a
water protection element. Its purpose is to protect against the ingress of dust and atmospheric moisture
into the socket and prevent accidental disconnections by mechanically stabilizing the network plug in
the RJ-45 socket.
Illustrave drawing
Water protected area Area that needs to be sealed
during installaon

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
9
2.5. "Two way power" function
The camera is equipped with the "Two way power" function. When the camera is connected to the PoE
switch, 12VDC is available in the 12V camera power socket. This allows user to power the receiver
with low power consumption from the camera power socket.
2.6. Camera mounting
2.6.1. Mounting the NVIP-5VE-4511/FWLAD camera
• Unscrew the ring that secures the camera to the base, remove the cover and the clamping ring,
take the camera out of the base.
• Use the template or the location of the holes on the base of the camera to mark the points for
future mounting holes and the cable entry.
• Drill mounting holes and a hole for the signal cable.
• Attach the camera base
• Connect the camera cables, place the camera on the base, put on the cover and pre-screw the
fixing ring. Adjust the position of the camera
• Tighten the clamping ring as far as it will go

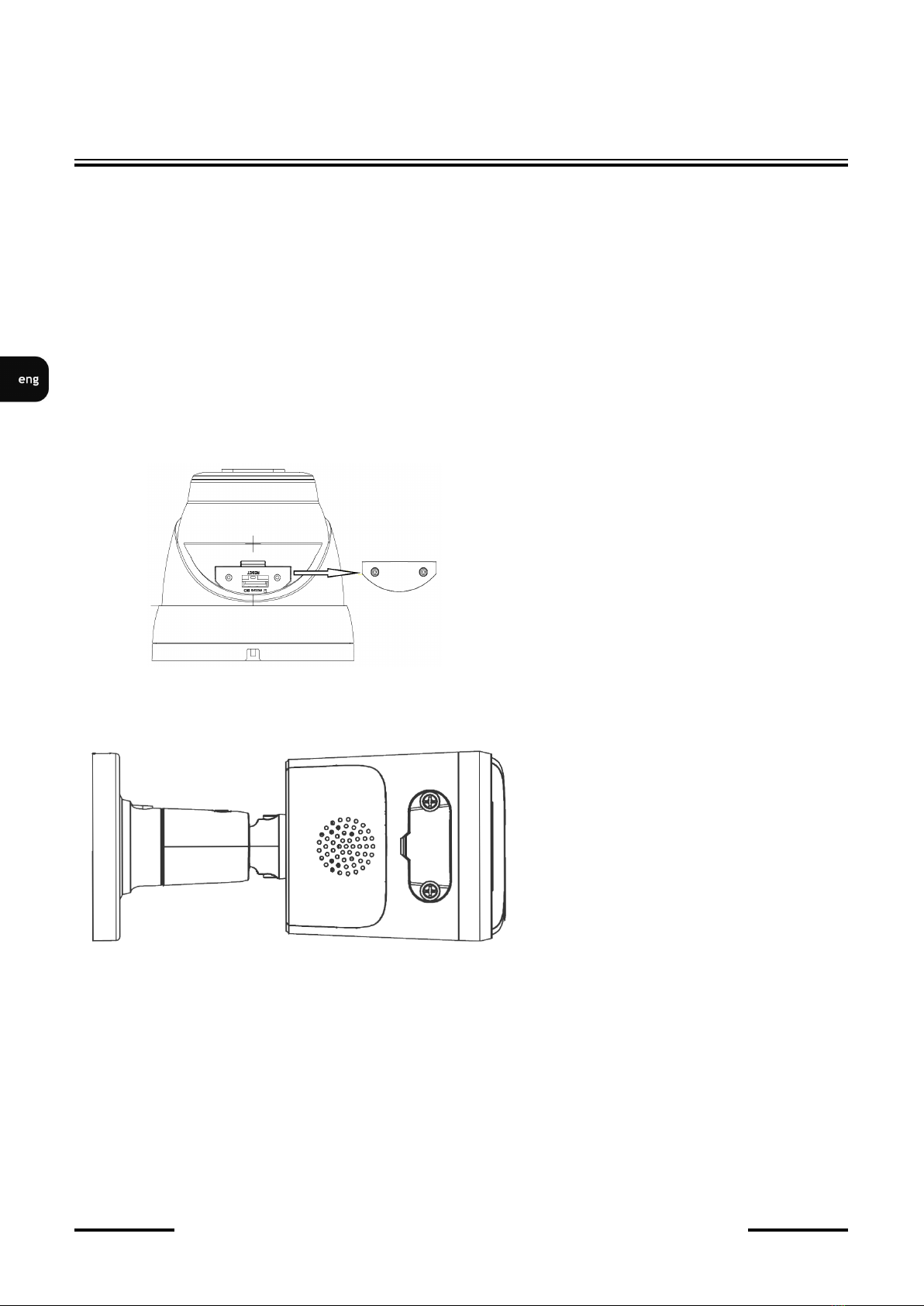

2.6.2. Mounting the NVIP-5H-4511/FWLAD camera
• Place the camera foot or template on the installation site
• Mark the points for future fastening holes and the cable entry.
• Drill mounting holes and a hole for the signal cable
• Fix the camera using the provided dowels and screws.
• Loosen the HEX screws that secure the handle and the foot
• Adjust the position of the camera, tighten the counter screws
Caution!
Pay particular attention to the surface to which is attached the camera to have the appropriate capacity.
Caution!
It is recommended to install the camera using one of the dedicated adapters. The use of an adapter
allows for an aesthetic camera installation, facilitates later servicing and provides a water-protected
space for hiding cables.
START-UP AND INITIAL CONFIGURATION
The maximum power consumption of the device using the “Two way power” function is 3W.
Adapters are additional equipment, to be purchased separately. The characteristics and functions
of the adapter (such as mounting method, space for cables, etc.) depend on its model. The list of
dedicated adapters and their specifications can be found on the camera’s catalog card under the
“Related Products” tab

NVIP-5VE-4511/FWLAD, NVIP-5H-4511/FWLAD Quick start guide version 1.1
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
10
2.7. Starting the camera
To start the camera, connect the Ethernet cable to the RJ45 network socket of the IP camera, and the
other end to the network switch. As a power source, it is possible to use an external stabilized power
supply with parameters that meet the requirements of the camera or PoE network switch.
The recommended method of starting and configuring the IP camera is to connect it to a PC or laptop
in a dedicated network switch to which no other devices are connected. In case of power supply from
an external power supply, it is enough to use any network switch or a cable connected directly to the
computer. For network configuration data (IP address, gateway, netmask etc.), please contact the
administrator of the network in which the device is to work.
• Connection using network switch with PoE support

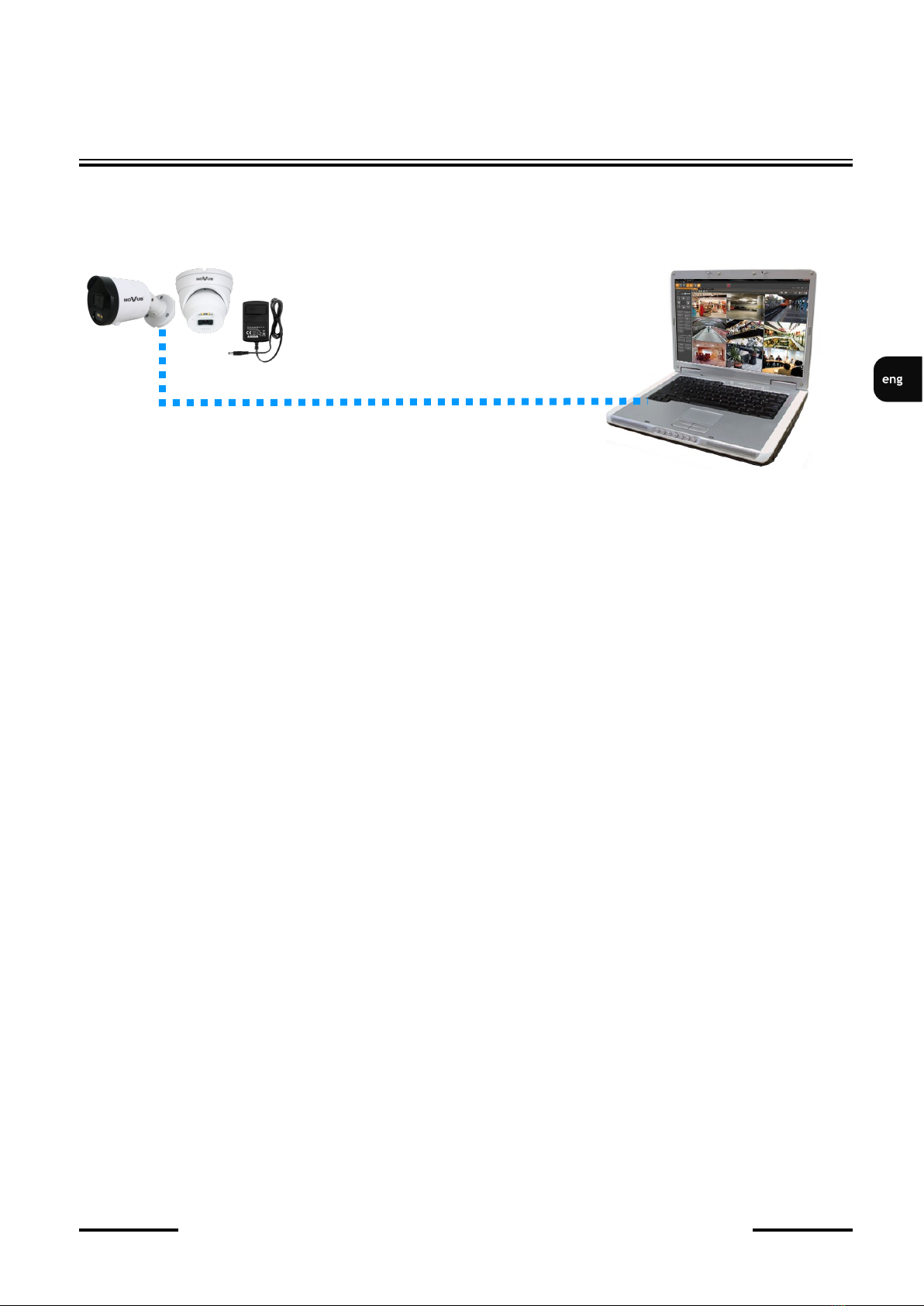

• Connection using external power supply and network switch
START-UP AND INITIAL CONFIGURATION
PCIP camera
Power and data transmission Data transmission
PoE network switch
IP camera
Data transmission Data transmission
Network switch PC
