Novus NVIP-8SD-6550/32/F User manual

Quick start guide
NVIP-8SD-6550/32/F

NVIP-8SD-6550/32/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
2
THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:
Information
The device, as an element of a professional CCTV system used for supervision and control, is not
intended for self-installation in households, by people without specialist knowledge.
Disclaimer in the event of damage to data contained on the disk or other devices:
The manufacturer is not liable in the event of damage or loss of data contained on hard disks or other
devices during the operation of the Product.
Obligation to consult the Manufacturer before performing an activity not provided for in the
operating manual or other documents:
Before performing an action that is not provided for in the Product manual, other documents attached to
the Product or does not result from the normal purpose of the Product, please contact the Manufacturer
under the pain of excluding the Producer's liability for the consequences of such an action.
IMPORTANT SAFEGUARDS AND WARNINGS
Pictures in this publication showing camera views can be simulations. Actual camera
images may vary depending on the type, model, settings, observation area, or
environmental conditions.
DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE
COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States
relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)
(OJ L 197, 24.7.2012, p. 38–71,with changes).
DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).
COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending
Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards
the list of restricted substances.
DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
3
NVIP-8SD-6550/32/F Quick start guide version 1.0
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER
DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH
THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER
-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct
influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer is
forbidden;
7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,
bath tubs, damp basements);
8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)
is not recommended since it may lead to heat build-up and damaging the device itself as a
consequence;
9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.
10. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the datasheet. Therefore, it is forbidden to supply the camera from
a power sources with unknown parameters, unstable or not meeting producer’s requirements;
Due to the product being constantly enhanced and optimized, certain parameters and functions
described in the manual in question may change without further notice.
We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full
manual
IMPORTANT SAFEGUARDS AND WARNINGS

NVIP-8SD-6550/32/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
4
TABLE OF CONTENTS
1. FOREWORD INFORMATION .....................................................................................5
1.1. General characteristics.........................................................................................5
1.2. Technical specification .......................................................................................6
1.3. Camera dimension ..............................................................................................8
1.4. Package contents..................................................................................................8
2. START-UP AND INITIAL CONFIGURATION .........................................................9
2.1. Description of connectors....................................................................................9
2.2. Connecting ethernet cable .................................................................................10
2.3. Power supply connection ..................................................................................10
2.4. Wall mounting of the camera ............................................................................11
2.5. Starting the camera. ...........................................................................................12
2.6. Initial configuration via the web browser..........................................................13
2.7. Security recommendations for network architecture and configuration ...........14
3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................15
3.1. Recommended PC specification for web browser connections .........................15
3.2. Connection with camera via web browser .........................................................15
4. WEB INTERFACE - WORKING WITH THE CAMERA .......................................17
4.1. The remote preview interface.............................................................................17
5. SD CARD INSTALLATION .......................................................................................20
6. RESTORING FACTORY DEFAULTS .....................................................................21
6.1. Software factory reset.........................................................................................21
6.2. Software factory reset using the NMSiptool ......................................................21
6.3. Hardware factory reset ......................................................................................21
7. SPECIAL PRESETS.....................................................................................................22
8. CONFIGURATION OF OBJECT TRACKING OPTIONS ....................................23
TABLE OF CONTENTS

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
5
NVIP-8SD-6550/32/F Quick start guide version 1.0
1. FOREWORD INFORMATION
1.1. General Characteristics
• Sensor resolution: 8 megapixels
• Mechanical IR cut filter, IR operation capability
• Min. Illumination from 0,002 lx/F1.2 (0 lx with IR LED on)
• Wide Dynamic Range (WDR)
• Digital Slow Shutter (DSS)
• Digital Noise Reduction (DNR)
• Defog Function (F-DNR)
• Highlight Compensation (HLC)
• Back Light Compensation (BLC)
• Lens type: motorzoom with AF and AI, f=4.8 ~ 154 mm/F1.2 ~ F4.4
• Optical zoom: 32x
• Built-in IR LED illuminator
• 8 cruises (16 presets per cruise)
• 4 traces (up to 180 seconds each)
• 2 scan modes
• 360 presets
• Auto-flip - automatic camera rotation 180°
• The ability to control zoom, tilt and pan directly via the website and from the NMS program
(NOVUS MANAGEMENT SYSTEM)
• Motion detection
• Compression: H.264, H.265, MJPEG
• Max video processing resolution: 3840 x 2160 (4K Ultra HD)
• Operation in 3-stream mode: ability to define compression, resolution, speed and quality for each
stream
• Advanced Video Content Analysis based on Deep Learning
• The ability to track recognized objects
• Pre & post-alarm functions
• Built-in web server - the ability to view and configure camera settings via the website
• Support for micro SD memory cards up to 256 GB
• Possibility to broadly define the system's reaction to alarm events
• NMS (Novus Management System) software - for video recording, live viewing, playback and
remote configuration of IP video devices
• Degree of protection IP66
• Power supply: 24 VDC/24 VAC, PoE++ (IEEE 802.3bt Class 6)
FOREWORD INFORMATION

NVIP-8SD-6550/32/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
6
1.2. Technical specification
FOREWORD INFORMATION
Image Sensor 8 MPX, matryca CMOS, 1/2.8”, SONY STARVIS
Number of Eecve Pixels 3864 (H) x 2192 (V)
Min. Illuminaon
0.01 lx/F1.2 - color mode,
0.002 lx/F1.2 - B/W mode,
0 lx (IR on) - B/W mode
Electronic Shuer auto: 1 s ~ 1/100000 s
Digital Slow Shuer (DSS) up to 1 s
Wide Dynamic Range (WDR) yes (double scan sensor), 120dB
Digital Noise Reducon (DNR) 2D, 3D
Defog Funcon (F-DNR) yes
Highlight Compensaon (HLC) yes
Back Light Compensaon (BLC) yes
Reducon of image icker (Anicker) yes
LENS
Opcal Zoom 32x
Lens Type motorized, auto-iris funcon, f=4.8~154 mm/F1.2~F4.4
Auto-focus zoom trigger, day/night mode trigger, manual trigger
DAY/NIGHT
Switching Type mechanical IR cut lter
Switching Mode auto, manual, me
Switching Level Adjustment yes
Visible Light Sensor yes
NETWORK
Stream Resoluon 3840 x 2160 (4K Ultra HD), 2560 x 1440 (QHD), 1920 x 1080
(Full HD), 1280 x 960, 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240
Frame Rate 30 fps for each resoluon
Mulstreaming Mode 3 streams
Video/Audio Compression H.264, H.265, MJPEG/G.711
Number of Simultaneous Connecons max. 9
Bandwidth 40 Mb/s in total
Network Protocols Support HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DNS, DDNS, NTP,
RTSP, RTP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP
ONVIF Protocol Support Prole S
Camera Conguraon from Internet Explorer browser
languages: Polish, English, and others
Compable Soware NMS, N Control 6000
Mobile applicaons SuperLive Plus (iPhone, Android)

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
7
NVIP-8SD-6550/32/F Quick start guide version 1.0
FOREWORD INFORMATION
PTZ
Preset Commands 360 including 20 special (funcon) presets
Tours 8 (up to 16 presets per tour)
Paerns 4 (max. 360 commands or 180 s for each paern)
Tilt/Pan Range -5° ~ 90°/360° (connuous)
Pan/Tilt Speed up to 120°/s (proporonal to zoom)
Preset Speed up to 150°/s
OTHER FUNCTIONS
Privacy Zones 8 video mask type: single color
Moon Detecon yes
Video Content Analysis (VCA)
Auto Tracking linked to Video Content Analysis (VCA) funcons,
tamper, line cross, zone entrance, zone exit, face detecon,
cross counng, Scene Change, Video Blurred, Video Color Cast,
zone entrance detecon and object tracking, objects
disnguishing
Image Processing 180˚ image rotaon, sharpening, mirror eect
Prealarm/Postalarm up to 6 s/up to 120 s
System Reacon to Alarm Events e-mail with aachment, saving le on FTP server, saving le on
SD card, object tracking
Restoring default sengs via web browser, using reset buon, via NMS IPTool soware
IR LED
LED Number 5
Range up to 200 m (depends on current opcal zoom value)
Smart IR yes (hardware support)
INTERFACES
Audio Input/Output 1 x Jack (3.5 mm)/1 x Jack (3.5 mm)
Alarm Input/Output 1 (NO/NC)/1 relay type
Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot microSD - capacity up to 256GB
INSTALLATION PARAMETERS
Dimensions (mm) 209 (Ф) x 328 (H) with bracket: 209 (W) x 500 (H) x 315 (L)
Weight 3 kg with bracket: 3.7 kg
Degree of Protecon IP 66 (details in the user’s manual)
Enclosure aluminium, white, IK10 impact rang, in set: outdoor housing
(integrated with the camera), wall mount bracket
Power Supply 24 VDC/24 VAC, PoE++ (IEEE 802.3bt Class 6)
Surge protecon TVS 6000 V
Power Consumpon 14 W, 20 W (IR on), 34 W (IR and heater on)
Surge protecon TVS 6000 V
Operang Temperature -40°C ~ 65°C
Humidity max. 90%, relave (non-condensing)
Built-in Heater/Fan yes/yes

NVIP-8SD-6550/32/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
8
FOREWORD INFORMATION
1.3. Camera dimensions
1.4. Package contents
After you open the package make sure that the following elements are inside:
• IP camera
• Wall mount
• Accessories bag
• Quick start guide
If any of this elements has been damaged during transport, pack all the elements back into the original
box and contact your supplier for further assistance.

All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
9
NVIP-8SD-6550/32/F Quick start guide version 1.0
START-UP AND INITIAL CONFIGURATION
2.START-UP AND INITIAL CONFIGURATION
Before starting the device familiarize yourself with the description and the role of particular
inputs, outputs and adjusting elements that the device is equipped with.
2.1. Description of connectors
No Connector Type Funcon Descripon
1RJ45 socket Port Ethernet 100Mbps Ethernet connector
23.5mm Jack socket
socket designaon: "HP" Audio line out For connecng external audio devices
33.5mm Jack socket
socket designaon: "MIC" Audio line in For connecng external audio devices
4ARK type screw terminal
block
1. Alarm output OUTPUT Alarm output, NO (relay,
12VDC/24VAC 0.3A max)
2. Alarm output COM
3. Alarm input GND Alarm input, congurable: NC or NO.
Acvang the input is done by
applying a voltage of 5~12 VDC.
4. Alarm input INPUT
52.5/5.5 socket
socket designaon: "POWER" Power connector Power supply, 24VDC or 24VAC
6yellow-green wire
designaon: "EARTH" protecve conductor Connects the camera housing to ground
1. 100 Mbps Ethernet port
2. Audio line out
3. Audio line in
4. Alarm input/output block
5. Power supply connector
6. Ground connecon

NVIP-8SD-6550/32/F Quick start guide version 1.0
All rights reserved © AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.
10
START-UP AND INITIAL CONFIGURATION
2.2. Connecting ethernet cable
To maintain tightness of ethernet cable connection, please follow instruction below:
1. Unscrew the nut (b) from the connector cover (a), put the sealing ring on the socket (c)
2. Route the network cable through parts (a) and (b). Insert the RJ-45 plug into the socket (c)
3. Screw the connector cover (a) onto the socket (c). Press the cable seal (d) into the upper part of the
connector cover (a) as far as it will go - the seal has a cut enabling it to be put on the cable.
4. Tighten the nut (b) as far as it will go.
Caution!
The other connectors are not hermetic. The user should ensure the tightness of these sockets on
his own.
2.4. Power supply connection
The camera can be powered from AC or DC power supplies available on the market, provided that it
meets the technical requirements of the camera. The power supply must provide a voltage of 24V, it
must allow the consumption of at least 45W of power, and have a 2.5/5.5 cylindrical power plug
(voltage polarity in the plug does not matter).

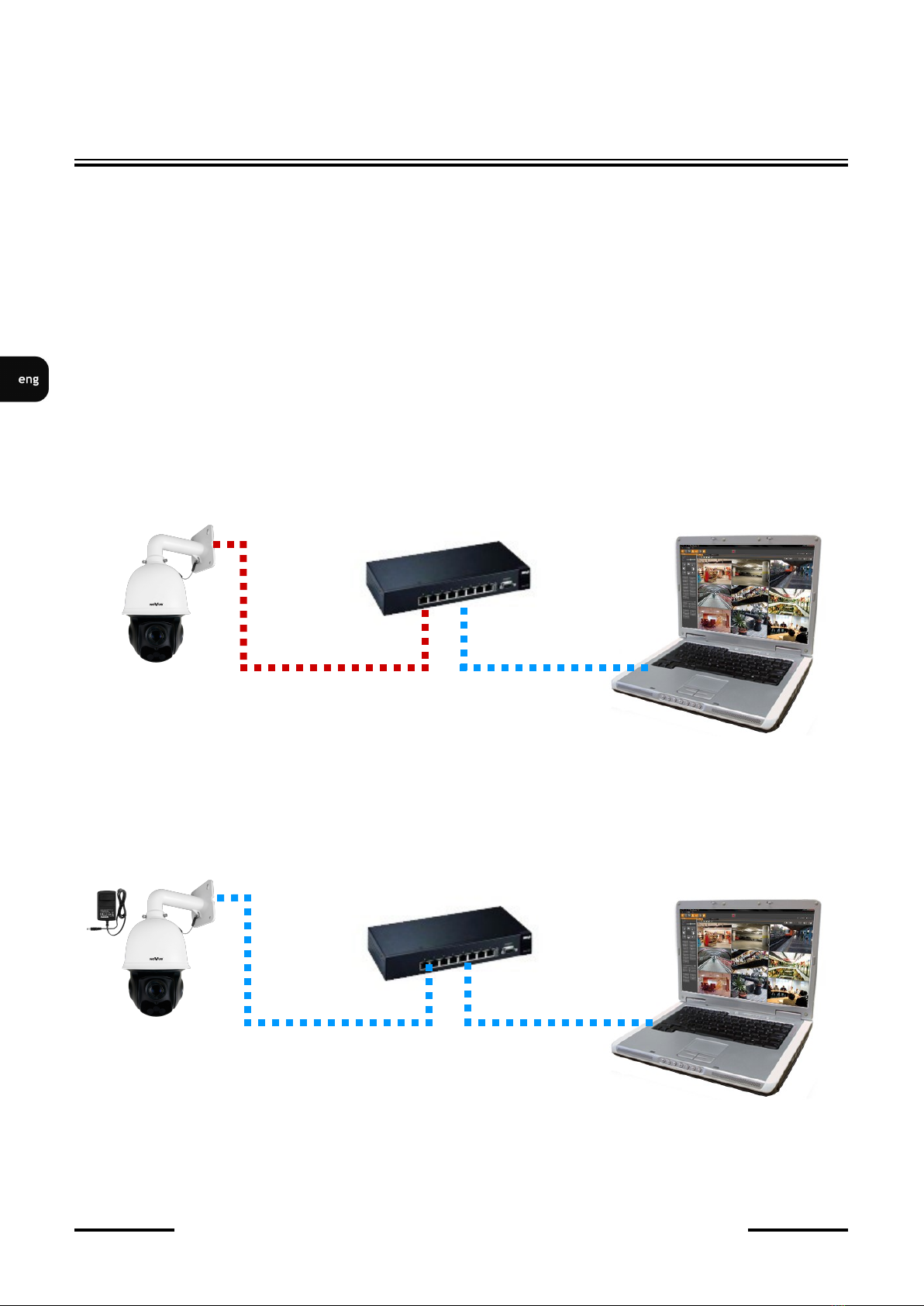

It is also possible to power the camera via the RJ45 network socket, using devices compliant with the
PoE++ standard (IEEE 802.3bt Class 6)
Caution!
Do not use power supplies and POE adapters that do not comply with the IEEE 802.3bt
standard, the so-called "passive POE" power supplies. Damage resulting from the use of an
unsuitable adapter is not covered by the warranty!
ba
b
a
c
d
It is allowed to simultaneously power the camera from the 24V power supply and the PoE++
switch. In this case, the 24V power supply has priority.
