Nowy Styl Puzlo User manual
EN Operation manual for
RFID electronic card
lock with card key
PL Instrukcja obsługi zamka
elektronicznego z czytnikiem
RFID i kluczem kartą
Puzlo
FR Notice d’utilisation pour
serrure électronique avec
lecteur RFID et carte
faisant oce de clé
DE Handbuch elektronisches
Kartenschloss RFID
3
EN
Operation manual for
RFID electronic card lock
Technical specification
PL
Instrukcja obsługi zamka
elektronicznego z czytnikiem RFID
Specyfikacja techniczna
DE
Handbuch elektronisches
Kartenschloss RFID
Technische Beschreibung
FR
Notice d’utilisation pour serrure
électronique avec lecteur RFID
Description technique
4
EN
Operation manual
for RFID electronic card lock
5
NOTE please keep the master and update cards as well as the
card with the individual service key carefully and securely!
Master
ID XXXXXXXXXX
Service key
ID XXXXXXXXXX
Master card
required for programming and
emergency locks unlocking
Service card
equipped with a printed
service key enabling
re-ordering of the master card

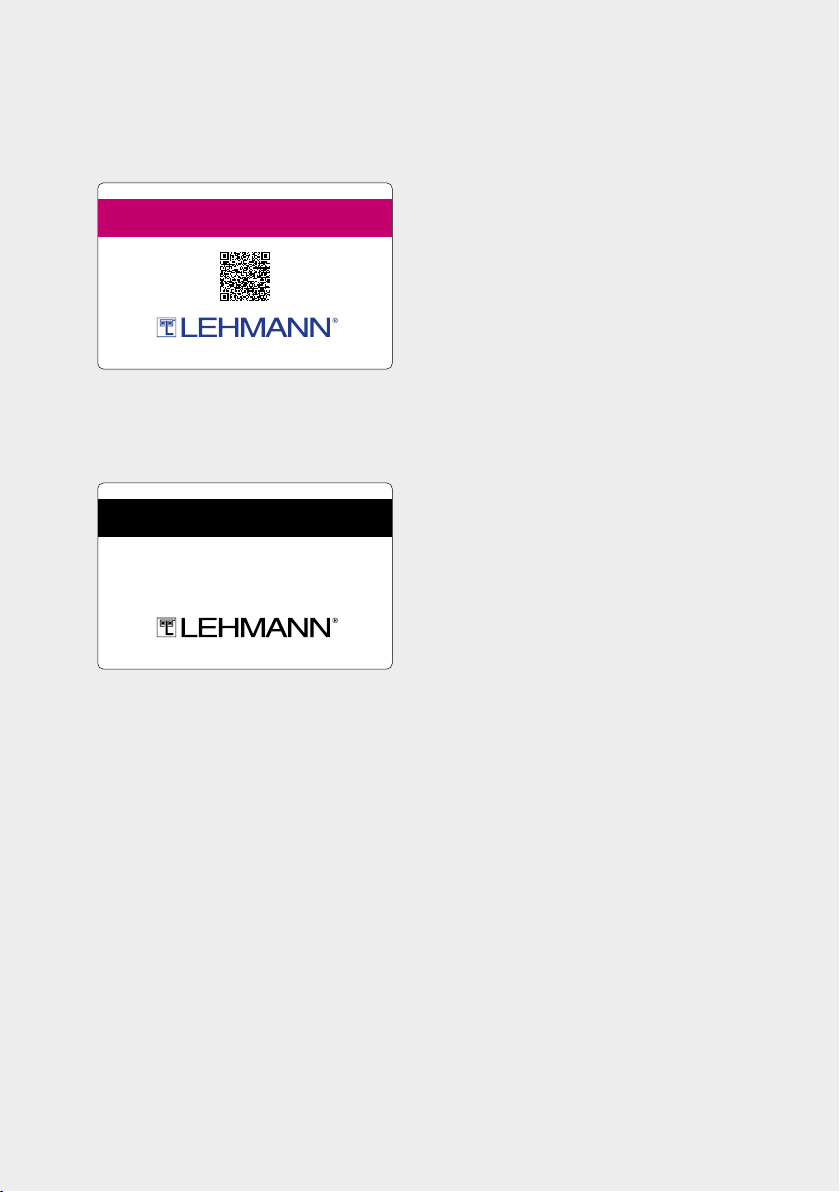

Overview of card types
6
Update card
in conjunction with master
card update card makes
possible uploading of
firmware updates to locks
User cards
used for locking and
unlocking locks The number
corresponds to the number
of units in cabinet
User
ID XXXXXXXXXX
Update
ID XXXXXXXXXX
L033
IMPORTANT INFORMATION!
The master card and user card(s) are
programmed before the product is delivered to the customer.
However if reseting the product to default settings occures
necessary the master card and user card(s) must be
programmed in accordance with chapter and
7
Optical signals
Acoustic signals
short flashing
short sound
long flashing
long sound
Overview of signals
8
1.
Closing and opening
If the lock is open, hold the user card
in front of the reader - lock will close
If the lock is closed, hold the user card
in front of the reader - lock will open
User
User
9
NOTE:
an unauthorised user card held in front
of the reader will be rejected and signaled
by three red flashings and short sounds
User
10
2.
Facility manager function
If an authorised person wants to check if the locker is actually
occupied the lock can be opened with the master card
With this function the lock opens for seconds and
then closes automatically After this automatic closure
all the authorised user cards can be used normally
Hold the master card in front of the reader
Master
11
3.
Emergency opening
If one or all authorised user cards are currently not available
emergency opening can be made with the master card Please
note that after emergency opening the lock remains open
Hold the master card in front of the reader as followed:
Master
Master
12
4.
Deleting individual user card
If many user cards were programmed on the lock these
operation will cause that the only one choosen user card will stop
work For this operation the lock must be open. If the lock is
closed carry out an emergency opening first (see chapter )
Hold the master card in front of the reader
Master
13
4.1
4.2
Hold the user card that is going to
be deleted in front of the reader
User
Hold the master card in front of the reader again
Master
14
5.
Deleting all user cards
For this operation the lock must be open. If the lock is closed
carry out an emergency opening first (see chapter )
IMPORTANT: in each step hold the master card in front of the
reader until all the following optical and acoustic signals appear
15
5.1
Hold the master card in front of the reader until all the
following optical and acoustic signals appear
5 sec.
Master
16
5.2
Hold the master card in front of the reader
5 sec.
Master
Hold the master card in front of the reader
Master
17
6.
Hold the master card in front of the reader
Programming the master card
Master card must always be programmed before any further
actions The programming of the master card can be carried out
when the lock is either closed or open but if the lock is closed
the next step that comes after programming the master card
must be an operation of emergency opening (see chapter )
NOTE: Only one master card can be programmed per one lock
Master
18
7.
7.1
Hold the master card in front of the reader
Master
Programming the user card(s)
19
7.2
If red light and short sound appear three times
it means that the user card has NOT been accepted
NOTE: if you want to program more than one user card
to the lock repeat step with next user cards
NOTE: maximum of different user cards
can be programmed per one lock
Hold the user card in front of the reader
- card will be accepted and programmed
User
20
7.3
Now after programming the user cards
can open and close the assigned lock
When all the user cards that you wanted
to assigned to the lock are already programmed
hold the master card in front of the reader
Master
