OWNER’S MANUAL
Item# 35013
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
WARNING:
1AMP MULTI-USE
CHARGER/MAINTAINER

1
Thank you very much for choosing a Npower product! For future reference, please complete
the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire
manual to become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible
for issues arising from modification. We strongly recommend this machine not be modified
and/or used for any application other than that for which it was designed. If you have any
questions relative to a particular application, DO NOT use the machine until you have first
contacted the distributor to determine if it can or should be performed on the product.
For technical questions please call 1-800-222-5381.
INTRODUCTION
This 1Amp multi-use charger/maintainer will keep your 12 Volt lead-acid batteries, including
GEL cell and AGM charged while maintaining top performance. In addition, it can also be

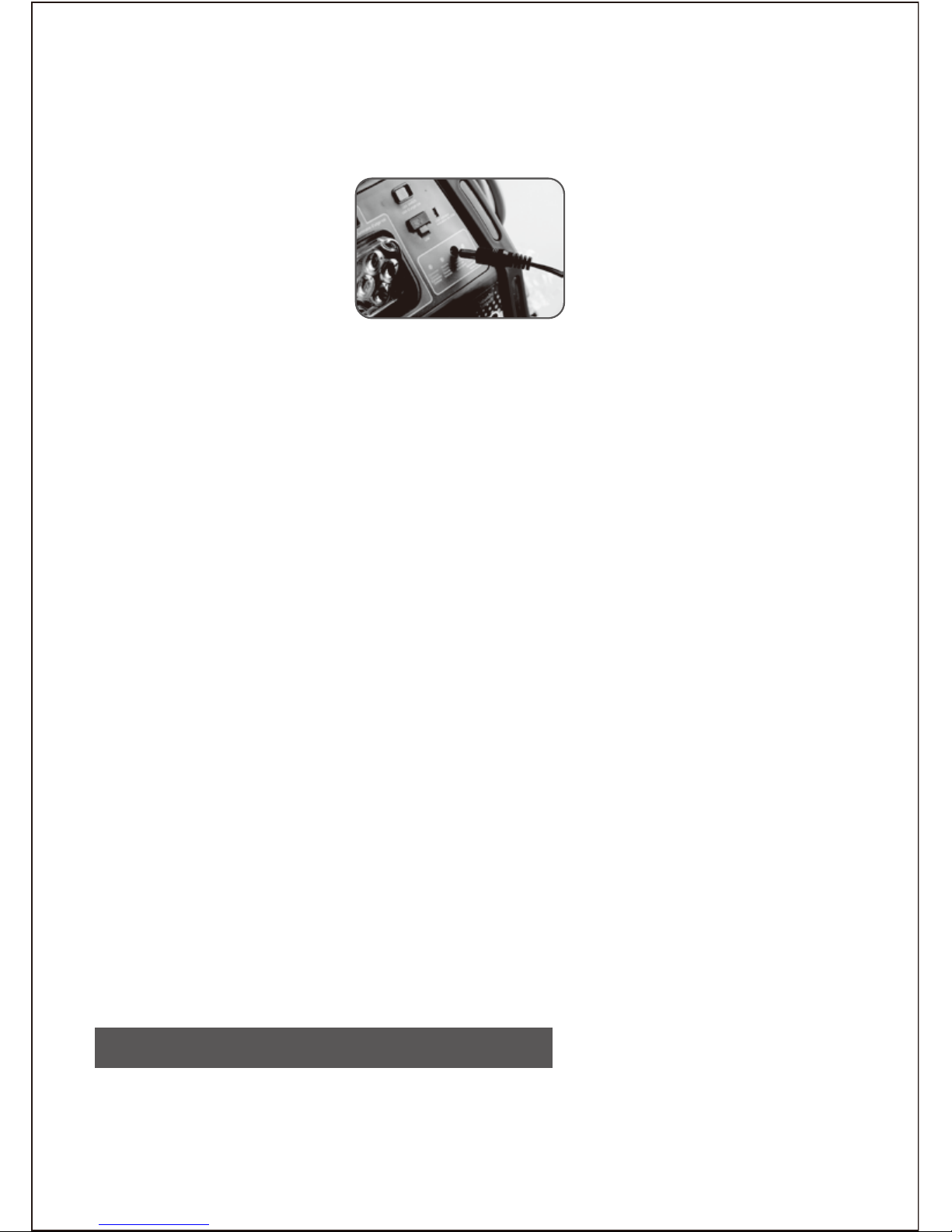

used to charge your Npower powerpack and jump starter.
This unit was specially designed to charge and maintain your batteries without having to
disconnect them from your boat or vehicle.
With built in safety features such as a reverse polarity alert, easy to read LED indicators,
automatic short circuit protection, over temperature protection, and our 3-stage
high-efficiency charging process you can be assured that your battery will be charged safely
and efficiently.
This manual will explain how to use the charger safely and effectively. Please read and
follow these instructions and precautions carefully.
Three-stage battery charging:

Stage One - Bulk Charge：
The Bulk Charge delivers maximum charging amperage to "wake up" any serviceable 12 volt
battery and allows for quick engine start. The battery will then reach a maximum safe
predetermined voltage.
Stage Two - Absorption Charge:
The Absorption Charge maintains the maximum possible charge at a constant, safe and
predetermined voltage. During this phase, the charging voltage remains constant, while the
actual charging current is reduced to allow for the maximum proper internal chemical energy
transfer.
Stage Three - Float Charge：
The Automatic Float Charge feature is ideal for maintaining a battery. It automatically “tops
off” battery as needed, to keep battery fully charged.
TECHNICAL SPECIFICATIONS
GENERAL SAFETY RULES
Item
Rated Input Voltage
Description
Input Current
Maximum Output Current
Output Current
Battery Type
Weight
Dimensions (LxWxH)
120VAC/60HZ
0.35A
1.0±0.2A
14.2±0.2VDC
12V
1lbs
3.8”×2.5”×2.2”
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this 1 Amp Multi-Use
Charger/Maintainer until they have read this manual and have developed a thorough
understanding of how the battery charger works.
2

3
IMPORTANT SAFETY CONSIDERATIONS
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot
be built into this product, but must be supplied by the operator.
1 Amp Multi-Use Charger/Maintainer USE AND CARE
• Do not modify the 1 Amp Multi-Use Charger/Maintainer in any way. Unauthorized
modification may impair the function and/or safety and could affect the life of the
equipment. There are specific applications for which the 1 Amp Multi-Use
Charger/Maintainer was designed.
• Always check for damaged or worn out parts before using the 1 Amp Multi-Use
Charger/Maintainer. Broken parts will affect the 1 Amp Multi-Use Charger/Maintainer
operation. Replace or repair damaged or worn parts immediately.
• When the 1 Amp Multi-Use Charger/Maintainer is not in use, store it in a secure place
out of the reach of children. Inspect it for good working condition prior to storage and
before re-use.
WARNING – Never Connect The Quick Connectors
Disconnect plugs together on two (2) dc cable assembly accessories that are both
connected to batteries.
THESE CABLES ARE NOT JUMPER CABLES!!
WARNING – Risk Of Explosion
Working in the vicinity of a lead-acid battery is dangerous. Batteries generate
explosive gases during normal battery operation. For this reason it is of the utmost
importance that each time before using your charger, you read and follow the
instructions provided exactly as stated. To reduce risk of battery explosion, follow these
instructions and those published by the battery manufacturer.
WARNING: Handling the cord on this product or objects
associated with the use of this product may expose you to
lead. Wash hands after handling.
CONNECTING OPPOSITE POLARITIES
CAUSES A DANGEROUS SHORT CIRCUIT.
NEVER
CONNECT
THESE
2 PLUGS!!!
NEG POS
Battery
Covered Socket
is Positive
Exposed Pin
is Negative
NEG POS
Battery
Exposed Pin
is Negative
Covered Socket
is Positive

•
•
•
•
•
•
•
•
•
•
PERSONAL SAFETY PRECAUTIONS
Make sure someone is within your vicinity to supervise any possible hazardous
situations when working with or near a lead-acid battery.
Wear complete eye and clothing protection when working with lead-acid batteries.
Avoid touching your eyes while working with a battery.
Have plenty of fresh water and soap nearby for use in case battery acid comes in
contact your eyes, skin or clothing. If this happens, wash immediately with soap and
water then seek medical attention.
Never smoke or allow an open spark or flame within the vicinity of the battery or
engine. Batteries generate explosive gases.
Be careful not to drop any metal tool or object onto the battery. This may result in a
spark or short circuit across the battery or another electrical device and may cause an
explosion.
Remove all personal metal items, such as rings, bracelets, necklaces and watches
from your body while working with a lead-acid battery. A battery can produce a short
circuit current high enough to weld such objects to metal, causing severe burn.
Never attempt to charge a frozen battery.
Never overcharge a battery.
Always operate the battery charger in an open, well-ventilated area.
Read all instructions and cautions printed on the battery charger, battery and vehicle.
Use the charger for charging lead-acid batteries only such as those used in cars,
trucks, motorcycles, boats, etc. It is not intended to supply power to a low-voltage
electrical system or to charge dry-cell batteries commonly used in household
appliances such as radios, toys, camera, etc. Charging dry-cell batteries may cause
them to burst and cause injury to persons and damage to property.
Do not use an attachment not recommended as it may result in the risk of fire or
electrical shock.
Do not disassemble battery charger. Take it to a qualified service professional if service
or repair is required. Incorrect assembly may result in fire or electrical shock.
To reduce risk of electrical shock, unplug the charger from the outlet before attempting
any maintenance or cleaning.
Do not expose charger to extreme weather and temperatures. Keep away from moist
and wet areas.
Never charge a frozen battery.
Never allow the battery clamps to touch when the charger is active. This may cause a
spark.
Never operate a charger if it has received a hard blow, beendropped or otherwise
damaged. Take it to a qualified professional for inspection.
Never pull out the plug by the cord when unplugging the charger as this may cause
damage to the cord or plug.
•
•
•
•
•
•
•
•
•
•
4

5
AC ELECTRICAL CONNECTIONS
OPERATION
PLUGGING IT IN
According to local codes and ordinances, your charger requires the use of 120 Volt AC
electrical wall outlet receptacles.
WARNING: Never alter AC cord or plug provided. If it does not fit the outlet, have a
proper outlet installed by a qualified electrician. Improper connection can result in a
risk of fire or electric shock.
WARNING: Do not operate the charger if it has a damaged power cord or plug. Have
the cord replaced.
USING AN EXTENSION CORD
The use of an extension cord is not recommended. If an extension cord must be used, follow
these guidelines:
Make sure that the pins on the charger’s power cord fit firmly into the extension cord
and that the extension cord fits firmly into the receptacle.
Check that the extension cord is properly wired and in good electrical condition.
Make sure that the wire size is large enough for its length and for the AC ampere
rating of the charger, as specified in the chart below.
•
•
•
MINIMUM RECOMMENDED EXTENSION CORD
Length of Cord, Metres
(Feet)
7.6
(25)
15.2
(50)
30.5
(100)
45.6
(150)
AWG* Size of Cord 18 16 12 10
*AWG=American Wire Gauge
WARNING: Use of an improper extension cord could result in a risk of fire and electric
shock.
PREPARING TO CHARGE
CHARGER LOCATION
Do not expose charger to extreme weather and temperatures. Keep away from moist
and wet areas.
Place the charger as far from the battery being charged as the cables will permit.
Be sure to position the power cord to prevent it from being stepped on, tripped over or
damaged.
•
•
•

Never place charger directly above battery being charged.
Gases from the battery will corrode and damage the charger.
Never set a battery on top of a charger.
Never allow battery acid to drip on charger.
Always charge a battery in a well-ventilated area.
WARNING: Battery chargers may get hot during operation. Do not set charger on
flammable materials such as carpeting, upholstery, paper, cardboard, etc. Charger
may damage leather, plastic and rubber.
BATTERY PREPARATION
If it is necessary to remove battery from vehicle to charge it, always remove grounded
terminal from battery first. Make sure all accessories in the vehicle are OFF in order to
prevent sparks.
Be sure that the area around the battery is well ventilated while being charged.
Clean the battery terminals. Be careful to keep corrosion or battery acid from getting in
or around your eyes.
For batteries with removable vent caps, if required, add distilled water to each cell until
the battery fluid reaches the level specified by the battery manufacturer. Do not overfill.
For batteries without removable vent caps, carefully follow the manufacturer’s charging
instructions.
Study all of the battery manufacturer’s specific precautions and recommendations for
charging and for recommended rates of charge.
Make sure that you have a 12 V lead-acid battery.
Determine voltage of battery by referring to the vehicle owner’s manual.
CHARGING A BATTERY INSTALLED IN VEHCILE
NOTE: A marine battery installed in a boat must be removed and charged on shore. To
charge it on board requires equipment specially designed for marine use.
Connect and disconnect the DC output clamps only after removing the AC plug from
the electrical outlet.
Never allow the DC output clamps to touch each other. This may cause a spark.
FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A
SPARK NEAR BATTERY MAY CAUSE A BATTERY EXPLOSION.
TO REDUCE THE RISK OF A SPARK NEAR BATTERY:
1. Position AC and DC cords to reduce the risk of damage by hood, door, or moving engine
part.
2. Stay clear of fan blades, belts, pulleys, and other parts than can cause injury to persons.
3. Check polarity of battery posts. A positive (POS, P, +) battery post usually has a larger
diameter than a negative (NEG, N, -) post.
4. Determine which battery cable is attached to the vehicle chassis. IT IS NORMALLY
THE NEGATIVE POST.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
6

7
5. Connecting to a negative-grounded system: Connect the positive (red) clip from a battery
charger to a positive (POS, P, +) ungrounded post of a battery. Connect the negative
(black) clip to the vehicle chassis or engine block away from battery. Do not connect clip
to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part
of the frame or engine block. Connecting to a positive-grounded system: Connect the
negative (black) clip from battery charger to the negative (NEG, N, -) ungrounded post of
battery. Connect the positive (red) clip to the vehicle chassis or engine block away from
battery. Do not connect clip to carburetor, fuel lines, or sheet-metal body parts. Connect
to a heavy gauge metal part of the frame or engine block.
6. Connect charger AC supply cord to electric outlet.
7. Charge battery as outlined in the OPERATION INSTRUCTIONS section.
8. When disconnecting chargers, disconnect the AC cord, remove the clip from vehicle
chassis, and then remove the clip from battery terminal.
CHARGING A BATTERY REMOVED FROM VEHCILE
Connect and disconnect the DC output clamps only after removing the AC plug from
the electrical outlet.
Never allow the DC output clamps to touch each other. This may cause a spark.
FOLLOW THESE STEPS WHEN BATTERY IS REMOVED FROM VEHICLE. A SPARK
NEAR BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A
SPARK NEAR BATTERY:
1. Check polarity of battery posts. A positive (POS, P, +) battery post usually has a
larger diameter than a negative (NEG, N, -) post.
2. Attach at least a 60cm (6-gauge) (AWG) insulated battery cable to a negative
(NEG, N, -) battery post.
3. Connect the positive (red) charger clip to the positive (POS, P, +) post of battery.
4. Position yourself and the other end of the cable as far away from battery as
possible, then connect the negative (black) charger clip to the free end of the cable.
5. Do not face battery when making the final connection.
6. Connect charger AC supply cord to electric outlet.
7. Charge battery as outlined in the OPERATING INSTRUCTIONS section.
8. When disconnecting chargers, always do so in the reverse sequence of the
connecting procedure and break the first connection while standing as far away from
battery as practical.
•
•
CHARGER FEATURES
CONNECTION METHODS
This charger comes with 2 charging leads for extra versatility – standard clamps and ring
terminals. The battery may be charged using either of the two connection options.
Warning: you can only select one charging method at a time.

CHARGING NPOWER POWERPACK AND JUMPSTARTER
This charger is capable for charging Npower powerpack and jump starter (item# 457501,
457801, 457102, 457402, 24928, 27941, and 39616). When chargin a Npower unit, simply
plug the barrel plug into unit’s charging jack, please refer below picture.
1 AMP CHARGE RATE
This charger is recommended for charging small batteries such as those used in
motorcycles, ATVs, snowmobiles, personal watercraft, lawn tractors and golf cars. It is also
suitable to maintain larger batteries such as those used in automobile, marine and farm
tractors.
CHARGING INDICATOR
A red LED light indicates that the battery is charging, the green LED light indicates that the
battery is charged.
AUTOMATIC SHUT OFF
The battery charger is designed to automatically shut off once battery charging is complete
to prevent overcharging. When charging is complete, the green LED will illuminate and the
charger will be switched to Maintenance mode.
MAINTENANCE MODE
Once charging is complete, the charger will automatically go into Maintenance mode (also
known as float mode monitoring). In this mode, the charger keeps the battery fully charged
by delivering a small amount of current when necessary to keep the battery at peak charge.
REVERSE POLARITY PROTECTION
If the cables are incorrectly connected to the battery, the green LED indicator will illuminate.
Note: the charger will not begin charging if the cables are incorrectly connected to the
battery. If battery is below X Volts the charger will not charger the battery. The Green LED
will illuminate as soon as the battery is attached. If the RED LED does not illuminate first
then the battery will not be charged.
OVERHEAT PROTECTION
The charger is designed to shut itself off if overheating is detected. Once the charger cools
down, it will resume charging automatically.
BATTERY CHARGING TIMES
The built-in intelligent microprocessor will continuously monitor and adjust the charger to
provide a fast, safe and efficient charge. Note that battery charge times will vary depending
on several factors, including:
8

MAINTENANCE
TROUBLESHOOTING
9
1. Battery State – Depending on the voltage of your battery, it may take up to 10 hours to
charge. Batteries with higher voltage can usually be charged in a few hours.
2. Battery Rating – A higher rated battery will take longer to charge than a lower rated
battery under the same conditions. A battery is rated in ampere-hours (Ah), reserve
capacity (RC) and cold-cranking amps (CCA).
3. Charge Rate – The charge rate is measured in amps. A battery charged at a lower rate
will take longer than a battery charged at a higher rate. However, smaller batteries can
be easily damaged by charging at a rate which is too high for the capacity of the battery.
4. Temperature – Cold temperature will affect a battery’s ability to accept a charge.
Charging in cold temperatures will increase the amount of time required to charge a
battery.
Clean cords and clamps each time you are finished using the charger. Wipe off any
battery fluid or debris that might have come in contact with the clamps to prevent
corrosion.
Store the power and output cable neatly to prevent damage.
Occasional cleaning of the battery charger case with a soft cloth will help protect the
finish.
Always unplug the charger when not in use.
Keep the charger stored in a cool, dry place.
•
•
•
•
•
Problem Cause Solution
Loose connection at the
connection terminals.
Check the connection.
No AC power at outlet Ensure power is present
at outlet.
The LED indicator does
not illuminate when the
charging cable is
connected to the battery. Overheating shutdown Remove objects covering the
unit. Place the unit in a cooler
location.
The battery voltage is too
low.
Check the battery voltage with
a multimeter. Recycle the
battery if the battery voltage is
too low.
The battery clips are not
connected properly to the
battery terminals.
Check the connection and
re-attach the clips to the
terminals.
Reverse polarity Check the polarity.
The green LED light
stays on even when
batteries are not full.

Maintain your 1 Amp Multi-Use Charger/Maintainer. It is recommended that the general
condition of any 1 Amp Multi-Use Charger/Maintainer be examined before it is used. Keep
your 1 Amp Multi-Use Charger/Maintainer in good repair by adopting a program of
conscientious repair and maintenance. Have necessary repairs made by qualified service
personnel.
WARRANTY
The limited warranty program is the only one that applies to this unit, and it sets forth a ll the
responsibilities of . There is no other warranty, other than those described herein.
Any implied warranty of merchant ability of fitness for a particular purpose on this unit is
limited in duration to the duration of this warranty.
This unit is warranted, to the original purchaser only, to be free of defects in materials and
workmanship for one year from the date of purchase without additional charge with receipt.
The warranty does not extend to subsequent purchasers or users.
Manufacturer will not be responsible for any amount of damage in excess of the retail
purchase price of the unit under any circumstances. Incidental and consequential damages
are specifically excluded from coverage under this warranty.
This unit is not intended for commercial use. This warranty does not apply to damage to units
from misuse or incorrect installation/connection. Misuse includes wiring or connecting to
improper polarity power sources.
LIMITATIONS:
This warranty does not cover accessories, such as adapters and batteries, damage or
defects result from normal wear and tear (including chips, scratches, abrasions, discoloration
or fading due to usage or exposure to sunlight), accidents, damage during shipping to our
service facility, alterations, unauthorized use or repair, neglect, misuse, abuse, failure to
follow instructions for care and maintenance, fire and flood.
If your problem is not covered by his warranty, call our Customer Service Department toll free
at 1-800-222-5381 for general information if applicable.
10

Distributed by
Northern Tool + Equipment Co., Inc.
Burnsville, Minnesota 55306
NorthernTool.com
Made in China
