NSS®Enterprises, Inc.
3115 Frenchmens Road, Toledo, Ohio 43607
PHONE [phone] FAX [phone]
NSS ® Enterprises, Inc. European Distribution Centre
Unit II, Pinfold Trading Estate * 55 Nottingham Road
STAPLEFORD, NOTTINGHAM NG9 8AD ENGLAND U.K.
PHONE: [phone] * FAX: [phone]
Pacer Operation Manual - Orig. 01-04 9097271
SAVE THESE INSTRUCTIONS
OPERATION MANUAL
PACER 214 UE
PACER 218 UE
5.959-710 A2007068

2
PACER 214 UE / 218 UEOPERATION MANUAL
Contents
1. Unitdiagram....................................................................................................................................................................................................................... 6
2. Technical data ................................................................................................................................................................................................................. 6
3. Starting the unit and handling ........................................................................................................................................................................ 7
3.1 Connect the upper section of the vacuum cleaner to the brush head .......................................... 7
3.2 Storing and removing cable ............................................................................................................................................................. 7
3.3 On and off positions ................................................................................................................................................................................ 7
3.4 Working with the suction hose/hand pipe....................................................................................................................... 7
3.5 Adjusting the carpet brush............................................................................................................................................................... 8
3.6 Electronic brush monitoring ............................................................................................................................................................. 8
3.7 Red indicator light in handle............................................................................................................................................................. 8
3.8 Storing the vacuum cleaner............................................................................................................................................................. 8
4. Accessories..................................................................................................................................................................................................................... 8
5. Care and maintenance .......................................................................................................................................................................................... 9
5.1 Replacing the paper filter bag ....................................................................................................................................................... 9
5.2 Replacing the safety filter ................................................................................................................................................................. 9
5.3 Replacing the exhaust filter............................................................................................................................................................. 9
5.4 Replacing the brush strip ................................................................................................................................................................... 9
6. In the event of malfunction .......................................................................................................................................................................... 10
IMPORTANT
SAFETY
INSTRUCTIONS
READ ALL
INSTRUCTIONS
BEFORE
USING THIS
MACHINE.
• Inform your dealer immediately if
there is any transport damage.
• Completely remove the
accessories from the carton.
• The suction unit is not suitable for
sucking up hazardous dusts as
asbestos. Please consult your
NSS branch or your NSS
dealer with regard to such
applications.
• Only operate the suction unit from
a suitable socket outlet with
earthing contact. Refer to the
Technical data for the necessary
main fuse.
• Connect to a properly grounded
outlet only - see Grounding
instructions.
When using an electrical appliance,
basic precautions should always be
followed, including the following:
This machine is suitable for commercial use,
for instance in hotels, schools, hospitals,
factories, shops, offices and on hire.

3
PACER 214 UE / 218 UE OPERATION MANUAL
1. DISCONNECT VACUUM CLEANER
FROMPOWERCIRCUITbeforeremoving
the cover, performing maintenance work,
and when not in use.
2. DO NOT LEAVE appliance when plugged
in.
3. ALWAYSCHECKTHEPOWERSUPPLY
CORD for damage or signs of any aging
before each use.
4. DONOTPULLORCARRYVACUUM
CLEANER BY CORD. Do not close door on
cord or pull cord around sharp edges.
5. KEEPCORDAWAYFROMHEATAND
OIL. Do not leave cord lying around after
job is complete. It can become a tripping
hazard.
6. DONOTRUNVACUUMOVERCORD.
7. TURNSWITCHTOOFFbeforeunplugging
power supply cord.
8. DONOTUNPLUGBYPULLINGCORD.
To unplug, grasp plug, not cord.
9. DONOTGRASPPLUGWITHWET
HANDS.
10. ADAMAGEDCORDORPLUGshould
only be replaced by an authorized service
center representative. DO NOT ATTEMPT
TOREPAIRPOWERCORD.
11. TO AVOID SHOCK, do not expose to rain.
Store indoors.
12. USEONLYASRECOMMENDEDBYTHIS
MANUAL. Use only with recommended
attachments.
13. KEEPHAIR,CLOTHING,LOOSE
JEWELRY, FINGERS and all parts of the
body away from openings and moving
parts.
14. DONOTBLOCKOROBSTRUCT
OPENINGS. Keep openings free of lint,
hair, dust, and anything that restricts air
flow.
15. DONOTPICKUPANYTHINGTHATIS
BURNING, smoldering, or smoking such
as matches, cigarettes, or hot ashes.
16. DONOTUSETOVACUUM
COMBUSTIBLE OR EXPLOSIVE
MATERIALS, such as coal, grain, and
other finely divided combustible material.
17. DONOTUSETOVACUUM
COMBUSTIBLE, hazardous, toxic, or
carcinogenic materials, including
gasoline, diesel fuel, acetone, paint
thinner, heating oils, undiluted acids and
solvents, pesticide and asbestos.
18. USERECOMMENDEDFILTERSwhen
vacuuming drywall materials.
19. DONOTUSEWITHOUTFILTERand/or
dust bag in proper place.
20. CONNECTVACUUMCLEANERWITH
PROPERLYGROUNDEDOUTLETONLY.
See grounding instructions.
21. DONOTALLOWVACUUMCLEANERTO
BE USED AS A TOY. Keep children away
from Vacuum Cleaner.
22. DONOTLEAVEUNATTENDEDwhile
Vacuum Cleaner is running.
23. DONOTUSEIFCORD,PLUG,FILTER,
ORVACUUMCLEANERISINPOOR
CONDITION. If the Vacuum Cleaner has
been dropped, damaged, exposed to
weather, or dropped into water; have it
checked by an authorized service .
24.ALWAYSUSEEYEPROTECTIONwhen
operating Vacuum Cleaner.
25. USE EXTRA CAUTION when operating on
stairs.

4
PACER 214 UE / 218 UEOPERATION MANUAL
26. STAY ALERT! Do not use Vacuum Cleaner
when you are tired or under the influence of
drugs, alcohol or medication.
SAVE THESE
INSTRUCTIONS
This vacuum
is intended
for commercial
use.
SAFETY
INSTRUCTIONS
GROUNDING
INSTRUCTIONS
This appliance must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock.
Thisapplianceisequippedwithacordhavingan
equipmentgroundingconductorandgroundplug.
The plug must be inserted into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING:
Improper connection of the
equipment-grounding conductor can result in
a risk of electric shock.
Check with a qualified electrician or service
person if you are in doubt as to whether the
outlet is properly grounded.
Do not modify the plug provided with the
appliance.
If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
This appliance is for use on a nominal
120-volt circuit, and has a grounded plug
that looks like the plug illustrated in Fig.A.
A temporary adapter that looks like the
adapter illustrated in Fig.B, may be used to
connect this plug to a two-pole receptacle
as shown in Fig.B, if a properly grounded
outlet is not available.
The temporary adapter should be used only
until a properly grounded outlet (Fig.A) is
installed by a qualified electrican.
The green colored rigid ear, lug, or the like
extending from the adapter must be connec-
ted to a permanent ground such as a
properly grounded outlet box cover.
Whenever the adapter is used, it must be held
in place by a metal screw.
IN ALL CASES,
MAKE SURE
THE
RECEPTACLE IN
QUESTION IS
PROPERLY
GROUNDED.

5
PACER 214 UE / 218 UE OPERATION MANUAL
NEVER REMOVE
GROUNDING
PRONG FROM
POWER PLUG.
EXTENSION
CORDS
Use only three-wire extension cords that have
three-pronggrounding-typeplugsandthree-pole
receptacle that accepts the appliance’s plug.
Replace damaged or worn cord immediately.
DO NOT
ATTEMPT TO
REPAIR POWER
CORD.
Figure A
1. GROUNDEDOUTLETBOX
2. CURRENTCARRYINGPRONGS
GROUNDING PRONG IS LONGEST OF
THE 3 PRONGS
Figure B
1. GROUNDEDOUTLETBOX
2. GROUNDINGMEANS
3. ADAPTER
Note:
InCanada,theuseofatemporaryadapterisnot
permitted by the Canadian Electrical Code.
Servicing of
dou le-insulated
appliances
In a double-insulated appliance, two systems
of insulation are provided instead of grounding.
No grounding means is provided on a double-
insulated appliance, nor should a means for
grounding be added to the appliance. Servicing
a double-insulated appliance requires extreme
care and knowledge of the system, and should
be done only by qualified service personnel.
Replacement parts for a double-insulated ap-
pliance must be identical to the parts they
replace.

6
PACER 214 UE / 218 UEOPERATION MANUAL

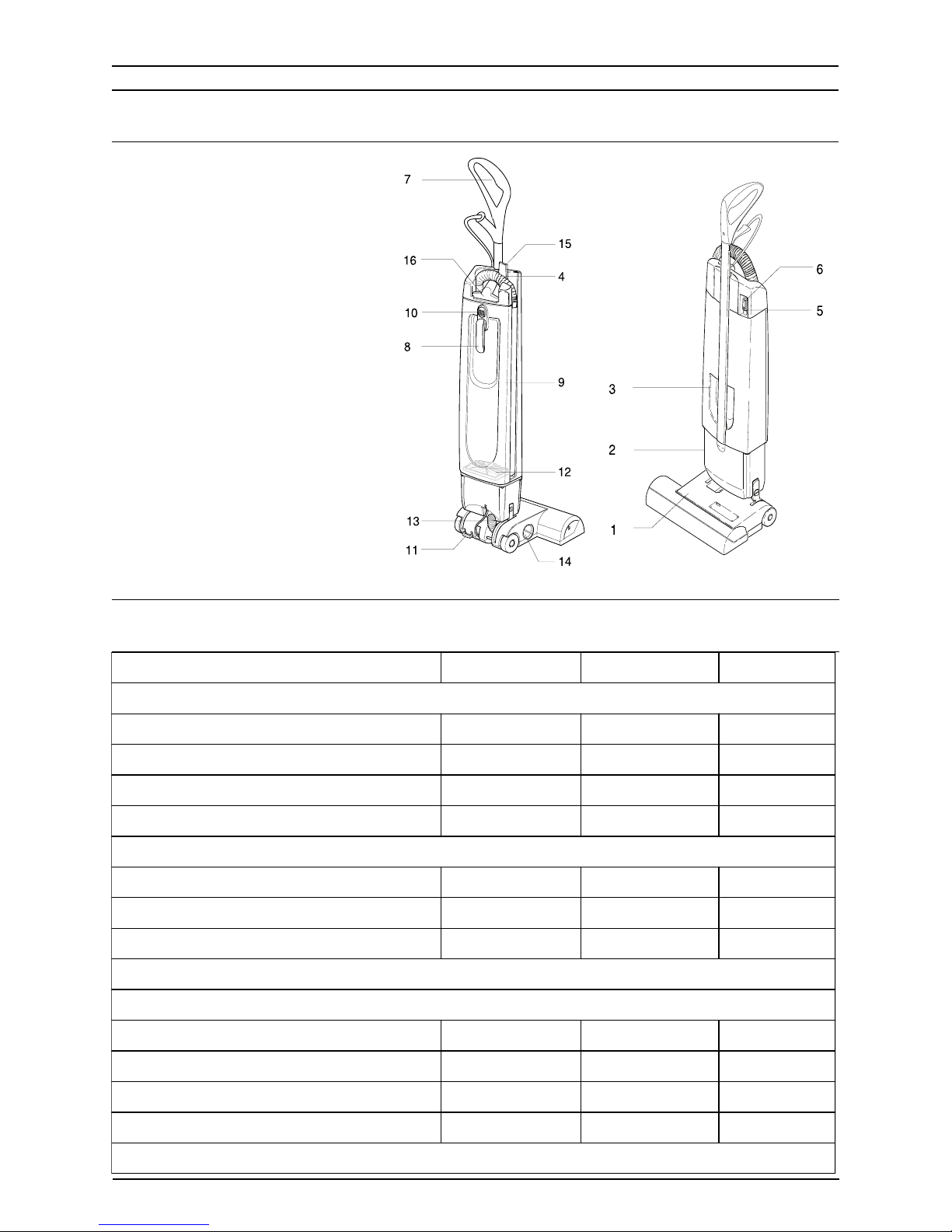

1. Unit diagram
1 Brush head with brush monitoring
2 Vacuum cleaner upper section
3 Recessed handle
4 Suction hose with hand pipe
5 Red indicator light
6 ON/OFF switch
7 Handle with upper cable clip
8 Lower cable clip
9 Cover (removable filter bag
exchange)
10 Cover fastener
11 Latching pedal
12 Safety filter
13 Connecting hose
14 Adjusting knob (adjustable to pile
depth)
15 Crevicenozzle
16 Upholstery nozzle
2. Technical data
PACER 214 UE PACER 218 UE
Blower data:
Power P NOM 85 95 watt
Power P MAX / 8 AMPS 95 1 8 watt
Low air pressure / CLOSED W.L 63" 186 18 mbar
Air quantity / CFM 91", 1-1/4" 46 46 L/sec
Brush:
Brush motor 15 2 watt
Drive toothed belt toothed belt
Sweep width / 14.3 ", 16.7 " 335 425 mm
Brush strip is exchangeable
Dimensions and weights:
Height / 48.75" 125 125 mm
Width / 14.5", 18.1" 36 46 mm
Weight / 17.6 LBS, 2 .9 LBS 9 9.5 approx. kg
Sound pressure level 66 66 dB (A)
Subject to technical modifications

7
PACER 214 UE / 218 UE OPERATION MANUAL
3. Starting the unit and handling
Figure2
Figure4
Figure3
Figure5

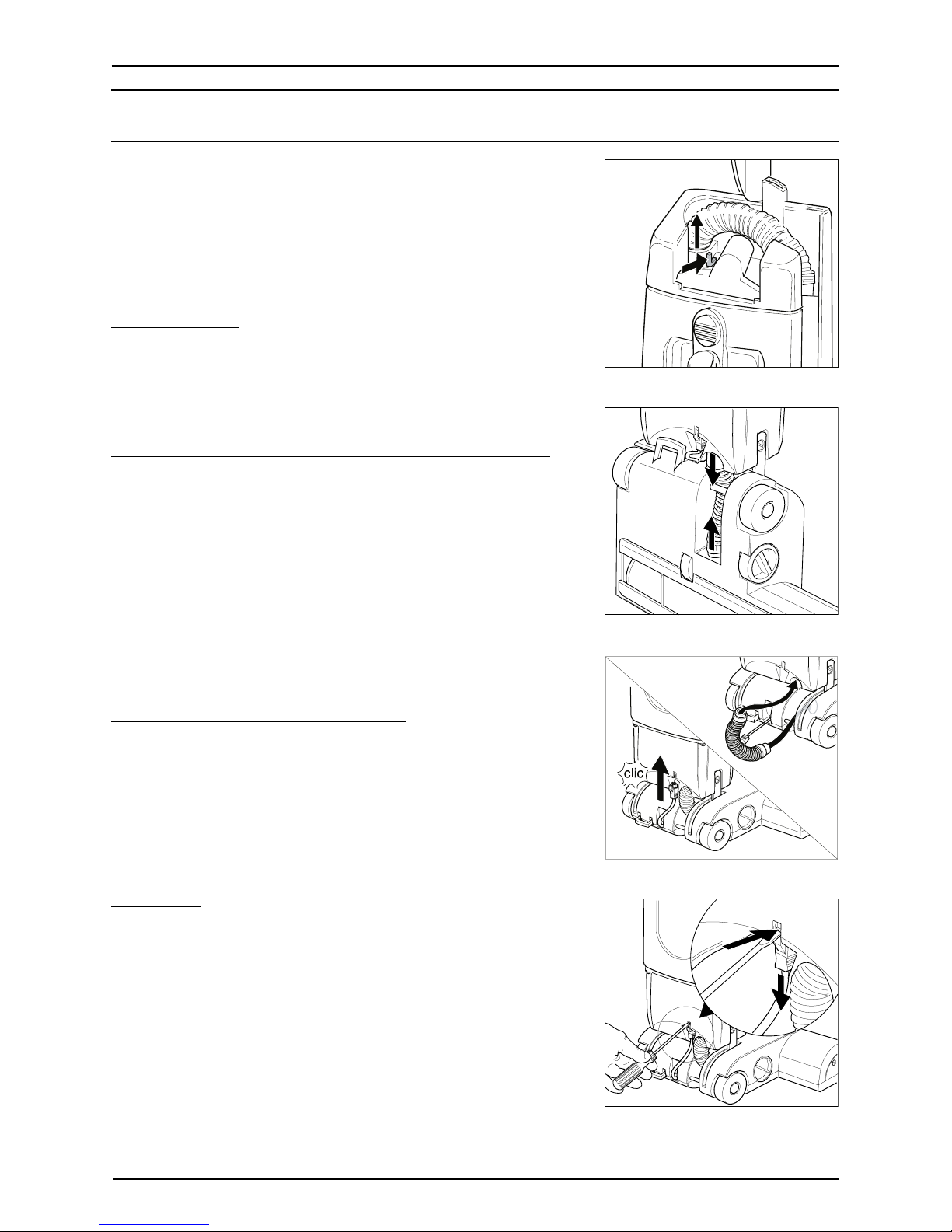

3.1 Connect the upper section of the vacuum
cleaner to the brush head
Unscrew both fastening screws from the upper section of the
vacuum cleaner before assembly.
Push the upper section of the vacuum cleaner upright onto the
brush head. Then insert the two aluminium sections into the
grooves provided on the upper section of the vacuum cleaner.
Fasten with screws. Tighten screws firmly. <Figure 2>
Connect the hose to the brush head and upper section of vacuum
cleaner. Plug the connecting cable with connector into the socket
onthe upper section (plug must audibly click into place).<Figure3>
3.2 Storingandremovingcable
The vacuum cleaner’s power cable can be wounded up around
the upper and lower cable clips. The entire cable can be easily
removed by turning the lower cable clip.
3.3 Onandoffpositions
The brush head has a pivot latch which locks the unit in the
upright off position. To operate, tread on the latched pedal and
tip the vacuum cleaner backwards. <Figure 4>
Caution: Do not drive the rotating brushes over the connec-
ting cable. Carry the unit over steps and high thresholds.
3.4 Working with the hand pipe <Figure 5>
Switch the unit on via the ON/OFF switch
Please note: The carpet brush switches on automatically
once the hand pipe with handle is firmly located in the motor
housing. Please check.
If the hand pipe with handle is pulled out of the motor housing
for vacuuming, the carpet brush switches off automatically.
The suction hose’s elasticity means that the effective working
radius can be increased.
The hose handle can be separated in the middle (bayonett
connection). The crevice and upholstery nozzle can be atta-
ched to both ends.
Important: Never use the hand pipe for vacuuming without
first attaching either the crevice nozzle or the upholstery
nozzle (the cleaner will malfunction if the end of the hand pipe
is worn down – see Section 6 for Troubleshooting).
The hand pipe is pushed upright into the motor housing.

8
PACER 214 UE / 218 UEOPERATION MANUAL
Figure6

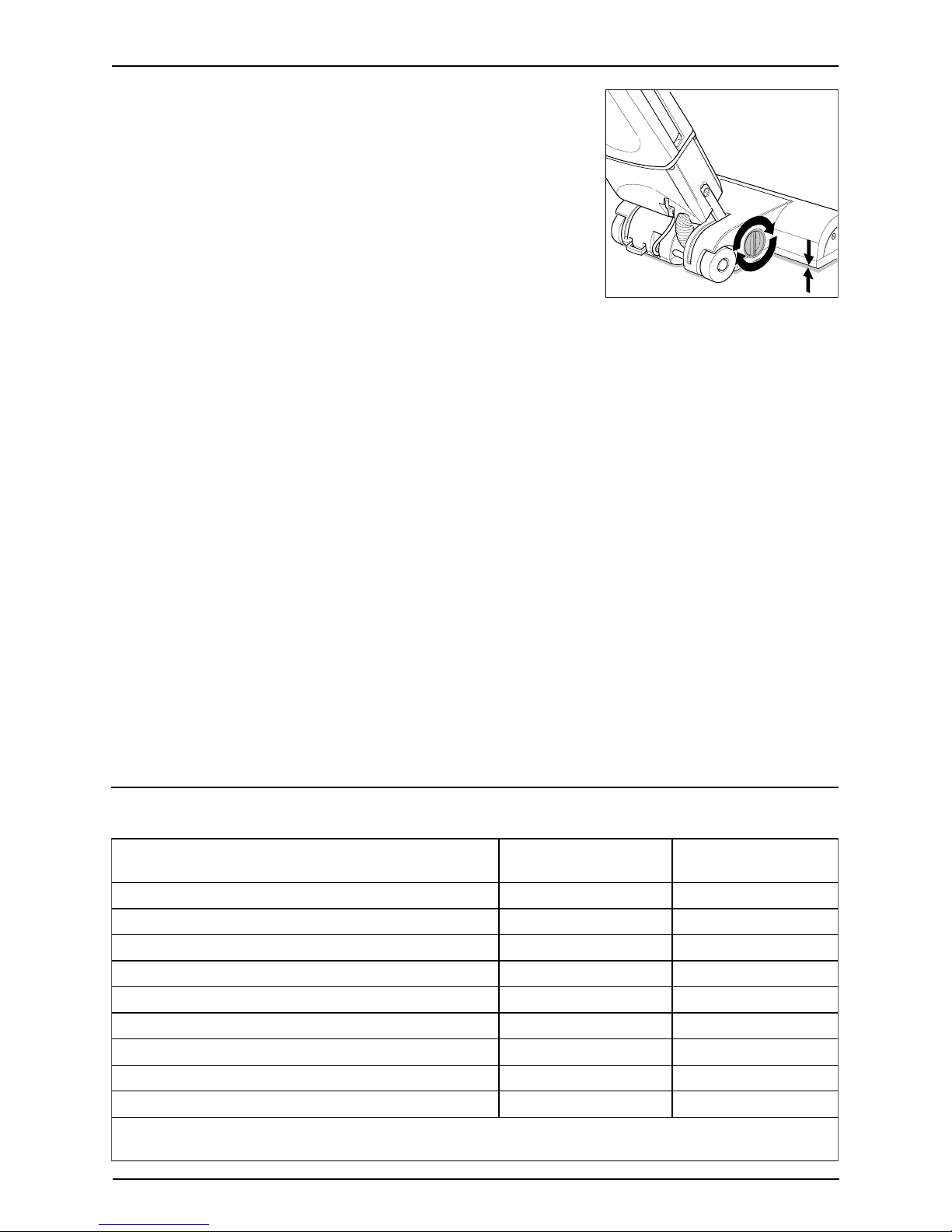

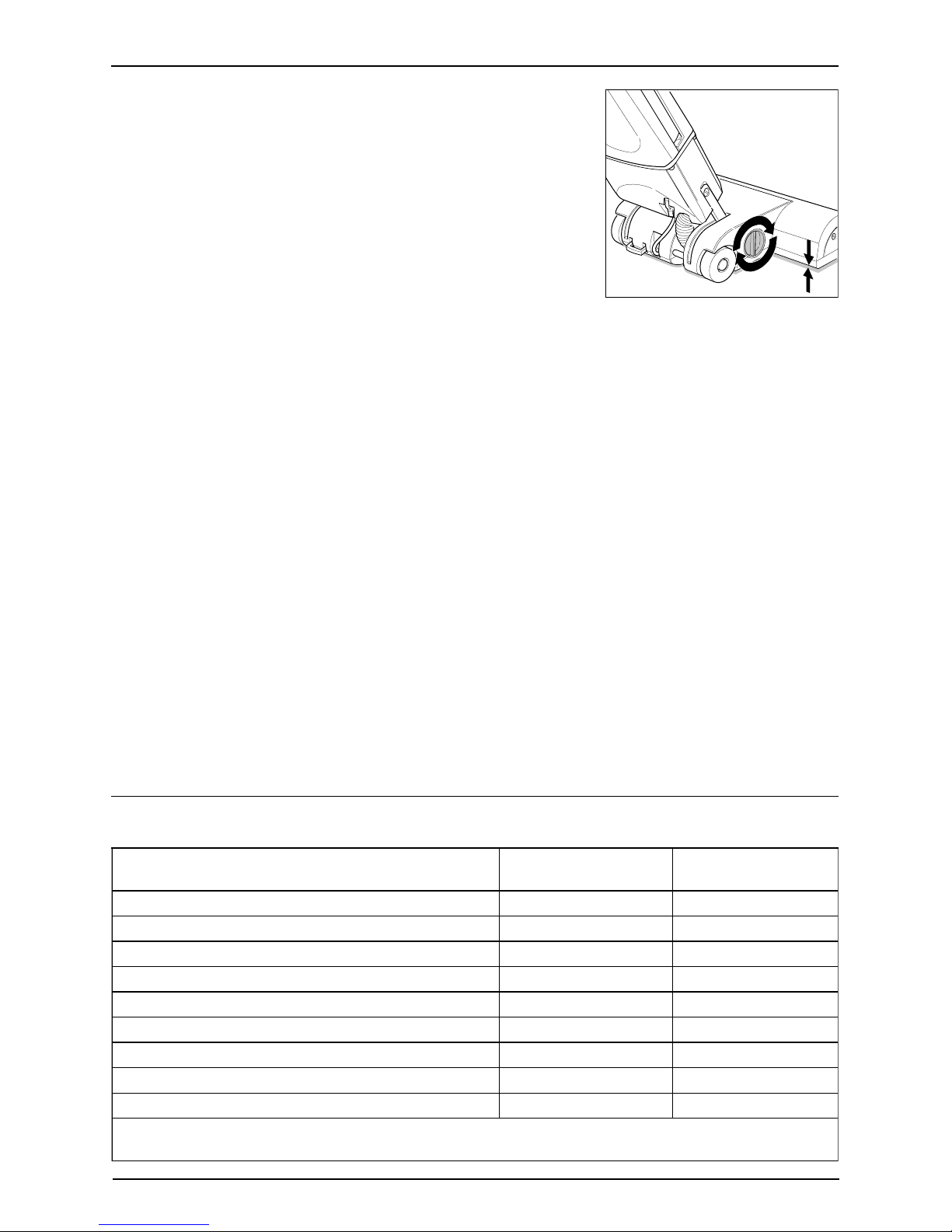

3.5 Adjusting the carpet brush
Thecarpetbrushcanbeadjustedtomatchtheheightofthepile.
To do this, set the vacuum cleaner to the working position
(approx. 45º) and select the required setting between 1 and 4.
<Figure 6>
Note: The brush cannot be adjusted when the cleaner is in
the upright position
Position1: shallow pile
Position2: deep pile
3.6 Electronicbrushmonitoring
Brush functioning is continuously supervised by electronic
brush monitoring.
not illuminated:
brush functioning properly
orange light on:
set the pile height adjusting knob at a lower pile height
orange light on even at the lowest setting:
change brush strip.
3.7 Redindicatorlight
If the indicator light is on, please check the following:
a) is the filter bag full?
b) is the suction hose or connecting hose blocked?
Either exchange the filter bag or eliminate blockages.
Please note: There is no malfunction if, when vacuuming with
the suction hose, the hand pipe occludes and as a result the
light comes on.
3.8 Storing the vacuum cleaner
After using the vacuum cleaner store the power cable as descri-
bed in chapter 3.2. Clean unit and store cleaner in a dry place.
4. Accessories
PACER 214 UE
order no.
PACER 218 UE
order no.
Crevice nozzle 689 261 689 261
Upholstery nozzle 689 251 689 251
Dusting brush 7293361 7293361
Metal extension tube 7293351 7293351
Brush strip, black 689 781 7293331
* Brush strip, red (hard) 689 771 7293341
** Paper filter bags (1 units) 689 241 689 241
Safety filter 689 161 689 161
* Microfilter 689 171 689 171
* not included in the scope of supply
** 1 unit included in the scope of supply

9
PACER 214 UE / 218 UE OPERATION MANUAL
5. Care and maintenance
Caution: Before any maintenance work takes place, pull the
power plug out of the socket.
Check main cable, connection cable and hoses for damage
before putting the unit into operation for the first time.

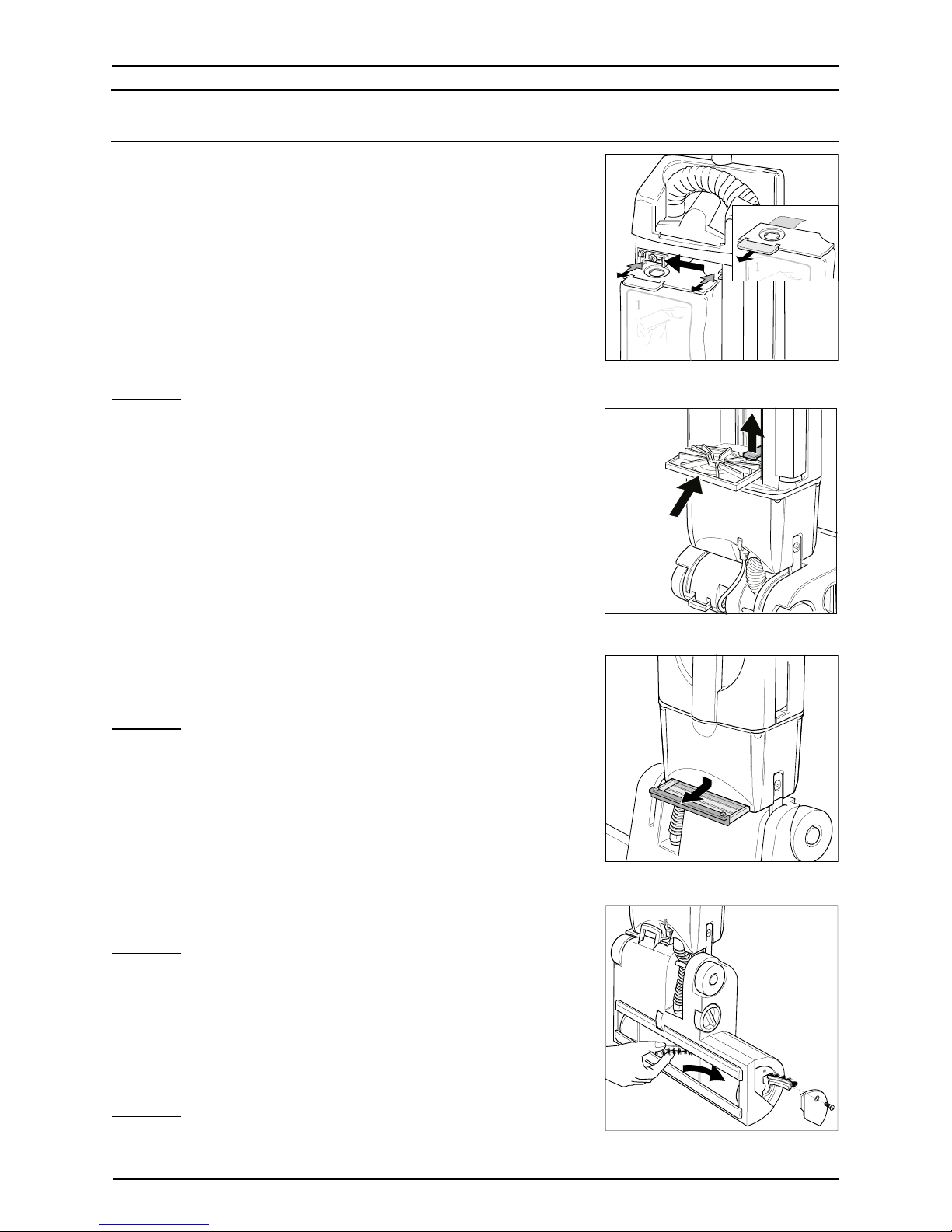

5.1 Exchanging the paper filter bag <Figure 7>
• Depress the cover fastener and remove cover.
• Push the filter bag catch to the left until it is possible to pull
the filter bag off the connection piece.
Assembly:
• Insert the narrow end of the support card into the holder.
• Push the filter bag catch to the left and guide the support
card upwards over the connection piece until it slots in.
• Replace the cover.
Please note: If the cover does not close, check whether the
filter bag has been inserted properly.
5.2 Exchanging the safety filter <Figure 8>
After exchanging the filter bag approximately 20 times,
exchange safety filter.
• Press cover fastener and remove cover.
• Lift the red locking device and pull out the safety filter.
Assembly:
• Lift the red locking device and insert the safety filter.
Please note: If the cover does not close, check whether the
filter bag has been inserted properly.
5.3 Exchanging the exhaust filter <Figure 9>
After exchanging the filter bag approximately 20 times,
exchange the exhaust filter.
• Push the exhaust filter off the housing and withdraw.
Assembly:
• Insert new filter.
5.4 Exchanging the brush strip <Figure 10>
• Remove power cable from electrical outlet.
• Unscrew the brush head cover. Turn the brush so that the
brush strip can be pushed or pulled through the opening.
Assembly:
• Push home the new brush strip and screw the cover on
again.
Figure7
Figure10
Figure9
Figure8

1
PACER 214 UE / 218 UEOPERATION MANUAL
6. In the event of malfunction
Caution: Danger from electrical current. Unplug the power cord
before any work is carried out on electrical parts.
Have all inspections and work to be carried out on electrical
parts done by a specialist. For more extensive tasks contact
customer service.
The brush and suction motor is switched off via the
built-in electronic system
Brush is blocked
– Unplug the power cord, check brush for any dirt and if
necessary remove the blockage. The unit now has to be
restarted.
Suction turbine switches off, brush head carries on
functioning (red indicator light goes off)
Thermal switch has disengaged motor due to overheating
– Unplug thepowercord,exchangeblockedfilteroreliminate
suction hose blockage. After approximately 20 minutes, the
unit will start up again.
Suction hose is blocked
Switch off the unit. Remove the flexible hose from the housing
andpullitstraight.Usesomethinglongtoreleasehoseblockage.
– The suction hose can be disconnected from the unit by
pressing the locking lever. <Figure 11>
Connecting hose is blocked
– The connecting hose can be removed by pulling out both
ends. Remove the blockage. <Figure 12>
Connection cable not inserted properly
Connect the upper section of the vacuum cleaner to the brush
head. Connect the hose to the brush head and upper section
of vacuum cleaner. Plug the connecting cable with connector
intothe socket onthe upper section(plug must audiblyclick into
place). <Figure 13>
Brushes in brush head are not rotating, suction turbine
is running
Hand pipe is not pushed into motor housing properly, or end is
worn down
– If the end of the pipe has been worn down (due to
vacuuming without first fitting the crevice or upholstery
nozzle),the end switch will not beactuated and the brushes
will not rotate.
Separating the brush head from the upper section of
the vacuum cleaner
• Undo the connecting cable, release the plug by pressing in
a pointed object (e.g. screwdriver). <Figure 14>
• The connecting hose can be removed by pulling out the two
ends.
• Undo both screws at the side of the upper section to the
vacuum cleaner.
Figure11
Figure12
Figure 14
Figure 13
