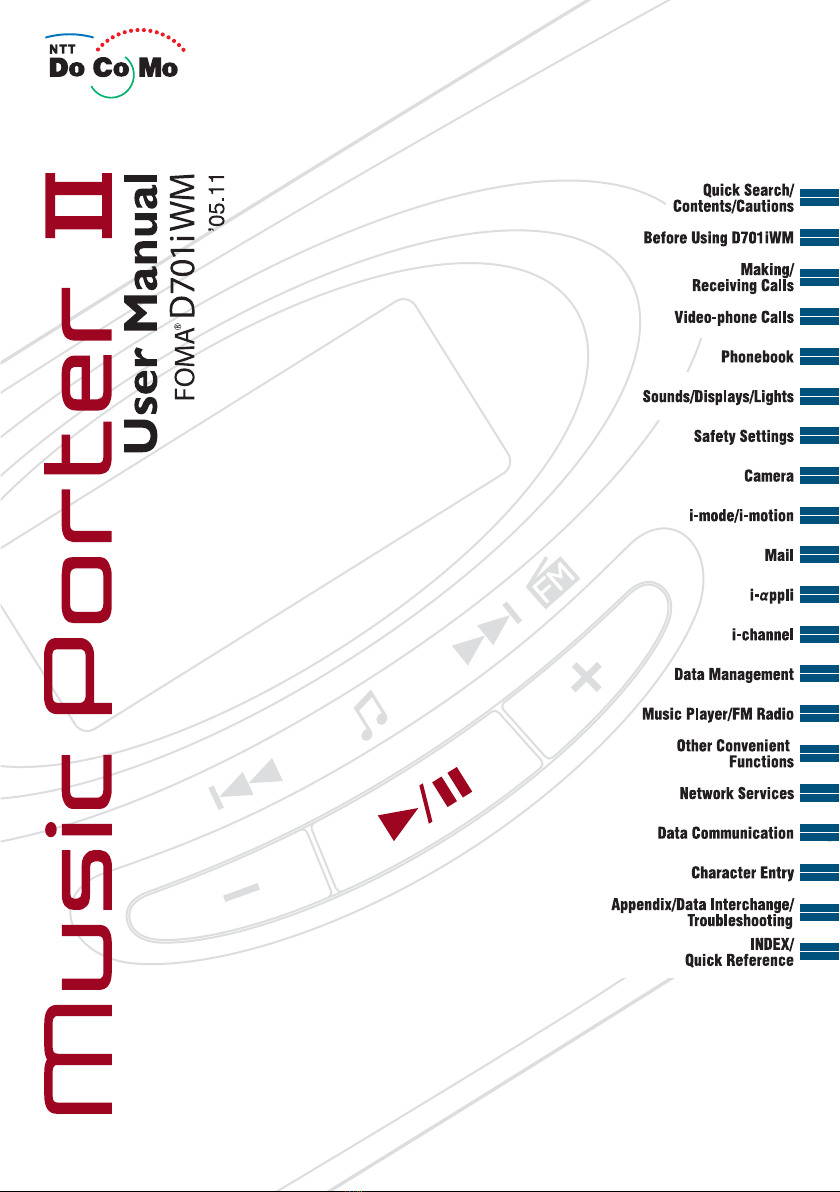

NTT docomo Music Porter II FOMA D701iWM User manual

DoCoMo W-CDMA System
Thank you for selecting the FOMA D701iWM.
Carefully read this manual, as well as the individual manuals for other devices such
as the battery pack, before using your FOMA D701iWM, and consult the
corresponding manuals while using the phone so that you are able to use it correctly
and effectively. If you are unclear as to any point indicated in any of these manuals,
contact the DoCoMo Information Center that is listed on the back of this manual.
Your FOMA D701iWM is a valuable asset. Handle it with care and it will be your
trusted partner for years to come.
Before using your FOMA terminal
●The FOMA terminal is cordless so you may not be able to use it in certain locations where
signals cannot penetrate, such as in tunnels, underground, in some buildings or outdoors if the
signal is weak or you are outside the service area. You also may not be able to use your FOMA
terminal on the upper floors of some highrise building, even though there is nothing around you
that interferes with the signal. Please note that your call may be disconnected even when the
signal is strong (when the signal strength indication shows three bars) and you are not moving.
●When using the FOMA terminal in public, busy or quiet places, be careful not to disturb others.
●Since the FOMA terminal relies on radio transmission, it is theoretically possible for third
parties to intercept a call; however, because the W-CDMA system automatically employs a
secrecy function for all calls, a third party will pick up nothing but signal noise.
●Since the FOMA terminal operates by the wireless transmission of voices converted to digital
signals, if you are in a location where the signal is weak, the original voice may not be
accurately reproduced from the received digital signal, therefore, the voice you hear may differ
from the original sound of the speaker’s voice.
●DoCoMo asks that you keep a separate record (e.g. written copy) of all information you store
in your FOMA terminal. DoCoMo accepts no responsibility whatsoever for any loss that occurs
should the contents of the FOMA terminal’s memory be lost or altered.
●The user hereby agrees that the user shall be solely responsible for the result of the use of
SSL. Neither DoCoMo nor the certifier as listed herein makes any representation and warranty
as for the security in the use of SSL. In the event that the user shall sustain damage or loss
due to the use of SSL, neither DoCoMo nor the certifier shall be responsible for any such
damage or loss.
Certifier: VeriSign Japan K.K., Betrusted Japan Co., Ltd., GeoTrust Japan, inc.
●The FOMA terminal can be used in the FOMA Plus-Area.
●The FOMA terminal can be used only via the FOMA network provided by DoCoMo.
Using a FOMA terminal for the first time
When you use a FOMA terminal for the first time, read this manual in the following order. You
can understand the preparations for using the FOMA terminal and its basic operations.
1. Install the battery pack and charge it. ☛P43
2. Turn the power on and make initial settings, and then confirm your phone number. ☛P49, P52
3. Understand the functions of keys on the terminal. ☛P26
4. Understand the meaning of icons displayed on the screen. ☛P30, P32
5. Understand how to use the menus. ☛P34
6. Understand how to make and receive calls. ☛P54, P64
●In the manual for FOMA D701iWM, the FOMA D701iWM is usually referred to as “FOMA terminal”.
●Unauthorized copying of a part or all of the contents of this manual is prohibited.
●The contents of this manual are subject to change without prior notice.

1
Quick Search/
Contents/Cautions
How to use and refer to this manual
How to refer to this manual
You can look for functions or operation procedures that you want to know using various searching ways.
Explanatory procedure
●The operation procedure is mainly explained in shortcut operations. When there are two or more possible
procedures, the simplest one is mentioned.
●In this manual, to select an item by placing the cursor with O(Easy Selector Plus) and pressing o(Enter
key) is referred to as “select”. Also, the step of pressing owhich requires after entering characters in the
entry field is omitted in description.
● The procedure for entering characters is mainly explained by in-line entry (direct insertion of text into the entry field). ☛ P472
●The actual symbols shown on the keys are abbreviated in this manual.
Actual key As shown in this manual
1
Refer to INDEX
Search for a function name or service name.
Use Quick Search
Search for frequently-used or useful functions using easy-to-understand words.
Use Front Cover Indexes
Search by turning over the pages on this manual using the front cover indexes.
Use Contents
Refer to the Contents classified into chapters on an objective basis.
Refer to Features
Search for the features using typical or new functions of D701iWM.
Use Menu List
Search using the menu of D701iWM.
Use Quick Reference Manual
This manual describes how to operate frequently-used functions.
Use it by separating from this Instruction Manual.
For details, see the next page.
P528
P4
Front Cover
P6
P8
P482
P532
How to use and refer to this manual

2
Quick Search/
Contents/Cautions
How to use and refer to this manual
Shown below is an example when you search for the page where “Vibrator Setting” is
described.
Searching on INDEX
Use INDEX if you have already known a function or service name.
Using Quick Search
You can easily search for frequently-used or useful functions.
Using Front Cover Indexes
You can find a target page by proceeding from the front cover to the cover of a chapter (1st page of the
chapter) and the page where a function is described.
Vibrator Setting ..........................120
i- ppli.....................................295
Video-phone.................................84
Brightness/color density...........91
CameraEffects........................90
Change images(Image Setting)
................................................ 92
Compact light ...........................94
Display settings........................93
External Device........................96
V
α
▲
How to change
melodies or
lighting
patterns
•Mute sound heard when pressing akeypad...... 121 Keypad Sound
•Use your favorite ring tones............................... 118 Sound Setting
•Adjust volume of ring tones................................. 70 Ring Volume Setting
•Turn Silent Mode on .......................................... 123Silent Mode
•Use vibrator for incoming calls.......................... 120 Vibrator Setting
• Changing the alert lighting upon an incoming call, etc. ........ 133 Alert Lighting Setting
•Use personal ring tonesfor callers...................... 99 Phonebook New Entry
Sounds/Displays/Lights
Settings
Sound Setting
Changingthe FOMA terminal ringtone ............................. Sound Setting118
Usingvibrator to signal incomingcallsand alarms....... Vibrator Setting120
Selectinga sound heard when a keypad ispressed ........ Keypad Sound 121
Settinga sound for charging................................................. Charge Alert 122
Settingan alarm announcingthat the call isabout to be cut off
................................................................................................ Quality Alarm 122
MakingFOMA terminal silent .................................................. Silent Mode 123
CustomizingSilent Mode ..................................... Customize Silent Mode 123
Di l/Li ht Stti
Quick Search/
Contents/Cautions
Before Using D701iWM
Making/
Receiving Calls
Video-phone Calls
Phonebook
Sounds/Displays/Lights
Safety Settings
Camera
▲
▲
How to use and refer to this manual

3
Quick Search/
Contents/Cautions
INFORMATION
●The page shown above is an example. It may be different from the actual page.
●The images or illustrations provided in this manual are for information purposes only and may be different
from the actual displays or products. The displays shown in this manual as well differ from the actual
background color settings at the time of purchase in order to make them easier to see.
●Some screens do not support the bilingual function and items or buttons may be displayed in Japanese. In
this manual, these Japanese words are written by both in Japanese and English only for the first time in a
chapter or a section.
Menu 894
Preventing making/receiving calls Self Mode
Disable all functions that require communications such as making/receiving calls or sending/
receiving mails. Infrared data communication and infrared remote control are also disabled.
Default OFF
When a calendar is set
●
●
INFORMATION
●
●
●
Dot
The day is
displayed in yellow.
The days-off and holidaysare displayed in red. The settingsfor the
days-off and holidaysfollow Day Off Setting or the setting for holidays
for Scheduler. Note that when Privacy Mode ison (Authorized access set
for Schedule) or PIM Lock ison, the day set as day-off in Day Off Setting
isnot displayed in red and reset to the default display.
When aschedule isset, adot isdisplayed on the upper right of the
date. Note that all scheduleswith Secret Attribute set are displayed only
when Secret Mode ison. In addition, they are not displayed when
Privacy Mode ison (Authorized access set for Schedule) or PIM Lock is
on.
If the date and time have not been set, the calendar isnot displayed on the stand-by display.
When the calendar isset for the stand-by display, the clock isdisplayed small on the upper part. Even when the
clock design isset to Analog in Clock Display Format, the clock isdisplayed by
An image and acalendar can be set simultaneously. Howe ver, if an animation, Create animation or Flash
ed when the playback isstopped or paused.movie isset, the calendar isdisplay
Digital 1
120
Using vibrator to signal incoming calls and alarms Vibrator Setting
The reception of voice or video-phone call, mail, Message R/F, etc. or the schedule alarm notice
isindicated by vibration.
･Note that if FOMA terminal isplaced on adesk, etc. with Vibrator Setting on, the vibrationsof the
vibrator operation may cause it to fall off.
･The settingsin thisfunction are reflected to the vibrator set in Incoming Call Setting, Video-phone
Receiving Setting, Incoming Msg. Setting, Incoming Chat Mail Setting and Incoming Msg. Alert.
1Press m817 on the stand-by display.
2･
･Asfor aschedule alarm, the terminal vibratesas set in the Phone setting.
3Press 1to 5.
Default OFF (all)
Pattern A ：
s
gn
it
t
eS
Vibrator SettingSounds/Displays/LightsSettings
Select the item to set.
If the incoming setting for Incoming Chat Mail Setting isset to Same : Msg setting ChatMail cannot
be selected.
.
Title & Function name:
Function names are
listed on INDEX.
Functional overview
and notes for
operation
Default setting
Operation procedure
Supplement to
operation
Index
Shortcut operation
☛P36
Column:
Useful information
INFORMATION:
Details of functions
▲
How to use and refer to this manual

4
Quick Search/
Contents/Cautions
Quick Search
Use this Quick Search to look for the frequently-used or convenient functions directly.
Useful
functions for
phone calls
•Notify/not notify your phone number.................... 52 Caller ID Notification
•Talk while looking at the FOMA terminal display.......85Speakerphone function
•Adjust volume of caller’s voice ............................ 70 Volume Setting
•Put the current call on hold.................................. 55 On-hold
•Switch to video-phone call during voice call ........ 57 Switch to video-phone
When unable
to answer an
incoming call •Record caller’s messages ................................... 78Answer Machine
•Use Voice Mail Service...................................... 426 Voice Mail
•Put the incoming call on hold............................... 73 Response and Hold
How to change
melodies or
lighting
patterns
•Mute sound heard when pressing a keypad...... 121 Keypad Sound
•Use your favorite ring tones............................... 118Sound Setting
•Adjust volume of ring tones ................................. 70 Ring Volume Setting
•Turn Silent Mode on .......................................... 123 Silent Mode
•Use vibrator for incoming calls .......................... 120 Vibrator Setting
• Changing the alert lighting upon an incoming call, etc. ..... 133 Alert Lighting Setting
•Use personal ring tones for callers...................... 99 Phonebook New Entry
How to change
the screen
display
•Customize the stand-by display (wallpaper)...... 124 Stand-by Display Setting
•Show the calendar on the stand-by display ...... 126 Stand-by calendar
•Adjust the date & time .........................................50 Date and Time Setting
•Change the size of characters........................... 137 Font
•Learn the meaning of icons on the screen .......... 30 Reading display
Advanced
functions for
mail •Send your original Deco-mail ............................ 229 Deco-mail
•Send images with mail....................................... 235 Attachment
•Sort and save mail automatically....................... 264 Sort Criteria
Quick Search

5
Quick Search/
Contents/Cautions
Advanced
functions for
camera
•Change the size of image to shoot.................... 171 Image size
•Change the shutter sound ................................. 171 Shutter sound
•Turn the compact light on when shooting.......... 166 Compact light
•Save data into the Memory Stick PRO Duo ...... 171 Save to
•Display saved images........................................ 312 My Picture
Settings for
your phone
safety
•Keep your phonebook data secret..................... 114 Secret Attribute
•Reject calls without caller ID.............................. 156 Anonymous Caller
•Reject callers not registered in your phonebook ... 158 Reject non-Reg. Caller
•Lock your phone when you don’t carry it........... 147 Remote Lock
•Disable the key operation.................................. 153 Side Key Lock
•Check the order of music files ........................... 366
•Play music ......................................................... 371 Music Player
•Listen to FM radio.............................................. 379 FM radio
Functions
for music
•Call up function menus simply............................. 36 Shortcut operations
•Use your phone as a calculator ......................... 415 Calculator
•Read a QR code or barcode.............................. 178Bar Code Reader
•Send/receive data via infrared communication...... 351 Infrared communication
•Use your phone as an alarm clock .................... 393 Alarm Clock
•Use the Memory Stick PRO Duo....................... 334 Memory Stick PRO Duo
•Update the software .......................................... 514 Software Update
•Update file security ............................................ 518Virus Scan Function
Other
useful
functions
Quick Search

6
Quick Search/
Contents/Cautions
Before using your FOMA terminal............. Inside front cover
Before using this manual........................... Inside front cover
How to use and refer to this manual ................................... 1
Quick Search....................................................................... 4
Features of FOMA D701iWM.............................................. 8
Making full use of D701iWM ............................................. 10
SAFETY PRECAUTIONS (Always follow these directions)....12
Handling instructions......................................................... 18
About intellectual property rights....................................... 20
Basic package and optional accessories .......................... 23
Before Using D701iWM 25
Names and functions of parts Reading the display Reading the sub-display
Menu selection Using UIM (FOMA card) Attaching/removing battery pack
Charging Battery Level Power ON/OFF Select Language Date and Time Setting
Caller ID Notification Own Number etc.
Making/Receiving Calls 53
Making calls Redial 186/184 Call WORLD CALL Receiving calls Any Key Answer
Open Answer Close Setting Received Calls Volume Setting Ring Volume Setting
Response and Hold Driving mode Public mode (power off) Answer Machine etc.
Making/Receiving Video-phone Calls 83
Making video-phone calls Receiving video-phone calls Setting images to send
Customizing video-phone call display Video-phone Settings etc.
Phonebook 97
Phonebook New Entry Group Setting Phonebook Search Edit Phonebook
Delete Phonebook Secret Attribute Quick Dial etc.
Sounds/Displays/Lights Settings 117
Sound Setting Vibrator Setting Silent Mode Stand-by Display Setting
Mail/Call Image Setting Sub-display Setting Clock Display Format etc.
Safety Settings 141
Security Code Change Terminal Security Code PIN code All Lock Remote Lock
Self Mode PIM Lock Keypad Dial Lock Privacy Mode Setting
External Key Lock Lock on Close Secret Mode etc.
Camera 161
Still Camera Movie Camera Setting for shooting Bar Code Reader etc.
i-mode/i-motion 181
What’s i-mode? Site display Change i-mode Password Internet Connection
Bookmark Screen Memo Save Image i-melody i-mode Setting
Message R/F Certificate i-motion Downloading i-motion i-motion Setting etc.
Contents
Contents

7
Contents
Quick Search/
Contents/Cautions
Mail 219
Composing and sending i-mode Mail Deco-mail Attachment Saving i-mode Mail
Receiving i-mode Mail Check i-mode Message i-motion Mail Display/Save Image
Play/Save Melody Mail Setting Chat Mail Composing and sending SMS etc.
i-αppli 287
Download Starting i- α ppli i- α ppli To function i- α ppli Stand-by Display etc.
i-channel 307
i-channel Displaying i-channel Stand-by Telop Setting
Displaying/Editing/Managing Data 311
Displaying/Editing images Playing/Editing video/i-motion Playing melody
Memory Stick PRO Duo Managing data Infrared communication
Sound Recorder etc.
Music Player/FM Radio 365
Check Music Order Music Player FM Radio etc.
Other Convenient Functions 387
Multiaccess Multitask Auto Power ON/OFF Alarm Clock Scheduler
Custom Menu Own Number Call Duration/Call Cost Reset Call Coast
Call Cost Limit Calculator Notepad Remote Controller with Microphone
Earphone/Microphone Set with Switch Reset Delete All Data etc.
Network Services 425
Voice Mail Call Waiting Call Forwarding Nuisance Call Blocking
Caller ID Request Dual Network English Guidance Service Dialing Number
Arrival Call Act Remote Control Multi Number etc.
Data Communication 439
Data communication Connecting PC Installing communication configuration file
Using FOMA PC configuration software AT command etc.
Character Entry 471
Entering characters 5-touch Input Method Save Phrase Copy Character
KUTEN Code Input Save Word Slot Input Method Input Method Setting
Appendix/Data Interchange/Troubleshooting 481
Menu list List of dial keys and character assignments Data Link Software
Troubleshooting Error Message Warranty and After-Sales Service
Software Update Virus Scan Function etc.
INDEX/Quick Reference Manual 527
INDEX Quick Reference Manual
Contents

8
Quick Search/
Contents/Cautions
Features of FOMA D701iWM
FOMA is the name of a set of services provided by DoCoMo based on W-CDMA, which is
recognized as one of the systems compliant to the global standard for third generation mobile
communications (IMT-2000).
It’s amazing because it’s i-mode!
Main functions of FOMA D701iWM
Safety settings
• For details on other Safety settings, see P141
Wide array of network services
i-mode is an online service used with i-mode terminals. This service supports connection to i-mode
Sites (Programs) or i-mode compatible Internet web sites that provide a variety of useful information
and allows you to exchange i-mode Mail.
i-motion
Video/sound can be downloaded from sites to
enjoy them. i-motion obtained can be set to a ring
tone or incoming image (Movie ringtone). ☛P216
i-motion Mail
Video taken with the built-in camera or i-motion
downloaded from sites can be attached to
i-mode Mail to send them. ☛P235
i-channel
This allows you to receive graphical information about
news and weather conditions. You can get information
on a regular basis and run the latest information on the
stand-by display as tickers. Also, a list of channels
available can be displayed by pressing the i-channel-
compatible key (
c ). In addition, you can get rich,
detailed information by selecting your desired channel
in the i-channel list.
☛P308
Our free Trial channel is available over the fixed
period of time for customers who have been
using the i-channel compatible terminal but have
not applied to i-channel service for the
subscriber’s line using the i-channel-compatible
terminal.
• i-channel is a pay service and requires a
subscription.
transmit actual views of the surrounding scenery.
☛P84
i- α ppli/i- α ppli DX
Downloading a variety of i- α ppli from the sites
allows you to make the best use of them,
including setting them as the stand-by display.
i-
α ppli DX provides better uses in conjunction
with i-mode terminal information such as
phonebook and mail data. ☛P288
Deco-mail
Allows you to compose and send your original
messages. Enjoy expressive decorated mail by
changing the character color and size or
background color, and by pasting images such
as Deco-mail pictures or still images shot with the
built-in camera in the text. Since templates can
be used with this function, you can create Deco-
mail in the same style as for Deco-mail you have
received or downloaded form Internet websites.
☛P229
Video-phone
Allows you to see and talk with others in real
time. Using the speakerphone and the out-
camera, you can have a conversation and
Secret Mode
The phonebook data and the schedule data that
have set a secret attribute can not be displayed
except when Secret Mode is on. ☛P154
Privacy Mode
By setting Privacy Mode, access to phonebook entries,
mail messages, images, schedules, received calls,
redials is prevented without entering the terminal
security code. You can also set Privacy Mode
automatically when you do nothing for a certain period
of time on FOMA terminal.
☛P151
●Voice Mail Service (charged)*1 ☛P426
●Call Forwarding Service (free of charge)*1 ☛P429
●SMS (Short Message Service) (free of charge)*2
☛P279
●Call Waiting Service (charged)*1 ☛P428
●Dual Network Service (charged)*1 ☛P433
*1 Separate application is required.
*2 Separate application is not required.
Features of FOMA D701iWM

9
Quick Search/
Contents/Cautions
Useful functions
Music Player
●Up to about 350 minutes of music files
(downloaded from music CDs and/or Internet
music sites) can be saved onto the included
128MB Memory Stick PRO Duo.*1 ☛P368
●Up to about 20 hours of continuous playtime is
possible through the built-in low power
consumption technology (dedicated music IC
chip) like that used in current portable music
players.*1 ☛P371
*1 This time estimate is based on files saved in
the ATRAC3plus format at a bit rate of 48
kbps.)
FM Radio
You can listen to FM radio (76.0 MHz to 90.0
MHz) and television broadcasts (channels 1 to
3). You can register those stations/channels that
you listen to most often and select them by
simply pressing the corresponding key on the
keypad. ☛P379
High-quality melody playback
The FOMA terminal also supports ring tones
such as PCM generated 64-note harmonic, voice
and sound effects (ADPCM sounds).
Built-in camera
FOMA terminal contains an out-camera and in-
camera, which allow you to take images while
viewing the large display. You can shoot a still
image of up to 1.3 M pixels. In addition to Max 4 x
zoom, various modes are available for shooting
including framed shooting. Using the compact light
allows you to shoot an image clearly even in a
dark place. You can activate or deactivate Camera
by opening/closing the lens cover. ☛P162
[Out-camera] Effective pixels: 1.31 M
(Max record pixels: 1.31 M)
[In-camera] Effective pixels: 100,000
(Max record pixels: 100,000)
Automatic time correction
The time in FOMA terminal is automatically
corrected by the information from DoCoMo
network. Also you can set the time on your phone
ahead or back, if you want. ☛P50
Multiaccess function
Voice call and packet communication can be
used simultaneously. This allows you to talk
during an i-mode connection or send/receive mail
while talking. ☛P388
Multitask function
Allows you to execute several functions at the same
time and perform operations by switching the
screen. For example, you can read mail or register
phonebook entries while making a phone call or
while listening to music or to the radio, etc
. ☛P390
Simple menu
In addition to the main menu, you can use another
menu to display frequently-used functions such as
でんわ (phone), メール (mail), 音楽／ カメラ
(music/camera) and i モード (i-mode) in large size
of characters. Characters in the phonebook or
mails are displayed larger in this menu.
☛ P34
Sub-display
You can confirm the time, or reception of a call or
mail on the sub-display with FOMA terminal
closed. You can also display information about
i-channel, missed calls, unread mail, song names
in the Music Player, the band frequency and
station names for the FM Radio, etc. ☛P32
High-definition large display
The 2.2-inch TFT LCD (240 x 320 dots) is
provided for the display. It clearly displays fine
images and characters.
High-resolution video
Allows you to record or play smooth motion video.
Recording and replaying video on the large display
of the QVGA size (320 x 240 dots) are possible.
☛P168, P322
Bar Code Reader
JAN codes or QR codes can be scanned using
the built-in camera. You can perform a variety of
operations such as registering phonebook
entries, connecting to sites and sending mail.
☛P178
Infrared communication/infrared remote control
You can use the infrared communication function
to exchange data between two FOMA terminals.
In addition, devices that support TV infrared
remote control can be operated from your FOMA
terminal. ☛P351, P356
Support for Memory Stick PRO Duo
A Memory Stick PRO Duo enables you to back
up data stored in your FOMA terminal such as
images, melodies, phonebook entries and mail
messages. ☛P334
You can save video files and music data
(i-motion with no image) created by external
devices to the Memory Stick PRO Duo and play
them on your FOMA terminal. (Some files may
not be played.) ☛P503, P376
By connecting your FOMA terminal to a PC with
the included USB cable, the Memory Stick PRO
Duo in the FOMA terminal can be used as
external memory for the PC. ☛P442
Features of FOMA D701iWM

10
Quick Search/
Contents/Cautions
Making full use of D701iWM
A variety of functions of D701iWM visual communications are explained here.
i-channel
You can receive a variety of information on a regular basis without additional operations.
Press the i-channel compatible key (c) to display the list of channels so that you can get more richly
detailed information. ☛P308
One-shot Message to send images
You can shoot an image with the camera during a voice call and mail it immediately to the other party. ☛ P177
Movie ringtone (Chaku-motion) to signal incoming calls and alarms
Connect
Not subscribed After subscription
While talking Shoot an image
while talking
Mail address stored in
the phonebook is set
and you can easily
compose and send mail
Set for ring tone Set for an alarm
If i-motion or video recorded with D701iWM is set
for ring alert, incoming calls are notified by the video
with image and voice/sound. You can also register
the other party’s video in the phonebook. ☛P325
If i-motion or video is set for an alarm or schedule,
the set time is informed by the video with image and
voice/sound. ☛P393, P397
Making full use of D701iWM

11
Quick Search/
Contents/Cautions
Plentiful stand-by display
A variety of selection options are available for a clock design on the stand-by display. ☛P138
By displaying information on unread mail, missed call, calendar or schedule on the stand-by display, its
details screens can be opened with simple operation (Custom stand-by display). ☛P127
G-GUIDE TV Remote Controller
G-GUIDE TV Remote Controller is a free i- α ppli service that conveniently
combines the TV program information and TV remote controller function.
You can get the time schedule and information of desired TV program at
anytime from anywhere. Titles, information and start/end time for the TV
programs depending on the TV stations in your area are available with this
function. You can notify your friends of titles and broadcasting schedules for
the TV programs that you like via mail by using Recommendation Mail.
Also, you can remotely control your TV with G-GUIDE TV Remote Controller
(some terminals are not compatible with this function). ☛P357
Deco-mail
You can decorate your mail by changing the character color or pasting images or pictures. Preinstalled
Deco-mail picture allows you to set the image easily. ☛P229
Also, you can create Deco-mail easily by using Deco-mail template. ☛P238
Press oto select an area Check the contents
Example of the clock display Custom stand-by display
• The screen shown
above is for information
purpose only and may
differ from the actual
screen. The actual
screen displays the
channels in your area.
Example of Deco-mail picture Examples of Deco-mail template
Deco-mail picture
Making full use of D701iWM

12
Quick Search/
Contents/Cautions
SAFETY PRECAUTIONS (Always follow these directions)
●Read the following SAFETY PRECAUTIONS to ensure that the phone is used correctly. Also,
store this manual in a convenient location for future reference.
●It is essential that these precautions be observed to prevent injury to the user and third parties as
well as damage to property.
●The following symbols are used to indicate the degree of danger or damage that may
result from failing to follow the specified precautions.
●The following symbols are used to highlight instructions that are very important
and that must be strictly followed.
●The SAFETY PRECAUTIONS are separated into six categories.
Handling the FOMA terminal, battery pack, adapter (and charger) and UIM (general information) ..P13
Handling the FOMA terminal................................................................................................... P14
Handling the battery pack .......................................................................................................P15
Handling optional devices (AC adapter/DC adapter/desktop holder) ..................................... P16
Handling the UIM (FOMA card) .............................................................................................. P17
Using the FOMA terminal in the vicinity of medical devices ................................................... P18
Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation, which, if
not avoided, may result in injury or property damage.
Indicates a potentially hazardous situation, which, if
not avoided, could result in death or serious injury.
WARNING
CAUTION
DANGER
This indicates the action is prohibited.
This indicates disassembly is
prohibited.
This indicates that handling
with wet hands is prohibited.
This indicates the part must not
be exposed to water.
This indicates an action that must be performed in accordance with
the directions.
This indicates you must remove the plug from the power outlet.
SAFETY PRECAUTIONS

13
Quick Search/
Contents/Cautions
Handling the FOMA terminal, battery pack, adapter (and charger) and UIM (general information)
Use only DoCoMo-certified battery packs, adapters (and chargers) with the FOMA
terminal.
Use of non-specified items could cause the FOMA terminal, battery pack or other devices to leak,
overheat, rupture, catch fire or malfunction.
Do not disassemble or remodel the components. Also, do not solder them.
Attempting to do so will lead to an accident, such as a fire, injury, or electrical shock and damage
the equipment. Doing so may also cause the battery pack to leak, overheat, rupture, or ignite.
Do not use or leave the components in a place near fire or heaters. Also avoid a
high-temperature place exposed to direct sunlight or a car under the scorching
sun.
Otherwise, your equipment will get deformed or troubled. The battery pack may leak, overheat,
rupture, or ignite. Other possible problems include a reduction in performance and life. Sometimes,
the casing will partly get heated, resulting in an extremely high temperature to get you burnt.
Do not expose the components to water.
The components may overheat, cause electric shock, fire or damage if exposed to water, pet urine
or other liquids. Do not use the equipment in locations where it could get wet.
Do not use in environments
exposed to combustible or
explosive materials, such as a
gas station.
Using the equipment in locations
exposed to flammable gases or liquids
such as propane or gasoline could
cause fire or explosion.
Do not let the recharging terminal
and external device terminal
touch any conductive material,
such as a piece of metal or lead.
Also do not put any conductive
material into the recharging
terminal and external device
terminal.
The battery can short-circuit, causing
fire and damage.
Do not place the battery pack,
FOMA terminal, adapter (and
charger) or UIM in the
microwave oven, high-pressure
cooker or other cooking
appliances.
Doing so could cause the battery pack
to leak, overheat, rupture or ignite, and
could damage the circuitry of the FOMA
terminal and adapter (and charger),
causing overheat, smoke or fire.
If there is anything wrong (such
as strange odor, heat generation,
color change, deformation, or the
like) with the components while
you are using or charging them or
when they are being stored, you
should take the following steps
immediately.
1. Remove the power plug from
the outlet.
2. Turn off your FOMA terminal.
3. Remove the battery pack
from your FOMA terminal.
Continuing to use the equipment
without taking these steps will cause it
to overheat, rupture, or ignite or cause
its battery pack to leak.
Do not expose the components
to strong shocks by dropping or
throwing them.
Doing so could cause the battery pack
to leak, overheat, rupture or ignite, and
damage the equipment, resulting in fire.
DANGER
Battery pack: D05 Desktop holder: D07 Rear cover: D07
FOMA AC adapter: 01 FOMA DC adapter: 01 Remote Controller with Microphone: D01
• For additional items related to the compatible products, contact the nearest DoCoMo Shop.
WARNING
Next
SAFETY PRECAUTIONS

14
Quick Search/
Contents/Cautions
Handling the FOMA terminal
When a child uses the FOMA
terminal, first be sure an
experienced adult teaches
proper usage methods and
techniques. Observe the child
to determine that they are using
the FOMA terminal correctly.
Failure to do so could result in injury.
Do not place the components
on an unstable or tilted surface.
Doing so could cause the equipment to
slide off, possibly causing personal
injury or damaging the equipment.
Keep out of the reach of small
children.
The components can be accidentally
swallowed, resulting in injury.
Do not store in locations subject
to high temperature and humidity
or excessive dust.
Doing so could damage the equipment.
The temperature of the FOMA terminal, battery pack and adapter (and charger) may
increase during recharging, when repeatedly taking or playing back videos, when
using the video-phone, i-mode, or i-
α ppli functions, or during long-term continuous
use of the corresponding device.
Depending upon your physical make-up and condition, touching any area of increased heat directly
for any extended period of time may result in redness or itching of the skin or a rash. Take special
care when the FOMA terminal is used continuously for an extended period of time while connected
to the adapter (and charger).
Turn off the FOMA terminal inside an aircraft, hospital or other location where
use of mobile phones is prohibited.
The FOMA terminal may interfere with the correct functioning of electronic equipment. If the
automatic power on function is used, cancel the setting and turn the power off. Observe any
regulations posted in medical facilities.
If you have done prohibition acts such as using the FOMA terminal inside an aircraft, you may be
punished as stipulated by law.
Turn off the FOMA terminal in the vicinity of electronic equipment that relies on
high-precision control or faint signals.
The FOMA terminal may interfere with the correct functioning of such electronic equipment.
･Examples: hearing aids, implanted cardiac pacemakers, implanted defibrillators, other medical
devices, fire alarms, automatic doors and other automatically controlled equipment.
Users of such medical equipments should check with the electronic equipment or device
manufacturer with respect to the effect of electromagnetic interference.
Do not use the FOMA terminal
while driving.
Use of the mobile phones in vehicles is
subject to penal regulations since
November 1, 2004. If you try to use a
Hands-Free kit, use it after parking your
car in a safe place. Use the drive mode
or Voice Mail service when you are
driving.
Do not place the FOMA terminal
in a breast or inner pocket if you
are carrying or using electronic
medical equipment.
The FOMA terminal could cause any
medical equipment in its vicinity to
malfunction.
People with weak hearts should
take care with respect to setting
the incoming vibrator and ring
volume.
The FOMA terminal may interfere
hearts.
CAUTION
WARNING
SAFETY PRECAUTIONS

15
Quick Search/
Contents/Cautions
Handling the battery pack
When you talk under hands-free
settings (with the speakerphone
function), be sure to keep a
distance between FOMA
terminal and your ear.
Doing so could cause the hearing loss.
Do not aim the infrared port at
eyes and attempt to transmit.
Eyes could be affected. Aiming at other
infrared devices and transmitting could
cause other devices to malfunction.
Do not place your FOMA terminal
in an area over an air bag or in an
air bag deployment area such as
on a dashboard in a vehicle.
If the air bag inflates, the FOMA
terminal may hit you and injury and
damage to itself could result.
Do not turn on the compact light
toward eyes at close range.
Taking a look at the light directly affects
eyes damage. He or she may be blinded
by it and injury could result.
If you hear thunder while using
the FOMA terminal outdoors,
immediately turn the power off
and move to a safe location.
Use of the phone in such a situation
could expose you to lightning strikes or
electric shock.
Rarely, some FOMA terminal users may develop itching, skin irritation or eczema. If
such a condition occurs, stop using the FOMA terminal immediately and seek
medical attention.
Do not swing the FOMA
terminal around by the strap.
Doing so could cause injury to yourself
or a third party or damage the phone.
Do not allow water or other
liquids, pieces of metal or other
foreign material to enter into the
UIM slot and a Memory Stick
PRO Duo slot of the FOMA
terminal.
Doing so could cause fire, electric
shock, or damage to the FOMA terminal.
Use in certain makes of cars
may affect onboard electronic
equipment.
Continued use under such conditions
could cause unsafe driving. Do not use
the FOMA terminal in such a case. Do not bring magnetic cards
near the FOMA terminal. Also,
do not place the magnetic card
between two halves of the
FOMA terminal.
Magnetic data stored on bank cards,
credit cards, telephone cards, and
floppy disks may be corrupted or lost.
Be careful not to pinch your
fingers or get the strap caught
when opening and closing the
FOMA terminal.
It could cause an accident such as
personal injury, or damage to the FOMA
terminal.
If electrolyte from the battery
pack gets in your eyes, do not
rub; instead, rinse immediately
with copious amounts of clean
water and seek medical attention.
Doing so could cause the loss of vision.
Do not throw the battery pack
into a fire.
Doing so could cause the battery pack
to leak, overheat, rupture or catch fire.
CAUTION
■Check the battery type indicated on the
battery pack label.
Indication Battery type
Li-ion Lithium ion battery
DANGER
Next
SAFETY PRECAUTIONS

16
Quick Search/
Contents/Cautions
Handling optional devices (AC adapter/DC adapter/desktop holder)
Do not attach metallic materials
such as wire to the port. Do not
carry or store the battery pack
together with a necklace or
other metallic items.
Doing so could cause the battery pack
to leak, overheat, rupture or catch fire.
When you attach the battery
pack to the FOMA terminal,
never attempt to forcefully
insert, because it should slide
in easily and fit correctly. Check
the direction of the battery pack
and try again.
Doing so could cause the battery pack
to leak, overheat, rupture or catch fire.
Do not pierce the battery pack
with nails, hammer on it or step
on it.
Doing so could cause the battery pack
to leak, overheat, rupture or catch fire.
Should any electrolyte from the
battery pack come into contact
with your skin or clothing,
immediately stop using the
battery and rinse with clean water.
Failure to do so could cause skin injuries.
Stop charging if it is not possible
to fully charge the battery pack
within the specified time.
Failure to do so could cause the battery
pack to leak, overheat, rupture or catch
fire.
If the battery pack leaks or emits strange odors, immediately stop using it, and
always keep away from sources of fire.
Failure to do so could cause the battery liquid to catch fire, and the battery pack itself to rupture.
Do not dispose of the battery pack with other regular household waste.
Failure to properly dispose of the battery pack in an environmentally sensitive manner could cause
the battery pack to catch fire and damage the environment. Use adhesive tape to cover the terminal
of battery pack when it is no longer used and bring it to a DoCoMo Shop after the insulation.
Alternatively, you can also dispose of the battery pack in accordance with local regulations.
Use care not to short circuit the
recharging terminal when the
adapter (and charger) is connected
to a wall outlet or cigarette lighter
socket. Do not touch the recharging
terminal with your hands or fingers,
or some other part of the body.
Doing so could cause fire, equipment
failure, electric shock or other injury.
Do not touch the adapter (and
charger) cord or wall outlet with
wet hands.
Doing so could cause electric shock.
When the adapter (and charger)
is not to be used for a prolonged
period, disconnect the power
plug from the wall outlet.
Failure to do so could result in electric
shock, fire, or equipment failure.
Do not use th e AC adapter and
desktop holder in bathrooms or
other potentially high humidity
locations.
Doing so could cause electric shock.
WARNING
CAUTION
WARNING
SAFETY PRECAUTIONS

17
Quick Search/
Contents/Cautions
Handling the UIM (FOMA card)
Never use the adapter (and
charger) when it has a damaged
power cord.
Failure to do so could result in electric
shock, overheat or fire.
When connected to a wall outlet,
make sure that the AC adapter
does not come into contact with
metallic straps or other metal
objects and the plug is properly
seated.
Failure to do so could result in electric
shock, short circuit, or fire.
If the adapter (and charger) or
holder is exposed to water or
other liquid, immediately
disconnect the power plug from
the wall outlet or cigarette lighter
socket.
Failure to do so could result in electric
shock, smoke or fire.
Use the designated power source
and correct voltage.
Use of incorrect voltage could cause fire
or equipment failure. When using your
FOMA terminal overseas, use the
FOMA domestic/overseas AC adapter
01.
Be sure the power plug is free of
dust.
Failure to do so could cause the
equipment to catch fire.
During charging, place the
adapter (and charger) and
desktop holder in a stable
location. Do not cover or wrap the
adapter (and charger) and
desktop holder with a cloth or
blanket, etc.
Using the equipment under such
conditions could cause the FOMA
terminal to be detached from the
holder, or cause a heat buildup that
leads to fire or equipment failure.
Use only the specified fuse for
the DC adapter.
Use of the incorrect fuse could cause
fire or equipment failure. Check the
instruction manual for details of the
correct fuse to use.
Do not touch the FOMA terminal
and AC/DC adapter when hearing
thunder.
Contact with the FOMA terminal and
adapter could cause you lightning
strikes or electric shock.
The DC adapter is for use with
negative ground cars. Do not use
it with positive ground cars.
Doing so could result in fire.
Disconnect the power plug before
beginning any maintenance.
Failure to do so could cause electric
shock.
Do not yank on the adapter (and
charger) cord or power cord when
disconnecting the adapter (and
charger) from the wall outlet.
Doing so could damage the cord,
resulting in electric shock or fire.
Do not place heavy objects on
the adapter (and charger) cord or
power cord.
Doing so could cause electric shock or
fire.
Take care when removing the UIM (IC chip).
Failure to do so could cause injury to hand and fingers.
AC adapter: 100V AC
FOMA domestic/overseas AC adapter
: 100V to 240V AC
(Always connect to the outlet for internal
household use.)
DC adapter: 12V DC, 24V DC
(specific for negative ground
vehicle)
CAUTION
CAUTION
SAFETY PRECAUTIONS

18
Quick Search/
Contents/Cautions
Using the FOMA terminal in the vicinity of medical devices
The information given below conforms to the guidelines set forth by the Electromagnetic Compatibility
Conference regarding the protection of electronic medical equipment from radio waves emitted by
mobile phone units.
Handling instructions
General
●Do not get the components wet.
The FOMA terminal, battery pack and adapter (and charger) are not waterproof. Avoid using the components
in a bathroom or other high humidity areas or locations exposed to rain. If you carry the components, sweat
could cause internal corrosion that leads to equipment failure. As a result of investigation, if component failure
is found to be water-related, repair is not covered by the warranty and may not be able to be performed.
In such a case, should it be found to be possible to repair the unit, you will be billed for all repairs.
●Clean the components with a soft, dry cloth.
• Clean the components using a soft, dry cloth (such as a lens cloth).
• Using alcohol, thinner, benzene or detergents could cause the printed text to fade or disappear, or the
equipment to become discolored.
●Occasionally clean the terminals with a dry cotton swab.
Dirty terminals could cause intermittent contact that could interrupt the flow of power to the unit. Such a
situation also causes insufficient charging. Use a dry cloth or cotton swab to clean the terminal.
●Do not place the components near an air conditioner vent.
Sudden changes in temperature could cause condensation, leading to corrosion inside the components and
equipment failure.
Turn off the FOMA terminal on packed trains or in crowded places as someone with
an implanted cardiac pacemaker or implanted defibrillator may be nearby.
The electromagnetic waves emitted by your phone could affect the function of an implanted
cardiac pacemaker or implanted defibrillator.
When inside a medical institution, always remember the following guidelines:
･Never take the FOMA terminal inside an operating room, intensive care unit (ICU) or coronary
care unit (CCU).
･Always turn off the FOMA terminal in hospital wards.
･Even in the lobby and other areas, always turn off the FOMA terminal when electronic medical
equipment is nearby.
･Follow the directives of the medical institution. There may be specific regulations as to items that
are prohibited or use of which is restricted.
･If you are using the automatic power on function, cancel the setting and turn off the power.
If you have an implanted cardiac pacemaker or implanted defibrillator, keep your
FOMA terminal at least 22 cm away from it.
The electromagnetic waves emitted by your phone could affect the function of an implanted
cardiac pacemaker or implanted defibrillator.
If you are using electronic medical equipment other than implanted cardiac
pacemakers or implanted defibrillators at your home or outside the confines of a
medical institution, be sure to check with the manufacturer about possible adverse
effects caused by electromagnetic interference.
The electromagnetic waves emitted by your phone could affect the function of electronic medical
equipment.
WARNING
Handling instructions
