nubeca BA2115 User manual

Model No.:BA2115
A01
BA2115

The unit comes with the following components:
• Main Unit
• Arm Cuff
• Storage Bag
• Instruction Manual printed in English
The unit uses the oscillometric method of blood pressure
measurement. It means the unit detects the movement of your
blood through your brachial artery, and converts your blood
pressure into a digital reading. The unit is simple to use because a
stethoscope is not needed while using an oscillometric monitor.
Thank you for purchasing Fully Automatic Upper Arm Style Digital
Blood Pressure Monitor.
The unit stores automatically 180(2*90) sets of measurement
values for 2 users (2*90) with the measuring date and time. You
can read the stored data conveniently by pressing the memory
button.
Introduction ...............................................................................................1
Symbols Use .............................................................................................2
Important Safety Notes .............................................................................3
Know Your Unit ......................................................................................4-5
IHB Introduction ........................................................................................6
Before Taking A Measurement ..................................................................7
Quick Reference Guide .............................................................................8
Battery lnstallation/Replacement .............................................................9
Adjusting Settings

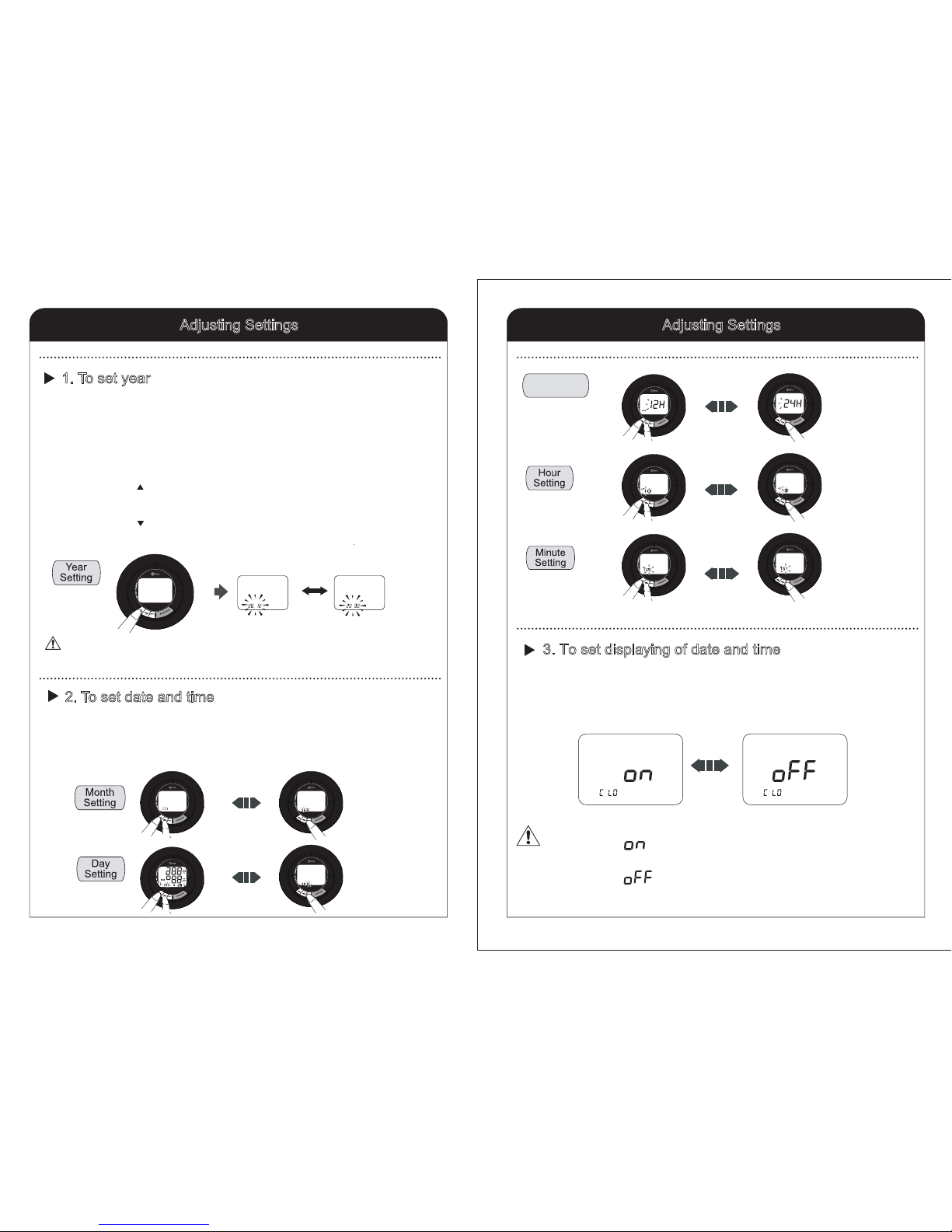

1. To set year .......................................................................................10
2. To set date and time ...................................................................10-11
3. To set displaying of the date and time ........................................11-12
4. To set unit ........................................................................................12
5. To set user .......................................................................................13

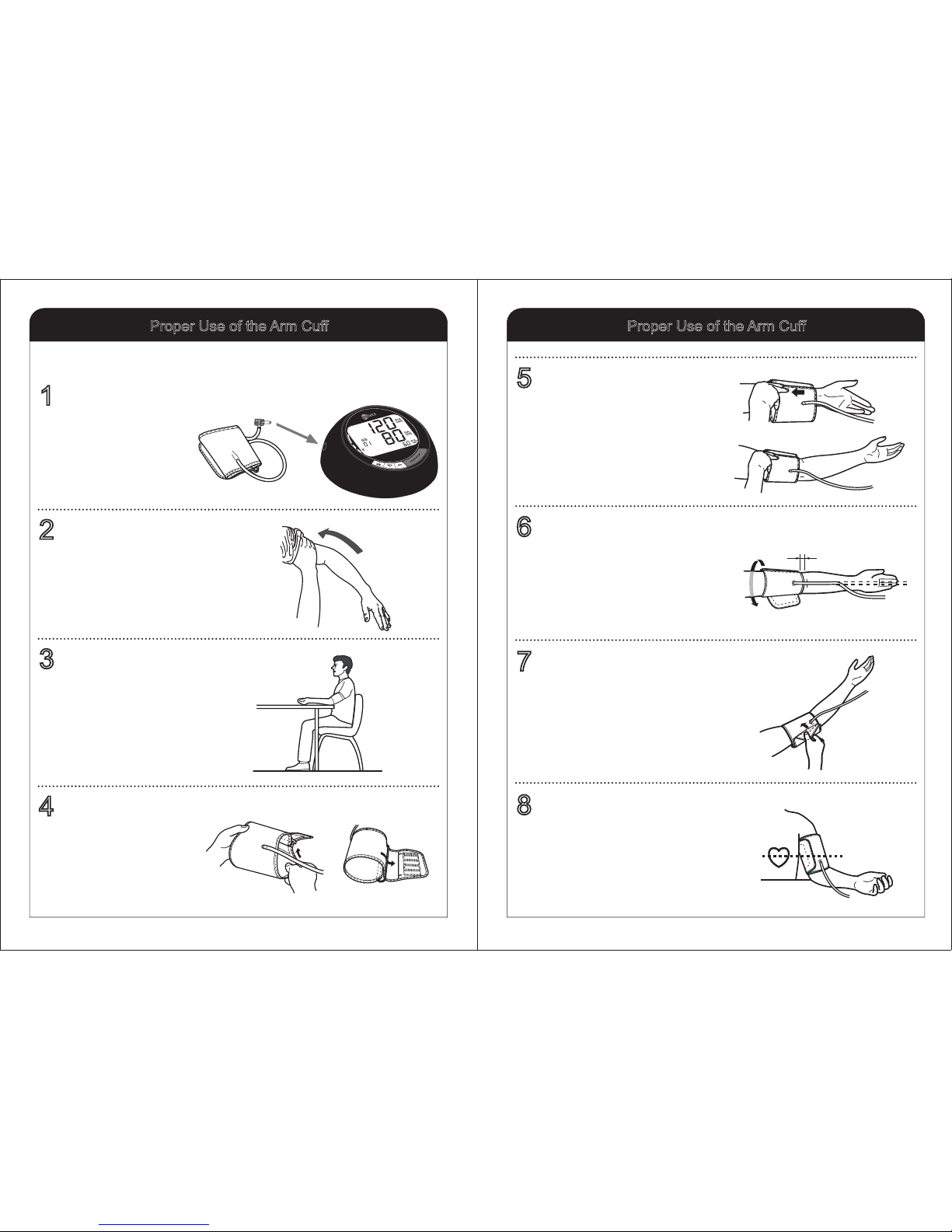

Proper Use of the Arm Cuff ................................................................14-15

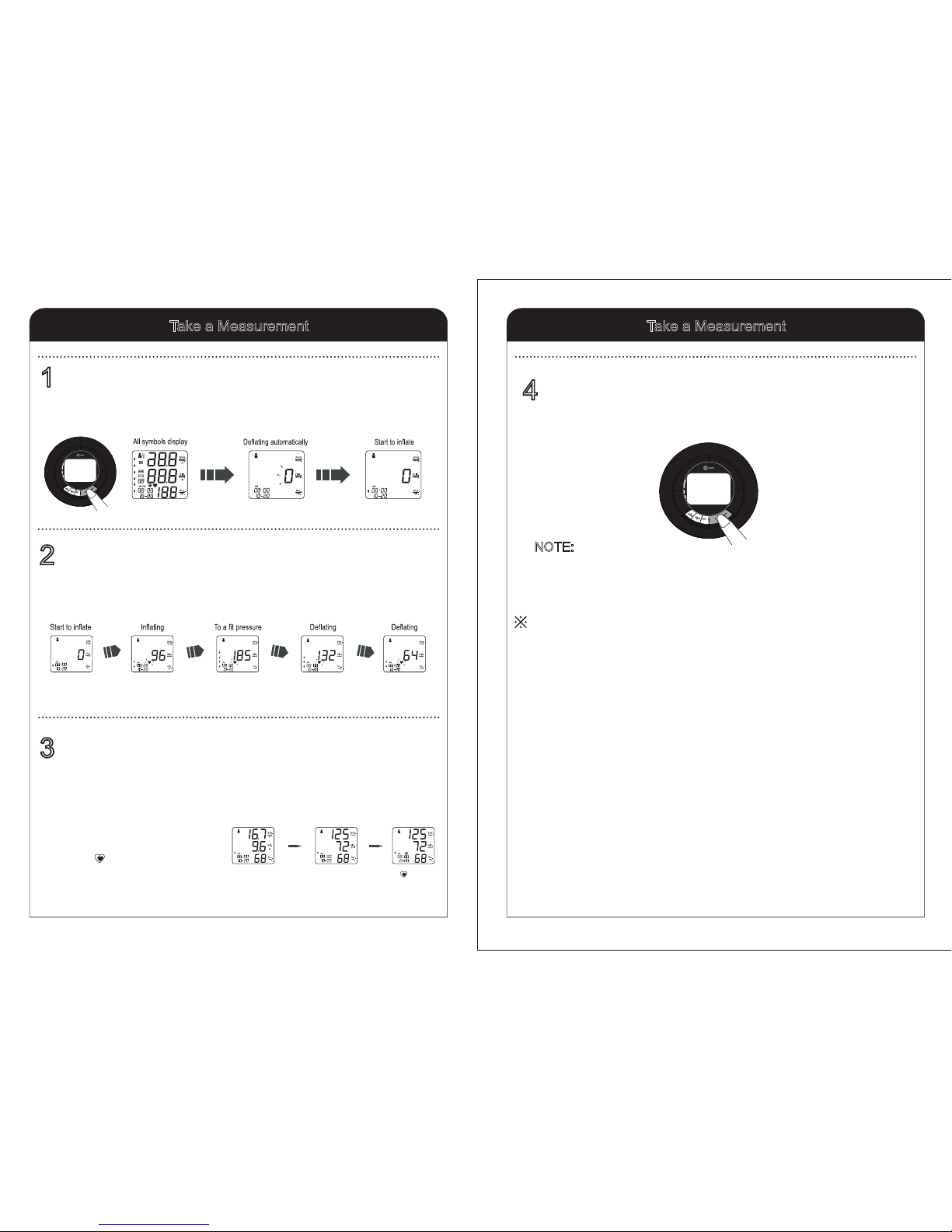

Take a Measurement ..........................................................................16-17
Use the Memory Function
To read the avearge value ...................................................................18
To read the measurement value ..........................................................18
To delete the memory value ................................................................19
Before Using the Monitor
Care and Maintenance
Operating Instructions

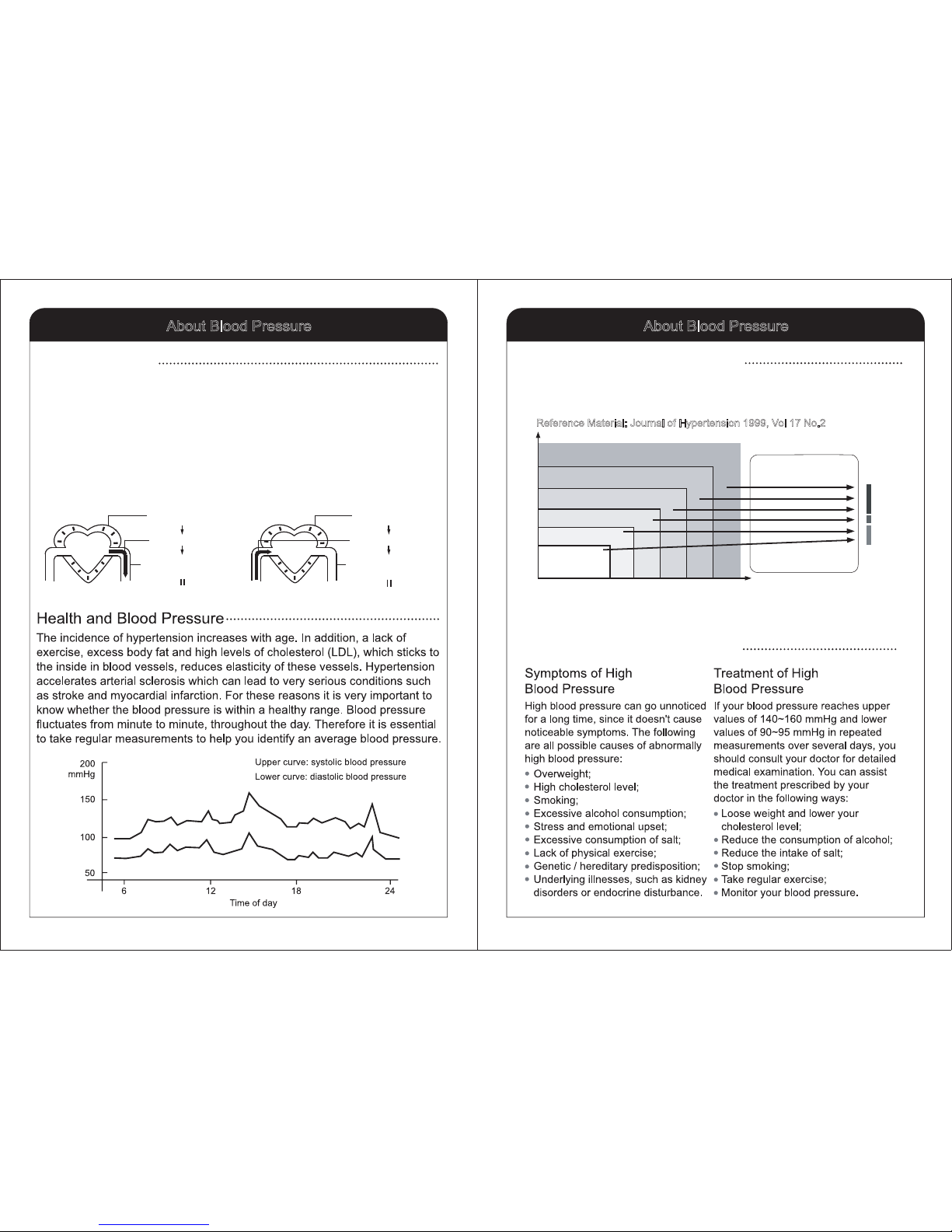

About Blood Pressure
Blood Circulation ...................................................................................20
Health and Blood Pressure ...................................................................20
Classification of Blood Pressure ...........................................................21
Exceptional Situations
Error Indicators .....................................................................................22
Eliminate Fault ......................................................................................22
Care and Maintenance
Care ......................................................................................................23
Maintenance .........................................................................................23
Specifications ............................................................................................24
EMC Table............................................................................................26-28
Warranty Information .................................................................................29
Statement ..................................................................................................25
The unit have the following advanced functions:
•
Displaying of the date and time

3
2
Symbols Use
To assure the correct use of the product basic safety measures
should always be followed including the precautions listed below:
Indicates a potentially hazardous situation
Type BF applied part
Refer to instruction manual/booklet
MANUFACTURER
SERIAL NUMBER
The marking of electrical and electronics devices
according to Directive 2002/96/EC.
The device,accessories and the packaging have to be disposed
of waste correctly at the end of the usage.
Please follow Local Ordinances or Regulations for disposal.
AUTHORISED REPRESENTATIVE IN THE
EUROPEAN COMMUNITY
which, if not
avoided, could result in death or serious injury.
SYMBOLS USED IN THIS INSTRUCTION MANUAL
WARNING
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the user or
patient or damage to the equipment or other property.
Read all information in the instruction manual and any other
literature included in the box before using the unit.
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results
may be dangerous.Follow the instructions of your healthcare
provider.
Operate the unit only as intended. Don't use for any other purpose.
The unit is intended to use in measuring blood pressure and pulse
rate for adult only, not recommended for neonatal baby at home or
medical centre.
Do not use a cellular phone near the unit. It may result in
operational failure.
Please avoid using in high radiant area in order to make your
measuring data correctly.
Do not disassemble or attempt to repair the unit or components.
Do not use the equipment where flammable gas (such as
anesthetic gas, oxygen or hydrogen) or flammable liquid (such as
alcohol) are present.
Do not use a mobile phone or other devices that emit
electromagnetic fields, near the unit. This may result in incorrect
operation of the unit.
Indicating that too frequent measurements can cause injury to the
PATIENT due to blood flow interference;
Remove the batteries if the unit will not be used for Three months
or More.
Regarding the application of the CUFF over a wound, as this can
cause further injury;
Regarding the effect of blood flow interference and resulting harmful
injury to the PATIENT caused by continuous CUFF pressure due to
connection tubing kinking;
Transport package shall be kept away from rain.

Pouch
4
Know Your Unit
Display
5
Know Your Unit
Please keep the instruction manual
well after using.
Instruction Manual
4 AA Alkaline Batteries AC Adapter (not included)
Power
Fit for 22cm~32cm
range of upper arm
perimeter
If your arm cuff is broken or not functional, please use a new cuff.
A new arm cuff does not include an air plug. Please continue to use the
old air plug on the new arm cuff.
Hose
Air Plug
(Insert to Air Socket)
Metal
Arm Cuff
Warning:
1. Do not use rechargeable batteries.
2. When using optional AC adapter, the AC adapter must comply with
the requirements of standard IEC60601-1.
3. Optional AC adapter technical specification:
Rated output voltage: 6V Output current: 1-2A
Inflation/Deflation Symbol
or WHO Indication
Low Battery Symbol
Irregular Heartbeat Symbol
Average Value Symbol
Memory & Times
Systolic Blood Pressure
Heartbeat Symbol
Unit Indication
Pulse
Diastolic Blood Pressure
Date/Time
User Symbol
BA2115
Body Display
Air Socket
START/STOP Button
Setting Button
Memory Button
AC Adapter
Socket
BA2115

IHB Introduction
When the unit detects an irregular rhythm two or more times during
the measurement, the irregular heartbeat Symbol will appear on the
display with the measurement values.
An irregular heartbeat
rhythm is defined as
a rhythm that varies
by less than 25% from
the average rhythm or
25% more than the
average rhythm
detected while the
monitor is measuring
the systolic and
diastolic blood pressure.
If the Irregular Heartbeat Symbol( ) displays with your
measurement results, we recommend you consult your physician.
Follow the directions of your doctor.
Normal Heartbeat
Irregular Heartbeat
Pulse
Pulse
Short Long
Blood
pressure
Blood
pressure
Irregular Heartbeat Symbol( )
67
Before Taking A Measurement
1.Avoid eating,drinking alcohol, smoking, exercising and bathing for
30 minutes before taking a measurement.
2.Stress raises blood pressure. Avoid taking measurements during
stressful times.
3.The cuff can be applied to your left or right wrist.Always measure
your blood pressure on the same Arm.
4.Measurements should be taken in a quiet place.
5.Position the unit at heart level throughout the measurement.
6.Remain still and do not talk during the measurement.
7.Keep a record of your blood pressure and pulse readings for your
physician.A single measurement does not provide an accurate
indication of your true blood pressure.You need to take and record
several readings over a period of time.Try to measure your blood
pressure at the same time each day for consistency.
8.Wait 30~60 seconds between measurements.
The wait time allows the arteries to return to the condition prior to
taking the blood pressure measurement.You may need to increase
the wait time depending on your individual physiological
characteristics.
