nubeca BA2318 User manual

Model: BA2318
Arm Automatic
Blood Pressure Monitor
Instruction Manual

Table of Contents
1. Safety Information................................................................1
1.1 Warning............................................................................1
1.2 Contraindications..............................................................3
1.3 Care and maintenance.......................................................3
2. Product Feature.....................................................................4
3. Pre Measurement..................................................................7
3.1 Battery .............................................................................7
3.2 Setting...............................................................................8
4. Take a measurement............................................................10
4.1 Important Noted...............................................................10
10................................................................ffucehtgnittiF2.4
4.3 Body posture during measurement ................................11
4.4 Take Measurement.........................................................12
4.5 Memory..........................................................................15
5. Error Indication..................................................................15
6. Trouble Shooting................................................................16
7. Specification.......................................................................17
8.About Blood Pressure..........................................................22
8.1 What is Blood Pressure?................................................22
8.2 What is high blood pressure?..........................................22
8.3 What is morning hypertension (morning surge)?...........24
Reference Standard.................................................................25
Explanation of Symbols............................................................26
Guarantee Card..............................................................................26
After-Sale Service.........................................................................27

Rev：A1
1
Self diagnosis and treatment which use measured results
may be dangerous. Follow the instructions of your physicia
or licensed healthcare provider.
Only take measurement with the manufacturer supplied cuff
or else it will lead to inaccurate results.
Do not use the blood pressure monitor when you are close
proximity to strong static electricity or electromagnetic fields
and avoid using the mobile during measurement.
.
1
.1 Warning
1. Safety Information
Do not use in combination with a hyperbaric oxygen therapy
device, or in an environment where combustible gas may be
generated.
Do not install the unit in the following locations:
- Locations subject to vibration such as ambulances and
emergency helicopters.
- A location where there is gas or flame.
- A location where there is water or steam.
- A location where chemicals are stored.
- A location where the unit may easily fall.
If cuff inflation doesn’t stop, remove the cuff or power off
the unit, otherwise, it may result in a hazard condition.
Measurements or stores need to take into account environment
variables, or else it would lead to the inaccurate measurement.
When using or replacing the batteries, the operator not to
touch those parts and the patient simultaneously.

Rev：A1
2
The battery has positive/negative polarity. If the battery does
not connect well to the unit, do not forcibly connect it.
Do not use Luer lock. If Luer lock connectors are used in the
This product is suitable for use to self- monitoring of blood
pressure in home or used by the licensed healthcare per sonnel
in hospital.
construction of tubing, there is a possibility that they might be
inadvertently connected to intravascular fluid systems, allowing
air to be pumped into a blood vessel.
Blood pressure measurements determined with the device are
equivalent to those obtained by a trained observer using the
cuff/stethoscope auscultatory method, within the limit prescribed
by the American National Standard, Manual, electronic or
automated sphygmomanometers.
Keep out of reach of infants, small children, and compromised
Children must be supervised to ensure that they are not play
with the device.
Use only manufacturer authorized parts and accessories.
Parts and accessories not approved for use with the device may
damage the unit.
Be careful not to rest your arm on the air tube. This will
restrict the flow of air to the cuff.
people who cannot express their consent. Playing the air tube
may result in suffocate children, and Children may swallow small
parts and lead to suffocation.

1.2 Contraindications
1.3 Care and maintenance
• Do not apply the cuff over a wound or inflamed area.
Rev：A1
3
Operation of the device does not result in prolonged
impairment of the circulation of the blood of the patient.
Direct plug is considered as disconnect device, please do
not place the equipment in a difficultly operation position.
When using the device, the patient is an intended operator.
Do not serviced or maintained while in use with the patient.
The patient can perform the maintenance of changing batteries.
Those who have arrhythmia, diabetes, blood circulation or
apoplexy problem, please use under the physician’s instruction.
Clinical testing has not been conducted on newborn infants
and pregnant women. Do not use in infants and pregnant women.
Do not use the blood pressure monitor for any other purpose
except measuring the blood pressure of human body.
The common arrhythmia such as atria premature beats,
premature ventricular and atrial fibrillation will lead to inaccurate
results or error.
Do not attempt to disassemble, repair or modify the blood
pressure monitor or hand cuff.
Do not measurement too frequent, or else it may result in
bruising where the cuff is applied.
The application of the cuff and its pressurization on the arm
can cause temporary interference to blood flow, but it would
not result in injury to the patient.

Do not wet or cleaning the cuff with water.
Clean the body with soft dry cloth dipped in a concentration
of 75% medical alcohol.
Precaution！Please read the enclosed instruction.
2
. Product Feature
Indications for use：Measurement of Human Blood Pressure
and Pulse Rate for adults in home or used by the licensed
healthcare personnel in hospital.
Rev：A1
4
Avoid high temperature, moisture, dust and direct sunlight.
Clean the cuff with soft dry cloth after measurement.
Do not drop or expose the device to heavy shock.
Remove the batteries if the unit will not use for a long time.
Do not disassemble or modify the structure of the unit and
damage the safety performance. If you need service, please
contact the manufacturer, the maintenance should be done by
authorized persons of manufacturer. Maintenance of the
necessary technical document, including the schematics, key
components list and etc., will provided by the manufacturer
for maintenance personnel.
The blood pressure monitor has gone through several trials
of testing to ensure the measurement accuracy. The end user
should conduct a manufacturer recommended inspection and
calibration annually.
Do not use the unit near large equipment that uses a switching
relay for power ON/OFF.
Do not use at extremely high temperature, high humidity, or
high altitude. Use only within the required ambient conditions.

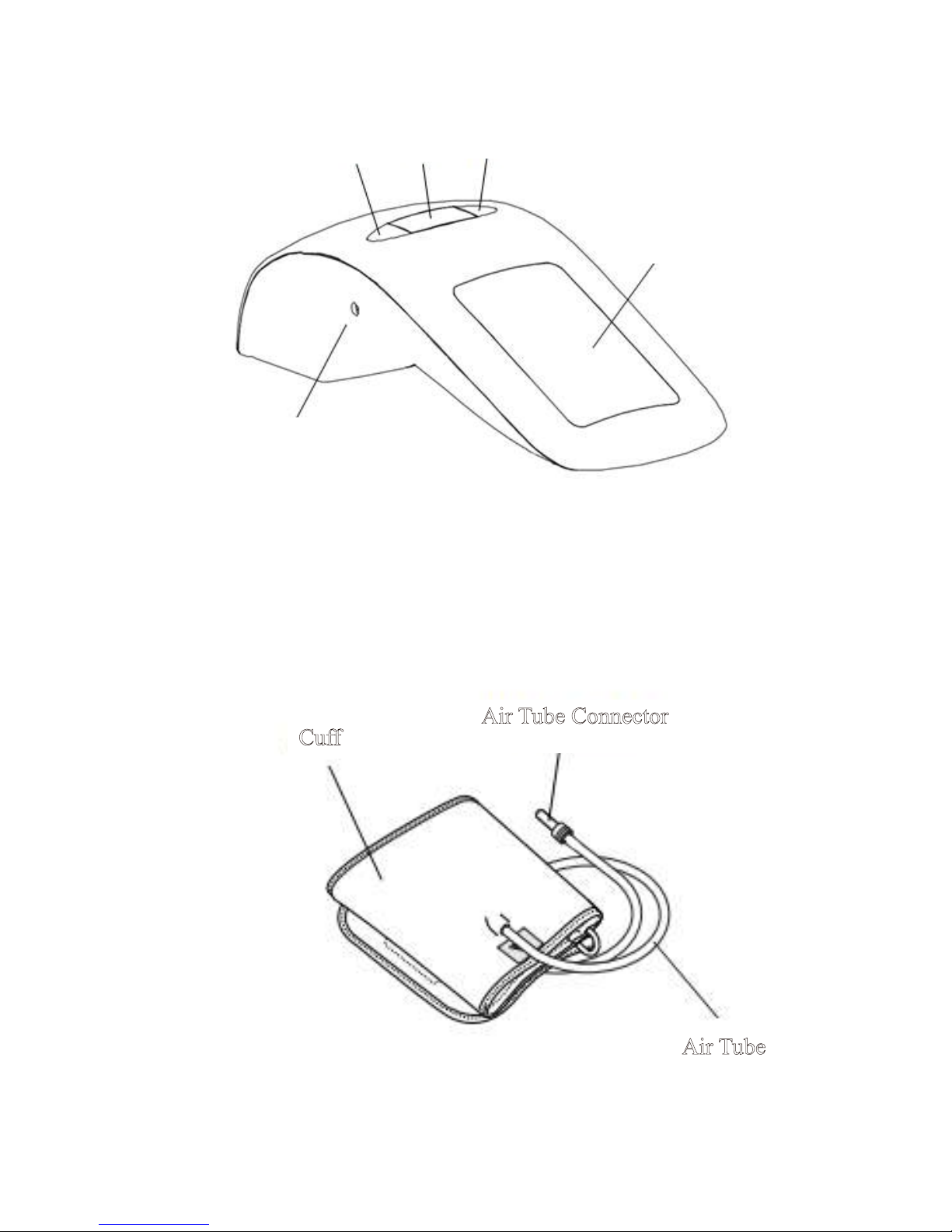

Body
Fig 1
Rev：A1
5
C
uff (Type BFApplied Part)
M
odel：BC1000
Applicable Arm Circumference: 220 mm to 360 mm
Cuff
Air Tube
Air Tube Connector
LCD Display
Air socket
SET MemoryON/OFF

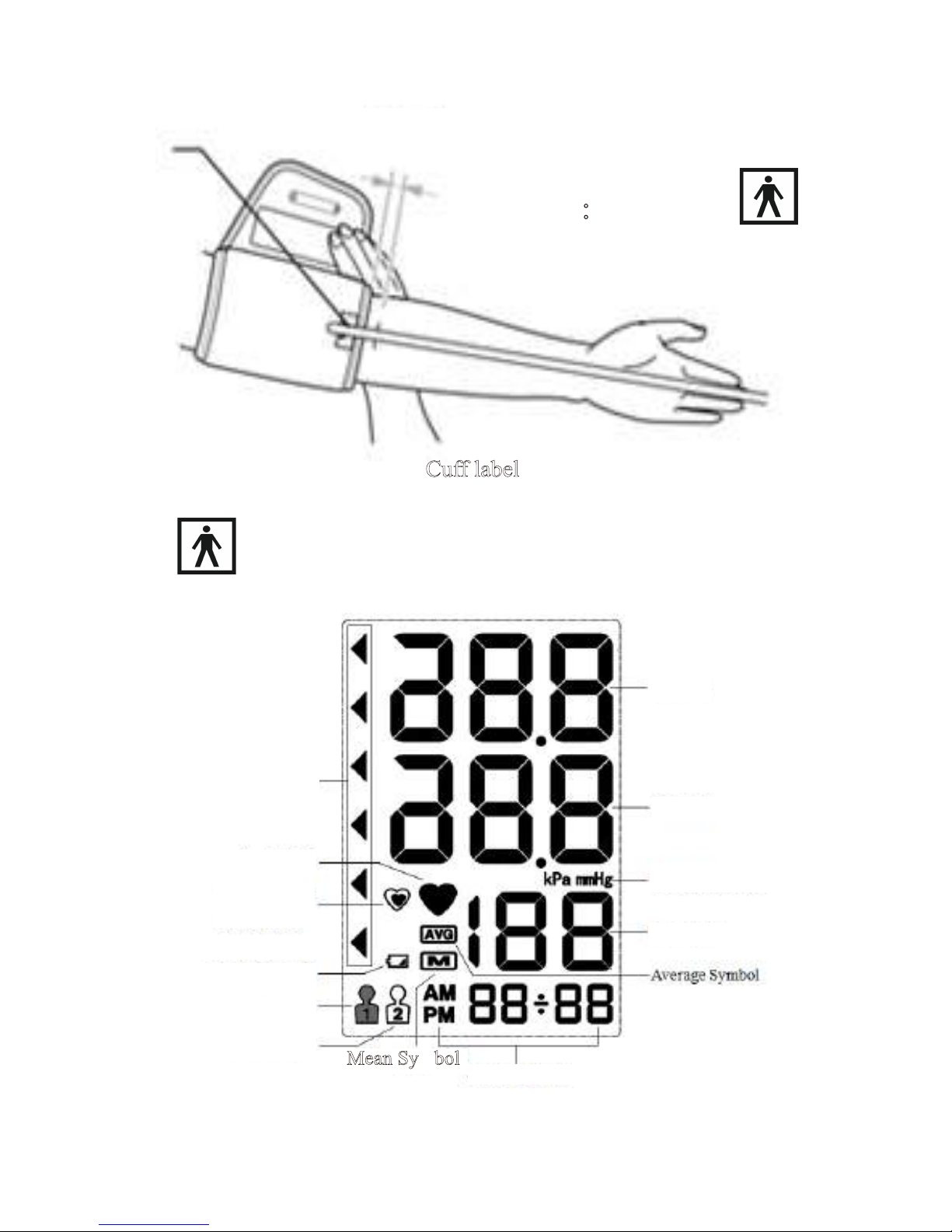

Cuff label
Fig 2
N
ote:
S
ymbol for TYPE BF APPLIED PART
Rev：A1
6
D
isplay
Fig 3
Systolic
Diastolic
Pulse Rate
Blood Pressure
Level Indicator
Date and Time
Battery Symbol
Memory1
Memory2
Unit of Pressure
Heart Mark
Irregular Heat
Rate Symbol
Mean Symbol
2~3cm
Model：BC1000

3. Pre Measurement
3.1 Battery
3.1.1 Installation and replacement
1
）Remove battery cover
2
）
Please use the same brand battery and aware of battery polarity during installation
Fig 4
Load 4 standard AAA alkaline battery as indicated in figure
below
4 x AAA
Rev：A1
3）Install back the battery cover
4
）Replace the battery if low battery icon is displayed
If the low battery symbol is display, replace with
new batteries, otherwise the unit will not function properly.
Use 4 same brand 1.5 Volt A alkaline batteries. AA
Do not mix the new and old batteries.
Remove the battery if the unit is to remain unused for an
extended period.
Reset the time and date after battery replacement.
3.1.2 Battery Life
Four new LR03 (AAA) batteries will last for approximately
200 measurements, if measurements are taken once a day at
room temperature (23°C).
7

The batteries enclosed in the package are used for demonstration
purpose. It is possible that these batteries will therefore not last
for 200 measurements.
The battery life can be confirmed in the bottom left of the
display. If the low battery symbol is display, remaining
power is low, replace with new batteries.
Rev：A1
3.2.1 Setting
3.2
Setting
1）With monitor power off
2）Hold the【Set】button for 3 seconds, Year digits blinking
a) Change number
i Press the M 【 】
M
【 】
button to
advance one number
ii Hold down the button the number will
change rapidly
b) Enter the two digit of the year number.
c) Press the 【Set】button will proceed to month setting.
d) R
e)
g)
Press the 【Set】button will proceed to set time mode.
Complete setting time mode, Press the【Set】button will
proceed to set hour.
h) Repeat step a) to c) to set hour and minutes.
epeat step a）to c）to set month, day.
a) Press the 【M】button will automatically change the
unit conversion as shown on Fig 7 or Fig 8.
3
）Unit Conversion (mmHg to kPa)
8

Rev：A1
The blood pressure monitor is capable to hold 2 sets of memory
data. Prior using the blood pressure monitor, select the correct
memory data.
Memory data conversion:
With monitor power off, hold the 【ON/OFF】 button until
the selected Memory displayed.
The machine is complete setting, ready to use.
Press the 【ON/OFF】 button will automatically change the
memory data conversion either from Memory 1 or Memory 2.
3.2.2 Memory Data Conversion
b) Complete setting, press 【ON/OFF】button to exit.
Fig 5 Fig 6 Fig 7 Fig 8
9

4
Take a measurement
4
.1 Important Noted
D
on't eat, drink alcohol, smoke, take a shower or exercise
f
or at least 30 minutes before you take your blood pressure
a
nd don't use any medicines that can raise blood pressure.
Try not to take your blood pressure if you are nervous or
upset. If we are nervous, anxious, or agitated our blood pressure
will rise.
Rest for 5～10 minutes before taking a reading. Sit in a
comfortable, relaxed position. Don't move around or talk while
taking the blood pressure. Leave your legs in one position, breath
freely and calmly.

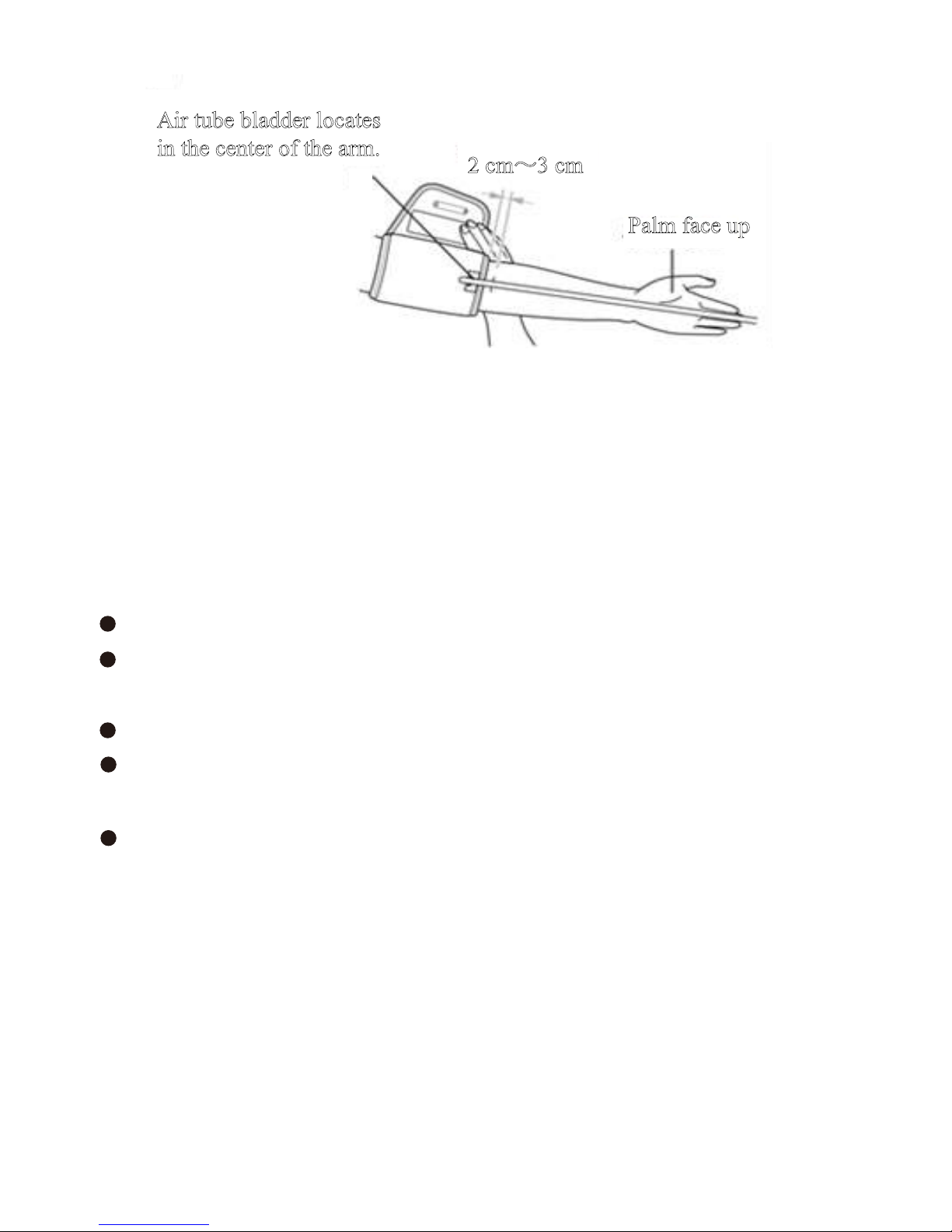

The blood pressure cuff should fit over about 3/4 of your upper
arm. It should easily go around the arm and the Velcro should
close tightly.
If you can, use the same arm for every reading.
Measuring blood pressure at the same time on different days
should give about the same reading (excluding outside influences
like exercise).
Rev：A1
Changes in medication or nutritional supplement can alter
your result. Please consult your doctor before taking or stopping
medications or supplement.
4
.2 Fitting the cuff
a
pproximately 2～3cm ( 1～2 inches) above the elbow. (Fig 9）
1
）Plug in the air tube connector into the main unit
2） Wrap the cuff around the upper left arm or upper right arm
.
3）
Tighten the cuff around the arm, make sure the cuff is
10

2 cm～3 cm
2 cm～3 cm
Palm face up
Air tube bladder locates
in the center of the arm.
Fig 9
4 ) Make sure cuff air tube outlet is facing your finger. Do not
over tighten. Approximate one finger should be able to fit
underneath the cuff after tightening.
5 ) Relax, place the elbow on the desk with palm facing up; the
cuff should be level with your heart. If the cuff doesn’t fit your
arm, the reading accuracy may be affected.
Do not bend with the cuff or the air tube.
To detach the cuff, unplug the air tube connector from the
main unit
Do not inflate prior fitting the cuff.
Rev：A1
Change the cuff, if it there is a leakage or if the cuff is not
working properly.
Only use the manufacturer cuff provide ensure the measurement
accuracy.
4.3 Body posture during measurement
Relax, place the elbow on the desk with palm facing up; cuff
should be at the heart level (Fig 10). The reading accuracy may
be affected if the cuff is not fitted properly. The arm should be
at the same level of your heart. If your arm is too low, your
reading will be too high. If your arm is too high, your reading
will be too low.
11

Arm should be at the same level
of your heart.
Fig 10
4.4 Take Measurement
After installing the batteries and wearing the cuff, the unit is
ready for measurement:
1 ) For the most accurate result please relax, do not smoke, take
deep breath, speak loudly or move around during the
measurement.
2 ) Turn on the 【ON/OFF】button; display will lit-up for 1
second as shown on Fig 11.
Rev：A1
3 ) Then the display on switch to Fig 12, a beep sound indicates
the monitor has begun taking the measurement.
4 ) When the device detects a pulse, the heart symbol will flash
as shown on Fig 13. The cuff inflates, and your pulse and blood
pressure measurement is taken.
5 )
the blood pressure, the blood pressure level classification
and definition as show in Fig 15.
When completing the test, the cuff will automatically deflate
and the test result will display on the screen as shown on Fig 14.
And the pillar in the left of the display will indicate the level of
12

9) In the end of measurement, “ ” will display on the screen
Fig10 Fig11 Fig13Fig12
6) You may turn off the unit or compare with the previous
results
7) Automatic shut off in 3 minutes.
8) If a problem occur during the test, “Err ” will display on the
screen.
when irregular pulse is detected.
Rev：A1
13

The blood pressure level classification and definition (Fig 15)
Rev：A1
Notes:
Do not self-diagnosis according to measurement results.
Follow the instructions of your physician or licensed healthcare
provider.
The pillar in the left of the display and the segment color in
the unit will indicate the level of the blood pressure, the blood
pressure level classification and definition as show in Fig 15.
If the device cause any discomfort during measurement or
fail to perform as indicated, turn off the power or discontinue
use.
The time of the pressure reduced from 260mmHg (34.67kPa)
Fig 15
14

When holding the
4.5 Memory
The Memory 1 and Memory 2 can hold up to 60 reading each.
1）Memory Review
a）With monitor power off, hold the 【M】button to enter the
memory mode.
b）The unit will display the most recent 3 set of data average..
c）
d ) If the user need to display the other set of memory data
please refer to section 3.2.2
e ) If the data in memory displays the heart mark, it prompts
when measurement the irregular pulse is detected.
button the user can view the data
from the most recent date to the oldest date. When holding the
button the user can view vice versa.
2）Delete memory data
a）
b）
Press and hold the memory button until the “---” displayed,
to 15mmHg (2kPa) does not exceed 10s.
If cuff inflated up to 300 mmHg (40 kPa) doesn’t stop, please
remove the cuff or power off the unit
Rev：A1
c）The unit will only delete the present set of memory data;
d）The device is not capable of deleting a single data.
e）Press the 【ON/OFF】button exit the memory mode and
turn off.
5. Error Indication
List of Error code.
Caution: Continuous holding the button will delete all
the memory.
M
【 】
M
【 】
Set
【 】
Enter into the memory mode refer to section 3.2.2
all the memory data will be deleted.
the other set of memory data will not be affected.
15

Error
Cause
How to correct
Power on, cuff inflation rate is too
low or main unit does not connect
with the cuff.
（
1
）
Reconnect the air tube connector
with the main unit
（2）Cuff or bladder leakage, if
necessary purchased a new one.
（3）Confirm the cuff is wrapped up
correctly (ref 4), retake the
measurement
Er 2
30 Er
Weak Signal or cuff is too loose
Cuff too loose
，
Confirm the cuff is
wrapped up correctly（ref 4.2）retake the
measurement
Er 3
Calculation error
，
heavy shock,
assembly or hardware error
Remain still, retake the measurement (ref
4.1
）
Er 5 Bad Signal，moving or talking
during the measurement
Remain still, retake the measurement (ref
4.1
）
Er7
Measurement abnormal
Please retake the measurement
Lo
Low battery power, cannot inflate Change battery（ref 3.1）
6. Trouble Shooting
When the unit encounters malfunction during the use, refer to
table below:
Rev：A1
Abnormal How to correct
After batteries installation, power
on, no display.
（
1
）
Check batteries polarity
。
（2）If still cannot power on, reinstall the batteries or change
new batteries
Measured value are abnormally
high or low
（
1
）
Confirm the cuff is wrapped up correctly
。
（2）If the user clothing restricts the normal flow, please remove
the obstructing clothing and retake the measurement
（3）Relax, place the elbow on the desk with palm facing up;
cuff should align with heart level. Retake the
measurement
Cuff inflation rate is too low or
does not inflate
（
1
）
Reconnect the air tube connector with the main unit
（2）Cuff or bladder leakage, if necessary purchased a new
one.
Cuff deflates too quickly.
（1）Cuff too loose，confirm the cuff is wrapped up correctly
。
Measure value is different from the
hospital or the value is inconsistent
（1）Blood pressure value is varied during the day which also
will affect by the human emotional and physical condition
（
2
）
Record the variance and consult to the doctor
16

Rev：A1
7. Specification
Description Arm automatic blood pressure
monitor Model
Display LCD Digital Display
Measuring
principle Oscillometric Method
Measurement
Range
Pressure: 0mmHg~280mmHg
（0kPa~37.3kPa）
Pulse: 40 pulse/min ~180
pulse/min
Accuracy Pressure : ±3mmHg （±0.4kPa
）
Pulse: ±5%
Memory
Automatic
power off Unattended 3 minutes
Power source
4 AAA Alkaline battery
Battery Life Approx 200 measurements
Protection
against electric
shock
T
Internally powered ;
ype BF
IP classification IP21
Operating
Environment
Temperature
：
+5
℃～
+40
℃；
Humidity：15%-93%
Pressure: 70.0kPa～106.0kPa
Altitude: ≤3 000 m
Storage and
transport
Environment
Temperature：-25℃～+70℃；
Humidity：10%～95%
Pressure:50.0kPa～106.0kPa
Weight
280g
（
Without batteries
）
Size
188mm× 87 mm×58mm
if t e
o
L e im
(B dy)
Body
five years or 10000
times
Contents
·Cuff(Applicable arm circumference:
220mm to 360mm)
·4 AAA alkaline batteries
·Storage case (Optional)
·Instruction Manual
Cuff 10000 times
BA2318
Continuous
Mode of
operation
Applied part Cuff
*If the above suggestion doesn’t remediable, please dial Service
Hotline [phone] for consultant.
2 Memory sets,
60 reading each set.
17

This product must not be disposed together with the
domestic waste.
All users are obliged to hand in all electrical or electronic
devices, regardless of whether or not they contain toxic
substances, at a municipal or commercial collection point
so that they can be disposed of in an environmentally
acceptable manner.
Please remove the battery before disposing of the equipment.
Do not dispose of old batteries with your household waste,
but dispose of them at a battery collection station at a
recyclingsite or in a shop.
Consult your municipal authority or your dealer for
information about disposal.
Rev：A1
Disposal
This unit is intended for home use and the specification may be changed
without prior notice.
18
