Nucleus ESPrit 3G User manual

PRINTED IN AUSTRALIA
N94722F ISS2 JAN2002
Nucleus is a registered trademark of Cochlear Limited.
SPrint is a trademark of Cochlear Limited
User Guide
for the ESPrit™3G
Speech Processor and Accessories
N94722F ISS2 JAN2002 draft 1mas
Cochlear Corporation
400 Inverness Drive South
Suite 400
Englewood CO 80112
USA
Tel: [phone]
Fax: [phone]
Cochlear GmbH
Karl-Wiechert-Allee 76A
D-30625 Hannover
Germany
Tel: [phone]
Fax: [phone]
Cochlear AG
Margarethenstrasse 47
CH - 4053 Basel
Switzerland
Tel: [phone]
Fax: [phone]
Cochlear (HK) Ltd
21F Shun Ho Tower
24-30 Ice House Street
Central
Hong Kong
Tel: [phone]
Fax: [phone]
Cochlear Europe Ltd
22-24 Worple Road
Wimbledon
London SW19 4DD
United Kingdom
Tel: [phone]
Fax: [phone]
Nihon Cochlear Co Ltd
Ochanomizu-Motomachi Bldg
2-3-7 Hongo, Bunkyo-Ku
Tokyo 113-0033
Japan
Tel: [phone]
Fax: [phone]
Cochlear Ltd (ABN 96 002 618 073) 14 Mars Road, Lane Cove NSW 2066, Australia
Tel: [phone] Fax: [phone]
www.cochlear.com

User Guide
Part Number: N94722F Issue 2
January 2002
for the ESPrit™3G
speech processor and accessories
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:22 PM1

N94722F ISS2 body d02 MAS.p65 1/7/02, 3:22 PM2

Contents
Welcome ................................................................ 5
Your ESPrit 3G Speech Processor ........................ 7
Top Controls ...........................................................................7
Base Controls ..........................................................................7
Using the Accessories Adaptor Socket ............................... 8
Using the Mode Settings .......................................................... 8
The Battery Cover............................................................... 10
Removing the Battery Cover ...............................................10
Reading the Serial Number ...................................................10
Earhooks ................................................................................ 11
Choosing Earhooks ................................................................. 11
Changing the Earhook ............................................................11
Transmitting Coil and Cable .............................................. 12
Changing the Coil Cover ....................................................... 12
Attaching the Transmitting Coil and Cable to your
ESPrit 3G .............................................................................. 14
Batteries ................................................................................. 14
Choosing your Batteries ........................................................14
Replacing your Batteries ........................................................ 16
Accessories ........................................................... 19
Accessories Adaptor ........................................................... 20
Using the Accessories Adaptor ........................................... 2 0
Using an Accessory ................................................................. 21
Care and Maintenance.......................................... 25
Cleaning ................................................................................. 25
Cleaning External Parts .......................................................... 25
Cleaning the Microphone ...................................................... 25
Longer Term Storage ........................................................... 26
Other Do’s and Don’ts ....................................................... 26
Using Makeup and Hair Spray .............................................. 26
Avoiding Sand or Dirt ............................................................. 26
Avoiding Water ......................................................................... 27
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:22 PM3

Chapter 4
4 ♦ESPrit 3G User Guide
Troubleshooting ................................................... 29
Overview ............................................................................... 29
The Cochlear Implant System ............................................. 29
Your Programs .......................................................................... 30
Listening Environments ......................................................... 3 0
Electromagnetic Interference............................................... 30
Other Factors ........................................................................... 31
Steps to Identify the Fault .................................................. 31
Switches and Controls ........................................................... 32
Batteries ...................................................................................... 32
Transmitting Coil and Cable ................................................. 33
Microphone............................................................................... 3 3
Attached Accessory ................................................................ 34
Moisture ..................................................................................... 34
Optional Monitoring Accessories..................................... 34
Signal Check .............................................................................. 34
Monitor Earphones ................................................................. 35
Warnings and Precautions ................................... 37
Warnings................................................................................ 37
Medical Treatments Generating Induced Currents .......37
Loss of Residual Hearing ........................................................39
Long-term Effects of Electrical Stimulation by the
Cochlear Implant ............................................................... 40
Small Parts Hazard ................................................................... 40
Battery Ingestion ...................................................................... 40
Head Trauma ............................................................................. 40
Precautions............................................................................ 41
Theft and Metal Detection Systems ...................................42
Electrostatic Discharge .......................................................... 42
Mobile Telephones ................................................................... 43
Air Travel ..................................................................................... 43
Other Information................................................ 45
Registration ........................................................................... 45
Certification and Applied Standards................................. 45
International Labelling Symbols ........................................ 46
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:22 PM4

Chapter 4
ESPrit 3G User Guide ♦5
Welcome
This guide will tell you how to use and care for your
ESPrit™3G speech processor and accessories.
Figure 1:Your ESPrit 3G Speech Processor
Transmitting coil
Transmitting cable
Top controls
Microphone ports
Earhook
Battery cover
Base controls
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:22 PM5

Chapter 4
6 ♦ESPrit 3G User Guide
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:22 PM6

Chapter 4
ESPrit 3G User Guide ♦7
Your ESPritTM 3G Speech
Processor
Top Controls
Figure 2:Top Controls
When programmed for sensitivity, the rotary control
changes the level of sound picked up by the microphone.
When programmed for volume, it adjusts the perception
of loudness.
Base Controls
Figure 3: Base Controls
Program selection
control
Volume
or sensitivity
control
Switch for
mode settings
Socket for attaching
the Accessories Adaptor
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM7

ESPrit 3G
8 ♦ESPrit 3G User Guide
Using theAccessoriesAdaptor Socket
Your Accessories Adaptor plugs into the socket at the base
of your ESPrit™3G.
Figure 4: Accessories Adaptor Socket
When the adaptor is not being used, a socket cover should
be inserted into the socket.
Warning:
Store spare socket covers safely.These small
parts may be hazardous if swallowed or may
cause choking if inhaled.
Using the Mode Settings
To use the particular mode setting, move the mode setting
switch at the base of the ESPrit 3G to the setting
required.
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM8

ESPrit 3G
ESPrit 3G User Guide ♦9
Figure 5: Mode Settings
Microphone Setting
The ‘M’ or microphone setting is the normal operating
position, used where there are no specific or adverse
listening conditions.
Whisper Setting
The ‘W’ orWhisper Setting makes soft sounds audible.
In-built Telecoil Setting
The ‘T’ setting activates your ESPrit 3G’s in-built telecoil.
It can be programmed to operate as either a telecoil alone,
or as a mix of telecoil and microphone.
This in-built telecoil allows you to receive signals from a
hearing aid compatible telephone, a room fitted with an
induction loop,or a personal induction loop, such as a neck
loop or cushion loop.The latter are commercially available
devices.
The sound signal from an amplifier,TV or Hi-Fi can also
be conveyed from an induction loop to the telecoil.
'M' for microphone
'W' for Whisper Setting
'T' for telecoil
Mode setting switch
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM9

ESPrit 3G
10 ♦ESPrit 3G User Guide
The Battery Cover
Removing the Battery Cover
Figure 6: Removing the Battery Cover
Reading the Serial Number
Figure 7: Serial Number
Grip each side
Grip each side
and squeeze lightly
Slide
downwards
Cover slides
down and off
Serial Number
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM10

ESPrit 3G
ESPrit 3G User Guide ♦11
Earhooks
Choosing Earhooks
Figure 8: Earhooks Available
Changing the Earhook
Figure 9: Removing the Earhook
Figure 10: Replacing the Earhook
Titanium earhook
Earhook
with soft cover Earhook for use
with earmould
Pull earhook away
from your ESPrit 3G,
to unhook
Clips holding
the earhook
in place
Battery cover
removed
Push the earhook
into the groove
Slide to the
base of groove
until it clicks
into place
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM11

ESPrit 3G
12 ♦ESPrit 3G User Guide
Transmitting Coil and Cable
Figure 11:Transmitting Coil and Cable
Changing the Coil Cover
To change the cover of the transmitting coil:
1.Using the screwdriver provided, remove the screws
from the back of the coil.
2.Take off the cover.
3.Making sure the magnet(s) and spacer(s) arrangement
has not changed, replace with the cover of your
choice.
4.Replace the screws.
Two screws
Transmitting coil
Transmitting cable
Outer surface
Removable cover Inner surface,
that is held
against your head
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM12

ESPrit 3G
ESPrit 3G User Guide ♦13

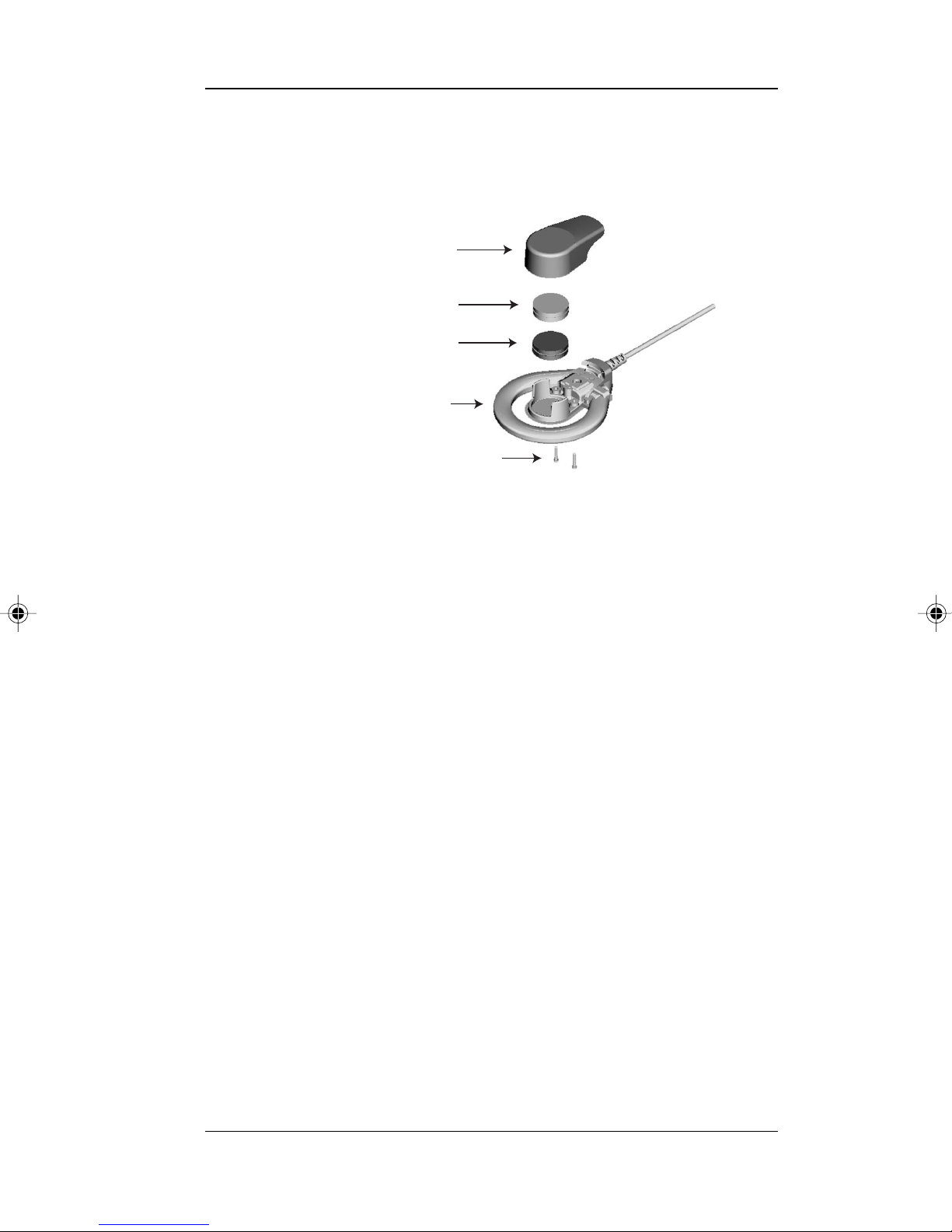

Figure 12: Magnet and Spacer Arrangement
Warnings:
Consult your clinician if you wish to change
your magnet arrangement. If the magnet
strength is too weak the coil may fall off. If it
is too strong, it may cause discomfort or skin
irritation.
Store screws, spare magnets and plastic
spacers safely. Small parts may be hazardous if
swallowed or may cause choking if inhaled.
Coil cover
Large spacer
Magnet, with
marker facing down
Transmitting coil
Two screws, to hold cover
firm over magnet and spacer
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM13

ESPrit 3G
14 ♦ESPrit 3G User Guide
Attaching theTransmitting Coil and Cable to
your ESPrit 3G
Figure 13:Attaching the Transmitting Coil and Cable
Batteries
Choosing your Batteries
Your ESPrit 3G uses three high power 675 size hearing-
aid type batteries (button type cells). High Power 675
Zinc Air batteries are recommended.However, in humid
and cold conditions Silver Oxide S76 batteries may be
more reliable.
Use only battery types recommended by your clinician, or
Cochlear. Other types may not have sufficient power to
allow your ESPrit 3G to function properly.
Socket for
connecting
transmitting
cable
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM14

ESPrit 3G
ESPrit 3G User Guide ♦15
Warning:
Batteries can be harmful if swallowed. Ensure
that batteries are kept out of reach of young
children. If swallowed, seek prompt medical
attention at the nearest emergency centre or
Poisons Information Centre.
Note:
The ESPrit 3G requires three good batteries to
operate. It only takes one bad or substandard
battery to stop the processor from working.When
replacing exhausted batteries, always replace all
three.
High Power 675 Zinc Air batteries are sealed, usually with
a tab.
Figure 14: High Power Zinc Air Batteries
The seal should be removed before use for at least one
minute,to allow for air circulation.
Silver Oxide S76 batteries do not have holes, are not
sealed and so do not require air circulation.Follow the
instructions and warnings for the brand you are using.
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM15

ESPrit 3G
16 ♦ESPrit 3G User Guide
Replacing your Batteries
Batteries should be replaced when the low battery
warning ‘beeps’ are heard,or the sound you are hearing
stops, or becomes intermittent. Refer to the Troubleshooting
section for further information.
Immediately remove batteries that do not work. Over a
period of time Zinc Air batteries may leak corrosive fluids.
These can damage your ESPrit 3G.
To change the batteries:
1.Remember to remove their seal and let them stand
for one minute.
2.Turn off the speech processor.
3.Remove the battery cover: slide it down the
ESPrit 3G. See Removing the Battery Cover section.
4.Remove the old batteries by tipping the
ESPrit 3G to one side.They slide out from one side
only.
If the batteries are a little tight, and difficult to
remove, apply a little pressure from the opposite side.
Alternately, use your transmitting coil’s magnet to
draw the batteries out.
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM16

ESPrit 3G
ESPrit 3G User Guide ♦17
Figure 15: Removing the Batteries
5.Using the cleaning brush, regularly clean the battery
area and contacts, to prevent a build up of grime
deposits. Never use abrasive materials or a blade.
6.Slide the new batteries into place.
7.Replace the battery cover by sliding it up from the
bottom until it clips into place.
They only fit when:
· Inserted from the side where the transmitting coil
attaches, and
· When the positive battery terminal (the side with the
holes) faces up.
Note:
Dispose of used batteries in accordance with
your local regulations.
Gently push battery out
from the back
Tip battery out
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM17

Chapter 4
18 ♦ESPrit 3G User Guide
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM18

Chapter 4
ESPrit 3G User Guide ♦19
Accessories
The following accessories, or wired assistive listening
devices, can be connected to your ESPritTM 3G using the
Accessories Adaptor:
· Lapel microphone,to improve communication in noisy
environments.
· FM cable, to transfer audio signals from a commercially
available FM listening system to your ESPrit 3G.
· TV/Hi-Fi cable, to connect aTV, stereo or personal
computer to your ESPrit 3G.
· Personal Audio cable, to connect battery powered
equipment to your ESPrit 3G.
· External telecoil, for when the local environmental noise
does not allow the in-built telecoil to process sounds.
Note:
The above accessories (devices) may not be
available in all regions.
In addition, commercially available wireless technology
assistive listening devices you may want to try include:
· Induction loop systems
· FM systems
· Infrared light (IR) systems
Your in-built telecoil operates with induction loop
systems.
N94722F ISS2 body d02 MAS.p65 1/7/02, 3:23 PM19
