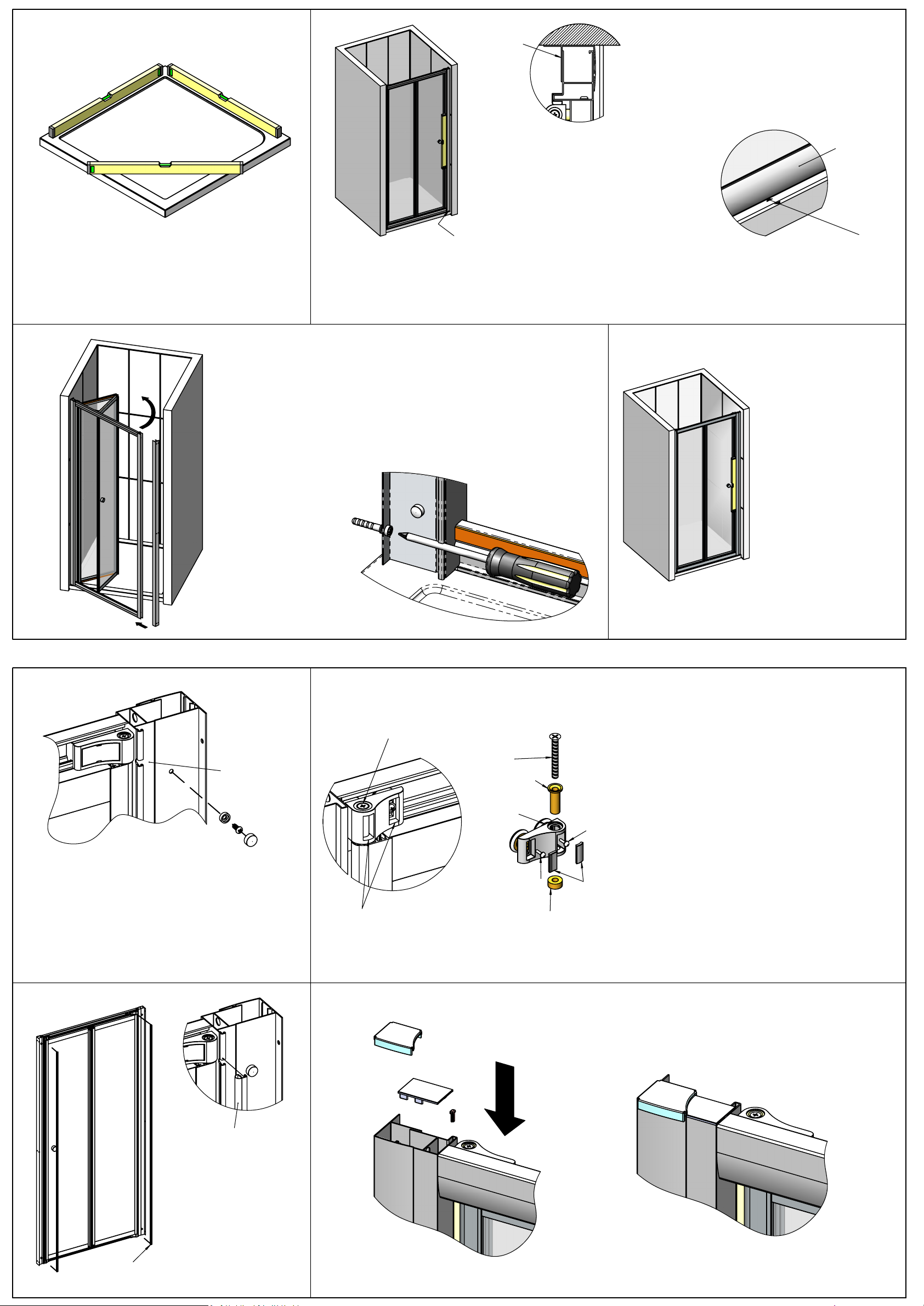

BI-FOLD ENCLOSURE INSTRUCTION (EXTERNAL WALL PROFILE)
9
WE RECOMMEND THAT THE INSTALLATION OF THIS PRODUCT IS CARRIED
OUT BY A COMPETENT PROFESSIONAL.
UNPACK THE BOX AND ENSURE ALL COMPONENTS ARE PRESENT.
NO REFUNDS OR REFITTING COST WILL BE GIVEN IF INCOMPLETE OR
DAMAGED GOODS ARE FITTED.
THE TOUGHENED SAFETY GLASS SHOULD BE HANDLED WITH CARE AS
IMPACTS WILL DAMAGE THE GLASS OR ENCLOSURE.
FIT THE SHOWER TRAY AS PER THE MANUFACTURER'S INSTRUCTIONS.
NOTE: IF THE TRAY ISN'T TRUE AND LEVEL, IT MUST BE RECTIFIED BEFORE
SILICONING AROUND THE TOP EDGE OF THE TRAY WHERE IT MEETS THE
TILES. ALLOW SILICONE TO DRY BEFORE FITTING THE ENCLOSURE.
TOOLS REQUIRED
POWER DRILL - 3mm DRILL BIT - 6mm MASONARY DRILL BIT - CROSS
HEAD SCREW DRIVER - TAPE MEASURE - PENCIL - SILICONE GUN WITH
SANITARY GRADE SEALANT - SPIRIT LEVEL.
EXTERNALLY SILICONE SEAL THE WALL PROFILES WHERE THEY MEET THE WALL AND THE BOTTOM PROFILE
WHERE IT MEETS THE TRAY. ALL IN A CONTINUOUS BEAD.
ALSO SILICONE SEAL WHERE THE TOP & BOTTOM TRACKS MEET THE DOOR SUB ASSEMBLY VERTICAL
PROFILES. AS SHOWN IN THE DETAILED VIEW BELOW.
DO NOT SILICONE INSIDE THE ENCLOSURE.
ALLOW THE SILICONE AT LEAST 24 HOURS TO FULLY CURE.
AFTERCARE - ENSURE YOU CLEAN YOUR PRODUCT USING A MILD DETERGENT DILUTED IN WATER, REMOVING ANY RESIDUE WITH A
SOFT DAMP CLOTH.
MAINTENANCE - ENSURE MOVING PARTS ARE FREE FROM ANY DEBRIS OR SOAP BUILD UP.
SHOWER ENCLOSURE WITH WHEELS - THE WHEELS MUST ROTATE FREELY AND THE SPRING LOADED MECHANISM IN THE BOTTOM
WHEELS MUST OPERATE WITHOUT INTERFERENCE.
TROUBLE SHOOTING GUIDE
IS THE TRAY LEVEL? (SEE STEP 1). 1.
DOES THE DOOR RUN FREELY AND SMOOTHLY WITHOUT RESISTANCE? (SEE STEP 6). 2.
DO THE FINISHED TRAY MEASUREMENTS COMPLY WITH THE ADJUSTMENTS LISTED IN THE PRODUCT 3.
SPECIFICATION?
WHEN CONSIDERING THE LENGTH OF THE TOP TRACK ALSO CONSIDER THE VERTICAL PROFILES THAT ARE 4.
SECURED TO IT WHICH INCREASE ITS LENGTH.
WHERE THE DOOR
SUB ASSEMBLY
PROFILE MEETS THE
WALL PROFILE.

MARK POSITION
WITH A PENCIL.
FIXING
SCREW
BRASS BUSH
BODY
SPACER WASHER
COVER CAPS
ROLLER ADJUSTER
SCREW
ROLLER
ADJUSTER
SCREW
R
ITEM 3
S
T
U
Q
8-10mm
*8-10mm IS A GUIDE FOR WHEN FITTING WITH A
SIDE PANEL. FOR ALCOVE, FIT AS REQUIRED.
*IF INSTALLING WITH A SIDE PANEL PLEASE REFER
TO THE SIDE PANEL INSTRCUTION WITHIN THE SIDE
PANEL BOX.*
BOTTOM
TRACK
REMOVE SCREW
AND BRASS
BRUSH.
DETAIL T
SCALE 1 : 10
2
A
IMPORTANT
OFFER THE FRAME ONTO THE TRAY FIRST. SET THE BOTTOM TRACK BACK
FROM THE FRONT FACE OF THE TRAY*. MAKE SURE THE WALL PROFILES
REACH THE WALL. IF THEY DON'T, CHECK THE OPENING IS COMPLIANT WITH
THE ADJUSTMENTS LISTED ON THE BOX. ONCE ADJUSTED, MARK THE WALL
PROFILE POSITION WITH A PENCIL AND REMOVE THE FRAME.
C
REPLACE BOTH WALL PROFILES WHERE MARKED; USE A
SPIRIT LEVEL TO ENSURE THE WALL PROFILES ARE
VERTICALLY TRUE THEN MARK POSITION OF THE WALL
PROFILES THROUGH THE FIXING HOLES. DRILL AND PLUG
THE WALLS, ITEM 12. THE WALL PLUGS SUPPLIED MAY
NOT BE SUITABLE FOR YOUR SUBSTRATE, USE SUITABLE
FIXINGS. NOW FIT THE WALL PROFILE THAT WILL BE
OPPOSITE TO THE HANDLE SIDE, USING ITEMS 8, 10 & 11.
CENTRALISE THE DOOR
WITHIN THE WALL
PROFILES UNTIL THERE'S
AN EQUAL AMOUNT OF
WALL PROFILE IN THE
FRAME. ENSURE THE
DOOR FRAME IS TRUE AND
SQUARE ON BOTH SIDES
BEFORE FIXING IN PLACE.
USE A SPIRIT LEVEL.
IF INSTALLING WITH AN ELLA
SIDE PANEL, YOU WILL NEED TO
NOTCH THE CORNER POST TOP
CAP BEFORE FITTING.
CHECK THE DOOR RUNS SMOOTH AND THE ROLLER
DOESN'T CATCH ON THE TRAY AT THE BOTTOM.
IF IT DOES ADJUST AS FOLLOWS:
REMOVE THE COVER CAPS ON THE ROLLER BODY; AS
SHOWN.
REMOVE THE TOP SCREW AND BRASS BUSH TO
ADJUST ROLLER SCREW HEIGHT.
WHEN ADJUSTING THE BOTTOM ROLLER, YOU WILL
NEED TO REMOVE THE SCREWS INSERTED ON STEP
5. THESE NEED TO BE REMOVED SO THAT THE DOOR
CAN BE SLID UPWARDS WITHIN THE WALL PROFILES
TO GAIN ACCESS.
ENSURE ALL ROLLER SCREWS ARE TIGHT AND REFIT
BRASS BUSH AND SCREW. ENSURE THE SPACER
WASHER BETWEEN THE ROLLER AND DOOR
VERTICAL PROFILE IS PROPERLY IN PLACE. NOW
REFIT THE SCREWS FROM STEP 5.
RECHECK THE DOOR AGAIN FOR OPERATION, IT
SHOULD BE SMOOTH AND HAVE NO INTERFERENCE.
`
IF NEEDED, CUT THE
BELLOWS SEALS (ITEM 3)
TO 1793mm AND FIT TO
THE VERTICAL PROFILE;
AS SHOWN ABOVE.
ENSURE THE BELLOWS
ARE POINTING INWARDS
TO THE ENCLOSURE.
B
V
ITEM 1
MARK POSITION
WITH A PENCIL.
PLEASE NOTE:
FIT HANDLE THEN PARTIALLY INSERT THE WALL
PROFILES ONTO THE DOOR SUB-ASSEMBLY
PROFILES. DO NOT PUSH THEM ALL THE WAY IN
AS THIS MAY SCRATCH THE PROFILE.
CHOOSE EITHER A RIGHT OR LEFT HAND
OPENING, ROTATE TO SUIT.
W
X
DOOR SUB-
ASSEMBLY
GLASS PROFILE
- ITEM 1.
Y
4
7
1
ENSURE THE TRAY IS LEVEL IN ALL PLANES.
REPLACE BOTH WALL PROFILES WHERE MARKED; USE A SPIRIT LEVEL TO ENSURE THE WALL PROFILES ARE VERTICALLY TRUE THEN
MARK THE POSITION OF THE WALL PROFILE THROUGH THE FIXING HOLES. DRILL AND PLUG THE WALLS (ITEM 12). NOW FIT THE WALL
PROFILE THAT WILL BE OPPOSITE TO THE HANDLE SIDE, USING ITEMS 8, 9 & 10.
NOTE: IF INSTALLING WITH A SIDE PANEL PLEASE REFER TO THE SIDE PANEL INSTRUCTION WITHIN THE SIDE PANEL BOX.
5
BEFORE FITTING THE ENCLOSURE FRAME OVER THE WALL PROFILE PLEASE REFER
TO STEP 6 AND MAKE ANY ADJUSTMENTS THAT MAYBE NECESSARY.
FIT THE OPPOSITE WALL PROFILE TO THE END OF THE FRAME. SLIDE THE ASSEMBLY
OVER THE FIXED WALL PROFILE, AT A SLIGHT ANGLE (AS SHOWN).
SWING THE ENCLOSURE INTO THE ALCOVE MAKING SURE THE BOTTOM TRACK IS
PARALLEL WITH THE FRONT EDGE OF THE TRAY.
NOW SLIDE THE OPPOSITE WALL PROFILE OUT TO MEETR THE WALL AND ALIGN
WITH WALL PLUGS FROM STEP 2.
OPEN THE DOOR SO
YOU CAN FIX THE
OPPOSITE WALL
PROFILE USING A
SCREWDRIVER
THROUGH THE
VERTICAL PROFILE
SLOTS, IF APPLICABLE.
FIX THE WALL
PROFILE TO THE
WALL USING ITEMS 8, 10 & 11.
3
6
WHEN THE FRAME IS READY TO BE FIXED, DRILL THROUGH THE
PRE-DRILLED HOLES IN THE DOOR SUB-ASSEMBLY GLASS
PROFILES WITH A 3mm DRILL BIT.
(MAKE SURE YOU ONLY DRILL THROUGH ONE WALL
THICKNESS.)
THEN FIX THE FRAME IN PLACE USING ITEMS 9, 10 & 11.
DON'T OVER TIGHTEN SCREWS.
FIT THE ENCLOSURE TOP CAPS
AND PROFILE CAP (ITEM 13) IF
INSTALLING AN AQ MODEL.
8
FIT HANDLE AND CHOOSE EITHER
LEFT OR RIGHT HAND OPENING AND
ROTATE THE ENCLOSURE TO SUIT.
OFFER THE FRAME ONTO THE TRAY
FIRST. SET THE BOTTOM TRACK BACK
FROM THE FRONT FACE OF THE
TRAY*. MAKE SURE THE WALL
PROFILES REACH THE WALL. IF THEY
DON'T, CHECK THE OPENING IS
COMPLIANT WITH THE ADJUSTMENTS
LISTED ON THE BOX. ONCE ADJUSTED,
MARK THE WALL PROFILE POSITION
WITH A PENCIL AND REMOVE FRAME.
IMPORTANT
USE SUITABLE FIXINGS FOR THE
SUBSTRATE THAT YOU'RE FIXING TO.
REMOVE
COVER CAPS
BELLOWS TO THE INSIDE.
A
