Numark 4TRAK User manual

SPECIFICATION
FUNCTION
1. POWER SWITCH – Turns 4TRAK on and off. Turn on 4TRAK after all input devices have been connected and
before you turn on amplifiers. Turn off amplifiers before you turn off 4TRAK.
2. POWER INPUT – Use the included power adapter to connect the 4TRAK to a power outlet. While the power is
switched off, plug the power supply into the 4TRAK first, then plug the power supply into a power outlet.
3. USB PORT – Connect the 4TRAK to the included 4TRAK FX KOMMAND CONSOLE and your 4TRAK can be
used as a software controller device using USB MIDI protocol or as a pass-through audio interface.
4. MASTER OUTPUT (XLR) – Connect this XLR output to a PA system or powered monitors.
5. MASTER OUTPUT (RCA) – Use standard RCA cables (not included) to connect this output to a speaker or
amplifier system.
6. BOOTH/ZONE – Use standard RCA cables (not included) to connect this output to a monitoring system.
7. RCA INPUT – Connect audio sources to these inputs.
8. LINE/MIC SWITCH – Flip this switch to the appropriate position, depending on the device connected to the
RCA inputs. If using a line-level device, such as a CD player or sampler, set this switch to "LINE." If using a
microphone, set this switch to “MIC”.
9. MIC INPUT – Connect a 1/4" mic to this input.
10. LINE/PHONO SWITCH – Flip this switch to the appropriate position, depending on the device connected to the
RCA inputs. If you are using phono-level turntables, set this switch to "PHONO" to provide the additional
amplification needed for phono-level signals. If using a line-level device, such as a CD player or sampler, set
this switch to "LINE."
11. GROUND – If using phono-level turntables with a grounding wire, connect the grounding wire to these
terminals. If you experience a low "hum" or "buzz", this could mean that your turntables are not grounded.
12TAP – Pressing this button in time with the beat will help determine the BPM of the track.
13. LOOP LENGTH – Halves or doubles the length of your Auto Loops or currently selected loop.
14. BEATJUMP – Changes the function of the Loop Shift buttons to Beatjump.
SERVICE MANUAL
MODEL:4TRAK

15. LOOP SHIFT – Adjusts the Loop Out point (when not in Beatjump Mode). When in Beatjump Mode,
1pressing a Loop Shift button will cause the track to jump ahead or back by a beat.
16. IN – This button sets the beginning point of a loop.
17. OUT – This button sets the ending point of a loop. When outside of a loop, press this button to jump
back to your last selected loop. Press Shift + Out to set a 2-beat Auto Loop.
18.PITCH SLIDER – This controls the speed of the music. Moving towards the "+" will speed the music up,
while moving towards the "–" will slow it down.
19. PITCH BEND – Allows you to briefly adjust the speed of the music faster or slower for as long as the
button is held. Useful for beat-matching two songs that might be at the same tempo but whose beats
are not quite aligned.
20.CUE – Returns and pauses the music at the last set cue point. The default cue point is at the beginning of the
track, but you can set a different cue point by pressing this button at a different point in the track when it is
paused
STANDARD
1.MaxMSP test program for production Line
2. AP test specification
RCABalanceOutput
Voltage AC100V~240V50~60Hz
MASTER:2 ±0.5V
Volume BOOTH:2 ±0.5V
BALANCED:12 ±2V
Distortion defection 0.03% below
S/N 70dBrupward
Separation 70dBrupward
F/R 20~20KHz ±0.5dB

DISASSEMBLY PROCEDURES

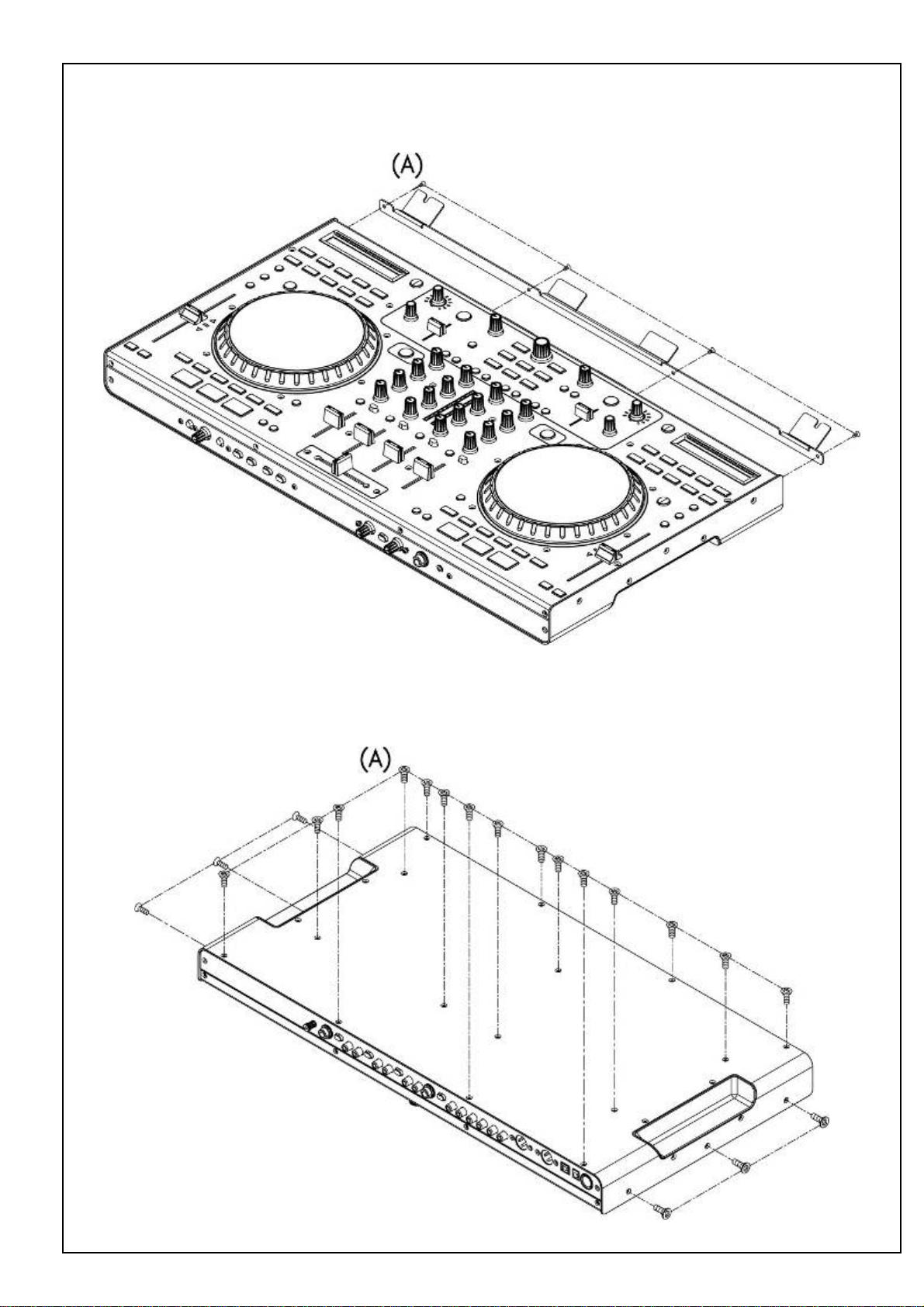

1. REMOVAL OF BOTTOM CHASSIS. (Fig1)
(A) TAKE OUT THE 4 PCS SCREWS FROM THE BACK HOLDER..
Fig.1
2. REMOVAL OF BOTTOM CHASSIS. (Fig2)
(A) TAKE OUT THE 21 PCS SCREWS FROM THE BOTTOM CHASSIS.
Fig.2

DISASSEMBLY PROCEDURES
3.REMOVAL HEADPHONE PCB AND DOUSER ASSEMBLY AND XLR JACK ASSEMBLY. (Fig3)
(A) TAKE OUT THE 3 PCS KNOB.
(B) TAKE OUT THE 9 PCS SCREWS，TAKE OUT THE 1 PC NUT HOLDER AND TAKE OUT THE 2 PCS
CONNECTORS.
(C) TAKE OUT THE 4 PCS SCREWS AND TAKE OUT THE 2 PCS PCB FROM THE CABINET.
(D) TAKE OUT THE 6 PCS SCREWS，TAKE OUT THE 2 PCS CONNECTORS AND TAKE OUT THE 2 PCS
DOUSER ASSEMBLY.
(E) TAKE OUT THE 4 PCS SCREWS FROM THE XLR JACK ASSEMBLY.
(F) TAKE OUT THE 5 PCS SCREWS，TAKE OUT THE 2 PCS NUT HOLDER AND TAKE OUT THE 5 PCS
CONNECTORS.FROM THE AN PCB.
Fig.3

DISASSEMBLY PROCEDURES
4. REMOVAL OF CROSS FADER ASSEMBLY AND KNOB. (Fig4)
(A) TAKE OUT THE 1 PC KNOB FROM THE PANEL.
(B) TAKE OUT THE 2 PCS SCREWS AND 1 PC CONNECTORS FROM THE PANEL.
(C) TAKE OUT THE ALL KNOB.
Fig.4
5. REMOVAL OF MIXER PCB AND LEFT PCB.(Fig5)
(A) TAKE OUT THE 23 PCS SCREWS AND 6 PCS CONNECTORS FROM THE MIXER PCB.
(B) TAKE OUT THE 16 PCS SCREWS AND 3 PCS CONNECTORS FROM THE LEFT PCB
Fig.5

DISASSEMBLY PROCEDURES
1. REMOVAL OF BOTTOM CHASSIS. (Fig1)
(A) TAKE OUT THE 12 PCS KNOB
(B).TAKE OUT THE 8 PCS SCREW FROM THE PANEL
(C) TAKE OUT THE 15 PCS SCREW AND TAKE OUT THE 3 PCS HOLDER SCREW FROM THE BOTTOM CHASSIS
Fig.6

LEVE
L

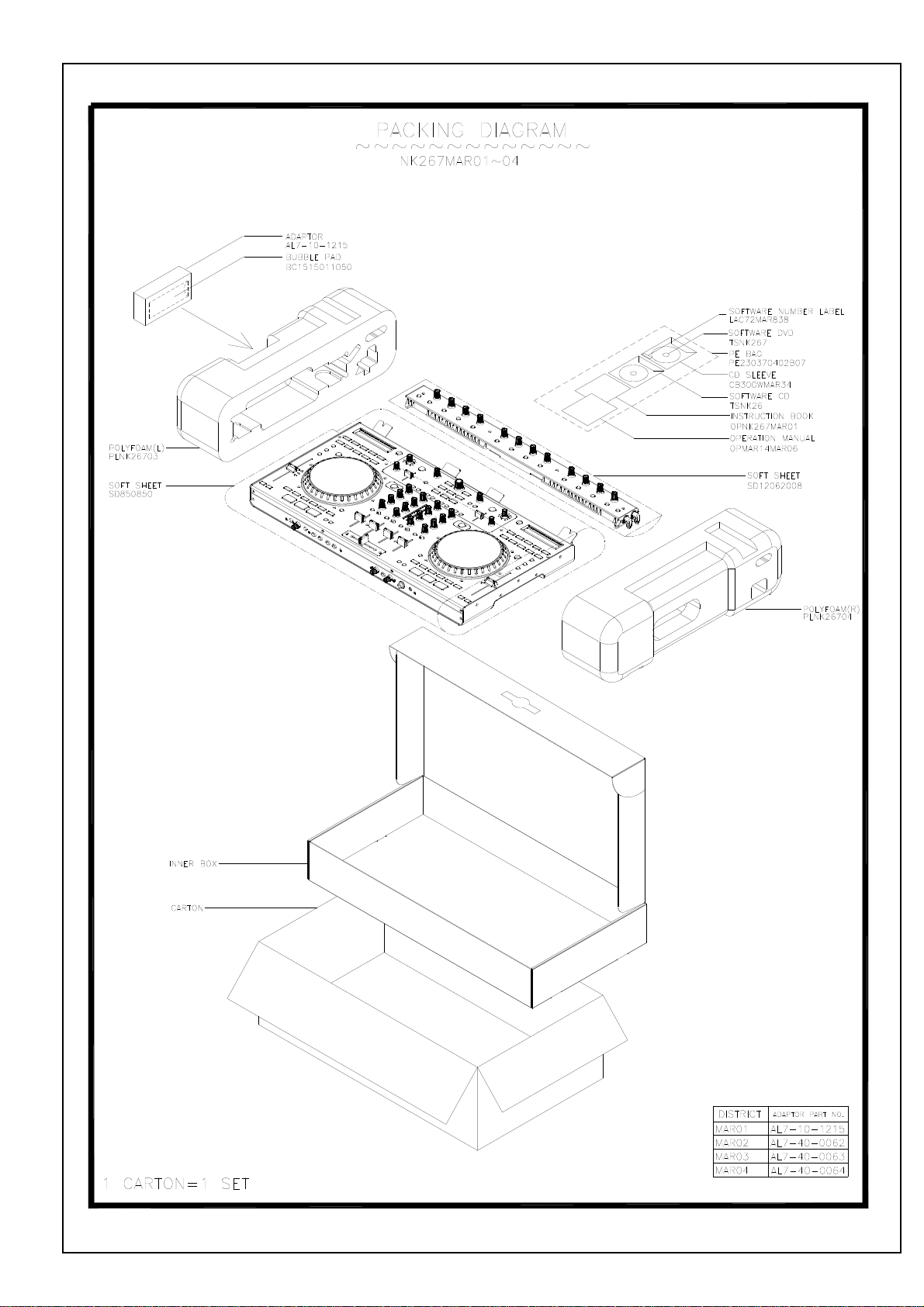

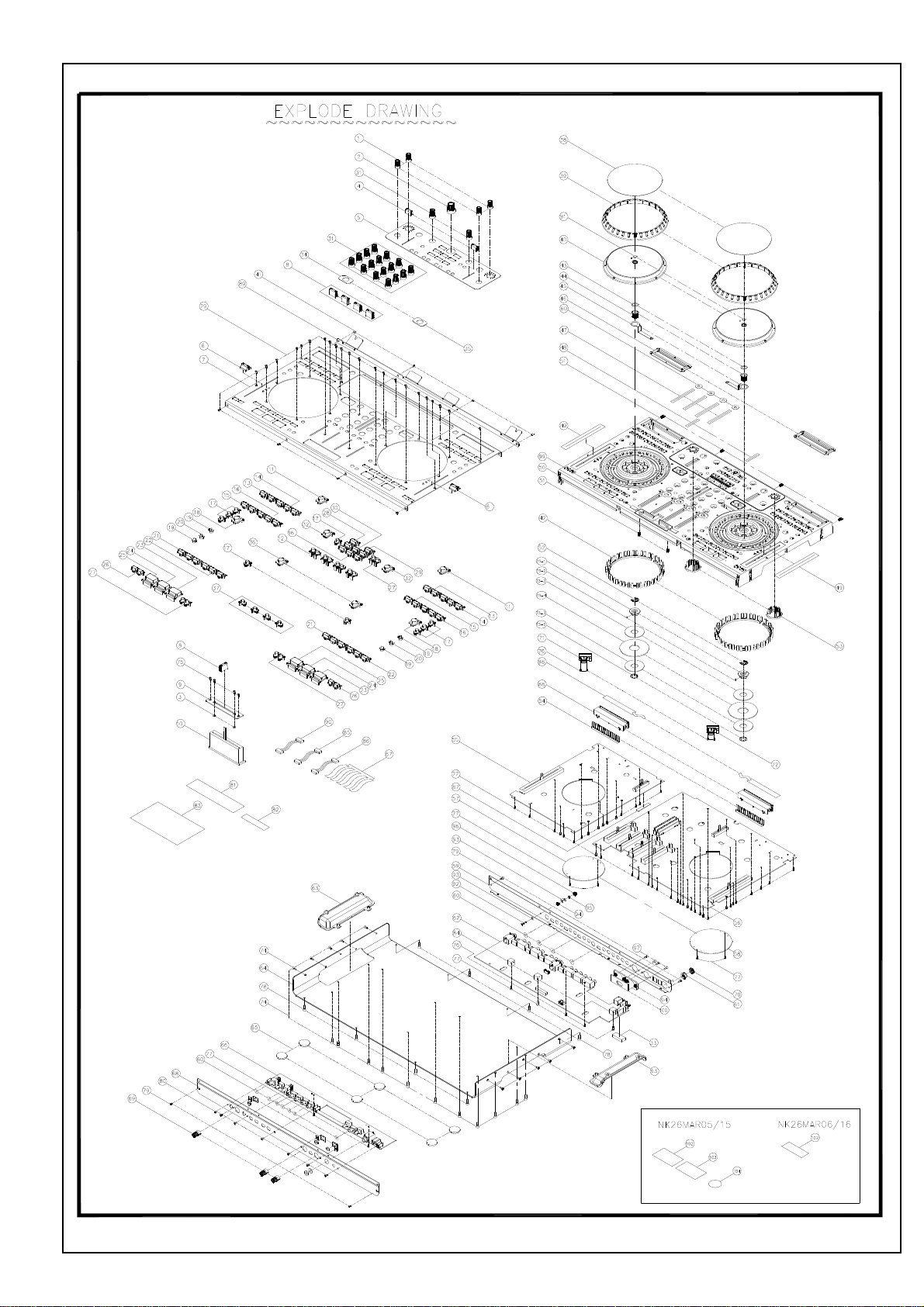

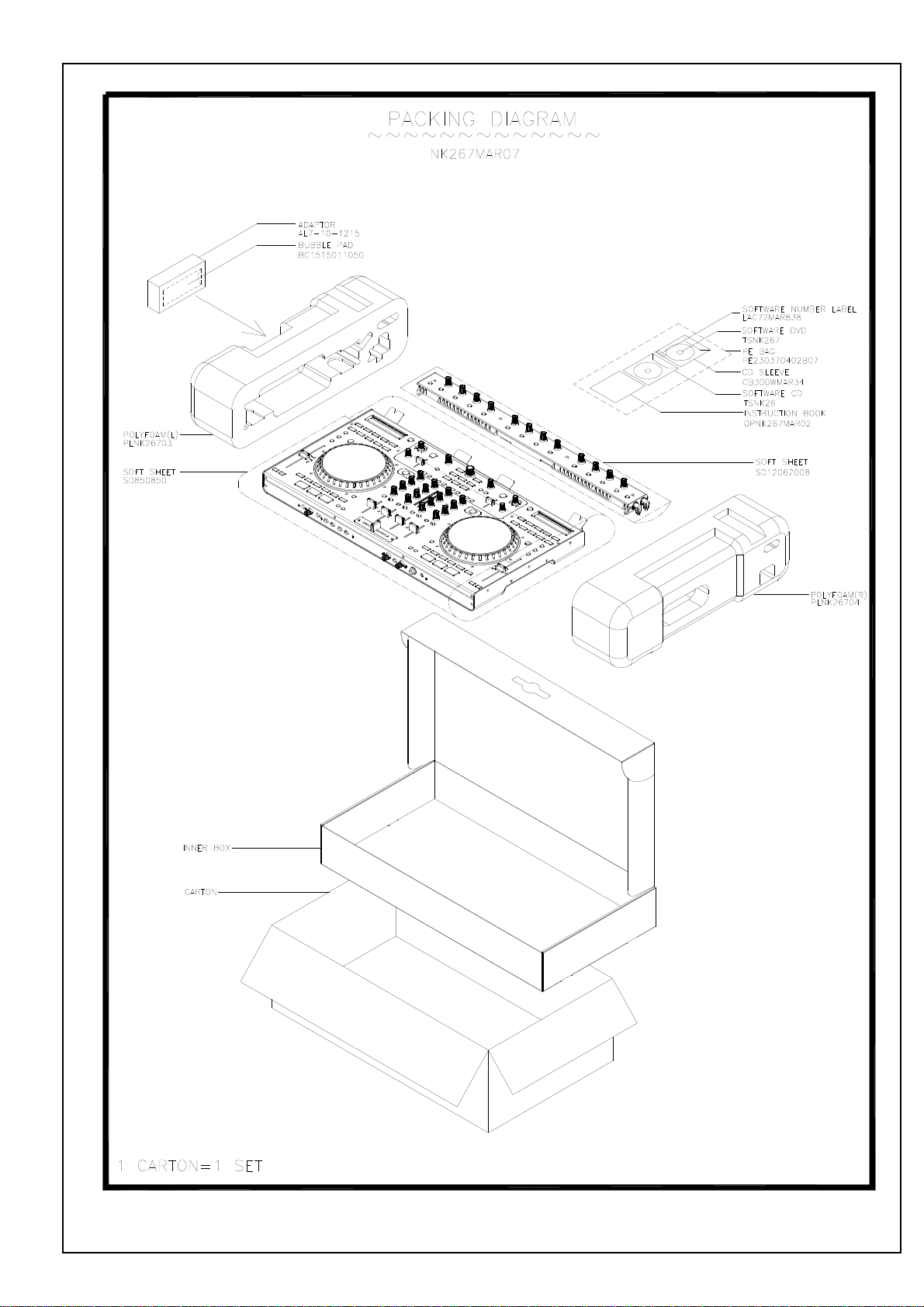

P/N DESCRIPTION QTY REF
0.1 BC1015011050 Bubble Pad 1
0.1 CB300WMAR34 CD Sleeve 1
0.1 CGNK267513MAR01 Inner Box 1
0.1 CTNK267513MAR01 Carton 1
0.1 LAC22MAR760 S/N Bar Code Label 1 81-218
0.1 LAC62MAR761 Bar Code Label 2
0.1 LAC62MAR790 Bar Code Label(Code 39)(01) 1
0.1 LAC62MAR791 Bar Code Label(Code 39)(02/03) 1
0.1 LAC62MAR792 Bar Code Label(Code 39)(04) 1
0.1 LAC62MAR793 Bar Code Label(Code 39)(05/06) 1
0.1 LAC62MAR794 Bar Code Label(Code 39)(07) 1
0.1 LAC67MAR681 Label(Circle Limpid) 3
0.1 LAC67YAH261 Label φ8mm Green 1
0.1 LAC72MAR838 Software Number Label 1
0.1 LAC52MAR254 Warning Label(05) 1 102
0.1 LAC42MAR350 Label(05) 1 103
0.1 LAC32MAR252 Indicate Label(CS)(05) 1 104
0.1 LAC67MAR303 Safety Label(06) 1 102
LEVE
L
P/N DESCRIPTION QTY REF
0.1 OPNK14MAR06 Operation Manual 1
0.1 OPNK267MAR01 Instruction Book 1
0.1 PE230370402B07 Poly Bag 230*370mm 1
0.1 PLNK26703 Polyfoam(Left) 1
0.1 PLNK26704 Polyfoam(Right) 1
0.1 SD850850 Soft Sheet 1
0.1 TSNK26 Driver CD 1
0.1 TSNK267 TRAKTOR DVD 1
..2 CA040501201 USB 2.0 Cable 120mm B/4P Connector 4Pin blac
k
1 209
..2 CA050318004 USB 2.0 Cable 1800mm A/TYPE Connector 5Pin Black 1 210
..2 FFC2610000501 FFC 26Pin Pitch 1.0mm Length 50mm 1 211
..2 LAC62MAR631 Label(date) 1 217
..2 MT0705517 Copper 3 212
..2 MT1101822 METAL PLATE 2 206
..2 MT11044135 Holder Screw 3 216
..2 MT1130010601 Panel(Anodizeing + Printing) 1 203
..2 PT1110613601 KNOB 12 201
..2 PT1110631601 Button Painting 14 205
...3 PT11106316 Button 14
..2 PT113021901 Cabinet Painting 1 204
...3 PT1130219 Cabinet 1
..2 PT113034301 Button Plate Painting 1 213
...3 PT1130343 Button Plate 1
..2 PT1304315 Power Cable Retainer 1 215
..2 SC0308ABNI Screw 8 202
..2 SC0314FBBI Screw 15 214
..2 SD12062008 Soft Sheet 1
NK267MAR01 BOM
NK27MAR01 BOM

..2 TWPC11C01101 Main PCB Assembly 1 207
...3 AL0-17-0103 RESISTOR ARRAY 4X10K 1/10W 0603 1 R14
...3 AL0-17-0151 RESISTOR ARRAY 150Ω5% 1/10W SMD 0603 2 R4,40
...3 AL1-60-2222 ECAP LOW ESR 22UF/16V SMD-B 2 C7,9
...3 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q1,3
...3 AL2-51-4403 TRANSISTOR 2N4403 PNP 1 Q2
...3 AL2-52-5242 DIODE MMBZ5242B 1 D1
...3 AL2-54-6306 Mosfet FDC6306P P-CH SSOT-6 1 U1
...3 AL2-61-7223 IC NJU7223DL1-33 3.3V TO-252 1 U4
...3 CS102K5003X7R CERAMIC 1nF/50V 10% 0603 X7R 6 C25,37~41
...3 CS103K5003X7R CERAMIC 0.01uF/50V 10% 0603 X7R 1 C32
...3 CS104K5003X7R CERAMIC 0.1uF/50V 10% 0603 X7R 28 C1~3,5,11~13,17,20,24,28,31,33~36,42,47,152,
153,158,159,167,169,170,215,216,220
...3 CS105K1003X5R CERAMIC 1uF/10V 10% 0603 X5R 3 C6,48,219
...3 CS180J5003NPO CERAMIC 18pF/50V 5% 0603 NPO 4 C29,30,217,218
...3 CS475K1006X5R CERAMIC 4.7uF/10V 10% 1206 X5R 3 C22,23,46
...3 CS475K1605X5R CERAMIC 4.7uF/16V 10% 0805 X5R 3 C45,160,168
...3 DIEN1N4148WSM Diode SMD 5 D3,6,7,9,10
...3 ECS15716DLE ECAP 150UF/16V 6.3X7.7mm SMD-D LOWESR 1 C8
...3 FCN1T1002602 FCN Down Touch ZIF SMD Pitch=1.0mm 26P 1 J4
...3 ICSN74LV595APWR IC SN74LV595APWR 1 U7
...3 ICUPD720114GA IC UPD720114GA 1 U26
...3 ICUSBLC62SC6 IC USBLC62SC6 2 D2,4
...3 ICYHFRC187 IC YHFRC187 (STM32F102C8T6F+Program) 1 U6
....4 ICSTM32F102C8T6 IC STM32F102C8T6 1 -
...3 LDSP172UHY74-5M LED Amber SMD 0805 5 LED10~14
...3 PC11C011 MAIN PCB 1 -
...3 RS000004J06 RESISTOR 0Ω5% SMD 1206 1 R43
...3 RS000010J03 RESISTOR 0Ω5% SMD 0603 21 R1,15~18,22,26,27,29~32,35,37,38,42,51,53,54,
C4,CC05
...3 RS000110F03 RESISTOR 1Ω1% SMD 0603 1 R49
...3 RS001K10F03 RESISTOR 1K 1% SMD 0603 3 R9,13,21
...3 RS001M10F03 RESISTOR 1M 1% SMD 0603 1 R8
...3 RS002210F03 RESISTOR 22Ω1% SMD 0603 2 R24,25
...3 RS004710F03 RESISTOR 47Ω1% SMD 0603 2 R45,46
...3 RS010010F03 RESISTOR 100Ω1% SMD 0603 3 R36,39,47
...3 RS010K10F03 RESISTOR 10K 1% SMD 0603 11 R2,3,7,11,28,33,34,41,182,214,223
...3 RS015K10F03 RESISTOR 15K 1% SMD 0603 1 R215
...3 RS01K510F03 RESISTOR 1.5K 1% SMD 0603 1 R12
...3 RS022010F03 RESISTOR 220Ω1% SMD 0603 1 R48
...3 RS030010F03 RESISTOR 300Ω1% SMD 0603 1 R44
...3 RS036K10F03 RESISTOR 36K 1% SMD 0603 1 R19
...3 RS047K10F03 RESISTOR 47K 1% SMD 0603 1 R23
...3 RS2K4310F03 RESISTOR 2K43 1/10W SMD 1% 0603 1 R209
...3 RS820K10F03 RESISTOR 820K 1% SMD 0603 1 R20
...3 SWEVQ11L05R Switch Tact 5mm 160g Horizontal DIP 5 SW24,27,28,30,31
...3 TE10200502 5P CONNECTOR 1 (J3)
...3 TE562002001 20P CONNECTOR 1 (J2)
...3 TE612000402 4P CONNECTOR 1 (J1)
...3 UH201209T-600Y BEAD 60Ω±25% 3A 0805 2 L5,6
...3 UH201209T-601Y BEAD 600Ω@100MHz 2A ±25% 0805 2 L1,7
...3 UHACM2012900-2P CHOKE 90Ω0.4A 2.0X1.2mm 3 L2~4

...3 VRR10301706 Potentiometer Rotary Volume 10K1B Shaft 17.5m 4 P9~12
...3 XTM08000X6F1 Crystal 8MHZ 49US SMD Fundamental 1 X1
...3 XTM30000X6F1 Crystal 30MHZ 49US SMD Fundamental 1 X3
..2 TWPC11C01201 Control PCB Assembly 1 208
...3 AL0-17-0151 RESISTOR ARRAY 150Ω5% 1/10W SMD 0603 2 R6,7
...3 AL2-73-4052 IC HEF4052BT 1 U18
...3 CS104K5003X7R CERAMIC 0.1uF/50V 10% 0603 X7R 13 C1~3,8~10,14~16,19,26,27,44
...3 DIEN1N4148WSM Diode SMD 9 D76~78,123,124,129,148~150
...3 FCN1T1002602 FCN Down Touch ZIF SMD Pitch=1.0mm 26P 1 J14
...3 ICSN74LV595APWR IC SN74LV595APWR 1 U3
...3 LDSP172UHY74-5M LED Amber SMD 0805 9 LED1~9
...3 PC11C012 CONTROL PCB 1 -
...3 RS000010J03 RESISTOR 0Ω5% SMD 0603 1 CC01
...3 SWEVQ11L05R Switch Tact 5mm 160g Horizontal DIP 9 SW15~23
...3 VRR10301705 Potentiometer Rotary Volume 10K1B Shaft 17.5m 4 P5~8
...3 VRR10301706 Potentiometer Rotary Volume 10K1B Shaft 17.5m 4 P1~4
LEVE
L
P/N DESCRIPTION QTY REF
..2 AL7-10-1215 Switching ADAPTOR(UL/JIS) DC12V/2A (01/07) 1
AL7-40-0062 Switching ADAPTOR(EU) DC12V/2A (02) 1
AL7-40-0063 Switching ADAPTOR(UK) DC12V/2A (03) 1
AL7-40-0064 Switching ADAPTOR(AUS) DC12V/2A (04) 1
..2 CN0220001006 Flat Cable GND Wire Black Longth 100mm φ3.2
F
1
..2 CN0425001006 Flat Cable 4Pin Pitch 2.5mm Single Row Length 1 1 86
..2 EVA1104415 EVA 1 87
..2 FFC2610001002 FFC 26Pin Pitch 1.0mm Length:100mm 5 67
..2 LAC53MAR788 Safety Label 1 83
..2 LAC62MAR631 Label(date) 1 82
..2 MT0705517 Copper 6 51
..2 MT1101838 Ground Plate 2 45
..2 MT1104413601 Back Holder(Painting) 1 89
...3 MT11044136 Back Holder 1
..2 MT1105552 Copper 2 44
..2 MT112047104 Front Panel Printing 1 68
...3 MT112047103 Front Panel Painting 1
....4 MT1120471 FRONT PANEL 1
..2 MT112047204 Rear Panel Printing 1 59
...3 MT112047203 Rear Panel Painting 1
....4 MT1120472 REAR PANEL 1
..2 MT1120477 Power Button Cover 1 70
..2 MT1130010503 Panel (CROSS FADER)Anodizeing+Printing 1 9
..2 MT113008303 Panel(Anodizeing + Printing) 1 7
..2 MT113034902 Bottom Chassis Painting 1 64
..2 NM1104412 VELVET CARPET 15 60
..2 NM1104417 Velvet Carpet 2 49
..2 NM1106129 Velvet Carpet 2 48
..2 NM1106130 Velvet Carpet 4 47
..2 NM1106131 Conducti Fabric 2 99
..2 NP211MAR173 Display Plate 1 5
NK26MAR01~07 BOM

..2 NP211MAR174 Name Plate(A,C) 1 34
..2 NP211MAR175 Name Plate(B,D) 1 35
..2 NP311MAR141 Wheel Plate 2 38
..2 NUT01030IID Nut 5 94
..2 NUT05030ICU Nut 1 96
..2 OTFSR5K Force Sensing Resistor 2 98
..2 PT0710620801 KNOB 1 2
..2 PT0710621101 KNOB 3 69
..2 PT0710624616 Button(- < >)Printing 2 14
...3 PT07106246 Button 2
..2 PT0710624617 Button Printing 3 16
...3 PT07106246 Button 3
..2 PT0710624618 Button(SHIFT) Printing 2 21
...3 PT07106246 Button 2
..2 PT0710624619 Button(3~5)Printing 2 22
...3 PT07106246 Button 2
..2 PT0710624620 Button (FILE TREE)Printing 1 30
...3 PT07106246 Button 1
..2 PT0710624717 Button Painting 2 32
...3 PT07106247 Button 2
..2 PT0710624718 Button Printing 2 36
...3 PT07106247 Button 2
..2 PT1104416101 Plastic Bezels Paiting 2 46
...3 PT11044161 Plastic Bezels 2
..2 PT11044162 FIXED HOLDER(FSR) 2 88
..2 PT1104420801 Side Cap (Electroplate Silver) 2 63
...3 PT11044208 Side Cap 2
..2 PT1110612401 VR KNOB PAINTING ABS+TPR 2 6
..2 PT1110613601 KNOB 18 31
..2 PT1110613701 KNOB 4 1
..2 PT11106151 POWER BUTTON 1 61
..2 PT11106163 VR KNOB 5 8
..2 PT11106178 VR KNOB PAINITING ABS+ABS 2 4
..2 PT1110619643 Button(TAP)Printing 2 11
...3 PT11106196 KNOB 2
..2 PT1110619644 Button(SCRATCH)Printing 2 18
...3 PT11106196 KNOB 2
..2 PT1110625503 Button (1/2X)Printing 2 13
...3 PT11106255 Button 2
..2 PT1110625504 Button Printing 2 15
...3 PT11106255 Button 2
..2 PT1110625603 Button ((< LOAD))Printing 1 28
...3 PT11106256 Button 1
..2 PT1110625604 Button (LOAD >)D)Printing 1 29
...3 PT11106256 Button 1
..2 PT11106275 Lid (FSR) 2 54
..2 PT11106276 Lid 2 53
..2 PT11106283 Light Pipe 6 42
..2 PT1110628402 Button(Circuler)Printing 4 12
...3 PT11106284 Button(Circuler) 4
..2 PT1110628403 Button(Circuler)Printing 3 27

...3 PT11106284 Button(Circuler) 3
..2 PT1110628702 Button(+,-)Printing 2 26
...3 PT11106287 Button 2
..2 PT11106306 Lid 2 20
..2 PT11106307 Lid 4 19
..2 PT1110631602 Buttom Painting 4 37
...3 PT11106316 Button 4
..2 PT1110631608 Button(Circuler)Printing 9 17
...3 PT11106316 Button 9
..2 PT1110636213 Button Printing 2 23
...3 PT11106362 Button 2
..2 PT1110636214 Button Printing 2 25
...3 PT11106362 Button 2
..2 PT1110636215 Button Printing 2 24
...3 PT11106362 Button 2
..2 PT111073501 Wheel Frame Painting 2 39
...3 PT1110735 Wheel Frame 2
..2 PT1110741 Wheel 2 40
...3 MT1105543 Wheel Plate Axis 2
..2 PT1130222 Cabinet 1 50
..2 PU008008001 Pu Foam 2 91
..2 PU010010010 QUARANTINE CLOTH 3 84
..2 PU014006006 Qurantine Cloth 1 33
..2 RN109111 Fixed Ring 2 52
..2 RU0730605 RUBBER FOOT 6 65
..2 SC0305FA2IBI Screw M3X5 HFB 8 78
..2 SC0305FA2INI Screw M3X5 HFAN 4 75
..2 SC0306RINI SCREW M3X6 PPN 7 80
..2 SC0308ABBI Screw(FLAT) 21 74
..2 SC0308ABNI Screw 30 79
..2 SC0308AINI Screw 4 41
..2 SC0308FAINNI Screw M3X8 PFAN 4 97
..2 SC0308RBNI SCREW M3X8 PRN TAPPING 50 77
..2 SC0314PMJI Screw M3X14 PPN 1 92
..2 SC2605RBNI Screw M2.6X5 PPN Tapping 6 76
..2 WR0620001001 6Pin Single Row Pitch 2.0mm Length 100mm 1 85
..2 WR0620003001 6Pin Single Row Pitch 2.0mm Length 300mm 1 90
..2 WS073307IC Washer Flat 3 93
..2 WS103509005P Washer 2 3
..2 WS113008204IB Washer 2 43
..2 WS663309IC Spring Washer 3# 1 95
..2 TWNP632YAH10601 Douser Assembly 2
...3 MT321004001 DOUSER PLATE FIXED BASE 2 73-1
...3 MT3210070 PLATE 4 73-3
...3 NP632YAH106 DOUSER 2 73-4
...3 RN0416001 CS Ring 2 73-5
...3 SC0303SIBI Screw M3X3 HXB 2 73-2
..2 AL9-79-057301 AN PCB Assembly 1 62
...3 AL9-40-0573 AN PCB 1

...3 AL9-79-0573A02 AN PCB Assembly 1
....4 AA822757X TRANSISTOR 2SC3326 NPN 12 Q1~8,13~16
....4 AL0-17-0103 RESISTOR Array 4X10K 1/10W 0603 3 R41,42,219
....4 AL0-17-0470 RESISTOR Array 4X47 1/10W 0603 6 R181,192,209,212,225,226
....4 AL1-08-0474 Capacitor Electrolytic 47uF/16V 5*11mm 1 C208
....4 AL2-50-4149 Diode Single 1N4148 100V 200mA 2 D4,7
....4 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q10,19
....4 AL2-51-4403 TRANSISTOR 2N4403 PNP 3 Q9,11,17
....4 AL2-54-6306 Mosfet FDC6306P P-CH SSOT-6 1 Q18
....4 AL2-61-0431 REG LM431 2.5V-37V 100MA 2% 1 U32
....4 AL2-61-5000 IC REG VOLTAGE NCP500SN25T1 2.5V 1 U30
....4 AL2-71-3079 IC MC33079 QUAD OP-AMP 3 U3,6,11
....4 AL2-74-0181 IC OPTO-ISOLATOR TLP181 TRANS-OUT SMD 1 SEN1
....4 AL4-02-0007 JACK 1/4 STEREO 7-PIN FEM MINI W/GRND LUG STRAI
G
2 J1,5
....4 AL4-08-0402 Con USB 4-Pin Female PC-MNT Horizontal 1 J11
....4 AL7-01-0046 Crystal 12MHZ 49US SMD Fundamental 1 X1
....4 AL7-20-0067 INDUCTOR 33uH 1.8A SMD 1 L7
....4 AL7-20-0087 Inductor 15uH 2.3A ±15% 10.5×9.0mm DIP 1 L4
....4 CS101J5003NPO CERAMIC 100pF/50V 5% 0603 NPO 32 C4~16,18,19,23,30,31,34,35,57,60,64,73,91,100
,106,110,154,159,163,167
....4 CS102J5003NPO CERAMIC 1nF/50V 5% 0603 NPO 6 C63,74,105,111,162,168
....4 CS103K2502X7R CERAMIC 0.01UF/25V 10% 0402 X7R 14 C3,92,95,148,160,175,204~206,209,210,219,22
1,225
....4 CS104K2502X5R CERAMIC 0.1UF/25V 10% 0402 X5R 90
C1,2,20,29,38,39,45~52,54,62,67,72,75~77,84,8
6,88,93,94,96~98,102,103,109,113,115,116,118,
120,121,125~129,131,132,134,136,139,140,142,
144,145,147,149~151,156,157,161,166,170,176,
177,184~188,192,193,195,196,199,200,203,207,
211~216,220,222,226,227,231,236~238
....4 CS104K5003X7R CERAMIC 0.1uF/50V 10% 0603 X7R 12 C40,41,79,124,158,164,172,178,189,R188,252,2
57
....4 CS105K1003X5R CERAMIC 1uF/10V 10% 0603 X5R 12 C21,114,117,141,155,183,194,218,223,228,229,
230
....4 CS152J5003NPO CERAMIC 1500PF/50V 5% 0603 NPO 4 C42,43,55,56
....4 CS180J5003NPO CERAMIC 18pF/50V 5% 0603 NPO 6 C22,69,101,119,122,123
....4 CS221J5003NPO CERAMIC 220pF/50V 5% 0603 NPO 4 C28,37,44,53
....4 CS272J5003NPO CERAMIC 2.7nF/50V 5% 0603 NPO 8 C179~182,224,232~234
....4 CS471J5003NPO CERAMIC 470pF/50V 5% 0603 NPO 8 C107,112,130,135,137,138,197,201
....4 CS472J5005NPO CERAMIC 4.7nF/50V 5% 0805 NPO 4 C32,33,58,59
....4 DISDBAT54SSM Diode BAT54S 30V 0.2A SOT-23 8 D9~11,13~15,21,22
....4 DISDMBRA340T3G Shottky diode DISDMBRA340T3G SMD 3A 40V 7 D2,5,6,8,12,16,17
....4 EC10625TS Capacitor Electrolytic 10uF/25V 5*5mm 1 C87
....4 EC10725T Capacitor Electrolytic 100uF/25V 6.3*11mm 1 C61
....4 EC22616TS Capacitor Electrolytic 22uF/16V 5*5mm 7 C82,143,171,190,198,217,235
....4 EC22716TS Capacitor Electrolytic 220uF/16V 8*5mm 1 C202
....4 EC22735TLE Capacitor Electrolytic low ESR 220u/35V 10*13m
m
3 C83,99,146
....4 EC47525TLE Capacitor Electrolytic low ESR 4.7uF/25V 5*11m
m
1 C68
....4 EC47635TLE Capacitor Electrolytic low ESR 47uF/35V 6.3*11
m
11 C17,26,27,36,90,104,108,152,153,169,174
....4 EC47725TLE Capactor Electolytic LOW-ESR 470UF/25V 2 C133,191
....4 ECS47635DLE ECAP 47UF/35V 6.3X5.7mm SMD-D Low ESR 5 C24,25,70,71,89
....4 ECS68606DLE ECAP 68uF/6.3V 6.3X5.4mm SMD-D LOWESR 1 C78
....4 FCN1T1002602 FCN Down Touch ZIF SMD Pitch=1.0mm 26P 1 J25
....4 IC74AHC1G08GV IC 74AHC1G08GV 1 U14
....4 IC74AHC245PW IC SN74AHC245PWR 2 U15,20
....4 IC74AHCT245PW IC SN74AHCT245PWR 1 U8

....4 ICAP1501K5L IC AP1501K5L 1 U10
....4 ICAP1510SL-13 IC AP1510SL-13 1 U22
....4 ICBA033FP IC BA033FP 1 U21
....4 ICBF531 IC BF531 1 U17
....4 ICCS4385-CQZ IC CS4385-CQZ 1 U28
....4 ICCS5368 IC CS5368-CQZ 1 U26
....4 ICISP1583BS IC ISP1583BS 1 U4
....4 ICLM393DR IC LM393DR 1 U31
....4 ICMC33078DR2G IC MC33078DR2G 7 U1,2,5,9,12,24,29
....4 ICMIC809SU IC MIC809SU 1 U16
....4 ICNJM-2114M IC NJM-2114M 2 U13,19
....4 ICSN74AHCT1G126 IC SN74AHCT1G126DBVR 1 U27
....4 ICUSBLC62SC6 IC USBLC62SC6 1 D1
....4 ICYHFRC163 IC YHFRC163 (AL2-80-0256+Program) 1 U18
.....5 AL2-80-0256 IC LCMX0256 1 -
....4 ICYHFRC199 IC YHFRC199 (ICATMEGA162+Program) 1 U7
.....5 ICATMEGA162 IC ATMEGA162 1 -
....4 JKDJ-0702B-020 DC Base 2.0MM 1 J12
....4 MT1101849 Ground Plate 1 -
....4 RJ1039-09-0580B RCA Jack(One Output) 6 J2~4,6~8
....4 RS000004J06 RESISTOR 0Ω5% SMD 1206 1 R249
....4 RS000010J03 RESISTOR 0Ω5% SMD 0603 26 R1,2,6,8,10~14,16,18,19,22,24,26,32,40,43,44,4
8,117~120,258,L1
....4 RS001K10F03 RESISTOR 1K 1% SMD 0603 17 R34~39,47,53,132,142~145,162,169,234,248
....4 RS001M10F03 RESISTOR 1M 1% SMD 0603 2 R3,30
....4 RS003303F10 RESISTOR 33Ω1% SMD 1210 8 R153~156,176~179
....4 RS004710F03 RESISTOR 47Ω1% SMD 0603 16 R49,55,94,101,106,110,114,148,151,199,216,21
7,229,231~233
....4 RS010010F03 RESISTOR 100Ω1% SMD 0603 4 R45,62,64,74
....4 RS010K10F03 RESISTOR 10K 1% SMD 0603 28
R46,63,65,75,89~92,99,100,104,105,109,111,15
7,164,170,189,198,202,204,205,213,247,250,26
0,262,263
....4 RS012K10F03 RESISTOR 12K 1% SMD 0603 1 R50
....4 RS01K110F03 RESISTOR 1.1K 1% SMD 0603 8 R121,127,128,131,182,187,190,197
....4 RS01K310F03 RESISTOR 1.3K 1% SMD 0603 1 R194
....4 RS01K510F03 RESISTOR 1.5K 1% SMD 0603 1 R51
....4 RS01K610F03 RESISTOR 1.6K 1% SMD 0603 8 R83,85,86,88,95,98,102,103
....4 RS022108F05 RESISTOR 221Ω1% SMD 0805 8 R4,5,27~29,33,52,54
....4 RS039K10F03 RESISTOR 39K 1% SMD 0603 4 R67,68,71,73
....4 RS043210F03 RESISTOR 432Ω1% SMD 0603 10 R76,133,140,141,150,168,172,201,210,215
....4 RS047010F03 RESISTOR 470Ω1% SMD 0603 1 R259
....4 RS04K710F03 RESISTOR 4.7K 1% SMD 0603 1 R261
....4 RS063410F03 RESISTOR 634Ω1% SMD 0603 12 R56,61,77,82,135,138,158,161,166,174,220,223
....4 RS082510F03 RESISTOR 825Ω1% SMD 0603 8 R134,139,149,152,167,173,214,218
....4 RS100K10F03 RESISTOR 100K 1% SMD 0603 12 R7,9,15,17,20,21,23,25,31,171,180,206
....4 RS14K310F03 RESISTOR 14.3K 1% SMD 0603 4 R84,87,96,97
....4 RS16K910F03 RESISTOR 16.9K 1% SMD 0603 1 R253
....4 RS2K9410F03 RESISTOR 2.94K 1% SMD 0603 1 R251
....4 RS3K0110F03 RESISTOR 3K01 1/10W SMD 1/10W 0603 1 R207
....4 RS3K3210F03 RESISTOR 3.32K 1% SMD 0603 10 R107,108,123,125,146,147,184,185,195,200
....4 RS430K10F03 RESISTOR 430K 1% SMD 0603 4 R66,69,70,72
....4 RS47K510F03 RESISTOR 47.5K 1% SMD 0603 4 R112,113,115,116
....4 RS4K7510F03 RESISTOR 4.75K 1% SMD 0603 4 R208,211,227,228

....4 RS56K210F03 RESISTOR 56.2K 1% SMD 0603 4 R57,60,78,81
....4 RS681K10F03 RESISTOR 681K 1% SMD 0603 4 R58,59,79,80
....4 RS6K6510F03 RESISTOR 6.65K 1% SMD 0603 8 R122,126,129,130,183,186,191,196
....4 RS6K8110F03 RESISTOR 6.81K 1% SMD 0603 1 R193
....4 RS8K6610F03 RESISTOR 8K66±1% SMD 0603 1 R124
....4 RS90R910F03 RESISTOR 90.9Ω1% SMD 0603 8 R136,137,159,160,165,175,221,222
....4 SWSBH22B-10K SWITCH,SHAKE,DUAL,ROW,90° 4 S1~4
....4 SWSPUN19C606 Switch Push 2P2T Dual-Row Lock 1 SW1
....4 TCS107M040B Solid Tantalum Electrolytic Capacitors 100uF/6.3
V
1 C85
....4 TE10200601 6P CONNECTOR 1 (J15)
....4 TE10200602 6P CONNECTOR 1 J14
....4 TE512540801 Pin Header 180° Pitch=2.54mm Single Row 8Pin
D
1 (J23)
....4 TE562540601 Terminal 6P 2.54mm 1 (J13)
....4 TE622000201 2P CONNECTOR 1 (J18)
....4 TE622500403 4P CONNECTOR 1 (J24)
....4 TRFDS9431A Mosfet FDS9431A P-CH SOIC-8 1 Q12
....4 UHACM2012900-2P CHOKE 90Ω0.4A 2.0X1.2mm 1 L2
....4 UHPIC1207-221M INDUCTOR SMD 220UH 2 L5,6
....4 UHSQD105T-751 Common Inductor 700Ω±35% 10.3X8mm 1 L3
....4 XTM08000X6F1 Crystal 8MHZ 49US SMD Fundamental 1 X3
....4 XTM16000X6 Crystal 16MHZ 49US SMD Fundamental 1 X2
....4 XTM225792O9 Crystal Oscillator 22.5792MHz SMD 1 X4
...3 AL9-79-0573B01 XLR Jack PCB Assembly 1 100
....4 CN0620001009 Flat Cable 6P/2.0mm/100mm Female Header 1 J16
....4 JKA89M108B-3N XLR Jack 3Pin 180° Base (Black) 2 J9,10
..2 TWPC10C00602 MIXER PCB Assembly 1
...3 PC10C006 MIXER PCB 1
...3 TWPC10C006A02 MIXER PCB Assembly 1 56
....4 AL0-09-0044 Variable Resistor 1 P25
....4 AL0-17-0103 RESISTOR ARRAY 4X10K 1/10W 0603 2 R79,80
....4 AL0-17-0272 RESISTOR ARRAY 4X2.7K 1/16W 0603 20 R16,26,103~107,127,134~139,159,164,435,437
~439
....4 AL0-17-0470 RESISTOR ARRAY 4X47 1/10W 0603 2 R7,69
....4 AL2-50-4149 Diode Single 1N4148 100V 200mA 2 D3,4
....4 AL2-51-4403 TRANSISTOR 2N4403 PNP 2 Q17,19
....4 AL2-65-0114 IC 74AHC1G14 SOP-5 1 U3
....4 AL7-20-0067 INDUCTOR 33uH 1.8A SMD 1 L5
....4 CN0420001010 4Pin Pitch 2.0mm Single Row Length 100mm 1 J5
....4 CS102J5003NPO CERAMIC 1nF/50V 5% 0603 NPO 39 C7~9,11,19,25~27,80,88,94,96,100~102,106,10
8,110~112,115~118,121~123,126~137
....4 CS103K5003X7R CERAMIC 0.01uF/50V 10% 0603 X7R 1 C114
....4 CS104K5003X7R CERAMIC 0.1uF/50V 10% 0603 X7R 86
C1,4~6,10,12~14,18,20~22,24,28,30,31,33,34,3
7,38,40~44,47~66,68~79,82~87,89~93,95,97~9
9,103~105,107,109,119,120,124,138,142,144,22
3,229,230
....4 CS106K0605X5R CERAMIC 10uF/6.3V 10% 0805 X5R 3 C45,46,125
....4 CS180J5003NPO CERAMIC 18pF/50V 5% 0603 NPO 2 C2,3
....4 DISDSK34SM Schottky Barrier Rectifiers Diode SK34 D0-214AB 1 D18
....4 EC47725TLE Capactor Electolytic LOW-ESR 470UF/25V 2 C17,150
....4 ECS22616C Capacitor Electrolytic 22uF/16V C type SMD 4 C15,29,35,143
....4 FCN1T1000401 FCN Up Touch ZIF SMD Pitch=1.0mm 4P 1 (J3)
