Numatic PM 11S Quick guide

NUMATIC TROLLEY
Conguration Assembly
PM 10S,11S,12S. PM 20S, 21S, 22S. PM 30S,31S,32S.
PM 10S PM 20S
PM 30S
DRAFT
909080 PM 10S,11S,12S. PM 20S, 21S, 22S. PM 30S,31S,32S. ASSEMBLY INSTRUCTIONS A05 08/2019
All manuals and user guides at all-guides.com

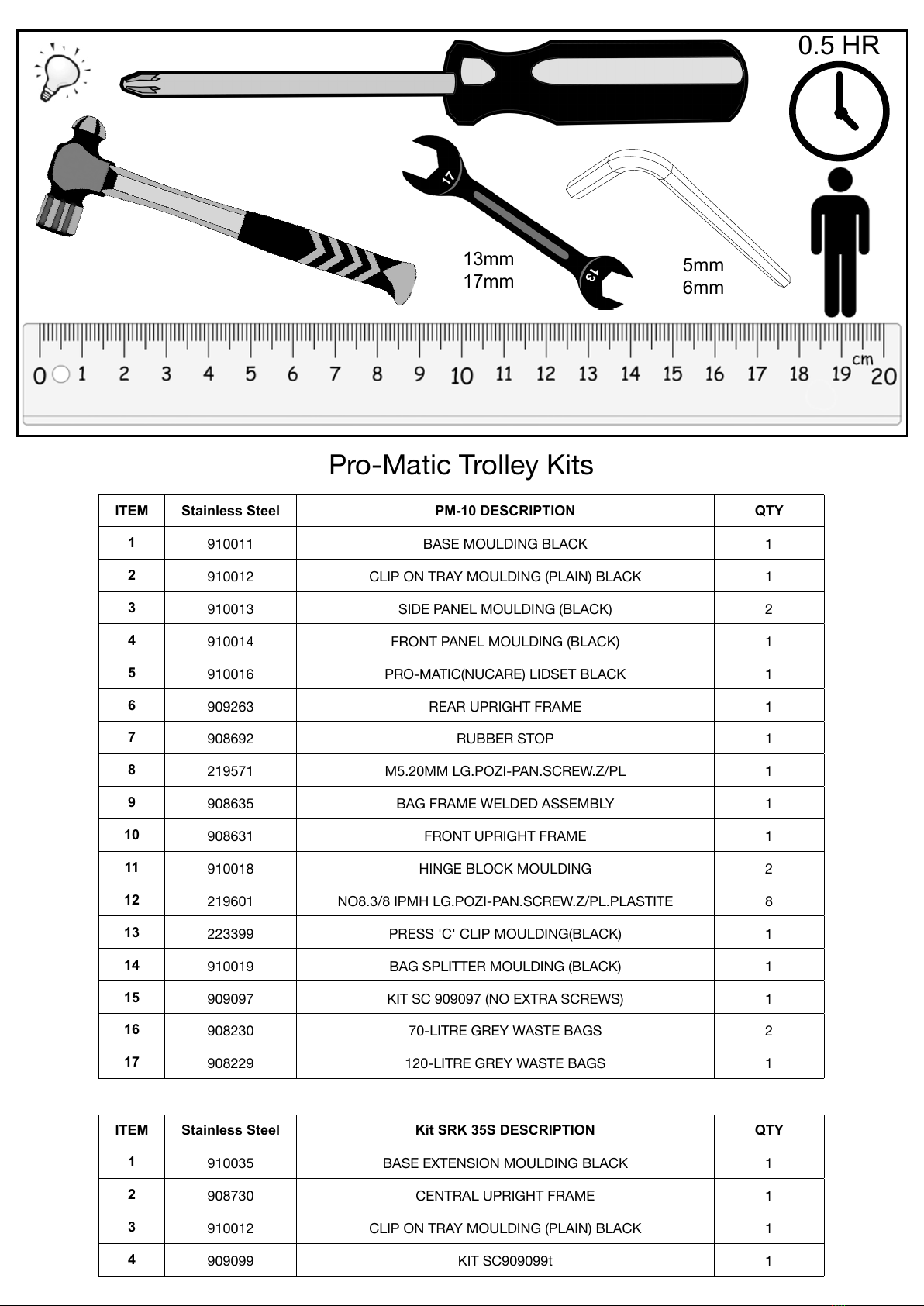

0.5 HR
Pro-Matic Trolley Kits
ITEM Stainless Steel PM-10 DESCRIPTION QTY
1910011 BASE MOULDING BLACK 1
2910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 1
3910013 SIDE PANEL MOULDING (BLACK) 2
4910014 FRONT PANEL MOULDING (BLACK) 1
5910016 PRO-MATIC(NUCARE) LIDSET BLACK 1
6909263 REAR UPRIGHT FRAME 1
7908692 RUBBER STOP 1
8219571 M5.20MM LG.POZI-PAN.SCREW.Z/PL 1
9908635 BAG FRAME WELDED ASSEMBLY 1
10 908631 FRONT UPRIGHT FRAME 1
11 910018 HINGE BLOCK MOULDING 2
12 219601 NO8.3/8 IPMH LG.POZI-PAN.SCREW.Z/PL.PLASTITE 8
13 223399 PRESS 'C' CLIP MOULDING(BLACK) 1
14 910019 BAG SPLITTER MOULDING (BLACK) 1
15 909097 KIT SC 909097 (NO EXTRA SCREWS) 1
16 908230 70-LITRE GREY WASTE BAGS 2
17 908229 120-LITRE GREY WASTE BAGS 1
ITEM Stainless Steel Kit SRK 35S DESCRIPTION QTY
1910035 BASE EXTENSION MOULDING BLACK 1
2908730 CENTRAL UPRIGHT FRAME 1
3910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 1
4909099 KIT SC909099t 1
13mm
17mm 5mm
6mm
All manuals and user guides at all-guides.com

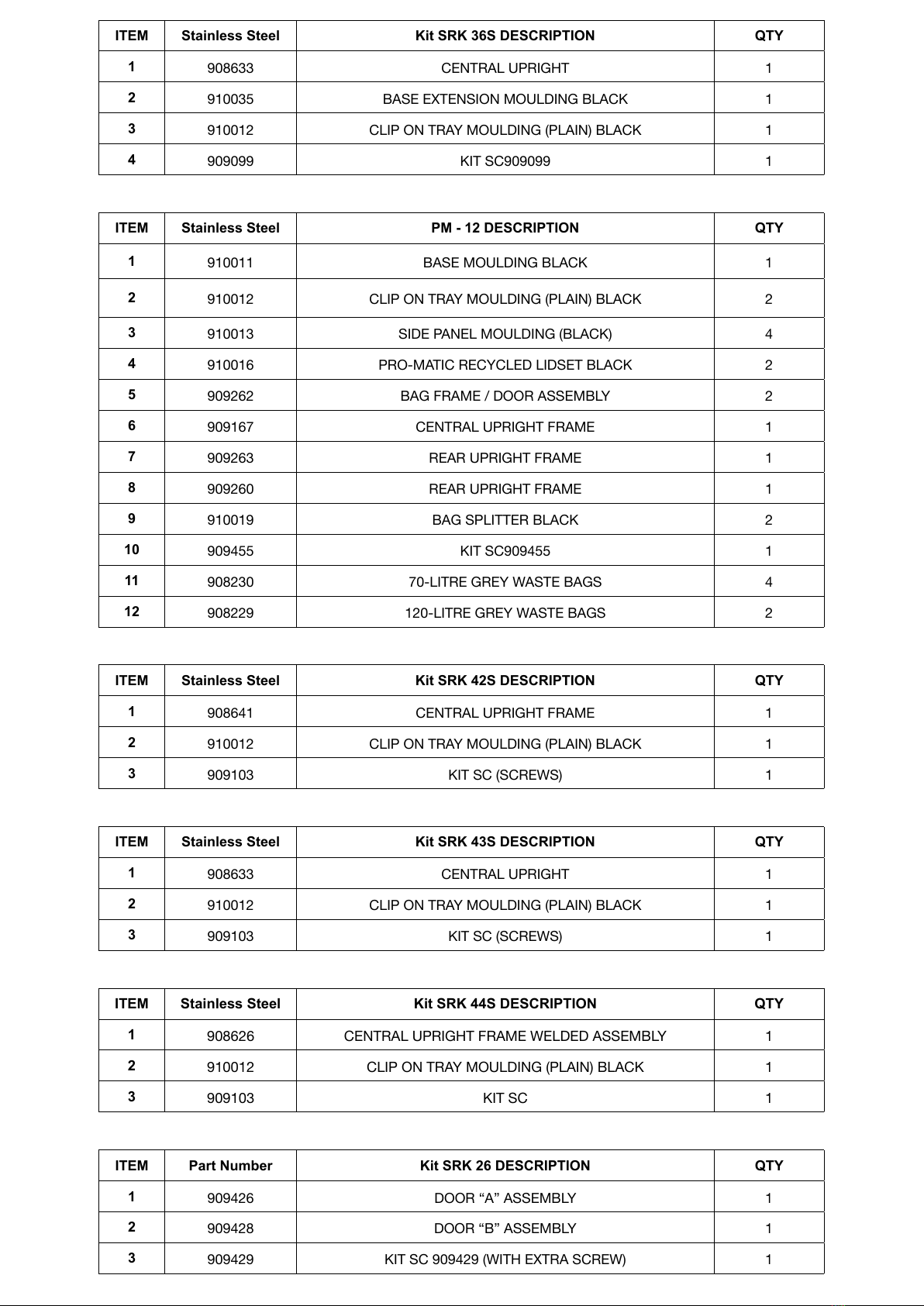

ITEM Stainless Steel Kit SRK 36S DESCRIPTION QTY
1908633 CENTRAL UPRIGHT 1
2910035 BASE EXTENSION MOULDING BLACK 1
3910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 1
4909099 KIT SC909099 1
ITEM Stainless Steel Kit SRK 42S DESCRIPTION QTY
1908641 CENTRAL UPRIGHT FRAME 1
2910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 1
3909103 KIT SC (SCREWS) 1
ITEM Stainless Steel Kit SRK 43S DESCRIPTION QTY
1908633 CENTRAL UPRIGHT 1
2910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 1
3909103 KIT SC (SCREWS) 1
ITEM Stainless Steel PM - 12 DESCRIPTION QTY
1910011 BASE MOULDING BLACK 1
2910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 2
3910013 SIDE PANEL MOULDING (BLACK) 4
4910016 PRO-MATIC RECYCLED LIDSET BLACK 2
5909262 BAG FRAME / DOOR ASSEMBLY 2
6909167 CENTRAL UPRIGHT FRAME 1
7909263 REAR UPRIGHT FRAME 1
8909260 REAR UPRIGHT FRAME 1
9910019 BAG SPLITTER BLACK 2
10 909455 KIT SC909455 1
11 908230 70-LITRE GREY WASTE BAGS 4
12 908229 120-LITRE GREY WASTE BAGS 2
ITEM Part Number Kit SRK 26 DESCRIPTION QTY
1909426 DOOR “A” ASSEMBLY 1
2909428 DOOR “B” ASSEMBLY 1
3909429 KIT SC 909429 (WITH EXTRA SCREW) 1
ITEM Stainless Steel Kit SRK 44S DESCRIPTION QTY
1908626 CENTRAL UPRIGHT FRAME WELDED ASSEMBLY 1
2910012 CLIP ON TRAY MOULDING (PLAIN) BLACK 1
3909103 KIT SC 1
All manuals and user guides at all-guides.com

4
Assembly Instructions.
PM 10S, PM 11S, PM 12S, PM 20S, PM 21S, PM 22S, PM 30S, PM 31S, PM 32S.
AT (All Terrain) Wheel Fitting - Pages 8 - 11
=
=
=
Box A
PM10S
See Page 5 for
Kit contents
Box A,
PM10S
See Page 5 for
Kit contents
Box B,
PM12S
See Page 5 for
Kit contents
Box C
Kit SRK 35S
See Page 5 for
Kit contents
Box C
Kit SRK 35S
See Page 5 for
Kit contents
Box C
Kit SRK 35S
See Page 5 for
Kit contents
Box D
Kit SRK 36S
See Page 5 for
Kit contents
Box D
Kit SRK 36S
See Page 5 for
Kit contents
Box G
Kit SRK 44S
See Page 5 for
Kit contents
Box D
Kit SRK 36S
See Page 5 for
Kit contents
Page 37 - 43
Page 44 - 50
Page 50 - 58
+
+ +
+
+
+
+
PM30SPM31SPM32S
=
=
=
Box A
PM10S
See Page 5 for
Kit contents
Box A
PM10S
See Page 5 for
Kit contents
Box B
PM12S
See Page 5 for
Kit contents
Box E
Kit SRK 42S
See Page 5 for
Kit contents
Page 11 - 13
Page 14 - 17
Page 17 - 21
+
PM10SPM11SPM12S
=
=
=
Box A
PM10S
See Page 5 for
Kit contents
Box A
PM10S
See Page 5 for
Kit contents
Box B
PM12S
See Page 5 for
Kit contents
Box C
Kit SRK 35S
See Page 5 for
Kit contents
Box C
Kit SRK 35S
See Page 5 for
Kit contents
Box C
Kit SRK 35S
See Page 5 for
Kit contents
Box F
Kit SRK 43S
See Page 5 for
Kit contents
Page 21 - 26
Page 26 - 31
Page 31 - 37
+
+ +
+
PM20SPM21SPM22S
Assembly
Page 58 - 59Kit SRK 26 Fitting
All manuals and user guides at all-guides.com

5

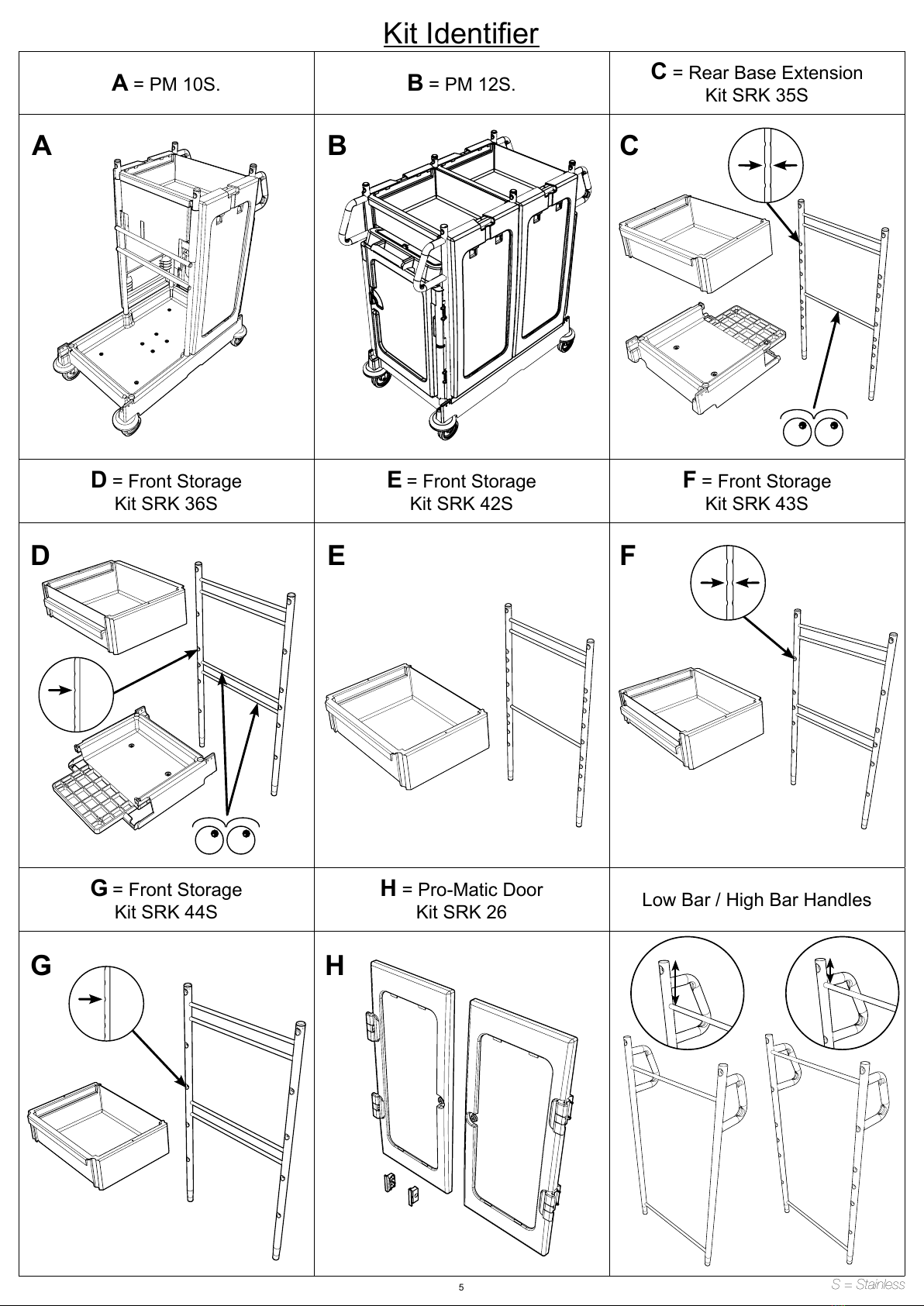

A = PM 10S. B = PM 12S. C = Rear Base Extension
Kit SRK 35S
D = Front Storage
Kit SRK 36S
E = Front Storage
Kit SRK 42S
F = Front Storage
Kit SRK 43S
G = Front Storage
Kit SRK 44S
H = Pro-Matic Door
Kit SRK 26 Low Bar / High Bar Handles
Kit Identier
CBA
D E F
S = Stainless
HG
All manuals and user guides at all-guides.com

6
219554 x 1 227479 219851 No12 x 3/4 Inch 223548 Buffer Plug
291123 M8x75 Hex Head 219578 M8 Form A 291070 M8 Nylon Insert 291067 M8 X 25
291068 M8 909100 M10x40 219903 M10 Form A 291118 M6 Form G
909243 M10x20 219897 M10 Nylon Insert 219825 No8x1 1/2 Inch 911225 Bracket
Pro-Matic Parts
All manuals and user guides at all-guides.com

7
Pro-Matic Wheels & Castors
204062 - 100mm Castor x 1 204074 - 100mm Braked Castor x 1
204113 - 125mm Castor x 1 204114 - 125mm Braked Castor x 1
901814 - 200mm AT Castor x 1 907110 - 200mm AT Braked Castor x 1
All manuals and user guides at all-guides.com

3
2
4
8
x 2
219554
X 1
AT (All Terrain) Wheel Fitting PM 10S AT
1
219825
No8x1.5 Inch
901814 291118
M6 Form G
219825
No8x1.5 Inch
909243
M10x20
219897
M10 Nylon Insert
X 8
X 4 X 8 X 4 X 4
219851
No12x0.75 Inch
227479 223548
Buffer Plug
X 4
X 4 X 4
All manuals and user guides at all-guides.com

3
2
4
9
x 2
219554
X 1
AT (All Terrain) Wheel Fitting PM 20S AT
1
901814
X 8
X 4 X 8 X 4 X 4
219851
No12x0.75 Inch
227479 223548
Buffer Plug
X 4
X 4 X 4
291118
M6 Form G
219825
No8x1.5 Inch
909243
M10x20
219897
M10 Nylon Insert
X 4
909243
M10x20
219897
M10 Nylon Insert
X 8
291118
M6 Form G
X 8
219825
No8x1.5 Inch
All manuals and user guides at all-guides.com

3
2
4
10
x 2
219554
X 1
AT (All Terrain) Wheel Fitting PM 30S AT
1
901814
X 8
X 5 X 8
X 8
X 8
X 8
291118
M6 Form G
291118
M6 Form G
219825
No8x1.5 Inch
909243
M10x20
219897
M10 Nylon Insert
X 8
219825
No8x1.5 Inch
X 8
909243
M10x20
219897
M10 Nylon Insert
X 8
219897
M10 Nylon Insert
All manuals and user guides at all-guides.com

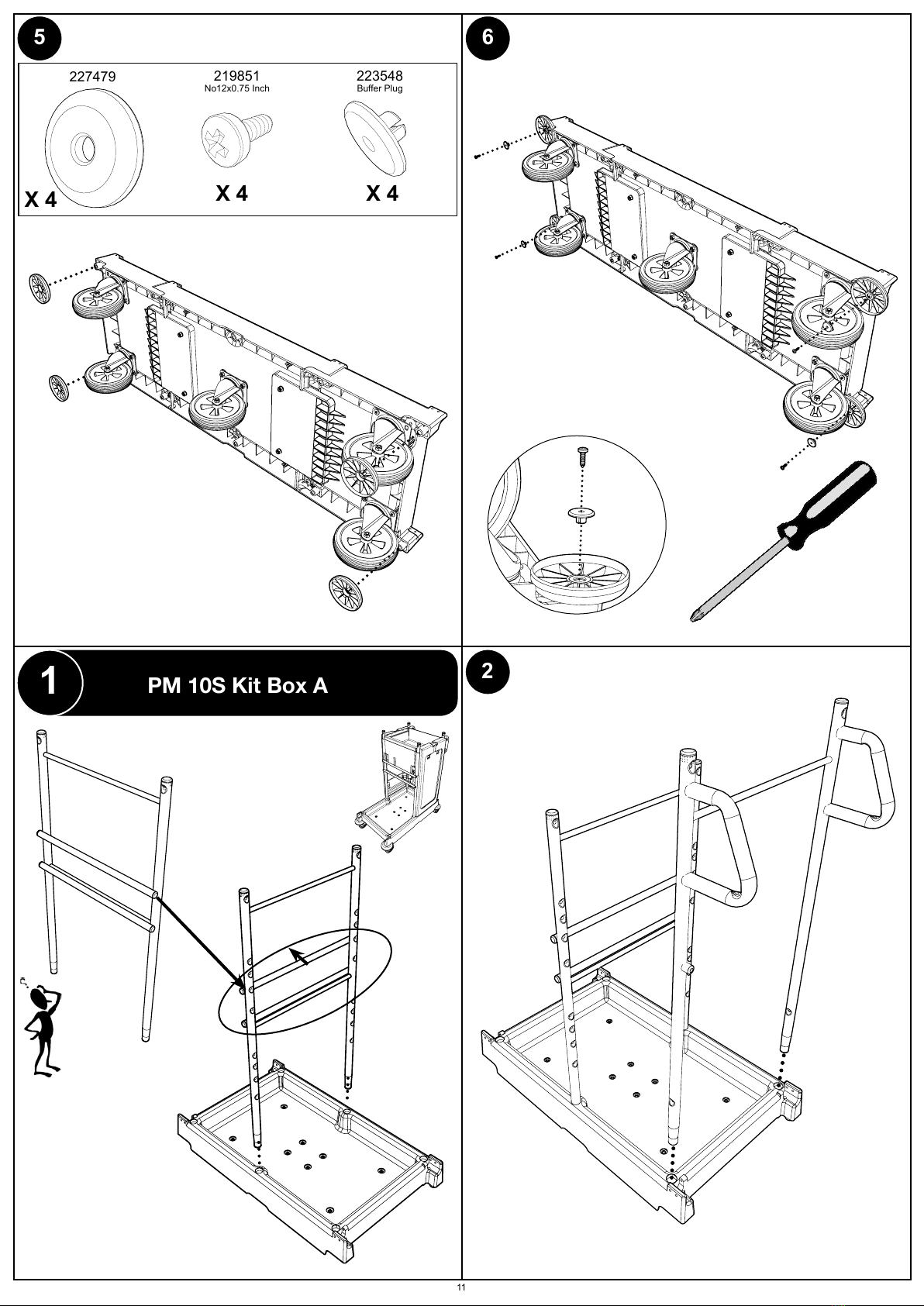

5 6
2
11
PM 10S Kit Box A
1
227479
X 4
X 4 X 4
219851
No12x0.75 Inch
223548
Buffer Plug
All manuals and user guides at all-guides.com

3
5
4
6
12
291068
M8
291067
M8 X 25
X 4 X 4
219554
X 1
X 4
227479
227479
901814
X 4
X 4
204113
X 4
X 4
Page - 8-11
All manuals and user guides at all-guides.com

7 8
13
909096
X 2
9 10
All manuals and user guides at all-guides.com

3
2
4

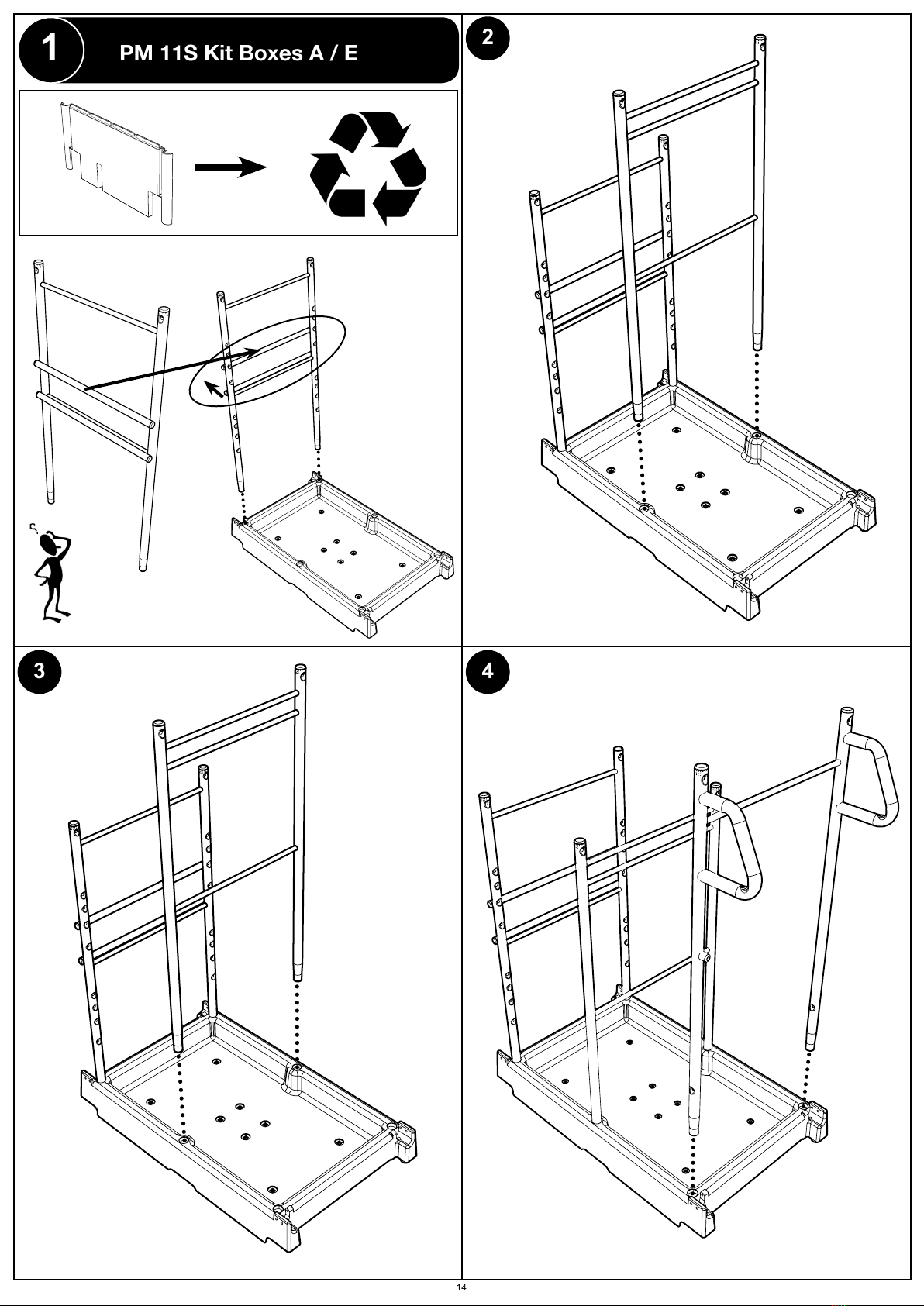

PM 11S Kit Boxes A / E
1
14
All manuals and user guides at all-guides.com

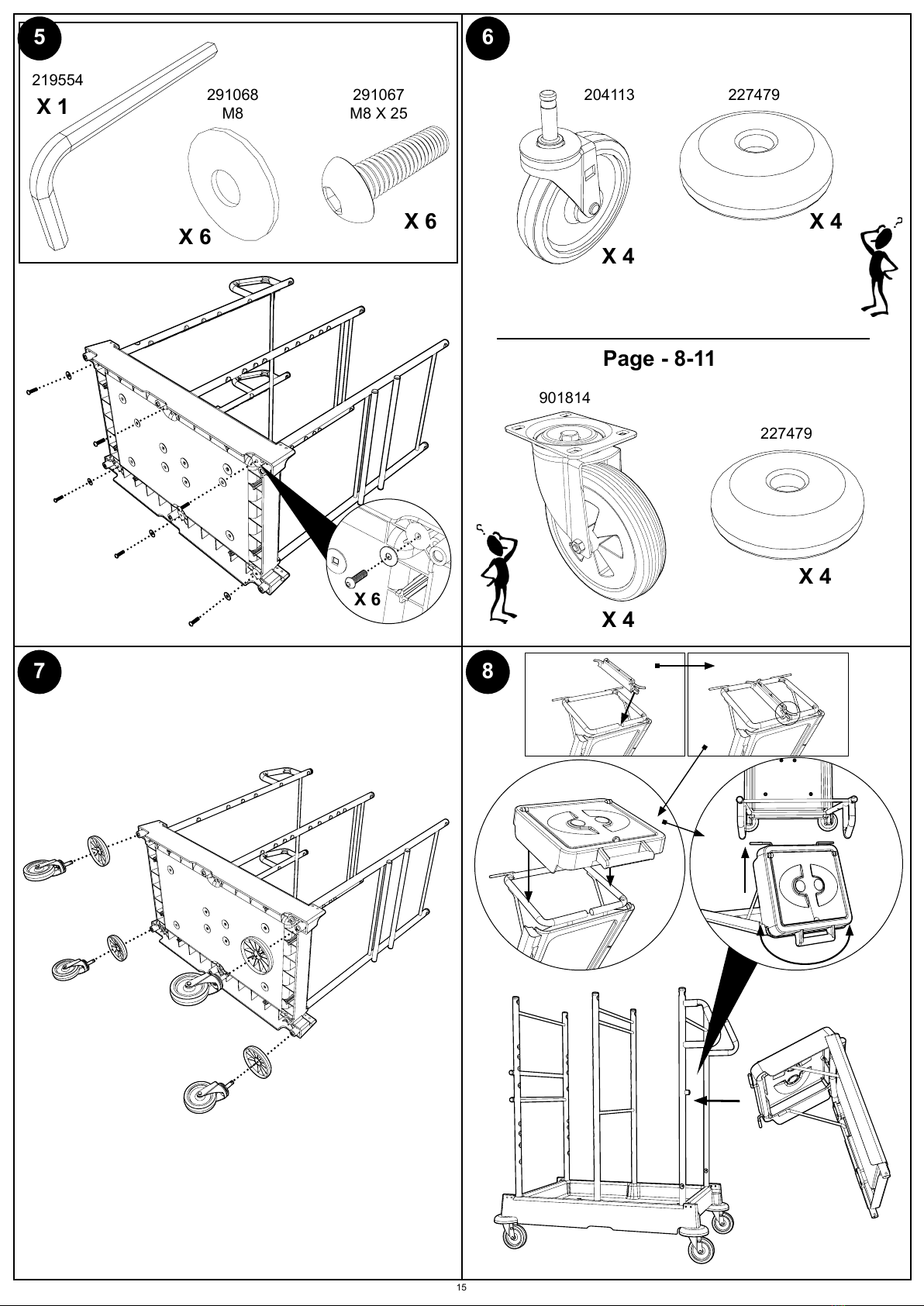

5
7
6
8
15
X 6
291068
M8
291067
M8 X 25
X 6 X 6
219554
X 1 227479
227479
901814
X 4
204113
X 4
Page - 8-11
X 4
X 4
All manuals and user guides at all-guides.com

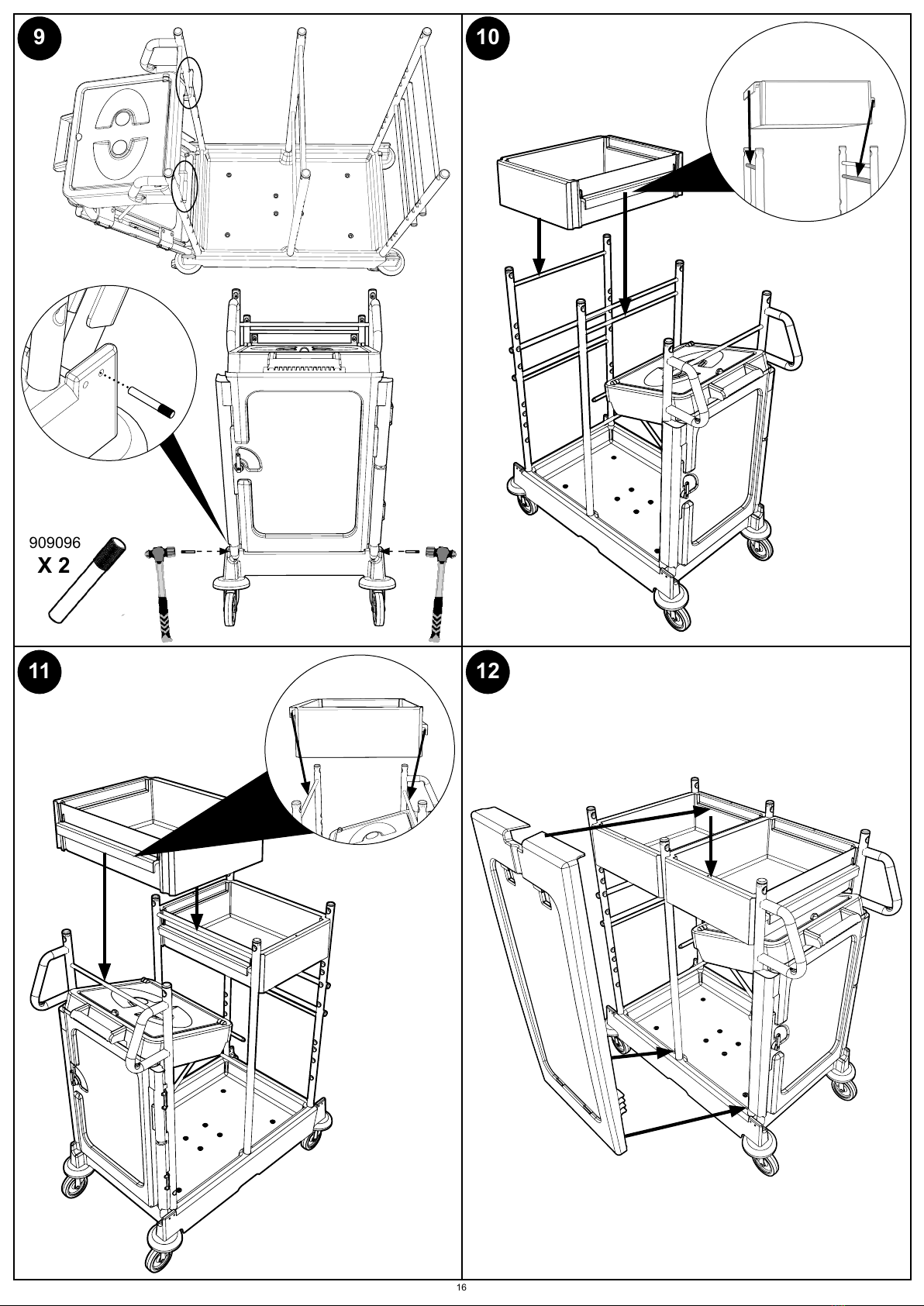

9
11
10
12
16
909096
X 2
All manuals and user guides at all-guides.com

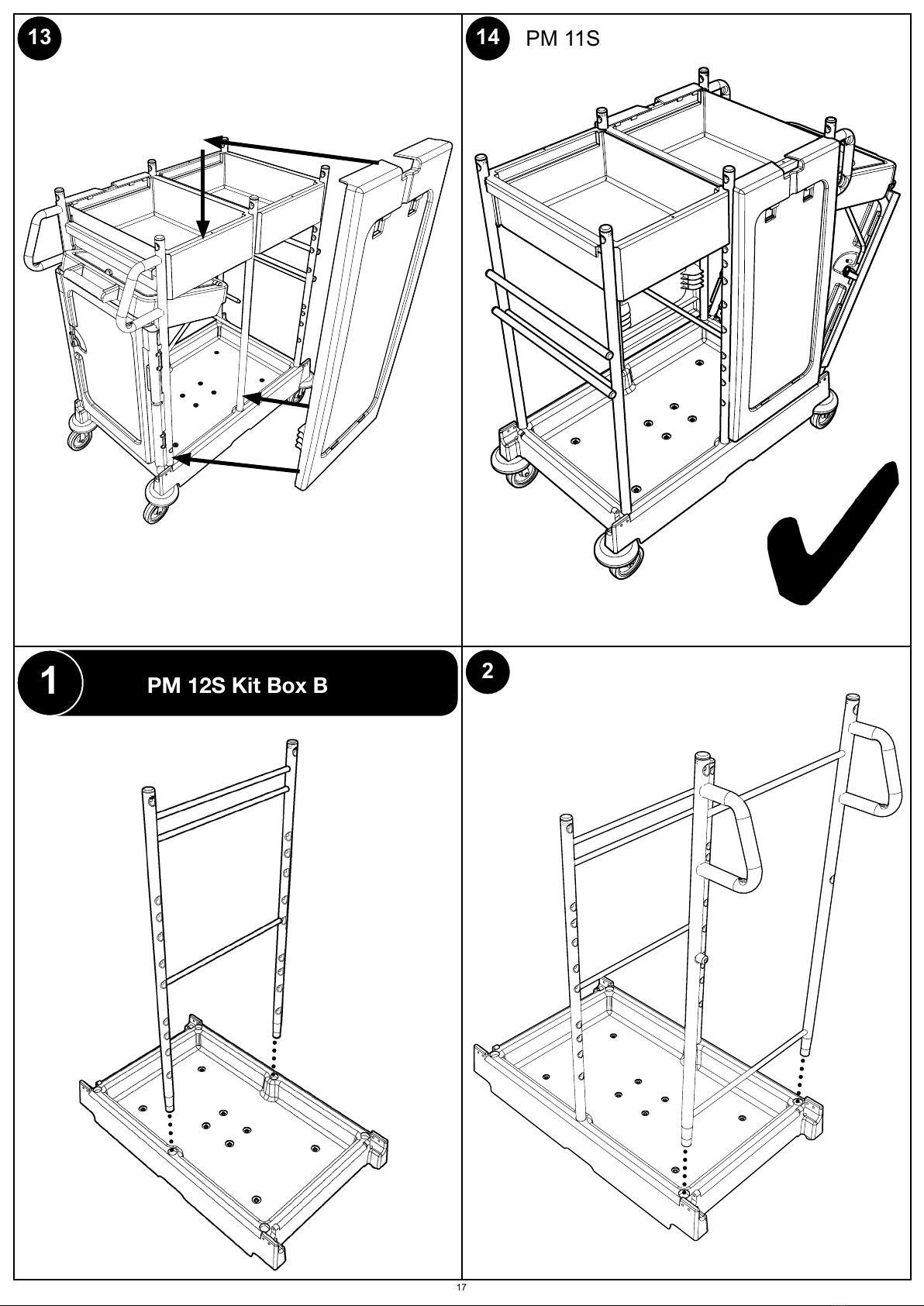

13 14
2
17
PM 11S
PM 12S Kit Box B
1
All manuals and user guides at all-guides.com

3
5
4
6
18
291068
M8
291067
M8 X 25
X 6 X 6
219554
X 1
227479
227479
901814
X 4
X 4
204113
X 4
X 4
Page - 8-11
All manuals and user guides at all-guides.com

7
9
8
10
19
909096
X 2
909096
X 2
All manuals and user guides at all-guides.com

11
13
12
14
20
