Number 8 N8OC100 User manual

Model: N8OC100 &, N8OC120
Oil Column Heater
OPERATING INSTRUCTIONS

CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the
appliance.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this heater. Covering this heater presents
fire risk and will activate the safety fuse; permanently disabling the unit.
WARNING: Do not use this heater in small rooms when they are occupied
by persons not capable of leaving the room on their own, unless constant
supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
General Care and Safety Guide
•Use only the voltage specified on the rating label of the appliance.
•The heater must not be located immediately below a socket outlet.
•Keep all objects at least 1 metre from the front, sides and rear of the appliance.
•This appliance is intended for household use only and not for commercial or industrial use.
•Indoor use only.
•Use this appliance only as described in this manual. Any other use is not recommended by
the manufacturer and may cause fire, electric shock or injury.
•Do not use the heater if it has been dropped or damaged.
•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these
deposits are removed regularly by unplugging the appliance and vacuum cleaning the air
vents and grills.
•Always unplug appliance when not in use.
•When the appliance has been unpacked, check it for transport damage and ensure all parts
have been delivered. If parts are missing or the appliance has been damaged, contact the
Customer Services Team.
•Do not use if there are visible signs of damage to the heater.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

•Never use the appliance to dry clothes.
•Do not connect the appliance to mains supply until completely assembled and adjusted.
•Ensure hands are dry before handling the plug or main unit.
•Ensure heater is on a flat, stable, heat-resistant surface.
•Do not operate with cord set coiled up as a heat build up is likely, which could be sufficient
to become a hazard.
•Carry out regular checks of the supply cord to ensure no damage is evident
•Do not operate this appliance with a damaged cord, plug or after the appliance malfunctions
or has been dropped or damaged in any manner. Return to a qualified electrical person for
examination, electrical service or repair.
•Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord has been removed from any cord storage area
and is unrolled before use.
•It is recommended that this heater is plugged directly into the wall socket. Power boards are
not rated to supply power to high wattage appliances.
•A correctly specified, undamaged extension cord may be used with this heater provided it is
used in a safe manner.
•Do not remove plug from power socket until the appliance has been switched off.
•Do not remove plug from power socket by pulling cord; always grip plug.
•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so it cannot
be tripped over.
•Don’t place appliance on bedding or on thick & long carpet where the openings may get
blocked.
•Switch off and use handle provided when moving
•Do not place appliance close to radiant heat source.
•Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this
may cause an electric shock, fire or damage to the appliance.
•Do not sit on the appliance.
•Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet)
rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.
•Do not operate in areas where petrol, paint or other flammable liquids are used or stored.
•Do not use this appliance in the immediate surrounds of a bath, a shower, or a swimming
pool or other liquids.
•The appliance must not be immersed in any liquids.
•There are no user serviceable parts installed in the unit.
•Do not place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.
•This unit is not supposed to be used in or around locations where foodstuffs, works of art or
delicate articles of science, etc. are stored.
•If your appliance does not work, or is not working properly, contact the place of purchase or
the Customer Services Team.
General Care and Safety Guide

Main Body x1
Wing Nut x4
U-shape Bolt x2
Castor Plates x2
COMPONENTS
DIAGRAM
1
. Carry handle
4
. Cord storage
2
. Thermostat knob
5
. Radiant fins
3
. Power setting knob
6
. Castor
Castor Wheels x2

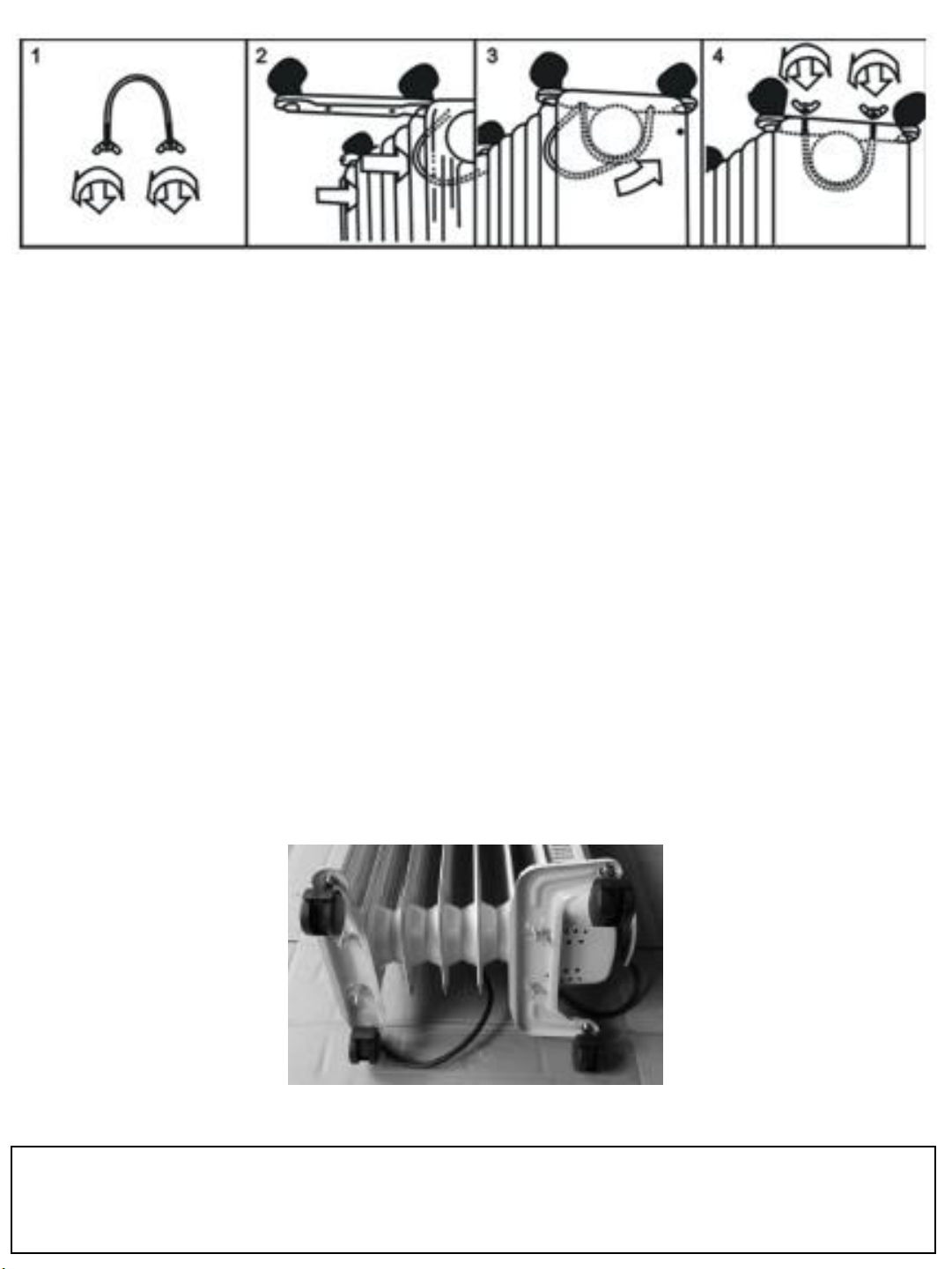

ASSEMBLY OF THE HEATER
1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not
fall. Be careful to prevent damage to the cosmetic finish or your floor surfacing.
2. Screw off the wing nuts from the U-shaped bolt provided, fit the U-shaped bolt over the connector
between first and second fins (near the front cover).
3. Insert the threaded ends of the U bolt in the holes on the castor mounting plate.
4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.
Note: do not over-tighten, which may cause damage to the heater.
5. Remove the dome nut from the castors, fit castor thread through the castor mounting plate.
Replace dome nut and tighten.
6. Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear castors.
Note: the rear castors must be mounted between the end two fins.
IMPORTANT: Please fit the wheel assemblies as per the diagram. Any other position may affect the stability of
the heater.
WARNING: Only operate the heater in normal upright position with wheel assemblies attached to the
bottom, any other position could create a hazardous situation.
This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are
only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak.
When scrapping the heater, follow the regulations concerning disposal of oil.
ASSEMBLY
TECHNICAL SPECIFICATIONS
Model No: N8OC100 Model No: N8OC120
Supply: 220-240VAC 50/60Hz Supply: 220-240VAC 50/60Hz
Wattage: 1000W Wattage: 1500W

Operating Your Heater
Always choose a safe location for the heater, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use. Please follow
the below instructions.
WARNING: In order to avoid overheating or fire, do not cover the heater.
WARNING: Keep all objects at least 1 metre from the front, sides and rear
of the appliance.
WARNING: Do not use this heater with a programmer, separate timer,
remote-control system or any other device that switches the heater on
automatically, since a fire risk exists if the heater is covered or positioned
incorrectly.
WARNING: Never leave this heater unattended when in use.
Ensure heater is on a flat, stable, heat-resistant surface.
Once the heater is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet.
CAUTION: Ensure the power cord is not tight because if pulled it may
partially pull the plug from the socket. A partially inserted plug will overheat
the plug and socket and could result in fire.
HEAT CONTROL SWITCH
The control switch positions are:
0 Off
I Low Heat
II Medium Heat
III High Heat
Check that the power On/Off switch is set to Off position before plugging the heater into the
mains supply. For greater economy, use the High Heat setting initially and then switch to the Low
Heat setting.
THERMOSTATIC CONTROL
1. Rotate thermostat knob clockwise until you reach the maximum position.
2. When the room reaches a temperature that is comfortable for you, slowly turn the knob
anti-clockwise until the heater just turns off (you will hear a click).
3. The heater will now cycle on and off to maintain the comfort level you have set.
HEAT CONTROL SWITCH THERMOSTATIC CONTROL

SAFETY DEVICES
This appliance has three protection devices:
•Tilt Switch - this will automatically turn the appliance off if the appliance is not in the correct
operating position.
•Resettable Thermal Link - this will automatically disconnect the power to the appliance at a
pre-set overheat temperature. After cooling down it will reset and power on again. If this
occurs, investigate what is causing the appliance to overheat.
•Thermal Fuse - this disconnects the appliance permanently in case of overheating. (It is non
resettable).
CAUTION: The heater generates heat during use. Proper precautions must be taken to
prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
•The heater requires regular cleaning to ensure trouble free operation:
•Unplug the heater from the mains supply before cleaning.
•Ensure that the heater has been allowed to cool down completely before cleaning.
•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits
are removed regularly by unplugging the appliance and vacuum cleaning the air vents and grills.
•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
•Never use solutions such as petrol, thinners or polishing agents.
•Ensure the heater is dry before plugging back into the mains supply.
This appliance is filled with a precise quantity of special oil. Repairs requiring opening of the oil
container are only to be made by the manufacturer who should be contacted if there is an oil leak.
When scrapping the appliance, follow the regulations concerning disposal of oil.
Heat Control Thermostat
Operating Your Heater

Thank you for purchasing this Number 8 product. Your product is warranted against factory faults when used in
a normal domestic setting for a period of one year from the date of purchase. Valid proof of purchase will be
required. As the product is intended for home use only, commercial usage of this product for professional or
industrial purposes will VOID this warranty.
Should your product be faulty, it may be replaced, repaired or refunded during the warranty period, as deemed
appropriate by the retailer.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work
carried out by anyone other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
This warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
ONE YEAR WARRANTY
Number 8 One Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase
Date of Purchase
Name Of Product
Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the
actual product.
Number 8 –New Zealand
67 Corinthian Drive
Albany
Auckland 0632
New Zealand
Phone [phone]
