Nuoma SM-B30150RS User manual

SM-B30150RS
(150W Spot and Wash Mixing Moving Head)
USER MANUAL
This manual contains important information.
Please read before operating fixture.

2

3
1 SECURITYTIPS
WARNING!!! To reduce the risk of fire, electric shock, or
injury to persons, follow these important safety instructions:
Non-professionals are not to disassemble the moving head LED
unit and lighting accessories inside.
Rated voltage range: AC110V-120V/60Hz or AC200V-240V /
50HZ (to be selected).
The unit should not be placed near flammable materials and should
maintain at least 1M distances from its projection area.
The moving head should only be used in ambient temperature:
-15c > 40c, the highest temperature of the surface of the lamp: 60c.
To keep away from the liquid substance and humid environment.
Before using the moving head please ensure a good earth is fitted.
The installation of the moving heads, you must check fixing screw
fasteners with additional security cable and a regular inspection
done.
LED consecutive working hours is not recommended for more than
10 hours per time.
Moving head should not be used in time when unusual conditions
are in play.
Moving head should be regular inspected of the rotation, external
accessories and paste parts, in a timely manner to prevent accident
or damage to the unit or persons.
Moving head fans should be checked weekly as it is easy to
accumulate the dust, so weekly cleaning of especially the cooling
air opening and fans, otherwise unit my over heat and cause
damage
.

4
2TECHNOLOGY REFERENCE
1. Voltage：AC220-240V/110-120V/50~60Hz
2. Power consumptions：320w
3. Profile LED Source: Ultra bright 150w LED
4. Wash LED Source: 8x9w tricolor LED
5. Input:220V/50HZ Output：24v/12V/5V
6. Product size: 33×40×53.5 cm；Package size: 45x40x50cm
7. N.W:15 Kg; G.W: 17 Kg
3FUNCTIONS INTRODUCTION
1. International universal control signal:
2. DMX512
3. 34/31/16 DMX channels
4. Digital display
5. DMX, Sound,Auto,Slave/Maste
6. 2 Gobos wheels: Fixed gobo wheel&Rotating gobo wheel
7. 7 gobos+White with Bi-directional rotate effect
8. Color wheel: 7 main colors+open with the rainbow
9. One rotation 3-facet prism
10. RGB color mixing
11. Gobo Indexing Function
12. Program inside ,Adjustable flash frequency

5

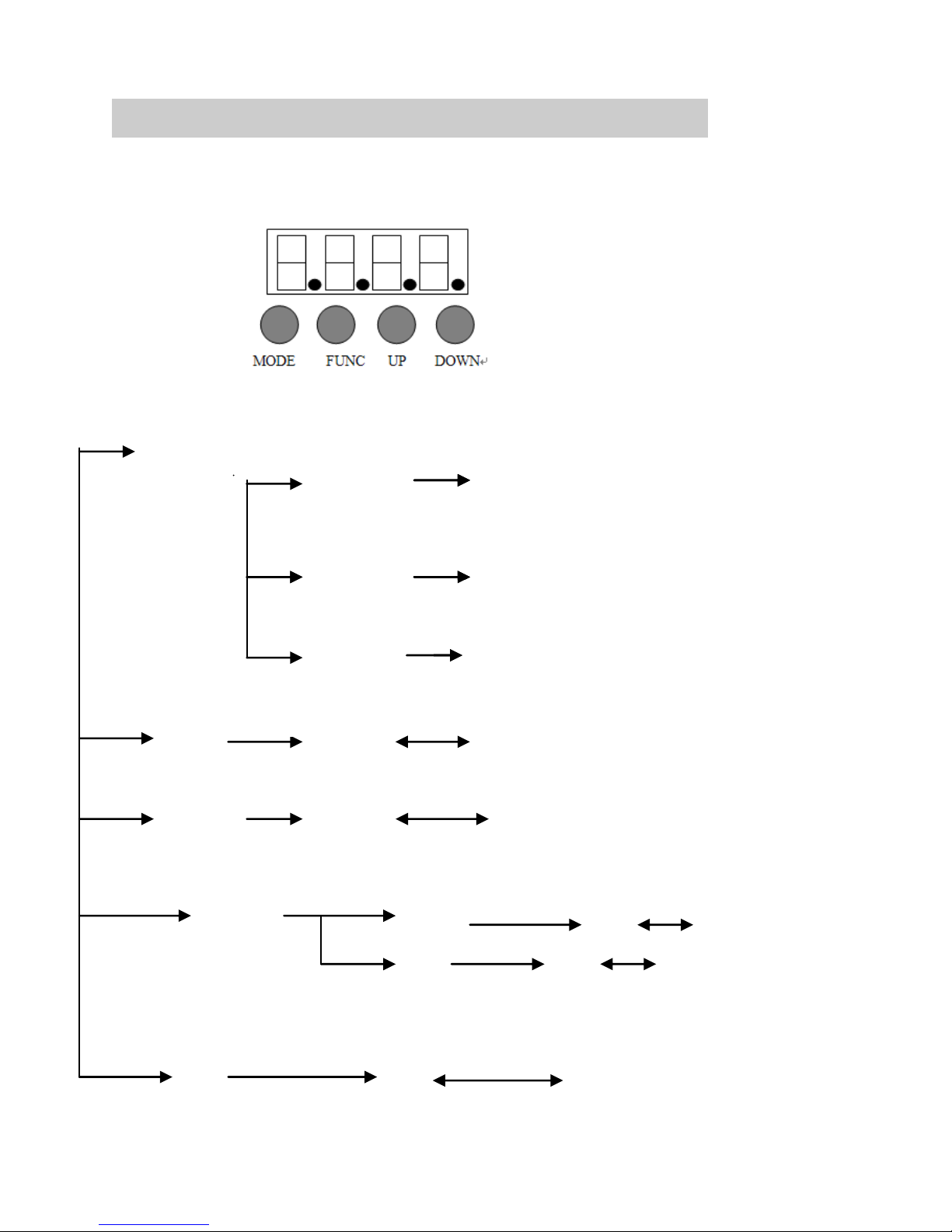

4 DISPLAYCODE SETTING METHOS
150W Spot Moving head button
MENU
【DMX】
System Mode DMX Mode Adder Setup Adder Setup
DMX Mode Adder Setup Adder Setup
【Sound】[So P1] [So P8] Sound-control mode
[Reverse] [Pan] enter [Yes] [No] Pan
[Reset] [Yes] [No] Reset
DMX Mode
Adder Setup
Adder Setup
[16CH]
[001] [512]
[31CH]
[001] [512]
[001] [512]
Enter
Enter
Enter
[34CH]
[Tilt]
[Yes]
【Auto】
[Au P1]
[Au P8]
Self-control mode
[No] Tilt
Enter

6
5DMX CHANNEL SHEET
Channel Mode
16CH
31CH
34CH
Function
Channel
Value
Function
CH1
CH1
self-setting
Program
0-15
16-45
46-75
76-105
106-135
136-165
166-195
196-225
226-255
No action
Internal running 1
Internal running 2
Internal running 3
Internal running 4
Internal running 5
Internal running 6
Internal running 7
Internal running 8
CH2
CH1
CH2
Pan
0-255
0-540°
CH3
CH2
CH3
Tilt
0-255
0-270°
CH4
CH4
Pan Fine Tilt
0-255
Pan Fine
CH5
CH5
Tilt Fine
0-255
Tilt Fine
CH6
CH3
CH6
X, Y speed
Adjustment
0-255
From fast to slow
CH7
CH4
CH7
Profile Dimmer
0-255
From dark to bright
CH8
CH5
CH8
Profile Strobe
0-7
8-250
251-255
Turn on
Strobe from fast to slow
Turn off
CH9
CH6
CH9
Color: 7several+
White Lighting
0-15
16-31
32-47
48-63
64-79
80-95
96-111
112-127
128-255
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color from fast to slow
0-7
8-15
Open
Gobo 1

7
CH10
CH7
CH10
7Static Gobos +
Open
16-23
24-31
32-39
40-47
48-55
56-63
64-71
72-79
80-87
88-95
96-103
104-111
112-119
120-127
192-255
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 7 shake speed
from slow to fast
Gobo 6 shake speed
from slow to fast
Gobo 5 shake speed
from slow to fast
Gobo 4 shake speed
from slow to fast
Gobo 3 shake speed
from slow to fast
Gobo 2 shake speed
from slow to fast
Gobo 1 shake speed
from slow to fast
Open
Gobo positive and
negative running from
slow to fast
CH11
CH8
CH11
7 Rotating
Gobos + Open
0-15
16-31
32-47
48-63
64-79
80-95
96-111
112-127
128-191
192-255
White Lighting
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Wheel CW Fast > slow
Wheel CCW Fast >slow
CH12
CH9
CH12
Gobo Indexing
Rotating
0-15
16-136
137-255
Stop
Gobo CW slow to fast
Gobo CCW slow to fast
CH13
CH10
CH13
Focus
0-255
focus from near to far

8
CH14
CH11
CH14
Prism
0-63
64-255
Open
Prism In
CH15
CH12
CH15
Prism Rotation
0-15
16-136
137-255
Stop
Rotate CW slow > fast
Rotate CCW slow > fast
CH13
CH16
Wash Global
Dimmer
0-255
From dark to bright
CH14
CH17
Global Red
0-255
From dark to bright
CH15
CH18
Global Green
0-255
From dark to bright
CH16
CH19
Global Blue
0-255
From dark to bright
CH17
CH20
Pre set RGB
color
0-7
8-15
16-23
24-31
32-39
40-47
48-55
56-63
64-71
72-79
80-87
88-95
96-103
104-111
112-119
120-127
128-135
136-195
196-255
No action
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color gradually change
from slow to fast
Color suddenly change
from slow to fast
CH18
CH21
Global Strobe
0-255
From slow to fast
CH19
CH22
Red Zone 1
0-255
From dark to bright
CH20
CH23
Green Zone 1
0-255
From dark to bright
CH21
CH24
Blue Zone 1
0-255
From dark to bright
CH22
CH25
Red Zone 2
0-255
From dark to bright

9
CH23
CH26
Green Zone 2
0-255
From dark to bright
CH24
CH27
Blue Zone 2
0-255
From dark to bright
CH25
CH28
Red Zone 3
0-255
From dark to bright
CH26
CH29
Green Zone 3
0-255
From dark to bright
CH27
CH30
Blue Zone 3
0-255
From dark to bright
CH28
CH31
Red Zone 4
0-255
From dark to bright
CH29
CH32
Green Zone 4
0-255
From dark to bright
CH30
CH33
Blue Zone 4
0-255
From dark to bright
CH16
CH31
CH34
Reset
250-253
Reset
6 DIFFICULTY RESOLUTION
The following is a list of problems and resolutions, should only be
preformed by professionally qualified staff.
1. Bulb not working
a) Check whether approaching the service life of LED, then
change it
b) Check whether LED circuitry is not loss or connect poorly
2. Beam appears flash or is patchy
a) The LED maybe approach the service life, then change it, or
the optical components are unclean.
b) LED has an accumulation of dust, so the LED and other parts
inside the lamp should be cleaned and maintained in regular
period.
3. LCD Display works intermittently
a) Check whether the fan running
b) Check inner temperature-response control plug is off

10
c) Check whether the circuitry is good and contacted properly
4. The computer lamp not controlled by controller during lighting
a) Check numeral starting address and the connection of
communication control circuit
b) The corresponding channel button of controller is open or not
c) Check whether the fuse on power supply input jack is broken
off
7 CLEANING
To make sure the stable run of the moving head, you should keep it clean.
All fans, lens and color filters, do not use any soluble detergent when
cleaning the color filter avoiding the damage to LED..
8 AFTER SERVICE
1. Our company offer technical consultation to customers.
2. If the machine is wrong and need repairmen, please truthfully fill in
the related content and feedback us the problems timely, as well as
we have to improve the product.
3. In addition to the stage light, also matching accessories are as
follows：
accessories：1x Power cable
1x Signal cable
1x Users manual

11

Warranty Card
Name Model Production Purchase
Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the
warranty will not work (warranty period and terms, see the following)
warranty period：one year since purchase warranty terms：1、If fail when using the product in
normal state, you can made under the provisions of the warranty, show the warranty card and
purchase bills(copy), and enjoy free maintenance service in a specific service center or the
manufacturer.
2. The following will be the implementation of paid service:
(1)Without the effective warranty card
(2)There’s blank, alter and no point-of-sale name
(3)Fail caused by something can not resistance
(4)Fail caused by transportation or unloading
(5)Fail caused by not operate by manual
(6)Fail caused by disassemble without unauthorized
(7)Fail caused by using the unauthorized control system
Note:
Based on our company continue to improve the product, the statement
containing data may have changed, and will not notice the change any
more. Company retains its right to change specifications related when
product is improved. Thanks for your understanding.
