Nuu Garden AF015 User manual

Ａｌｕｍｉｎｕｍ Ｒａｔｔａｎ Ｇａｓ Ｆｉｒｅ Ｐｉｔ
ＳＫＵ：ＡＦ０１５
NUUGARDEN USA
6366 Corley Road, Norcross GA 30071.

DANGER
WARNING:
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas supply to the fire table.
• Extinguish any open flame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the
fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
For Outdoor Use Only (outside, non-enclosed
area) Do Not Use For Cooking.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
WARNING:
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the
State of California to cause cancer, birth
defects, and other reproductive harm.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage,personal injury,or loss of life.
WARNING:
Do NOT leave this appliance unattended while
it is in operation.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer
to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or the gas supplier.

Min. Clearance
48 in. (121.9 cm)
Min. Clearance
65 in. (165.1 cm)
Min. Clearance
48 in. (121.9 cm)
IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION
WARNING Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death,
or in a fire or an explosion causing damage to property.
IMPORTANT NOTICE Read and understand all warnings and precautions prior to assembly and use of your gas fire table.
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Note The use and installation of this product must conform to local codes. In the absence of local codes, use the National
Fuel Gas Code, ANSI Z223.1/NFPA54. Reference to Natural Gas and Propane Installation code CSA B149.1 or Propane
Storage and Handling code B149.2.
Minimum Clearance from Unit to Combustible Materials
65 in (165.1cm) from the top: 48 in (121.9cm) from all sides and back. Do not locate this fire table under any overhead enclosure.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burners and circulating
air passageways of the appliance are kept clean.
IF YOU SMELL GAS
·Shut off gas supply to the fire table.
Extinguish any open flame.
Do not try lighting any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Keep these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or
her to read and keep for future reference.
This gas fire table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building,
garage, or any other enclosed area.
DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause
asphyxiation.
NEVER LEAVE this gas fire table unattended when in use.
·
·
·
·
·
·
·
·
·
·
Children and adults should be alerted to the hazards of high surface temperatures and be kept at a
safe distance while fire table is in use. This outdoor fire table is not to be operated by children.
Young children should be closely supervised when in the vicinity of this outdoor fire table.
Do not hang or place clothing or other flammable materials on or near the gas fire table.
Any guard or protective device removed for servicing the appliance shall be replaced prior to
operating the appliance.
This unit is to be used with propane gas & natural gas only (sold separately).
Do not use a flame to check for gas leaks.
·
·
.ecnailpparehtoynarosihtfo)m26.7(teef52nihtiwsdiuqildnasropavelbammalfrehtoroenilosagesuroerotstonoD
Do not store any combustible materials in the base enclosure.
·
·
·
ble area a clear and free from combustible materials, gasoline
and other flammable vapors and liquids.
on recreational vehicles and/or boats.
nd national codes. Contact your local fire department for details
on outdoor burning.
may impair an individual’s ability to properly assemble or
safely operate this outdoor fire table.
,etercnocsahcusecafruselbitsu
er water. Immediately call a
and any gas control which has been under water.
D lean over this outdoor re table when lighting or when in use.
se only the regulator and hose assembly provided. he replacement regulator and hose assembly shall be that speci ed by
the manufacturer.
D attempt to di agynaroknatehtmorfrotalugersagehttcennocs
lways shut off the supply at the tank valve and disconnect regulator from the tank when the re table is not in use.
D sit on th when the unit is in operation.
D eration.
Lava Rocks are very hot; please keep children or pets at a safe distance.
It is essential to keep the outdoor re table valve compartment, burners, and circulating air passages clean. Inspect outdoor
re table before each use.
If the hose is damaged, cracked or cut, it must be replaced be
blacktop surface may not be acceptable for this purpose.
m
Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch hot surfaces until the unit has
cooled unless you are wearing protective gear such as insulated pot holders or heat resistant gloves or mittens to avoid burns.
all parts are cool.
can only be replaced with a hose
d its components. If dirty, clean with a soft brush and soapy
or foreign material, such as spider webs or nests in this
ny dirt
area should be removed. If the burner shows any kind of damage, do not operate the appliance. For assistance with repair
or replacement of the burner or any other parts, Please contact us at [phone] or [email protected].
en usi
, lump charcoal, manufactured logs, driftwood, trash, leaves,
mbled and all parts are securely fastened and tightened.
operation.
, vans or recreational vehicles.
cture or near any unprotected combustible constructions.
paper, cardboard, plywood, painted or stained or pressure treated
ble).
d of f and completely cooled down.
Check for leaks after not using the unit for long periods of time.
inspect
ATTENTION directed in the operations manual will void
manufacturer warranty.
ATTENTION:

PROPANE (LP) DANGERS AND WARNINGS
LP GAS
LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.
Propane Characteristics:
tles in pools in low areas.
of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
injury may occur.
aler.
motor home or house.
Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by us.
not try to repair it. Call a
f force or any self attempted repair
Connecting your gas cylinder:
rmly. Disconnect the propane cylinder from
flow of combustion
burner.
head of the burner and burner
LP GAS WARNINGS:
ut of reach of children.
htly installed and must not be other
enclosed area.
ollar or footing.
houl propane gas supplier.
ards Steering Committee.
cco
s
of Dangerous Goods.
LP f
V
ar or footing. Dented or rusted LP
supplier prior to use.
o
source of heat or combustion.
t will cause the gas pressure to
pe.
not in use. Only install the type of
n odorant has been added.
mproperly.
.c.
.c.
CAUTION
CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move the lava rocks back to
their proper position, being careful to avoid the flame.
CAUTION: If ignition does not occur in 5 seconds, turn control knob to “ OFF”, wait 5 minutes, fan with a
newspaper or magazine and repeat lighting procedure.
CAUTION:
1. All cleaning and maintenance should be done when outdoor fireplace is cool and with the fuel supply disconnected.
2. Do not clean any outdoor fireplace part in a self-cleaning oven, the extreme heat will damage the finish.
3. Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
CAUTION: NEVER place cover on hot outdoor fire table.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 60 minutes

CONTENTS
HARDWARE
H0
1 6 4 8 16
J18 J30 J35 L15
Part
Number
Images
and
Sizes
Qty.
HOSE & REGULATOR ASSEMBLY AND REPLACEMENT
AGCarofnoitcennocedisecnailppaehtgnidulcnirotalugerdnaesohsagPLdradnatsahtiwdeppiuqesemocelbaterfisihT.1
regulator supplied with this fire table must be used. Only a hose
manufacturer can be used for replacement.
detcetedsikaelafisagfowoflehttimilotstcatahtecivedgnitimilwoflcitengamasetaroprocninoitcennoc197oNAGCehT.a
wofleerfsihtterpretnilliwnoitcennoceht,denepogniebevlavecivresrednilycsagPLehtotroirpneposievlavrenrubehtfI.b
c. The connection safety feature will reduce gas flow from the regulator to the appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder service valve to ensure that the
mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas cylinder service valve and the burner valve,
reset, open the cylinder service valve, then open the burner valve and light the
fireplace as per lighting instructions.
.ecafrustohynastcatnocesohehtfitluseryamregnadsuoireS.secafrustohy
namorfesohehttcetorpoteruseB.2
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table. If the hose shows signs of cracks, abrasions, cuts or damage of any
replace the hose as required before using the appliance. For assistance
b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when replacing the cylinder or at least once
damage, have the seal replaced by a certified gas dealer before operating the
appliance.
.ylnonethgitdnaH.evlavecivresrednilycsagPLehtotnotunnoitcennoc197oNAGCehtnethgitotslootesutonoD.4
sagPLehtotnonoitcennoc197oNAGCehtgninethgitnehwnoitcennocehtnosdaerhtehtssorctonotluferaceB.5
6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder service valve. (See “Checking
for Leaks” section of this manual on page 11).
7. For the connection of the hose and regulator to the LP tank, refer to the “Connection” section of the LP gas cylinder section
above.
:gninraWkcoRavaL
1. Lava rocks may have sharp edges. Wear safety glasses and gloves when handling.
No 791 Cylinder Connection Device. The LP gas hose and
and regulator specified by
between the regulator and the burner valve.
of gas to be a leak.
connection flow limiting device is not triggered
wait 10 seconds to allow the device to
kind, do not operate the appliance. Fix or
with repair or replacement of the hose,[email protected]. Use only replacement parts from the manufacturer.
per year. If there is any indication of
cylinder service valve.
3. Pour the lava media evenly into the burner area (with the exception of the screen-if applicable). The lava should be
1/2-1 inch above the burner.
2. Do not change or substitute the lava rocks provided with this fire pit. If replacing, use only replacement lava media
available from your local authorized dealer/distributor.
5. Keep away from the unit for the first 20 minutes after igniting your unit for the first time, as lava rocks/pumice stones
could pop out and cause injury. Should any rocks pop out, discard them.
6. Always ensure that lava rocks/pumice stones/glass shards/glass beads are completely dry before use.
cause them to crack or pop.
4. IMPORTANT: Do not exceed a height of 1 inch above the burner when placing lavas media. Ensure no media covers
the igniter screen. Store any excess media in a safe location.
/glass shards/glass beads
Failure to do so will
DO NOT PLACE ANY
MEDIA ON SCREEN
Item Description Qty
1
1
1
1
1
1
1
1
1

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
Step 1: Connect 4 side panels (B, C, D, E) by Allen wrench (H0),
and tighten with washers(L15) and bolts(J35) .
Step 2: Attach the tank base (F) to the side panel(D) and side
panel(E) by Allen wrench (H0), and tighten with washers(L15) and
bolts(J30) .
Step 3: Attach the support bar(I) to the side panel(D) and side
panel(E) by Allen wrench (H0), and tighten with bolts(J18) .
Step 4: Attach the table top(A) to the 4 side panels by Allen wrench
(H0), and tighten with washers(L15) and bolts(J18) .
Step 5: Place lava rocks(H) in the burner bowl; place gas hose
through a hook; place the lid(G) over the burner bowl.
Step 6: Insert a battery(AAA battery, sold separately) and knob into
the electric igniter and twist the button cover on to igniter housing.
Do not overtighten.
WARNING: Batteries may contain mercury. Do not put batteries into
the fire or trash. Please treat batteries as hazardous waste and
recycle properly.
Note: Please do not tighten any bolt until all bolts have been put into right place. If you tighten one bolt, it maybe cause other
bolts out of position.
Note: Please do not tighten any bolt until all bolts have been put into right place. If you tighten one bolt, it maybe cause other
bolts out of position.

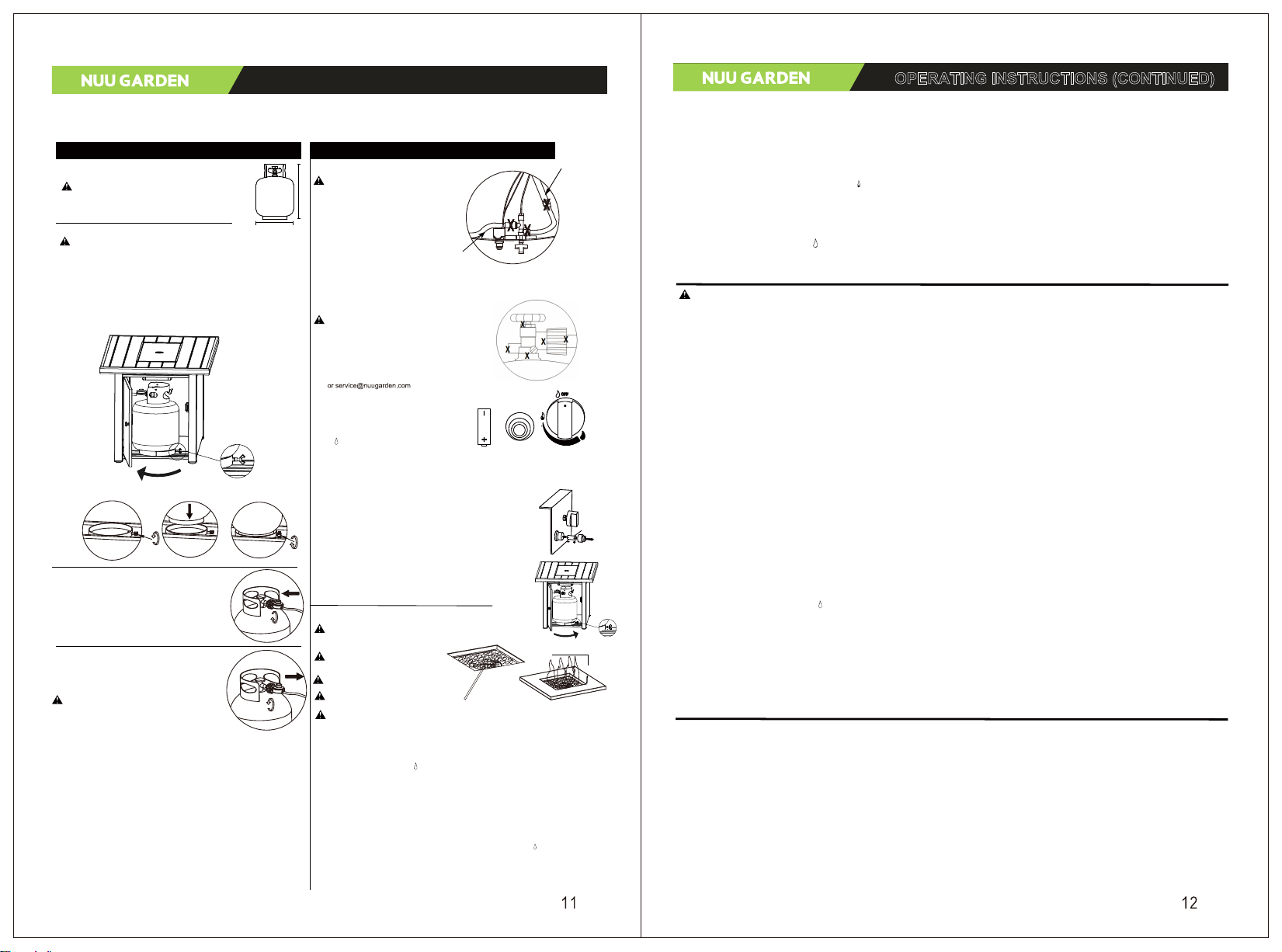

OPERATING INSTRUCTIONS
Installing LP Gas Tank
To operate, you will need one precision-filled
standard grill LP gas tank with external valve threads.
CAUTION: LP gas tank must be
properly disconnected and removed
prior to moving this
outdoor fireplace.
Inserting LP Gas Tank
WARNING: Make sure LP gas tank valve is closed.
1. Loosen LP gas tank retainer bolt by turning counter-clockwise.
2. Place precision-filled LP gas tank upright into hole in outdoor fireplace
base so the tank valve is facing the gas line connection..
3. Secure tank by turning LP gas tank retainer bolt clockwise until tight.
Connecting LP Gas Tank
1. Before connecting be sure there is no debris caught
head of the LP gas tank head of the regulator
valve or in the head of the burner or burner ports.
2. Connect regulator/hose assembly to tank by turning
knob clockwise until it stops.
1.Before disconnecting make sure the LP gas tank
valve is “CLOSED”.
2. Disconnect regulator/hose assembly from LP gas
turning knob counterclockwise until it
CAUTION: LP gas tank must be
disconnected and removed
prior to moving this fire table.
3.Place the protective cap cover on the LP tank and store the
tank outdoors in a well ventilated area out of direct sunlight.
.
Checking for Leaks
WARNING: Before using this outdoor
fireplace, make sure you have read,
understand and are following
all information provided in the
“Important Safety Information” section
on page 2. Failure to follow those
serious,
injury
or property
Burner Connections
1. Make sure the regulator hose and valve connections are securely
2. Visually check the connection between the burner/venturi
3. Make sure the burner/venturi tube fits over the orifice.
WARNING: Failure to inspect this
instructions could
an explosion which can cause
4.
5. If the burner/venturi tube does not rest flush to the
orifice, as shown, please contact [phone]
Please refer to diagram for proper installation
Tank/Gas Line Connection
1. Make 2-3 oz .of leak detection solution by
mixing one part liquid dishwashing soap with
three parts water.
2. Make sure control knobs are in the
“ OFF” position (Figure 3).
3. Connect LP gas tank per “Installing LP Gas
Tank’’
4. Turn off the igniter cover and put the battery (AAA battery, sold separately)
inside according to the electrode (Figure 4).
5. Close the firepit door panel (Figure 5).
6. Turn LP gas tank valve to “OPEN ”.
7. Spoon several drops of solution or use a squirt
bottle, at all “X” locations (Figures 1 and 2).
Operating Instructions
Figure 1
Figure 2
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
Step 1
Disconnecting LP Gas Tank
is loose.
LPGas
Connection
in the
tank by
properly
cause death,
damage.
fastened to the burner and the tank.
tube and orifice.
or follow these
(Figures 1 and 2).
a. If any bubbles appear, turn LP gas tank valve to
“CLOSED”, reconnect and re-test.
b. If you continue to see bubbles after several attempts
turn LP gas tank valve to “CLOSED” and
disconnect LP gas tank, per
“Disconnecting LP Gas Tank”.
Contact [phone] or [email protected].
c. If no bubbles appear after one minute, turn LP gas
tank valve to “CLOSED”, wipe away solution
proceed.
a fire or
connection
cause
Lighting
WARNING: NEVER light the burner
with the cover on the outdoor
fireplace.
CAUTION: Keep outdoor gas
appliance area clear and free from
combustible materials, gasoline and
other flammable vapors and liquids.
CAUTION: Do NOT obstruct the
combustion and ventilation air.
CAUTION : Check and clean burner/venturi tubes for insects and insect
nests. A clogged tube can lead to a fire.
1. Make sure all labels, packaging and protective films have been removed from
flow of
the outdoor fireplace.
2. Check for obstructions of airflow to the burner. Spiders, insects and webs can
clog the burner/venturi tube. A clogged burner tube can lead to a fire.
3. Control knob must be in the “ OFF” position (Figure 3).
4. Clear small area of glass rocks away from the igniter cover (Figure 6).
5. Connect LP gas tank per “Installing LP Gas Tank” section.
6. Turn LP gas tank valve to “OPEN”.
7. Push and hold the electronic igniter to create sparks within the electrode,
continue to hold.
8. Push in the control knob and turn to the “ON” position, Keep holding down the
control knob to allow gas to flow for 20 seconds.
9. After 20 seconds, release and turn control knob counterclockwise to adjust flame
to desired height.
10. If ignition does not occur in 20 seconds turn burner control knob to “ OFF” wait
5 minutes, fan with a newspaper or magazine, and repeat lighting procedure.
11. Remove cover and lid from outdoor fireplace before lighting.
Figure 4
LP Gas Valve
with Orifice
instructions can
Figure 6
Figure 7
15.7 in-26.7in
40-68cm
death, serious bodily injury or damage to property.
Figure 3
Figure 5
OPERATING INSTRUCTIONS (CONTINUED)
12. If igniter does not light burner:
Turning Off
Notices
Before Each Use:
a. Wearing heat-resistant gloves, position a long lit match or long lit butane lighter near the pilot housing.
C. Remove match/lighter once burner is lit.
13. After lighting, observe the burner flame make sure all burner ports are lit and flame height matches illustration (Figure 7)
1. Turn LP gas tank valve to “ CLOSED”.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
1. All cleaning and maintenance should be done when outdoor fireplace is cool and with the fuel supply disconnected.
2. Do not clean any outdoor fireplace part in a self-cleaning oven, the extreme heat will damage the finish.
3. Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
1. This outdoor fire table should be thoroughly cleaned and inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. NEVER use oven cleaner to clean any part of this outdoor .elbaterif
1. Keep the outdoor fire table area clear and free from any combustible materials, gasoline and other flammable vapors
and liquids.
2. Do not obstruct the flow of the combustion of LP gas and the ventilation of air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
4. Visually check the burner flames to make sure your outdoor fire table is working properly (Figure 7).
5. See below for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube. A clogged
burner/venturi tube can lead to a fire.
9. If damage to any component is detected, do NOT operate until repairs are completed.
Cleaning Surfaces
Before Storing
1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
2. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.
1. Turn LP gas tank valve to “CLOSED”.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Clean all surfaces.
5. Lightly coat the burner with cooking oil to prevent excess rusting.
6. If storing the outdoor fire table indoors, cover and store in a cool dry location away from children
and pets.
7. If storing the outdoor fire table outdoors, cover with the included cover for protection from
the weather.
CAUTION:
.
b. Push and turn control knob to “ON ”
2. Turn control knob to the “ OFF” position. Note: A “poof” sound is normal as the last of the LP gas is burned.
2. Turn control knob to the “ OFF” position. Note: A “poof” sound is normal as the last of the gas is burned.
CLEANING AND CARE
•Keep the heating item free and clear from combustible materials.
•Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
•Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and
lava rocks/LavaGlass
• Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
•Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
•Keep the heating unit stored away from direct sunlight.
•If storing this unit inside, disconnect the propane gas tank from the gas valve.
•Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
•ALWAYS be covered if it is stored outside.
• Before performing any maintenance always disconnect propane gas tank.
prevent from exposure damage.
Store your product indoors during winter months. Avoiding extreme cold temperatures will
•
MAINTENANCE

TROUBLESHOOTING
Problem Cause Solution
Igniter pin and burner are wet Dry off with a soft cloth
Igniter battery is incorrectly inserted Check which direction the battery is
inserted
Igniter pin is broken Contact us. for a replacement part
Electrode wire is loose or disconnected Reconnect wire to the igniter box located
inside the fire pit behind the igniter box
Electrode wire is shorting between valve
and igniter pin
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to the
tank
Tighten regulator connection to the gas
tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them
out.
Flame is obstructed at burner ports
Regulator hose is kinked Straighten hose of all bends or kinks
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
Turn the control knob to the ‘off’ posi-
tion. Close the tank valve and disconnect
propane gas tank. Turn the control knob
to ‘high’; wait 1 minute. Turn the control
knob back to the ‘off’ position. Recon-
nect propane gas tank. Light the fire unit
as indicated in the ‘To Light’ section of
this manual.
High or gusting winds Increase flame to ‘high’
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
See ‘sudden drop in gas flow’ above
Heating unit won’t light
Burner won’t light
while using a match
Heating unit emits a lot
of black smoke
Sudden drop in gas
flow
Flame blows out easily
Contact Contact us. for a replacement part.
for a replacement part
Check that all burner ports are free of
any small lava rocks/pumice stones/
LavaGlass pieces
.
