nvent TSGB Series User manual

TSGB16 Shown
TSGB16 Shown

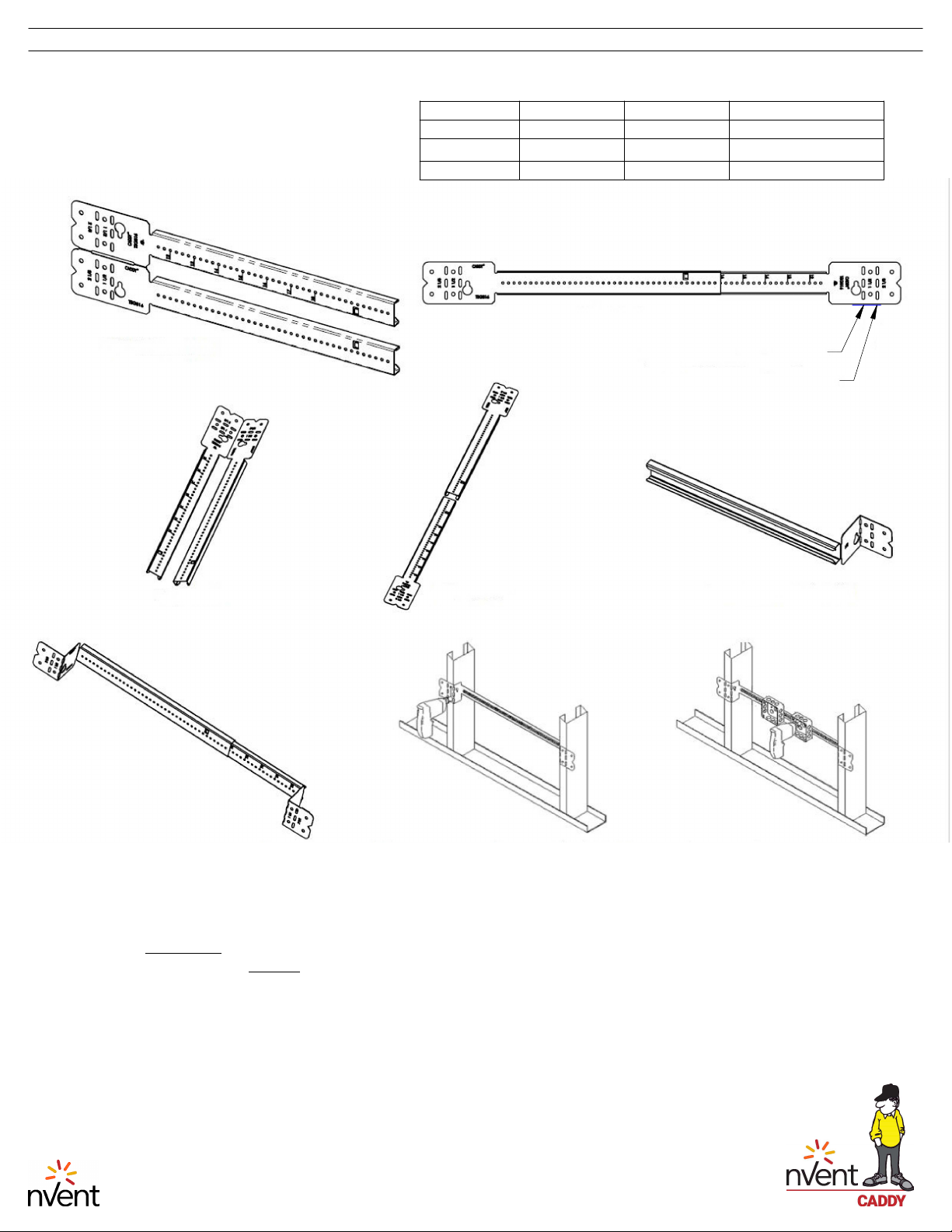

Bend for Box Depth 1-1/2
2-1/8
Separate Assemble
Adjust to box depth
Bracket ready to attach to wall studs.
Use screw gun to assemble to stud.
Only one mounting screw required
at each end of bracket.
Attach electrical boxes.
*Part with keyholes
Part No. Description Stud Spacing Box Depth
TSGB16* Adjustable 11" to 18" 1-1/2" or 2-1/8"
TSGB24 Adjustable 17" to 26" 1-1/2",2-1/8" and 2-1/2"
TSGB1624 Adjustable 16" to 24" 1-1/2",2-1/8" and 2-1/2"
TECHNICAL SUPPORT:
www.nVent.com
CFS300_H
INSTRUCTION SHEET
1 OF 2
© 2000-2018 nVent All Rights Reserved


WARNING:
nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at 1.
www.nVent.com and from your nVent customer service representative.
nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings. 2.
All instructions must be completely followed to ensure proper and safe installation and performance. 3.
Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property 4.
damage, serious bodily injury and/or death, and void your warranty.
Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment. 5.
All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any 6.
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.

Select desired box depth
and fold on that mark.
Bend back 180
.
Fold forward
Side Mount
For both standard TSGB16 & TSGB24,
and the assembled versions: Fold
the outside tab on both ends of TSGB
backward 180° until it meets the blank
tab
.
Attach fastener to
side face of the metal
stud with screw gun.
Position outlet box
on bracket and install
with screw gun.
Select height for box center line
.
TSGB16
CER4
TEB23
May be used with CER4
as cable support.
Attach TEB23 box mount
at desired location.
Hang from Keyhole.
Level and attach opposite side.
Set to desired height for box
C
L
.
Align on stud.
Attach screw through keyhole.
Can be mounted on face or inside the stud. 1.
Can mount 1-1/2", 2-1/8" or 2-1/2" deep boxes. Notched and 2.
marked for easy identification and bending.
Requires only a screw gun to install. 3.
Box attaches with self-tapping screws. nVent CADDY part 4.
number SM58 or mounting clip TSGLDR1.
Eliminates movement of the box when used with flexible 5.
conduit, ENT, MC, BX, or Non-metallic sheathed cable (NMC).
Allows multiple box mounting. 6.
