NVR SYSTEMS NVR-52 Series User manual

NVR-52XX/58XX/60XX Series NVR

Regulatory information
FCC information
FCC compliance : This equipment has been tested and found to comply with the limits for a digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC
Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal
waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product documentation for specific battery information. The battery is
marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For
proper recycling, return the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info.

Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Unit is designed for indoor use only.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory specifications.
•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.

Product Key Features
General
Connectable to network cameras, network dome and DVS.
Connectable to the third-party network cameras like AXIS, ONVIF, PANASONIC, PSIA,
SAMSUNG and SANYO.
PAL/NTSC adaptive video inputs.
Each channel supports dual-stream.
Up to 64 network cameras can be connected for NVR-6064 series NVR, 32 network cameras for
NVR-6032, and 16 network cameras for
NVR-5816XX.
Independent configuration for each channel, including resolution, frame rate, bit rate, image quality,
etc.
The quality of the input and output record is configurable.
Local Monitoring
Simultaneous HDMI, VGA and CVBS outputs.
HDMI output and VGA output at up to 1920*1080 resolution.
Multiple screen display in live view is supported, and the display sequence of channels is adjustable.
Live view screen can be switched in group, and manual switch and automatic cycle live view are also
provided, and the interval of automatic cycle can be adjusted.
Quick setting menu is provided for live view.
Motion detection, tamper-proof, video exception alert and video loss alert functions.
Privacy mask.
Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
For 9664 series, up to 16 SATA hard disks and 2 eSATA disks can be connected. For 7600 series, 2
SATA hard disks and 1 eSATA disks can be connected. For 7632P8 series, 4 SATA hard disks and 1
eSATA disk can be connected. And up to 8 SATA hard disks and 1 eSATA disk can be connected for
other models. (Each disk with a maximum of 4TB storage capacity.)
8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
Support eSATA disks for recording or backup.
Support S.M.A.R.T. and bad sector detection.
HDD group management.
Support HDD standby function.
HDD property: redundancy, read-only, read/write (R/W).
HDD quota management; different capacity can be assigned to different channel.
Support RAID0, RAID1, RAID5, RAID10 storage scheme.
Recording, Capture and Playback
Holiday recording schedule configuration.
Normal and event video encoding parameters.
Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion & alarm.
8 recording time periods with separated recording types.
Pre-record and post-record for alarm, motion detection for recording, and pre-record time for
schedule and manual recording.

Searching record files and captured pictures by events (alarm input/motion detection).
Tag adding for record files, searching and playing back by tags.
Locking and unlocking record files.
Local redundant recording and capture.
Provide new playback interface with easy and flexible operation.
Searching and playing back record files by channel number, recording type, start time, end time, etc.
Motion analysis for the selected area in the video.
Zooming in when playback.
Playing reversely.
Reverse playback of multi-channel.
Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when playback,
and locating by dragging the mouse.
Up to 16-ch synchronous playback at 4CIF real time.
Manual capture, continuous capture of video images and playback of captured pictures.
Backup
Export video data by USB, SATA or eSATA device.
Export video clips when playback.
Management and maintenance of backup devices.
Alarm and Exception
Configurable arming time of alarm input/output.
Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard
mismatch, illegal login, network disconnected, IP confliction, abnormal record/capture, HDD error,
and HDD full, etc.
Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and
alarm output.
Automatic restore when system is abnormal.
Other Local Functions
Operable by front panel, mouse, remote control, and control keyboard.
Three-level user management; admin user is allowed to create many operating accounts and define
their operating permission, which includes the limit to access any channel.
Operation, alarm, exceptions and log recording and searching.
Manually triggering and clearing alarms.
Import and export of device configuration information.
Network Functions
Self-adaptive 10M/100M/1000M network interfaces, and various working modes are configurable:
multi-address, load balance, network fault tolerance, etc. (Dual NICs are only for the NVR-6064
series NVR.)
8 independent PoE network interfaces are provided for NVR-XXXXP8 series.
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are
supported.
TCP, UDP and RTP for unicast.
Auto/Manual port mapping by UPnP.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback through RTSP.

Support accessing by the platform via ONVIF.
Remote search, playback, download, locking and unlocking of the record files, and support
downloading files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
Remote viewing of the device status, system logs and alarm status.
Remote keyboard operation.
Remote locking and unlocking of control panel and mouse.
Remote HDD formatting and program upgrading.
Remote system restart and shutdown.
RS-232, RS-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host
Remotely start/stop recording.
Remotely start/stop alarm output.
Remote PTZ control.
Remote JPEG capture.
Two-way audio and voice broadcasting.
Embedded WEB server.
Development Scalability:
SDK for Windows and Linux system.
Source code of application software for demo.
Development support and training for application system.

TABLE OF CONTENTS
Product Key Features ..............................................................................................................................4
Chapter 1Introduction................................................................................................................................... 11
1.1 Front Panel ....................................................................................................................................12
1.2 IR Remote Control Operations......................................................................................................19
1.3 USB Mouse Operation ..................................................................................................................21
1.4 Input Method Description..............................................................................................................22
1.5 Rear Panel .....................................................................................................................................23
Chapter 2Getting Started..............................................................................................................................26
2.1 Starting Up and Shutting Down the NVR...................................................................................... 27
2.2 Using the Wizard for basic configuration...................................................................................... 29
2.3 Adding and Connecting the IP Cameras........................................................................................33
2.3.1 Adding the online IP Cameras.....................................................................................33
2.3.2 Editing the connected IP cameras and Configuring Customized Protocols.................33
2.3.3 Editing IP cameras connected to the PoE interfaces (Only for NVR-XXXXP4 and
NVR-XXXXP8) 36
Chapter 3Live View .......................................................................................................................................38
3.1 Introduction of Live View .............................................................................................................39
3.2 Operations in Live View Mode......................................................................................................40
3.2.1 Front Panel Operation on Live View...........................................................................40
3.2.2 Using the Mouse in Live View.................................................................................... 41
3.2.3 Using an Auxiliary Monitor ........................................................................................41
3.2.4 Quick Setting Toolbar in Live View Mode..................................................................42
3.3 Adjusting Live View Settings........................................................................................................45
3.4 Channel-zero Encoding .................................................................................................................47
3.5 User Logout...................................................................................................................................48
Chapter 4PTZ Controls.................................................................................................................................49
4.1 Configuring PTZ Settings..............................................................................................................50
4.2 Setting PTZ Presets, Patrols & Patterns......................................................................................... 51
4.2.1 Customizing Presets....................................................................................................51
4.2.2 Calling Presets ............................................................................................................52
4.2.3 Customizing Patrols....................................................................................................53
4.2.4 Calling Patrols.............................................................................................................54
4.2.5 Customizing Patterns ..................................................................................................55
4.2.6 Calling Patterns...........................................................................................................56
4.3 PTZ Control Panel.........................................................................................................................58
Chapter 5Record and Capture Settings .......................................................................................................59
5.1 Configuring Encoding Parameters.................................................................................................60
5.2 Configuring Record/Capture Schedule..........................................................................................63
5.3 Configuring Motion Detection Record and Capture......................................................................67
5.4 Configuring Alarm Triggered Record and Capture........................................................................69
5.5 Manual Record and Continuous Capture.......................................................................................71

5.6 Configuring Holiday Record and Capture.....................................................................................72
5.7 Configuring Redundant Recording and Capture............................................................................74
5.8 Configuring HDD Group for Recording and Capture....................................................................76
5.9 Files Protection.............................................................................................................................. 78
Chapter 6Playback.........................................................................................................................................80
6.1 Playing Back Record Files ............................................................................................................81
6.1.1 Playing Back by Channel............................................................................................81
6.1.2 Playing Back by Time.................................................................................................83
6.1.3 Playing Back by Event Search ....................................................................................85
6.1.4 Playing Back by Tag ...................................................................................................87
6.1.5 Playing Back by System Logs.....................................................................................90
6.1.6 Playing Back External File..........................................................................................91
6.2 Auxiliary Functions of Playback ................................................................................................... 93
6.2.1 Playing Back Frame by Frame....................................................................................93
6.2.2 Digital Zoom...............................................................................................................93
6.2.3 Reverse Playback of Multi-channel ............................................................................94
6.3 Picture Playback............................................................................................................................95
Chapter 7Backup...........................................................................................................................................97
7.1 Backing up Record Files ...............................................................................................................98
7.1.1 Quick Export...............................................................................................................98
7.1.2 Backing up by Normal Video Search..........................................................................99
7.1.3 Backing up by Event Search .....................................................................................106
7.1.4 Backing up Video Clips ............................................................................................109
7.2 Backing up Pictures..................................................................................................................... 111
7.3 Managing Backup Devices.......................................................................................................... 113
Chapter 8Alarm Settings............................................................................................................................. 116
8.1 Setting Motion Detection Alarm.................................................................................................. 117
8.2 Setting Sensor Alarms ................................................................................................................. 119
8.3 Detecting Video Loss Alarm........................................................................................................122
8.4 Detecting Video Tampering Alarm.............................................................................................. 124
8.5 Handling Exceptions Alarm.........................................................................................................126
8.6 Setting Alarm Response Actions .................................................................................................127
8.7 Triggering or Clearing Alarm Output Manually..........................................................................129
Chapter 9Network Settings.........................................................................................................................130
9.1 Configuring General Settings......................................................................................................131
9.2 Configuring Advanced Settings................................................................................................... 133
9.2.1 Configuring PPPoE Settings ..................................................................................... 133
9.2.2 Configuring DDNS ...................................................................................................133
9.2.3 Configuring NTP Server ...........................................................................................135
9.2.4 Configuring SNMP ................................................................................................... 135
9.2.5 Configuring Remote Alarm Host ..............................................................................136
9.2.6 Configuring Multicast...............................................................................................137
9.2.7 Configuring RTSP.....................................................................................................137
9.2.8 Configuring Server and HTTP Ports.........................................................................138

9.2.9 Configuring HTTPS Port .......................................................................................... 138
9.2.10 Configuring Email ....................................................................................................139
9.2.11 Configuring UPnP ...................................................................................................140
9.2.12 Configuring High-speed Download ..........................................................................142
9.3 Checking Network Traffic...........................................................................................................143
9.4 Configuring Network Detection ..................................................................................................144
9.4.1 Testing Network Delay and Packet Loss...................................................................144
9.4.2 Exporting Network Packet........................................................................................144
9.4.3 Checking the network status .....................................................................................145
9.4.4 Checking Network Statistics.....................................................................................147
Chapter 10 HDD Management............................................................................................................148
10.1 Initializing HDDs ........................................................................................................................149
10.2 Managing Network HDD ............................................................................................................151
10.3 Managing eSATA ........................................................................................................................153
10.4 Managing HDD Group................................................................................................................ 154
10.4.1 Setting HDD Groups.................................................................................................154
10.4.2 Setting HDD Property...............................................................................................155
10.5 Configuring Quota Mode.............................................................................................................157
10.6 Checking HDD Status ................................................................................................................. 159
10.7 HDD Detection............................................................................................................................ 161
10.8 Configuring HDD Error Alarms ..................................................................................................163
Chapter 11 Camera Settings ...............................................................................................................164
11.1 Configuring OSD Settings...........................................................................................................165
11.2 Configuring Privacy Mask...........................................................................................................166
11.3 Configuring Video Parameters ....................................................................................................167
Chapter 12 NVR Management and Maintenance .............................................................................168
12.1 Viewing System Information.......................................................................................................169
12.1.1 Viewing Device Information.....................................................................................169
12.1.2 Viewing Camera Information....................................................................................169
12.1.3 Viewing Record Information.....................................................................................169
12.1.4 Viewing Alarm Information......................................................................................170
12.1.5 Viewing Network Information .................................................................................. 171
12.1.6 Viewing HDD Information .......................................................................................171
12.2 Searching & Export Log Files.....................................................................................................173
12.3 Importing/Exporting Configuration Files ....................................................................................176
12.4 Upgrading System....................................................................................................................... 177
12.4.1 Upgrading by Local Backup Device ......................................................................... 177
12.4.2 Upgrading by FTP.....................................................................................................177
12.5 Restoring Default Settings........................................................................................................... 179
Chapter 13 Others................................................................................................................................180
13.1 Configuring RS-232 Serial Port...................................................................................................181
13.2 Configuring General Settings......................................................................................................182
13.3 Configuring DST Settings ........................................................................................................... 183
13.4 Configuring More Settings for Device Parameters......................................................................184

13.5 Managing User Accounts............................................................................................................. 185
13.5.1 Adding a User ...........................................................................................................185
13.5.2 Deleting a User .........................................................................................................187
13.5.3 Editing a User ...........................................................................................................188
Appendix189
Glossary............................................................................................................................. ....................190
FAQ ……………………………………………………………………………………………………..191

Chapter 1 Introduction

1.1 Front Panel
Figure 1. 1 NVR-6064
Table 1. 1 Description of Control Panel Buttons
No.
Name
Function Description
1
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Ready indicator is normally blue, indicating that the device is
functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD
Blinks red when data is being read from or written to HDD.
MODEM
Reserved for future usage.
TX/RX
Blinks blue when network connection is functioning properly.
GUARD
Guard indicator turns blue when the device is in armed status; at
this time, an alarm is enabled when an event is detected.
The indicator turns off when the device is unarmed. The
arm/disarm status can be changed by pressing and holding on the
ESC button for more than 3 seconds in live view mode.
2
IR Receiver
Receiver for IR remote
3
Front Panel Lock
(for NVR-6064 series)
You can lock or unlock the panel by the key.
4
DVD-R/W
Slot for DVD-R/W.
5
Alphanumeric Buttons
Switch to the corresponding channel in Live view or PTZ
Control mode.
Input numbers and characters in Edit mode.
Switch between different channels in Playback mode.
The light of the button is blue when the corresponding channel is
recording; it is red when the channel is in network transmission
status; it is pink when the channel is recording and transmitting.

No.
Name
Function Description
6
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
7
Composite
Keys
ESC
Back to the previous menu.
Press for Arming/disarming the device in Live View mode.
REC/SHOT
Enter the Manual Record setting menu.
In PTZ control settings, press the button and then you can call a
PTZ preset by pressing Numeric button.
It is also used to turn audio on/off in the Playback mode.
PLAY/AUTO
The button is used to enter the Playback mode.
It is also used to auto scan in the PTZ Control menu.
ZOOM+
Zoom in the PTZ camera in the PTZ Control setting.
A/FOCUS+
Adjust focus in the PTZ Control menu.
It is also used to switch between input methods (upper and
lowercase alphabet, symbols and numeric input).
EDIT/IRIS+
Edit text fields. When editing text fields, it will also function as a
Backspace button to delete the character in front of the cursor.
On checkbox fields, pressing the button will tick the checkbox.
In PTZ Control mode, the button adjusts the iris of the camera.
In Playback mode, it can be used to generate video clips for
backup.
Enter/exit the folder of USB device and eSATA HDD.
MAIN/SPOT/ZOO
M-
Switch between main and spot output.
In PTZ Control mode, it can be used to zoom out the image.
F1/ LIGHT
Select all items on the list when used in a list field.
In PTZ Control mode, it will turn on/off PTZ light (if
applicable).
In Playback mode, it is used to switch between play and reverse
play.
F2/ AUX
Cycle through tab pages.
In synchronous playback mode, it is used to switch between
channels.
MENU/WIPER
Press the button will help you return to the Main menu (after
successful login).
Press and hold the button for 5 seconds will turn off audible key
beep.
In PTZ Control mode, the MENU/WIPER button will start wiper
(if applicable).
In Playback mode, it is used to show/hide the control interface.
PREV/FOCUS-
Switch between single screen and multi-screen mode.
In PTZ Control mode, it is used to adjust the focus in
conjunction with the A/FOCUS+ button.
PTZ/IRIS-
Enter the PTZ Control mode.
In the PTZ Control mode, it is used to adjust the iris of the PTZ
13

No.
Name
Function Description
camera.
8
Control
Buttons
DIRECTION
The DIRECTION buttons are used to navigate between different
fields and items in menus.
In the Playback mode, the Up and Down button is used to speed
up and slow down recorded video. The Left and Right button
will select the next and previous record files.
In Live View mode, these buttons can be used to cycle through
channels.
In PTZ control mode, it can control the movement of the PTZ
camera.
ENTER
The ENTER button is used to confirm selection in any of the
menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In single-frame Playback mode, pressing the button will advance
the video by a single frame.
In Auto-switch mode, it can be used to stop /start auto switch.
9
JOG SHUTTLE Control
Move the active selection in a menu. It will move the selection
up and down.
In Live View mode, it can be used to cycle through different
channels.
In the Playback mode: For NVR-6064 series, the ring is used to
jump 30s forward/backward in video files.
In PTZ control mode, it can control the movement of the PTZ
camera.
10
POWER ON/OFF
Power on/off switch.

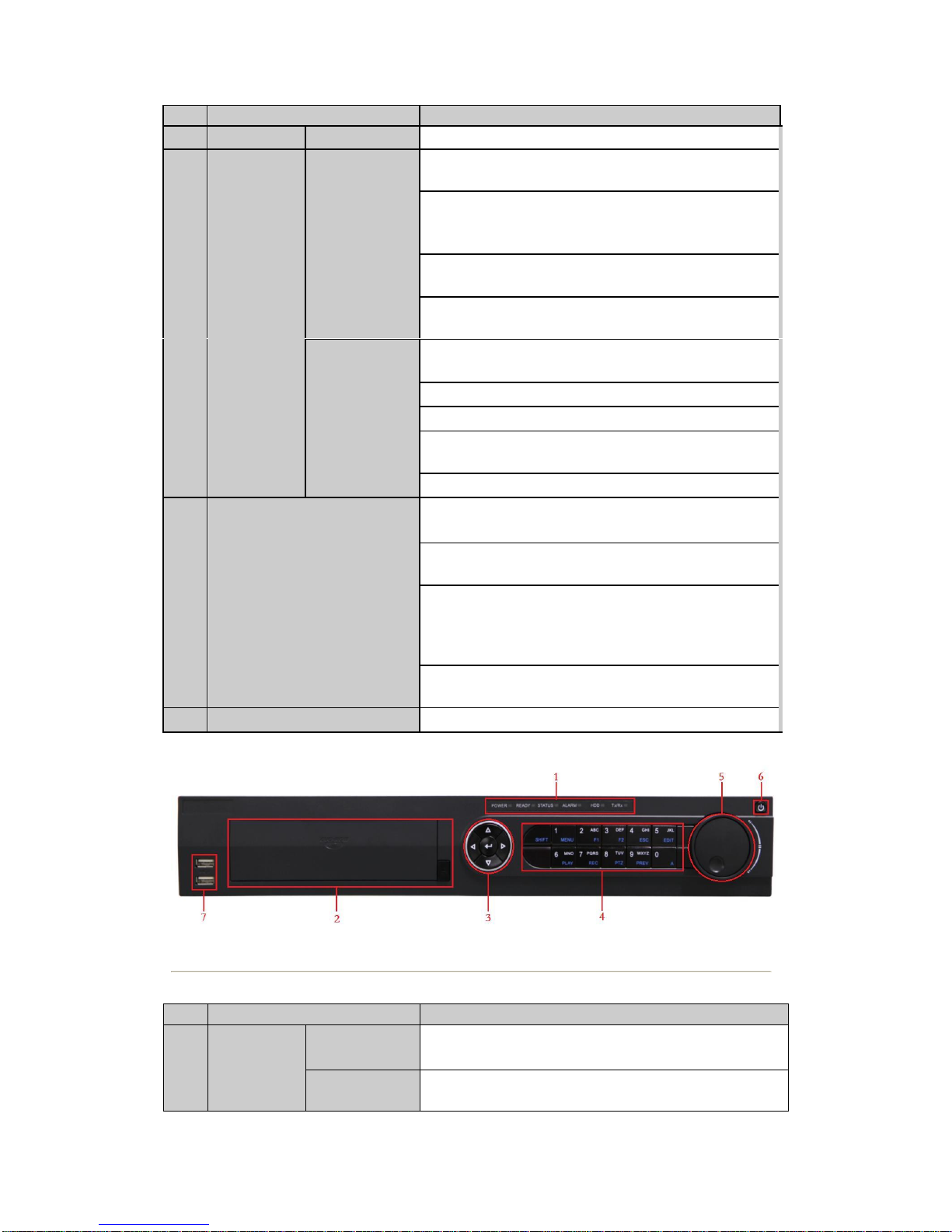

Figure 1. 2 NVR-5832P8
Table 1. 2 Description of Control Panel Buttons
No.
Name
Function Description
1
Status
Indicators
POWER
Turns green when NVR is powered up.
READY
The indicator is green when the device is running normally.
14

No.
Name
Function Description
STATUS
The light is green when the IR remote control is enabled;
The light is red when the function of the composite keys (SHIFT)
are used;
The light is out when none of the above condition is met.
ALARM
The light is red when there is an alarm occurring.
HDD
Blinks red when HDD is reading/writing.
Tx/Rx
Blinks green when network connection is functioning normally.
2
DVD-R/W
Slot for DVD-R/W.
3
Control
Buttons
DIRECTION
In menu mode, the direction buttons are used to navigate between
different fields and items and select setting parameters.
In playback mode, the Up and Down buttons are used to speed up
and slow down record playing, and the Left and Right buttons are
used to move the recording 30s forwards or backwards.
In the image setting interface, the up and down button can adjust
the level bar of the image parameters.
In live view mode, these buttons can be used to switch channels.
ENTER
The Enter button is used to confirm selection in menu mode; or
used to check checkbox fields and ON/OFF switch.
In playback mode, it can be used to play or pause the video.
In single-frame play mode, pressing the Enter button will play the
video by a single frame.
In auto sequence view mode, the buttons can be used to pause or
resume auto sequence.
4
Composite
Keys
SHIFT
Switch between the numeric or letter input and functions of the
composite keys. (Input letter or numbers when the light is out;
Realize functions when the light is red.)
1/MENU
Enter numeral 1 ;
Access the main menu interface.
2/ABC/F1
Enter numeral 2 ;
Enter letters ABC ;
The F1 button when used in a list field will select all items in the
list.
In PTZ Control mode, it will turn on/off PTZ light and when the
image is zoomed in, the key is used to zoom out.
3/DEF/F2
Enter numeral 3 ;
Enter letters DEF ;
The F2 button is used to change the tab pages.
In PTZ control mode, it zooms in the image.
4/GHI/ESC
Enter numeral 4 ;
Enter letters GHI ;
Exit and back to the previous menu.
5/JKL/EDIT
Enter numeral 5 ;
Enter letters JKL ;
Delete characters before cursor;
15

No.
Name
Function Description
Check the checkbox and select the ON/OFF switch;
Start/stop record clipping in playback.
6/MNO/PLAY
Enter numeral 6 ;
Enter letters MNO ;
Playback, for direct access to playback interface.
7/PQRS/REC
Enter numeral 7 ;
Enter letters PQRS ;
Open the manual record interface.
8/TUV/PTZ
Enter numeral 8 ;
Enter letters TUV ;
Access PTZ control interface.
9/WXYZ/PRE
V
Enter numeral 9 ;
Enter letters WXYZ ;
Multi-channel display in live view.
0/A
Enter numeral 0 ;
Shift the input methods in the editing text field. (Upper and
lowercase, alphabet, symbols or numeric input).
Double press the button to switch the main and auxiliary output.
5
JOG SHUTTLE Control
Move the active selection in a menu. It will move the selection up
and down.
In Live View mode, it can be used to cycle through different
channels.
In the Playback mode, it can be used to jump 30s
forward/backward in video files.
In PTZ control mode, it can control the movement of the PTZ
camera.
6
POWER ON/OFF
Power on/off switch.
7
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
Figure 1. 3 NVR-5816P8
Table 1. 3 Description of Control Panel Buttons
No.
Name
Function Description
1
USB Interface
Connects USB mouse or USE flash memory devices.
2
Status Indicators
POWER: the POWER indicator turns green when NVR is
powered up.
READY: The indicator light is green when the device is running
normally.
16

STATUS: 1.The light is green when the IR remote control is
enabled; 2.The light is red when the function of the composite
keys (SHIFT) are used; 3. The light is out when none of the
above condition is met/
ALARM: the light is red when there is an alarm occurring.
HDD: the indicator flickers red when HDD is reading/writing.
Tx/Rx: TX/RX indicator flickers green when network connection
is functioning normally.
3
SHIFT
Switch between the numeric or letter input and functions of the
composite keys. (Input letter or numbers when the light is out;
Realize functions when the light is red.)
4
Composite
Keys
1/MENU
Enter numeral 1 ;
Access the main menu interface.
2/ABC/F1
Enter numeral 2 ;
Enter letters ABC ;
The F1 button when used in a list field will select all items in the
list.
In PTZ Control mode, it will turn on/off PTZ light and when the
image is zoomed in, the key is used to zoom out.
3/DEF/F2
Enter numeral 3 ;
Enter letters DEF ;
The F2 button is used to change the tab pages.
In PTZ control mode, it zooms in the image.
4/GHI/ESC
Enter numeral 4 ;
Enter letters GHI ;
Exit and back to the previous menu.
5/JKL/EDIT
Enter numeral 5 ;
Enter letters JKL ;
Delete characters before cursor;
Check the checkbox and select the ON/OFF switch;
Start/stop record clipping in playback.
6/MNO/PLAY
Enter numeral 6 ;
Enter letters MNO ;
Playback, for direct access to playback interface.
7/PQRS/REC
Enter numeral 7 ;
Enter letters PQRS ;
Open the manual record interface.
8/TUV/PTZ
Enter numeral 8 ;
Enter letters TUV ;
Access PTZ control interface.
9/WXYZ/PREV
Enter numeral 9 ;
Enter letters WXYZ ;
Multi-channel display in live view.
0/A
Enter numeral 0 ;
Shift the input methods in the editing text field. (Upper and
lowercase, alphabet, symbols or numeric input).
17

Double press the button to switch the main and auxiliary output.
5
Control
Buttons
DIRECTION
In menu mode, the direction buttons are used to navigate
between different fields and items and select setting parameters.
In playback mode, the Up and Down buttons are used to speed
up and slow down record playing, and the Left and Right buttons
are used to move the recording 30s forwards or backwards.
In the image setting interface, the up and down button can adjust
the level bar of the image parameters.
In live view mode, these buttons can be used to switch channels.
ENTER
The Enter button is used to confirm selection in menu mode; or
used to check checkbox fields and ON/OFF switch.
In playback mode, it can be used to play or pause the video.
In single-frame play mode, pressing the Enter button will play
the video by a single frame.
And in auto sequence view mode, the buttons can be used to
pause or resume auto sequence.
18

1.2 IR Remote Control Operations
The NVR may also be controlled with the included IR remote control, shown in Figure 1. 4.
Note: Batteries (2 AAA) must be installed before operation.
Figure 1. 4 Remote Control
The keys on the remote control closely resemble the ones on the front panel. See Table 1.5.
Table 1. 4 Description of the Soft Keyboard Icons
No.
Name
Description
1
POWER
Power on/off the device.
2
DEV
Enables/Disables Remote Control.
3
Alphanumeric Buttons
Same as Alphanumeric buttons on front panel.
4
EDIT Button
Same as EDIT/IRIS+ button on front panel.
5
A Button
Same as A/FOCUS+ button on front panel.
6
REC Button
Same as REC/SHOT button on front panel.
7
PLAY Button
Same as the PLAY/AUTO button on front panel.
8
INFO Button
Reserved.
9
VOIP/MON Button
Same as the MAIN/SPOT/ZOOM- button on front panel.
10
MENU Button
Same as the MENU/WIPER button on front panel.
11
PREV Button
Same as the PREV/FOCUS- button on front panel.
12
DIRECTION/ENTER
Same as the DIRECTION/ENTER buttons on front panel.

Buttons
13
PTZ Button
Same as the PTZ/IRIS- button on front panel.
14
ESC Button
Same as the ESC button on front panel.
15
RESERVED
Reserved for future usage.
16
F1 Button
Same as the F1/LIGHT button on front panel.
17
PTZControl Buttons
Buttons to adjust the iris, focus and zoom of a PTZ camera.
18
F2 Button
Same as the F2/AUX button on front panel.
Troubleshooting Remote Control:
Note: Make sure you have installed batteries properly in the remote control. And you have to aim the remote
control at the IR receiver in the front panel.
If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.
Steps:
1. Go to Menu > Settings > General > More Settings by operating the front control panel or the mouse.
2. Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote controls.
3. Press the DEV button on the remote control.
4. Enter the NVR ID# you set in step 2.
5. Press the ENTER button on the remote.
If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator
does not turn blue and there is still no response from the remote, please check the following:
1. Batteries are installed correctly and the polarities of the batteries are not reversed.
2. Batteries are fresh and not out of charge.
3. IR receiver is not obstructed.
If the remote still can t function properly, please change a remote and try again, or contact the device provider.
