Oakton 35632 Series User manual

OPERATING INSTRUCTIONS
OAKTON®35632-Series
Portable Waterproof
pH/Dissolved Oxygen
Meter
pH/Dissolved Oxygen/°C/°F Meter
pH/DO 300 Series
WATERPROOF
MODE
HOLD
ENTER
ON
OFF
CAL
MEAS
▲▼
SETUP
ATC
READY
MEAS
C
%
IP
67
Notes
Write down the name and information of your OAKTON distributor here.
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

32
Table of Contents
1. Introduction............................................................................................4
2. Display and keypad functions .............................................................5-6
2.1 Display...................................................................................................................................5
2.2 Keypad...................................................................................................................................6
3. Preparation..........................................................................................7-9
3.1 Inserting the batteries..........................................................................................................7
3.2 Probe information — Connecting the probes...............................................................8-9
4. Calibration.......................................................................................10-19
4.1 Important information on meter calibration .................................................................10
4.2 Preparing the meter for pH calibration..........................................................................11
4.3 pH calibration................................................................................................................12-13
4.4 Preparing the meter for DO calibration..........................................................................14
4.5 Dissolved oxygen calibration in % saturation..........................................................15-16
4.6 Dissolved oxygen calibration in mg/l (ppm) mode ...............................................17-18
4.7 Temperature calibration....................................................................................................19
5. Measurement...................................................................................20-24
5.1 Taking DO readings......................................................................................................20-21
5.2 Taking pressure/salinity compensated DO measurements...................................21-22
5.3 Taking pH readings......................................................................................................23-24
5.4 Manual temperature compensation................................................................................25
6. Hold function........................................................................................26
7. Backlit LCD............................................................................................27
8. Advanced SETUP functions..............................................................28-55
8.1 Advanced setup mode overview................................................................................29-31
pH measurement mode overview ................................................................................29
% saturation measurement mode overview ...............................................................30
mg/l (ppm) measurement mode overview.................................................................31
8.2 pH mode—Program P1.0: Viewing previous calibration data....................................32
8.3 pH mode—Program P2.0: Viewing electrode data..................................................33-34
P2.1 Electrode offset.........................................................................................................33
P2.2 Electrode slope .........................................................................................................34
8.4 pH mode—Program P3.0: pH measurement configuration...................................35-37
P3.1 READY indicator and auto endpoint function....................................................35
P3.2 Selecting number of pH calibration points..........................................................36
P3.3 Selecting °C or °F .....................................................................................................37
8.5 pH mode—Program P4.0: Resetting to factory default settings.................................38
8.6 % saturation mode—Program P1.0: Dissolved oxygen parameters
Pressure adjustment mode..............................................................................................39
8.7 % saturation mode—Program P2.0: Offset adjustment................................................40
8.8 % saturation mode—Program P3.0: Previous calibration information......................41
8.9 % saturation mode—Program P4.0: Electrode properties ...........................................42
8.10 % saturation mode—Program P5.0: Unit configuration.......................................43-44
P5.1 READY indicator and auto endpoint function....................................................43
P5.2 Selecting °C or °F temperature readout................................................................44
8.11 % saturation mode—Program P6.0: Adjusting LCD brightness...............................45
8.12 % saturation mode—Program P7.0: Resetting to factory default.............................46
8.13 mg/l (ppm) mode—Program P1.0: Dissolved oxygen parameters....................47-48
P1.1 Pressure adjustment mode .....................................................................................47
P1.2 Salinity adjustment mode.......................................................................................48
8.14 mg/l (ppm) mode—Program P2.0: Previous calibration information.....................49
8.15 mg/l (ppm) mode—Program P3.0: Electrode properties ..........................................50
8.16 mg/l (ppm) mode—Program P4.0: Unit configuration........................................51-53
P4.1 READY indicator and auto endpoint function....................................................51
P4.2 Selecting mg/l or ppm units..................................................................................52
P4.3 Selecting °C or °F temperature readout................................................................53
8.17 mg/l (ppm) mode—Program P5.0: Adjusting LCD brightness................................54
8.18 mg/l (ppm) mode—Program P6.0: Resetting to factory default..............................55
9. Probe care and maintenance...........................................................56-60
9.1 pH electrode care ..........................................................................................................56-57
9.2 DO probe care.....................................................................................................................57
9.3 Membrane replacement ...............................................................................................58-59
9.4 Electrolyte solution ............................................................................................................60
10. Troubleshooting..................................................................................61
11. Error Messages....................................................................................62
12. Specifications......................................................................................63
13. Accessories.....................................................................................64-65
14. Appendix 1: Meter theory ..................................................................66
15. Appendix 2: Pressure vs. Altitude table.............................................67
16. Appendix 3: Factory default settings.................................................68
17. Warranty.............................................................................................69
18. Return of Items...................................................................................69
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

54
1. Introduction
Thank you for selecting an OAKTON meter. This OAKTON portable meter
is a microprocessor-based instrument that measures pH, dissolved oxygen and
temperature. It’s completely waterproof—and it floats! Your meter has many
user-friendly features, all of which are accessible through the membrane keypad.
Your meter includes batteries. Please read this manual thoroughly before operating
your meter.
2. Display and Keypad Functions
Display
The LCD has a primary and secondary display.
• The primary display shows the measured pH or dissolved oxygen reading.
• The secondary display shows the temperature of the reading.
The display also shows error messages, keypad functions and program functions.
ATC
READY
MEAS CAL
HOLD
ERR F
pH%
SETUP
ON
OFF C
ppm
mg/l
ppt
2.1
Primary display
5.
6.
Secondary display
3.
2.
15.
16.
14.
12. 11.
8.
1.
13.
4.
10.
7.
pH/Dissolved Oxygen/°C/°F Meter
pH/DO 300 Series
WATERPROOF
MODE
HOLD
ENTER
ON
OFF
CAL
MEAS
▲▼
SETUP
ATC
READY
MEAS
C
%
1. SETUP mode indicator
2. MEASurement mode
indicator
3. CALibration mode
indicator
4. pH indicator
5. % saturation indicator
6. Salinity input indicator
7. Oxygen solubility
indicators
8. Temperature
indicators
9.Automatic Temperature
Compensation
indicator
10. ERRor indicator
11. Low battery indicator
12. Probe indicator
13. Calibration data
indicator
14. Function ON/OFF
indicator
15. HOLD indicator
16. READY indicator
9.
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

76
Keypad
The large membrane keypad makes the instrument easy to use. Each button, when
pressed, has a corresponding graphic indicator on the LCD.
ON/OFF............Powers and shuts off the meter.
HOLD ..............Freezes the measured reading. To activate, press HOLD while in
measurement mode. To release, press HOLD again.
NOTE: When auto endpoint feature is switched on, it automatically
holds reading after 5 seconds of stability. The HOLD indicator
appears on the display. Press HOLD to release.
MODE..............Selects the measurement parameter. Press MODE to toggle between
pH; DO % saturation; DO mg/l (ppm). In pH and DO mg/l (ppm)
calibration modes press MODE to access temperature calibration.
NOTE: To switch between mg/l and ppm modes, see page 52.
CAL/MEAS......Toggles user between Calibration and Measurement mode.
• If you were in pH mode, press CAL/MEAS to enter
pH calibration mode.
• If you were in DO % saturation mode, press CAL/MEAS to enter
DO % saturation calibration mode.
• If you were in DO mg/l (ppm) mode, press CAL/MEAS
to enter DO mg/l (ppm) calibration mode.
NOTE: Temperature calibration is available from both pH and DO
mg/l (ppm) calibration modes; see page 19 for directions.
In advanced set-up mode: Press CAL/MEAS to return to main menu
from sub menus. Press CAL/MEAS again to return to measurement
mode from main menu.
ENTER ............Press to confirm values in Calibration mode and to confirm
selections in SETUP mode.
▲▼..........Press in SETUP mode to
scroll through subgroups.
Also lets you increment/
decrement the values in
the mg/l and temperature
calibration modes.
SETUP..............Press to enter SETUP
mode. SETUP mode lets
you customize meter
preferences and defaults,
and view calibration and
probe data.
..........................LIGHT Press to activate
backlit display.
2.2
MODE
HOLD
ENTER
ON
OFF
CAL
MEAS
▲▼
SETUP
Battery
compartment
Remove these
two screws to
access battery
compartment
3. Preparation
Inserting the Batteries
Four AAA batteries are included with your meter.
1. Use a Phillips screwdriver to remove the two screws holding the battery cover.
See figure below.
2. Lift off battery cover to expose batteries.
3. Insert batteries. Follow the diagram inside the cover for correct polarity.
4. Replace the battery cover into its original position. Screw cover back into place.
3.1
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

98
To connect the pH electrode:
1. Slide the BNC connector of the probe over the BNC connector socket on the
meter. Make sure the slots of the connector are in line with the posts of the
socket. Rotate and push the connector clockwise until it locks.
See figure below.
2. To remove probe, push and rotate the connector counterclockwise. While
holding onto the metal part of the connector, pull probe away from the meter.
CAUTION: Do not pull on the probe cord or the probe wires might disconnect.
To connect the dissolved oxygen probe:
NOTE: Do not substitute other DO probes. For a replacement DO probe, see the
“Accessories” section, page 64.
1. Line up the notch and 6 pins on the meter with the holes in the 6-pin connector.
Push down and turn the locking ring clockwise to lock into place.
See figure below.
2. To remove probe, turn the locking ring counterclockwise on the probe connector.
Pull probe away from the meter.
CAUTION: Do not pull on the probe cord or the probe wires might disconnect.
DO probe
(with 6-pin connector)
locking ring
pH Electrode
(with BNC connector)
top view of 6-pin
connector of
DO probe
Probe information
Your meter uses two probes:
• pH electrode with BNC connector
• dissolved oxygen/temperature probe with a notched 6-pin connector
The temperature sensing element built into the dissolved oxygen probe will also
compensate for pH readings as long as both probes are in your solution at the
same time.
You can use any standard pH electrode with a BNC connector with this meter.
If you do not have the DO probe connected you will need temperature probe
35618-05 to provide temperature compensation for pH readings (not included
order separately). For the dissolved oxygen/temperature probe, you must use an
OAKTON dissolved oxygen/temperature probe with the notched 6-pin connector.
For replacement probes, see the “Accessories” section, pages 64-65.
NOTE: Keep connectors dry and clean. Do not touch connectors with soiled hands.
3.2
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

1110
For directions on how to calibrate your meter:
• See sections 4.2-4.3 on pages 11-13 for pH calibration
• See section 4.4-4.5 on page 14-16 for % saturation calibration
• See section 4.4 and 4.6 on page 14, 17-18 for mg/l (ppm) calibration
• See section 4.7 on pages 19 for Temperature Calibration
Preparing the Meter for pH Calibration
Before starting pH calibration, make sure you are in the correct measurement mode.
When you switch on the meter, the meter starts up in the units last used. For
example, if you shut the meter off in "pH" units, the meter will read "pH" units
when you switch the meter on.
Do not reuse pH calibration solutions after calibration. Contaminants in the solution
can affect the calibration, and eventually the accuracy of the measurements. See
pages 64-65 for information on our high-quality pH calibration solutions.
Be sure to remove the protective rubber cap from the pH electrode before
calibration or measurement. If the electrode has been stored dry, wet the probe in
tap water for 10 minutes before calibrating or taking readings to saturate the pH
electrode surface and minimize drift.
Wash your probe in deionized water after use, and store in electrode storage
solution. If storage solution is not available, use pH 4.0 or 7.0 buffer.
The pH/DO 300 meter is capable of up to 5-point pH calibration at pH 1.68, 4.01, 7.00,
10.01, and 12.45 to ensure accuracy across the entire pH range of the meter . The meter
automatically recognizes and calibrates to these standard buffer values, which makes
pH calibration faster and easier.
To calibrate at 5 points you must select a 5-pt calibration in SETUP mode program P3.2
on page 36. You can select 2, 3, 4 or 5 calibration points for pH calibration.
4. Calibration
Important Information on Meter Calibration
When you recalibrate your meter, old calibration points are replaced on a
“point by point” basis in pH and completely for % saturation and mg/l (ppm).
For example:
•pH: if you previously calibrated your meter at pH 4.01, 7.00, and 10.01, and you
recalibrate at pH 7.00, the meter retains the old calibration data at pH 4.01 and
pH 10.01.
•% saturation and mg/l (ppm): All new calibrations automatically override existing
calibration data.
To view current calibration points:
• pH: Program P1.0 in the SETUP section, page 32.
• % saturation: Program P3.0 in the SETUP section, page 41.
• mg/l (ppm): Program P2.0 in the SETUP section, page 49.
To completely recalibrate your meter, or when you use replacement probes,
it is best to clear old calibration data by resetting the meter.
To reset the meter to its factory defaults:
• pH: Program P4.0 in the SETUP section, page 38.
• % saturation: Program P7.0 in the SETUP section, page 46.
• mg/l (ppm): Program P6.0 in the SETUP section, page 55.
NOTE: Resetting the meter will set meter to factory defaults.
pH, % saturation and mg/l (ppm) must be reset separately.
4.2
4.1
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

1312
6. Press ENTER to confirm calibration.
The meter is now calibrated to the
current buffer.
See figure
• If you are performing multipoint
calibration, go to step 7.
• If you are performing one-point
calibration, go to step 9.
7. Rinse the probe with de-ionized water
or a rinse solution, and place it in the
next pH buffer.
8. Follow steps 5 to 8 for additional
calibration points.
9. When calibration is complete,
press CAL/MEAS to return to pH
measurement mode.
Notes
To exit from pH Calibration mode without
confirming calibration, DO NOT press
ENTER in step 6. Press CAL/MEAS instead.
If the selected buffer value is not within
±1.0 pH from the measured pH value: the
electrode and buffer icon blink and the
ERR annunciator appears in the lower left
corner of the display.
To limit the number of pH buffer values
available during calibration, see section
P3.2 on page 36.
pH
READY
CAL
pH
D
D
pH Calibration
1. If necessary, press the MODE key to
select pH mode. The pH indicator
appears in the upper right hand corner
of the display.
See figure
2. Rinse the pH electrode and DO probe
thoroughly with de-ionized water or a
rinse solution. Do not wipe the probe;
this causes a build-up of electrostatic
charge on the glass surface.
3. Dip both probes into the calibration
buffer. The end of both probes must be
completely immersed into the sample. Stir
the probe gently to create a homogeneous
sample.
4. Press CAL/MEAS to enter pH calibration
mode. The CAL indicator lights. The
primary display will show the measured
reading while the smaller secondary
display will indicate the pH standard
buffer solution.
See figure
5. Wait for the measured pH value to
stabilize.
See figure
pH
READY
CAL
pH
C
C
B
pH
CAL
pH
B
pH
ATC
MEAS
C
A
A
pH calibration
NOTE: We recommend that you perform at least a 2-point calibration using standard
buffers that bracket (one above and one below) the expected sample range.
You can perform a 1-point calibration, but make sure that the buffer value is
close to the sample value you are measuring.
The temperature sensing element is in the DO probe. For temperature
compensated readings and calibration, immerse the DO probe into the
calibration buffer while calibrating pH.
If the READY indicator has been activated
(set up program P3.1—see page 35), the READY
annunciator lights when the reading is stable.
4.3
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

Dissolved Oxygen calibration in percent saturation
You can calibrate this meter quickly and easily in air. The exact calibration value
depends on barometric pressure. The meter is set to a factory default of 760 mm Hg,
which results in a calibration value of 100% saturation in air.
NOTE: If the barometric pressure setting has been changed from 760 mm Hg, the
calibration value in air will automatically adjust to a value other than 100%.
The adjusted value will be correct for the new barometric pressure setting.
• See page 39 to change the pressure setting.
• See Appendix 2 on page 67 for a chart of adjusted % saturation values.
1514

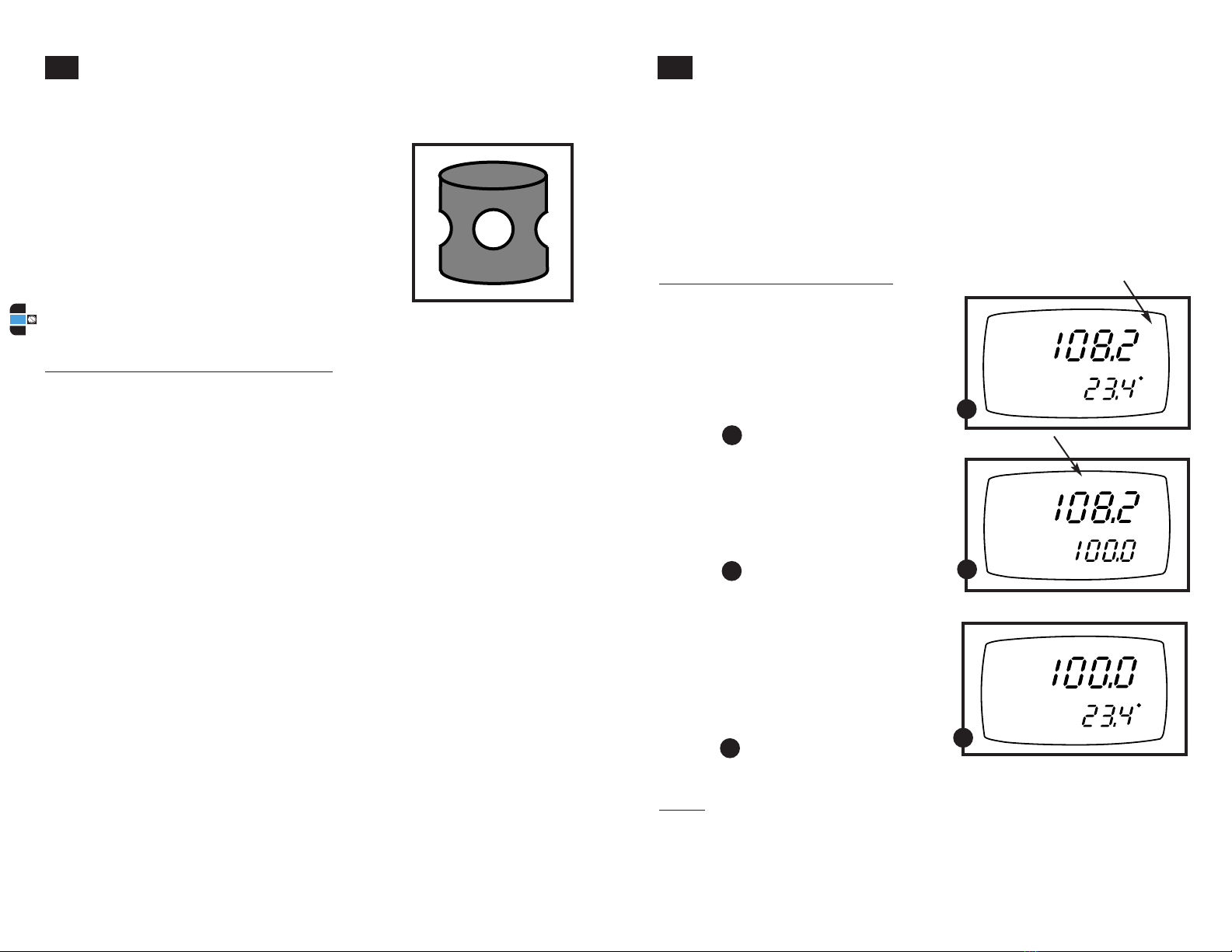

To calibrate 100 % saturation:
1. Rinse the probe well with deionized
rinse water or rinse solution. For best
accuracy, wrap the end of the probe
in a damp cloth. Do not touch the
membrane.
2. Press the MODE key to select the
% saturation mode.
See figure
3. Press the CAL key. The CAL indicator
will appear above the primary display.
The primary display shows the current
value of the measurement and the
secondary display will show 100.0
(see NOTE above).
See figure
4. Hold the probe in the air (or in damp
cloth). Wait for the reading to stabilize.
If the Ready indicator feature is enabled,
it will appear when the reading is stable
(see page 43 for Ready indicator setup).
5. Press the ENTER key. The meter auto-
matically calibrates to 100.0% air satura-
tion and returns to Measurement mode.
See figure
ATC
READY
MEAS %
C
READY
CAL %
ATC
READY
MEAS %
C
4.5
A
A
B
C
B
C
Notes
The reading in the primary display in step 3 must read at 50% or above for the
calibration to work correctly. Whenever an error occurs during calibration, the
ERR indicator appears in the lower left hand corner of the display.
You can offset your % DO calibration: see page 40 for directions.
Preparing the meter for DO calibration
Before calibrating your meter, make sure to rinse
the DO probe well with de-ionized water or rinse
solution.
NOTE: Do not let membrane surface of the DO
probe touch any other surface. The DO
probe guard (the piece with holes fitted
over the end of the probe) protects the
membrane; make sure this is always
attached to the probe while it is in use.
You can calibrate for dissolved oxygen in either
% saturation or mg/l (ppm). All new DO
calibrations automatically override existing
DO calibration data.
Before Dissolved Oxygen calibration
Before starting DO calibration, make sure you are in
the correct measurement mode. When you switch
on the meter, the meter starts up in the units last
used (either pH, mg/l, ppm, % saturation). For
example, if you shut the meter off in “mg/l” units,
the meter will read “mg/l” units when you switch
the meter on.
NOTE: Most users will calibrate to 100% saturation
even when working in mg/l. When calibrat-
ing the meter in mg/l mode, you can make
fine adjustments, typically to a midrange
value between 10 and 100%. If you are
calibrating to a midrange value, you need
to set the 100% saturation value first.
4.4
DO Probe guard
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

Dissolved Oxygen calibration in mg/l (ppm) mode
Calibrating the meter to 100 % in saturation mode will also calibrate the mg/l mode
at the value in mg/l corresponding to 100% saturation. This should produce
acceptable results in most applications.
This meter also lets you make a calibration adjustment in mg/l (ppm) mode
without affecting your % saturation calibration.
To select between mg/l and ppm units, see page 52.
1716

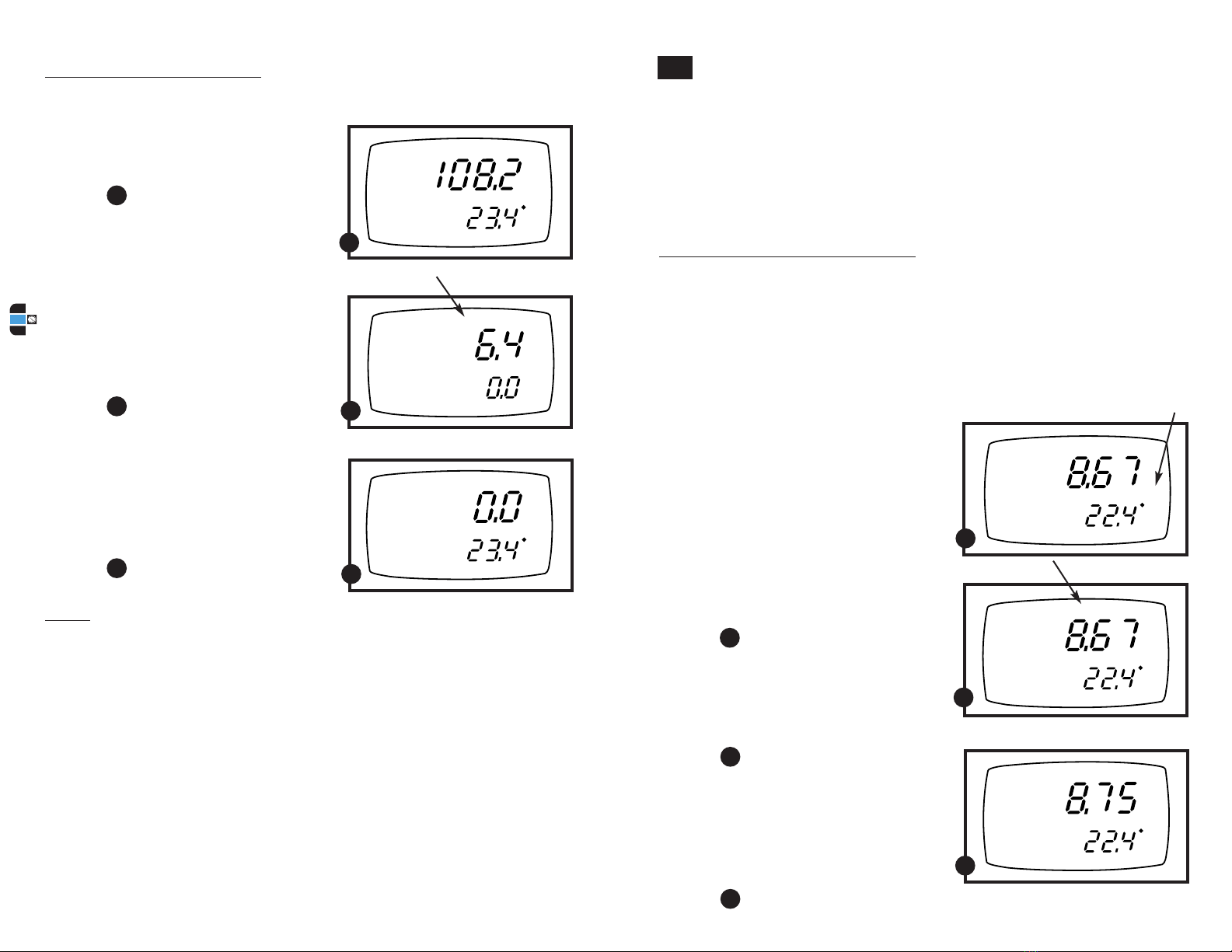

To calibrate 0 % saturation:
1. Rinse the probe well with deionized
rinse water or rinse solution. Do not
touch the membrane.
2. Press the MODE key to select the
% saturation mode.
See figure
2. Place the probe in zero oxygen
solution. Stir the probe gently to
homogenize the sample. Make sure
that the sample is continuously flowing
past the membrane sensor.
3. Press the CAL key. The CAL indicator
will appear above the primary display.
The primary display shows the current
value of the measurement and the
secondary display will show 0.0.
See figure
4. Wait for the reading to stabilize. If the
Ready indicator feature is enabled, it
will appear when the reading is stable
(see page 43 for Ready indicator setup).
5. Press the ENTER key. The meter auto-
matically calibrates to 0.0% saturation
and returns to Measurement mode.
See figure
Notes
The reading in the primary display in step
3 must read at 10% or under for the calibra-
tion to work correctly. Whenever an error
occurs during calibration, the ERR indicator
appears in the lower left hand corner of the
display.
You can offset your % DO calibration: see
page 40 for directions.
ATC
READY
MEAS %
C
READY
CAL %
D
D
E
E
ATC
READY
MEAS %
C
F
F
To calibrate in mg/l (ppm) mode:
1. Calibrate 100% saturation per section 4.5
on page 15.
2. Rinse the probe well with deionized
rinse water or rinse solution. Wipe the
outside of the probe carefully (do not
touch the membrane).
3. Dip the probe into a sample of known
oxygen concentration. Wait for the
reading to stabilize. If the Ready
indicator feature is enabled, it will appear
when the reading is stable (see page 43
for Ready indicator setup).
NOTE: The sample must continuously flow
past the membrane for accurate
readings. A stirrer can keep the
solution agitated; order a magnetic
stirrer on page 65.
4. Press the MODE key to select the
mg/l (ppm) mode.
See figure
5. Press the CAL key. The CAL indicator
will appear above the primary display.
The primary display shows the current
value of the measurement and the sec-
ondary display shows the temperature.
See figure
6. Press the ▲and ▼keys to adjust
the reading.
7. Press the ENTER key. The meter
automatically calibrates to the
value you entered and returns
to Measurement mode.
See figure
4.6
ATC
READY
MEAS
C
mg/l
ATC
READY
CAL
C
mg/l
ATC
READY
CAL
C
mg/l
A
A
B
C
C
B
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

1918
Notes on mg/l (ppm) mode calibration
During mg/l (ppm) calibration, the meter adjusts to
the barometric pressure value that is programmed into
the meter. It also adjusts to the salinity value that is
programmed into the meter.
You can change the barometric pressure value and
salinity value in the mg/l (ppm) SETUP mode (see
pages 47-48 for directions).
Whenever an error occurs during calibration, the ERR
indicator appears in the lower left hand corner of the
display.
Temperature Calibration
The built-in temperature sensor included in the DO probe is factory calibrated.
Calibrate your sensor only if you suspect sensor drift that may have occurred
over a long period of time or if you have a replacement DO probe. Make sure DO
probe is attached before you perform the temperature calibration.
1. Switch the meter on. Press MODE to
select either pH or mg/l (ppm)
Measurement mode.
2. Press the CAL/MEAS key to enter
pH or mg/l (ppm) calibration mode.
The CAL indicator will appear above the
primary display.
See figure
3. While in pH or mg/l (ppm) calibration
mode, press the MODE key to enter
temperature calibration mode.
The primary display shows the last set
temperature reading and the secondary
display shows you the factory default
temperature value.
See figure
4. Compare the primary display reading
to a NIST-traceable thermometer or
another thermometer known to be
accurate.
5. Press the ▲or ▼keys to adjust
the primary display reading to agree
with your temperature standard.
See figure
6. Press the ENTER key to confirm
temperature calibration and return to
Measurement mode.
Notes
To exit from Temperature Calibration mode
without confirming calibration, DO NOT
press ENTER in step 6. Press CAL/MEAS
instead.
Temperature calibration is restricted to
±5°C from the factory default value
displayed during calibration (shown in the
secondary display).
ATC
READY
CAL
C
mg/l
ATC
READY
CAL
C
ATC
READY
CAL
C
A
B
C
4.7
A
B
C
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

2120
5. Measurement
Taking DO readings
During measurement, the probe can be:
• fully immersed in the solution
• partially immersed in the solution
Do not allow the probe’s membrane surface to touch
anything! The probe guard (the piece with holes fitted
over the end of the probe) protects the membrane; you
should leave this piece attached to the probe at all times.
IMPORTANT: since the DO probe consumes oxygen from the sample, the sample
must constantly flow past the membrane to achieve more accurate readings. You can
use a stirrer to accomplish this (see “Accessories” on page 65 for a magnetic stirrer).
To take measurements:
1. Rinse the probe well with deionized
rinse water or rinse solution.
2. Select the appropriate measurement
mode. Press the MODE key to toggle
between modes:
• % saturation.
• mg/l (ppm)**,
• pH
3. Dip the probe into the sample. Stir the
probe gently to homogenize the sample.
Make sure that the sample is continu-
ously flowing past the membrane sensor.
4. Note the reading on the display. If the
READY indicator is switched on, it will
appear when the reading is stable.
See figure
ATC
READY
MEAS
C
mg/l
5.1
A
A
Probe guard
**To select between mg/l and ppm units, see page 52.
The ATC indicator should appear in the lower right hand corner of the display.
If it does not, this indicates an error.
CONTINUED ON NEXT PAGE
Taking measurements with READY indicator selected on
If the READY indicator has been activated, the READY annunciator lights when
the reading is stable. Switch the READY indicator on or off in the SETUP program
P5.1 for % saturation measurements (page 43) or program P4.1 (page 51) for mg/l
(ppm) measurements.
Taking measurements with the auto endpoint feature selected on
When a reading is stable for more than 5 seconds, the auto endpoint feature will
automatically “hold” the reading. The “hold” indicator appears on the left side of
the display. Press the HOLD key to release the reading. Switch the Auto endpoint
feature on or off in the SETUP program P5.1 for % saturation measurements (page
43) or program P4.1 (page 51) for mg/l (ppm) measurements.
Taking pressure/salinity compensated DO measurements
If necessary, you can adjust the pressure and salinity values of your measurements
in the SETUP mode. The DO meter will automatically compensate for salinity and
pressure based on the values entered in the setup functions. The meter is factory set
at 760 mm Hg (101.3 Pascals) pressure adjustment and a factor of 0.0 salinity adjust-
ment. See Appendix 2 on page 67 for a “Pressure vs Altitude” table.
Pressure adjustment
NOTE: This adjustment appears in both
the % saturation and mg/l (ppm)
measurement modes.
1. Press the MODE key to select % satura-
tion or mg/l (ppm) mode. Press the
SETUP key to enter Set Up mode.
See figure
2. Press the ENTER key until the upper
display shows a number and the lower
display shows “Hg” or “PA”.
3. Use the ▲and ▼keys to enter the
barometric pressure. The upper display
will show the value you have entered.
See figure
4. Press ENTER to confirm pressure value.
5. Press CAL/MEAS to return to measure-
ment mode, or continue with step 4 on
page 22 to make a salinity adjustment
[available from mg/l (ppm) mode only].
5.2
SETUP
A
SETUP
B
A
B
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

2322
Salinity adjustment
NOTE: this mode appears in mg/l (ppm)
measurement mode only.
1. Press the Mode key to select mg/l (ppm)
mode.
2. Press the SETUP key to enter Set Up
mode.
See figure
4. Press the ENTER key until the upper
display shows a number and the lower
display shows “SAL”.
5. Use the ▲and ▼keys to enter the
salinity of your solution in ppt. The
upper display will show the value you
have entered.
See figure
6. Press the ENTER key to confirm value.
7. Press CAL/MEAS to return to
Measurement mode.
A
B
SETUP
ppt
SETUP
A
B
To take readings:
1. Rinse the pH electrode with deionized or
distilled water before use to remove any
impurities adhering to the probe body. If
the pH electrode has dehydrated, soak it
for 30 minutes in OAKTON electrode
storage solution or a 2M–4M KCl solution.
2. Press ON to switch on meter. Press
MODE key to select pH measurement
mode. The MEAS annunciator appears
on the top center of the LCD. The ATC
indicator appears in the lower right hand
corner to indicate Automatic Temperature
Compensation. If the ATC indicator does
not appear, make sure DO probe is
plugged into the meter.
See figure
3. Dip both the pH electrode and the DO
probe into the sample.
When dipping the pH electrode into the
sample, the sensor or the glass bulb of the
electrode must be completely immersed into
the sample. Stir the probe gently in the sam-
ple to create a homogenous sample.
4. Allow time for the reading to stabilize.
Note the reading on the display.
5. Press the MODE key to toggle between
modes:
• pH
• % saturation.
• mg/l (ppm)**
Taking pH Measurements
Be sure to remove the protective rubber cap on the electrode before measurement.
To ensure Automatic Temperature Compensation (ATC) for pH measurements, the
DO probe must be plugged in and must be immersed into the sample you wish to
take pH readings.
pH
ATC
MEAS
C
A
A
5.3
**To select between mg/l and ppm units, see page 52.
The ATC indicator should appear in the lower right hand corner of the display.
If it does not, this indicates an error.
CONTINUED ON NEXT PAGE
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

24 25
Taking measurements with READY indicator selected on
If the READY indicator has been activated, the READY annunciator lights when
the reading is stable. Switch the READY indicator on or off in Set up program P3.1—
see page 35 for directions.
Taking measurements with the auto endpoint feature selected on
When a reading is stable for more than 5 seconds, the auto endpoint feature will
automatically “HOLD” the reading. The “HOLD” indicator appears on the left side
of the display. Press the HOLD key to release the reading. Switch the Auto endpoint
feature on or off in Set up program P3.1—see page 35 for directions.

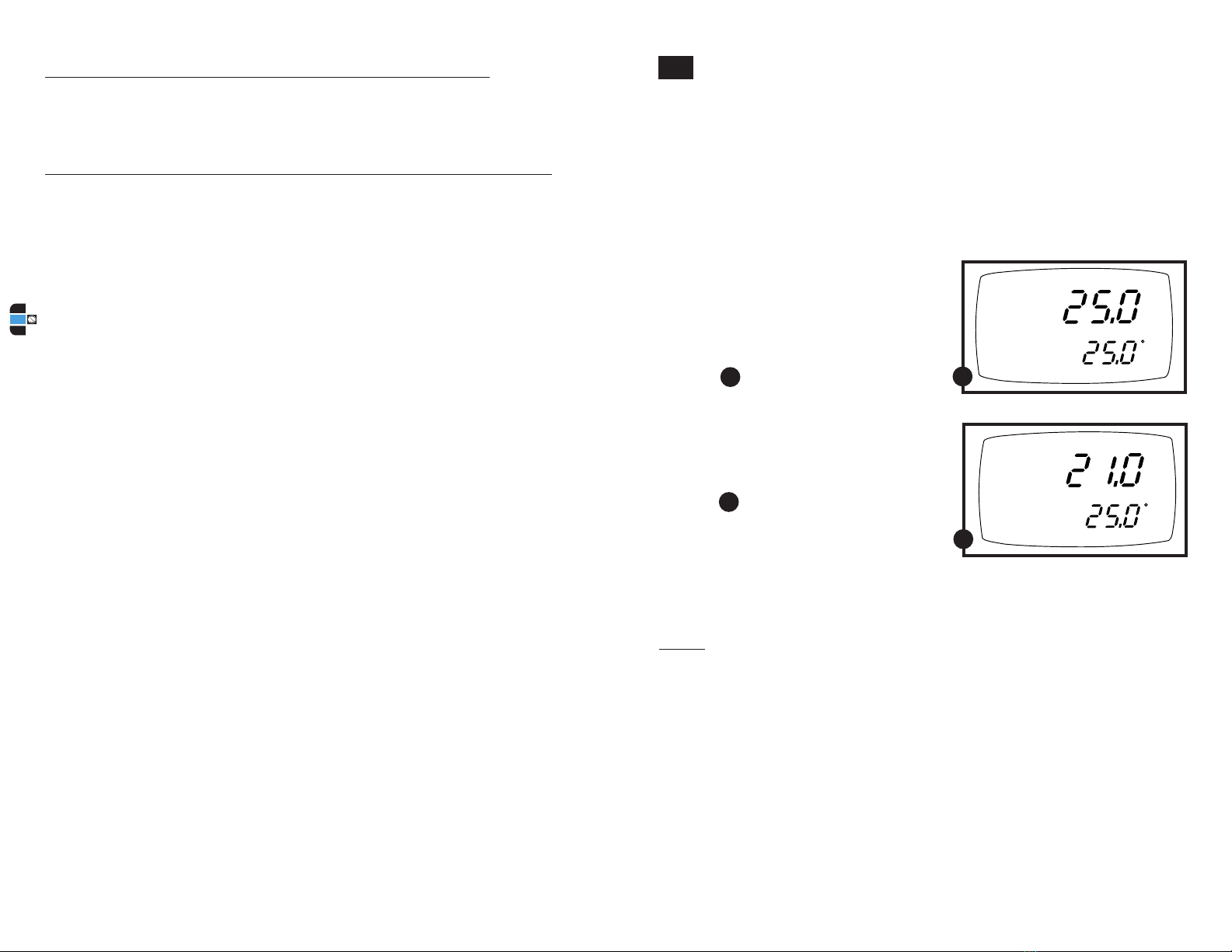

IMPORTANT: For manual compensation,
you must disconnect the DO or tempera-
ture probe (see page 9).
1. Switch the meter on. Press the MODE
key to select pH mode.
2. Press the CAL/MEAS key to enter pH
calibration mode. The CAL indicator will
appear above the primary display.
3. While in pH calibration mode, press
the MODE key to enter temperature
calibration mode. The primary display
shows the current temperature setting
and the secondary display shows the
default value 25°C.
See figure
4. Check the temperature of your sample
using an accurate thermometer.
5. Press the ▲or ▼keys to offset the
temperature to the measured value
from step 4.
See figure
6. Press ENTER to confirm the selected
temperature and to return to the pH
measurement mode.
The meter will now compensate pH
readings for the manually set temperature.
Notes
To exit this program without confirming the
manual temperature compensation value,
DO NOT press ENTER in step 6. Press
CAL/MEAS instead.
Manual Temperature Compensation
CAL
C
A
A
5.4
CAL
C
B
B
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

2726
Using the backlit LCD
This feature lets you view readings in
low light situations.
1. To activate the backlit LCD feature,
press the key to activate.
See figure
To keep the LCD backlit, keep the
key pressed. If the key is not
pressed, the backlight automatically
shuts off automatically after 20 seconds
after pressing the key.
A
7. Backlit LCD
ENT
MEAS
▲▼
SETUP
Adjusting LCD brightness
This mode lets you adjust the brightness
of the backlit LCD. Selecting a dimmer
backlighting level helps conserve batteries.
This adjustment is only available in the
% saturation or mg/l (ppm) SETUP modes.
From measurement mode:
1. Press the MODE key to switch to
% saturation or mg/l (ppm) mode.
2. Press SETUP key to enter SETUP mode.
3. Press the ▲and ▼keys to scroll through
subgroups until you view parameter
“LCd” in the upper display.
See figure
4. Press the ENTER key. A number (0-8)
appears in the upper display and “LCd”
appears in the lower display.
See figure
5. Press the ▲and ▼keys to select
from level 0 (dimmest light) to level 8
(brightest light).
6. Press the ENTER key to confirm
selection and to return to the subgroup
menu. Press the CAL/MEAS key to
return to measurement mode.
SETUP
SETUP
A
A
B
B
A
This feature lets you freeze the value of
the pH, % saturation or mg/l (ppm) and
temperature readings for a delayed
observation. HOLD can be used any
time when in MEAS mode.
1. To hold a measurement, press the
HOLD key while in measurement
mode. The “HOLD” annunciator will
appear on the display.
See figures and
2. To release the held value, press HOLD
again. Continue to take measurements.
NOTE: This meter shuts off automatically
after 20 minutes of nonuse. If the
meter is shut off either automatically
or manually, the HOLD value will
be lost.
NOTE: This meter has an auto endpoint
feature. When this feature is
switched on, the display will
automatically “HOLD” a reading
that has been stable for more than
5 seconds. The “HOLD” indicator
appears. Press the HOLD key to
release the reading. To switch on or
off the auto endpoint feature, see
the SETUP program P3.1 on page
35 for pH, P5.1 on page 43 for %
saturation and P4.1 on page 51 for
mg/l (ppm).
ATC
MEAS
HOLD
%
C
B
A
6. HOLD function
pH
ATC
MEAS
HOLD
C
A
B
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

2928
8. Advanced SETUP functions
The advanced set up mode lets you customize your meter’s preferences and
defaults. Your OAKTON waterproof meter features different sub groups that
organize all SETUP parameters.
This meter displays different subgroups depending on which mode the meter is in:
pH
SETUP
pH
SETUP
pH
SETUP
pH
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
SETUP
CAL: Calibration data
ELE: Probe data
COF: Configuration
rSt: Reset meter to factory
default
dPr: Dissolved oxygen
parameters
% saturation offset
adjustment
CAL: Calibration data
ELE: Probe data
COF: Configuration
LCd: Backlit display
ELE: Probe data
COF: Configuration
rSt: Reset meter to factory
default
CAL: Calibration data
dPr: Dissolved oxygen
parameters
pH % Saturation mg/l (ppm)
LCd: Backlit display
rSt: Reset meter to factory
default
From the pH measurement mode
Advanced SETUP mode detailed overview
CAL: Viewing previous calibration data
• View previous calibration data
ELE: Viewing electrode data
• View pH electrode offset
• View pH electrode slope
COF: Unit configuration
• Ready indicator on or off / auto endpoint on or off
• number of calibration points: 2, 3, 4, or 5
• Select °F or °C
8.1
rSt: Reset to factory default
• Reset to factory default settings
Instructions on page 32
pH
SETUP
Instructions on page 33-34
pH
SETUP
Instructions on page 35-37
pH
SETUP
Instructions on page 38
pH
SETUP
Press the SETUP key to enter SETUP mode. Press the ▲and ▼keys to scroll through
sub groups.
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

From the % saturation measurement mode
dPr: Dissolved oxygen parameters
• Select Hg or Pa barometric pressure units
• Select barometric pressure
CAL: Viewing previous calibration data
• View previous calibration data
OFS: % saturation offset adjustment
• Set % saturation offset adjustment
ELE: Viewing probe data
• View probe slope
• View % saturation offset
• View mV value equivalent to 100% saturation
• View mV value equivalent to 0% saturation
COF: Unit configuration
• Ready indicator on or off / auto endpoint on or off
• Select °F or °C
LCd: Backlit display
• Adjust brightness of backlit LCD
Instructions on page 39
SETUP
Instructions on page 40
SETUP
Instructions on page 41
SETUP
Instructions on page 42
SETUP
Instructions on page 43-44
SETUP
Instructions on page 45
SETUP
rSt: Reset to factory default
• Reset to factory default settings
Instructions on page 46
SETUP
From the mg/l (ppm) measurement mode
dPr: Dissolved oxygen parameters
• Select Hg or Pa barometric pressure units
• Select barometric pressure
• Select salinity adjustment factor
CAL: Viewing previous calibration data
• View previous calibration data, including date/time
ELE: Viewing probe data
• View probe slope
• View mV value equivalent to 100% saturation
• View mV value equivalent to 0% saturation
COF: Unit configuration
• Ready indicator on or off / auto endpoint on or off
• Select mg/l or ppm units
• Select °F or °C
rSt: Reset to factory default
• Reset to factory default settings
Instructions on page 47-48
SETUP
Instructions on page 49
SETUP
Instructions on page 50
SETUP
Instructions on page 51-53
SETUP
Instructions on page 55
SETUP
LCd: Backlit display
• Adjust brightness of backlit LCD
Instructions on page 54
SETUP
3130
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

32 33
From measurement mode:
1. Press the MODE key to select pH
measurement mode.
2. Press the SETUP key to enter SETUP
mode.
See figure
3. Press the ▲and ▼keys to scroll
through subgroups until you view
parameter P1.0.
4. Press the ENTER key repeatedly to view
previous calibration data.
P1.1 = pH 1.68
P1.2 = pH 4.01
P1.3 = pH 7.00
P1.4 = pH 10.01
P1.5 = pH 12.45
See figure
5. When you have scrolled through all
calibration data, you will automatically
return to the subgroup menu. Press the
CAL/MEAS key to return to measure-
ment mode.
NOTES:
If there is no previous calibration data at
a particular point, the primary display will
show “----”.
See figure
pH mode—P1.0: Viewing previous calibration data
Program P1.0 lets you recall previous calibration data, which helps you know when to
recalibrate your meter. This is a “view only” mode.
8.2
pH
SETUP
A
A
pH
SETUP
B
pH
SETUP
C
B
C
P2.1: Electrode offset
From measurement mode:
1. Press the MODE key to select pH
measurement mode.
2. Press the SETUP key to enter Set Up
mode.
3. Press the ▲and ▼keys to scroll
through subgroups until you view
parameter P2.0.
See figure
4. Press the ENTER key to select
parameter P2.1.
5. The display shows the electrode offset
value.
• the display shows the mV offset at
pH 7.00. If you have not calibrated at
any buffer, the primary display shows
0.00 mV.
See figure
6. Press the ENTER key to to proceed to
step 4 of P2.2. Or, press the CAL/MEAS
key to return to measurement mode.
pH mode—P2.0: Viewing electrode data
Program P2.0 has two “view only”options that lets you check the electrode parame-
ters for diagnostic purposes.
pH
SETUP
A
A
SETUP mV
pH
B
B
8.3
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

3534
pH
SETUP
D
D
SETUP %
pH
E
E
P2.2: Electrode slope
NOTE: this parameter is available in
pH measurement mode only.
From measurement mode:
1. If necessary, press the MODE key to
select pH measurement mode. Press
the SETUP key to enter SETUP mode.
2. Press the ▲and ▼keys to scroll
through subgroups until you view
parameter P2.0.
See figure
3. Press the ENTER key twice to select
parameter P2.2.
4. The display shows electrode slope
in percentage of the range you are
currently measuring. Default setting
is 100.0.
See figure
5. Press the ENTER key to return to the
subgroup menu. Press the CAL/MEAS
key to return to measurement mode.
From measurement mode:
1. Press the MODE key to select pH
measurement mode.
2. Press SETUP key to enter SETUP mode.
3. Press the ▲and ▼keys to scroll
through subgroups until you view
parameter P3.0.
See figure
4. Press the ENTER key to select
parameter P3.1.
See figure
5. Press the ▲and ▼keys to select the
configuration you require.
•OFF switches the READY indicator off.
•ON switches the READY indicator on.
•ON and HOLD together switches the
auto endpoint feature on.
6. Press the ENTER key to confirm selec-
tion and to proceed to step 4 of P3.2.
Press the CAL/MEAS key to return to
measurement mode.
pH mode—P3.0: pH measurement configuration
P3.1: READY indicator and auto endpoint function
This program lets you select:
• “READY indicator on” to indicate when the reading is stable.
• “READY indicator off” for faster meter response.
• Auto endpoint function on. Select auto endpoint on to “hold” the reading when
it is stable for more than 5 seconds. The display automatically freezes, and the
HOLD indicator appears on the left side of the display. Press the HOLD key to
release the display and access other functions.
pH
SETUP
READY
SETUP
ON
READY
SETUP
OFF
READY
HOLD
SETUP
ON
8.4
A
A
B
B
NOTES: Meter default is set for Ready indi-
cator on, and auto endpoint function off.
You can also change the Ready indicator and
auto endpoint function in SETUP Program
P5.1 on page 43 in % saturation mode or
Program P4.1 on page 51 in mg/l (ppm)
mode. Any changes you make to the Ready
indicator/ auto endpoint function in pH
mode will also change in % saturation and
mg/l (ppm) modes.
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

3736
From measurement mode:
1. Press the MODE key to select pH
measurement mode.
2. Press SETUP key to enter SETUP mode.
3. Press the ▲and ▼keys to scroll through
subgroups until you view parameter P3.0.
See figure
4. Press the ENTER key twice to select
parameter P3.2.
See figure
5. Press the ▲and ▼keys to select 2, 3, 4,
or 5 point pH calibration.
6. Press the ENTER key to confirm selection
and to return to the subgroup menu.
Press the CAL/MEAS key to return to
measurement mode.
pH
SETUP
SETUP
C
C
D
D
P3.2: Selecting number of pH calibration points
Program P3.2 lets you select the number of pH calibration points the meter will use
in calibration mode: 2, 3, 4, or 5. The meter will automatically exit calibration mode
after you have calibrated to your selected number of points.
P3.3 Selecting °C or °F
This meter lets you select between °C and °F units for temperature readings.
From measurement mode:
1. Press the MODE key to select pH
measurement mode.
2. Press SETUP key to enter SETUP mode.
3. Press the ▲and ▼keys to scroll through
subgroups until you view parameter P3.0.
See figure
4. Press the ENTER key three times to
select parameter P3.3.
See figure
5. Press the ▲and ▼keys to toggle
between °C and °F.
6. Press the ENTER key to confirm selec-
tion and to return to the subgroup menu.
Press the CAL/MEAS key to return to
measurement mode.
pH
SETUP
E
E
F
NOTES:
You can also switch between °C and °F in SETUP Program P5.2 on page 44 in
% saturation mode or Program P4.3 on page 53 in mg/l (ppm) mode. If you switch
between °C and °F in pH mode, the meter will also switch in % saturation and mg/l
(ppm) modes.
C
SETUP
F
SETUP
F
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

3938
pH mode—P4.0: Resetting to factory default settings
This program lets you reset all pH parameters to factory default settings. This
clears all calibration data any other pH setup functions you might have changed.
The following settings will remain as you have set them:
• Temperature unit of measure (°C or °F)
• The temperature offset calibration value
• All dissolved oxygen calibration data and parameters including the LCD contrast
setting
8.5
Notes:
To reset all % saturation data, see page 46.
To reset all mg/l (ppm) data, see page 55.
See page 68 for a table of factory default settings.
pH
SETUP
A
MEAS
SETUP pH
MEAS
SETUP pH
B
From measurement mode:
1. Press the MODE key to select pH
measurement mode.
2. Press SETUP key to enter SETUP mode.
3. Press the ▲and ▼keys to scroll through
subgroups until you view parameter P4.0
in the lower display.
See figure
4. Press the ENTER key.
See figure
5. Press the ▲and ▼keys to toggle
between NO and YES.
• NO retains current settings
• YES resets to factory default settings
6. Press the ENTER key to confirm
selection and to return to measurement
mode.
A
B
% saturation mode—P1.0: Dissolved Oxygen Parameters
This sub group lets you adjust the barometric pressure
Pressure adjustment mode
Barometric pressure is vital to correct dissolved oxygen measurements. You need to
enter the correct barometric pressure of the area you are measuring. This mode lets you
perform two functions:
• Select either mm Hg or Pascal barometric pressure units
• Adjust the barometric pressure. See Appendix 2 on page 67 for a “Pressure vs
Altitude” table.
8.6
From measurement mode:
1. Press the MODE key to select %
saturation mode.
2. Press the SETUP key to enter SETUP
mode.
3. Press the ▲and ▼keys to scroll through
subgroups until you view parameter P1.0
in the lower display.
See figure
4. Press the ENTER key twice. The upper
display shows either Hg or PA and the
lower display shows bAr.
5. Press the ▲and ▼keys to toggle between
mm Hg and Pascal units.
See figure
6. Press the ENTER key to confirm selection
and move to the next screen. The upper
display shows the barometric pressure and
the lower display shows the units selected
in step 5.
See figure
7. Press the ▲and ▼keys to adjust
the barometric pressure. The pressure
adjustment range is 500 to 1499 mm Hg
(66.6 to 199.9 kPa).
8. Press the ENTER key to confirm
selection and move to step 3 on page 40.
If instead you want to return to measure-
ment mode, press CAL/MEAS twice.
SETUP
SETUP
SETUP
A
A
B
B
SETUP
C
C
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30
