WARNINGS
WARNINGS / SYMBOLS
1
WARNINGS/SYMBOL IDENTIFICATION
SYMBOL IDENTIFICATION
This symbol, when used in this manual and on product labels, represents a caution
warning. Be sure to read and comply with all precautions and warnings.
This symbol, when used in this manual and on product labels, warns against an electrical
shock hazard. Be sure to observe and comply with all warnings.
This symbol, when used in this manual or on product labels, indicates a Protective
Earth (Ground) Terminal.
This symbol when used in this manual or on product labels, warns that during transport
there should be no stacking of containers.
This symbol, when used in this manual or on product labels, indicates that the product
should be protected from moisture. The humidity specifications for Transport &
Storage are listed in the back of this manual.
This symbol, when used in this manual or on product labels, indicates that information
is given regarding the recommended temperature limits during transport and storing.
This symbol, when used in this manual or on product labels, indicates the date of
manufacture of the device.
This symbol, when used in this manual or on product labels, indicates alternating
current (AC).
This symbol, when used in this manual or on product labels, indicates direct current
(DC).
This symbol, when used in this manual or on product labels, indicates that
instructional information is included. It should be read carefully and completely .
~
----
Improper use of this device can cause injury. Be sure to read all operating instructions
prior to use.
Electrical Shock Hazard. The outlet strip is mounted inside the lower cabinet..
Excessive steam and or water can damage your trolley.
Top must be open when using stone warmer.
Failure to do this may void all or part of warranty.

PRODUCT DESCRIPTION
2
PRODUCT DESCRIPTION
PRODUCT

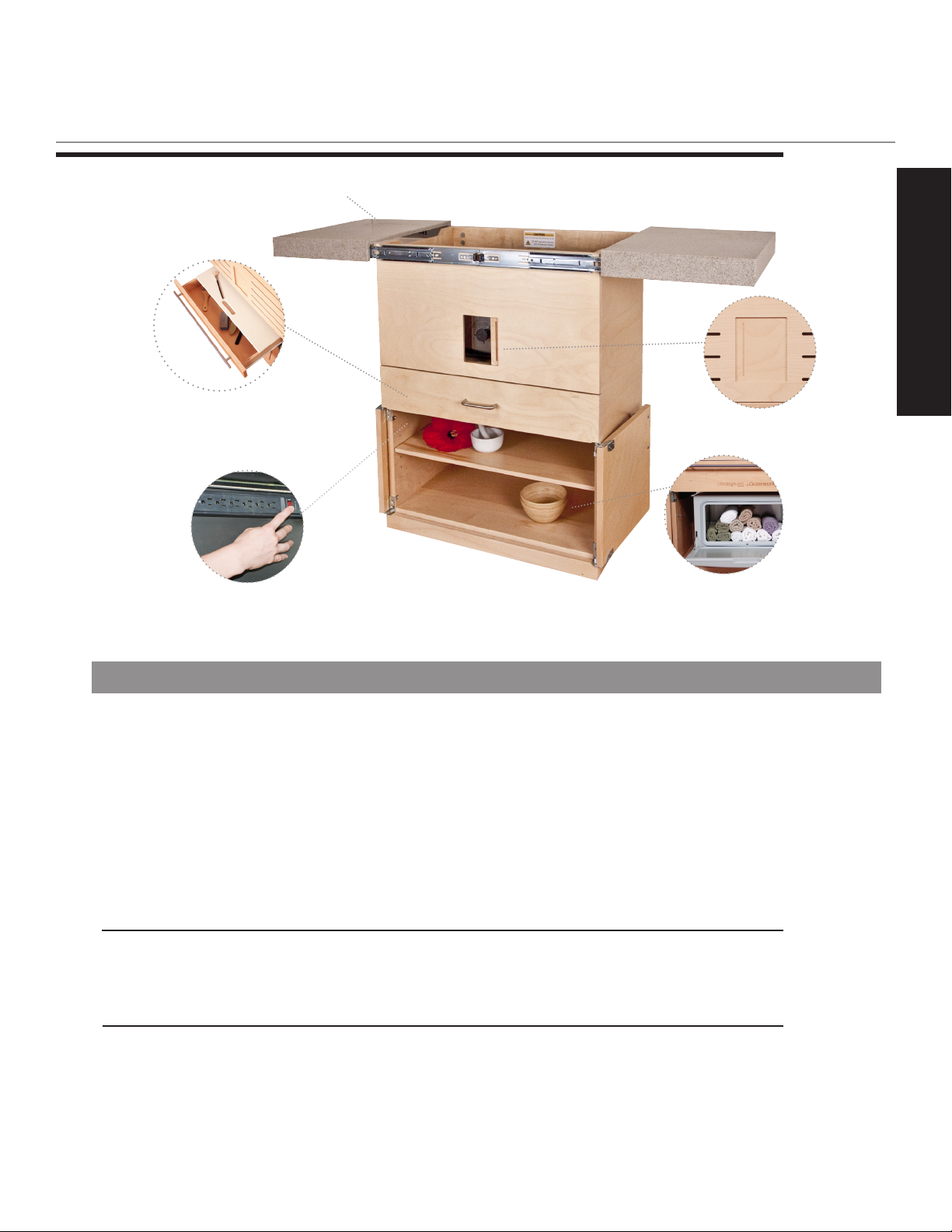

DESCRIPTION Sliding top
Adjustable/removable
shelf & hardware.
(accessory items not included.)
Drawer with work
surface/cover
(accessory items not included.)
SPECIFICATIONS
Outlet
Power Strip
DIMENSIONS
Trolley Dimensions with top closed: 27 1/8” L x 18” W x 34 ½” H
Trolley Dimensions with top open: 49 3/4” L x 18” W x 34 ½” H
Inside Dimensions of top compartment: 23 3/8” L x 14 1/8” W x 13” H
Drawer Dimensions: 21 1/8” L x 12 ½” W x 2 3/8” H
Pull-out work surface (in drawer): 23 ¼” x 7”
Dimensions of Lower Cabinet
with adjustable shelf: 23 3/8” L x 13 3/4” W x 12” H
Packing Dimensions: 30 ¾” L x 21 3/8”W x 38” H
WEIGHT
Weight: 100 lbs.
Shipping Weight: 110 lbs.
ELECTRIC
Built in power strip, US standard; International Electrical available
Control
Access
Panel

3
OPERATING SLIDING TOP
DIRECTIONS FOR USE
DIRECTIONS FOR USE
CAUTION
Do not put more than 10 lbs.
on a side of the top when fully
extended to avoid tipping.
Be sure to read all
cautions, warnings
and instructions given
in the manual to prevent
injury to both operator
and client.
CAUTION
Do not operate hot stone
warmer with Trolley top
closed. Doing so will cause
accelerated damage to the
top surface. Top must be
open when hot stone warmer
is in use in order to release
the steam caused by the
stone warmer.
To open, grab the top by the edges
and slide them apart. There are
internal stops in the slides that will
keep the top from coming off the
tracks.
To close, just slide the top halves
together.
LOWER SHELF INSTALLATION & ADJUSTMENT
1. Open doors & insert pins into
holes (4) at the level where the shelf
is desired.
2. Place shelf onto
pins & lower the
shelf onto the cut
outs on the bottom.
Pin
Shelf
cut-out
POWER STRIP USE
1. Turn off switch to power strip
before plugging in or un-plugging
any appliance.
2. Route power cord
towards the rear of the
trolley before plugging
them into the power strip.
CAUTION
Do not allow power cords to
hang out of the front or top of
the trolley. The cords can get
pinched and cause a fire or
electrocution.
CAUTION
Be sure power to the trolley is
disconnected when not in use.
CAUTION
Be sure no body parts and/or
clothing are caught in the top
as it is sliding.
Extra
holes
CAUTION
Excessive steam and or water
can damage your trolley.

4
DIRECTIONS FOR USE
DIRECTIONS FOR USE
INSTALLING OPTIONAL HOT TOWEL WARMER
1. Set the warmer on the floor in
front of the trolley.
2. Turn off the switch
to the power strip and
plug in the warmer. Turn
on the switch to the power strip.
Open the cabinet doors & remove the adjustable shelf & pins.
Reverse installation instructions on page 4.
3. Set the warmer into the cabinet
making sure the power cord is
routed towards the back.
4. Your towel cabi is ready to use.
Be sure to keep Trolley doors open
when towel cabi is in use.
CAUTION
Keep Trolley doors open when
towel cabi is in use.
Be sure to follow towel warmer
manufacturer’s instructions.
INSTALLING OPTIONAL STONE WARMER
1. Slide the stone warmer into the
hole in the rear of the trolley. The
controls can face towards the front of
the trolley.
2. Route the power cord out of the
rear access and into the lower cabinet
access hole.
3. From the front, open the cabinet
doors and switch the power strip to
the off position.
4. Plug the stone warmer into the
power strip & switch the power
strip back to the on position.
CAUTION
Do not operate hot stone
warmer with Trolley top
closed. Doing so will cause
accelerated damage to the
top surface. Top must be
open when hot stone warmer
is in use in order to release
the steam caused by the
stone warmer.
Be sure to follow stone warmer
manufacturer’s instructions.
CAUTION
Make sure the hot towel cabi
door is closed properly and
the drainage tray is emptied
to prevent damage to the
trolley.

5
PRODUCT INFORMATION
PRODUCT INFORMATION
HOW TO CARE FOR YOUR TROLLEY
• Useonlyamildsolutionof4:1dilutednon-alcoholcleanersuchas
Simple Green®, 409®, Fantastik® or some other non-abrasive cleaner to
wipe down the metal surfaces of the trolley. Apply with a damp (not wet)
lint-free cloth. Be sure excess liquid does not drip onto, or into, any of the
electrical controls or mechanisms. Be sure that the unit is unplugged before
cleaning these areas. Wipe these areas carefully with a lint free cloth.
• Theslidesandcastersofyourtrolleyrequirenogeneralmaintenanceorlubrication.
• Thewoodenportionsoftheequipmentcanbepolishedwithanypolish
approved for wooden surfaces. Spray, or pour, the polish onto a soft cloth
and be careful not to get it onto other surfaces.
• Thetabletopmaterialmaystainifitissubjectedtoprolongedexposureof
dark liquids and chemicals. If a mild solution does not remove the stain, the
top will need to be re-surfaced by sanding and polishing with an approved
compound of 1200 grit polish or finer.
• Waterspillsorcondensationshouldberemovedimmediatelyfromsurfaces.
OPERATING DRAWER WITH WORK SURFACE
Pull the work surface the
whole way out to conceal
your supplies and for
extra working space.
Easily push the work surface the whole way back
allowing access to the drawer and your supplies.
PERMISSIBLE ENVIRONMENTAL CONDITIONS
Conditions Temperature Humidity Atmospheric Pressure
Normal Use 50° (10°C) to 100° (38°C) 20% to 60% RH 98 to 150 kPa
Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 150 kPa
PERMISSIBLE ENVIRONMENTAL CONDITIONS

6
ELECTRICAL SPECS
ELECTRICAL SPECIFICATIONS
PLUG IDENTIFICATION
Oakworks®Part #: Voltage (AC) Power Cord Plug
2083-5 120v 60 Hz 3 prong grounded
North America
2083-2 220v 50 Hz Continental Plug; Europe
2083-3 220v 50 Hz British plug;
United Kingdom
ELECTRICAL SPECIFICATIONS
Designed For: North America Europe/UK
Electric Service
Operating Voltage
Power
Consumption Max.
Electric Shock Protection
120V/15A/60Hz
120 VAC
1800 watts
Class I Equipment
220V/10A/50Hz
220 VAC
1800 watts
Class I Equipment
Part No. Accessory Description
3680-1 Hot towel cabi, US, 120V
3680-2 Hot towel cabi, EU, 220V
3680-5 Mini Hot towel cabi, US
xxxx Hot stone warmer
OPTIONAL ACCESSORIES

Manual Part Number MMMNST0013-EN
Revision: A
Revision date: 04/24/2015
Edition 1, English
Printed in USA
© Copyright 2008
INSTRUCTION MANUAL
CONTACT INFORMATION:
Oakworks®Inc.
923 East Wellspring Road
New Freedom, PA 17349
Toll Free (USA only): 800-916-4613
Phone: [phone]
FAX: [phone]
www.oakworks.com
