OAKWORKS Clodagh Libra User manual

Libra™
INSTRUCTION MANUAL
www.oakworks.com · 717.235.6807

© Copyright 2010
Oakworks®, Inc.
Manual Part # MMMNST0020
1st Edition, May 2010
Printed in U.S.A.
All rights are reserved. No
part of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of Oakworks®, Inc.
Oakworks®is a registered
trademark of Oakworks®, Inc.
Notice
The information contained in this document is
subject to change without notice and should not
be construed as a commitment by Oakworks®, Inc.
Oakworks®, Inc. assumes no responsibility for
any errors that may appear in this document nor
does it make expressed or implied warranty of
any kind with regard to this material, including,
but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Oakworks®, Inc. shall not be liable for incidental
or consequential damages in connection with
or arising out of the furnishing, performance, or
use of this document and the program material
which it describes.

warnings / symbols
1
TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS
Symbol Identification ............................................................................................ pg 2
Warnings & Safety Instructions ..................................................................... ....... pg 3
Grounding Instructions .................................................................................. ....... pg 6

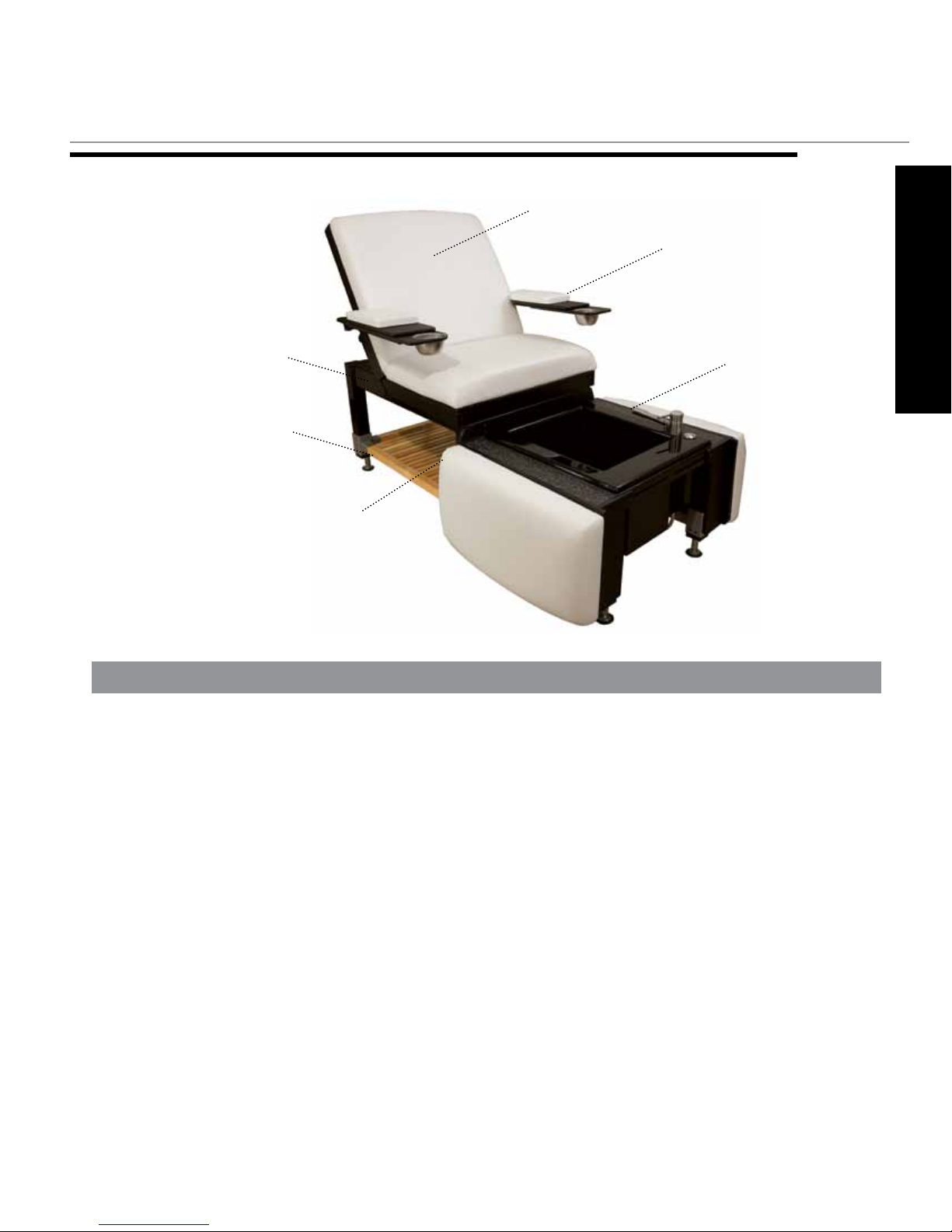

Product Description & Table Specs .................................................................... pg 7

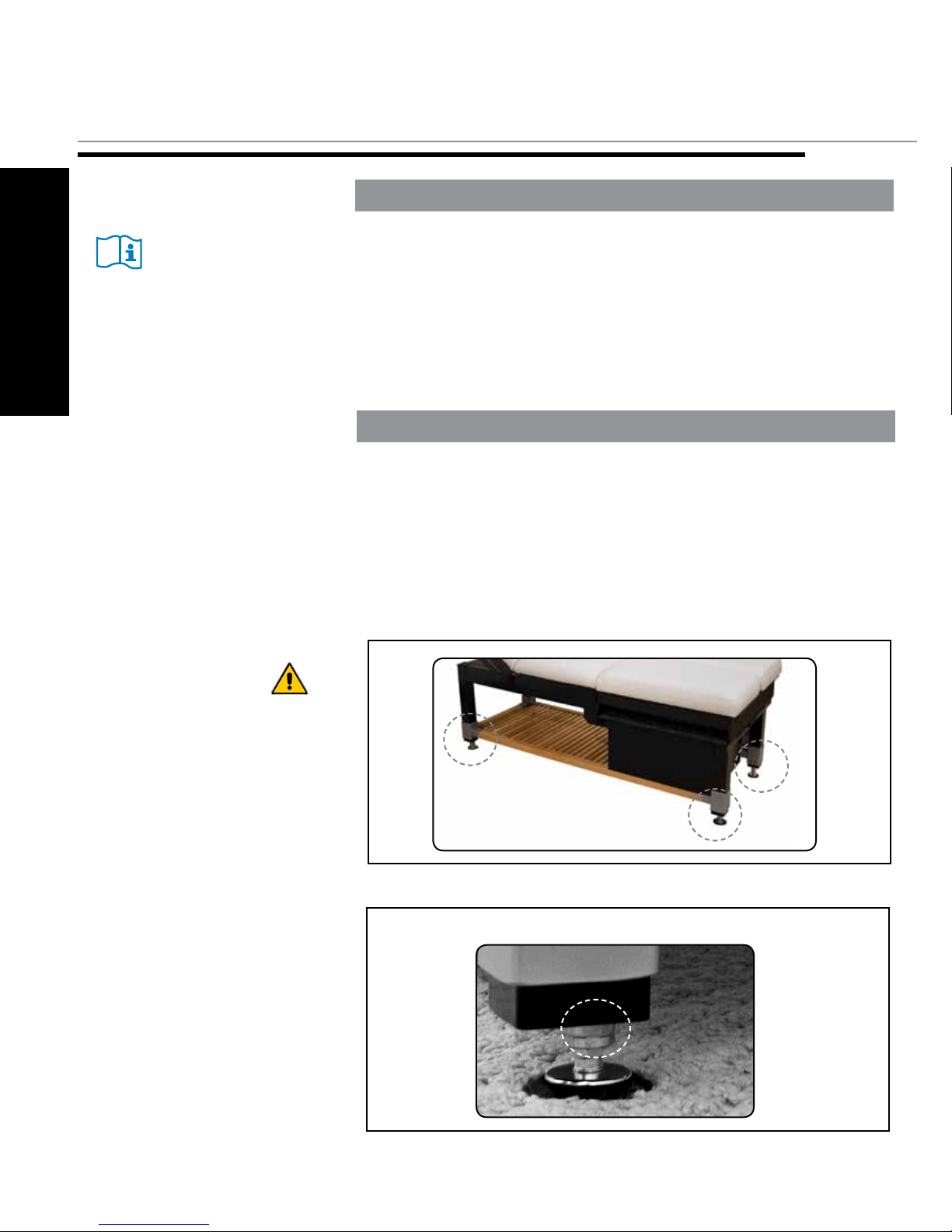

Installation & Leveling Instructions ............................................................... ....... pg 8

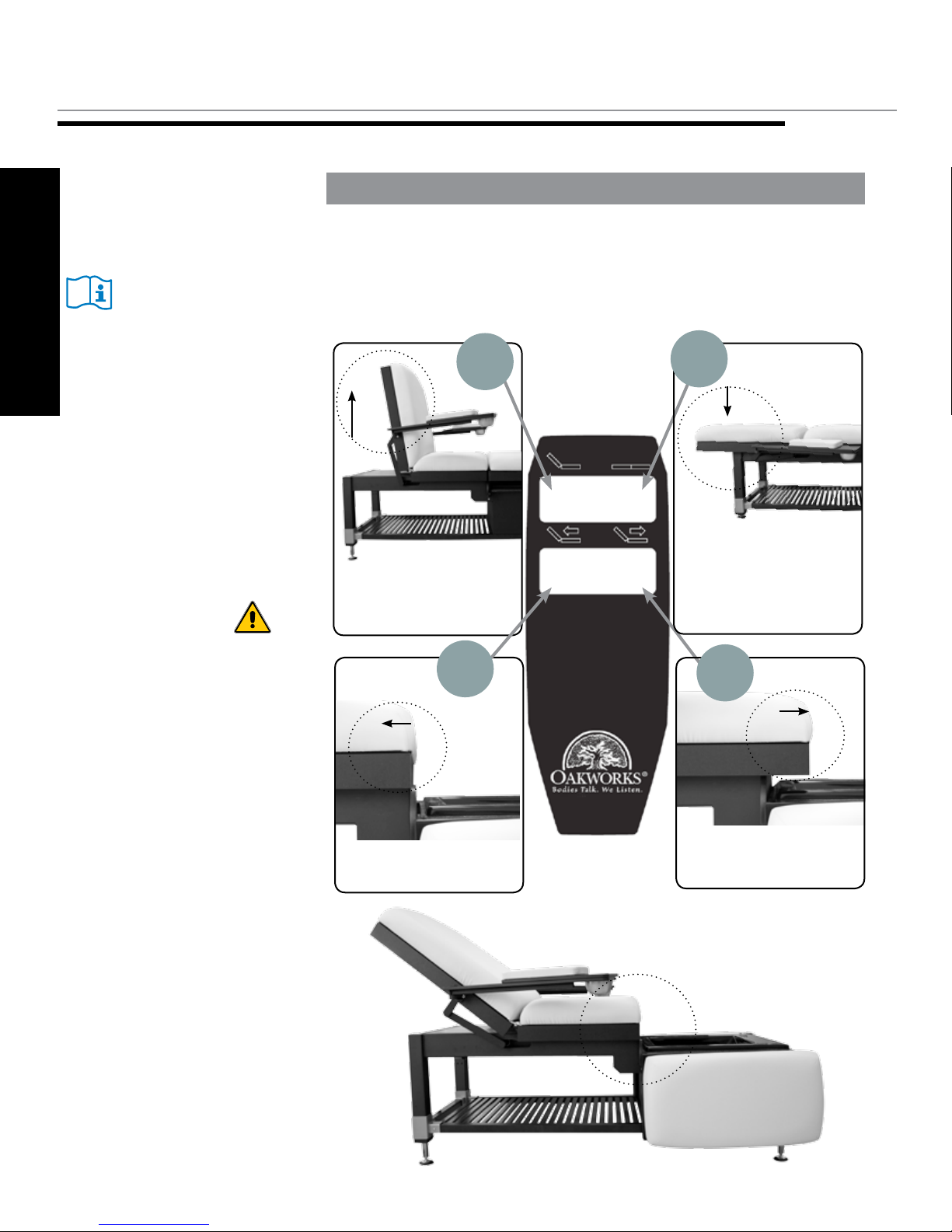

Directions for Use
Adjusting Height................................................................................. pg 9
Adjusting the Top............................................................................... pg 10
Important Safety Note.......................................................................................... pg 11
Side Arm Rests.................................................................................................. ..... pg 12
QuickLock Face Rest............................................................................................ pg 14
Foot Bath ....................................................................................................... pg 15
Foot Rest ....................................................................................................... pg 16
How to drain Foot Bath ........................................................................................ pg 16
Moving your Table .............................................................................................. pg 17
Care & Cleaning ................................................................................................. pg 18
How to clean the Foot Bath ................................................................................ pg 19
Power Lead Plugs ........................................................................................... ..... pg 20
Electrical Specifications.................................................................................. ..... pg 21
Warranty information ........................................................................................... pg 21
Contact Information .................................................................................. back cover

2
SYMBOL IDENTIFICATION
SYMBOL IDENTIFICATION
SYMBOL IDENTIFICATION
This symbol, when used in this manual and on product labels, represents a caution. Be
sure to read and comply with all precautions and warnings.
This symbol, when used in documentation on this product, indicates danger and warns
against an electrical shock hazard. Be sure to observe and comply with all warnings and
instructions.
This symbol, when used in documentation on this product, indicates a Protective
Earth (Ground) Terminal.
This symbol when used in documentation on this product, warns that during transport
there should be no stacking of containers.
This symbol, when used in documentation on this product, indicates that the product
should be protected from moisture. The humidity specifications for Transport &
Storage are listed in the back of this manual.
This symbol, when used in documentation on this product, indicates that information
is given regarding the recommended temperature limits during transport and storing.
The specifications for these limits are listed in the back of this manual.
This symbol, when used in documentation on this product, indicates the date of
manufacture of the device.
This symbol, when used in documentation on this product, indicates alternating
current (AC).
This symbol, when used in documentation on this product, indicates direct current
(DC).
This symbol, when used in documentation on this product, indicates that
instructional information is included. All instructions should be read carefully and
completely before using the equipment.
~
----

3
WARNINGS / SAFETY
Improper use of this device can cause injury. Be sure to read all
operating instructions prior to use to prevent injury to operator or client.
Electrical Shock Hazard.
• To reduce the risk of electric shock, always disconnect the
table from the electrical outlet before moving the table or doing
any maintenance or troubleshooting procedures. Never use this
equipment if it has a damaged cord or plug. Use this equipment
only for its intended use as described in these instructions. Do not
use any attachment or accessories not recommended by the manufacturer.
• The table MUST be connected to a Ground Fault Portected Outlet
with the detector in the main circuit breaker box (not on the outlet).
The GFCI included with the table is not sufficient for full protection.
• If a floor outlet is used, the outlet must not be recessed in the floor
(to prevent water entering the outlet in the event of an overflow).
To reduce the risk of burns, fire, electrical shock or injury:
• The power supply/control module is located under the top. Refer
servicing to qualified personnel and follow manual instructions
when doing any authorized troubleshooting.
• Before cleaning with any liquid cleaner be sure to un-plug the power cord
from the power outlet. Do not operate the table in standing water.
• Before moving the table, disconnect the power cord from the power outlet
and secure the electrical cord and foot control out of the way for moving.
• Never operate this table if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return
the table to a service center for examination and repair.
• Connect this appliance only to a properly grounded outlet. (See grounding
instructions below). Do not remove, modify or immerse the integral GFCI on
the power cord.
• DO NOT permit electric appliances (e.g. hair dryer, lamp, telephone, radio,
television, etc.) to be within 5 feet (1.5m) of this appliance.
• DO NOT reach for any electrical object that has fallen into the water.
Unplug immediately.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
WARNINGS & SAFETY INSTRUCTIONS
READ AND
SAVE THESE
INSTRUCTIONS
DANGER
WARNING
READ WARNINGS CONTINUED ON NEXT PAGE

4
WARNINGS / SAFETY
WARNINGS & SAFETY INSTRUCTIONS
WARNINGS
CONTINUED
• This product is equipped with an interior accessory outlet (110V only).
The total electrical load plugged into this set of outlets is not to exceed
1000 watts.
• Risk of Injury – Children should never be near the table when in use.
Remove ON-Off key when not in use. (if applicable)
• Never drop or insert any object into any opening.
• Risk of accidental injury or drowning. Exercise care when entering or
exiting the foot bath. Invalid or disabled persons should not use a hydro
foot bath without trained supervision. Children are not allowed in the
vicinity of the equipment.
• Risk of scalding and possible drowning: Water temperature in excess of 104º F
(38º C) may be injurious to your health. Check and adjust water temperature
before use.
• Hydrotherapy should be pleasant and comfortable. Should you experience
any pain or discomfort while using the foot bath, discontinue use immedi-
ately and consult your physician.
• Consult your physician if you are diabetic, have poor circulation, if any area
of you feet or legs is inflamed, has an open wound or if you have any other
questions about whether you should be using hydro massage equipment.
• Unless thoroughly cleaned after each use, bath residue will buildup within
the jets and on the surface area of any whirlpool foot bath, which can pro-
mote the growth of bacteria.
• DO NOT operate water jets unless completely installed or without water
filled to the water level indicator above the jets.
• DO NOT over fill
• DO NOT stand on or in the foot bath. Use only while seated.
• Use the Foot Bath only for its intended purpose - to provide foot and ankle
hydro massage.
• DO NOT use attachments not recommended by the manufacturer.
• DO NOT sit on moveable leg rest. Max weight limit 125 lbs. (57 kg)
READ AND
SAVE THESE
INSTRUCTIONS IMPORTANT WARNINGS & SAFETY INSTRUCTIONS

5
WARNINGS / SAFETY
WARNINGS
WARNINGS & SAFETY INSTRUCTIONS
WARNINGS & SAFETY INSTRUCTIONS

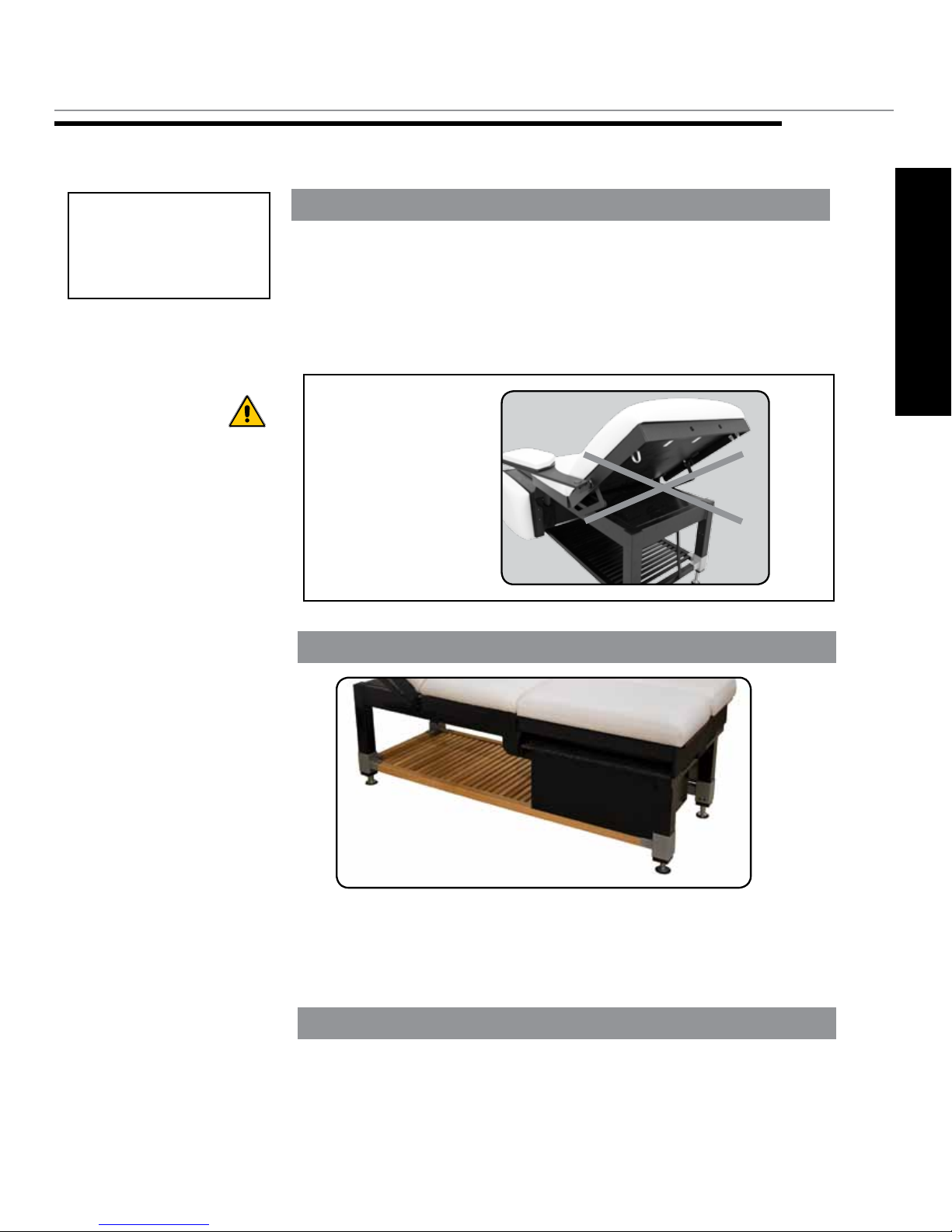

• Be certain that the table is completely lowered prior to
discharging an ambulatory patient. The patient may lose
balance and fall. Do not leave clients unattended when table is
set at its highest level.
• The table weighs as much as 225 lbs. (102 kg.) DO NOT lift
or move the unit without using proper safely procedures or
equipment. DO NOT turn the table on its side for any reason.
To do so could cause damage to the base and will void the warranty.
There are no serviceable items that require this action. Never
lift the table by grasping the table top as the table top is not
designed to hold the weight of the base and you could damage
the table.

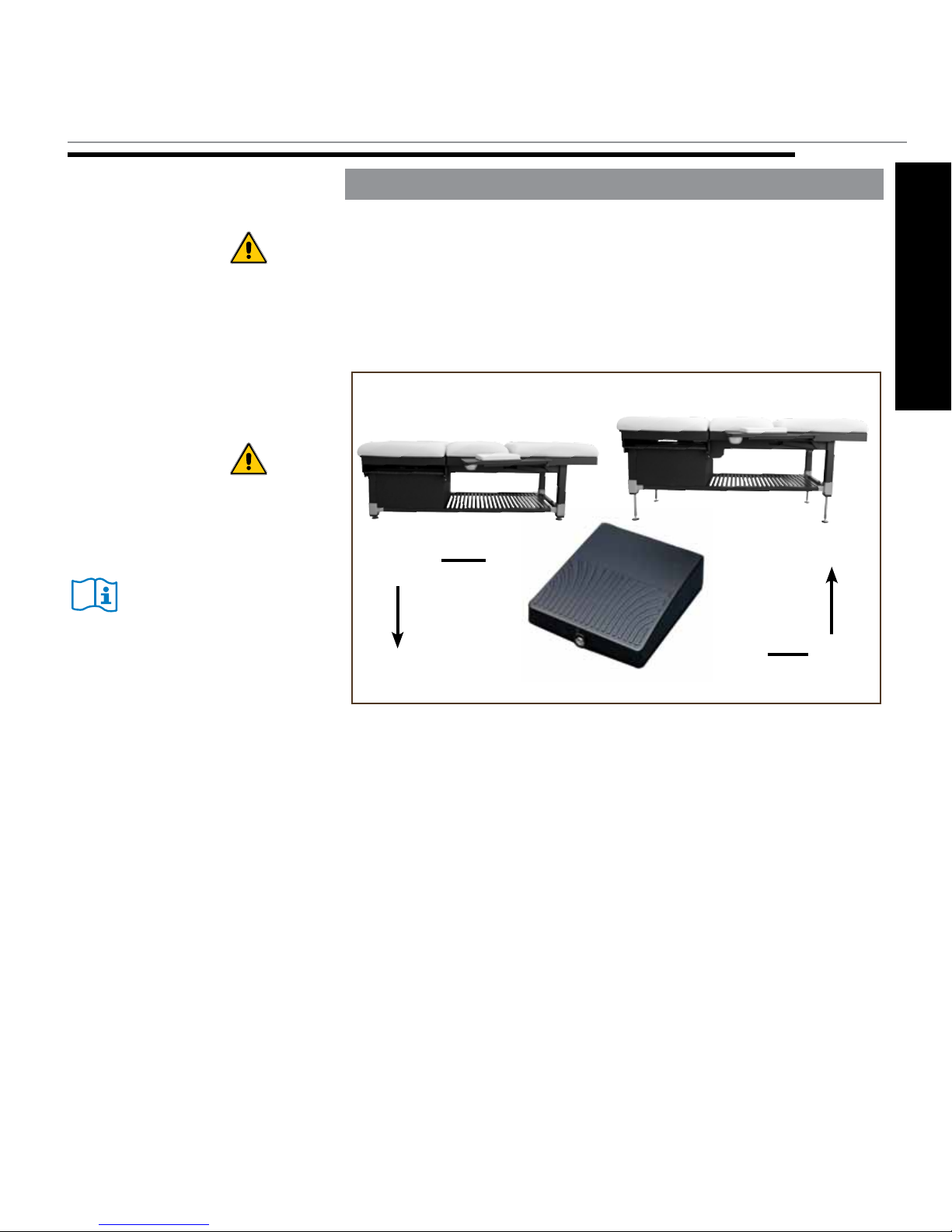

• When operating the controls and making any and all adjustments
to the table, move hands and feet away from the working mechanism
of the table.
• The optional arm rests can be repositioned to allow a client to get
on and off the table easily. When making adjustments to the arm
rests, make certain that the client’s arms are away from the working
mechanism.
• DO NOT sit on arm rests, the elevated backrest or leg rest. DO
NOT put excessive weight on the side arm rests. DO NOT use
them in assisting the client on and off the table.
• DO NOT put excessive weight or pressure on the QuickLock™
Face Rest. Excessive pressure can cause premature failure of the
QuickLock™Face Rest. Do Not extend the dowels of the Face Rest
further than 3” from the table edge to ensure a stable connection.
• DO NOT store or place anything on the cabinet hood under the
backrest as this can cause damage to the top and or hood and will
void the warranty.
• Maximum Working Load Rating (client and accessories): 500 lbs.
(226 kg.)
• Every 3 months check nuts & bolts and physical connection points
for any loose parts. Tighten as needed.
• Maximum Shelf load weight: 225 lbs. (102 kg.)
READ AND
SAVE THESE
INSTRUCTIONS
CAUTIONS

6
GROUNDING & FOOT BATH CERTIFICATION
GROUND FAULT & GROUNDING INSTRUCTIONS
WARNINGS & SAFETY INSTRUCTIONS (CONTINUED)
GROUNDING INSTRUCTIONS
• The integral GFCI should be tested on a routine basis. To test the GFCI,
push the test button. The GFCI should interrupt power. Push the reset
button. Power should be restored. If the GFCI fails to operate in this
manner, DO NOT USE THE UNIT. Disconnect the unit and have the
problem corrected by a qualified service representative or an electrician
before using.
• This product must also be connected to a Ground Fault protected outlet
with the detector in the main circuit breaker box (not on the circuit).
(NOTE: GFCI ON THE TABLE ALONE IS NOT SUFFICIENT FOR
YOUR SAFETY.) The Ground fault detector in the main circuit box
should also be tested on a routine basis.
• This product is manufactured for use on a nominal 120-volt circuit for
North America and a nominal 220-volt circuit for use in Europe. The
plug has a grounding pin in a pattern that varies by country as shown
in the Product Identification section of this manual. Make sure that the
product is connected to an outlet having the same configuration as the plug.
No adapter should be used with this product.
• THIS PRODUCT MUST BE GROUNDED -Improper connection
of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service man if you are in
doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
READ AND
SAVE THESE
INSTRUCTIONS
GROUNDING
INSTRUCTIONS
CAUTIONS
WHIRLPOOL FOOT BATH
The whirlpool foot bath provides excellent hydrotherapy, quiet operation
and the ability for quick, easy and certified cleanliness.
SANITATION CERTIFICATION: The National Sanitation Foundation (nsf.org)
has confirmed that the whirlpool foot bath can be completely cleaned and
disinfected, even if the system cleaning has been neglected.

PRODUCT DESCRIPTION
Backrest top
TABLE SPECIFICATIONS
 • LiftCapacity: 500lbs.(226kg.)
 • Weight: 200lbs.(91kg.)
 • ShippingWeight: 250lbs.(114kg.)
 • ShippingBoxDimensions:81”Lx37”Wx31”H
 • HeightRange: 25”-33”(64-84cm)
 • Width: 30”(76cm)
 • Length: 77”(195cm)
 • Top: ElectronicallyControlledBackrestTop
 • Base: MetalFrameBasewithshelfandelectricheightadjustment
 • Electronics: 1HandControl&1FootControl
 • Padding: 4”Aero·Cel™(standard),6”Aero·Cel™available
 • Upholstery: TerraTouch™(standard),UltraTouch™available
 • Shelf: 24”x37”(opening=113/4”x32”)
Forelectricalspecs,seeSpecificationsChart
* measurements are determined from floor to top of seat pad using standard padding; these measurements
can be affected by natural material variations in padding
 ** publishedweightmaydifferduetooptionschosen,naturalmaterialvariationsandpaddingdensity
PRODUCT DESCRIPTION
Storage shelf
7
PRODUCT DESCRIPTION
Hydraulic Lift
Columns (4)
Powder
Coated
Steel Base
Manicure
Arm rests (2)
PediBath

8
INSTALLATION
INSTALLATION
ASSEMBLY & INSTALLATION
INSTALLATION
The table comes completely assembled and ready to use. Plug the cord into
a functioning GFCI outlet that is rated for the table.
Arrange the power cord and foot switch so that they will not create a tripping
hazard. Place the controls in a safe location where they are convenient and
accessible. Keep the controls out of the way of all table mechanisms.
If your table was ordered with the optional faucet & drain, please review
typical installation instructions in document CSI-0077.
INSTALLATION
If Table Will Not Sit Flat on the Floor:
The table is equipped with Leveler Feet that adjust to level the table on
uneven floors. To adjust the Leveler Feet to suit common floor dif-
ferences you will need to use a 1 /2” open-end wrench or an adjustable
wrench. Adjust each leg individually in turn by adjusting the height of
each leveler foot until the unit rests level and steady. This adjustment
will not effect the function of the table.
LEVELING INSTRUCTIONS
The table weighs as much
as 200 lbs. DO NOT lift or
move the unit without using
proper safely procedures
or equipment. DO NOT turn
the table on its side for any
reason. To do so could
cause damage to the base
and will void the warranty.
There are no serviceable
items that require this action.
Never lift the table by grasp-
ing the table top as the
table top is not designed to
hold the weight of the base
and you could damage the
table.
IMPORTANT
8
1/2”Open-endWrench
When operating the table’s
controls be sure to observe
all cautions and warnings
given in the manual to pre-
vent injury to both operator
and client.
CAUTION
