User Guide of Vividia M256Pro Automatic
Dual-Camera Thermal Screening System with
Intelligent Face-Scan Software
Vividia M256Pro (i.e. FS256Pro) automatic dual-camera thermal body temperature screening
system can do continuous capture of infrared temperature and visual image in densely populated
places. M256Pro adopts advanced AI face recognition technology and reliable infrared
temperature measurement algorithm and acquires the temperature through non-contact method at
four meters at most. Once the camera detects over alarming level temperature target(s), the screen
system will alarm automatically and store the photo.
Areas of application
This product is suitable for public places and densely populated places, like airports, stations,
factories, schools, hospitals, office building, shopping centers etc.

◼Product specification
Vividia M256Pro Automatic Dual-Camera Human Body Temperature Thermal Screening System
Product model
M256PRO (i.e. FS256Pro)
Infrared part
Resolution
256*192
Pixel size
12μm
NTED
≤50mK
Frame rate
25hz
Focal length
3.2mm
Field angle
56°*42°
F#
1.1
Visible part
Resolution
1280*720
Field angle
FOV 80°
Focal length
4.4mm
Accuracy of temperature measurement
Measuring range
30~45℃
Accuracy of measuring temperature
±0.5℃ (Environment temperature 10℃~40℃)
Temperature measurement range
≤4m
Machine interface
Machine interface
HDMI
Power
Power input
AC100-240V 50/60Hz 0.5A
Power output
DC5V 3A
Software function
High temperature alarm
High-temperature alarm and image capture
File export
Support history inquiry, screening and export to local disk
Live preview
Live preview of visible and infrared image
Face recognition
Intelligent face recognition and tracking
Parameter setting
Pseudo-color selection, alarm, language and correction value setting
Environmental suitability
Working temperature
10~50℃ (Environment temperature 10~40℃ accurate temperature
measurement)
Storage temperature
-20~60℃
Packing specification
Machine head size
190mm*110mm*100mm
Packing size
394*194*153mm
Net weight
1420g (the actual shipment shall prevail)

Gross weight
1784g (the actual shipment shall prevail)
Tripod size
Folding size: 540mm Unfold height: 1560mm
Table 1 product specification
* Technical parameters are for reference only. If small changes won't be further notified.
◼Assembly list
No.
Type
Parts name
Quantity
Position in
1
Dual-Camera Device
Double lens thermal camera
1
①
2
Power adapter
Power adapter (5V 3A)
1
②
3
Small PC box set
PC box
1
③
4
Remote control for PC box
1
③
5
HDMI cable
1
③
6
Assembly parts
Tripod screw
1
7
L type wrench
1
8
Tripod (optional)
Tripod
1
Table 2 components list
Fig. 1 packaging

1
B
2
A
1
2
◼Installation and connection procedure method
Please assemble all parts according to the following.
Fig. 2 PC-box and interface
Fig. 3 dual-lens camera and cables
(1) Please install the dual-lens camera on an appropriate stand, for instance, on a tripod.
Adjust the camera to face the monitoring crowd lane and be at the same level with people's height.
Deviation between the camera and the people lane, as well as height deviation will impact the
accuracy and effectiveness of the screening.
(2) Behind the camera, there are two USB cables, one is double-end visible device
connecting cable (cable 1), and the other is single-end infrared thermal imaging device connecting
cable (cable 2). Please insert the two cables into USB interfaces in the back and on the side of
Android PC box (USB port, 1, USB port, 2).

(3) Please connect one end of HDMI cable to Android PC box (HDMI interface, A), and the
other to a television monitor with audio functions.
(4) Insert the power supply cord to the Android PC box (round interface, B), wait for starting
up and enter the main user interface.
(5) To use the software normally, please connect the PC box to the Internet in the following
process:
a) Open the back cover of the remote control of Android PC box, and put two triple-A
batteries in
b) Click "homepage ”, use the direction key to select "setting", select and click Wi-
Fi button in the menu
c) Choose your Wi-Fi and enter password, and the Android PC box will get time
information automatically after being connected to Wi-Fi.
◼Software use instructions
(1) Open the software
The software will run automatically after the Android PC box is powered on, and you can also
choose to enter M256Pro app through remote control. When first using the Android PC box or re-
installing app, the app needs to re-enter permission code. In such a situation, you cannot enter the
app automatically, please select M256Pro manually or allow app to access permission.
(2) Software interface

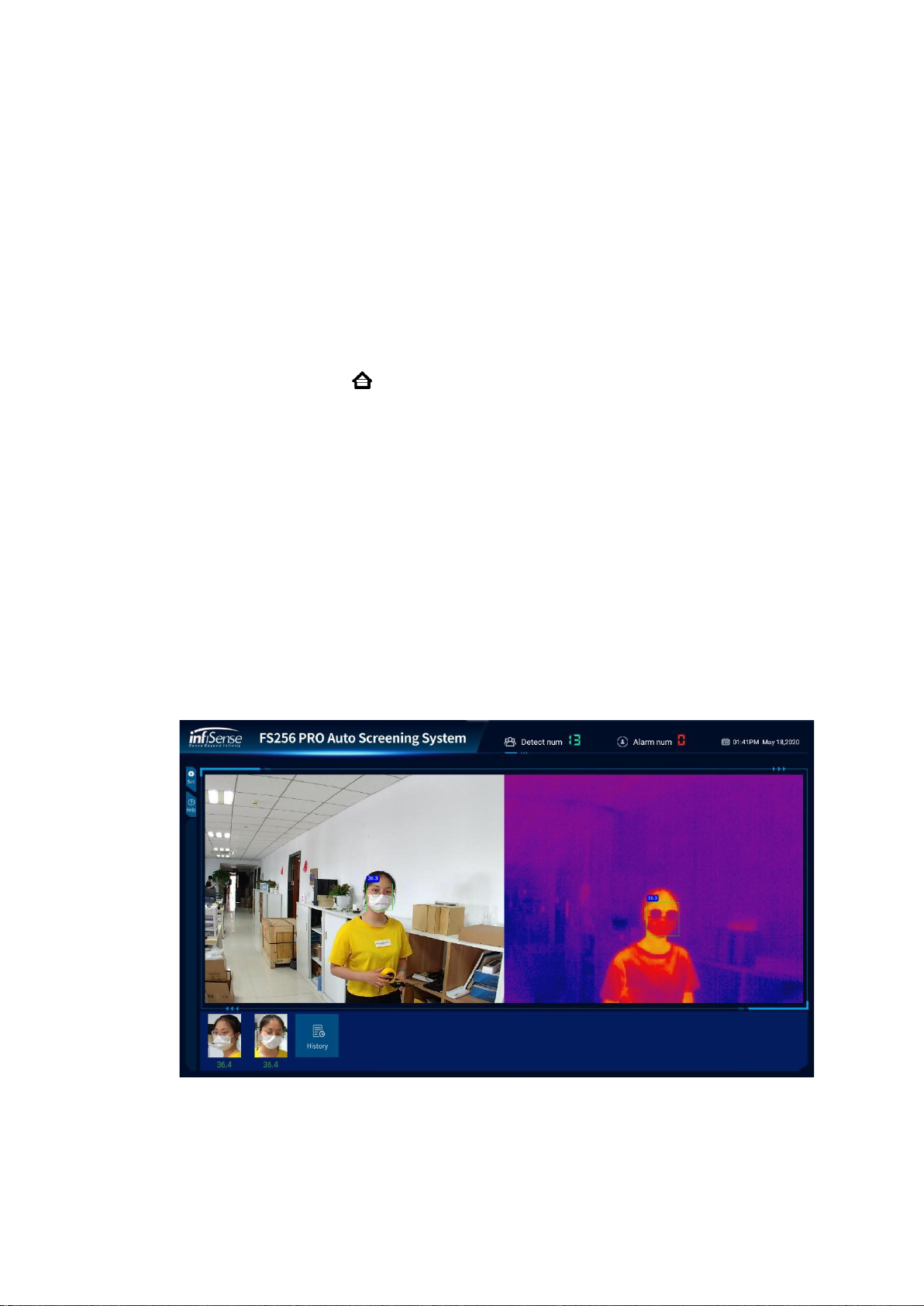

Fig. 4 software interface
Name of the software is displayed on the upper left, while the stream of people (including
total number of people screened and alarm times) and time information are displayed on the
right. Setting and help buttons are on the lower left of the interface, visible HD image is on
the left of the middle of window, infrared real-time frame is on the right of the middle of
window, recently examined people and temperature are displayed at the bottom of the screen.
Detailed image-text is as follows:
a) Visible HD image
Fig. 5 main interface of the software - visible image area
On the left of the screen, it is the real-time visible image, and the software will
distinguish and outline the human face. When the human face is within the infrared
image observation range, real-time temperature measured will be displayed on the
screen. The software supports multi-face recognition and display (10 faces at most).
b) Infrared image display

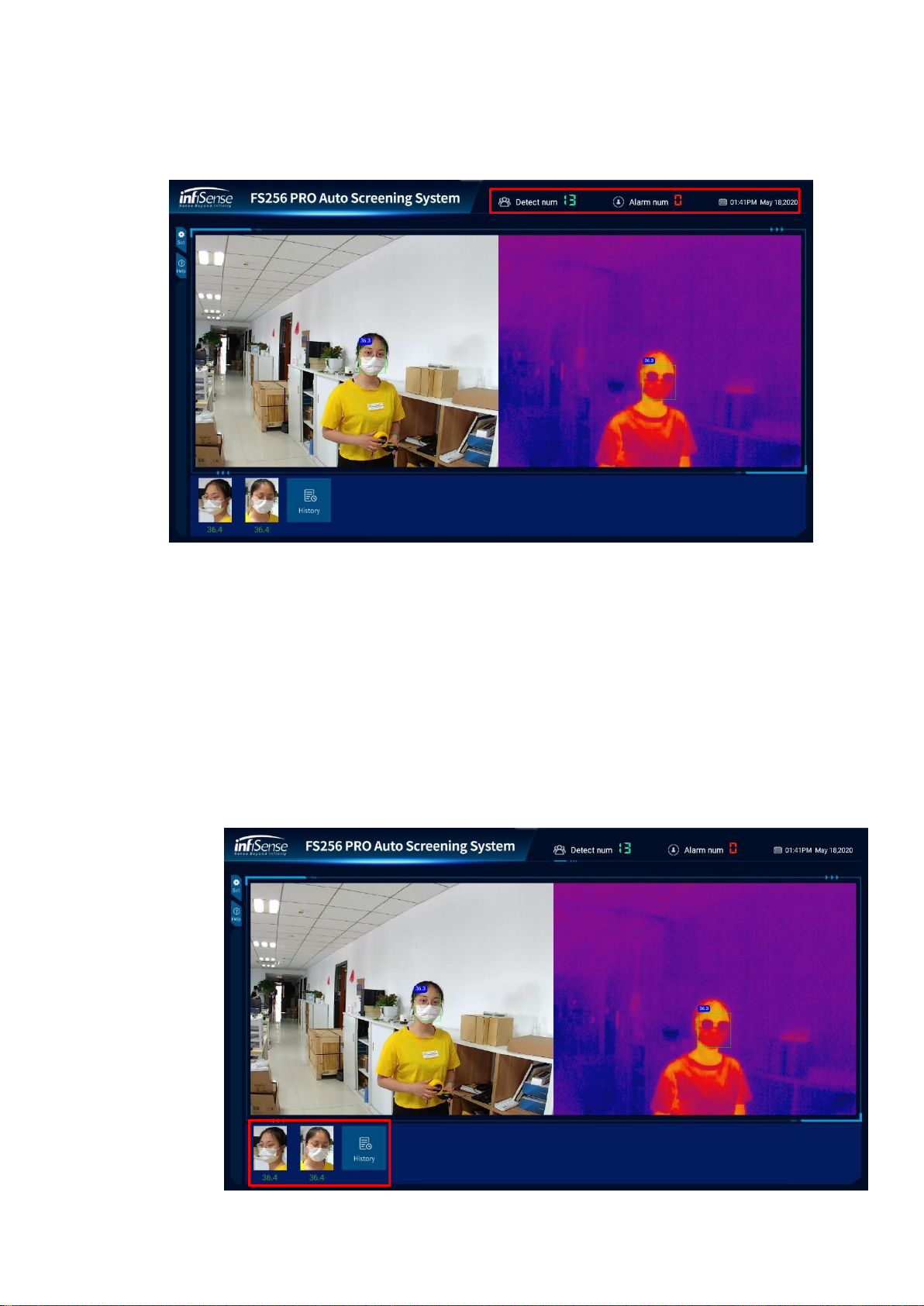

Fig. 6 main interface of the software - infrared imagearea
On the right of the screen, it is the real-time infrared image, displaying the
Fig. 7 main interface of the software - information of stream of people detected
infrared image and corresponding temperature reading of the detected human face.
Display of the information of stream of people detected
On the upper right of the interface, “Detect num” shows the total number of people
detected by the software today, “Alarm num” means the number of people of
abnormal temperature, and "keypad" icon button shows the current date and time
(it can only be acquired at real time through the Internet).
c) History
Fig. 8 main interface of the software - history area
Below the main interface, passerby and recorded images and their highest temperature will be
displayed. Click mouse button to enter the mouse mode, move the mouse to "history" and

press "OK" on the remote control to enter the history.interface, where all images recorded
will be displayed. Those in green background box are with normal temperature, while those
in red are with abnormal temperature.
Fig. 9 history interface
Start date and end date for display can be selected through Select Start Date and Select
End Date. In the drop-down menu of abnormal temp, three display modes can be selected:
total, normal or abnormal. Click Data export to export all records, and export results are
placed in FS256_export file folder.
d) Parameter setting
Fig. 10 main interface of the software - setting
Click "Set" button on the left, "setting interface" will pop up. The setting interface includes
two parts, infrared image setting and system setting.

Fig. 11 software setting page
List of detailed functions is as below:
Category
No.
Setting
Description
Min
Max
IR Camera Setting
1
Pseudo Color
Customized as pseudo-color, it has four
modes, the default is 1, infrared mode
0
3
System Setting
2
Language
Language setting, Chinese / English
3
Voice of Alarm
Open the alarm sound or not
4
Calibration
Calibration value, for compensating the
great difference between the temperature
measurement and actual conditions, unit:
Celsius degree, taking 0.1 as the step length
-5.0
5.0
5
Alarm Temp
Alarm value, set alarm threshold, and it will
alarm once the temperature is over this
value
36.0
38.0
Table 3 Setting description
e) Help button

Fig. 12 main interface of the software - help area
Click the help button, and it will display the help page. Please debug the software by yourself
according to the guideline.
◼Points for attention
(1) Please do use the self-contained power adapter for power supply, to guarantee personal safety
and product life.
(2) Please do not put the product in a humid place or wash it, to avoid leakage of electricity or
short circuit.
(3) Please do not remove parts arbitrarily, which may result in equipment failure or safety
accidents.
(4) When the machine is not used for a long term, please put it away and keep it in a dry
environment.
