Obdstar X300 M User manual

X300 M User Manual
X300 M User Manual
Statement
This handbook is the manual of X300 M. Without the written permission from
the manufacturer, any company or individual shall not copy or backup it in
any form (electronic, mechanical, photocopying, recording or otherwise).This
manual is only operating instructions for X300 M. If any result caused by
using it on other equipment, the company does not assume any responsibility
for it.
If not quality problems of X300 M，such as equipment failure caused by user
abuse or misuse, unauthorized disassembly, repair equipment yourself, not
operate or maintain by the instructions, lose it, the repair will not be free.
Other product names mentioned in this manual are in order to describe how
to use X300 M, and their copyrights are still observed by the original company.
X300 M and files are used for normal vehicles maintenance. If used for illegal
purposes, the company does not assume legal responsibility.

X300 M User Manual
Content
Chapter 1 : Summary………………………………………………………………………………1
1.1 Features ……………………………………………………………………………………1
1.1.1 Advantages……………………………………………………………………….1
1.1.2 Durability ………………………………………………………………………….1
1.2 Introduction of the device…………………………………………………………....2
1.2.1 The main unit and accessories…………………………………………….2
1.3 Hardware technical specification……………………………………………………3
1.4 Functions Setting………………………………………………………………………..3
1.4.1 Functions Selection……………………………………………………………4
1.4.2 System Setting………………………………………………………………….4
1.4.2.1 Language Selection………………………………………………….5
1.4.2.2 Contrast Control………………………………………………………5
1.4.2.3 Font Setting……………………………………………………………6
1.4.2.4 Metric/Inch……………………………………………………………..6
1.4.2.5 Data Logging…………………………………………………………..7
1.4.3 System Information…………………………………………………………… 7
1.4.4 Device Self-test ………………………………………………………………8
Chapter 2: How to update software for X300 M…………………………………………8
2.1 Update Tool software Installation ………………………………………………8
2.2 Register …………………………………………………………………………………11
2.3 Software Updating ……………………………………………………………………12

X300 M User Manual
1
Chapter 1: Summary
1.1 Features
1.1.1 Advantages
●Multi-language environment can be applied in different countries and
regions.
●The main unit system adopts ARM high speed chip to keep it running fast,
stable and anti-jamming.
●Updating via SD card at any moment.
●Modern design and high-definition true color screen realize the integration
of automotive industry and electronic information technologies and make auto
diagnosis and key programming easier, practical and economical.
1.1.2 Durability
●Integrity structure design makes it crack resistance, shock resistance and
durable.
●Industrial design ensures the tool work stably under tough environment,
such as high and low temperatures.

X300 M User Manual
2
1.2 Introduction of the device

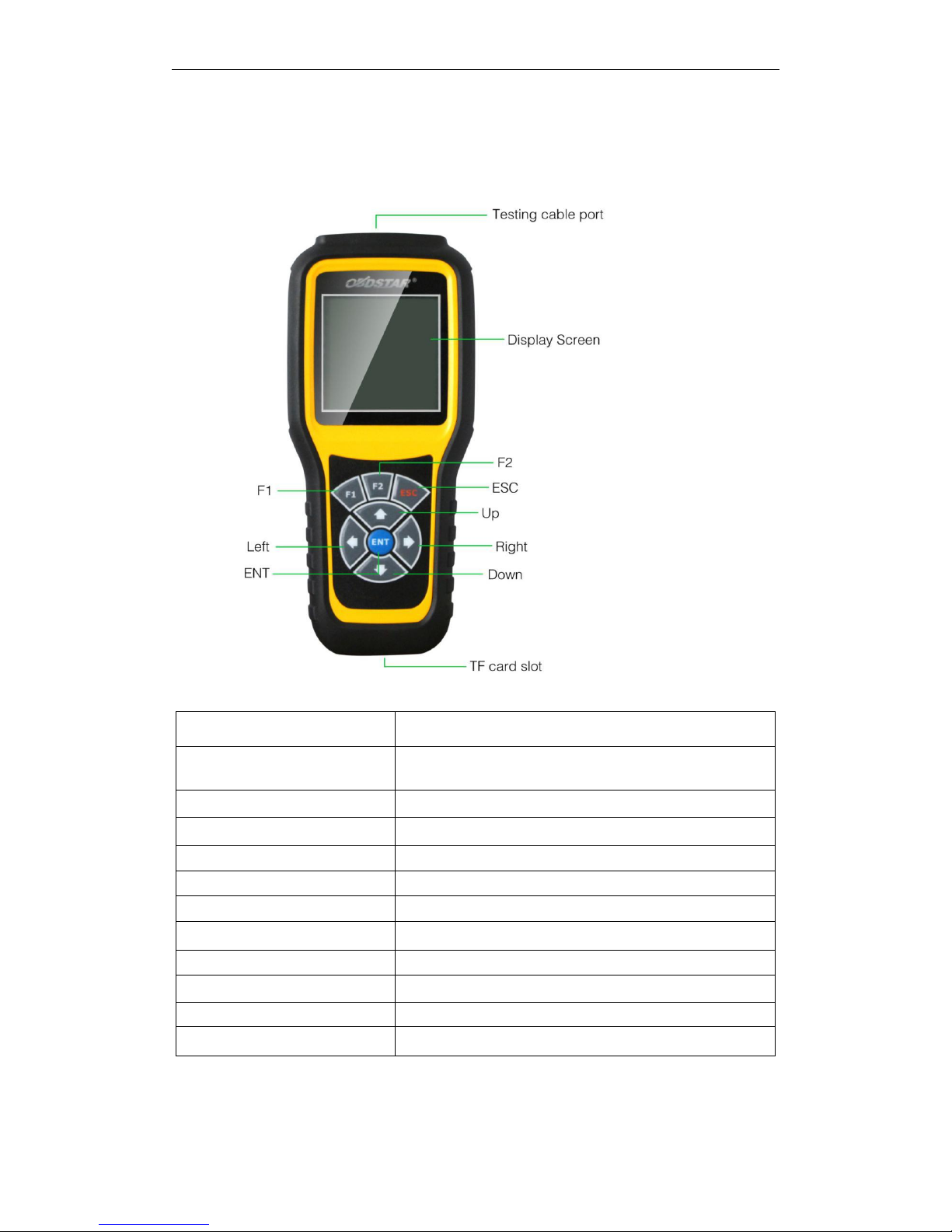

1.2.1 The main unit and accessories(Picture as below)
Name
Instruction
Testing cable port
Connect to the main test cable for auto key
programming
Display Screen
Show information
F1
Keyboard input option key
F2
Keyboard input option key
Enter
OK
ESC
Exit or give up
Up
Up
Right
To right
Down
Down
Left
To left
TF card slot
To keep diagnostic program or data

X300 M User Manual
3
1.3 Hardware technical specification
★Dimension: 22cm(L)*10cm(W)*3.6cm(H)
★CPU : ARM7
★Power Supply:DC12V
★Operation Power:DC12V
★Operation Temperature: -20~60℃
★Display Screen:160*160
1.4 Functions Setting
Power on，and then press ENTER on the screen，then go to the function
setting, setting information as shown below:

X300 M User Manual
4
1.4.1 Function Selection
Select different functions according to different requirements.
Note: Software numbers and functions are different according to different
product configuration. Further detailed information, please contact your
distributor.
1.4.2 System Setting
Select System Setting, language and contrast can be adjusted, as shown
below:

X300 M User Manual
5
1.4.2.1 Language Selection
This device supports simplified Chinese, traditional Chinese, English, Russia,
Greek, Spanish, Italian. In the language directory, select required language
by Up and Down and press ENTER to confirm it.
1.4.2.2 Contrast Control
According to the environment, adjust the brightness of the screen by the left
and right buttons, as shown below:

X300 M User Manual
6

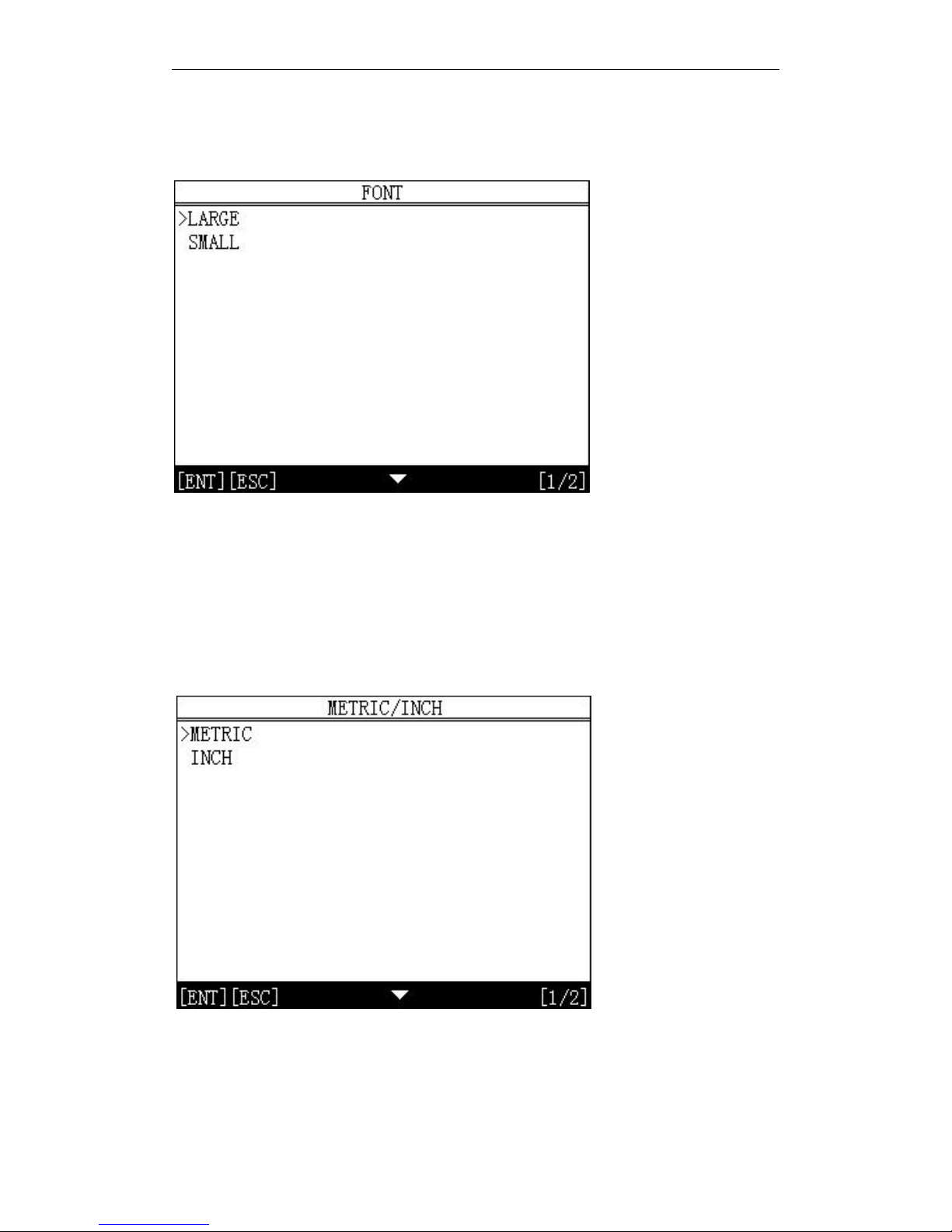

1.4.2.3 Font Setting
According to requirement, select different font.
1.4.2.4 Metric/Inch
According to different requirements, select the Metric/Inch by the up and
down keys, and press ENTER to confirm as show below,

X300 M User Manual
7
1.4.2.5 Data Logging
Any problems during testing, please use the Data Logging function to record
the test process and send the data to us. Select ON by the up and down keys
and press ENTER to confirm, shown as below,
Note: Every time you need to select ON if you want to record the data before
testing car.
1.4.3 System Information
System information includes product serial number, hardware version,
software version, release date, register password, etc.

X300 M User Manual
8
1.4.4 Device Self-test
Device self-test includes screen display, keyboard testing. hardware self-
testing, etc. If it cannot show enough pictures on the screen, keyboard not
work, and hardware self-test not get through, please return this X300 M to
the manufacturer.
Chapter 2: How to update software for X300 M
2.1 Update tool software installation
Long in our website:http://en.obdstar.com and click “One key Upgrade”.
Download the update tool and diagnostic software,double click,then go to the
next step:
Step 1: Click “Next”

X300 M User Manual
9
Step 2: Click “Next”
Step 3: Wait for several minutes then the installation finished

X300 M User Manual
10
Step 4: Click “Finish”

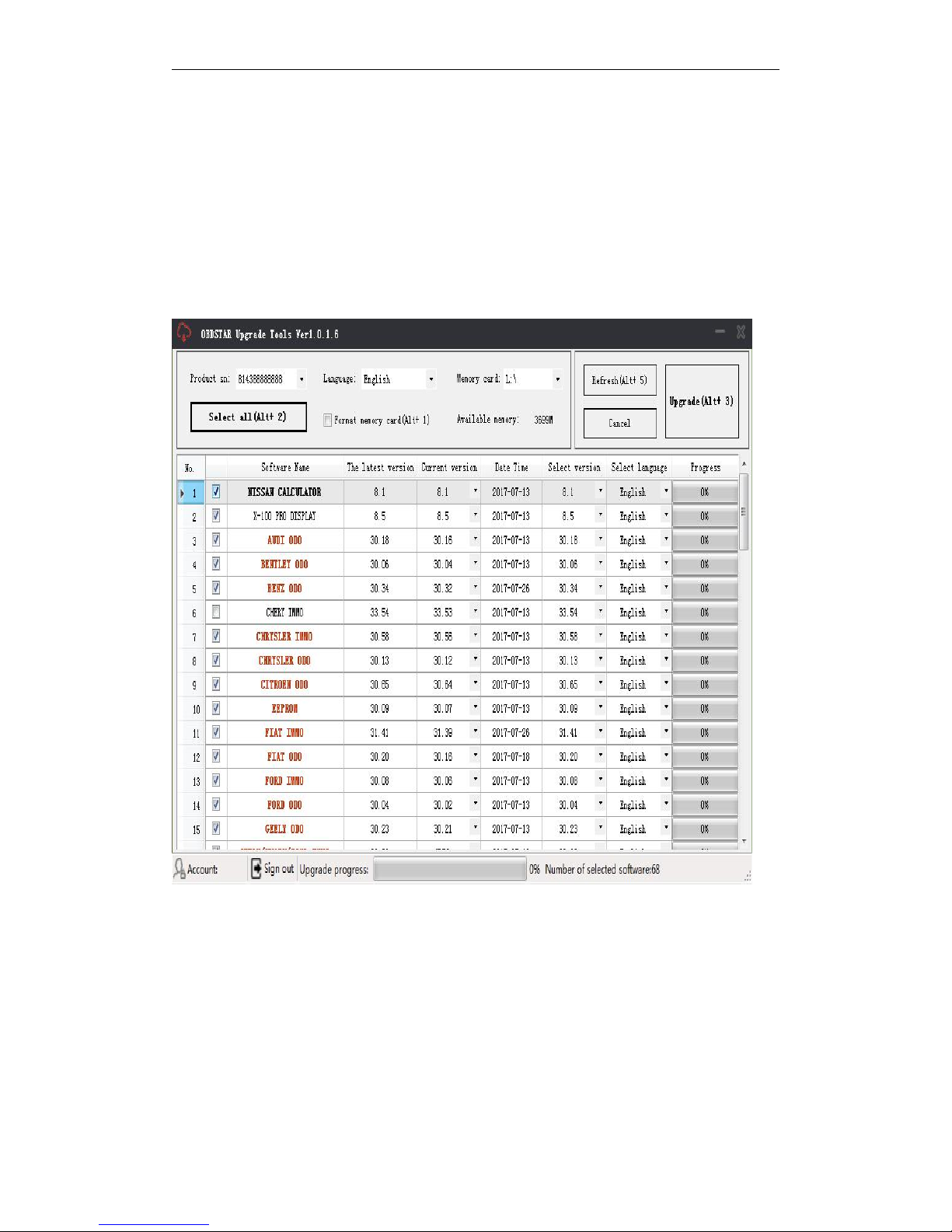

After Update Tool installation completed, click the Update Tool software icon
on desktop to start the update tools. The main interface is as shown below:

X300 M User Manual
11
2.2 Register
Click “Sign up” to fill in user information. Username can be English characters
or the combination of alphabet and numbers.
Serial number and register password can be referred to System information in
the device.( Figure 1.4.3）

X300 M User Manual
12
2.3 Software updating
Operation steps as following:
Step 1: Remove the TF card from your device.
Insert your TF card into computer.
Step 2：Open update tool and login
Step 3: Click the source menu, choose the program you want to update, click
it and confirm.
Step 4: Click and select all the software then click “update”.
Step 5: Wait for several minutes then the updating finished.
Note：For new update software and questions during updating, please
contact your distributor.
