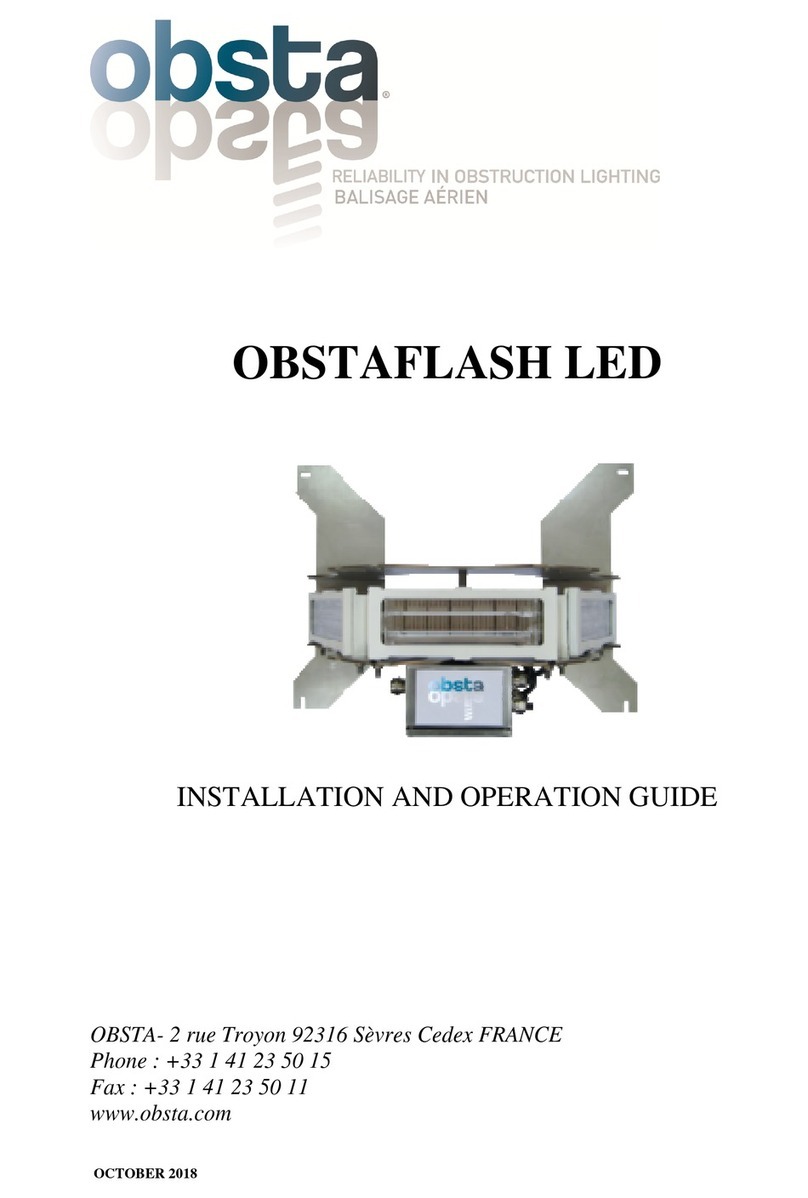

obsta OBSTAFLASH Led Operating instructions

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
1/18
Edition October 2020
OBSTAFLASH Led
110-240VAC
INSTALLATION AND OPERATION GUIDE

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
2/18
List of models
Designation Type and Color Input voltage P/N
OFP-360-RW-JBL
White and Red medium intensity
type A/B
113731
OFP-CAB-6P-1E-RW-240-U
White and Red medium intensity
type A/B
110-230VAC +/-10% 113733U
OF360-RW-240-U
White and Red medium intensity
type A/B
110-230VAC +/-10% 113725U
In option:
- photocell P/N100755
- wireless GPS P/N113746 (inside cabinet)
- 110VAC-230VAC side lights L-810 NAVILITE FAA P/N113969
- battery cabinet (input voltage 100-240VAC) with 12 hours back-up for one 48VDC flash-head P/N113727
This list is not exhaustive and some modifications can be done on the power cabinet for remote alarm and if used combination with L-
810 red fixed side lights or L-810(L) red flashing intermediate side lights.

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
3/18
BE CAREFUL !
Led projectors in this lighting system produce brilliant flashes of light which can result in temporary or permanent eye damage. DO
NOT LOOK DIRECTLY AT THEM WHILE IT IS IN OPERATION.
WARRANTY
OBSTA warrants the equipment described in the instruction manual and sold to purchaser to be free from defects in material and
workmanship at the time of shipment. OBSTA's liability under this warranty being limited to repairing or replacing, at OBSTA's
option, items which are returned to it prepaid within twenty four (24) months from shipment to the original Purchaser, or twelve
months from commissioning, and found, to OBSTA's satisfaction, to have been defective. In no event shall OBSTA be liable for
consequential damages. NO PRODUCT IS WARRANTED AS BEING FIT FOR A PARTICULAR PURPOSE AND THERE IS NO
WARRANTY OF MERCHANTABILITY. This warranty applies only if: (I) the items are used solely under the operating conditions
and in the manner recommended in OBSTA's instruction manual, specifications, or other literature; (II) the items have not been
misused or abused in any manner or repairs attempted thereon; (III) written notice of the failure within the warranty period is
forwarded to OBSTA and the directions received for properly identifying items returned under warranty are followed; and (IV) such
return notice authorizes OBSTA to examine and disassemble returned products to the extent OBSTA deems necessary to ascertain the
cause of failure. The warranties stated herein are exclusive. THERE ARE NO OTHER WARRANTIES, EITHER EXPRESSED OR
IMPLIED, BEYOND THOSE SET FORTH HEREIN, and OBSTA does not assume, nor does OBSTA authorize anyone else to
assume for it, any other obligation or liability in connection with the sale or use of said products. OBSTA's liability on any claim of
any kind, including negligence, for loss or damages arising out of or connected with the manufacture, sale, delivery, repair or use of
any equipment or services provided by OBSTA shall in no case exceed the price allocable to the item or service or part thereof which
gives rise to the claim.
The integrity and reliability of OBSTA aviation obstruction lighting systems is dependent on the use of OBSTA parts and components.
To ensure the optimum performance and reliability of your OBSTA system, it is strongly advised that only components and modules
manufactured by OBSTA be used.

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
4/18
Section 1: General information
1.1 Scope
This manual provides information about the installation, operation, and maintenance of the OBSTAFLASH LED Medium Intensity
Obstruction Lighting Systems manufactured by OBSTA. The lighting systems described in this manual are Medium intensity type A/B and
FAA type L-865/L-864 obstruction lights
1.2 General description
The OBSTAFLASH Lighting System is an LED medium intensity system manufactured to comply with ICAO annex 14 chapter 6 and
Federal Aviation Administration Advisory Circular 150/5345-43. Each system consists of one flash-head, and can be associated with power
supply with ambient light sensor (photocell) and the interconnecting cable. System components are shown in Figures 1-1 to 1-4
1.2.1 3 flash-heads OFP-360-RW-JBL + cabinet OFP-CAB-6P-1E-RW-240-U
This set includes 3 flash heads with a total of 6 led glass and aluminum projectors, a stainless steel power supply inside. Each
projector includes 1 red LED circuit and 1 red LED circuit in series with 2 other projectors. There are connected to the stainless steel
supply which contains:
- 1 power card for the 2 red led circuits
- a command card with 10 luminous indicators and 8 dipswitchs used for the setting of the system
- a test button to force day mode or night mode
- a 230Vac surge protection
- a terminal connection for the 48Vdc input power, day/night information (0V=day mode, +48Vdc=night mode), alarm and optional
external top sync (24V-to-48V pulse) coming from other light or gps interface for the synchronization with other lights
1.2.2 Cabinet OFP-CAB-6P-1E-RW-240-U
The cabinet consists:
- 1 power supplies, surge protection
- terminal blocks for wiring to the flash-head, external photocell, remote alarms, etc…
- A S2 button with 3 positions
- “Remote” position, the lights are in normal operation
- “Test Day” position, the light is forced in day mode
- “Test Night” position, the light is forced in night mode.

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
5/18
Figure 1-1. FLASHHEAD COMPONENT LOCATIONS

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
6/18
control
Power
S1
S2
0
I
II
TB1 input
Com
NC
photocell supply
Photocell Night state
Sync input/output
NO
/ Command oard
Carte de commande
Master/Slave Do no touch Do no touch Do no touch Do no touch Do no touch Do no touch
Surge Protector
/ Parafoudre
CITEL
10
9
8
7
6
5
4
3
2
1
+48V
+48V
+48V 11
RELAY
PWR +
C TR L
GN D
P/N :113744
1 2 3 4 5 6
12 3
L
N
Test Day 0
Remote I
Test Night II
1
PC5
Carte de puissance
LED lanche
PC2
Carte de puissance
P/N:113741
/ Power card
white LED
Carte de puissance
LED lanche
PC1
white LED
/ Power card
LED lanche
P/N:113741 P/N:113741
/ Power card
white LED
Carte de puissance
LED lancheLED lanche
white LED
/ Power card
Carte de puissance
P/N:113741
PC3 PC4
white LED
/ Power card
P/N:113741 P/N:113741
/ Power card
Carte de puissance
LED lanche
white LED
/ Power card
Carte de puissance
P/N:113741
PC6 PC7
red LED
LED rouge
23 4 5 6 7 8 9 10 11 12 13 1414
12
13
Alimentation
120-230Vac/48Vdc
Power Supply
120-230Vac/48Vdc
Do no touch
Alarm position
- 48V NAVILITE
+ 48V NAVILITE
Figure 1-2. POWER SUPPLY COMPONENT LOCATIONS P/N 113733

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
7/18
Figure 1-5. POWER CABINET ENCLOSURE

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
8/18
1.3 Specifications
1.3.1 Light output
White day 20.000 ± 25% effective candelas in a single flash in 200ms
Red or white night 2.000 ± 25% effective in a single flash in 200ms
Beam Pattern 360° horizontally; 3°min vertically
Flash rate 40 flashes per minute in white
40 or 30 flashes per minute in red depending on G or H version
Master/slave configuration slaves lights can be synchronized with 1 master light and one photocell and 3x1,5mm²
shielded cable
1.3.1 Electrical input for flash-heads with power cabinet
Input voltage 110VAC-230VAC ±10%
Max current:
White mode 5A (day mode),
Red mode 0,5A (night mode)
1.3.2 Mechanical properties
1.3.3.1 flash-head (P/N 113731)
Weight 18 kg
Size D = 500 mm x H=315 mm
Surface area 870cm²
Wind load 35kg at 240km/h
1.3.3.3 Power supply (P/N 113733U)
Weight 13 kg
Size
w = 300 mm x h = 400 mm x d = 200 mm

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
9/18
1.3.3 Operating environment
Operating temperature -40°C to +55°C
Humidity 95% relative humidity
1.3.4 System operating status envitronment
On the command card inside flash-head 10 luminous indicators as per figure 3-1
Fault indication Relay closure, contact rating 3A at 120 V/50Hz

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
10/18
Section 2 : Installation
2.1 Unpacking
Carefully unpack each item and remove any internal packing material from the power supply, the batteries and the beacons.
Examine each item for obvious physical damage. Report any claims to the carrier immediately.
2.2 Mounting and Preparation
2.2.1 OBSTAFLASH beacons
The lights are usually mounted at the highest point on the structure on a vertical platform, or as per requirements of the local
Aviation Regulation authority in place at the installation location.
2.2.2Connection of the beacon to the power supply
2.2.2.2 Connection of the interconnecting cable P/N 113762 to the junction box (option)
The interconnecting cable P/N113762 provided by OBSTA comes with a plug on one side to be connected on the junction
box
Connection of the cable P/N13762 on the junction box:
2.2.2.3 Connection of the interconnecting cable P/N 113762 to the power supply (option)
Entries of cables are on the lower side of the power supply.
2.2.2.4 Connection directly with cable (option)
With certain systems , the end user will use directly the standard shield cable.
WARNING: It is very important to respect the wiring of the cable P/N 113762 or between the standard cable to TB1
and the 7 power cards in the power supply and the junction box.

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
11/18
2.2.3 Ambient Light Sensor P/N100755 (photocell)
If included, the ambient light sensor should be mounted upright, away from artificial light (such as floodlights), and in a location that will
enable its sensor window to have an unobstructed view of the polar sky (eg., pointed north in the northern hemisphere).
The photocell 48VDC returns 0V during day time and +48Vdc close in darkness
Input voltage 48VDC +15/-10%
Output voltage 48VDC +15/-10% (night time), 0V (day time)
2.2.4 Wireless synchronization with P/N113746 (DIN rail mounting inside power cabinet)
If included, the GPS interface comes with an external magnetic antenna. The cable of the antenna is to be connected in the GPS interface
with a jack plug
Input voltage 24-48Vdc +15/-10%
Output top sync signal 24-48Vdc pulse
Output day/night signal (if used) 24-48Vdc (night time), 0V (day time)
2.2.5 Synchronization by cable
One light should be configured as the master and the other as slaves (as per 3.2). The photocell should be wired on the master light only.
The 2 lights (or more) should be connected together through a shielded cable 3x1,5mm² through TB1 on “Sync input/output”, “Photocell
Night state” and ground position
2.3 Final check
Before power on, CHECK :

The input voltage

The wiring diagram
After power on, CHECK :

Flash rate

Synchronisation between the flash-
head

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
12/18
Ce documen es la propriè é d'OBSTA. Il ne peu ê re reprodui ou c ommuniqué à des iers sans son au orisa ion.
H.BURGAUD 27/10/20
This drawing is he proper y of OBSTA. This documen conno reproduc ed, copied or cummunica e d wi h hird par ies wi hou he au horiza ion of OBSTA
pho ocell
23 1
P ho ocell
Power supply
1 TB1
2 TB1
Phoocell/Power sypply
1
3
2
Phoocell
2
1
3
Power Supply
Cable 113762Lxx
6
7
5
4
11 PC6
12 PC6
13 PC7
14 PC7
Power supply
2
3
1
Wire
9 TB1
10 TB1
11 TB1
12
14
13
10
11
9
6 PC3
4 PC2
5 PC3
8 PC4
7 PC4
9 PC5
810 PC5
17 1 PC1
2 PC1
15 3 PC2
16
Cable 113762/power supply
Power
Inpu
O-CUS-00105-OFP
con rol
Power
S1
S2
0
III
TB1 inpu
Com
NC
pho oc e ll supply
Pho oc e ll Nigh s a e
Syn c inpu /ou pu
NO
/ Command board
Car e de commande
Mas er/Slave Do no ouc h Do no ouc h Do no ouc h Do no ouc h Do no ouc h Do no ouc h
S ur ge Pr o ec or
/ Par afoudr e
C ITE L
10
9
8
7
6
5
4
3
2
1
+48V
+48V
+48V 11
R ELA Y
PWR + C TR L
G N D
P / N :113744
1 2 34 5 6
12 3
L
N
Tes Day 0
Remoe I
Tes Nigh II
1
PC5
Ca r e d e p u is s a n c e
L ED b l a n c h e
PC2
C a r e d e p u is s a n c e
P / N : 1 1 3 7 4 1
/ P o we r c a rd
wh i e L ED
Ca r e d e p u is s a n c e
L ED b la n c h e
PC1
wh i e L E D
/ P o we r c a rd
L ED b l a n c h e
P / N :1 1 3 7 4 1 P / N : 1 1 3 7 4 1
/ P o we r c a rd
wh i e L E D
Ca r e d e p u is s a n c e
L ED b l a n c h eL ED b l a n c h e
wh i e L E D
/ Po we r c a rd
C a r e d e p u is s a n c e
P / N :1 1 3 7 4 1
PC3 PC4
wh i e L E D
/ P o we r c a rd
P / N :1 1 3 7 4 1 P/N: 1 1 3 7 4 1
/ Po we r c a rd
C a r e d e p u is s a n c e
L ED b la n c h e
wh i e L ED
/ P o we r c a rd
Ca r e d e p u is s a n c e
P / N :1 1 3 7 4 1
PC6 PC7
re d L ED
L ED ro u g e
23 4 5 6 7 8 9 10 11 12 13 1414
12
13
Alimen a ion
120-230Vac/48Vdc
Power Supply
120-230Vac/48Vdc
Do no ouc h
Alarm pos i ion
- 48V N A V ILITE
+ 48V N A V ILITE
1
23
Figure 2-1. WIRING DIAGRAM OF OBSTAFLASH

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
13/18
Master/Slave Do Not touch Do Not touch Do Not touch Do Not touch Do Not touch Do Not touch Do Not touch
control
Power
S2
0
I
II
Alimentation à découpage
120-230Vac/48Vdc
TB1 input
Com
NC
photocell supply
Photocell Night state
Sync input/output
NO
/ Command oard
Carte de commande
Surge Protector
/ Parafoudre
CITEL
10
9
8
7
6
5
4
3
2
1
+48V
+48V
+48V 11
RELAY
PWR+
CTRL
GND
P/N :113744
1 2 3 4 5 6
12 3
N
L
-
L
N
Test Day
Remote
Test Night
+ + +
1
PC5
C arte de puis sanc e
LE D lanche
PC2
C arte de puis sance
P /N :113741
/ P ow er card
w hite LE D
C arte de puis sanc e
LE D lanche
PC1
w hi te LE D
/ P ow er card
LE D lanche
P /N :113741 P /N :113741
/ P ow er card
w hite LE D
C arte de puissance
LE D lancheLE D lanche
w hi te LE D
/ P ow er card
C arte de puis sance
P /N :113741
PC3 PC4
w hi te LE D
/ P ow er card
P /N :113741 P /N :113741
/ P ow er card
C arte de puis sance
LE D lanche
w hi te LE D
/ P ow er card
C arte de puissance
P /N :113741
PC6 PC7
red LE D
LE D rouge
23 4 5678 9 10 11 12 13 1414
-
12
13
Interlock
S 1
Figure 2-2. INTERNAL WIRING DIAGRAM OF POWER SUPPLY P/N113733

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
14/18
Section 3 : Principles of operation
The flash-head is powered in 48VDC+15%/-10% from an obsta power supply or any external DC power supply providing sufficient
power for the light.
3.1 Power cards
The power cards regulate the current of 2 led circuits. Each power card is connected to the command card on one side and 2 negative poles
of 2 led circuits. Positive poles of all led circuits are connected together
There are 6 power cards that control the current of 12 white LED circuits (negative poles are blue and white wires from each projector) and
1 power card that controls the current of 2 red led circuits (negative pole is yellow from each projector)
3.2 Command card
The command card is powered in 48VDC and monitors the power cards, set up the configuration of the light through dipswitch
(master/slave configuration, L-865/L-864 or L-865 or L-864) and in the event of failure, send back an alarm,
L-865/L- 864 dual
color flash- head
setting can be changed

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
15/18
through the dipswitches 4, 5 and 6 from dual color to white only or red only
D6 to D15 luminous indicators on the command card:
• D6 à D12 close to WHITE#1 to WHITE#6 & RED#1 : normally off and red blinking in case of default of power card
or 1 led circuit
• D15 : normally green, off in case of alarm activated
• when set-up in master mode (dipswitch n°1 on « on »), the command card creates a top sync pulse indicated by D14
and that can be sent for other flash-heads from terminal 1
• when set-up in slave mode (dipswitch n°1 on « off»), the command card waits for a top sync pulse on terminal 3, D14
also blink at the same frequency
• If no pulse is received from terminal 3, D14 is off and light flashes on its own at 15 fl per minute as per D13
Warning: In case changing master/slave dipswitch n°1 position, do not forget to change the position on the terminal
connection 1 to/from 3 of the pulse wire accordingly

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
16/18
3.3 GPS P/N113746 (OPTION)
When GPS is synchronized with the satellites, 2 red and green luminous indicators indicate the status of the signal from satellite
Green led:
- the green indicator blinks: this indicates gps received signal from the satellite and a pulse is sent to the command card.
- the green indicator is off: this indicates gps do not received signal and no pulse is sent to the command card.
red led:
- the red indicator is “off” indicate day time
- the red indicator is “on” indicate night time or no signal from satellite,
When the GPS is synchronized, the top sync pulse (and 0/48VDC day/night signal if used) is sent to the command card. In
absence of signal received from the GPS (no satellite), no pulse is sent to the command card that flashes at 15 fl per minute (D13
blink at 15fl per minute and D14 is off).
3.4 Test button
control
Power
S1 S2
0
III
Test Day 0
Remote I
Test Night II
This button force the light in day mode « Test Day » or night mode « Test Night ». It should be normally on remote position
Inside power cabinet, a voltage indicator is present
.

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
17/18
Section 4 : Maintenance - troubleshoot
4.1 Maintenance
Test Frequency Action Sanction Solution
Cable &
connectors
Annual
It is recommended to check
onc
e a year the torque for each
screw terminal to avoid loose
wire.
Waterproof Annual Visual No water inside Search for water leak
Corrosion Annual Visual No excessive corrosion Replace the defective
parts
Photocell Annual Clean and mask the window
of the photocell
No day/night change after
10 seconds
Change photocell
Projectors Annual switch S2 to « Test Day » &
« Test Night
D6 to D12 on Replace the power card
or/and associated
projector as per
procedure (*) below
Projectors 10 years Replace
4.2 Troubleshoot - malfunction
Action Solution
Voltage indicator is off Check input voltage, surge protection and switch.
Otherwise check DC is present on the 2 power
supplies output (green indicator on it should be
lighted) and/or fuse is OK
Replace the defective parts if
necessary (surge protection,
fuse or power supply)
The system is permanently
white flashing or red
Check that S2 is on « Remote » position
Otherwise masks the window of the photocell to
check day/night switch and check the wiring
connection from photocell to command card
according to the wiring diagram
Replace photocell or command
card if necessary,
Some luminous indicators D6
to D12 are blinking red in day
and/or night mode
Check the wiring connection on the related power
card. Otherwise check the power cards and the
projector following procedure (*) below
Replace power card or/and the
related projector if necessary
all indicators D6 to D11 during
day time are blinking red
Check the wire cross section of the dc cable feeding
the flashhead or check that your power supply is
sufficient enough to feed the flashhead
Replace cable or/and power
supply if necessary
D13 blinks and D14 is off,
flash rate is at 15 fl per minute
Check the wiring of the GPS, the position of its
antenna and its wire connection.
Replace GPS module if
necessary
Contact the manufacturer if necessary
* Procedure to test the power cards and the projectors:
The following procedure requires not to switch off the incoming 48VDC power supply to the flashhead
Note : FAA requires that if 25% of light output is off in one azimuth, the entire light should be switch off even if some led
circuits remain OK:
- So in white mode, if more than 3 white led circuits out of the 12 white led circuits is out of work, the command card
normally switch off the entire flashhead
- And in red mode, if 1 out of the 2 red led circuits is out of work, the command card will also switch off the second red led
circuit and switch on the white night mode (2000 candelas)

OBSTA
2 rue Troyon 92316 Sèvres Cedex FRANCE
www.obsta.com
Page
18/18
If more than 3 led circuits are out of work, the entire flashhead is off due however the 4-6 red indicators D6 to D12 still
blink and almost 1-3 power card/ projector need to be changed before light turns back to on
- Default of white led circuits: one or more indicators D6, D7 D11 is/are blinking red and some projectors are not
working in white
example: if luminous indicator D7 (or WHITE#2) is red blinking, disconnect the related green terminal of 2 led circuits and
plug it to the next power card close to it for example D8 (or WHITE#3) that is OK:
- If the luminous indicator D8 does blink also, the projector is defective and has to be changed
- If the luminous indicator D8 does not blink, the projector is ok but the power card of WHITE#2 is defective and has to be
changed
- Default of red led circuits: D12 is blinking red: 3 or 6 projectors are not working in red
- If the 6 projectors are not working in red, change the power card or use a good power card taken from one of the 6 white
circuits and connect it to “red#1”). If still the 6 projectors do not work, it means that almost 2 projectors on each red led
circuit are defective. It is possible to connect 2 red projectors in serial instead of 3 on the power card #red1, test all
projectors 2 by 2 to identify the 2 defective ones
- If 3 projectors are not working, disconnect the defective circuit on the green connector of the power card #red1 and
connect it to the second green connector of the same power card #red1: If the 3 projectors are ok, change the power card
otherwise identify which projector out of the 3 projectors is not working : connect 2 projectors in serial instead of 3 until
finding the defective one
Warning: never test a good led circuit on a defective power card, this can destroy the leds, always test led circuit on a
good power card!!
Warning: never test a red led circuit on a power card connected to the white led circuit in day mode, the current will
be too high and may destroy the red leds!!
Section 5 : SPARE PARTS
Flash-head P/N:113731
P/N
113761
113748
DESIGNATION
PROJECTOR-RW-0.75L
OFP-JB-6P-RW-L
Power cabinet P/N:113733U
113741
113744
113743B
451721
113742
100755
113746
Power card 48V
COMMAND-CARD-48VDC-6P-RW (dual color configuration by default)
Security switch and test button
Surge protection 230VAC DS215-230/G
110/230Vac Power supply
Photocell 48V
GPS (option)
