ACME COOLIE 14FC User manual

CONTENTS
1. Safety Instructions........................................................................................... 2
2. Techical Specfications ...................................................................................... 4
3. How To Set The Fixture.................................................................................... 5
3.1 Control Panel ............................................................................................. 5
3.2. Main Functions......................................................................................... 6
4. How To Control The Unit................................................................................ 12
4.1 Primary/Secondary Built-in Preprogram Function .................................. 12
4.2 Control By Universal DMX Controller ...................................................... 13
4.2.1 DMX512 Connection....................................................................... 13
4.2.2 Address Setting............................................................................... 14
4.2.3 DMX512 Configuration ................................................................... 14
5. Troubleshooting............................................................................................. 17
6. Fixture Cleaning............................................................................................. 17
1E

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is suitable for wet locations. Do not immerse in water.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head
only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.
2E

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.
Installation:
The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid
vibration and slipping off during operation. Ensure that the trussing or area of installation must be
able to hold 10 times the weight without any deformation. Always install a safety cable that can
hold at least 12 times the weight of the fixture when installing.
DO install and operate by qualified operator. It must be installed in a place where there is out of
the reach of people.
3E

2. Techical Specfications
Power Voltage:
100-240V~ 50/60Hz
Power Consumption:
165W
Light Source:
14x15W RGBW LED
Beam Angle:
13.5°
Spot Angle:
25.6°
Control:
DMX Channel : 4/5/7 Channel
Control Mode: DMX512, RDM, Primary/Secondary
Firmware upgrade via DMX link
Construction:
Display: LED display
Data In/Out: 3-pin XLR in/out
Power In/Out: Power Cord in/out
Protection Rating: IP66
Features:
Outstanding color mixing effect
Preset program in stand-alone mode
4 dimming curves, smooth dimming from 0~100%
Outstanding strobe effect with variable speed
Dimension/Weight:
302x230x350mm, 9.1kgs
11.9"x9.1"x13.8"in, 20.1lbs
302
350
230
4E

Photometric Diagram:
3. How To Set The Fixture
3.1 Control Panel
1: Power: Water proof connectors for power input/output
2: DMX IN/OUT:
Water proof connectors for DMX512 operation, 3-pin XLR cable to link the units together
3: Display: To show the menu and the selected functions
Button:
4. MENU To select the programming functions
5. DOWN To go forward in the selected functions
6. UP To go backward in the selected functions
7. ENTER To confirm the selected functions
5E

3.2. Main Functions
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.
The main functions are shown below:
Once you set to
, after running in show mode for 5 minutes without any
change or restarting the unit, the key board become locked. Press ENTER button to
enable the menu, the display will show , press UP and DOWN button until it
shows , then press ENTER to unlock.
6E

7E

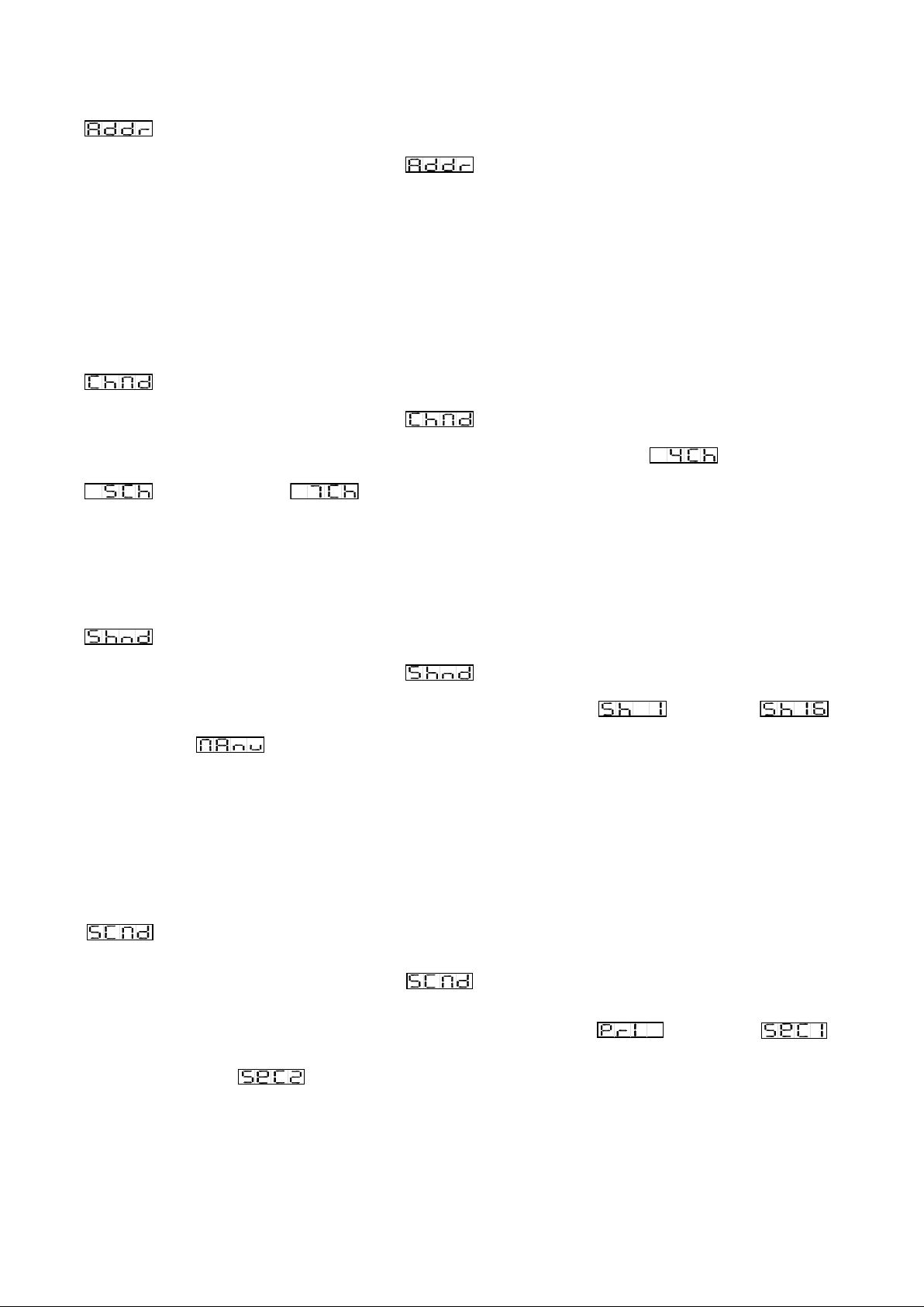

DMX Address
Press the MENU button up to when the is shown on the display. Pres s ENTER button
and the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the
address has been selected, press ENTER button to setup or automatically exit menu mode without
any change after 30 seconds. Back to the previous functions without any change press MENU
button.
Channel Mode
Press the MENU button up to when the is shown on the display. Pres s ENTER button
and the display will blink. Use DOWN and UP button to select the (4 channels),
(5 channels) or (7 channels). Once select, press ENTER button to setup or
automatically exit menu mode without any change after 30 seconds. To go back to the functions
without any change press the MENU button.
Show Mode
Press the MENU button up to when the is shown on the display. Pres s ENTER button
and the display will blink. Use DOWN and UP button to select the (show 1) …
(show 16) or (Manual). After select the show mode, use DOWN and UP button to
adjust the value for fade mode and speed mode. Once select, press ENTER button to store or
automatically return to the main functions without any change after 30 seconds. To go back to the
previous functions without any change press the MENU button.
Pri./Sec. Mode
Press the MENU button up to when the is shown on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Pri mary),
(Secondary 1) or (Secondary 2). Once select, press ENTER button to store or
automatically return to the main functions without any change after 30 seconds. To go back to the
previous functions without any change press the MENU button.
8E

Dimmer Mode
Press the MENU button up to when the is shown on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Dimme r Curve
1) … (Dimmer Curve 4). Once select, press ENTER button to store or automatically return
to the main functions without any change after 30 seconds. To go back to the previous functions
without any change press the MENU button.
Dimmer Speed
Press the MENU button up to when the is shown on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Smooth),
(Fast). Once select, press ENTER button to store or automatically return to the main functions
without any change after 30 seconds. To go back to the previous functions without any change
press the MENU button.
DMX State
Press the MENU button up to when the is shown on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Primary/Secondary),
(Blackout Mode) or (Hold). Once select, press ENTER button to store or
automatically return to the main functions without any change after 30 seconds. To go back to the
previous functions without any change press the MENU button.
LED
Press the MENUbutton up to when the is shown on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (On) or
(Off). Once select, press ENTER button to store or automatically return to the main functions
without any change after 30 seconds. To go back to the previous functions without any change
press the MENU button.
9E

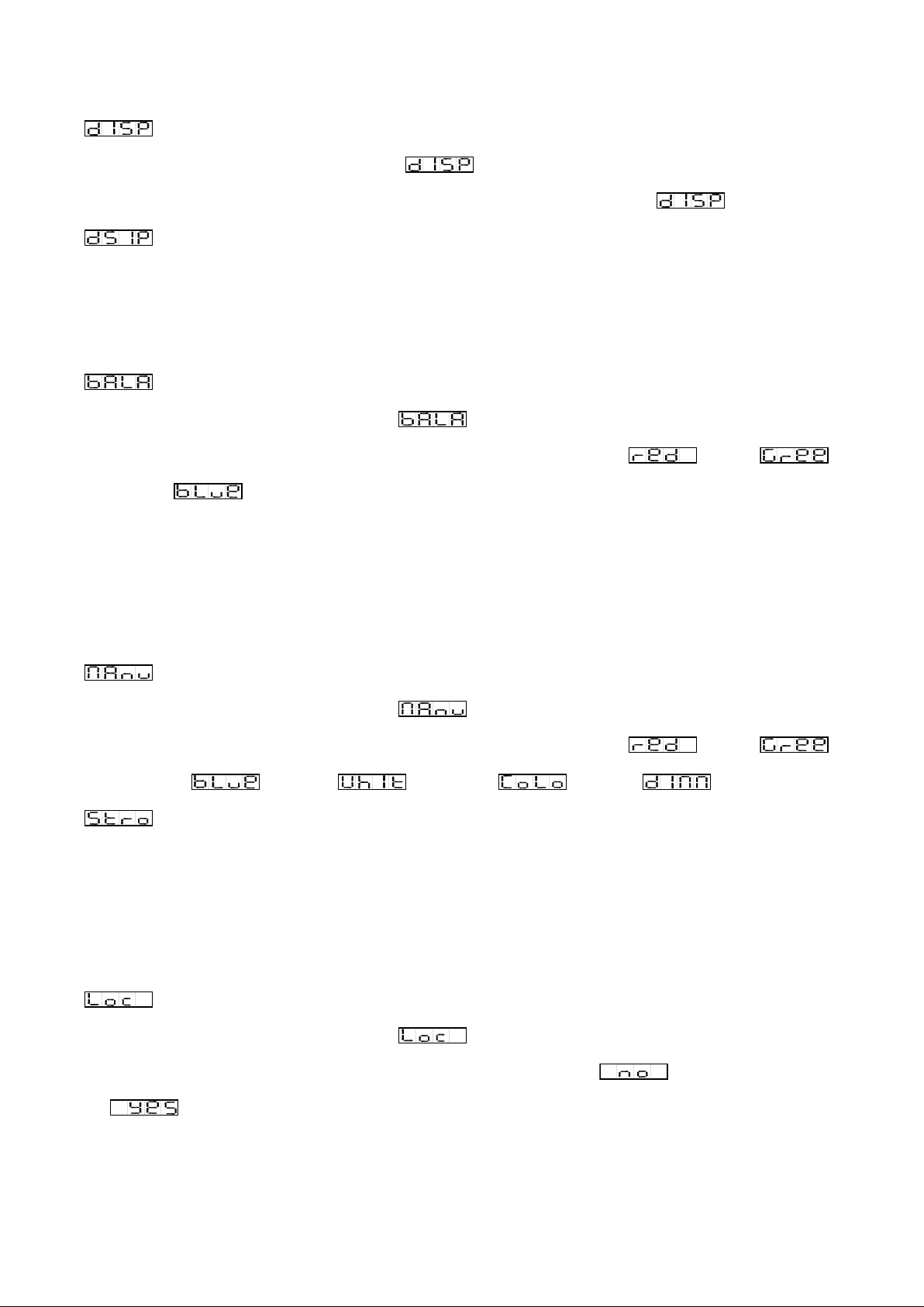

Display
Press the MENU button up to when the is shown on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Normal) or
(Display Inversion). Once select, press ENTER button to store or automatically return to
the main functions without any change after 30 seconds. To go back to the previous functions
without any change press the MENU button.
White Balance
Press the MENU button up to when the is showing on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Red),
(Green) or (Blue) mode. Once the mode has been selected, press the DOWN and Up
button to select the value from 125 to 255, press the ENTER button to setup or automatically
return to the main functions without any change after 30 seconds. To go back to the previous
functions without any change press the MENU button.
Manual Test
Press the MENU button up to when the is showing on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Red),
(Green), or (Blue), (White), (Color), (Dimmer) or
(Strobe) mode. Once the mode has been selected, press the DOWN and Up button to
select the value from 0 to 255, press the ENTER button to setup or automatically return to the
main functions without any change after 30 seconds. To go back to the previous functions without
any change press the MENU button.
Key Board Lock
Press the MENU button up to when the is showing on the display. Press ENTER button
and the display will blink. Use DOWN and UP button to select the (Key board lock On)
or (Key board lock Off). Once select, press the ENTER button to setup or automatically
return to the main functions without any change after 30 seconds. Back to the previous functions
press MENU button.
10E

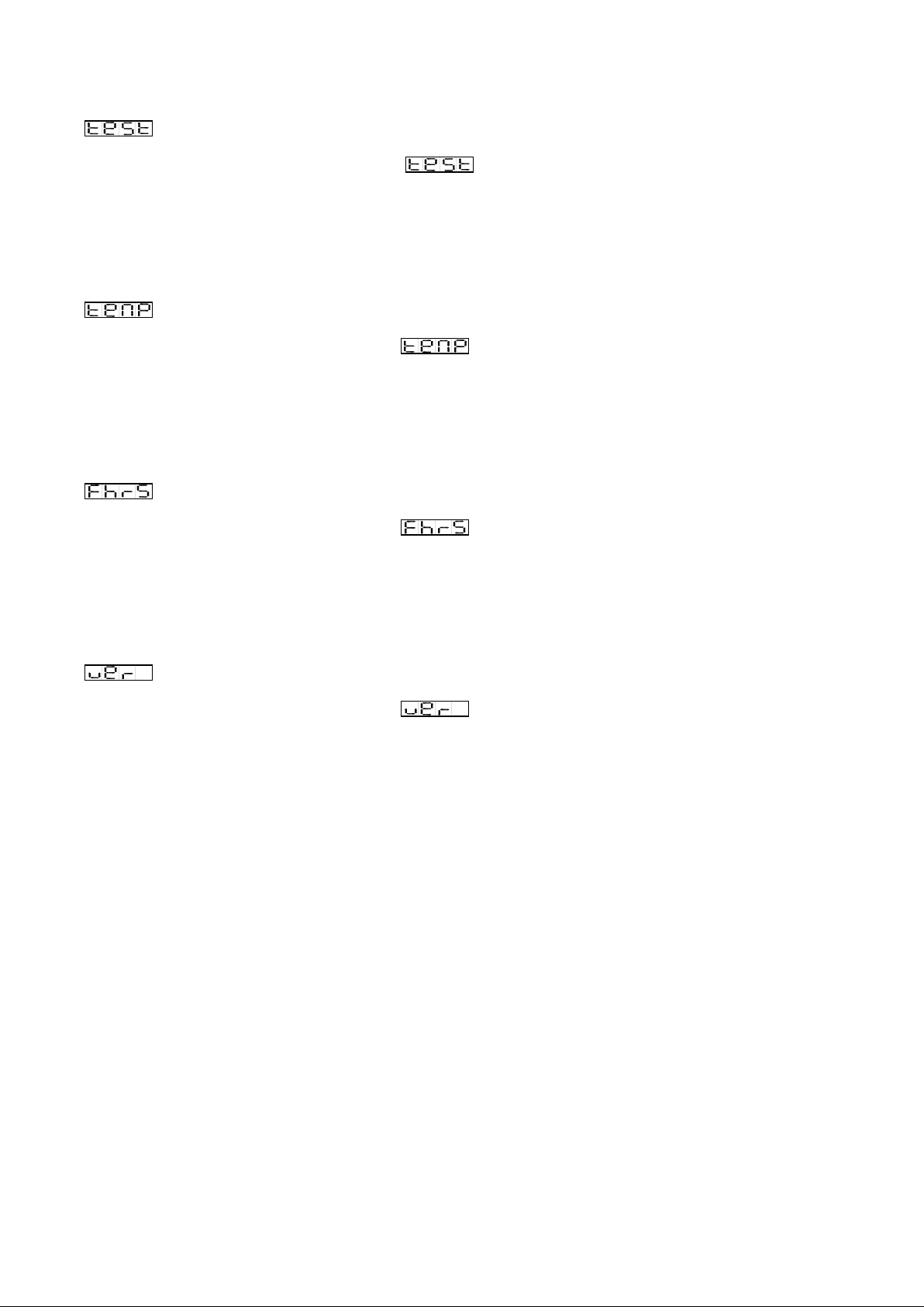

Auto Test
Press the MENU button up to when the is blinking on the display. Pres s ENTER button
and the unit will run self-test by built-in program. To go back to the functions press the MENU
button again.
Temperature
Press the MENU button up to when the is blinking on the display. Press ENTER button
and the display will show the temperature of the unit. To go back to the functions press the MENU
button again.
Fixture Hours
Press the MENU button up to when the is blinking on the display. Press ENTER button
and the display will show the number of working hours of the unit. To go back to the functions
press the MENU button.
Software version
Press the MENU button up to when the is blinking on the display. Press ENTER button
and the display will show the version of software of the unit. To go back to the functions press the
MENU button again.
11E

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (4/5/7 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
4. How To Control The Unit
You can operate the unit in two ways:
1. By primary/secondary built-in preprogram function
2. By universal DMX controller
4.1 Primary/Secondary Built-in Preprogram Function
By linking the units in primary/secondary connection, the first unit will control the other units to
give an automatic, sound activated, synchronized light show. This function is good when you want
an instant show. You have to select (show 1) … (show 4) for the first unit. Its
DMX input jack will have nothing plugged into. The other units will be secondary mode
automatically.
12E

4.2 Control By Universal DMX Controller
4.2.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-oh m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable can only be used in series and cannot be connected in parallel.
DMX 512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
13E

4.2.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select , press the ENTER button to confirm,
the present address will blinking the display, use the UP/DOWN button to adjust the address from
001 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode Uni t 1
Address
Uni t 2
Address
Uni t 3
Address
Uni t 4
Address
4 channels 1 5 9 13
5 channels 1 6 11 16
7 channels 1 8 15 22
4.2.3 DMX512 Configuration
Please control the fixture by referring to the configurations below
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Functi on, keep the value for about 3 seconds, then the corresponding
function will take into effect.
14E

4 Channels Mode:
Channel Va lu e Function
1
000-255
RED
0%

100%
2
000-255
GREEN
0%

100%
3
000-255
BLUE
0%100%
4
000-255
WHITE
0%

100%
5 Channels Mode:
Channel Va lu e Function
1
000-255
RED
0%

100%
2
000-255
GREEN
0%

100%
3
000-255
BLUE
0%100%
4
000-255
WHITE
0%

100%
5
000-255
DIMMER
0%

100%
7 Channels Mode:
Channel Va lu e Function
1
000-255
RED
0%100%
2
000-255
GREEN
0%

100%
3
000-255
BLUE
0%

100%
4
000-255
WHITE
0%

100%
5 COLOR WHEEL
15E

000-007
008-015
016-023
024-031
……
232-239
240-247
248-254
255
OFF
PRESET COLOR 1
PRESET COLOR 2
PRESET COLOR 3
……
PRESET COLOR 30
PRESET COLOR 31
PRESET COLOR 32
OFF
6
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
OFF
OPEN
RANDOM FROM SLOW TO FAST
OPEN
FAST CLOSE SLOW OPEN
OPEN
FAST OPEN SLOW CLOSE
OPEN
RANDOM STROBE
OPEN
7
000-255
DIMMER
0%

100%
16E

5. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for troubleshooting:
A. The unit does not work and no light
1. Check the connected power.
2. Measure the voltage.
3. Check the power indicator to see whether it can be lit up or not.
B. Not responding to the DMX controller
1. Check whether the DMX connectors and the DMX cables are connected correctly.
2. Check whether the DMX address is correctly set.
3. If the intermittent DMX signal problem occurs, check whether the XLR socket and the signal
cable are well connected.
4. Try it with another DMX controller.
5. Check whether the DMX cables run near or alongside to the high-voltage cables, which may
damage or interfere with the signal circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB might be broken.
2. The motor’s drive IC on the PCB might be out of condition.
6. Fixture Cleaning
It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow
the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust,
dirt and smoke-fluid residues building up on or withi n the fixture. The cleaning frequency depends on
the application environment. Clean the fixture immediately if the dust enters it to avoid damage to
the optical lens due to excessive dust.
A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no
circumstances should solvents be used.
Always dry the parts carefully.
Clean the external optical lens at least every 20 days.
17E

18E

Innovation, Quality, Performance
