OCB 1000CW User manual

2
Mobile DVR
MANUAL
Dual SD cards
OCB-1000CW

3
Contents
1. FEATURESOFPRODUCT………………………………………………………………….3
2. Product Applications…………………………………………………………………………6
3. APPEARANCEOFPRODUCT……………………………………………………………..7
4. Deviceuserguide……………………………………………………………………………14
4.1. Remotecontrolfunction………………………………………………………………14
4.2. Menu Structure……………………………………………………………………….17
4.3. Login Menu…………………………………………………………………………..18
4.4. Main Menu……………………………………………………………………………18
4.5. SYSTEM SETUP…………………………………………………………………….19
4.6. RECORDING SETUP……………………………………………………………….22
4.7. VEHICLEINFO………………………………………………………………………24
4.8. MANAGEMENTTOOLS…………………………………………………………….26
4.9. PLAYBACKMENU…………………………………………………………………..28
4.10. Shortcutsetup………………………………………………………………………….29
4.11. Module management………………………………………………………………….29
4.12. SYSTEM INFO………………………………………………………………………31

4
1. Features of Product
The MDVR (Automotive) is a cost-effective, functional and scalable device designed for
video surveillance and remote monitoring of your mobile assets. It uses a high-speed
processor, an embedded Linux platform and combines the most advanced IT processes
such as H.264 Video Compression/Decompression, networking and GPS positioning
technology. MDVR enables CIF, HD1 and D1 video formats. Drivers' driving
information, recording and wireless data are uploaded to SD Memory Cards which are
used as the storage medium. A MDVR centric software platform (CMS) can be realized
with links to a Central Alarm monitoring system for remote management and playback
analysis. The MDVR may look simple in its exterior design, provides powerful auto black
box features, installation flexibility and high reliability.
MDVR Specifications Blank 1。
Blank 1 MDVR Specifications
Items
Parameters
Specifications
System
Language
Chinese/English
OSD
Graphical User interface（OSD menu）
Password
Users Password/Administrator Password
Vision
Video input
4-CH video input 1.0Vp-p，75Ω
Video output
1-CH video output 1.0Vp-p，75Ω
Preview
Support 1 channel or synchronous 4 channels
preview.
Recording Ratio
PAL 25 Frame/s CCIR625 line, 50 field
NTSC 30 Frame/s CCIR525 line, 60 field
Image Compression
H.264 Main profile，75fps D1/s
Audio
Audio input
4-ch Audio input 600Ω
Audio output
1-ch Audio output 600Ω
Recording mode
Audio & Video sync.
processing &
storage
Video format
4-ch CIF: 25fps, 4-ch HD1: 25fps, 2D1: 25fps
+ 2CIF: 25fps,
Video stream
ISO14496-10
Video Rate（kbps）
CIF: 1536Kbps ~ 128Kbps，8 levels optional.
Highest:1 level
HD1: 2048Kbps ~ 380Kbps，8 levels optional.
Highest:1 level
D1: 2048Kbps ~ 400Kbps，8 levels optional.
Highest:1 level

5
Audio Bitrate
4Kbytes/s
Storage
Support Dual SD card storage, 32GB for
each.

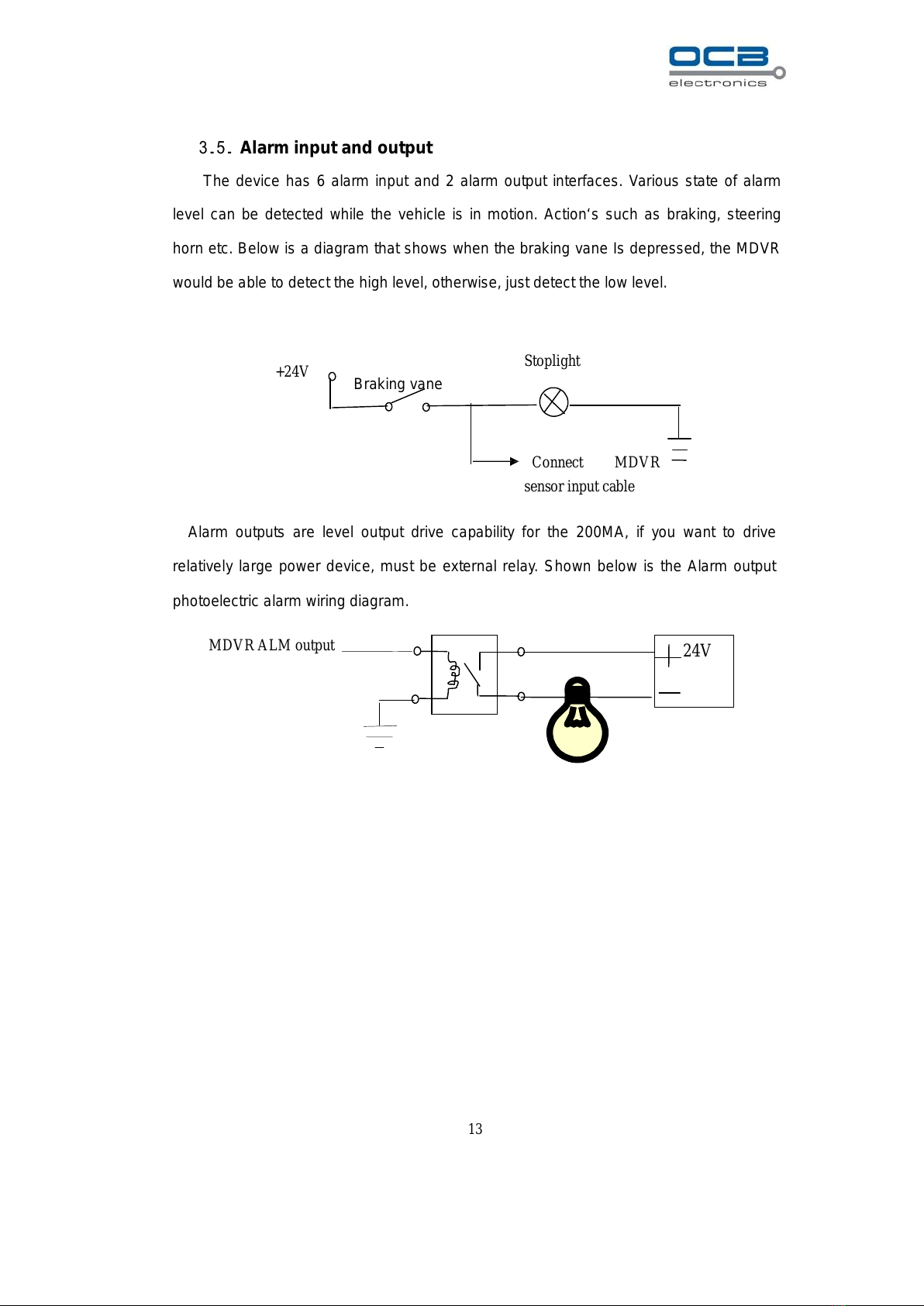

Alarm
Alarm input
6 alarm input, No alarm below 4V, high level
alarm above 4V.
Alarm output
2 alarm output, high level 12V output.
Communication
Port
Serial Interface
Support 1-RS232 interface
Serial Interface
Support 2-RS485 interface
WIFI Interface
Support 802.11b/g
Extended
interface
Auto Station reporter
Interface
Support connecting Auto Station Reporter or
control panel via extended interface
Audio power
amplifier
Support 2-ch audio power amplifier output
Wireless
Transmission
CDMA
Built-in CDMAmodule
GPRS/EDGE
Built-in GPRS / EDGE module
3G(HSDPA / EVDO /
WCDMA)
Built-in 3G(HSDPA / EVDO / WCDMA)module
GPS
Built-in GPS module，Geographic co-ordinates 、speed can be read
in coding flow，and can be wireless uploaded.
Acceleration
Built in acceleration G-Sensor
Software
Analysis of PC
playback
Video playback on PC，and analyse the vehicle
info in the file.
CMS
Video preview via WIFI、GPS upload、alarm
upload, central command and parameters
configuration, etc.
Upgrade
Support SD cards upgrade.
MDVR basic electrical Specifications blank 2。
Blank 2 MDVR basic electrical Specifications
Items
Parameters
Specifications
Power input
8—36V
＋8V～＋36V, When long-term under 8V, or long-term
over 36V,Auto power off, enter protected mode.
Power output
12V
12V（+/-0.2V），Max:2A.
Vehicle key signal
≤4V
OFF。
≥5V
ON。

6
Video input
impedance
75 Ω
75Ω for each video input impedance
Video output Volt
2Vp-p
Input 2Vp-p CVBS analog signal, reveal device input
need 75Ω impedance to fit
I/O interface
0—4V
Low level alarm
Above 4V
High level alarm。
SD-card interface
2 SD cards
1.32GB for each card.
2.SD-card for storage, support recording and system
upgrade, etc.
Operating Temp
-40℃-80℃
Under well-ventilated enviroment.

7
2. Product Applications

8
3. Appearance of Product
3 . 1 . Device Appearance
1.1 MDVR Device Appearance
3 . 2 . Device drawing Dimension & Install Holes

9
3 . 3 . Device Dimension & Install Holes
3 . 4 .
3 . 5 . Front & Back Panel led & Plug-in module.
1.2 Front & Back Panel led & Plug-in module.
Front Panel definition as below:
3 . 1 . Front & Back Panel led & Plug-in module.
Interface Items Description

3333 .... 2222 .... Back Pane n e ace de n on
9
VIDEO-OUT
VIDEO-OUT
Video Simulation output
LED
SD1
SD1 card recording led, light on as SD1
exist.
SD2
SD1 card recording led, light on as SD2
exist.
REC
Recording led，light on as recording
GPS
GPS signal led，light on as GPS module
exist.
POWER
Led, Light on as power normal
ALM
ALM LED, light on as device abnormal
CAM1/CAM2/CAM3/CAM4
Light on as CAM1/CAM2/CAM3/CAM4
has signal, or else, no light on
WIFI
Light on as WIFI module exist
2G/3G
Light on as 2G/3G module exist
IR
receiver
IR
IR receiver, receive remote control
signal
Electronic
Lock
LOCK
During working, open key lock, system
will load-off 2-SD cards, load-on
recording after 1min auto.
l i t rf fi iti
Pic 8 Back Panel interface definition

11
Back Panel interface definition as followed:
Pic 8 Back Panel interface definition
Interface
Items
Description
WIFI interface
WIFI
Wireless LAN antenna interface
GPS interface
GPS
GPS antenna interface
2G/3G interface
2G/3G
2G/3G antenna interface
Power input
interface
DC8-36V
Power input interface
LPT
MCU
System adjust info interface
Extended interface
EXTENTION
Control panel interface
Video output
interface
VIDEO- OUT
Video output
Audio output
interface
AUDIO- OUT
Audio output
CAN-BUS interface
CAN-BUS
Vehicle electronic control network
Sensors interface
SENSORS
Swich input interface，high leve（l >4V）
Vehicle speed pulse
input interface
SPEED
Input vehicle speed pulse signal,
differential input
RS485/RS232
interface
RS485/RS232
RS232 / RS485 serial data
communication interface
Speaker interface
SPEAKER
Audio power amplifier output
3 . 3 . Power Cable
Figure 8 shows the power cable, one end is 6Pin with White Plug, connected to the
device panel 6Pin White Connector. The Red and Black wire is connected directed to the
vehicle's battery. Red wire is POSITIVE and Black is NEGATIVE. Yellow cable is
FIREWIRE. The device which be turned on when the vehicle's key are in the ignition and
turns off or delay turn off when the keys are taken out. The yellow cable connects the point
of panel lamp key opened (point of vehicle ignition).
