Sound Bar 2.1 User Manual
Dear Valued Customer,
Congratulations on your new Sound Bar 2.1 with built-in subwoofer
purchase. Thank you for your support. To ensure safety and many years of
trouble free operation of your Sound Bar 2.1, please read the manual carefully
before making any adjustments, and keep them in a safe place for future
references. The Sound Bar 2.1 is a versatile speaker unit with both digital and
analog audio inputs for audio visual sources. Connect the Sound Bar to the
audio output of your TV and you can use the Sound Bar to enhance the sound
from all sources playing through your TV. We hope you enjoy your new Sound
Bar 2.1.
For technical assistance, please call [phone] and select option 3 or
email our tech support group at [e-mail].
For all other inquiries, please call [phone] and select option 4 or
email our customer service group at [e-mail].
We recommend you register your Sound Bar 2.1 online at
http://www.oCOSMO.com.

- 2-
www.oCOSMO.com
Sound Bar 2.1 User Manual
Table of Contents
TABLE OF CONTENTS 2
SAFETY INFORMATION 3
SAFETY INSTRUCTIONS 4
PACKAGE CONTENTS 6
OVERVIEWS 6
FRONT &BACK 6
SOUND BAR REMOTE &EXTRAS 7
MOUNTING THE SOUND BAR 9
INSTALLING BATTERIES TO THE REMOTE CONTROL 11
CONNECTION SUGGESTIONS 12
IF YOU HAVE DIGITAL AUDIO WITH YOUR TV 12
IF YOU HAVE ANALOG AUDIO WITH YOUR TV 13
IF YOU HAVE AN AUDIO DEVICE WITH YOUR TV 14
OPERATION 15
HOW DO I CLEAN THE SOUND BAR? 16
TROUBLESHOOTING 17
CALL US IF YOU NEED HELP! 18
SPECIFICATION 19
LIMITED PRODUCT WARRANTY 21
DISCLAIMER, TRADEMARKS, & COPYRIGHT INFORMATION 23
FCC COMPLIANCE STATEMENT 24

- 3-
www.oCOSMO.com
Sound Bar 2.1 User Manual
SAFETY INFORMATION
Electricity is used to perform many useful functions, but it can also cause personal injuries and
property damage if improperly handled. This product has been engineered and manufactured with
the highest priority on safety. However, improper use can result in electric shock and / or fire. In
order to prevent potential danger, please observe the following instructions when installing,
operating and cleaning the product. To ensure your safety and prolong the service life of your
Sound Bar, please read the following precautions carefully before using the product.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade and the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightening storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.

- 4-
www.oCOSMO.com
Sound Bar 2.1 User Manual
SAFETY INSTRUCTIONS
This product is designed and manufactured to operate within defined design limits, and
misuse may result in electric shock or fire. To prevent the product from being damaged,
the following rules should be observed for the installation, use and maintenance of the
product. Read the following safety instructions before operating the Sound Bar. Keep
these instructions in a safe place for future reference.
To avoid the risk of electric shock or
component damage, switch off the
power before connecting other
components to the SOUND BAR.
Unplug the power cord before
cleaning the SOUND BAR. Please use
the included custom bezel cleaning
cloth for cleaning the bezel of the
SOUND BAR only. Do not use a liquid
or a spray cleaner for cleaning the
product. Do not use abrasive cleaners.
Always use the accessories
recommended by the manufacturer to
insure compatibility.
When moving the SOUND BAR from
an area of low temperature to an area
of high temperature, condensation
may form on the housing. Do not turn
on the SOUND BAR immediately after
this to avoid causing fire, electric
shock or component damage.
Do not place the SOUND BAR on an
unstable cart, stand, or table. If the
SOUND BAR falls, it can injure a
person and cause serious damage to
the appliance.
Any heat source should maintain a
distance of at least 5 feet away from
the SOUND BAR, i.e. radiator, heater,
oven, amplifier etc. Do not install the
product too close to anything that
produces smoke or moisture.
Operating the product close to smoke
or moisture may cause fire or electric
shock.
Never push any object into the
ventilation slots of the SOUND BAR.
Do not place any objects on the top of
the Product. It could short circuit parts
causing a fire or electric shock. Never
spill liquids on the SOUND BAR.
The SOUND BAR should be operated
only from the type of power source
indicated on the label. If you are not
sure of the type of power supplied to
your home, consult your dealer or
local power company.
The power cable must be replaced
when using different voltage from that
specified in the User Manual. For
more information, contact your dealer.
Do not overload power strips and
extension cords. Overloading can
result in fire or electric shock.
The wall socket should be installed
near the equipment and should be
easily accessible.
Only the marked power source can be
used for the product. Any power
source other than the specified one
may cause fire or electric shock.
Do not touch the power cord during
thunderstorms. To avoid electric shock,
avoid handling the power cord during
electrical storms.
Unplug the unit during a lightning
storm or when it will not be used for a
long period of time. This will protect
the SOUND BAR from damage due to
power surges.
Do not attempt to repair or service the
product yourself. Opening or removing
the back cover may expose you to
high voltages, the risk of electric shock,
and other hazards. If repair is required,
please contact your dealer and refer
all servicing to qualified service
personnel.
Keep the product away from moisture.
Do not expose this appliance to rain or
moisture. If water penetrates into the
product, unplug the power cord and
contact your dealer. Continuous use in

- 5-
www.oCOSMO.com
Sound Bar 2.1 User Manual
this case may result in fire or electric
shock.
Do not use the product if any
abnormality occurs. If any smoke or
odor becomes apparent, unplug the
power cord and contact your dealer
immediately. Do not try to repair the
product yourself.
Avoid using dropped or damaged
appliances. If the product is dropped
and the housing is damaged, the
internal components may function
abnormally. Unplug the power cord
immediately and contact your dealer
for repair. Continued use of the
product may cause fire or electric
shock.
Do not install the product in an area
with heavy dust or high humidity.
Operating the product in environments
with heavy dust or high humidity may
cause fire or electric shock.
Hold the power connector when
removing the power cable. Pulling the
power cable itself may damage the
wires inside the cable and cause fire
or electric shocks. When the product
will not be used for an extended
period of time, unplug the power
connector.
To avoid risk of electric shock, do not
touch the connector with wet hands.
Insert batteries in accordance with
instructions while using the remote
control. Incorrect polarities may cause
damage and leakage of the batteries,
operator injury and contamination the
remote control.
If any of the following occurs please
contact the dealer:
oThe power connector fails
or frays.
oLiquid sprays or any object
drops into the SOUND
BAR.
oThe Sound Bar is exposed
to rain or other moisture.
oThe Sound Bar is dropped
or damaged in any way.
oThe performance of the
Sound Bar changes
substantially.
Operating environment: Temperature:
5°C ~ 35°C, Humidity: 10% to 75%
non-condensing, Altitude: 0~10,000 ft.

- 6-
www.oCOSMO.com
Sound Bar 2.1 User Manual
Package Contents
Sound Bar x 1
User Manual x 1
Warranty Card x 1
Drywall Anchor with Screw x 2 Sets
3 Head RCA Audio Cable x 1
3.5 mm Mini-jack Cable x 1
Sound Bar Remote Control with lithium CR2025 Battery x 1
Overviews
Front & Back

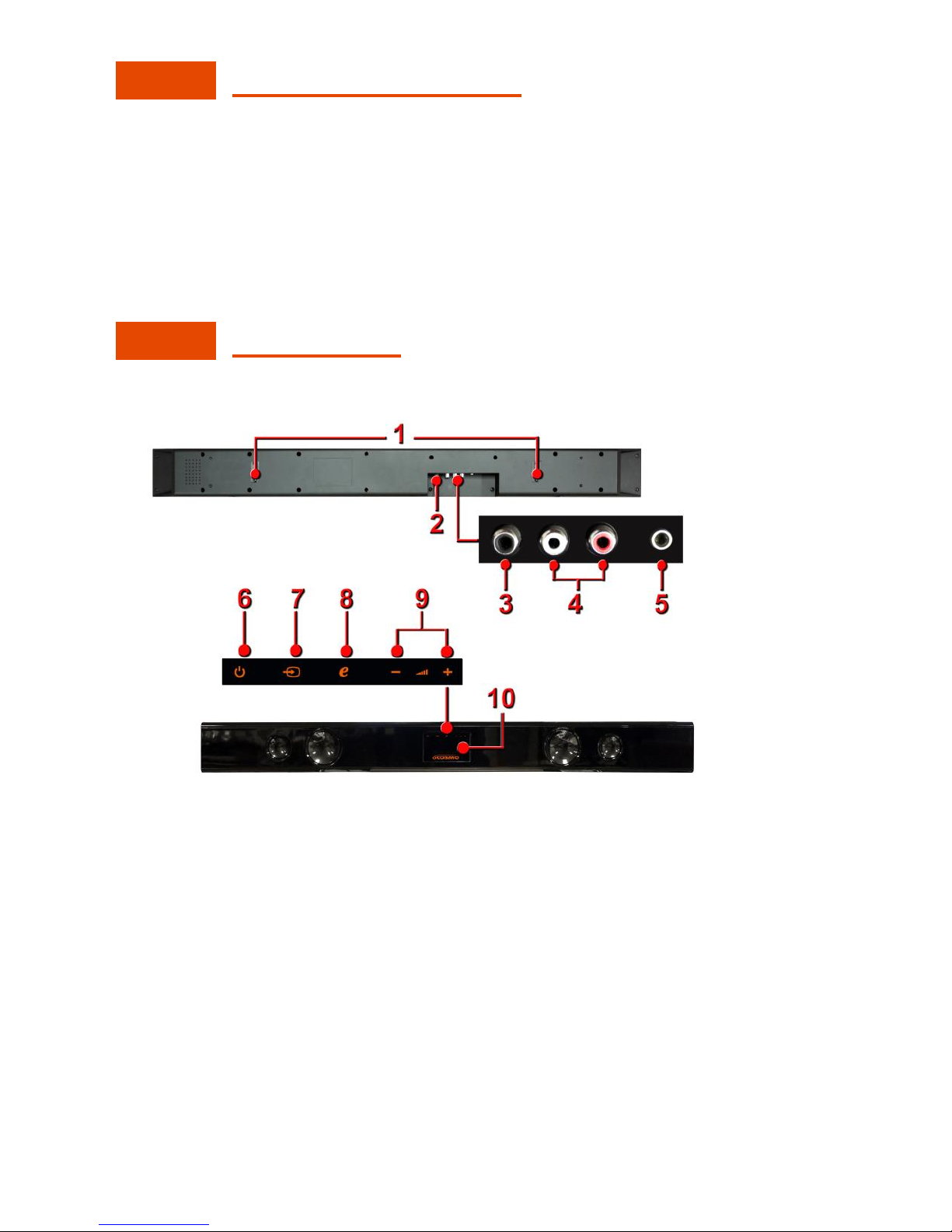

1. WALL MOUNT BRACKETS –Use these brackets to hang the sound bar on a wall.
2. POWER CABLE –Connect this to a surge protector or wall outlet.
3. COAXIAL SPDIF –Connect your digital audio outputs to this connection for audio.
4. AUX –Connect your analog audio output to this connection for audio.
5. LINE IN (3.5mm) –Connect the headphone out from any device to this connection for audio.
The following are touch sensor functions on the Sound Bar 2.1 itself.
6. POWER –This button turns the Sound Bar on or off.
7. SOURCE –This button selects the sound connection between LINE (3.5 mm mini-jack), COAX
(digital) and AUX (analog).
8. SOUND MODE –This button selects all the sound modes (MOVIE, MUSIC, NEWS, GAMES).
a. MOVIE –This sound mode is made for watching movies.
b. MUSIC –This sound mode is made for listening to music broadcasts.
c. NEWS –This sound mode is made for watching the news.
d. GAMES –This sound mode is made for games such as football, soccer, basketball,
and baseball.
9. VOL(–/+)–The (-) touch sensor decreases the volume and the (+) touch sensor increases the
volume.
10. DISPLAY –This screen displays the current status of the sound bar.

- 7-
www.oCOSMO.com
Sound Bar 2.1 User Manual
Sound Bar Remote & Extras
This remote uses a lithium CR2025 battery.

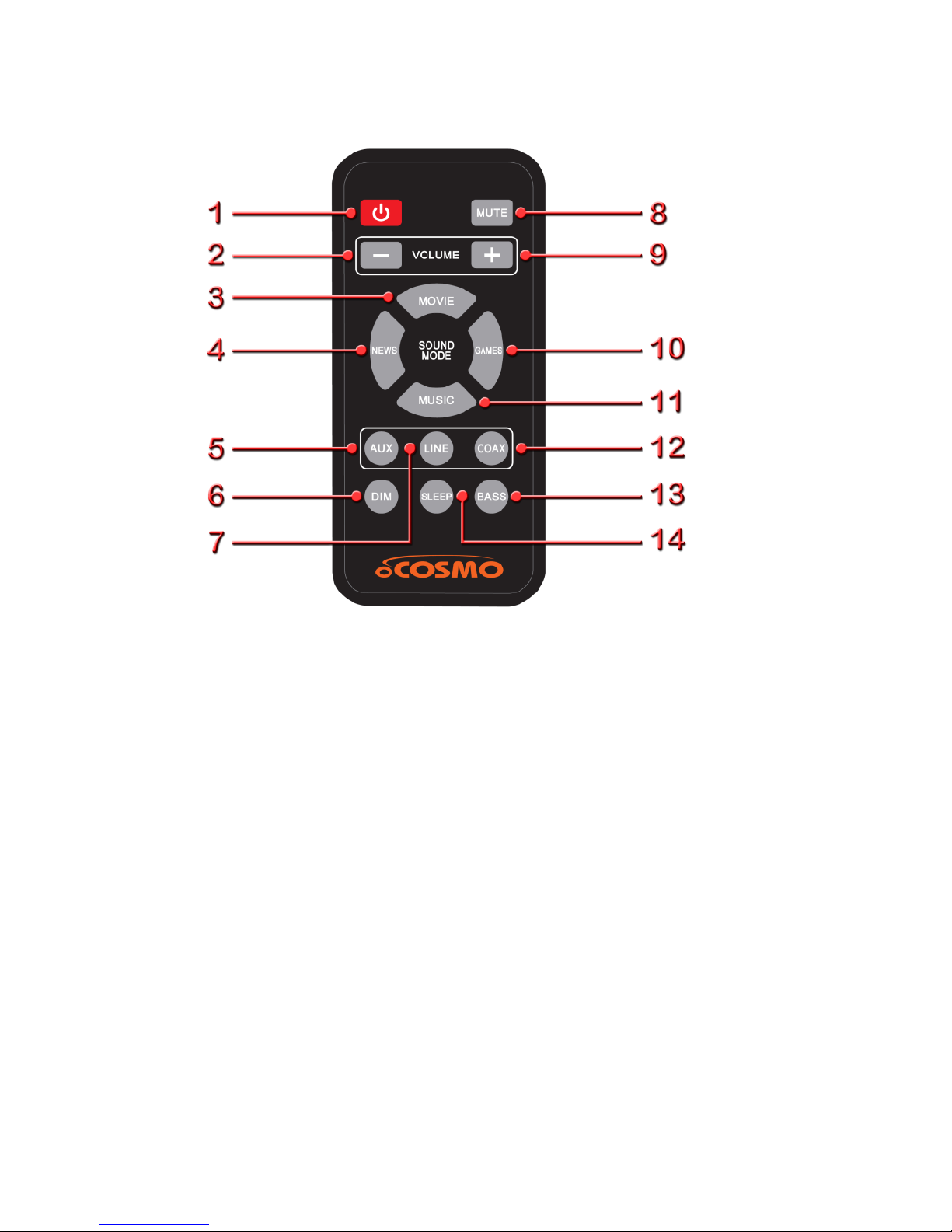

1. POWER –Turns the Sound Bar on or off.
2. VOLUME (–)–Press this button to decrease the volume.
3. MOVIE –Press this button to switch to the MOVIE sound mode.
4. NEWS –Press this button to switch to the NEWS sound mode.
5. AUX –Press this button to switch to the analog audio source AUX.
6. DIM –Press this button to dim the display on the sound bar.
7. LINE –Press this button to switch to the analog source LINE.
8. MUTE –Press this button to mute the volume.
9. VOLUME (+) –Press this button to increase the volume.
10. GAMES –Press this button to switch to the GAMES sound mode.
11. MUSIC –Press this button to switch to the MUSIC sound mode.
12. COAX –Press this button to switch to the digital audio source COAX.
13. BASS –Press this button to enhance bass output.
14. SLEEP –Press this button to enable the sleep function.
PLEASE NOTE:
The Sound Bar remote power button controls both the turning on and turning off function
of the Sound Bar and any oCOSMO TV.
The mute button of the Sound Bar only mutes the sound bar not the oCOSMO TV,
however if you use the oCOSMO TV remote’s mute, it will mute the Sound Bar.

- 8-
www.oCOSMO.com
Sound Bar 2.1 User Manual
Some oCOSMO HDTV remotes might also have buttons used to control the sound bar. If you
see Power, Source, Mode, Vol (+/-) buttons encircled with the SOUNDBAR word next to it, you
can use them to control the Sound Bar.
1. POWER –This button turns on or off the Sound Bar.
2. SOURCE –This button changes the sound source on the Sound Bar between COAX and AUX.
3. MODE –This button changes the sound mode on the Sound Bar.
4. VOL(-) –This button decreases the volume on the Sound Bar.
5. VOL(+) –This button increases the volume on the Sound Bar.

- 9-
www.oCOSMO.com
Sound Bar 2.1 User Manual

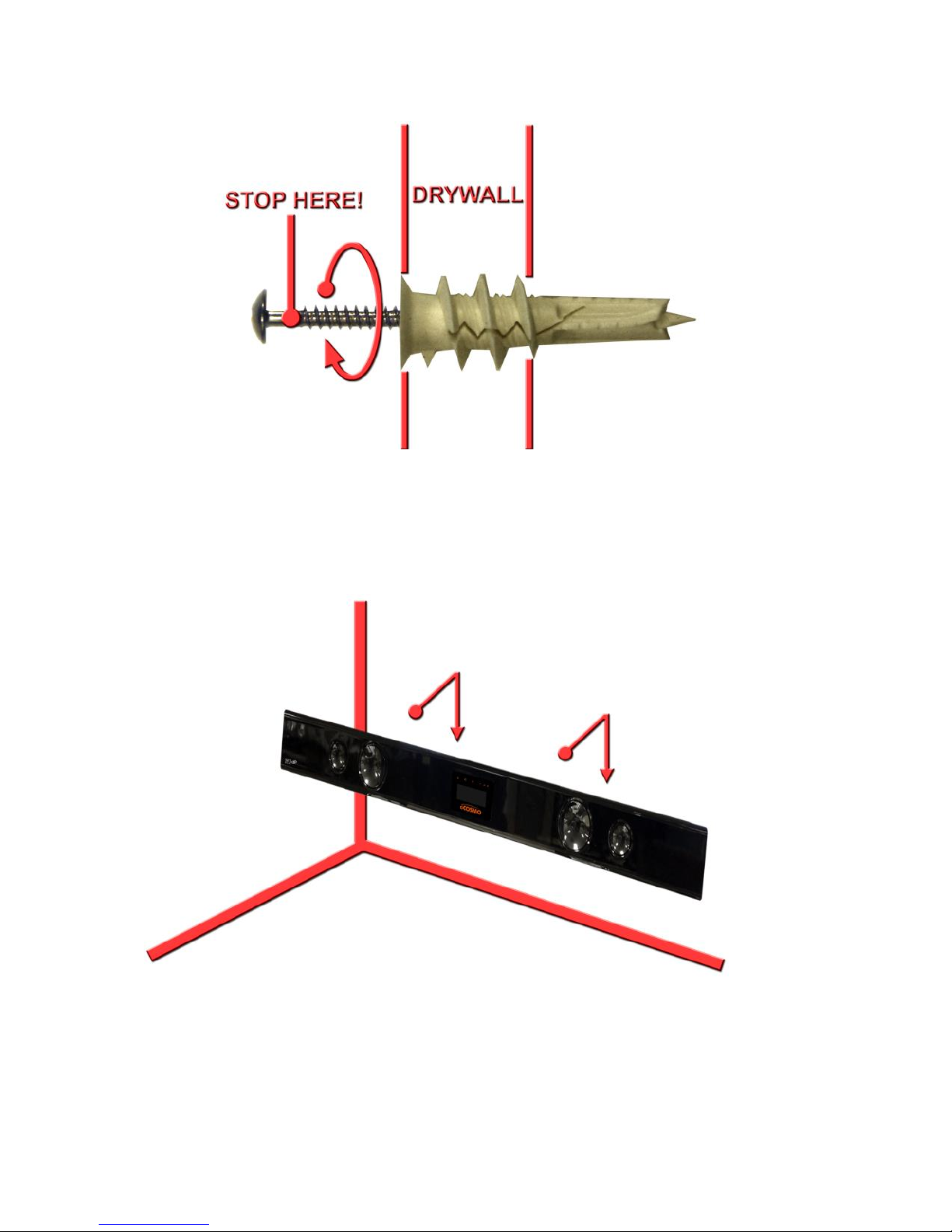

Mounting the Sound Bar
To mount the Sound Bar you need to have 520 mm of horizontal space on the wall.
1. Measure the length of 520mm on the wall.
2. With a pencil mark the two entry points where you are going to install the dry wall anchors and
puncture the points with a nail so it is easier for the anchor to be screwed in.
3. With a #2 Phillips screw driver press the anchor tip slightly into the point marked previously on
the drywall. Applying pressure, turn the screw driver until the anchor is flush with the drywall.
Do this for both drywall anchors.
4. Insert the screw into the anchor and use the screw driver to tighten it into the anchor.
5. The drywall anchor will “CLICK” once, when the screw is half way in, in order to indicate that
the anchor is secure. Please continue tightening until the screw has about 1/8th of an inch left.

- 10 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
6. Align the mounting brackets on the back of the sound bar to the two screws protruding on the
wall and fit into them, then finally slowly lower the sound bar so that it securely hangs onto the
screws.

- 11 -
www.oCOSMO.com
Sound Bar 2.1 User Manual

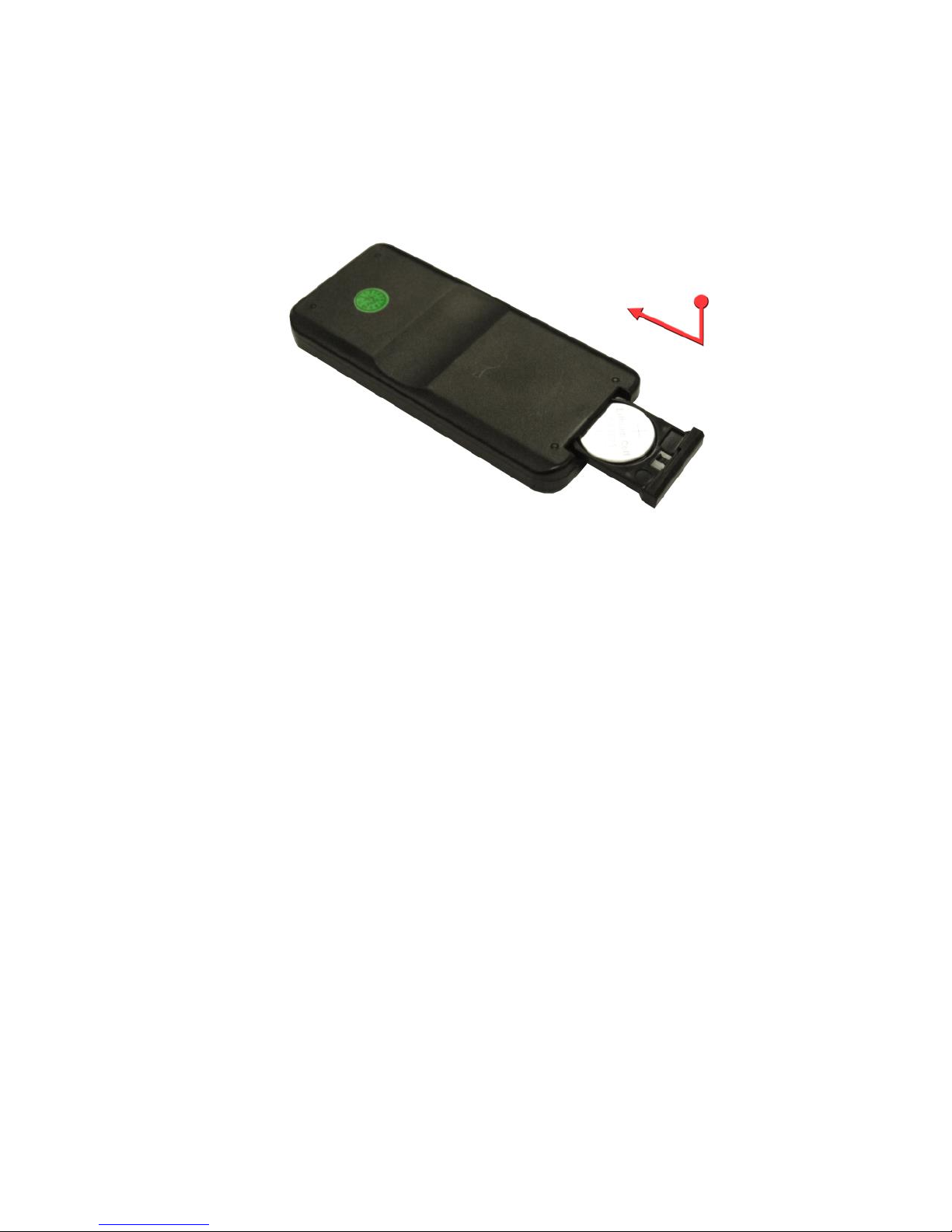

Installing Batteries to the Remote Control
Please insert one CR2025 lithium battery into the remote control. Make sure that you
match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the
battery compartment. Afterwards, re-attach the battery cover.
Please note:
Only use CR2025 lithium batteries.
Inserting the batteries incorrectly may also result in cracking or leakage that may pose a fire
risk or lead to personal injury.
Dispose the batteries in accordance with local laws and regulations.
Keep the batteries away from children and pets.
If the remote control is not used for a long time, remove the batteries.
Keep the remote control away from moisture, sunlight, and high temperatures.

- 12 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
Connection Suggestions
If you have digital audio with your TV
1. Grab the included 3 head RCA audio cable and use the black colored RCA plug.
2. Find the SPDIF digital audio coax connection on the back of the TV and connect
one end of the cable to it.
3. Connect the other end of the cable to the back of the Sound Bar’s black coax
connection.
4. Turn on the TV, make sure you output PCM signal to the Sound Bar.
5. Turn on the Sound Bar and press the COAX button on the Sound Bar’s remote.
6. Enjoy your Sound Bar!
PLEASE NOTE:
For digital audio, the sound bar only decodes PCM signals. If the sound has
static or the Sound Bar is silent that means the signal is not PCM.

- 13 -
www.oCOSMO.com
Sound Bar 2.1 User Manual

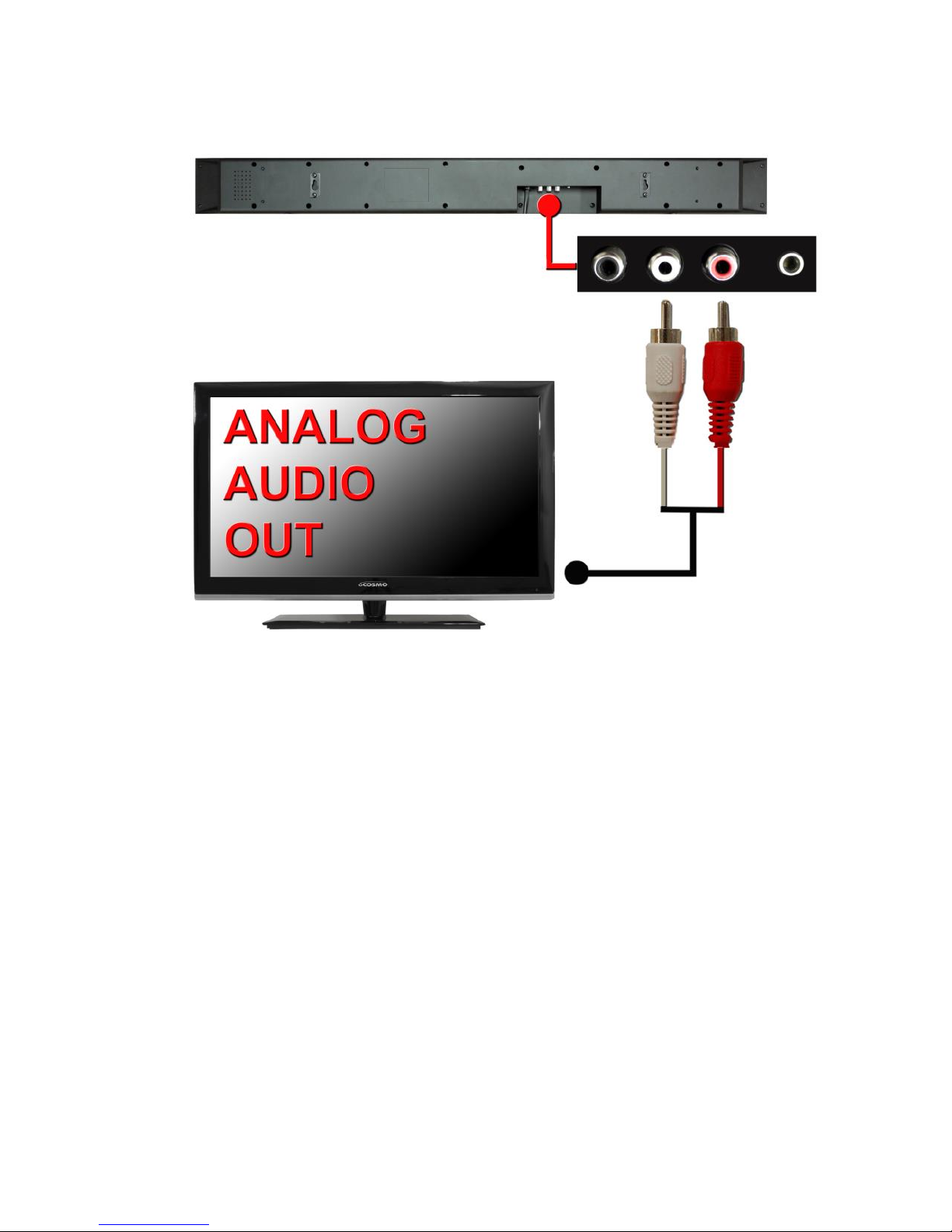

If you have analog audio with your TV
1. Grab the included 3 head RCA audio cable and use the red and white colored
RCA plug.
2. Find the analog audio out on the back of the TV and connect one end of the cable
to it matching the colors red to red, and white to white.
3. Connect the other end of the cable to the back of the Sound Bar’s AUX red and
white connection.
4. Turn on the TV, and the Sound Bar.
5. Press the AUX button on the Sound Bar’s remote.
6. Enjoy the Sound Bar!

- 14 -
www.oCOSMO.com
Sound Bar 2.1 User Manual

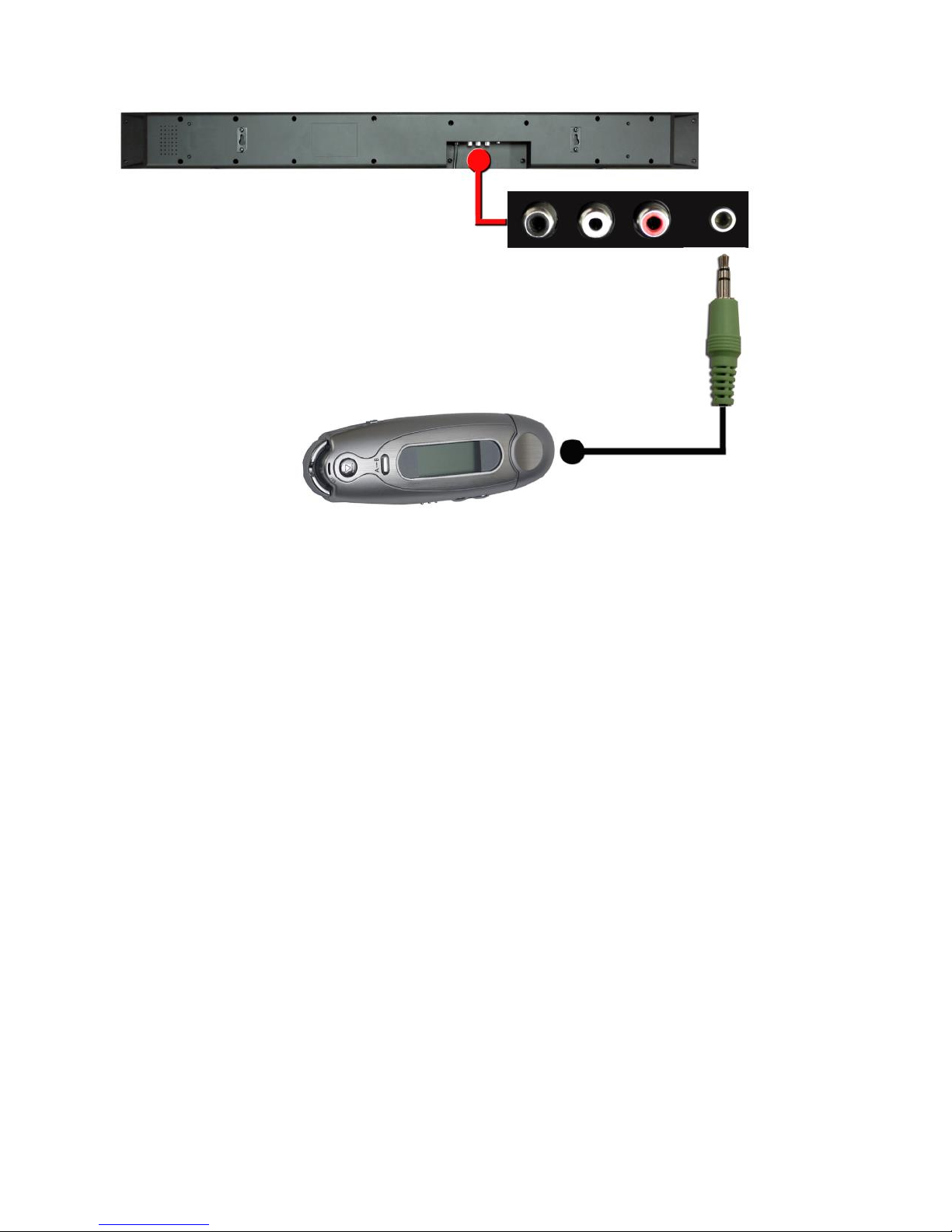

If you have an audio device with your TV
1. Grab the included 3.5mm mini-jack cable.
2. Find the headphone jack connection on the audio device and connect one end of
the cable to it.
3. Connect the other end of the cable to the back of the Sound Bar’s LINE IN
connection.
4. Turn on the audio device.
5. Turn on the Sound Bar and press the LINE button on the Sound Bar’s remote.
6. Enjoy your Sound Bar!

- 15 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
Operation
TO SWITCH ON / OFF THE UNIT
1. Press the POWER button on the front panel or the RED button on the remote control to
turn on the unit. If the unit is ON you will see the display window show the source
selected, volume level and sound mode.
2. Press the POWER button on the front panel or the RED button on the remote control
again to turn off the unit.
SELECTING A SOURCE
1. Press the SOURCE button on the control panel repeatedly to switch between sources.
From the remote control, press the AUX button to select the analog source or the COAX
button to select the digital input or the LINE button for analog headphone source. The
source will be shown on the display window.
VOLUME CONTROL
1. Press the VOL+ button to increase the volume of the sound bar.
2. Press the VOL- button to decrease the volume of the sound bar.
Please Note:
The sound bar has a maximum volume unit of 30.
SOUND MODES
1. Your Sound Bar includes 4 sound modes optimized for different types of program content.
Choose from MOVIE, GAMES, NEWS, and MUSIC.
2. You can change them by either pressing the MODE button on the Sound Bar itself or using the
remote buttons labeled MOVIE, GAMES, NEWS, and MUSIC. The selected mode will show
up on the Sound Bar display.
SLEEP FUNCTION
1. The sound bar can turn off by itself after a period of time. Press the SLEEP button repeatedly
to cycle through the available time duration option of 5, 10, 15, 30, 45, 60, 90 minutes.
BASS FUNCTION
1. The BASS button will increase the bass effect of the sound bar. Press the button repeatedly to
cycle through the bass values.
DIM FUNCTION
1. Press the DIM button repeatedly to cycle through the states of brightness on the display.
is a trademark of SRS Lab, Inc.
WOW HD technology is incorporated under license from SRS Labs, Inc.
WOW HD™significantly improves the playback quality of audio, delivering
a dynamic 3D entertainment experience with deep, rich bass and high
frequency clarity for crisp detail.

- 16 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
How do I clean the Sound Bar?
IMPORTANT
1. The power cable has to be removed from the socket before cleaning the
Sound Bar.
2. Do not use volatile solvent (alcohol, rosin, and toluene) to clean the
Sound Bar. These types of chemicals might damage the housing .
Cleaning the bezel and remote control
1. Use a 100% cotton cloth or micro-fiber cloth for cleaning.
2. If the remote control or bezel is dirty to the point where you cannot
simply dry wipe it, please lightly dampen the wiping material (the wiping
material cannot be dripping wet, because if water drips into the
panel it will cause malfunction and possible permanent damage to
the speakers which will not be covered under the warranty) with
clean water and wipe again. Wipe the Sound Bar with a dry micro-fiber
cloth or 100% cotton cloth afterwards.
Please Note:
Make sure you wring the water out of the cloth before
cleaning the bezel or remote in order to prevent water
from penetrating into the electronics.

- 17 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
Troubleshooting
The following table contains the common problems and the solutions to these
problems. Please check this list before you contact the technicians.
Problems
Solutions
NO SOUND
Try increasing the volume of the speaker.
Check that the Sound Bar is not turned off.
Check the Sound Bar volume level.
Make sure the correct input is selected.
Make sure the proper cables are connected.
If you are using digital audio, make sure the source is
sending out a PCM signal. Some devices have
default settings on Bitstream.
REMOTE DOES
NOT WORK
Make sure the battery is properly installed.
Take the battery out, press the buttons once or twice,
install the batteries back in to see if it works.
Maybe the battery is out of power, please replace the
battery.
NO POWER
Make sure the AC power cord is securely connected
to a power outlet.
Try another electrical device on the power outlet to
ensure there is power through it.
Speaker buzzing or
humming
Make sure both ends of the audio cables are
connected properly.
Test the sound bar with another audio cable.
Test the sound bar with another TV.

- 18 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
Call Us If You Need Help!
Products are often returned due to a technical problem rather than a defective
product that may result in unnecessary shipping charges billed to you. Our
trained support personnel can often resolve the problem over the phone or
email. For more information on warranty services or repairs after the warranty
period, please contact our support department at the number below.
For technical help, contact our Technical Support Group via email or phone.
Please have your p/n number, serial number, and date of purchase
available before you call.
Tech Support E-mail: ocosmoT[email protected]m
Customer Service E-mail: [e-mail]
TEL: (855) 6oCOSMO / [phone]
FAX: [phone]
Website : www.oCOSMO.com
Operation Hours: Mon - Fri at 8:30 AM –5:30 PM (PST)

- 19 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
Specification
Sound Bar
Spec
Full range
Speaker
Speaker(s) x
Diameter (inch)
2 × 2”
Speaker type
Active
Rated Impedance
8Ω
Frequency Response
(Hz)
160 Hz –20k Hz
Sound Pressure
Level (dB)
80dB ± 3dB
Output Power (Watt)
18W
Subwoofer
Subwoofer x
Diameter (inch)
1 × 3”
Bonus
Additional 1
passive radiator
Rated Impedance
4Ω
Frequency Response
(Hz)
65 Hz –160 Hz
Output Power (Watt)
35W
Connection
Connectivity
Technology
Wired
Analog Audio Input
2 × Stereo RCA
Inputs
1 × 3.5mm
Stereo Jack
Digital Audio Input
1 × Coaxial
Power
Power Input Range
100 –240VAC,
50/60 Hz
Power Off
Consumption
≤ 0.5W
Preset EQ
Modes
Music, Movie,
News, Games
Features
SRS WOW
HDTM
Sound Enhancement Technology
expands the horizontal sound field,
adding deep, powerful and rich bass and
enhance clarity and detail
Preset EQ
4 Professional fine-tuned preset
Equalizer Settings enhance the audio
fantastic experience
Sound Bar
2.1
Compact Design stereo output of 18W x
2 and built-in subwoofer 35W creates
crisp and vivid audio sound to the last
note

- 20 -
www.oCOSMO.com
Sound Bar 2.1 User Manual
Subwoofer
35W with
Passive
Radiator
Enhance the sound to create rich, deep
and powerful bass quality with the help of
the passive radiator to create the low
frequency performance
Subwoofer
Level
Three levels bass enhancement
maximized the bass performance
Sleep
Auto turn off function that provides peace
of mind energy saving
LED Dimmer
Control the LED light brightness to match
the atmosphere
Mute
One button switching the volume on / off
instantly
Design
Sleek and stylish compact design for the
most ultimate entertainment
Touch
Sensory
Control
Contemporary buttons with the slightest
touch of your finger
Connection
ports
Adding flexibly with connecting multiple
audio devices
Easy
installation
Table top or wall-mountable. Light Weight
design.
General
What’s
Included
1 × CB301524 2.1 Sound Bar
1 × 3 head RCA Audio Cable
1 × 3.5mm Stereo Cable
1 × Remote Control with Battery
(CR2025)
1 × Drywall Anchor with Screw (2 sets)
1 × User Manual
1 × Warranty Card
Dimension
Sound Bar
Dimension (inch)
37.4” x 2.17” x 3.54”
Packaging
Dimension (inch)
38.9” x 5.4” x 4.1”
Weight
Product Weight
(pound)
4.13 lb
Gross Weight
(pound)
5.96 lb
Regulations
Certifications
FCC, ETL
Compliances
RoHS
Warranty
One year Limited Parts and Labor
*The product’s specifications may change without notice or obligation.
**This manual’s pictures and words are for references only and are subject to change without notice
or obligation. oCOSMO is not liable for the misuse or misinterpretation of this manual.
