OEM Tools 3X POWERPAK Service manual

UNPACKING
After unpacking unit, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing,
or damaged parts. If any damage is observed, a shipping
damage claim must be filed with the carrier. DO NOT use the
OEMTOOLS®24672 3X PowerPak if broken, bent, cracked or
damaged parts (including labels) are noted. Any 3X PowerPak
that appears damaged in any way, operates abnormally or is
missing parts should be removed from service immediately. If
you suspect that the 3X PowerPak was subjected to a shock
load (a load that was dropped suddenly, unexpectedly, etc.),
immediately discontinue use until it has been checked by a
factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your 3X PowerPak under the safest possible
conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling instructions are
not known or not followed. The following safety instructions are to provide the user with the information necessary for safe
use and operation. Please read and retain these instructions for the continued safe use of your 3X PowerPak. Failure to follow
instructions listed below may result in serious injury. In addition, make sure that anyone who uses the equipment understands
and follows these safety instructions as well.
Operating Instructions and Parts Manual 24672
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
Thank you very much for choosing an OEMTOOLS®Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS®cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
WARNING:This product can expose you to chemicals, including Vinyl-Chloride, Styrene and Acrylonitrile, which are
known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
Explanation of Safety Signal Words
WARNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTES:Provide clarity and helpful information.
3X POWERPAK
1
9/19
2019 OEMTOOLS®
24672
WARNING

2
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your product. Read this manual carefully. Learn
the product’s applications and limitations, as well as
potential hazards specific to it.
2. Maintain labels and nameplates on this product. These
carry important information. If unreadable or missing,
contact OEMTOOLS®for a replacement.
3. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
4. Keep children away. All children should be kept away
from the work area. Never let a child handle this
product without strict adult supervision.
5. DO NOT operate this product if under the influence of
alcohol or drugs. Read warning labels on prescriptions
to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, DO NOT
attempt to operate.
6. Use safety equipment. Eye protection should be worn
at all times when operating this product. Use ANSI
approved safety glasses. Everyday eyeglasses are NOT
safety glasses. Dust mask, non-skid safety shoes, hard
hat or hearing protection should be used in appropriate
conditions.
7. Wear proper apparel. Loose clothing, gloves, neck-ties,
rings, bracelets or other jewelry may present a potential
hazard when operating this product. Keep all apparel
clear of the product.
8. DO NOT overreach. Keep proper footing and balance
at all times when operating this product.
9. Check for damage. Check your product regularly. If
part of the product is damaged, it should be carefully
inspected to make sure that it can perform its intended
function correctly. If in doubt, the part should be
repaired. Refer all servicing to a qualified technician.
Consult your dealer for advice.
10. Keep away from flammables. DO NOT attempt to
operate this product near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
11. Store idle product out of the reach of children and
untrained persons. This product may be dangerous in
the hands of untrained users.
12. Maintain product with care.
13. Keep product dry and clean.
14. DO NOT use a damaged product. Tag damaged
products “DO NOT USE” until repaired.
15. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the product’s operation.
16. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one product may become hazardous when
used on another product.
17. If damaged, have the product serviced before using.
Many accidents are caused by poorly maintained
products.
18. Product service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel could create a risk of injury.
19. When servicing a product, use only identical
replacement parts. Use of unauthorized parts or failure
to follow maintenance instructions could create a risk
of injury.
20. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
21. Avoid accidental fire and/or explosion. DO NOT smoke
near engine fuel and battery components.
22. We believe the information contained herein to be
reliable. However, general technical information is given
by us without charge and the user shall employ such
information at their own discretion and risk. We assume
no responsibility for results or damages incurred from
the use of such information in whole or in part. Always
refer to specific instructions and technical information
supplied by vehicle manufacturer.

3
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK
PRODUCT DESCRIPTION
The OEMTOOLS®24672 3X PowerPak is designed for
use in shops, service bays and garages, as well as for
emergency situations. This multi-use tool features a
work light, flashlight with SOS function and hazard light,
jumper cables, and power bank for charging phones and
electronic devices. Its magnetic base and retractable
hanging hook allow hands-free use.
PRODUCT SPECIFICATIONS
Battery Capacity 12,000mAh
Start Current 280A
Peak Current 400A
Input AC (Adapter Included)
Output USB-A (2), DC12V (1),
12V Jump Starter
Jump Starter
Applications
Cars, Vans, Light-duty
Pickup Trucks,
Motorcycles, Boat Engines
Jump Starts/Charge 1-8 (Depending on
Temperature, Battery
Condition, Engine Type/
Size)
Work Light Output 480 Lumens
Work Light Functions High, Flare, Hazard
Flashlight Output 60 Lumens
Flashlight Functions High, SOS
Run Time 8 Hrs. (Work Light)
Hanging Options Magnetic Base,
Retractable Hanging Book
Water Resistance IP54
Includes: (1) Jump Starter/Power Bank, (1) Set of Jump
Starter Clamps, (1) AC Charging Adapter
SPECIFIC SAFETY INSTRUCTIONS
WARNING:DO NOT put fingers, hands, appendages
or any metal object into any of the power source outlets.
WARNING:DO NOT submerge the product into
water. While this product is IP54 water resistant, it is not
designed to be fully submerged for any period of time.
WARNING:DO NOT attempt to use attachments that
are not provided by OEMTOOLS®. Using attachments
outside of those provided with this product may cause
damage to the unit or damage the battery, resulting in
poor performance and decreased battery life. It could
also cause property damage and/or personal injury.
WARNING:DO NOT attempt operation if there is
visible damage to the cables or clamps. ALWAYS check
the unit and attachments for damage prior to use.
Improper storage of the cables can lead to damage.
DO NOT store in direct contact with other conductive
materials, such as copper, brass and steel.
WARNING:DO NOT attempt to modify this product in
any way. Failure to comply can cause permanent damage
to the unit, property damage and/or personal injury.
WARNING:DO NOT attempt to conduct maintenance
on this product; there are no serviceable parts. If you
think this unit has been compromised or cannot perform
standard functions, contact OEMTOOLS®at
1-866-458-2472 for assistance.
WARNING:Remove personal metal items such as
rings, bracelets, necklaces and watches when working
with a lithium or lead-acid battery. A battery can produce
a short circuit current high enough to weld a ring to metal,
causing a severe burn.
WARNING:Vehicle lead-acid batteries can be
dangerous as they can release explosive gases during
normal operation, charging and jump starting.
1. To mitigate risk of explosion, DO NOT smoke, use
matches or expose an open flame in the vicinity of the
battery.
2. Always have someone nearby to come to your aid
when you work near a lead-acid battery.
3. Have plenty of fresh water, soap and baking soda
nearby for use, in case battery acid contacts your eyes,
skin, or clothing.
4. Wear complete eye and body protection, including
safety goggles and protective clothing. Avoid touching
your eyes while working near the battery.
5. If battery acid contacts your skin or clothing,
immediately wash the area with soap and water. If acid
enters your eye, immediately flood the eye with cold
running water for at least 10 minutes and get medical
attention right away.
6. If battery acid is consumed, DO NOT induce vomiting.
Seek medical attention immediately.
7. Neutralize any acid spills thoroughly with baking soda
before attempting to clean up.

4
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK
WARNING:Rechargeable Lithium batteries are
potentially dangerous and can present a serious fire
hazard if the battery is damaged or if the product is
improperly used.
1. DO NOT submerge the product in water, liquids or salt
water. As noted, this product is IP54 water resistant;
however, damage to cells can cause the battery to
overcharge or create an imbalance which may lead to
fire, property damage and/or personal injury.
2. DO NOT attempt to operate the jump start feature if the
battery is connected to a power source.
3. DO NOT attempt to charge using a charging cable that
is not specifically designed for this product. If there is
any question or doubt, contact OEMTOOLS®at 1-866-
458-2472 for assistance.
4. DO NOT attempt to charge the battery at temperatures
below 40°F (4°C). Failure to comply may cause a
chemical reaction within the battery cells that presents
the possibility of product failure, fire and/or explosion
during the charging process.
5. While there are safety measures programmed, NEVER
allow clamps to touch each other or contact the same
piece of metal.
6. DO NOT drop a metal object or tool onto this product
while the product is in use. This may create a spark,
increasing risk of fire, explosion, property damage
and/or personal injury.
CHARGING THE UNIT
WARNING:NEVER CHARGE UNIT UNATTENDED.
Charge immediately after purchase, and every 3-6 months
(if the product is not in use) to keep the internal battery fully
charged and prolong battery life. Charge after use. If used
to jump start, allow unit to cool down for 15-20 minutes
before charging.
WARNING:DO NOT set the unit on flammable
materials, such as carpeting, upholstery, paper,
cardboard, etc.
NOTE:If the battery will not charge, the charger may
be compromised. If the unit indicates a full charge while
connected to a power source, but indicates a lower
charge once removed, contact OEMTOOLS®at
1-866-458-2472 for assistance (please have your receipt/
PO # available when contacting our service team).
1. Upon initial purchase, this tool should be charged for a
minimum of 6 hours.
2. Connect to the provided AC adapter, and plug into a
standard 110V outlet.
3. To disconnect, hold the AC adapter by the plug, not
the cord (to prevent damage).
NOTE:Reference Charging Status and Power Indicator
table to understand charging status.

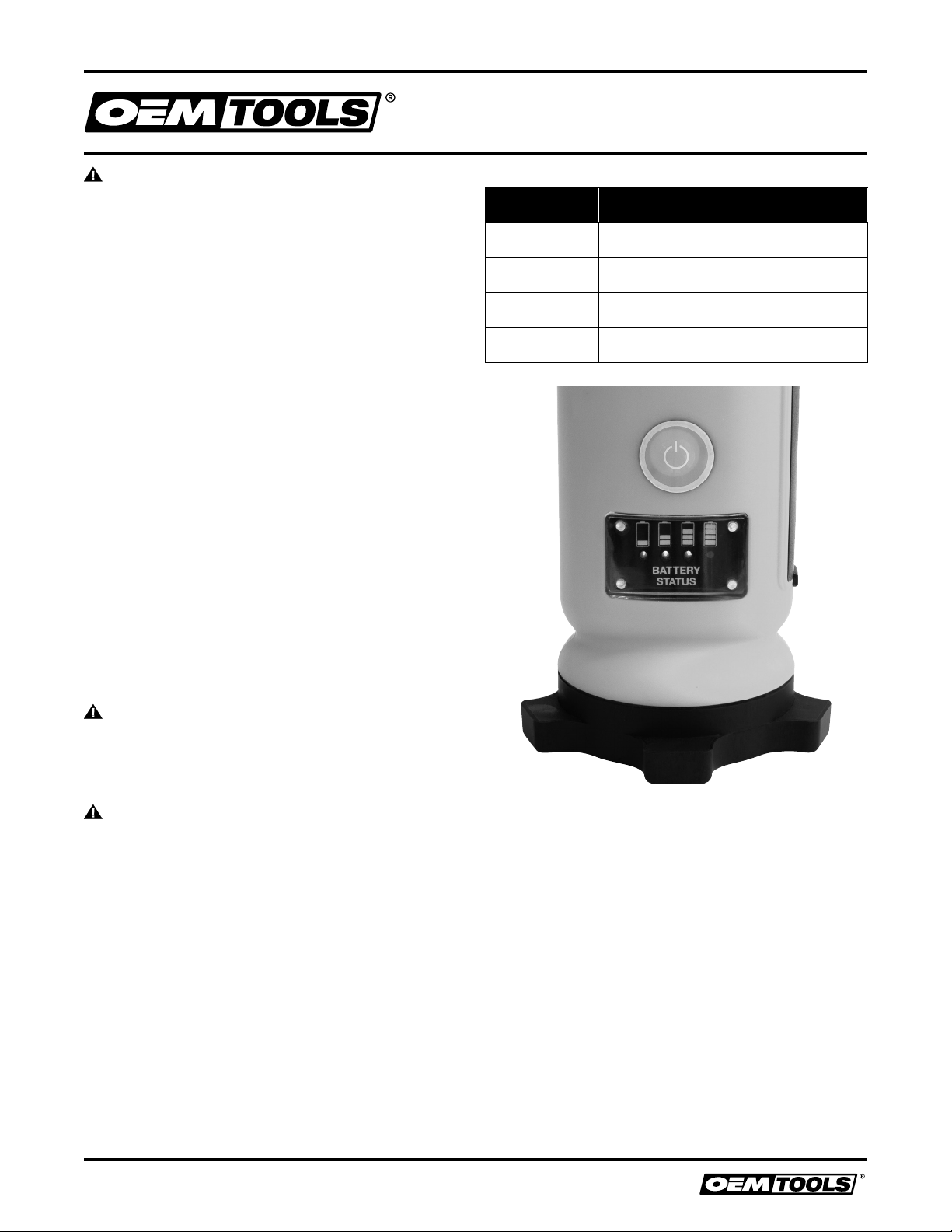

CHARGING STATUS AND POWER INDICATOR
LIGHT
INDICATOR CHARGING STATUS
1 BLUE LIGHT Low Charge – Charge Immediately
2 BLUE LIGHTS 25%-50% Charge – Charge Soon
(Do Not Jump Start)
3 BLUE LIGHTS 50%-75% Charge – Charge If Using
Jump Start Function
4 BLUE LIGHTS 75%-100% Charge – Jump Starter Can
Be Used
Figure 1

5
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK
JUMP START INSTRUCTIONS
WARNING:Please read this manual in its entirety
before attempting operation. Reference your vehicle
maintenance manual before attempting use, as your
vehicle may have certain specifications or complications
that cannot be covered in this product manual.
NOTE:Always use in a well-ventilated area.
1. Press the Power Button to see the Charging Status
(reference the table above). DO NOT attempt to jump
start unless all 4 light indicators are illuminated.
2. Connect the smart cable/clamp set to the unit, and
ensure the cable connection is fully engaged. The LEDs
on the cable will flash as it performs a safety check.
After the analysis is complete, a blue flashing LED will
indicate a standby mode.
NOTE:ENSURE the ignition is OFF
3. Check the polarity of the battery posts. The POSITIVE
(POS, P, +) battery post usually has a larger diameter
than the NEGATIVE (NEG, N, -) post. Determine which
post of the battery is grounded (connected) to the
chassis. If the negative post is grounded to the chassis
(as in most vehicles), see step 4. If the positive post is
grounded to the chassis, see step 5.
4. For a negative-grounded vehicle, connect the
POSITIVE (RED) clamp from the power source to
the POSITIVE (POS, P, +) ungrounded post of the
battery. Connect the NEGATIVE (BLACK) clamp to the
NEGATIVE (NEG, N, -) post of the battery. DO NOT
connect the clamp to the carburetor, fuel lines or sheet-
metal body parts.
5. For a positive-grounded vehicle, connect the
NEGATIVE (BLACK) clamp from the power source to
the NEGATIVE (NEG, N, -) ungrounded post of the
battery. Connect the POSITIVE (RED) clamp to the
POSITIVE (POS, P, +) grounded post of the battery. DO
NOT connect the clamp to the carburetor, fuel lines or
sheet-metal body parts.
6. Once connected, the smart cable/clamp will assess the
connection:
a. GREEN LED: the battery can be jumped. Turn the
ignition on within 30 seconds. If the time limit is
exceeded, the unit will return to standby.
b. RED LED WITH WARNING BUZZER: Reverse
connection has been made. Disconnect
immediately and reference step 3.
c. RED LED WITH BEEP: Battery is below 10V.
Check connections and, if connections are
correct, press the Override Button for 4 seconds.
The Green LED should be illuminated. Turn the
ignition on within 30 seconds. If the time limit is
exceeded, the unit will return to standby.
NOTE:Stay clear of battery during the jump start process.
7. Turn the ignition ON.
a. If the vehicle does not start after 6 seconds, allow
the jump starter to cool for 3 minutes before trying
again to jump start.
b. Check Charging Status before trying again to
jump start.
c. During very cold conditions, the vehicle may not
start on the first attempt. DO NOT attempt to jump
start after 4 consecutive attempts.
8. Disconnect the cables from the jump starter. Remove
the clamps from the battery terminals.

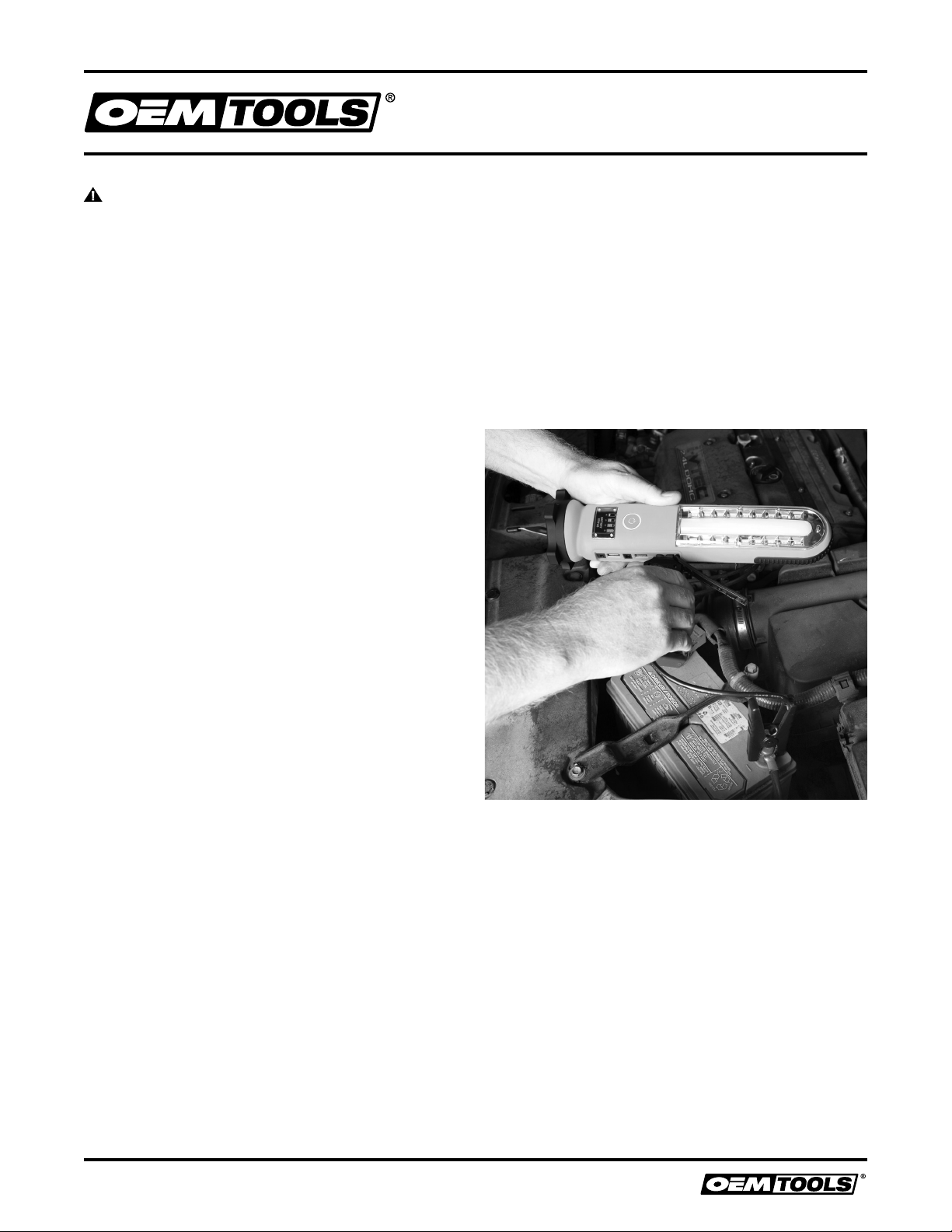

See figure 2 for visual.
Figure 2

6
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK
POWER BANK INSTRUCTIONS
1. Connect your device to a charging cable.
NOTE:Check the charging cable, ports and plugs for
damage. DO NOT use if there is visible damage.
2. Connect the USB-A end of the charging cable to the
USB-A port on the tool.
3. Press the Power Button.
See figure 3 for visual.
Figure 3
USB-A Output
LIGHTING INSTRUCTIONS
1. Press the Power Button (2) times for Work Light.
2. Press the Power Button (3) times for Solid Red Hazard
Light.
3. Press the Power Button (4) times for Flashing Red
Hazard Light.
4. Press the Power Button (5) times for Flashlight.
5. Press the Power Button (6) times for SOS Flashlight.
6. Press the Power Button (7) times to turn OFF.
See figures 4 and 5 for visual.
Figure 4
Work Light
Hazard Lights/
Flare Light
Figure 5
Flashlight/SOS

7
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK

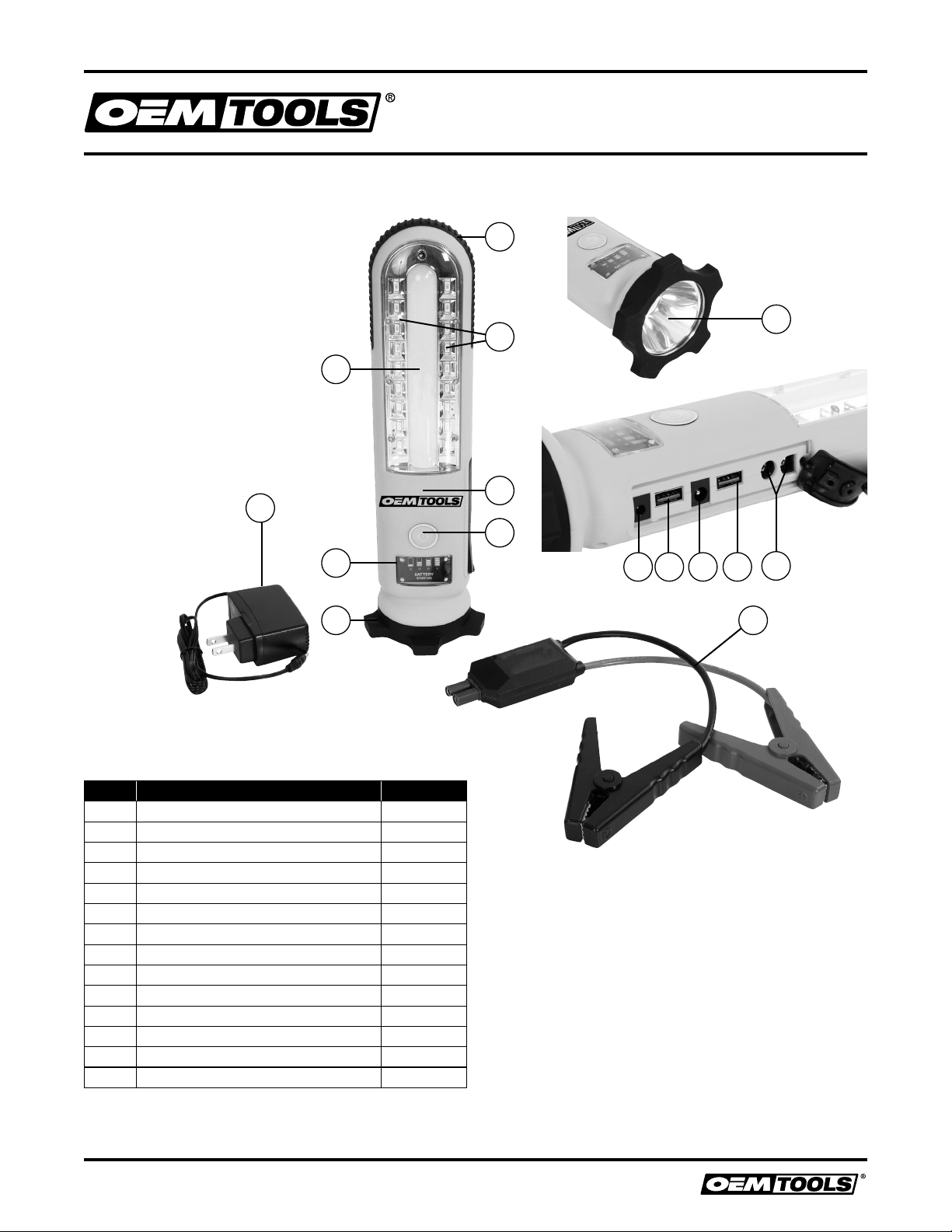

Figure Description Qty.
A
Jump Starter/Power Bank 1
B Smart Cable/Clamps 1
C Retractable Hook 1
D Charge Indicator 1
E Work Light 1
F Hazard Lights 2
G Power Button 1
H Magnetic Base 1
I Flashlight 1
J Jump Start Output 1
K USB-A Output 2
L DC Output 1
M DC Input 1
N Charger 1
PARTS LIST
PRODUCT LAYOUT
KK LM J
B
A
G
C
H
D
N
E
F
I

8
Operating Instructions and Parts Manual 24672
9/19
2019 OEMTOOLS®
3X POWERPAK
OEMTOOLS®ONE YEAR WARRANTY
For up to one year from the date of purchase of this OEMTOOLS®product, if you find any defect in material or
workmanship (through normal usage), return it to the place of purchase or to OEMTOOLS®for repair or replacement at
our discretion. In order to obtain this service, send the product and proof of purchase (transportation pre-paid) to:
OEMTOOLS®Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118.
We will not be responsible for lost or damaged goods during transportation; please insure your package. If our
inspection verifies the defect, we will either repair or replace the product, or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if
we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you
must bear the cost of returning the product.
OEMTOOLS®does not provide warranty for products labeled other than OEM®or OEMTOOLS®. OEMTOOLS®will
not provide any warranty for products subjected to abnormal use. Abnormal use includes (but is not limited to) abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits,
files, and batteries as necessary. OEMTOOLS®reserves the right to make any changes in construction or design at any
time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS®makes every effort to ensure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the period of one
year from the date of purchase. This warranty does not apply to damage due directly or indirectly to misuse, abuse,
negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear
and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Don’t forget to register your new OEMTOOLS®product at www.oem-tools.com.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
