OEM 24406 Service manual

UNPACKING
After unpacking unit, inspect carefully for any
damage that may have occurred during transit.
Check for loose, missing, or damaged parts. If
any damage is observed, a shipping damage
claim must be filed with carrier. Do not use the
OEMTOOLS®Air Die Grinder if broken, bent,
cracked or damaged parts (including labels)
are noted. Any Air Die Grinder that appears
damaged in any way, operates abnormally or is
missing parts should be removed from service
immediately. If you suspect that the Air Die
Grinder was subjected to shock load (a load
that was dropped suddenly, unexpectedly, etc.)
immediately discontinue use until it has been
checked by a factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing
all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
Please retain instructions for future reference.
Operating Instructions and Parts Manual 24406
06/15
2015 OEMTOOLS

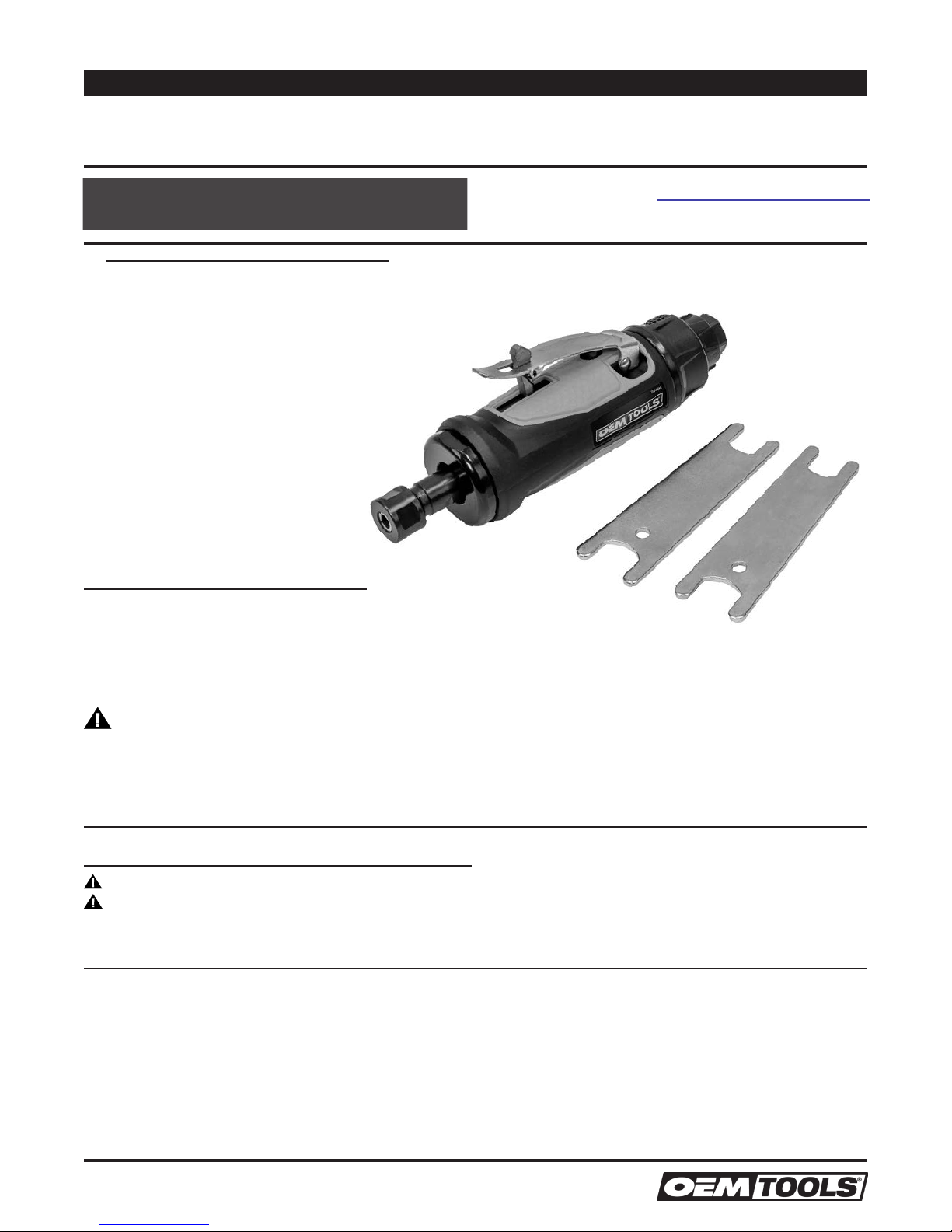

¼” AIR DIE GRINDER
The following safety information is provided as a guideline to help you operate your Air Die Grinder under the safest possible conditions. Any tool
or piece of equipment can be potentially dangerous to use when safety or safe handling instructions are not known or not followed. The following
safety instructions are to provide the user with the information necessary for safe use and operation. Please read and retain these instructions for the
continued safe use of your tool. Failure to follow instructions listed below may result in serious injury. In addition, make certain that anyone that uses
the equipment understands and follows these safety instructions as well.
WARNING
Explanation of Safety Signal Words
CAUTION
: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
: Provide clarity and helpful information.
WARNING
CAUTION
NOTES
Thank you very much for choosing an OEMTOOLS Product!
For future reference, please complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin
using it. This tool is designed for certain applications only. OEMTOOLS cannot be responsible for issues arising from modification. We strongly
recommend this tool is not modified and/or used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the tool until you have first contacted customer service to determine if it can or should be performed
on the product.

2
Operating Instructions and Parts Manual 24406
¼" AIR
DIE GRINDER
06/15
2015 OEMTOOLS
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the tool’s
applications and limitations, as well as, potential hazards specific
to it.
2. Keep work area clean and well lit. Cluttered or dark work areas
invite accidents.
3. Keep children away. All children should be kept away from the work
area. Never let a child handle a tool without strict adult supervision.
4. Do not operate this tool if under the influence of alcohol or drugs.
Read warning labels on prescriptions to determine if your judgment
or reflexes are impaired while taking drugs. If there is any doubt, do
not attempt to operate.
5. Use safety equipment. Eye protection should be worn at all times
when operating this tool. Use ANSI approved safety glasses. Everyday
eyeglasses are NOT safety glasses. Dust mask, non-skid safety shoes,
hard hat or hearing protection should be used in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,
bracelets or other jewelry may present a potential hazard when
operating this tool. Keep all apparel clear of the tool.
7. Don’t overreach. Keep proper footing and balance at all times when
operating this tool.
8. Check for damage. Check your tool regularly. If part of the tool is
damaged it should be carefully inspected to make sure that it can
perform its intended function correctly. If in doubt, the part should
be repaired. Refer all servicing to a qualified technician. Consult
your dealer for advice.
9. Keep away from flammables. Do not attempt to operate this tool
near flammable materials or combustibles. Failure to comply may
cause serious injury or death.
10. Store idle tools out of the reach of children and untrained persons.
Tools may be dangerous in the hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
14. Use only accessories that are recommended by the manufacturer
for your model. Accessories that may be suitable for one tool may
become hazardous when used on another tool.
15. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel could
result in a risk of injury.
16. When servicing a tool, use only identical replacement parts. Use of
unauthorized parts or failure to follow maintenance instructions may
create a risk of injury.
17. Maintain a safe working environment. Keep the work area well lit.
Make sure there is adequate surrounding workspace. Keep the work
area free of obstructions, grease, oil, trash, and other debris. Do not
use this product in a damp or wet location.
18. Maintain labels and nameplates on this product. These carry
important information. If unreadable or missing, contact customer
service.
19. Before use, read and understand all warnings, safety precautions,
and instructions as outlined in the vehicle manufacturer’s service
manual. It is beyond the scope of this manual to properly describe
the correct procedure and test data for each vehicle.
20. Always perform vehicle service in a properly ventilated area.
Never run an engine without proper ventilation for its exhaust.
Stop work and take necessary steps to improve ventilation in
the work area if you develop momentary eye, nose, or throat
irritation as this indicates inadequate ventilation.
WARNING
• Disconnect from air supply before changing accessories or servicing.
• Check correct air pressure is maintained and not exceeded.
• Due to possible presences of asbestos dust from brake linings, when
working around vehicle brake systems we recommend you wear
suitable respiratory protection.
NOTE: The manufacturer declines any and all responsibility for damage
to vehicles or components if said damage is the result of unskillful
handling by the operator or of failure to observe the basic safety rules set
forth in the instruction manual.
WARNING
Read Rules for Safe Operation and Instructions Carefully.
IMPORTANT SAFETY INSTRUCTIONS
The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The
operator must understand that common sense and caution are factors
which cannot be built into this product, but must be supplied by the
operator.
WARNING
1. Use only attachments recommended or sold by manufacturer. Use of
non-recommended attachments may result in fire, electric shock or
injury.
2. Do not disassemble the Air Die Grinder. Take it to a qualified
professional when service or repair is required.
3. Keep air hose away from heat, oil and sharp edges. Check air hose for
wear before each use and ensure that all connections are secure.
4. Only use accessories that are specifically designed for use with an
Air Die Grinder.
5. Wear approved safety eye/face shield, ear defenders and hand
protection.
6. When not in use disconnect from air supply and store in a safe dry,
childproof location.
7. DO NOT use the Air Die Grinder for tasks it is not designed to
perform.
8. DO NOT carry the Air Die Grinder by the air hose, or yank the hose
from the air supply.
9. DO NOT operate the Air Die Grinder if you are tired or under the
influence of alcohol, drugs or intoxicating medication.
10. DO NOT direct air from the air hose at yourself or others.

3
Operating Instructions and Parts Manual 24406
¼” AIR
DIE GRINDER
06/15
2015 OEMTOOLS
DISPOSAL
At the end of the useful life of the OEMTOOLS Air Die Grinder, dispose of
the components according to all state, federal, and local regulations.
PURPOSE
The 24406 1/4” Air Die Grinder features a composite body for comfort and is
designed for deburring, sanding, polishing, carving and other various jobs.
PRODUCT SPECIFICATIONS
Collet Size: 1/4”
Free Speed: 22,000 RPM
Air Consumption: 3.4 CFM
Weight: 1.50 Lbs. (0.7 kg)
Air Inlet Thread
Size: 1/4” Drive
Recommended
Air Pressure: 90 Psi
Length: 7.50” (190 mm)
Exhaust: Rear 360 Degrees
WARNING
Ensure the air supply is clean and does not exceed 90 Psi while operating
the Air Die Grinder. Excessive wear will result if air pressure is too high
and/or you use unclean air. This can shorten the product life and may be
dangerous causing damage and/or personal injury.
OPERATING INSTRUCTIONS
WARNING
Ensure you read, understand and apply safety instructions before use.
1. Always inspect, maintain and operate in accordance with ANSI safety
code for portable air tools (ANSI B186.1) and other local safety codes
and regulations.
2. Do not operate this tool over 90 Psi air pressure.
3. Always disconnect this tool from the air supply before installing,
adjusting or removing any accessory from this tool or before
performing maintenance.
4. Do not carry any air tool by the hose. Keep air hose away from heat
and sharp objects.
5. Continuous use of vibrating air tools by susceptible users may cause
damage to hands.
6. Always lubricate and maintain the tool in safe operating condition.
7. Only use accessories which are specifically designed for use with an
Air Die Grinder.
8. Connect the Air Die Grinder to the air hose.
AIR SUPPLY
Ensure that the Air Die Grinder air valve (or trigger) is in the “off” position
before connecting to the air supply. Always use clean dry air as excessive
moisture will lower the available torque and rust the interior moving parts.
Make sure all hoses and fittings are of the recommended size and be
sure the units are not used with less than or more than the recommended
pressure of the tool (90 Psi).
LUBRICATION
Proper lubrication of this air tool is critical to the operation and life of the
unit. Units can be severely damaged or have excessive wear placed on
working parts if not lubricated. We recommend the use of air tool oil or
3-in-1 machine oil which is available at most auto parts locations. The
tool should be lubricated each time it is used. During daily prolonged use,
lube heavily 3 or 4 times during the day.
WARNING
Any excess oil in the motor is immediately expelled from the exhaust port.
Always direct exhaust port away from people or objects.
MAINTENANCE
WARNING
Disconnect the Air Die Grinder from air supply before changing
accessories, servicing or performing maintenance.
1. Replace or repair damaged parts. Use genuine parts only. Unauthorized
parts may be dangerous and will invalidate the warranty.
2. If the air system does not have an oiler then lubricate the Air Die
Grinder daily with a few drops of air tool oil into the air inlet.
3. Blow out air line to clear it of accumulated dirt and moisture.
4. Connect tool and operate tool to allow oil to be carried to the interior of
the tool.
5. Clean the Air Die Grinder after use.
6. DO NOT use worn or damaged attachments.
TROUBLESHOOTING
Problem Cause Remedies
Unit will
not work
Plugged air inlets Remove fitting
and clean
Interior is rusted Disassemble,
clean, lube and reassemble
Unit lacks power Low air supply Check hoses, tanks, etc.
Lack of lubrication Lube properly
and retry
Internal parts Dirty and gummed Disassemble, clean, lube
Components worn Disassemble, determine
parts requiring
replacement
and repair

4
Operating Instructions and Parts Manual 24406
¼" AIR
DIE GRINDER
06/15
2015 OEMTOOLS
NOTE:
Not all components of the Air Die Grinder are replacement items, but are illustrated as a convenient reference
for location and position in the assembly sequence. OEM and/or its distributors have provided the parts list and
assembly diagram as a reference only. Neither OEM and/or its distributors make any representation or warranty
of any kind to the buyer and/or user of this tool that he or she is qualified to do any repairs or replace any parts
of this product. OEM and its distributors expressly state that all repairs or parts replacement should be done by
certified or licensed technicians. The buyer assumes all risk and liability arising out of his or her repairs or parts
replacement to the original production
Item # Part Name Qty.
1 Housing 1
2 Trigger 1
3 Pin 1
4 O-Ring 1
5 Muffle Cover 1
6 O-Ring 1
7 Air Regulator 1
8 O-Ring 1
9 Air Inlet 1
10 Spring 1
11 Tip Sleeve 1
12 O-Ring 1
13 O-Ring 1
14 Valve Stem 1
15 Spring 1
16 O-Ring 1
17 Valve Plug 1
18 Cylinder
Assembly
1
18.1 Bearing 1
18.2 End Plate 1
18.3 Set Pin 1
18.4 Rotor 1
18.5 Rotor Blade 5
18.6 Cylinder 1
18.7 Bushing 1
18.8 Front Plate 1
18.9 Pin 1
18.10 Bearing 1
18.11 Collet Holder 1
19 Retainer 1
20 Collet 1
21 Collet Nut 1
22 Wrench 2
Parts List Parts Diagram
