Officine Gullo ELG 90 User manual

RESTART
ELG 90 / 100 / 120
COOKING RANGE FOR DOMESTIC USE
INSTRUCTIONS
FOR INSTALLATION AND USE


ELG X
USER MANUAL

3 IMPORTANT SAFETY WARNINGS
9 First system startup of the oven
10 Read carefully before using
11 Using the appliance
12 Models with glass-ceramic zones
12 Precautions
13 In case of malfunction
13 Suggestions
14 INSTRUCTIONS FOR USE
14 First system startup of the hob
16 Use of a gridron
17 Positioning placement of the burners
18 Use of coup feu
19 Use of the induction hob
25 Use of the electric oven multifunction
27 Use of the conventional electric oven
28 MP models with 5 key progtammer MP
30 Accessories
31 CLEANING AND MAINTENANCE
31 Replacing the bulb
32 Door removal
33 Cleaning the door and glasses
34 Recommendations for cleaning the cooktop
35 Recommendations for cleaning the oven and
the front panel
36 Maintenance and cleaning of total black
burners
37 PROBLEM SOLVING
37 Guide for the resolution
38 Glass ceramic malfunction
39 Children Lock
40 COOKING CHART
40 Fan ove
42 Natural convection
3
INDEX
INFORMATION - To be reminded to the user
INSTALLATION
Installation of the cooker
Room ventilation
Installation of the cooker
How to install the xing bracket
ELECTRICAL CONNECTIONS
Groups of cooking
The kitchen whit induction hob
GAS CONNECTIONS
By the Qualied installer
ADJUSTMENT
Replacement of the injectors for models
Replacement of the injectors for models “K”
Replacement of the injectors (oven GAS)
Replacement of the injectors (oven H3)
Adjustments minimun GAS ow
Kitchen table PRO LINE
Kitchen table PROFESSIONAL
Kitchen table SERIE K
WIRING DIAGRAM
- Key
4
5
5
5
6
7
8
8
9
10
10
11
11
12
12
13
14
15
16
17
18/39
18
Ofcine Gullo
2

3
INDEX
INFORMATION - To be reminded to the user
INSTALLATION
Installation of the cooker
Room ventilation
Installation of the cooker
How to install the xing bracket
ELECTRICAL CONNECTIONS
Groups of cooking
The kitchen whit induction hob
GAS CONNECTIONS
By the Qualied installer
ADJUSTMENT
Replacement of the injectors for models
Replacement of the injectors for models “K”
Replacement of the injectors (oven GAS)
Replacement of the injectors (oven H3)
Adjustments minimun GAS ow
Kitchen table PRO LINE
Kitchen table PROFESSIONAL
Kitchen table SERIE K
WIRING DIAGRAM
- Key
4
5
5
5
6
7
8
8
9
10
10
11
11
12
12
13
14
15
16
17
18/39
18
3
USER
IMPORTANT SAFETY
WARNINGS
As well as being shown on the cover, the data plate is ap-
plied to the oven door frame and is visible with the door
open.
These warnings refer to different types of appliances. Pay
attention in properly identifying the type you own (see the
data plate).
These warnings are valid for the countries mentioned in
the plate.
Before using the cooker, read the instructions booklet care-
fully. This contains very important information concerning
safety during installation, use and maintenance.
The instructions booklet must be kept with care for later
consultation.
The electrical safety of this cooker is guaranteed only if it
is correctly grounded as required by the regulations. It is
fundamental to ensure that these regulations have been
respected; if you are in doubt, contact a skilled technician
to have the electric system accurately checked.
The manufacturer is not responsible for damage caused
by a bad grounding system.
Before powering the appliance, check that the techni-
cal features shown on the data plate match those of
the electrical system perfectly. Installation / regulation
must be carried out by qualied personnel.
Make sure that air around the appliance can circulate
freely.
This appliance is not connected to an evacuation de-
vice for the combustion products, therefore the ven-
Appliances’ data
CAUTION
1
3
4
2
3
Ofcine Gullo

4
IMPORTANT SAFETY
WARNINGS
tilation of the room must be analyzed carefully and
according to the rules in force.
When using a gas appliance, heat and dampness are ge-
nerated inside the premise. A good aeration of the kitchen
must be guaranteed by keeping the natural aeration vents
open or by installing a mechanical aeration device (hood).
An intensive and prolonged utilization of the appliance
may result in the need of supplementary aeration, such as
opening a window or increasing the power of the hood (if
present).
The alimentation cable is supplied without a plug. To con-
nect it please refer to the paragraph “electric connection”.
It is recommended to not use adapters, multiple-outlet plu-
gs or extensions.
When the appliance is not in use for a prolonged time, di-
sconnect the electric power, switch off the main switch and
turn off the gas.
Do not block ventilation or heat dissipation slits.
If the alimentation cable is damaged it must be replaced
exclusively by a service center approved by the manu-
facturer.
The appliance must be used only for the purposes for whi-
ch it was intended. Any other use (for example, heating
a room) is incorrect and therefore dangerous. The manu-
facturer declines all responsibilities for damage caused by
similar incorrect uses.
The appliance is not destined to be activated by means of
anexternal timer or a remote control.
5
6
7
8
10
11
9
Ofcine Gullo
4

4
IMPORTANT SAFETY
WARNINGS
tilation of the room must be analyzed carefully and
according to the rules in force.
When using a gas appliance, heat and dampness are ge-
nerated inside the premise. A good aeration of the kitchen
must be guaranteed by keeping the natural aeration vents
open or by installing a mechanical aeration device (hood).
An intensive and prolonged utilization of the appliance
may result in the need of supplementary aeration, such as
opening a window or increasing the power of the hood (if
present).
The alimentation cable is supplied without a plug. To con-
nect it please refer to the paragraph “electric connection”.
It is recommended to not use adapters, multiple-outlet plu-
gs or extensions.
When the appliance is not in use for a prolonged time, di-
sconnect the electric power, switch off the main switch and
turn off the gas.
Do not block ventilation or heat dissipation slits.
If the alimentation cable is damaged it must be replaced
exclusively by a service center approved by the manu-
facturer.
The appliance must be used only for the purposes for whi-
ch it was intended. Any other use (for example, heating
a room) is incorrect and therefore dangerous. The manu-
facturer declines all responsibilities for damage caused by
similar incorrect uses.
The appliance is not destined to be activated by means of
anexternal timer or a remote control.
5
6
7
8
10
11
9
5
USER
IMPORTANT SAFETY
WARNINGS
The use of any electrical appliances requires that a
number of fundamental rules must be respected:
Never touch the appliance when you have wet or
damp hands or feet;
Never use the appliance barefoot;
Avoid using extensions;
Never pull the electric cable to remove it from the
power socket;
Do not expose the appliance to atmospheric agen-
ts(rain, sun, etc...);
Be careful: accessible parts can become very
hot during the use.
Keep children less than 8 years old far from the
cooker if it is not continuously watched. This ap-
pliance may be used by children of 8 years of age
or older, by people with reduced physical, sensory
or mental abilities, or with lack of experience and
knowledge only if they are under adequate surveil-
lance or if they have been adequately instructed
about the use of the cooker and if they are aware
of the possible dangers. Children must not play
with the cooker. The operations of cleaning and
of maintenance must not be made by children wi-
thout surveillance.
CAUTION: During the utilization of the appliance some
parts may become very hot. Keep out of reach of chil-
dren.
Absolutely do not touch the elements inside the oven
during the utilization.
12
A.
B.
C.
D.
E.
F.
14
13
5
Ofcine Gullo

6
IMPORTANT SAFETY
WARNINGS
Before cleaning the appliance or carrying out maintenan-
ce, disconnect the power supply by removing the plug from
the socket or switching off the switch.
In case of breakdown or malfunction switch off the ap-
pliance and do not attempt any repairs that must only
be performed by an authorized service center. Always
request original parts. Failure to comply with these in-
structions may compromise the appliance’s safety.
Never place unstable or deformed pans on the bur-
ners or on the electric hotplates as they could topple
accidentally.
When the appliance is not being used, make sure the
knobs are exactly in the “ ”/“ ”/ position.
Don’t leave the hotplate on with no pans on it, as it
would reach the temperature fast and possibly dama-
ge the appliance and your countertops.
The electric plates remain hot after using them. Be careful
not to touch them.
Inammable liquids, like alcohol or gasoline, must be
kept away from the appliance.
Should you use small household appliances near the
cooking top, please make sure that the electrical cable
is not in contact with hot parts of the appliance.
To assure the right function of gas appliance, make
sure that the rooms are ventilated. Check that the
installation is carried out in accordance with the in-
structions.
16
17
18
19
20
21
22
15
23
Ofcine Gullo
6

6
IMPORTANT SAFETY
WARNINGS
Before cleaning the appliance or carrying out maintenan-
ce, disconnect the power supply by removing the plug from
the socket or switching off the switch.
In case of breakdown or malfunction switch off the ap-
pliance and do not attempt any repairs that must only
be performed by an authorized service center. Always
request original parts. Failure to comply with these in-
structions may compromise the appliance’s safety.
Never place unstable or deformed pans on the bur-
ners or on the electric hotplates as they could topple
accidentally.
When the appliance is not being used, make sure the
knobs are exactly in the “ ”/“ ”/ position.
Don’t leave the hotplate on with no pans on it, as it
would reach the temperature fast and possibly dama-
ge the appliance and your countertops.
The electric plates remain hot after using them. Be careful
not to touch them.
Inammable liquids, like alcohol or gasoline, must be
kept away from the appliance.
Should you use small household appliances near the
cooking top, please make sure that the electrical cable
is not in contact with hot parts of the appliance.
To assure the right function of gas appliance, make
sure that the rooms are ventilated. Check that the
installation is carried out in accordance with the in-
structions.
16
17
18
19
20
21
22
15
23
7
USER
IMPORTANT SAFETY
WARNINGS
The materials used in producing our appliance are compa-
tible with the environment and therefore recyclable.
The packaging waste must not be left within reach of
children, and must be disposed by using the appropria-
te recycling channels. To scrap your appliance, use your
retailer and/or your local council’s facilities; remember to
make your appliance unusable before scrapping it.
If the rotation of the gas knobs is difcult, don’t do anything.
Close off the gas and call the After Sales Service for advi-
ce.
Do not use a steam cleaner to clean the inside parts of the
oven.
Don’t use any abrasive detergent or sharp device to clean
the oven glass door. This may cause damage or breakage.
Don’t modify the appliance.
Be careful: fat spillage, objects or oils on the appliance
may cause a re.
The appliance must be used by responsible people
Be careful: the use of inappropriate or unsuitable pro-
tections can cause res and/or damage.
Be careful: cooking with fat or oil can be dangerous or
cause res.
Fire danger: do not store items on the cooking surfaces.
Be careful: in the case of re never attempt to extin-
guish a ame/ re with water, but turn the appliance
off and cover the ame with a lid or with a reproof
24
26
27
28
29
25
30
31
32
33
34
7
Ofcine Gullo

8
IMPORTANT SAFETY
WARNINGS
cover.
Be careful: do not use gas burners if the ame is un-
stable.
Ensure that the ame diffusers are properly positioned in
their seats with their respective caps.
Do not leave the cooker unguarded during any cooking
that can spit fats or oils.
Do not touch the heatin elements while the appliance is on.
Let it cool down before cleaning
Food preparation in plastic or aluminum containers on hot
cooking zones is forbidden just like the positioning on the
cooking surfaces of plastic or aluminum foil objects.
Do not cover the burners or the hob with tinfoil.
Do not use the appliance’s surface as a work top, sharp
objects might scratch it.
Be careful: do not use frying pans, saucepans, grills or
stones for grilling of a greater size than the maximum ones
indicated for each single burner; above all they must not
cover more than one burner at the same time.
The heat accumulation might damage the cooker.
In case of liquid spilling over, remove it from the hob.
Do not place empty saucepans on the cooking areas.
The cooking areas, must not work empty, without sauce-
pans.
35
36
37
38
39
40
41
42
43
44
45
Ofcine Gullo
8

8
IMPORTANT SAFETY
WARNINGS
cover.
Be careful: do not use gas burners if the ame is un-
stable.
Ensure that the ame diffusers are properly positioned in
their seats with their respective caps.
Do not leave the cooker unguarded during any cooking
that can spit fats or oils.
Do not touch the heatin elements while the appliance is on.
Let it cool down before cleaning
Food preparation in plastic or aluminum containers on hot
cooking zones is forbidden just like the positioning on the
cooking surfaces of plastic or aluminum foil objects.
Do not cover the burners or the hob with tinfoil.
Do not use the appliance’s surface as a work top, sharp
objects might scratch it.
Be careful: do not use frying pans, saucepans, grills or
stones for grilling of a greater size than the maximum ones
indicated for each single burner; above all they must not
cover more than one burner at the same time.
The heat accumulation might damage the cooker.
In case of liquid spilling over, remove it from the hob.
Do not place empty saucepans on the cooking areas.
The cooking areas, must not work empty, without sauce-
pans.
35
36
37
38
39
40
41
42
43
44
45
9
USER
When using the oven for the rst time, let it work empty for
about 1 hour (230 °C), possibly leaving the kitchen win-
dows open.
When you rst turn the oven on, a bad smell is emitted due
to production residues such as grease, oils or resins.
When the oven has cooled clean it following the instructions
in the «Cleaning and care section».
After the indicated time the oven is ready to perform its rst
cooking.
IMPORTANT SAFETY
WARNINGS
First system
startup of the
oven
9
Ofcine Gullo

10
• Only qualied technicians should install the appliance.
The technician will not be held responsible for any da-
mages caused by electrical malfunctions.
• The hob must be installed in the appropriate inset.
• The appliance should be used solely for cooking foods,
excluding any other domestic or industrial uses.
• Remove the adhesive labels from the glass on the hob.
• Do not modify or alter the appliance.
• Do not use the hob as a working zone.
• The appliance must be connected and installed in com-
pliance with current local regulations.
• Do not use extension cables for connections.
• This appliance is not intended for use by persons (inclu-
ding children) with reduced physical, sensory or men-
tal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
• WARNING: Accessible parts may become hot during
use. To avoid burns young children should be kept away.
IMPORTANT SAFETY
WARNINGS
- Models with glass-ceramic zones
Read
carefully
before using
Ofcine Gullo
10

10
• Only qualied technicians should install the appliance.
The technician will not be held responsible for any da-
mages caused by electrical malfunctions.
• The hob must be installed in the appropriate inset.
• The appliance should be used solely for cooking foods,
excluding any other domestic or industrial uses.
• Remove the adhesive labels from the glass on the hob.
• Do not modify or alter the appliance.
• Do not use the hob as a working zone.
• The appliance must be connected and installed in com-
pliance with current local regulations.
• Do not use extension cables for connections.
• This appliance is not intended for use by persons (inclu-
ding children) with reduced physical, sensory or men-
tal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
• WARNING: Accessible parts may become hot during
use. To avoid burns young children should be kept away.
IMPORTANT SAFETY
WARNINGS
- Models with glass-ceramic zones
Read
carefully
before using
11
USER
• After use, turn off the cooking zone.
• Make sure that fatty substances and oil do not dirty the
appliance’s surfaces.
• WARNING: during and after use, the hob’s surface will
be very hot.
• Make sure that the power cable does not come into con-
tact with the glass or a pot.
• Magnetized objects such as credit cards, oppy disks,
and calculators should not be placed near the appliance
when it is being used.
• Do not use any type of metallic object except the pots
used for induction.
• Do not cover the cooking zone with inammable mate-
rials.
• The appliance should only be used by capable person-
nel.
• Keep children away from the appliance.
• Metallic objects such as knives, spoons, forks or lids
should not be placed on the hob as they can become
overheated.
• Caution: The appliance is not designed to operate with
an external timer or a remote control system
• Warning: Do not use steam appliances to clean the hob
IMPORTANT SAFETY
WARNINGS
- Models with glass-ceramic zones
Using the
appliance
11
Ofcine Gullo

12
Precautions
• Unsuitable pots could ruin the surface of the hob.
• Do not use abrasive substances to clean the appliance.
• Avoid dropping heavy objects on the hob.
• Place pots on the hob delicately.
• Make sure that the appliance’s ventilation complies with
the instruction manual.
• Do not place empty pots on the hob.
• Sugar, synthetic materials or aluminium objects should
not come into contact with the cooking zones.
IMPORTANT SAFETY
WARNINGS
- Models with glass-ceramic zones
Ofcine Gullo
12

12
Precautions
• Unsuitable pots could ruin the surface of the hob.
• Do not use abrasive substances to clean the appliance.
• Avoid dropping heavy objects on the hob.
• Place pots on the hob delicately.
• Make sure that the appliance’s ventilation complies with
the instruction manual.
• Do not place empty pots on the hob.
• Sugar, synthetic materials or aluminium objects should
not come into contact with the cooking zones.
IMPORTANT SAFETY
WARNINGS
- Models with glass-ceramic zones
13
USER
• When a malfunction occurs turn off and disconnect the
appliance.
• If cracks appear on the glass or it is broken, disconnect
the appliance and contact your authorized service cen-
tre.
• Any repairs should be made by authorized personnel.
• Make sure that the pot is in the middle of the cooking
zone. Ideally, the bottom of the pot should cover the en-
tire cooking zone.
• The magnetic eld produced by the induction hob could
affect the proper working of pacemakers. Detailed infor-
mation should be obtained from your doctor.
• Avoid placing synthetic materials or aluminium objects
in contact with the cooking zone.
IMPORTANT SAFETY
WARNINGS
- Models with glass-ceramic zones
In case of
malfunction
Suggestions
13
Ofcine Gullo

14
keep children and disabled people away during the operation. Do not use the appliance
as a heating source.
to keep the appliance efcient and safe, maintenance must be entrusted to specialized
technicians or to the after-sales service staff. Choose covered pans based on the quan-
tity of food to cook.
The index above the knobs will help you to nd the corresponding burner. Press the
knob by turning it anti- clockwise and bring it to the ignition position; keep the knob
pressed for about 5 seconds so that upon its release the ame remains alight (in case
of unsuccessful ignition repeat the operation).
BE CAREFUL:
General notes
IMPORTANT
Lighting the burners
Symbol Function
off
maximum
minimum
index
INSTRUCTIONS FOR USE
- First system startup of the hob
Position the ame divider “b” correctly. To do this, align the 4 teeth “c” of the ame
divider with the recess “d” of the aluminium Cup “a”.
●
●
●
b
a
b
c
d
Ofcine Gullo
14

14
keep children and disabled people away during the operation. Do not use the appliance
as a heating source.
to keep the appliance efcient and safe, maintenance must be entrusted to specialized
technicians or to the after-sales service staff. Choose covered pans based on the quan-
tity of food to cook.
The index above the knobs will help you to nd the corresponding burner. Press the
knob by turning it anti- clockwise and bring it to the ignition position; keep the knob
pressed for about 5 seconds so that upon its release the ame remains alight (in case
of unsuccessful ignition repeat the operation).
BE CAREFUL:
General notes
IMPORTANT
Lighting the burners
Symbol Function
off
maximum
minimum
index
INSTRUCTIONS FOR USE
- First system startup of the hob
Position the ame divider “b” correctly. To do this, align the 4 teeth “c” of the ame
divider with the recess “d” of the aluminium Cup “a”.
●
●
●
b
a
b
c
d
15
USER
ID Diameter Ø (cm)
SR 10 ÷ 20
R 20 ÷ 24
P oval pans (380 x 185)
TC/DCC 22 ÷ 28
DUAL 24 ÷ 30
Identify the knob with the help of the index near the knobs. Press and turn the knob to
the symbol (maximum) for 5 seconds. Once the burner is on, by turning the knob coun-
terclockwise it gets to its rst block that corresponds to the middle one.
By applying a bit of force, the rst block is exceeded and the outer ring goes out leaving
only the little central burner turned on called AUXILIARY. To adjust the auxiliary burner
on minimum, rotate the knob counterclockwise until it stops. At this point, to turn the
burner back on, rotate the knob clockwise up to the desired value.
Recommended pans ac-
cording to burner size:
Accensione del bruciato-
re Tripla corona “DUAL”
Symbol Function
off
maximum
minimum
index
INSTRUCTIONS FOR USE
- First system startup of the hob
Burners
Meduim
Large
Fish buner
Ring
Dual - Ring
●
●
●
●
●
15
Ofcine Gullo

16
If you want to use a gridiron a few things must be taken into account:
- it is possible to preheat the grid on the burner’s maximum power for no more than 10
minutes;
- we recommend cooking foods with reduced power;
- keep at least a distance of 150 mm from the side wall to the gridiron’s rim;
- do not position the gridiron on more than one burner at the same time.
Gridiron
Correct
Be careful: wrong
Be careful: wrong
INSTRUCTIONS FOR USE
– Use of a gridiron
Ofcine Gullo
16

16
If you want to use a gridiron a few things must be taken into account:
- it is possible to preheat the grid on the burner’s maximum power for no more than 10
minutes;
- we recommend cooking foods with reduced power;
- keep at least a distance of 150 mm from the side wall to the gridiron’s rim;
- do not position the gridiron on more than one burner at the same time.
Gridiron
Correct
Be careful: wrong
Be careful: wrong
INSTRUCTIONS FOR USE
– Use of a gridiron
17
USER
INSTRUCTIONS FOR USE
– Positioning placement of the burners

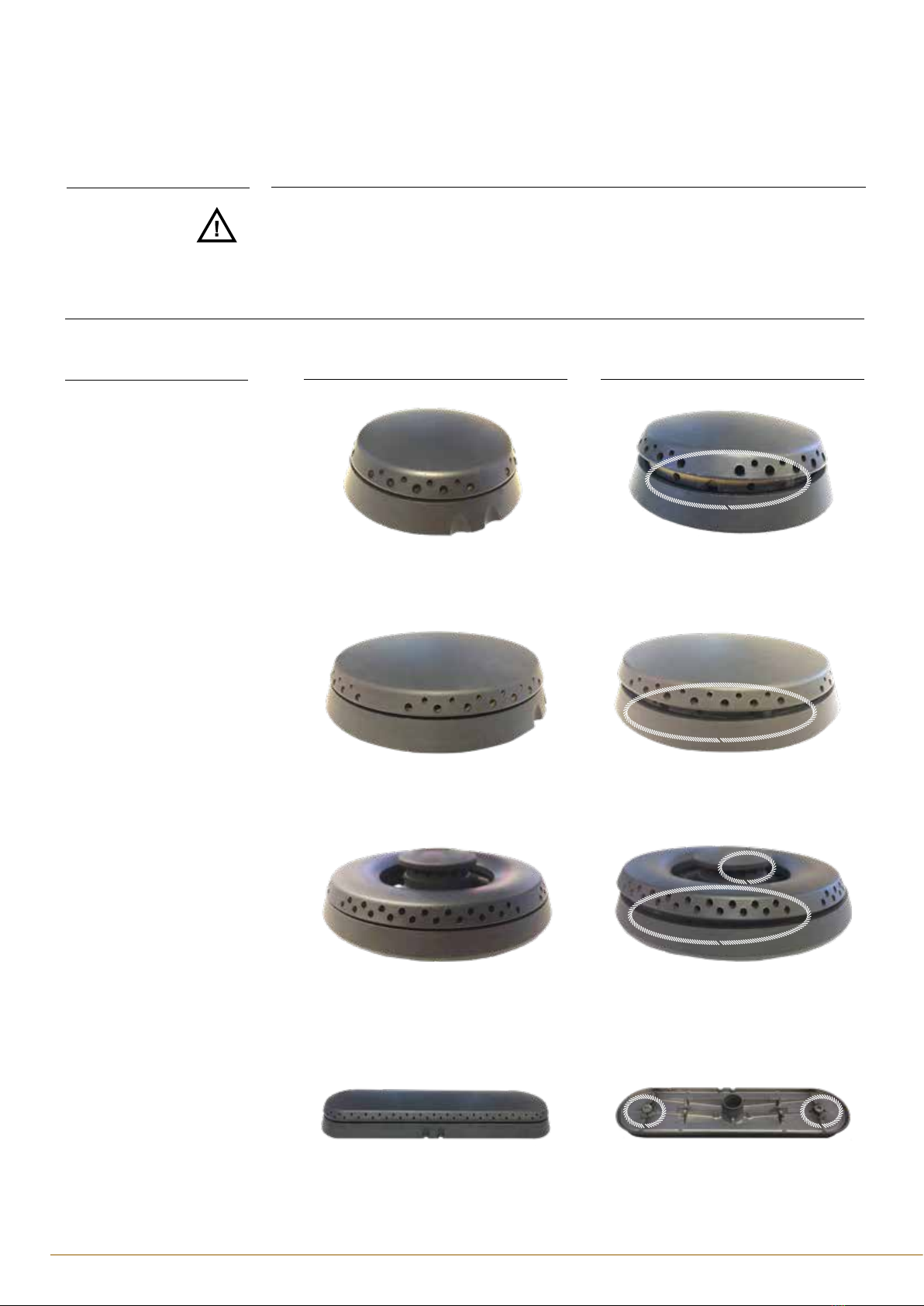

BE CAREFUL: always check that the burners are properly positioned), with a uniform
ame that is not noisy.
RIGHT WRONG
Positioning of the
burners
BURNERS
Medium
Large
Dual Ring
Fish burner
Always check that the
screws below the burner
are xed
17
Ofcine Gullo

20

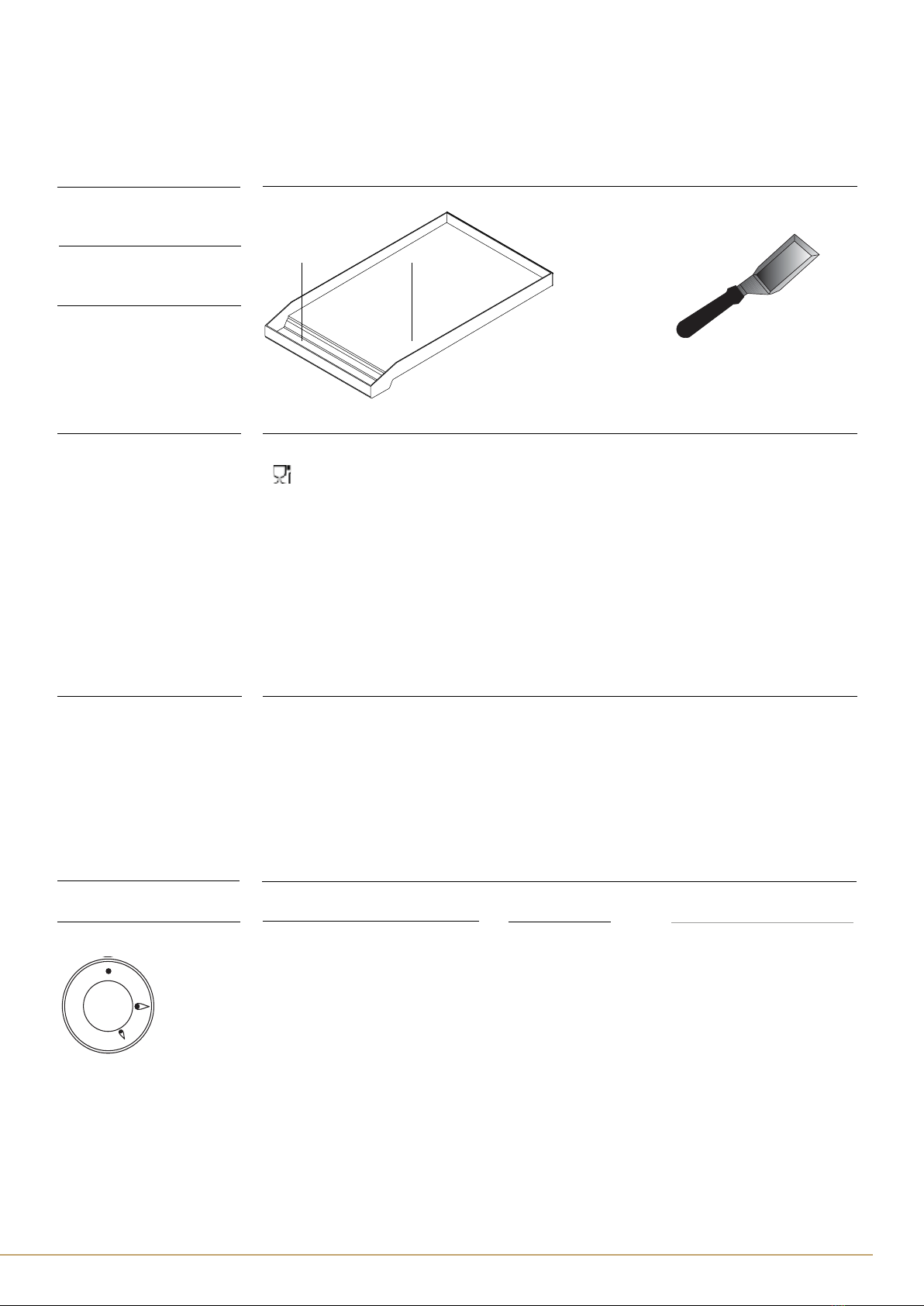

The fry-top (g. 14) consists of a stainless-steel plate, suitable for contact with food
[ ] with a uniformity of temperature on the cooking surface and with a very low heat
loss. To use the appliance, light the ame below the plate by means of the correspon-
ding knob (see “Lighting the burners”) and ensure that there is a ame. Turn the knob
to maximum for about 10 minutes and wait for the plate to heat up. Once this time has
elapsed, the plate is ready to start cooking.
By adjusting the ame, there is no limit to your culinary imagination. If you turn the con-
trol knob to the low setting, this allows slow or dietetic cooking. Higher temperatures are
suitable for cooking meat, sh and vegetables. The Fry-Top plate is ideal for Oriental
cooking with an optional accessory (lid) needed for this type of cooking.
Some models are supplied with the spatula shown in gure 15, which is useful both for
cooking and for cleaning the plate.
It is recommended to clean the plate thoroughly at the end of each cooking session.
With the plate hot and the ame at minimum, remove the cooking residue using the
scraper provided (g. 15). Pour a little water onto the plate and, still using the scraper,
continue cleaning the plate. Once the water has completely evaporated, repeat the
same operation even several times until the desired result is obtained. It is extremely
important to clean the plate when it is quite hot.
The black enamel ue may be cleaned with a soft cloth soaked with a solution of
lukewarm water and ammonia. Rinse and dry after cleaning.
Type of cooking Knob posit Time min.
B 2
B 9 ÷ 13
B 5 ÷ 73
B 3 ÷ 5
B 15
B 10
B 3
Egg
Sliced aubergines (0.5 cm thick)
Sliced potatoes
Sliced courgettes
Fish
(sea bream weighing about 200 g)
Hamburger
Beef steak
Porterhouse (2 cm thick) A 5
FRY-TOP A GAS
A= cooking area
B= drip tray
Functioning of the ap-
pliance
Cleaning and care
Adjuster (Knob)
INSTRUCTIONS FOR USE
– Use of the gas fry-top
Fig. 14 Fig. 15
A
B
A max
B med
C min
Ofcine Gullo
18
This manual suits for next models
2
Table of contents
Other Officine Gullo Range manuals

Officine Gullo
Officine Gullo GGS8P Quick start guide

Officine Gullo
Officine Gullo OGG304IC User manual

Officine Gullo
Officine Gullo TPS4GP User manual

Officine Gullo
Officine Gullo GEFS8P User manual

Officine Gullo
Officine Gullo OGS 304FU User manual

Officine Gullo
Officine Gullo GES8MPU User manual

Officine Gullo
Officine Gullo GGS8P User manual

Officine Gullo
Officine Gullo OGG366F User manual
