Offshore 3185 User manual

J1939 to NMEA2000® Adaptor
Part Numbers: 3185
USER MANUAL
Revision 1.01

1 of 12
1 Introduction ........................................................2
1.1 Firmware Revision .............................................2
1.2 Product Features ...............................................2
2 Installation ..........................................................3
2.1 Unpacking the box .............................................3
2.2 Mounting the unit ..............................................3
2.3 Connecting the NMEA2000®
Cable......................................................................3
2.4 Connecting the J1939 cable to the WAGO socket.....4
2.5 J1939 Connections..............................................4
3 Conguration.........................................................5
3.1 NMEA2000®Device Instance.................................5
4 Warranty ............................................................. 8
5 Technical Support .................................................9

INTRODUCTION
1
2 of 12
The Offshore System’s NMEA2000® 3185, J1939 to NMEA2000® Adaptor is designed to convert
Engine, Transmission and Generator messages on the J1939 network onto the NMEA2000®
network.
This unit is designed to operate in a protected marine environment such as an engine room. It is
very important that it is installed and set up correctly according to this manual. Please read and
follow the installation and setup instructions carefully to achieve the best results.
1.1 Firmware Revision
The information in this manual corresponds to rmware revision 1.1.3
1.2 Product Features
The 3185, J1939 to NMEA2000® Adaptor has the following features:
• Connection to J1939 network using a 3 pole Wago cage clamp connector
• Green LED conrming valid J1939 message reception.
• NMEA2000® micro C interface plug
• User Settable a NMEA2000® Device Instance using rotary switch
• Blue LED conrming NMEA2000® transmission
• NMEA2000® Interface optically isolated from J1939
• Power drawn only from NMEA2000® interface
• Panel or DIN rail mounting option
NOTE:
FOR SAFETY REASONS THIS UNIT DOES NOT HAVE THE CAPABILITY OF TRANSMITTING ANY
MESSAGES ONTO THE J1939 NETWORK.

INSTALLATION
2
3 of 12
2.1 Unpacking the box
You should nd the following items in the 3185 shipping box:
1 x 3185 J1939 to NMEA2000® Adaptor
1 x Din Rail mounting Kit with 2 rail mounts and 4 countersunk M3 screws for rails
1 x 3185 User Manual (This document)
2.2 Mounting the unit

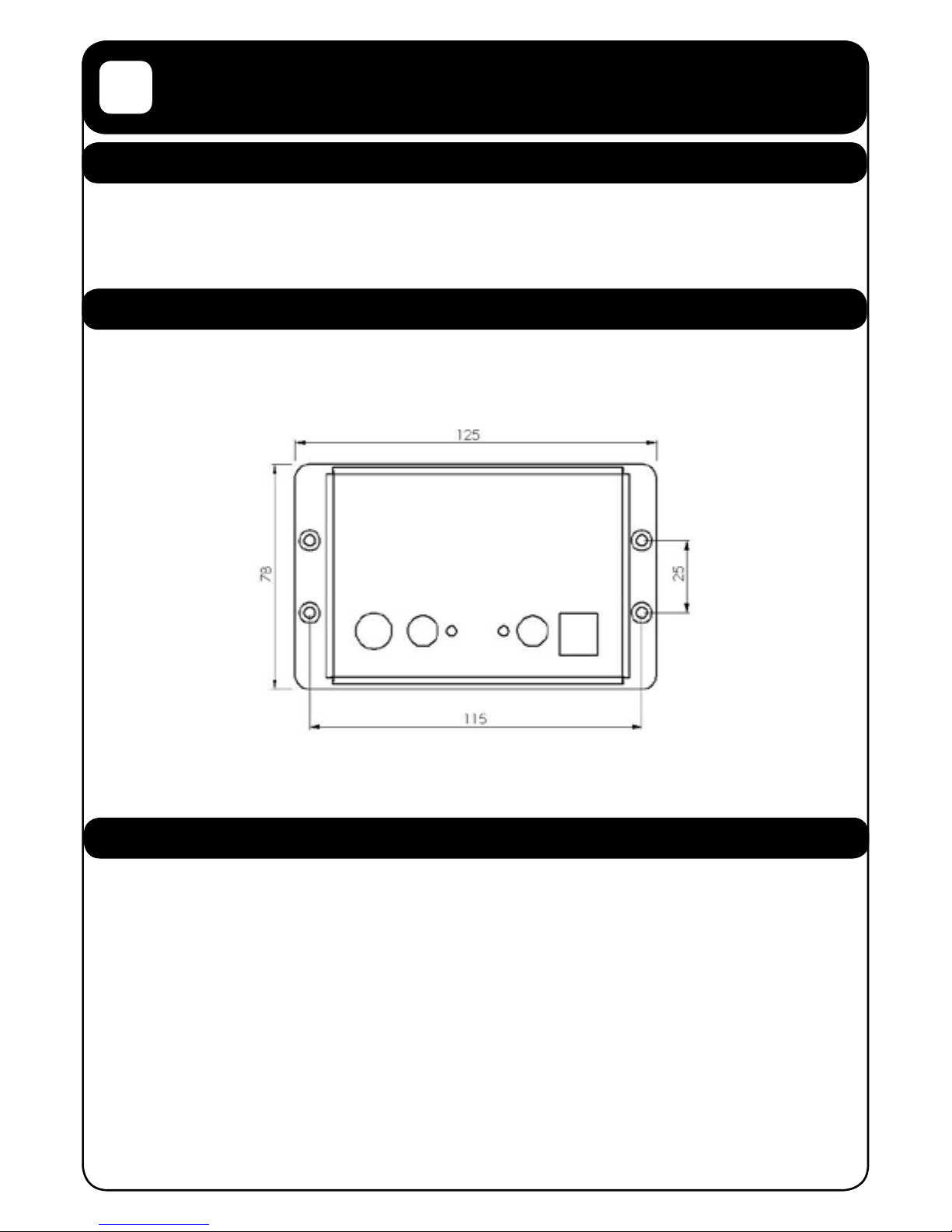

The unit can either be mounted to a at surface using 4 mounting screws. The unit dimensions
and mounting hole locations are shown on the following drawing.
Or the unit can be Din Rails mounted by attaching the Din Rail mounts to the case using the
supplied M3 CSK screws and then clipping the unit to the Din Rail
2.3 Connecting the NMEA2000® Cable
The unit is connected to the NMEA2000® network by the 5 way micro C socket on the front.
Carefully attach the network drop cable to this plug and hand tighten until it it is fully seated.
Take care to match the orientation of the pip inside the socket to the recess inside the drop
cable plug. The other end of the drop cable should be connected to a suitable Tee connector on
the NMEA2000® network backbone cable.

4 of 12
2.4 Connecting the J1939 cable to the WAGO socket
The cables from the power-source to the external sockets are connected using the WAGO Cage
Clamp terminal block. The wire should be stripped for 8mm and then the cage clamp opened
with a small screwdriver in the slot above the wire connection. Then simply insert the wire into
it’s connection slot and release the cage clamp by removing the small screw driver. This will
produce a secure gas tight connection on wire sizes from 0.08 – 1.5 mm²
2.5 J1939 Connections
The terminal connections are numbered as follows:
These are marked on the unit case.
Terminal 1 CAN H (HIGH-level J1939 CAN bus line)
Terminal 2 Ground
Terminal 3 CAN L (LOW-level J1939 CAN bus line)

CONFIGURATION
3
5 of 12
Type PGN No Parameters
J1939 PGNs PGN61443 Engine Percent Load
PGN61444 Engine Speed
Percent Torque
PGN65270 Engine Turbocharger Boost Pressure
PGN65262 Engine Oil Temperature
Engine Coolant Temperature
PGN65271 Alternator Potential (Voltage)
PGN65266 Engine Fuel Rate
PGN65253 Engine Total Hours Operation
PGN65263 Engine Coolant Pressure
Engine Fuel Delivery Pressure
Engine Oil Pressure
PGN65214 Engine Rated Speed
PGN65260 Vehicle Identication Number
PGN65242 Software Identication
The following two items can be congured directly on the 3185 using the two small rotary
switches. There are no other menu setups to worry about.
3.1 J1939 Source
The J1939 Source dial is now redundant to the design and does not require setting to a specic
setting. Dial can be set to 0 as a precaution.
3.2 NMEA2000® Device Instance
Each 3185 J1939 to NMEA2000® Adaptor connected to the NMEA2000® network needs to have
a unique Device Instance Address. The Device Instance of each unit is set by turning the small
rotary switch with a small screw driver. Valid Device Instances range from “0” through to “F”.
J1939 Data Translated to NMEA2000®
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1

6 of 12
PGN61445 Transmission Current Gear
PGN65272 Transmission Oil Pressure
Transmission Oil Temperature
PGN65030 Generator Average Line to Line Voltage
Generator Average Line to Neutral Voltage
Generator Average Frequency
Generator Average Current
Type PGN No Parameters
Periodic Data PGNs PGN127488 Engine Parameters
PGN127489 Engine Parameters
PGN127498 Engine Parameters
PGN127493 Transmission Parameters
PGN65030 Generator Average Basic AC Quantities
Protocol PGN126464 Tx/Rx PGN List
PGN126996 Product Information
PGN059392 ISO Acknowledge
PGN059904 ISO Request
PGN060928 ISO Address Claim
PGN126208 Command/Request Group
NMEA2000® Parameter Group Numbers (PGNs)
Parameter Value Comment
Operating Voltage 9 to 16 Volts DC Voltage
Power Consumption 120mA Average Operating
Load Equivalence Number 3LEN
Reverse Battery Protection Yes Indenately
Load Dump Protection Yes SAE J1113
Size mm 96 x 84 x 35
Weight gr 120
Electrical and Mechanical

7 of 12
Parameter Value
IEC 60954 Classication Protected
Degree of Protection IP40
Operating Temperature -25°C to 50°C
Storage Temperature -40°C to 70°C
Relative Humidity 93%RH @40° per IEC60945-8.2
Vibration 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2 per IEC 60945-8.7
Environmental

WARRANTY
4
8 of 12 8 of 12
Offshore Systems warrants this product to be free from defects in materials and workmanship for
one year from the date of original purchase. If within the applicable period any such products shall
be proved to Offshore Systems satisfaction to fail to meet the above limited warranty, such products
shall be repaired or replaced at Offshore Systems option. Purchaser’s exclusive remedy and Offshore
Systems sole obligation hereunder, provided product is returned pursuant to the return requirements
below, shall be limited to the repair or replacement, at Offshore Systems option, of any product
not meeting the above limited warranty and which is returned to Offshore Systems; or if Offshore
Systems is unable to deliver a replacement that is free from defects in materials or workmanship,
Purchaser’s payment for such product will be refunded. Offshore Systems assumes no liability
whatsoever for expenses of removing any defective product or part, or for installing the repaired
product or part or a replacement therefore or for any loss or damage to equipment in connection
with which Offshore Systems products or parts shall be used. The foregoing warranties shall not apply
with respect to products subjected to negligence, misuse, misapplication, accident, damages by
circumstances beyond Offshore Systems control, to improper installation, operation, maintenance, or
storage, or to other than normal use or service.
THE FOREGOING WARRANTIES ARE EXPRESSLY IN LIEU OF AND EXCLUDES ALL OTHER EXPRESS
OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE.
Statements made by any person, including representatives of Offshore Systems, which are
inconsistent or in conict with the terms of this Limited Warranty, shall not be binding upon Offshore
Systems unless reduced to writing and approved by an ofcer of Offshore Systems.
IN NO CASE WILL OFFSHORE SYSTEMS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,
DAMAGES FOR LOSS OF USE, LOSS OF ANTICIPATED PROFITS OR SAVINGS, OR ANY OTHER LOSS
INCURRED BECAUSE OF INTERRUPTION OF SERVICE. IN NO EVENT SHALL OFFSHORE SYSTEMS
AGGREGATE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT(S) INVOLVED. OFFSHORE
SYSTEMS SHALL NOT BE SUBJECT TO ANY OTHER OBLIGATIONS OR LIABILITIES, WHETHER ARISING
OUT OF BREACH OF CONTRACT OR WARRANTY, TORT (INCLUDING NEGLIGENCE), OR OTHER THEORIES
OF LAW WITH RESPECT TO PRODUCTS SOLD OR SERVICES RENDERED BY OFFSHORE SYSTEMS, OR ANY
UNDERTAKINGS, ACTS OR OMISSIONS RELATING THERETO.
Offshore Systems does not warrant that the functions contained in any software programs or products
will meet purchaser’s requirements or that the operation of the software programs or products will
be uninterrupted or error free. Purchaser assumes responsibility for the selection of the software
programs or products to achieve the intended results, and for the installation, use and results
obtained from said programs or products. No specications, samples, descriptions, or illustrations
provided by Offshore Systems to Purchaser, whether directly, in trade literature, brochures or other
documentation shall be construed as warranties of any kind, and any failure to conform to such
specications, samples, descriptions, or illustrations shall not constitute any breach of Offshore
Systems limited warranty.
WARRANTY RETURN PROCEDUREe
To apply for warranty claims, contact Offshore Systems or one of its dealers to describe the problem
and determine the appropriate course of action. If a return is necessary, place the product in its
original packaging together with proof of purchase and send to an Authorized Offshore Systems
Service Location. You are responsible for all shipping and insurance charges. Offshore Systems will
return the replaced or repaired product with all shipping and handling prepaid except for requests
requiring expedited shipping (i.e. overnight shipments). Failure to follow this warranty return
procedure could result in the product’s warranty becoming null and void.
Offshore Systems reserves the right to modify or replace, at its sole discretion, without prior
notication, the warranty listed above.

TECHNICAL SUPPORT
5
9 of 129 of 12
If you require technical support for any Offshore Systems products you can reach us using any of
the following ways:
● Tel: [phone]
● Fax: [phone]
●Email: [e-mail]
●Web: www.osukl.com
●Post: Offshore Systems UK Ltd
Unit 10-11 Milton Business Centre
Wick Drive, New Milton, Hampshire BH25 6RH
Offshore Systems (UK) Ltd
Unit 10 -11 Milton Business Centre, Wick Drive,
New Milton, Hampshire, BH25 6RH, United Kingdom
Tel: [phone] Fax: [phone]
Email: [e-mail] Web: www.osukl.com
Copyright © 2015 Offshore Systems (UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so
product specications are subject to change without notice. Offshore Systems products are designed to be accurate and
reliable. However, they should be used only as aids to vessel monitoring, and not as a replacement for traditional navigation
and vessel monitoring techniques. NMEA2000® is a registered trademark of the National Marine Electronics Association.

10 of 12

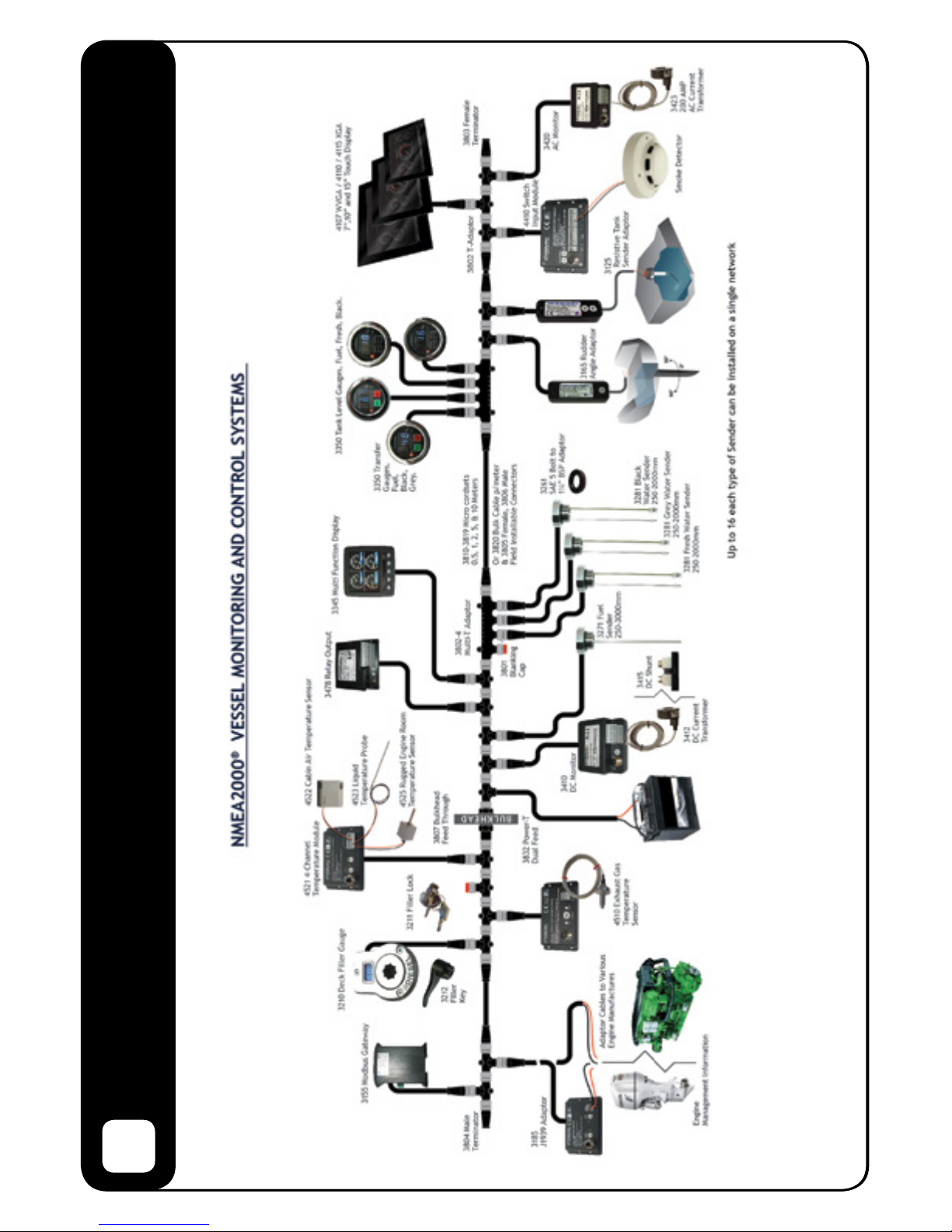

OFFSHORE SYSTEMS PRODUCT MAP
8
