Ofna Racing dominator monster pirate User manual

Instruction Manual
OFNA RACING
22692 Granite Way, Ste. B
Laguna Hills, CA. 92653

REQUIRED FOR RTR OPERATION
THINGS NEEDED
AA Batteries ( 12 pcs )
Glow Fuel
20%
TOOLS NOT INCLUDED IN KIT
Phillips Type Screw Drivers ( L )
Phillips Type Screw Drivers ( S )
Needle Nose Pliers
Cutter
Knife
Instant Cemment
Cross Wrench
#17109 $3.95
Glow Plug & 17MM Cross Wrench
#10801 $6.95
You need to get batteries for the radio transmitter and the car receiver
packs.
• Radio TX needs (8) eight AAbatteries
• Car needs (4) four AA batteries.
Recommendation:
You may want to upgrade the car battery pack to a Ni-Mh 5 cell Flat
type. This will give more run time.
You will need to buy a few items to start the engine and run the car.
• Use 20% nitro CAR fuel. Do not use airplane fuels, they will over
heat engine.
• Buy long glow plugs, like OFNA/PICCO P-7 (#51007). Use plugs
without idle bar. Do NOT buy hot plugs, like the MC-59.
In your box you will find..
• #10218 - Red “C” size glow heater
51007
P-7S
#10212 Battery Pack 1000 NiMh
5cell, hump............... $29.95
#10214 Battery Charger, Overnite
$7.95

REQUIRED FOR RTR OPERATION
THINGS NEEDED
AA Batteries ( 12 pcs )
Glow Fuel
20%
TOOLS NOT INCLUDED IN KIT
Phillips Type Screw Drivers ( L )
Phillips Type Screw Drivers ( S )
Needle Nose Pliers
Cutter
Knife
Instant Cemment
Cross Wrench
#17109 $3.95
Glow Plug & 17MM Cross Wrench
#10801 $6.95
You need to get batteries for the radio transmitter and the car receiver
packs.
• Radio TX needs (8) eight AAbatteries
• Car needs (4) four AA batteries.
Recommendation:
You may want to upgrade the car battery pack to a Ni-Mh 5 cell Flat
type. This will give more run time.
You will need to buy a few items to start the engine and run the car.
• Use 20% nitro CAR fuel. Do not use airplane fuels, they will over
heat engine.
• Buy long glow plugs, like OFNA/PICCO P-7 (#51007). Use plugs
without idle bar. Do NOT buy hot plugs, like the MC-59.
In your box you will find..
• #10218 - Red “C” size glow heater
51007
P-7S
#10212 Battery Pack 1000 NiMh
5cell, hump............... $29.95
#10214 Battery Charger, Overnite
$7.95

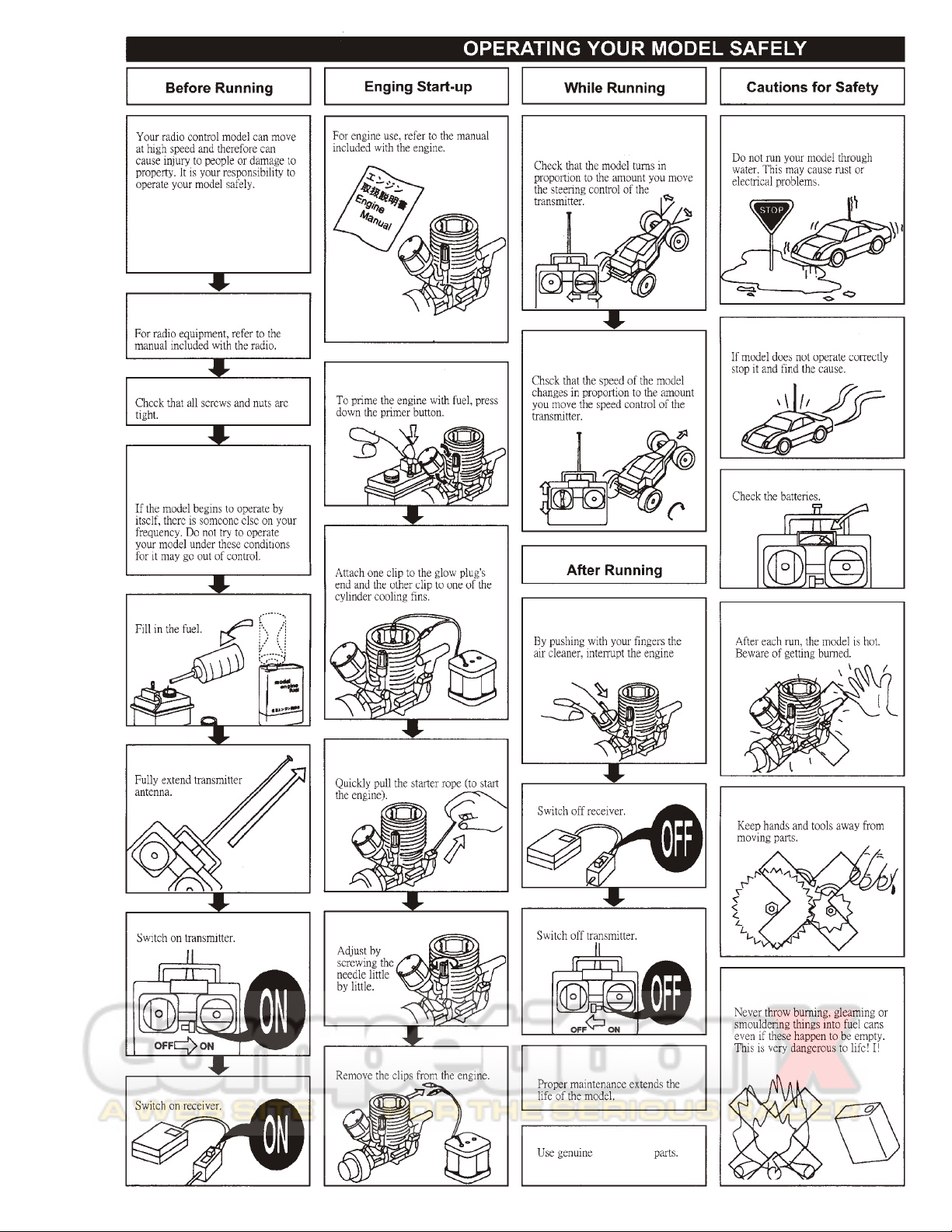

READ THIS BEFORE RUNNING
Running a nitro kit is fun and easy, but to make this a safe rusting.
• Clear oil and dirt from chassis with a degreaser.
and good experience you must observe a few rules. This
kit is extremely fast, easily over 40MPH, and can seriously Precautions
injure someone if you are not careful. • This kit is not a toy. Always run car with a second
person as a spotter and pitman.
Where to run car?
• Any running area you choose must be dry. Do not run • Hot Parts - The pipe, manifold, engine and head are very
car near any water or wet dirt. hot and will cause burns.
• Do not run on public streets. It is very easy to have the
car run over or damaged by hitting the curb. • Rotating Parts - Keep hands away from the drive train,
• Do not operate car in tight confined places. The car is wheels, and engine when engine is running.
very fast and will easily hit something.
• Do not run near people or animals. • Radio - Check batteries life before running the car. If
radio does not have full control of the car with steering
• Due noise, you will want to consider the surrounding and/or throttle/brake do not run until corrected. Failure to
area when operating the car. correct this will result in possible injury and damage to the
• Do not operate the car at night. You will not be able to car or property.
drive it without hitting something.
• Do not operate the car indoors. Engine exhaust is not • Glow fuel - Do leave the glow fuel unattended with the lid
healthy. off. Fuel contains Methanol and Nitro Methane and is
flammable and poisonous.
Glow Fuel
• Glow fuel is poisonous! Store fuel in cool ventilated location. Refer the glow fuel
• Glow fuel is flammable!
• Do not leave in fuel bottle with lid off at any time. label for additional precautions.
• Don use any fuel other than glow fuel in this engine. • Car Fuel tank - Never store fuel in car tank, it will ruin the
First Time Starting the Engine engine if left in tank.
Caution! When starting engine make sure the following is
observed.
• Set engine Master needle to 3 turns (rich setting)
• Do not do this alone, get an experienced friend to help at
first. IF YOU DO NOT BREAK-IN ENGINE
• Fill fuel tank, try not to spill fuel. Do not spill fuel on CORRECTLY, MAINLY AT LOW RPM,
receiver
• Hold car off the ground, so it will not runaway when first YOU WILL BREAK THE CONNECTING
starts ROD!
• Turn on Radio and check the linkage before starting
engine.
• Turn on car receiver battery switch. IF RTR KIT, FAILURE TO NOT
• Always have an air filter on the carburetor to keep dirt
out. READ AND FOLLOW BREAK-
Engine Break-in IN ENGINE INSTRUCTIONS
• See Engine Page.
Emergency Stopping Engine When Running WILL VOID WARRANTY!
• Remove air filter and cover carb. intake.
• Squeeze fuel line and hold until engine stops.
• With a rag, cover exhaust outlet.
Storing Car After Running
• Remove fuel from tank and fuel lines
• Turn off radio in car
• Put a few drops of after run in engine to keep it from
The car is very fast
and will too easily hit someone.
REQUIRED FOR NON-RTR KIT OPERATION
THINGS NEEDED
AA Batteries ( 12 pcs )
Glow Fuel
20%
TOOLS NOT INCLUDED IN KIT
Phillips Type Screw Drivers ( L )
Phillips Type Screw Drivers ( S )
Needle Nose Pliers
Cutter
Curved Scissors
Knife
Instant Cemment
Cross Wrench
#17109 $3.95
Body Reamer $25.95
#10803 - Black
#10804 - Blue
#10805 - Purple
Masking Tape
Paints
Brush
Recommendation:
You may want to upgrade the car battery pack to a Ni-MIH 5 cell type(1000). This will
give more run time.
You will need to buy a few items to start the engine and run the
car.
• Use 20% nitro CAR fuel. Do not use airplane fuels, they will
over heat engine.
• Buy long glow plugs, like OFNA/PICCO Plug 51007 or MC-9
plug. Use plugs without idle bar.
Radio System
.21 Rear Exhaust Engine
#53211 - Hyper .21p4 w/ Pull Start
#52210 - Force .21 p4 w/o Pull Start
#52211 - Force .21 p4 w/ Pull Start
#51210 - OFNA/Picco w/o Pull Start
#51211 - OFNA/Picco w/ Pull Start
#51215 - OFNA/Picco .21 Comp
#53218 - Hyper .21 p8 w/ Pull Start
#52213 - Force .25 p4 w/o Pull Start
#52214 - Force .25 p4 w/ Pull Start
#51216 - OFNA/Picco .21 O-1 av
#51217 - OFNA/Picco .21 O-1bp
Optional:
#10212 - 6v Hump Pack, NiMH Battery $29.95
#10214 - NiMH Battery Pack Charger $7.95

READ THIS BEFORE RUNNING
Running a nitro kit is fun and easy, but to make this a safe rusting.
• Clear oil and dirt from chassis with a degreaser.
and good experience you must observe a few rules. This
kit is extremely fast, easily over 40MPH, and can seriously Precautions
injure someone if you are not careful. • This kit is not a toy. Always run car with a second
person as a spotter and pitman.
Where to run car?
• Any running area you choose must be dry. Do not run • Hot Parts - The pipe, manifold, engine and head are very
car near any water or wet dirt. hot and will cause burns.
• Do not run on public streets. It is very easy to have the
car run over or damaged by hitting the curb. • Rotating Parts - Keep hands away from the drive train,
• Do not operate car in tight confined places. The car is wheels, and engine when engine is running.
very fast and will easily hit something.
• Do not run near people or animals. • Radio - Check batteries life before running the car. If
radio does not have full control of the car with steering
• Due noise, you will want to consider the surrounding and/or throttle/brake do not run until corrected. Failure to
area when operating the car. correct this will result in possible injury and damage to the
• Do not operate the car at night. You will not be able to car or property.
drive it without hitting something.
• Do not operate the car indoors. Engine exhaust is not • Glow fuel - Do leave the glow fuel unattended with the lid
healthy. off. Fuel contains Methanol and Nitro Methane and is
flammable and poisonous.
Glow Fuel
• Glow fuel is poisonous! Store fuel in cool ventilated location. Refer the glow fuel
• Glow fuel is flammable!
• Do not leave in fuel bottle with lid off at any time. label for additional precautions.
• Don use any fuel other than glow fuel in this engine. • Car Fuel tank - Never store fuel in car tank, it will ruin the
First Time Starting the Engine engine if left in tank.
Caution! When starting engine make sure the following is
observed.
• Set engine Master needle to 3 turns (rich setting)
• Do not do this alone, get an experienced friend to help at
first. IF YOU DO NOT BREAK-IN ENGINE
• Fill fuel tank, try not to spill fuel. Do not spill fuel on CORRECTLY, MAINLY AT LOW RPM,
receiver
• Hold car off the ground, so it will not runaway when first YOU WILL BREAK THE CONNECTING
starts ROD!
• Turn on Radio and check the linkage before starting
engine.
• Turn on car receiver battery switch. IF RTR KIT, FAILURE TO NOT
• Always have an air filter on the carburetor to keep dirt
out. READ AND FOLLOW BREAK-
Engine Break-in IN ENGINE INSTRUCTIONS
• See Engine Page.
Emergency Stopping Engine When Running WILL VOID WARRANTY!
• Remove air filter and cover carb. intake.
• Squeeze fuel line and hold until engine stops.
• With a rag, cover exhaust outlet.
Storing Car After Running
• Remove fuel from tank and fuel lines
• Turn off radio in car
• Put a few drops of after run in engine to keep it from
The car is very fast
and will too easily hit someone.
REQUIRED FOR NON-RTR KIT OPERATION
THINGS NEEDED
AA Batteries ( 12 pcs )
Glow Fuel
20%
TOOLS NOT INCLUDED IN KIT
Phillips Type Screw Drivers ( L )
Phillips Type Screw Drivers ( S )
Needle Nose Pliers
Cutter
Curved Scissors
Knife
Instant Cemment
Cross Wrench
#17109 $3.95
Body Reamer $25.95
#10803 - Black
#10804 - Blue
#10805 - Purple
Masking Tape
Paints
Brush
Recommendation:
You may want to upgrade the car battery pack to a Ni-MIH 5 cell type(1000). This will
give more run time.
You will need to buy a few items to start the engine and run the
car.
• Use 20% nitro CAR fuel. Do not use airplane fuels, they will
over heat engine.
• Buy long glow plugs, like OFNA/PICCO Plug 51007 or MC-9
plug. Use plugs without idle bar.
Radio System
.21 Rear Exhaust Engine
#53211 - Hyper .21p4 w/ Pull Start
#52210 - Force .21 p4 w/o Pull Start
#52211 - Force .21 p4 w/ Pull Start
#51210 - OFNA/Picco w/o Pull Start
#51211 - OFNA/Picco w/ Pull Start
#51215 - OFNA/Picco .21 Comp
#53218 - Hyper .21 p8 w/ Pull Start
#52213 - Force .25 p4 w/o Pull Start
#52214 - Force .25 p4 w/ Pull Start
#51216 - OFNA/Picco .21 O-1 av
#51217 - OFNA/Picco .21 O-1bp
Optional:
#10212 - 6v Hump Pack, NiMH Battery $29.95
#10214 - NiMH Battery Pack Charger $7.95

A
B
C

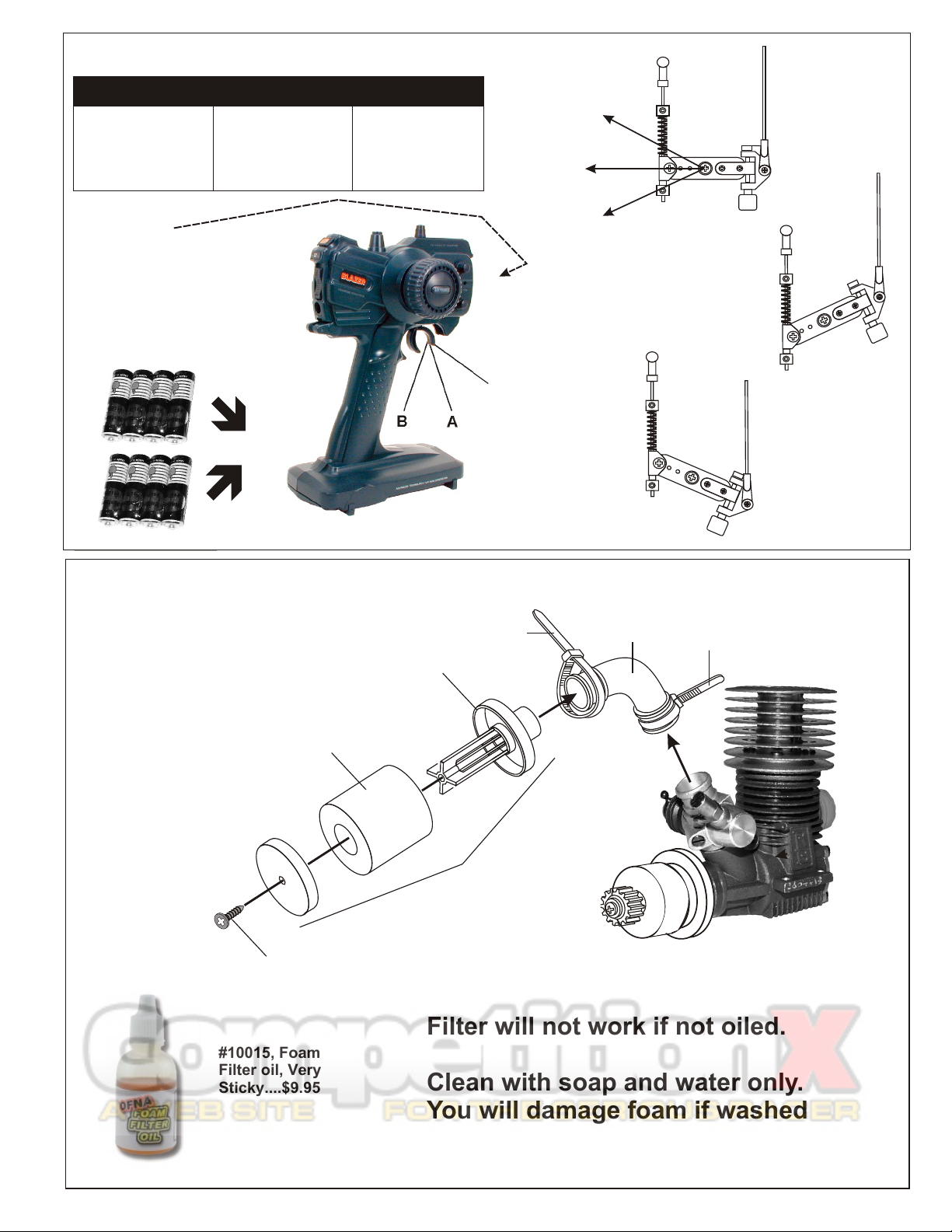

CHECKING ENGINE THROTTLE
* Insert into transmitter.
1. Insert AA batteries into
transmitter (8 Pcs).
2.Turn on transmitter.
3.Turn on receiver.
4.Center throttle trims as
shown .
ABC
1. Pull Full Throttle. 1. Push trigger to full
brake position.
2. Adjust alum. Stopper to
increase or decrease
the brake.
Idle Position (A)
Brake ©
Full Throttle (B)
* Align throttle servo same
as shown.
A
B
C
• Full brake arm position.
Spring compresses
forward and brake rods
pull brake levers.
• Full throttle arm position.
Spring rod pulls throttle
barrel open and brake
rods release pressure on
brake cams.
IMPORTANT
CHECK RADIO THROTTLE
AND STEERING SWITCHES
BEFORE RUNNING CAR
3 x 10mm
Tapping Screw
#10016
Air Filter
Sponge
Refills
#10017 - Blue
#10018 - Yellow
#10019 - Rose
Foam Air filters Unit
#10021 - Black
#10027 - Yellow
#10028 - Pink
#10029 - Blue
Air Filter Connector Nylon Strap
( Small )
Nylon Strap
( Small )
ASSEMBLY OF THE AIR FILTER
You must oil foam filter before use.
Filter will not work if not oiled.
Clean with soap and water only.
You will damage foam if washed
if fuel!
#10015, Foam
Filter oil, Very
Sticky....$9.95
18159 - MISC. TRUCK BODY PARTS

A
B
C
CHECKING ENGINE THROTTLE
* Insert into transmitter.
1. Insert AA batteries into
transmitter (8 Pcs).
2.Turn on transmitter.
3.Turn on receiver.
4.Center throttle trims as
shown .
ABC
1. Pull Full Throttle. 1. Push trigger to full
brake position.
2. Adjust alum. Stopper to
increase or decrease
the brake.
Idle Position (A)
Brake ©
Full Throttle (B)
* Align throttle servo same
as shown.
A
B
C
• Full brake arm position.
Spring compresses
forward and brake rods
pull brake levers.
• Full throttle arm position.
Spring rod pulls throttle
barrel open and brake
rods release pressure on
brake cams.
IMPORTANT
CHECK RADIO THROTTLE
AND STEERING SWITCHES
BEFORE RUNNING CAR
3 x 10mm
Tapping Screw
#10016
Air Filter
Sponge
Refills
#10017 - Blue
#10018 - Yellow
#10019 - Rose
Foam Air filters Unit
#10021 - Black
#10027 - Yellow
#10028 - Pink
#10029 - Blue
Air Filter Connector Nylon Strap
( Small )
Nylon Strap
( Small )
ASSEMBLY OF THE AIR FILTER
You must oil foam filter before use.
Filter will not work if not oiled.
Clean with soap and water only.
You will damage foam if washed
if fuel!
#10015, Foam
Filter oil, Very
Sticky....$9.95
18159 - MISC. TRUCK BODY PARTS

"18009
"18004
"18001
"18002
"18003
"18183
"18036
"18008
"18005
"18076
"18010
"18076
"18162
"18163
"18009
"18011
"18036
"18161
"18170
"18015
"18011
"18161
"18061 "18182
"18046
"18046
"18048
"18049
"18065
"18014
"18013 "18012
"18034
"18035
"18047
"18021
"18042
"18008
"18003
"18025
"18079
"18164
"18009
"18019
"18018
"18023
"18076
"18081
"18017
"18923
"18920
"18924
"18928
"18023
"18045
"18021
"18029
"81166
"81165
"81168
"18954
"18923
"18076
"18943
"18040
"18955
"18021
"18032 - MED
"18083 - SOFT
"18084 - HARD
"18037
"18038
"18079
"10032
"18039
"18042
"18041
"18184
"18164
"18045
"18031
"18033
"18029
"18033
"18030
"18065
"10120
"18051
"18064
"10399
"10090
"10010
"10100
"18057
"10078
"18077
"10060
"18069

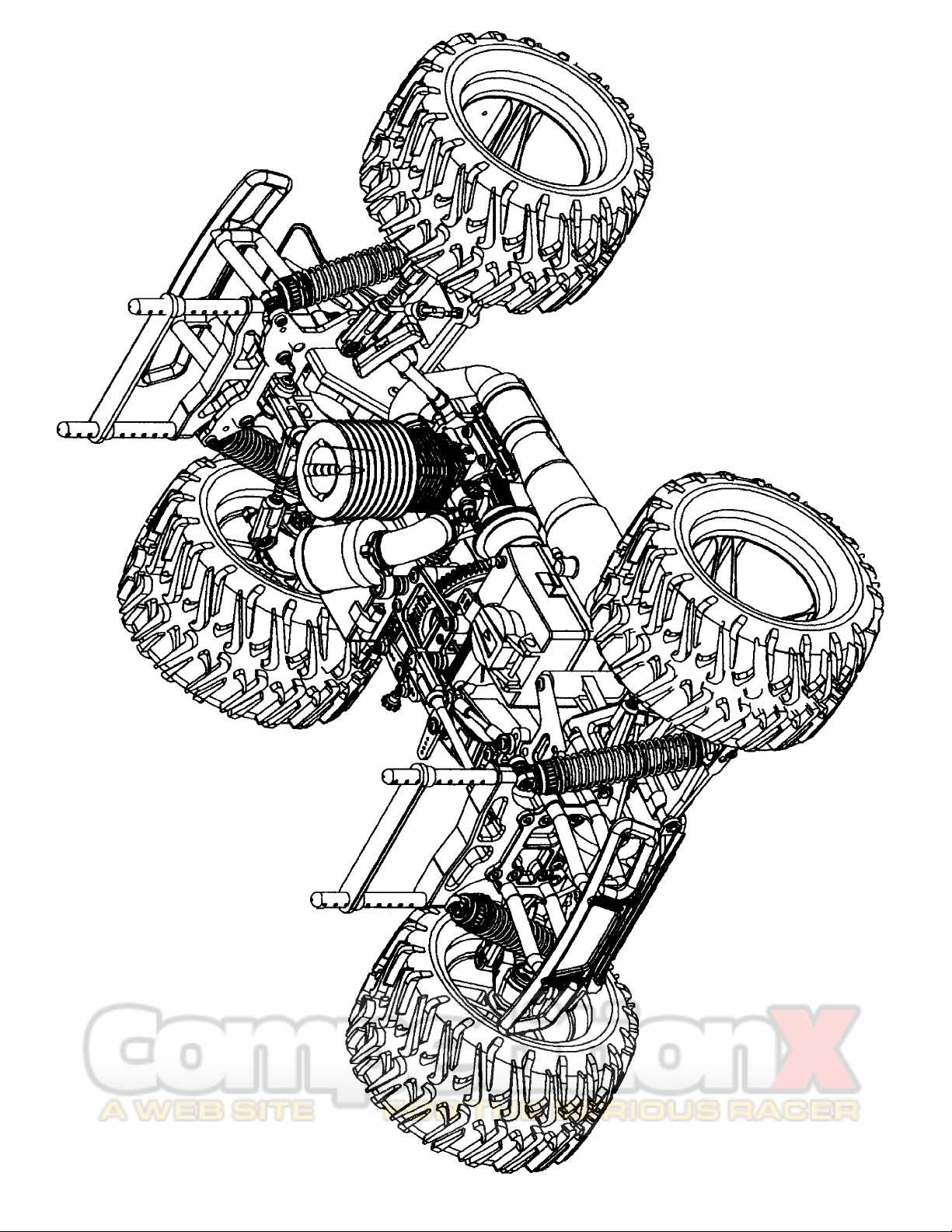

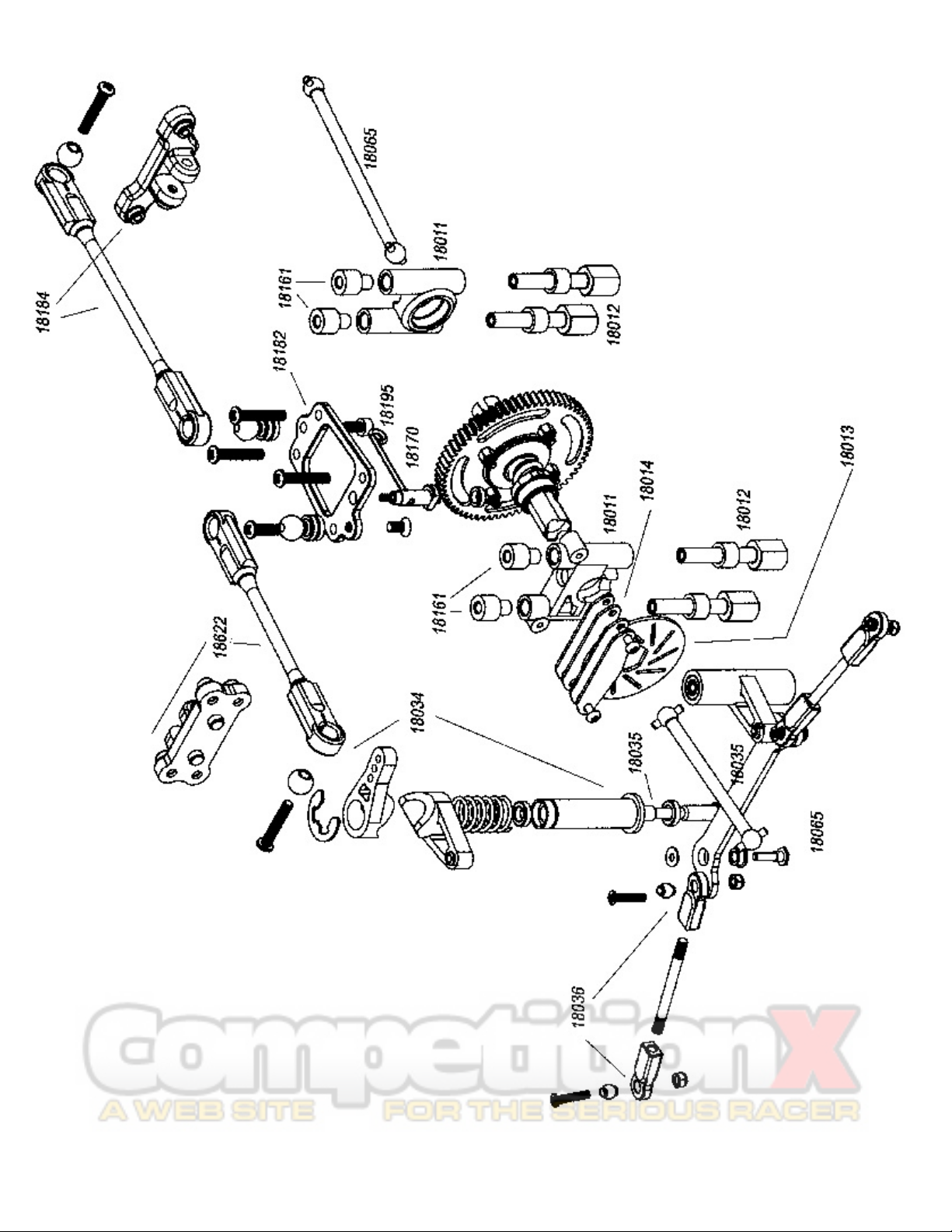

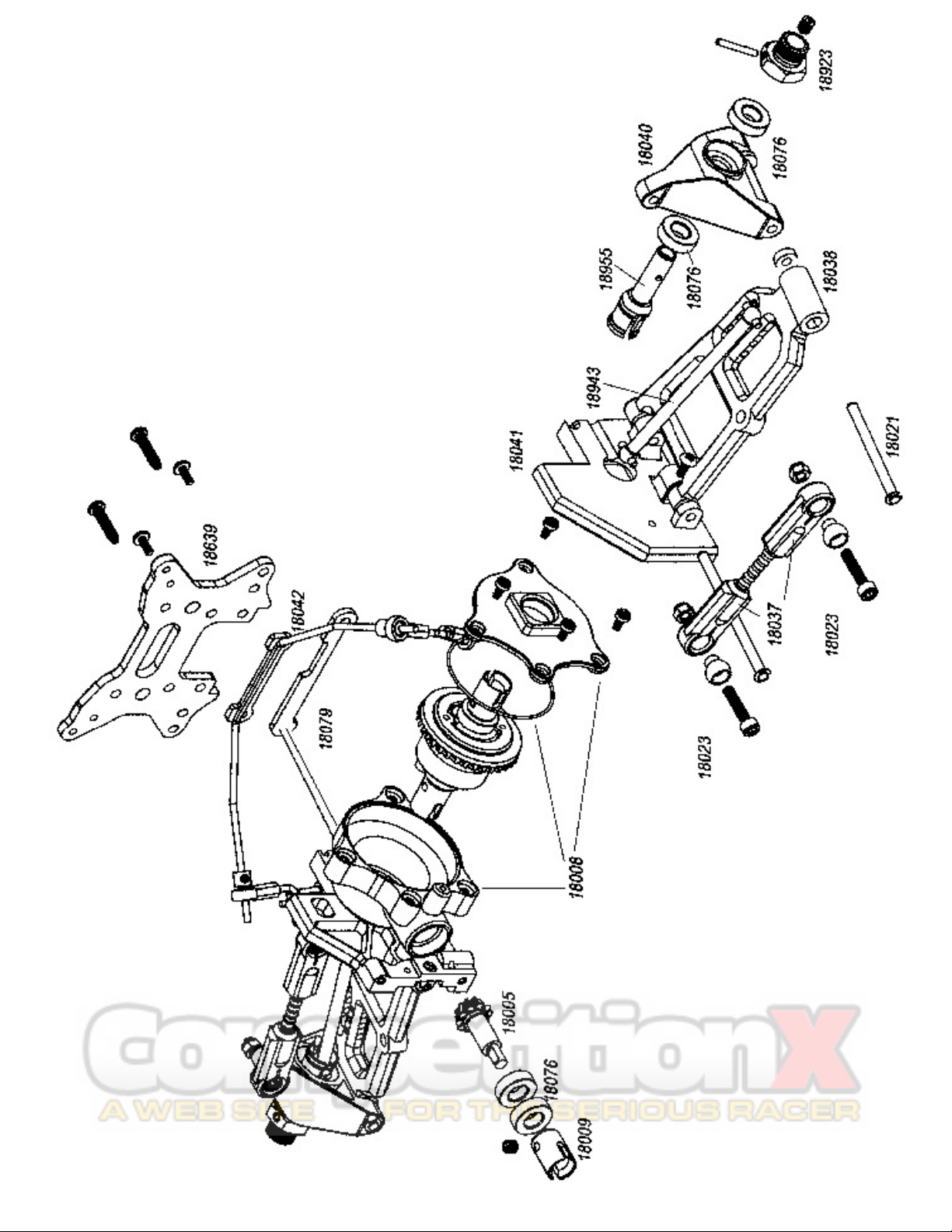

MONSTER PIRATE BLOWUP
with New 8mm Axles Parts
May 12, 2001 REV:01
Optional: #18198 Retail $119.95
Alum. CNC Racing Diff with Steel
Gears is not shown.

"18009
"18004
"18001
"18002
"18003
"18183
"18036
"18008
"18005
"18076
"18010
"18076
"18162
"18163
"18009
"18011
"18036
"18161
"18170
"18015
"18011
"18161
"18061 "18182
"18046
"18046
"18048
"18049
"18065
"18014
"18013 "18012
"18034
"18035
"18047
"18021
"18042
"18008
"18003
"18025
"18079
"18164
"18009
"18019
"18018
"18023
"18076
"18081
"18017
"18923
"18920
"18924
"18928
"18023
"18045
"18021
"18029
"81166
"81165
"81168
"18954
"18923
"18076
"18943
"18040
"18955
"18021
"18032 - MED
"18083 - SOFT
"18084 - HARD
"18037
"18038
"18079
"10032
"18039
"18042
"18041
"18184
"18164
"18045
"18031
"18033
"18029
"18033
"18030
"18065
"10120
"18051
"18064
"10399
"10090
"10010
"10100
"18057
"10078
"18077
"10060
"18069
MONSTER PIRATE BLOWUP
with New 8mm Axles Parts
May 12, 2001 REV:01
Optional: #18198 Retail $119.95
Alum. CNC Racing Diff with Steel
Gears is not shown.

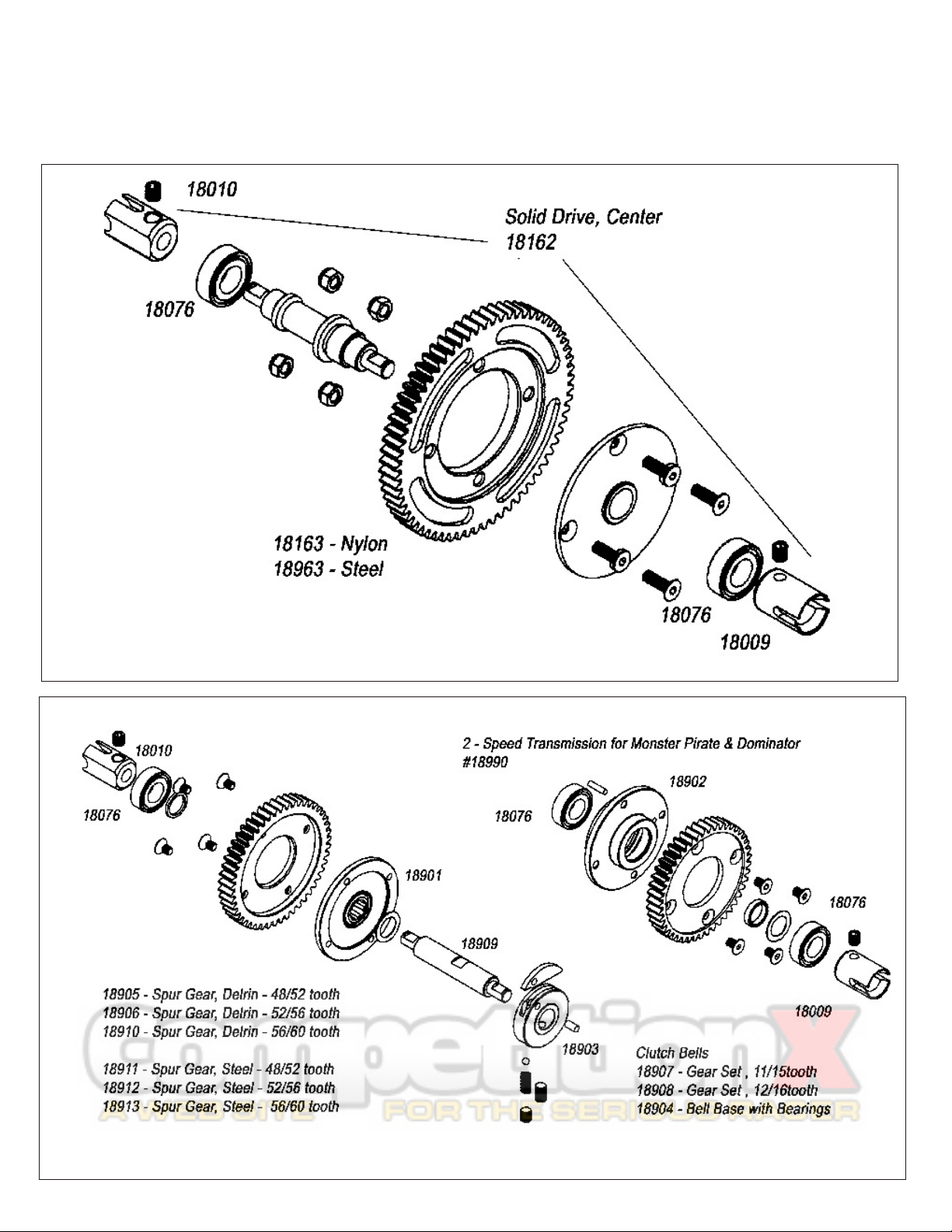

OPTIONAL CENTER TRANSMISSIONS

OPTIONAL CENTER TRANSMISSIONS
