Ohm Metrics GTS900K User manual

Dual Footwear/Wrist Strap Tester
Model GTS900K
Instruction Manual
T R A N S F O R M I N G T E C H N O L O G I E S , L L C
O U T S T A N D I N G A L T E R N A T I V E S I N S T A T I C C O N T R O L
Ohm Metrics™

Contents
1Description
GTS 900 1
Features 1
2Installation
Battery Installation 2
Free Standing Assembly 4
Height Adjustment 5
Wall Mount 5
3Testing
Wrist Strap 6
Footwear 6
4Specifications 8
5Parts Included List 8
6Service and Warranty 9

1
Description
Ohm Metrics
Duel Footwear/Wrist Strap Tester:
Model GTS 900
The GTS 900 combo tester is a three-state touch tester
designed for fast and accurate testing of ESD ground de-
vices. The GTS 900 incorporates a unique dual test cir-
cuit which eliminates the need for separate wrist-strap
and foot grounder testers which saves money and space.
This tester fully supports the “Compliance Verification
Plan” requirements as stated in the ANSI ESD S20.20.
Reliable, Repeatable Results
Accuracy and reliability are key strengths of the GTS 900.
Test parameters are standard but can be adjusted to
match your own specifications. Wrist-strap testing is set
with the ideal 750 kilohm-10 megohm circuit and a 750
kilogm-100 megohm circuit for accurate testing of foot
grounders. False alarms disappear and adjustments are
not necessary.
Features include:
 Combination Wrist Strap/footwear testing
 Wrist Strap Range 750 kilohm –10 megohm
 Footwear Range 750 kilohm - 100 megohm*
 Low and High failure alarm modes
 Split footplate design

2
Battery Installation
The GTS 900 monitor requires 1(one) 9volt battery. The bat-
tery housing is found on the back of unit. Slide battery
cover off and insert only a 9volt battery.
 Only new and valid batteries can be used.
 AC adapter available
Assembly
The GTS 900 has two options for installation: Free-standing
installation with footplate and pedestal or wall mounting.
The most common is the free standing option.
Free Standing Installation
1. Remove all items from carton and confirm you have re-
ceived all items contained in the “Parts Included List.”
2. Choose a location in the work area that is easily accessi-
ble and safe for both test equipment and users.

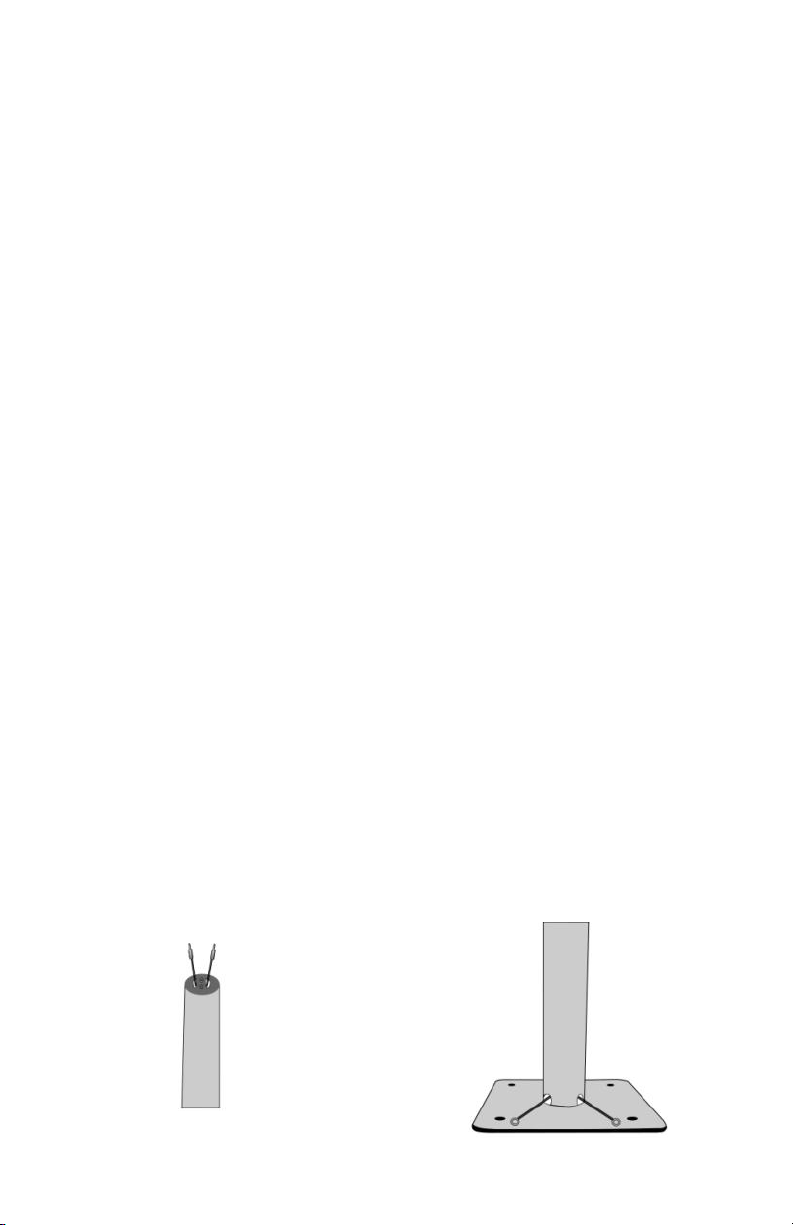

Pedestal Assembly
1. Locate the pedestal and the connection wire with banana
clips on one end and eye blots on the other.
2. String the connection wire through the pedestal so that
the banana clips extend out the top of the pedestal and
the eye bolts end extend out of the two holes at the bot-
tom of the pedestal.

Installation Cont.
3
Pedestal and platform assembly
1. Locate the platform and unscrew and remove the four
(4) screws located on the underside of the platform.
2. Unscrew the height adjustment knob and remove.
3. Slide the platform over pedestal taking special care to
leave 12” of connection wire extending from the bot-
tom.
4. String one line of connection wire along wire grove in
the platform and connect the eye bolt to connection
point with a nut.
6. Repeat with remaining line of connection wire.
7. Line up the base of the pedestal with the depression in
the platform and return the screws.
Height Adjustment
knob
Wire Connection
under Platform

4
Installation Cont.

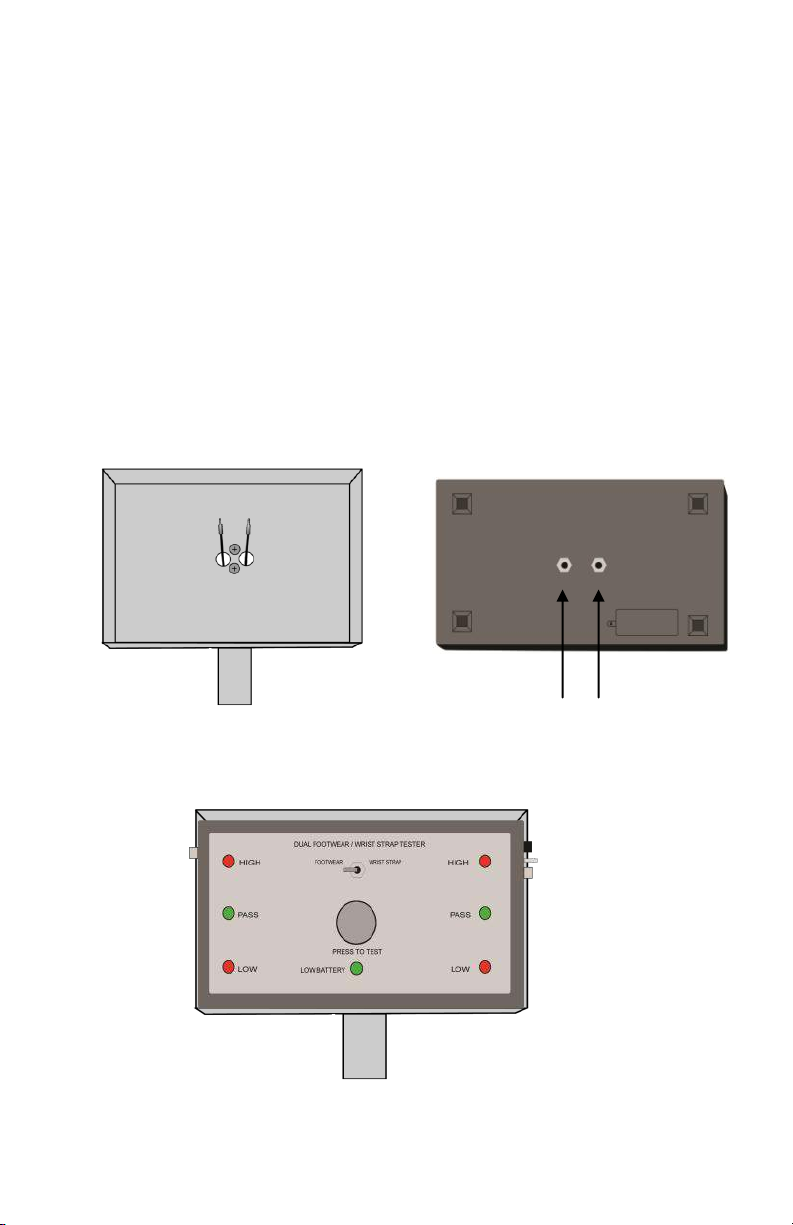

Monitor Receptacle Assembly
1. Remove the two(2) screws from the top of pedestal.
2. Mount the monitor receptacle on pedestal with the banana
plugs extending through the receptacle holes. See figure 1.
3. Return screws to securely fasten receptacle to pedestal.
4. Plug the banana plugs into the corresponding jacks on the
back of the monitor.
5. Carefully insert monitor into receptacle.
Banana Jacks
Figure 1

5
Height adjustment
The GTS 900 monitor can be raised or lowered by adjust-
ing the length of the pedestal.
1. To do so, unscrew the height adjustment knob until
the top portion of the pedestal is free moving.
2. Choose desired height of the monitor and tighten
height adjustment knob.
Wall Mount
The GTS 900 can be mounted on to any flat, stationary
surface. Frequently, the unit is mounted on a table or
wall
1. Attach two (2) mounting clips to the back of unit .
2. Install two(2) screws 1 1/2” apart, leaving 1/4” of
screw head from mounting surface.
3. Mount the tester on the screws, pulling gently down
to lock into place.
4. Place Footwear platform tester under the mounted
unit and connect the eye blots of the connection wire
to the footplate and insert banana plugs in to jacks
on the back of monitor.
1/
Mounting Screw
Monitor with Mounting Brackets

6
Testing
The GTS900 safely tests footwear and wrist straps for
proper ESD protection.
Wrist Strap Testing
1. While wearing wrist strap, plug banana plug end of cord
in the jack labeled “RIGHT WRIST STRAP”
2. Turn the selective switch located in the top center of the
monitor to the right labeled “WRIST STRAP”.
3. Press the test button and hold for 2-3 seconds.
4. The green LED labeled “PASS” indicates that the wrist
strap and cord are functioning properly.
5. If either the red LED “LOW” or the red LED “HIGH” light
and audible alarm sound, then check the wrist strap and
cord set immediately.
Footwear Testing
For the following testing, one must be wearing foot ground-
ing ESD protection. The GTS 900’s dual footwear sensors
allows for testing of each foot independently. The left foot
ESD protection is indicated with the LED lights on the left
side and the right foot is indicated on the right side of the
monitor.
1. Turn the selective switch located in the top center of the
monitor to left labeled “FOOTWEAR”
2. Place feet onto silver sensors of platform.
NOTE: No cord should be plugged into “WRIST Strap”
jack.

7
Footwear Testing Cont.
3. Press the test button and hold for 2-3 seconds
NOTE: Testing of footwear on both feet happen simultane-
ously.
4. The green LED located on the LEFT side of monitor la-
beled “PASS” indicates that the LEFT foot ground is func-
tioning properly.
5. The green LED located on the RIGHT side of monitor la-
beled “PASS” indicates that the RIGHT foot ground is
functioning properly.
6. If either the red LED “LOW” or the red LED “HIGH” light on
the LEFT side of monitor and audible alarm sound, then
check the LEFT foot ground set immediately.
7. If either the red LED “LOW” or the red LED “HIGH” light on
the RIGHT side of monitor and audible alarm sound, then
check the RIGHT foot ground set immediately.

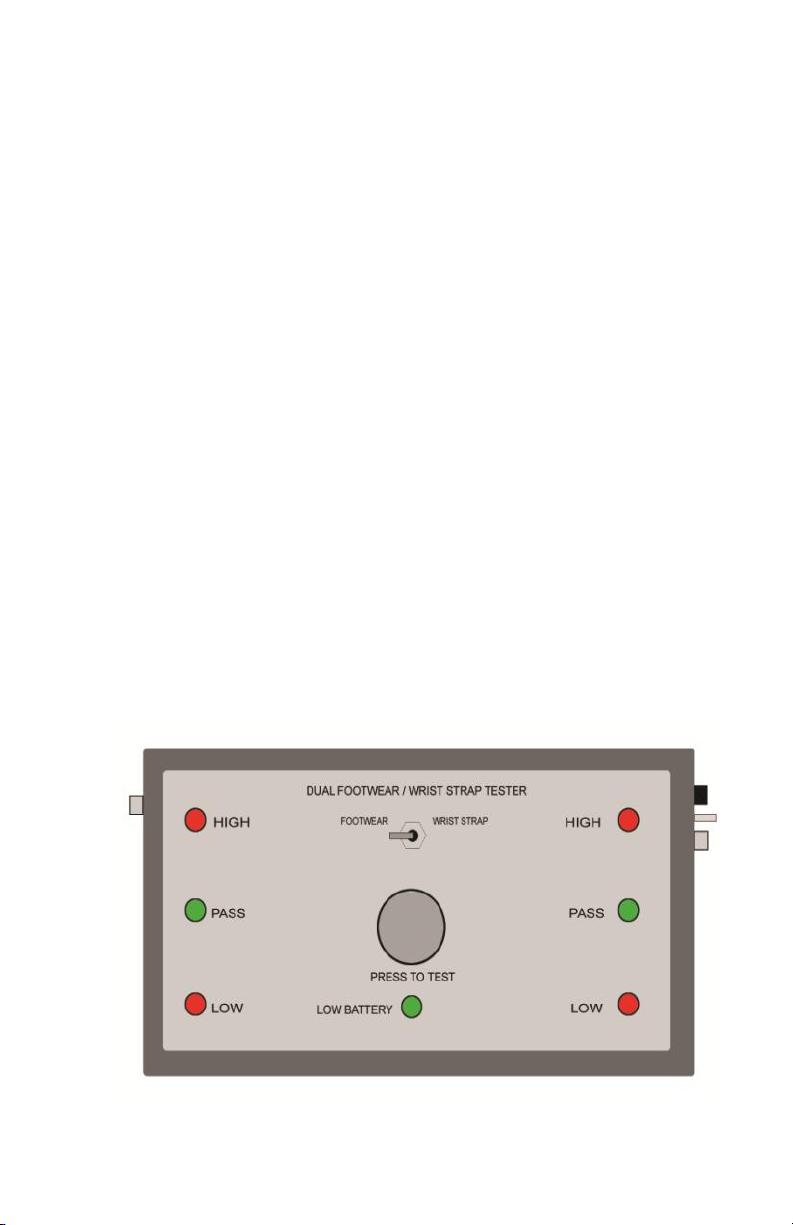

8
Product Specifications
INDICATION FOOT WEAR WRIST STRAP ALARM
HIGH R＞100MΩR.＞10MΩYES
PASS R≥750KΩ
R≤100MΩ
R≥750KΩ
R≤10MΩNO
LOW R＜750KΩR＜750KΩYES
LOW BATTERY Voltage<7V，change battery.
General
Power 9v Battery
or AC adapter
Operation Resistance Bridge
Output Six LED indicators and audio signal
Accuracy +15% for wrist strap tester
+15% for anti-static footwear tester
GST900
Weight 0.44lbs
Dimensions 5.5” × 3.1” ×1.5”
Parts Included List
GTS900
1. GTS 900 tester.
2. Foot plate.
3. AC adapter
4. 2 piece pedestal.
5. Connection cord for Foot plate.
Testing Range and Indication:

Service and Warranty
Transforming Technologies, LLC provides a limited
warranty for the Model GTS 900. All new products are
guaranteed to be free from defects in material and work-
manship for a period of one (1) year from the date of
shipment. Liability is limited to servicing (after evaluat-
ing, repairing or replacing) any product returned to
Transforming Technologies. The company does not war-
rant damage due to misuse, neglect, alteration or acci-
dent. In no event shall Transforming Technologies be li-
able for collateral or consequential damages.
To receive service under warranty, please contact
Transforming Technologies Technical Support.
About Transforming Technologies
Since 1998, Transforming Technologies has helped
electronic manufacturing facilities to protect their prod-
ucts and processes from the many serious problems as-
sociated with static electricity.
Transforming Technologies offers a wide range of
unique and outstanding products to detect, protect, elimi-
nate and monitor electrostatic charges. Our products are
integral components of an effective static control pro-
gram.
9
