Ohme blink PQ 100 User manual

PQ 100
PRODUCT MANUAL
Version 1.1
Blink Charging EU • [phone]

3
This manual covers the following product variants:
PRODUCT NUMBERPRODUCT NUMBER CONNECTOR VARIANTSCONNECTOR VARIANTS
OHME0702EU001 Schuko EU plug to Type 2
Read this user manual
in your prefered language:
Nederlands Français

4 5
Table of contents
Safety Precautions 5
Product Specication 7
Product Description 7
Installation 8
Instructions for Use 8
Indicator Lights 9
Troubleshooting 11
Cleaning 11
Maintenance 11
Standards Compliance 12
Disposal 12
Contact Details 13
Manufacturer’s Warranty 13
Limitation of Liability 14
Terms & Conditions 14
This document contains important safety information relating to your PQ 100. Please
retain this document for future reference.
Please read the document fully before using the PQ 100. Not following the safety in-
structions can result in electric shock, fire, serious injury or death.
Safety Precautions
Do not use the PQ 100 with extension leads or multi-plug
adapters
Some household sockets are not suitable for the high continuous
demands of electric vehicle charging. Sockets must be assessed
by a competent and qualied electrician to ensure they are
suitable
For Schuko / EU variants note that the PQ 100 unit will operate
at 10 Amps and household sockets may not be capable of
delivering this amperage for long periods of time
The cable should be inspected periodically to check for damage
to the cabling and the enclosure. Do not use if the product is
defective or appears damaged.
Contact the Blink Charging support centre for advice
Do not attempt to open, repair, tamper or modify the PQ 100 in
any way. There are no user-serviceable parts
We strongly recommend that a competent person (e.g. qualied
electrician) installs and/or inspects the installation to check for
safety and supply adequacy before use
The overall installation should be in accordance with the EU
Electrical Regulations (AREI, NEN1010, ...) and the EU Code of
Practice (IEC) for Electrical Vehicle Charging Equipment

6 7
Do not disconnect the PQ 100 from the wall socket/power
supply when charging. Always disconnect from the vehicle rst.
Handle the PQ 100 with care. Do not expose any part of the
cable to severe forces, impact or sharp objects
The PQ 100 is weatherproof - it can withstand heavy rain -
however, do not submerse any part of the PQ 100 in water. For
example, check that the PQ 100 will not rest in a puddle during
inclement weather
The PQ 100 is only intended for vehicles that do not require
ventilation during charging
You may clean the PQ 100 when unplugged, with a soft damp
cloth. Do not use solvents or abrasives
Product Specication
Product Description
The PQ 100 is an Electric Vehicle (EV) charging cable, comprising:
• Power input connector
• Charge controller, including residual current protection device
• Charging cable
• Vehicle connector
All PQ 100 units are to be used with single phase electrical supplies.
The product conforms to the latest safety standards including functions to disconnect the
power supply if AC or DC current leakage occurs.
Voltage 220- 250V
Frequency 50/ 60 Hz
Power output Schuko: 10Amps
Operating Temperature -25°C to 45°C
Storage Temperature -40°C to 85°C
Cable length 5 metres or 8 metres
Residual current function TypeA30mA
DC6mA
Overcurrent protection Not fitted
lngress protection IP55 + partial immersion

8 9
Installation
Schuko / European Plug
The Schuko version of the PQ 100 can be plugged into a standard European socket.
The unit is rated at 16A and therefore it is important that the supplying circuit and socket
is safe to deliver this amperage for continuous/long periods.
Standard sockets that cannot safely deliver 16A for long periods of time must not be
used. We recommend that your electrical system is inspected by a competent electrician
to ensure the socket and circuit is safe for the continuous demands of EV charging. lt
is recommended that a dedicated socket is installed externally, or close to the vehicle
parking location, that is rated to deliver 16A continuously.
Instructions for Use
Stopping a charge session
Starting a charge session
Firstly, connect the PQ 100 to the power supply socket or the charger. The PQ 100 will
automatically initialise, check for faults and initialise and it connects automatically to
our network.
Secondly, connect to the vehicle. The vehicle will begin charging.
Disconnect the cable from the vehicle first in the normal way. If required, then remove
from the power supply socket.

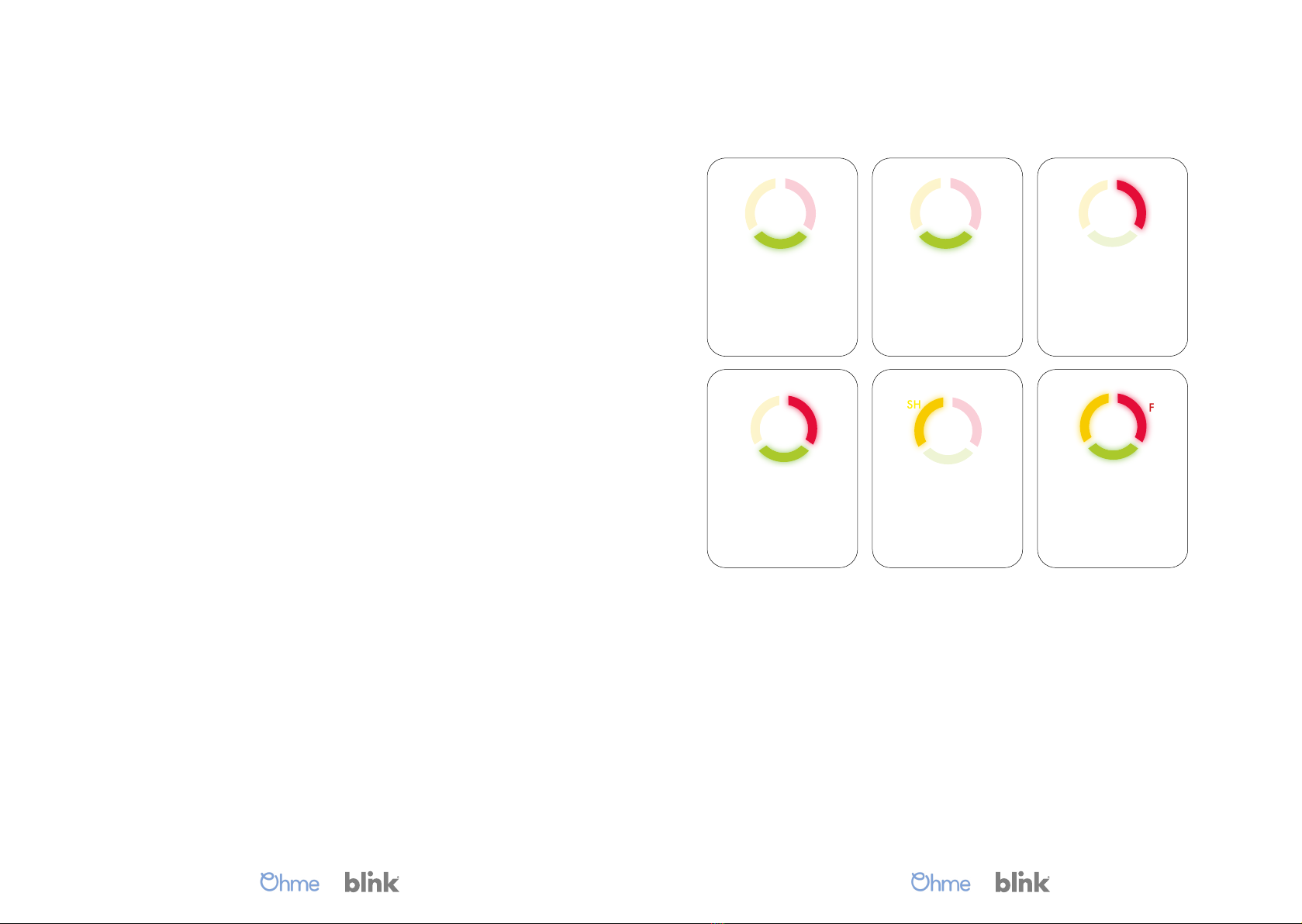

Indicator Lights
The PQ 100 has an LCD display and LED charge indicator lights.
Waiting, ready to
connect to the car
Charging Electrical fault EV Fault
Connected to the
car, not charging
Connected,
waiting for car to
start charging
FLASH
FLASH FLASH
FLASH FLASH FLASH

10 11
Understanding the display screen
1. Internal temperature of the PQ 100 unit
2. Current number of amps being delivered to the car
3. Connectivity status bar
4. Total kWh charged and time elapsed in a session
5. Real time kW being delivered to the car
6. Real time amps being delivered to the car
7. Mains voltage

 


Troubleshooting
lf there are any queries or issues regarding using the PQ 100, please contact Blink
Charging Support via email: [e-mail], telephone [phone].
The PQ 100 can be cleaned with a soft damp cloth. Avoid the use of cleaning agents
and solvents.
Cleaning
The PQ 100 is maintenance free. lf the cable is defective or damaged, please discontinue
usage and contact the Blink Charging Support Centre for advice or diagnoses.
Maintenance
ISSUEISSUE POSSIBLE CAUSEPOSSIBLE CAUSE
PQ 100 does not power up Check electrical supply to the PQ 100 or separa-
te chargepoint. Main Circuit Breaker or Residual
Current Detection may have tripped in Electrical
Cabinet.
PQ 100 is powered up
but vehicle does not charge
Check cable is fully inserted. Possible earth im-
pedance issue as some vehicles do not charge if
earth impedance is high. Try in a different location.
Contact Blink Charging Support.
1 3
4
567
2

12 13
The PQ 100 is classed as an IC-CPD (ln-Cable Control and Protection Device) as descri-
bed in IEC62752:2016.
The product complies with:
• IEC62752:2016 ln-cable control and protection device for mode 2 charging of
electric road vehicles (IC-CPD)
• EN61000-6-3 Electromagnetic compatibility (EMC). Generic standards. Emission
standard for residential, commercial and light-industrial environments
• EN61000-6-1 Electromagnetic compatibility (EMC). Generic standards. lmmunity
standard for residential, commercial and light-industrial environments
• IEC62196-1 Plugs, socket-outlets, vehicle connectors and vehicle inIets
• IEC60309-2 Plugs, sockets and couplers for industrial purposes
• BS 1363-113 A plugs, socket-outlets, adapters and connection units. Specification
for rewirable and non-rewirable 13 A fused plugs
Standards Compliance
Disposal
Information on Disposal for Users of Waste Electrical & Electronic
Equipment (private households)
This symbol on the product and accompanying documents means that
used electrical and electronic products should not be mixed with general
household waste. For proper treatment, recovery and recycling, please
take this product to designated collection points where it will be accepted
free of charge.
Alternatively, in some countries you may be able to return your products to your local
retailer upon purchase of an equivalent new product.
Disposing of this product correctly will help save valuable resources and prevent any
potential negative effects on human health and the environment, which could otherwise
arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated
collection point. Penalties may be applicable for incorrect disposal of this waste, in
accordance with your national legislation.
For business users in the European Union:
lf you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on Disposal in other Countries outside the European Union:
This symbol is only valid in the European Union. lf you wish to discard this product
please contact your local authorities or dealer and ask for the correct method of
disposal.
Blink Charging Support can be contacted at:
Blue Corner, a Blink Charging company
Posthoflei 3/bus 4
2600 Berchem
BELGIUM
[phone]
[email protected]
Contact Details
Manufacturer’s Warranty
The PQ 100 is protected by a manufacturer's warranty for 24 months from the date
of purchase or delivery, whichever is later.
The warranty covers any defects in materials or workmanship under normal use. During
the warranty period, During the warranty period, Blink Charging will arrange with
Ohme for the refund, repair or replacement, at its discretion at no charge, products
or parts of the product which prove defective because of improper materials or work-
manship under normal use and maintenance.

14
Blink Charging will either repair the product using new or refurbished replacement parts
or replace the product with new.
A replacement product assumes the remaining warranty period of the original product
or for 180 days from the date of the replacement or repair, whichever is longer.
The warranty does not cover any issues that are caused by conditions, malfunctions, or
damage not resulting from defects in materials or workmanship. The warranty does not
cover damage or malfunction directly or indirectly caused by normal wear and tear,
abuse, misuse, negligence, accident, lack of or improper use, including but not limited
to:
• Failure to follow the instructions and warnings provided in the product literature
• The environment or "Acts of God" such as fire, earthquake, flood
• General appearance of the product such as damage to paint, labels, scratches,
dents and cracks
• Any repair, alteration or modification to the product other than these authorised by
Blink Charging.
You may have other legal rights under local laws in addition to the rights under this
manufacturer's warranty. Contact Blink Charging in the first instance to discuss your
options.
To initiate a service from Blink Charging under the manufacturer's warranty, it is neces-
sary to contact Blink Charging first to assist in determining the most appropriate solution.
Limitation of Liability
Terms & Conditions
No liability will be accepted for any loss, costs or damage as a consequence of using or
misusing the product except, and only to the extent, where this is caused by our
negligence.
For Terms & Conditions of the product please visit our website at
https://www.bluecorner.be/en/general-conditions/
