Okina WDEM-7680LPDN-IO User manual

Copyright © 2012. All Rights Reserved. ** Replacing SHM-7540LPDN-IO
WDEM-7680LPDN-IO
WDEM-7680LPDN-IOP
License Plate Capture Wide Dynamic
Camera with I/O
USER MANUAL
Built with Sony's latest Effio DSP and 1/3" 960H Double-speed CCD WD image sensor,
WDEM-7680LPDN-IO has the capability of achieving resolutions of over 680 TVL, the
WDR function can produce clear and true image without noise even in tunnels, an
environment with very strong light, and can capture vehicle license plate numbers at
speed up to 120mi/hr / 200km/hr during the day, and 35mi/hr / 60km/hr at night.
The most exciting feature is the Multi-Shutter modes, Scheduled Shutter Mode, Manual
Shutter Mode and Auto Shutter Mode. WDEM-7680LPDN-IO supports Balun RS-485
remote control to control the OSD remotely. When it comes to Car License Plate Camera,
WDEM-7680LPDN-IO is definitely ideal to install at any kind of car entrances and exits
for capturing car license plates.

2

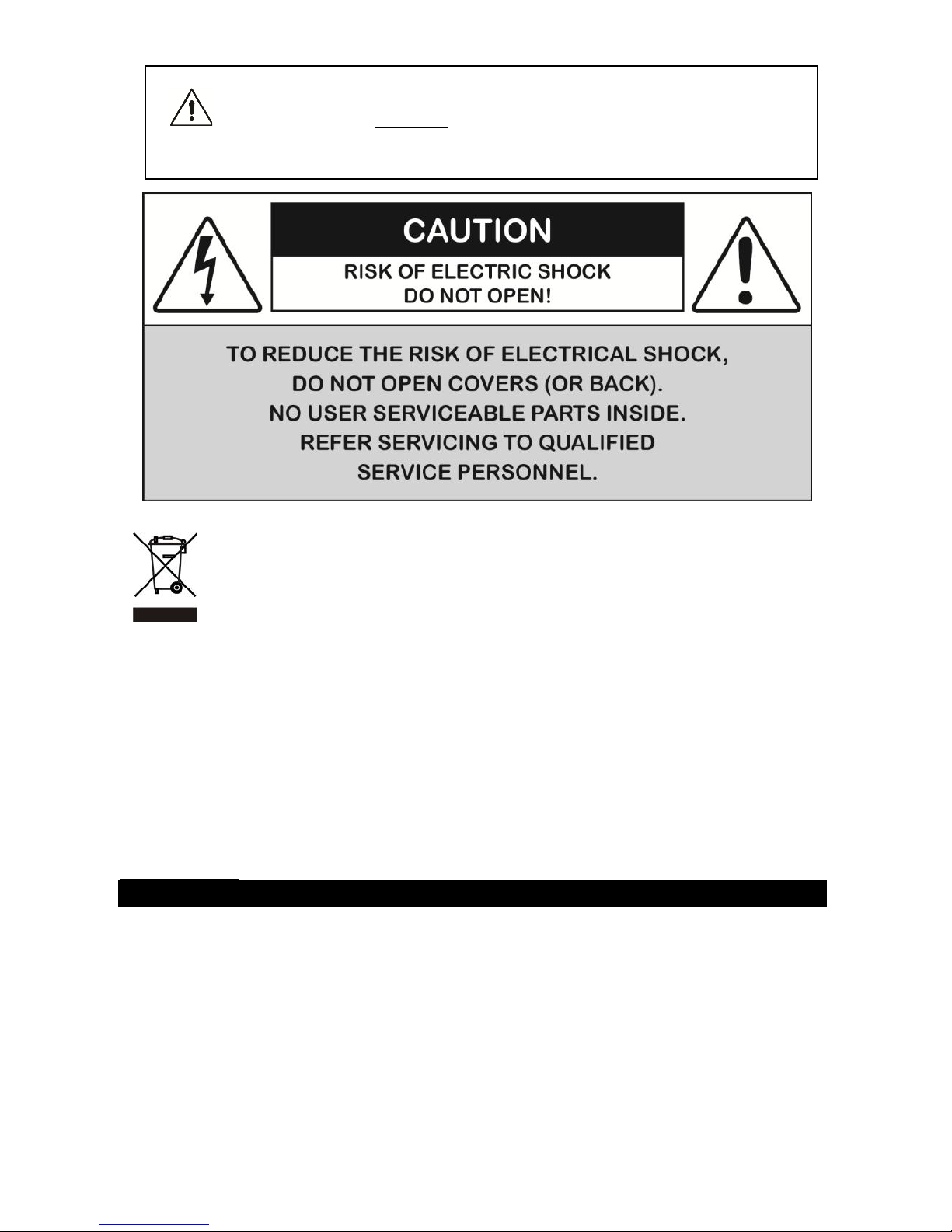

Disposal of Old Electrical & Electronic Equipment (Applicable in the
European Union and other European countries with separate collection
systems).
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product, please contact
your local city office, your household waste disposal service or the shop where you
purchased the product.
CAUTION
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the
pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the
camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable temperature range for
operation of this camera is between 14°F ~ 122°F / -10C ~ 50C.
Please read the Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.

3
4. Clean the front face or lens
It is recommended that the surface be cleaned every 3~6 months. Cleaning should be
done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator
and ethanol to carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet
the specifications). Camera must be connected to a surge protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage
points of short out parts that could result in a fire or electric shock. Never spill any kind
of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all service to
qualified servicing personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing
personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has been damaged.
e. When the video product exhibits a distinct change in performance.
LIMITED WARRANTY
OKINA USA products are covered under warranty for one (1) year from the date of
purchase. The warranty will automatically be voided if any of the following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information
regarding when and where the product was purchased. We have no other way to
verify the purchase record without the serial number on the camera sticker; therefore,
it should not be removed.
2. Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this
manual, the warranty will be voided immediately. It is the customer’s responsibility to
keep the camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or
modifying of the cables will result in termination of the warranty.

4
TABLE OF CONTENTS
1. Introduction ……………………………………………….….……….… 5-6
1.1 Features ………………………………………………………..…….... 5
1.2 Package Contents ……………………………………….…………… 5
1.3 Specifications …………………………………………………………… 6
2. Camera Overview …………………………………………………….… 7-9
2.1 Dimensions …………………………………………..…………….….. 7
2.2 Parts and Functions ………………………………..………………. 7-9
3. OSD Operation ……………………………………………….……….. 10-12
3.1 OSD Control Buttons ……………………………………..………..…. 10
3.2 OSD Operation ………………………………………………..…… 11-12
4. Configuration ………………………………………………….……... 12-31
4.1 Lens …………………………………………………………………….. 12
4.2 Exposure ……………………………………………………….….. 13-14
4.3 WDR / BLC / FOG RE ………………………………..….……….. 14-16
4.4 White Balance …………………………………………………...… 17-18
4.5 2DNR & 3DNR (Dynamic Noise Reduction) ……………………….. 19
4.6 Day/Night ………………………………………………………….. 20-23
4.7 Image ………………………………………..………………..…… 24-25
4.8 Effect ……………………………………….………………………. 25-29
4.9 System ………………………………………………………...…… 29-31
4.10 Balun Function (UTP) ………………………………………………. 32
4.11 Exit …………………………………………………………………….. 32
5. Related Products ………………………….……………………….... 33-34
5.1 Recommended Lens …………………………..…………………….. 33
5.2 Recommended Housing & Bracket …………………………………. 34

5
1. INTRODUCTION
1.1 Features
1/3” Sony 960H Ex-View HAD CCD II
Sony Effio WDR II DSP
Color: 680 TVL / B&W: 700 TVL
Color: 0.03 Lux @ F1.2 / B&W: 0.01 Lux @ F1.2
ICR: 0.005 Lux @ F1.2 / Sens-up: 0.0001 Lux @ F1.2
I/O Input/Output
Mechanical IR Cut Filter (ICR)
Capture car license plate numbers at night with speed up to 60km/hr
512x Wide Dynamic Range
Shutter Modes (Auto, 196 Step Manual)
Multi-Language OSD Control
Fog Reduction ; High Light Compensation (HLC)
2D/3D Noise Reduction
Digital Image Stabilizer (DIS) ; E-zoom Function (1~256x)
Advanced Motion Detection Function
Quadrangle Mosaic Privacy Mask
Dual Power 12V DC / 24V AC
1.2 Package Contents
One (1) SHM-7540LPDN-IO Camera
One (1) Allen Wrench
One (1) CS Ring
One (1) DC Cord
One (1) OSD User Manual
One (1) User’s manual
* For any returns, please include all components listed above with original packaging in
Resalable Condition. Absolutely No Returns will be accepted if any component is
missing/damaged.

6
1.3 Specifications
Model
WDEM-7680LPDN-IO
WDEM-7680LPDN-IOP
TV System
NTSC
PAL
Image Sensor
1/3" Sony 960H Ex-View HAD CCD II
Number of Total Pixels
1020(H) x 508(V)
1020(H) x 596(V)
Resolution
Color:680TVL, B&W:700TVL ; Sony Effio WDR II
Minimum Illumination
Color: 0.03 Lux @ F1.2, B/W: 0.005 Lux @ F1.2,
Sense-up: 0.0001 Lux @ F1.2
Wide Dynamic Range
512x Normal Camera (54dB)
Video Output
1.0Vp-p Composite, 75Ω(BNC x2)
Signal to Noise Ratio (S/N)
More than 55dB (AGC off)
Gamma Correction
0.45
Mechanical IR Cut Filter (ICR)
Automatically Switches (Switching Lux Level can be adjusted)
IR LED ; Working Distance
Compatible with Infrared Illuminator
Menu
OSD Control or by RS485 Control
Title
TITLE (LOCATION)
Synchronizing System
INTERNAL / LINE LOCK (AC version Only)
Digital Day & Night Mode
COLOR / B&W / AUTO / EXT
Electronic Shutter
Auto Shutter: Self DefinedAuto Shutter Speed Range
Programmable
Manual Shutter: 196 Steps, 1/50, 1/60, 1/70, 1/80, 1/90, 1/100,
1/110, 1/120,...1/1990, 1/2000 sec.
(1 Step per 1/10sec.)
Capture Speed
Day: Up to 120 mi/hr / 200 km/hr ; Night: Up to 35 mi/hr / 60 km/hr
Automatic Gain Control
0~200 Levels (Adjustable Level Settings)
White Balance
ATW / AWB / PUSH LOCK / MANUAL / 3200K / 6300K /ANTI CR
WDR ; BLC ; Fog Reduction
WDR / FOG REDUCTION / BLC / OFF
High Light Compensation
ON / OFF /AUTO
Flickerless
ON / OFF
Dynamic Noise Reduction
3D / 2D
Sense Up
AUTO (Limit x2~x512) / OFF
Digital Image Stabilizer
ON / OFF
Language
ENGLISH/TRADITIONAL CHINESE/SIMPLIFIED CHINESE
E-Zoom
x1~x256, Pan / Tilt Adjustable
Motion Detection ; Privacy
ON / OFF (24x16 Zones,Alarm) ;
ON / OFF (15 Zones Programmable, Quadrangle Mosaic)
Camera Control Interface
RS485 Interface OSD Control by Pelco-D, Pelco P
Automatic IRIS ; Connector
VIDEO / DC ; D4 IRIS Jack
Lens Mount
CS / C mount (With Adaptor Ring)
Power Supply ; Consumption
12V DC / 24V AC (10.8~39V DC / 24V AC) ; 2W
Operation ; Storage Temp.
14°F~122°F / -10°C~50°C ; -4°F~140°F / -20°C~60°C
Operation ; Storage Humidity
Maximum: RH80% ; RH90%
Dimensions L x W x H
4.72 x 2.44 x 2.2 inches / 120 x 62 x 56 mm
Net Weight
0.77 lbs / 350g
* Specifications are subject to change without notice.

7
2. CAMERA OVERVIEW
2.1 Dimensions

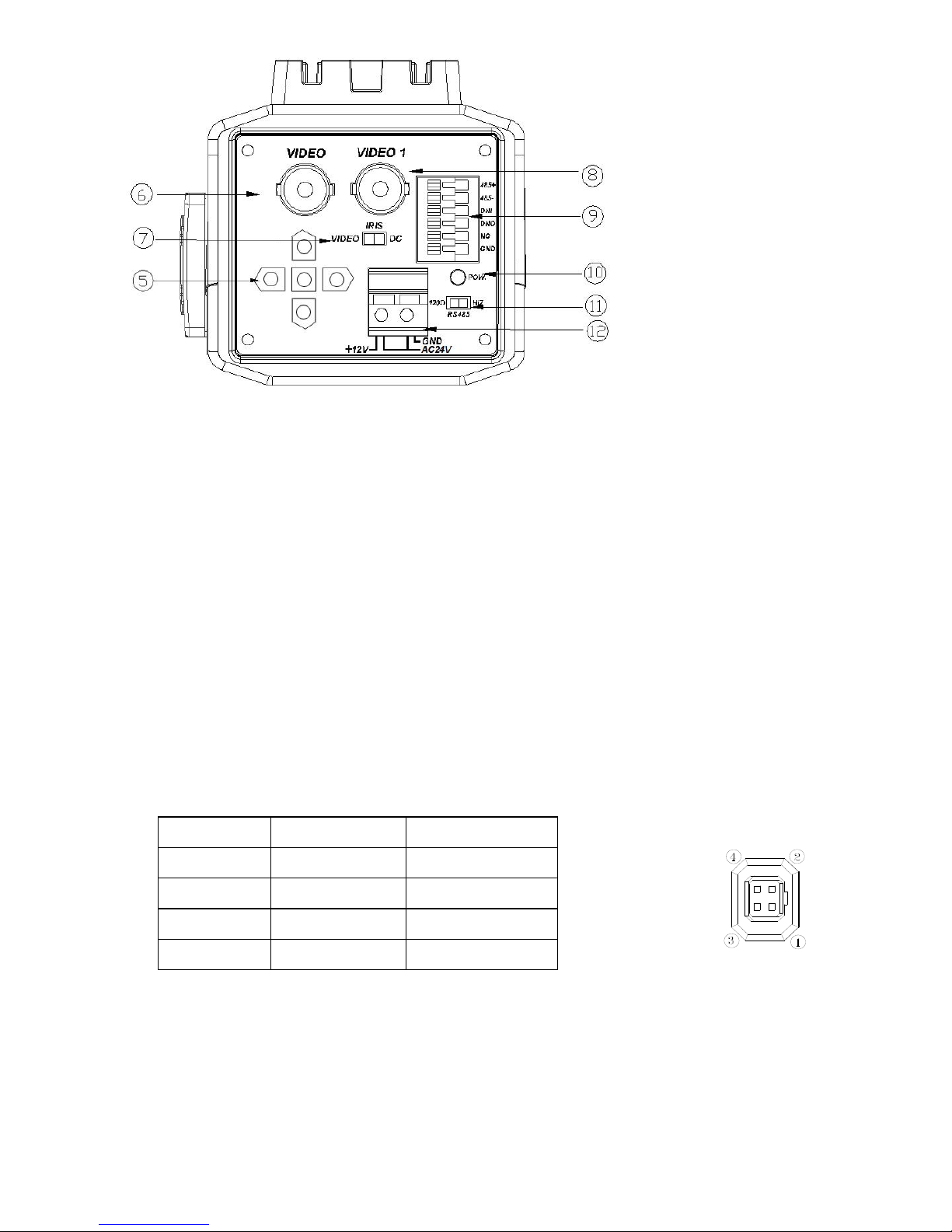

2.2 Parts and Functions

8
①Lens Mount
This mount is used to install a CS-mount lens. CS-adaptor ring is required when
using a C mount lens.
②Camera Mounting Screw Holes
Screw holes for mounting the camera.
③Mount Adaptor
The adaptor can be attached onto the top or the bottom of the unit.
④Auto Iris Lens Connector (4-pin type)
The lens connector supplies the auto-iris lens (not supplied) with DC control
signal.
⑤OSD Control Buttons
ENTER button
UP & DOWN buttons
LEFT & RIGHT buttons
PIN NO.
VIDEO
DC
1
DC + 12V
CONTROL -
2
NC
CONTROL +
3
IRIS
DRIVE +
4
GND
DRIVE -

9
⑥Video Connector
Video can be outputted via this connector. (75Ω).
⑦IRIS Mode Selection Switch
Select DC or VIDEO mode according to the lens.
⑧Video Connector
Video can be outputted via this connector. (75Ω).
⑨Communication Connectors
1. RS485+
2. RS485-
3. Day & Night External Input (controlled by external infrared illuminator)
4. Day & Night Output
5. NC
6. Ground
⑩Power Input Indicator Light
When the camera is connected to a power supply, the indicator light will be on.
⑪RS-485 Terminal Impedance Switch
Set the first and the last equipment terminal impedances as 120Ω and set the rest
parallel connection equipment in the middle as HiZ to obtain the best transmitting
status.
⑫Power Input Terminal
Connect to the power supply.

10
3. OSD OPERATION
3.1 OSD Control Buttons
①UP
Use this button to move the cursor upwards to the desired item.
②RIGHT
Use this button to move the cursor to the right to select or to adjust the
parameters of the selected item. The parameter increases when the right
button is pressed.
③DOWN
Use this button to move the cursor downwards to the desired item.
④LEFT
Use this button to move the cursor to the left to select or to adjust the
parameters of the selected item. The parameter decreases when the left
button is pressed.
⑤ENTER
Use this button to display the main menu, to confirm and to enter the
submenus when they’re available. Items with “<┘” symbol in the end
contain sub-menus. For further settings of those items, select the desired
item with the button or and press the ENTER button to bring up the
sub-menu and edit.

11
3.2 OSD Operation
I. Start to operate the OSD menu
Press the ENTER button to bring up the OSD main menu to start operating
OSD menus.
II. Select items with the cursor buttons
Use buttons and to move the cursor up and down.
Use buttons and to switch the modes or to adjust the parameters or
the values of the settings.
III. Switch to the sub-menu
Items with “<┘” symbol in the end contain sub-menus. For further settings of
those items, select the desired item with the button or and press the
ENTER button to bring up the sub-menu and edit.
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘
** AUTO IRIS **
TYPE
DC
SPEED
|||||||||||||||| 050
RETURN<┘
Main Menu
Sub Menu

12
IV. Return to the previous page
Select RETURN and press the ENTER button to return to the previous page.
V. Exit the OSD menu
Select EXIT with the button or and press the ENTER button to exit the
OSD menu.
4. CONFIGURATION
4.1 Lens
When the MAIN MENU is displayed on the screen, use the UP and DOWN buttons
to the LENS and press the ENTER button to do further setups.
*TYPE
When the DC LENS is in use, push IRIS SWITCH on the control board to
DC, and the TYPE on the menu will be displayed as DC.
When the VIDEO LENS is in use, push IRIS SWITCH on the control board
to VIDEO, and the TYPE on the menu will be displayed as VIDEO.
*SPEED
The speed of DC Lens is in direct ratio to the number you set. The range of the
SPEED can be set from 000~255.
NOTE:
The SPEED function will not work when the TYPE of LENS set to VIDEO.
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘
** AUTO IRIS **
TYPE
DC
SPEED
|||||||||||||||| 050
RETURN<┘
Main Menu
Sub Menu

13
4.2 Exposure
When the MAIN MENU is displayed on the screen, use the UP and DOWN buttons
to the EXPOSURE and press the ENTER button to do further setups.
*MODE
Modes to select from: AUTO IRIS and SHUT+AUTO IRIS.
Set to the AUTO IRIS mode to activate and adjust SHUT (Shutter Speed).
Set to the SHUT+AUTO IRIS mode to activate and adjust SHUT MIN
(Minimum Shutter Speed) and SHUT MAX (Maximum Shutter Speed).
*BRIGHTNESS
Use LEFT and RIGHT buttons to adjust the screen brightness from 000 to 255.
*SHUT(SHUTTER) / SHUT MIN(SHUTTER MIN) / SHUT MAX(SHUTTER MAX)
The shutter speed is in direct ratio to the number you set.
Option of SHUT / SHUT MIN Speed: 1/50(60)~1/2000(S).
Option of SHUT MAX Speed: 1/1000~1/100000(S).
NOTE: Only when SHUT MIN is at the speed of 1/50(S), SENSE UP is activated
and adjustable.
*LOW LUX BRIGHT. (LOW LUX BRIGHTNESS)
Use LEFT and RIGHT buttons to adjust the brightness in low lux conditions.
Option: x0.00, x0.05, x0.10, x0.15, x0.20, x0.25, x0.30, to x1.00.
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘
** EXPOSURE **
MODE
AUTO IRIS
BRIGHTNESS
|||||||||||||||| 030
SHUT
1/50
SHUT MIN
-
SHUT MAX
-
LOW LUX BRIGHT.
x1.0
AGC GAIN
|||||||||||||||| 150
SENSE UP
OFF
RETURN < ┘
Main Menu
Sub Menu

14
*AGC GAIN
Use LEFT and RIGHT buttons to adjust AGC GAIN. The bigger the number, the
brighter the screen can be. Note that the noise will increase as well.
Option: 000~200.
*SENSE UP
SENSE UP is used to maintain a brilliant, vivid screen image by automatically
detecting changes in the level of light under low light level conditions. Select the
desired item and press LEFT and RIGHT buttons to adjust the settings.
Option: x2, x4, x8, x16, x32, x64, x128, x256, x512 and OFF.
4.3 WDR/BLC/FOG RE.
1. When the MAIN MENU is displayed on the screen, use the UP and DOWN
buttons to WDR and press the ENTER button to do further setups.
2. Please select the desired item and press LEFT and RIGHT buttons to adjust
the settings.
*WDR (Wide Dynamic Range)
When there are both bright and dark areas at the same time, selecting this
mode makes both areas distinctive.
The modes under the function are:
WDR, BLC, FOG RE. and OFF.
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘

15
- LEVEL
Use the LEVEL function to adjust the brightness of the whole area.
Level: 000~255
- DARK AREA
Use LEFT and RIGHT buttons to adjust DARK AREA. Option are HIGH,
MIDHIGH, MID, MIDLOW and LOW.
- BRIGHT AREA
Use the BRIGHTAREA function to adjust the brightness of the bright area.
Level: 000~255
*BLC (Back Light Compensation)
Even when there is a massive backlight behind the object, bright images of the
background and the object can still be captured by selecting the BLC mode.
Sub-Menu under WDR mode.
The modes under the function are:
AUTO and MANUAL.
Sub-Menu under BLC mode.
s Menu
** BLC **
MODE
AUTO
AREA
--
MANUAL LEVEL
--
AUTO LEVEL
|||||||||||||||| 008
RETURN<┘
** WDR **
LEVEL
|||||||||||||||| 185
DARK AREA
MIDHIGH
BRIGHT AREA
|||||||||||||||| 050
RETURN<┘

16
- AUTO
Set AUTO LEVEL to adjust the BLC automatically. The range is
000~015.
- MANUAL
Set AREA and MANUAL LEVEL to adjust the BLC value manually.
The default AREA is BOTTOM 1/3, and the default LEVEL is MID.
Stay with the default value, the bottom 1/3 area will be the brighter
area, with the middle level of brightness. AREA: BOTTOM 1/3, TOP
2/3, BOTTOM 2/3, LEFT 2/3, and RIGHT 2/3. MANUAL LEVEL:
HIGH, MID, and LOW.
*FOG RE. (Fog Reduction)
Even when the object is fogged, the object can still be captured by selecting the
FOG RE mode.
- CONTRAST
Use LEFT and RIGHT buttons to adjust CONTRAST. Option are
HIGH, MIDHIGH, MID, MIDLOW and LOW.
- LEVEL
- Use the LEVEL function to adjust the brightness of the whole area.
Level: 000~063
*OFF
When set as OFF, there’ll be no wide dynamic range.
Sub-Menu under FOG RE. mode.
s Menu
** FOG REDUCTION. **
CONTRAST
HIGH
LEVEL
|||||||||||||||| 030
RETURN<┘

17
4.4 White Balance
The screen color can be adjusted by using the WHITE BALANCE function.
1. Please use the UP and DOWN buttons to WHITE BALANCE on the MAIN
MENU and press the ENTER button to do further setups.
2. Please select the desired item and press LEFT and RIGHT buttons to adjust
the settings.
*ATW (Auto Tracking White Balance)
This mode can be used within the color temperature range from 1800°K to
10500°K (e.g., around fluorescent lights, outdoors, around sodium vapor lamps or
inside tunnels).
*AWB (Auto White Balance)
Select this to allow the camera automatically adjust the white balance under all
conditions.
*3200K
Select this when the color temperature is around 3200°K (when surrounded by
sodium lights).
*6300K
Select this when the color temperature is around 6300°K.
The modes under the function are:
ATW, AWB, 3200K, 6300K, ANTI CR,
MANUAL, and PUSH LOCK.
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘

18
*ANTI CR (Color rolling suppression)
Select to set the white balance mode to the ANTI CR mode.
Follow the instructions on the screen. Wait for a few seconds for the camera to set
up. When completed, there will be a message displayed on the screen.
NOTE:
The White Balance can not fully function under the following conditions. When
the following occurred, please select PUSH LOCK Mode.
When there’s a higher temperature surrounded the object.
When there’s darkness surrounded the object.
When there’s a fluorescent light surrounded the object or where the light
changes all the time.
*MANUAL
The manual adjustment mode enables a more precise adjustment. Increase
and/or decrease the red and blue color values according to the color changes of
the object to set the suitable color temperature.
RED color vale ranges from 000 to 255.
BLUE color value ranges from 000 to 255.
*PUSH LOCK
Follow the instructions on the screen. Wait for a few seconds for the camera to set
up. When completed, there will be a message displayed on the screen.
To find the optimal setting for the current luminance environment in this mode,
point the camera towards a sheet of white paper and press the ENTER button.
Whenever the condition changes, readjust it.

19
4.5 2DNR & 3DNR (Dynamic Noise Reduction)
1. When the noise level is reduced, the camera performance can apparently be
improved. When recording digitally, the image file size can be lessened by
selecting the noise reduction. As the level of gain changes, the background
noise in the low light level decreases automatically.
2. Please use the UP and DOWN buttons to 2DNR & 3DNR on the MAIN
MENU and press the ENTER button to do further setups.
3. Please select the desired item and press LEFT and RIGHT buttons to adjust
the settings.
Sub-Menu under 2DNR & 3DNR mode.
s Menu
** 2DNR & 3DNR **
2DNR
MIDLOW
3DNR
MIDLOW
RETURN < ┘
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘

20
4.6 Day/Night
The camera can be set in Color or B/W mode in the Day/Night function.
NOTE:
1. EXT function is available for BOX cameras only. (Optional for OC version.)
2. Communication Connectors (including RS485) are available for BOX
cameras only.
1. Please use the UP and DOWN buttons to DAY/NIGHT on the MAIN
MENU and press the ENTER button to enter.
2. Please select the desired item and press LEFT and RIGHT buttons to
adjust the settings.
*COLOR
The COLOR / DAY mode.
*B&W
The BLACK & WHITE / NIGHT mode.
The modes under the function are:
COLOR, B&W, AUTO,
EXTERNAL(Optional).
** MAIN MENU **
LENS
AUTO < ┘
EXPOSURE
SET < ┘
WDR/BLC/FOG
OFF
WHITE BALANCE
ATW < ┘
2DNR & 3DNR
SET < ┘
DAY/NIGHT
AUTO < ┘
SET < ┘
EFFECT
SET < ┘
SYSTEM
SET < ┘
EXIT < ┘
