OkiOki Mid-Century User manual

OkiOki Mid-Century
5 Drawer Dresser
Instructional Guide &
Sleep Book

We’re providing you with the necessary
directions to easily and seamlessly set up
your new OkiOki Mid-Century 5 Drawer
Dresser as well as some leisurely reading
to reward your eorts.
1

Contents
3 Mid-Century 5 Drawer Dresser
Instructional Guide
18 A Bedtime Story
22 Sleep Facts
24 Notes from My Bed
2

OkiOki Mid-Century 5 Drawer Dresser
Instructional Guide
Assembly Instructions
2 persons recommended for assembly.
All instructional elements and diagrams provided in this manual
are to serve as a guide and are not meant to replace a licensed
professional. Any construction or use of the product must be
in accordance with all local zoning and/or building codes. The
consumer is liable for all risk and responsibility associated with
the assembly and construction of this product. The person or
persons responsible for setting up this product should follow
all safety instructions carefully as to not put themselves or any
other parties at risk.
Read instructions, cover to cover
Have two adults on hand for assembly
Do not assemble on flooring or carpet
Assemble on a clean non-marring surface (packing foam)
Save all packaging until finished
**CAUTION : This Dresser is NOT a TOY. Keep your child/children at bay in the process of assembly.
For turning/flipping the dresser and to prevent damage to the dresser, 2 persons may be needed to
execute this action.
3

4
What’s in the Box...
Parts List:
5 Drawer Dresser Hardware:
If any contents in the box are missing, please contact OkiOki
support right away at 1-833-OKIOKI1.
Dresser
Bolts (M6 x 60mm)
1
Description QTYPictureLabel
A
B
1
2
3
4
Legs
Washer Spring
Washer Ring
Allan Key
4
9
9
9
2

5
Assembly Preparation
If any contents in the box are missing, please contact OkiOki
support right away at 1-833-OKIOKI1.
5 Drawer Dresser Restraint Device Hardware:
Self Tapping Screws
(M4 x 22mm)
5
6
7
8
Self Tapping Screws
(M4 x 50mm)
L-shape Metal Brackets
Dresser Restraint Strap
3
3
4
2
Description QTYPictureLabel

Overview
** This Dresser has multiple parts and may require up to 30 minutes to assemble.
To give you an overview of the Dresser parts, the above picture is to help you put
the various parts into perspective. Please read through the instructions here below
to familiarise the parts and steps before assembly.
6
FRONT FACING
Dresser (A)
Legs (B)

Now to the fun part!
Please follow the below steps carefully to ensure a proper assembly.
Step 1
• Unpack and place all parts on a clean, non-marring surface.
• In the next step, you’ll need to turn the dresser upside down to
assemble. To avoid risk, you should take out the Drawer of the
Dresser.
7

8

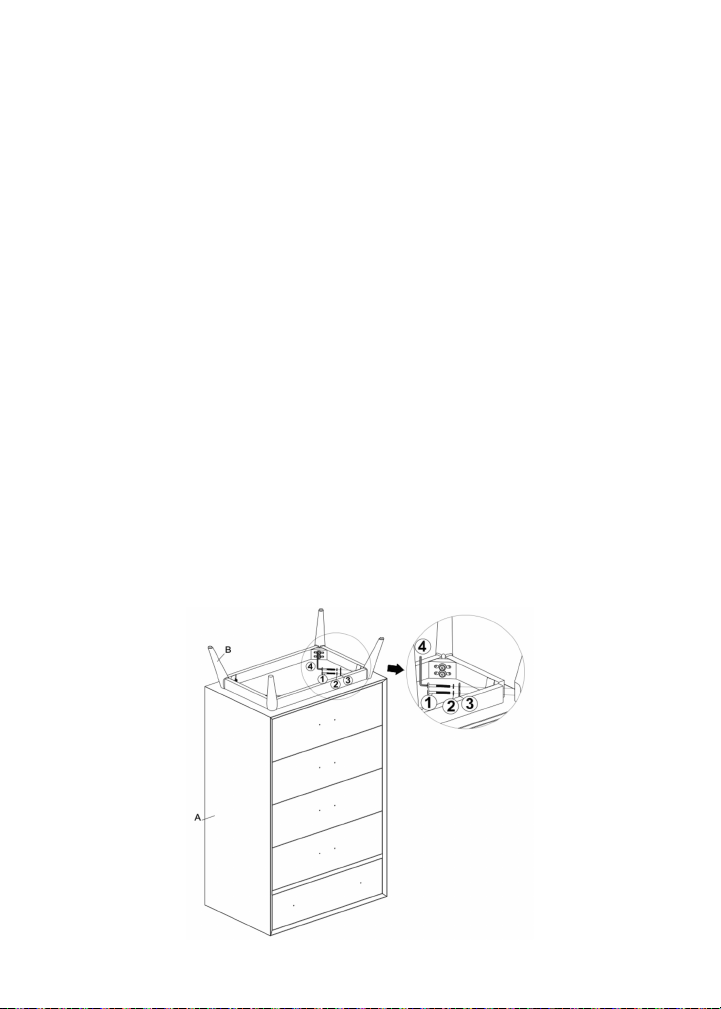

Step 2
• Place the Dresser (A) upside down.
• Align and insert the four (04) Bolt of the Leg (B) to the mounting
positions at the Dresser bottom corners.
• Insert the Bolts (1) through the mounting position and ax the Leg
(B) using the Allen Key (4).
• The use of Washer Springs (2) & Washer Rings (3) are optional and
are especially useful to help alleviate any slight wobble.
• Upon assessment that there is a wobble, undo the relevant leg and
thread in a Washer Springs (2) & Washer Rings (3).
• Make sure all parts are connected and securely locked into position.
• To ensure there is NO WOBBLING of the feet, DO NOT overtighten
the bolts.
• Each bolt is to be driven in sequentially and where necessary; the
Dresser may be turned to check for evenness.
• It may be necessary to execute this check twice to ensure that all
(04) legs are axed to the Dresser with no wobbles.

Step 3
• Step 3.1: Using a Phillips Screwdriver (not provided), take out the
Handle which is put in the Drawer as shown in the picture.
• Step 3.2: To ax the Drawer, align the bolts’ mounting position of
the Handle to the mounting positions of the Drawer.
• Insert the Bolts through the mounting position and ax the Handle
using a Phillips screwdriver (not provided), as shown in the picture.
Step 4
• Place the Drawers into the Dresser.
• Ensure that all bolts of the Dresser and the Handle of the Drawer are
fully driven in and locked in.
• The Dresser is now ready to be used.
**CAUTION: This Dresser can only be used on a flat, level surface.
9
Step 3.1 Step 3.2
Step 3.1 Step 3.2

Step 5
• Take a step back and bask in the glory that is your new OkiOki Mid-
Century 5 Drawer Dresser.
10
If additional help is needed in the assembly process, please
reach out to our customer support team at 1-833-OKIOKI1.

11
5 Drawer Dresser Restraint
Device Installation Instructions
DO NOT CLIMB
Serious or fatal crushing injuries can occur from tipping furniture.
To help prevent tip-over: ALWAYS secure this furniture to the wall
using the 5 Drawer Dresser Restraint Device.
See product instructions for more ways to help prevent furniture
tip-overs.

Usage For 5 Drawer Dresser Restraint Device:
For Dresser against a wall, ax 2pcs Metal Brackets (7) on the wall and
2pcs of the Metal Brackets (7) on the product. Use the Dresser Restraint
Strap(8) to connect the Metal Bracket (7) on wall and the product.
Find details as below:

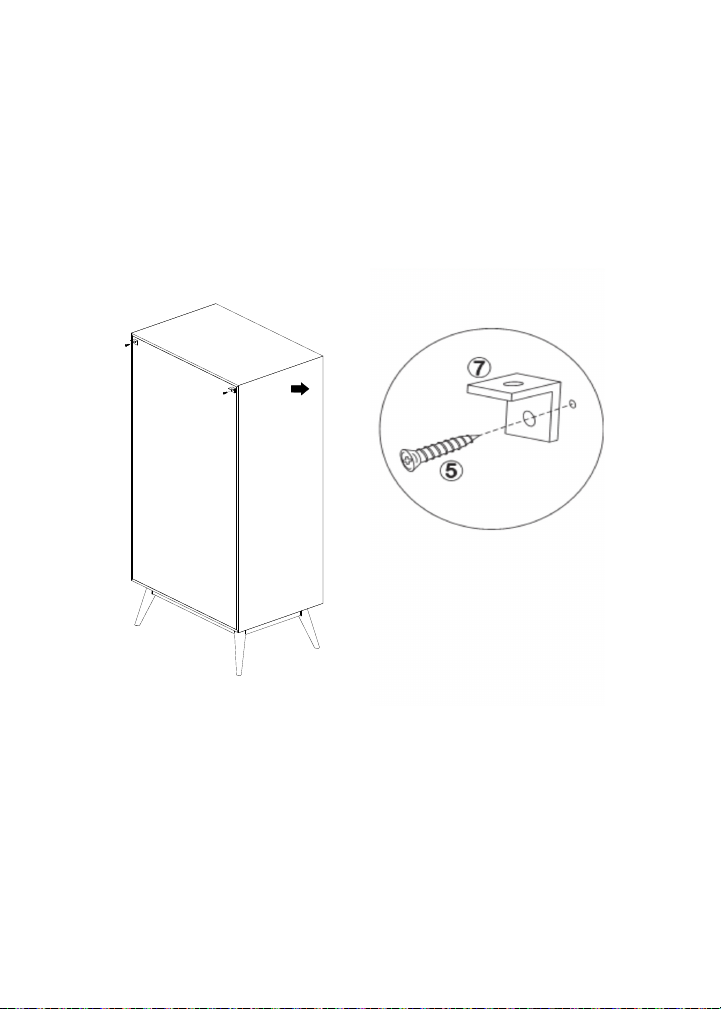

A: Firstly, turn back the Dresser outwards as shown above.
Then fix one Metal Bracket (7) on the back of the console by the 2.0cm
Self-Tapping Screw (5). The distance of screw mounting position to the
two edges is about 1”.
Repeat this step to fix another Metal Bracket (7) on the product, as
shown above.
12

B: Identify the screw holes on the wall. First mark the point at the same
height on the wall as the L-shaped Metal Bracket (7) on the product. You
can find these same points in two ways as below:
1. Move the Dresser back to the wall and make these points on the wall
and make sure the products are at the same height.
2. Measure the height of the Metal Bracket (7) and the wall by using a
ruler in order to keep them the same height.
**(Caution: The Dresser Restraint Strap (8) between Metal Backets (7) on the product and
the wall should be within 3.5”.)

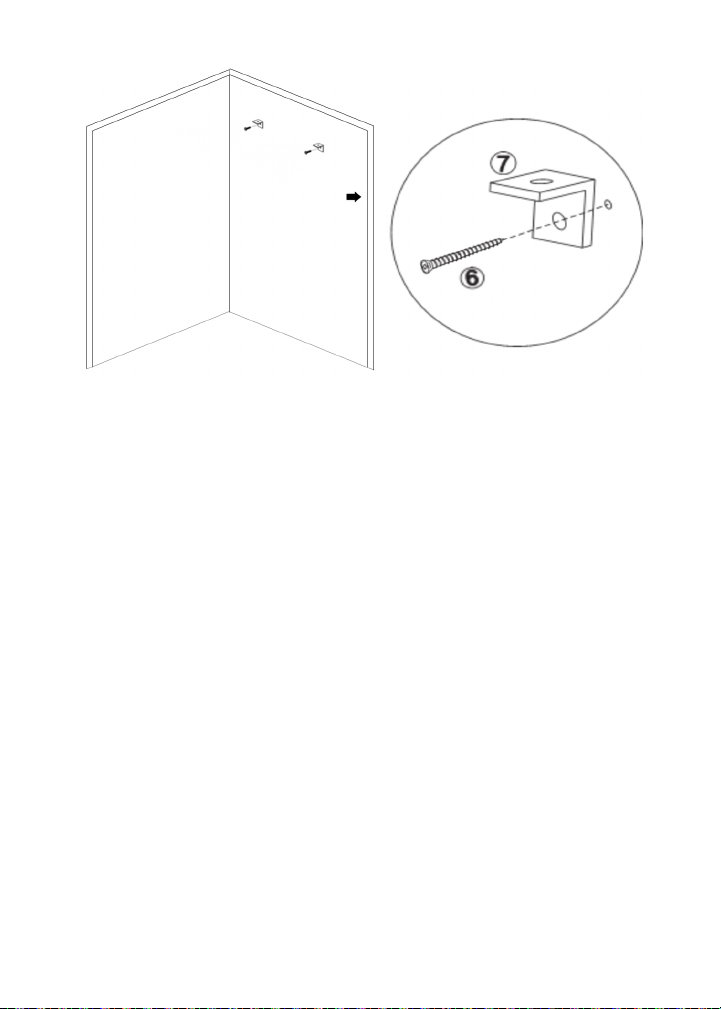

3. Then fix one L-shaped Metal Bracket (7) on the mark on the wall by
the 5cm Self Tapping Screws (6).
4. Repeat this step to fix another Metal Bracket (7) on the wall as
shown above.
13

C: Move the Dresser against the wall. Then pull the Dresser Restraint
Strap (8) through two Metal Brackets (7) one by one, lock the Dresser
Restraint Strap (8) tightly, as shown above.
The 5 Drawer Dresser Restraint Device is now installed and Dresser is
ready for use.
14

Care & Maintenance for your new
Mid-Century 5 Drawer Dresser
Children should not climb or jump on the furniture.
Do not put hot items directly on furniture surface.
Do not clean furniture with harsh cleansers or polish.
Do not place furniture near heating or cooling vents.
Not for commercial use. For residential use only.
Stains may be removed with mild soap solution and
damp cloth.
Dust and pick-up spills using a clean, non-colored,
lint-free cloth.
15

Congrats on a job
well done.
Congratulations on completing your new OkiOki
Mid-Century 5 Drawer Dresser!
While we know this was no small feat, we also bet it was
pretty fun and rewarding. If you’re not feeling completely
rewarded and maybe still a little defeated, let us try to help
you out by providing some light reading material to inspire,
educate, or just make you laugh.
Enjoy & rest easy.
