OKP K7 User manual
Robotic Vacuum Cleaner K7
User Manual
Applicable for K7 Series
Instruction Manual
Congratulations on the purchase of your OKP ROBOTICS!
We hope it brings you many years of satisfaction. We trust the purchase of
your new robot will help keep your home clean and provide you more quality
time to do other things.
Wisdom Inspired Freedom
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where
a technician can address your specifi c problem or question.
For more information, please visit the OKP ROBOTICS offi cial website:
www. okptlife. com or send email to support@ okplife. com
The Company reserves the right to make technological and/ or design changes
to this product for continuous Improvement.
1
Contents
1 . Important Safety Instructions ......................................... 2
2 . Product Composition ......................................................... 3
3 . Operating and Programming .......................................... 6
3.1 Notes Before Cleaning ............................................................................................. 6
3.2 Quick Start ................................................................................................................. 7
3.3 Cleaning Mode Selection ......................................................................................... 10
3 .4 APP download and network configuration ......................................................... 11
4.Maintenance .......................................................................... 15
4.1 Dust Bin and Filters ................................................................................................... 15
4.2 Roller Brush Suction and Side Brushes ............................................................... 16
4.3 Other Components ................................................................................................... 17
5 . Indicator Light ...................................................................... 18
6 . Troubleshooting ................................................................... 1 9
7.Technical Parameters ......................................................... 21
2
1.Important Safety Instructions
When using the product, please keep your vigilance and follow below information:
1 . This Appliance can be used by children aged from 8 years and a bove and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way
and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by
children without supervision.
2 . Clear the area to be cleaned. Remove power cords and small objects from the fl oor that could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as curtains and tablecloths off the fl oor.
3 . If there is a drop off in the cleaning area due to a step or stairs,you should operate the Appliance to ensure that it can detect the step
without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
4 . Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5 . Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7 . Non- rechargeable batteries are prohibited.
8 . Do not use without dust bin and/or filters in place.
9 . Do not operate the Appliance in an area where there are lit candles or fragile objects.
1 0. Do not use in extremely hot or cold environments ( below-5 ˚ C/2 3 ˚F or above 40 ˚ C/1 04 ˚ F).
1 1. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
1 2. Do not operate the Appliance in a room where an infant or child is sleeping.
1 3 . Do not use Appliance on wet surfaces or surfaces with standing water.
1 4. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
1 5. Do not use Appliance to pick up fl ammable or combustible materials such as gasoline, printer or copier toner, or use in areas where
they may be present.
1 6. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could
cause a fire.
1 7. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or
anything that may reduce air fl ow.
18 . Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power
cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the
power cord. Keep power cord away from hot surfaces.
1 9 . If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
2 0. Do not use the Charging Dock if it is damaged.
2 1 . Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has
been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in
order to avoid a hazard.
2 2. Turn OFF the power switch before cleaning or maintaining the Appliance.EN
2 3 . The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.
2 4 . Remove the Appliance from the Charging Dock, and turn OFF the power switch to the Appliance before removing the battery for disposal
of the Appliance.
2 5 . The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
2 6 . Please dispose of used batteries according to local laws and regulations.
2 7. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
2 8. When not using the Charging Dock for a long period of time, please unplug it.
2 9. The Appliance must be used in accordance with the directions in this Instruction Manual. OKP ROBOTICS cannot be held liable or
responsible for any damages or injuries caused by improper use.
3 0 . The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer
Service.
31. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.
2.Product Composition
Robot
Wi- Fi Indicator Light
Anti- collision Sensor
and Bumper
Infrared Receiver
Power Switch
Anti- drop Sensors
Battery Cover
Roller Brush
Driving Wheels
Dust Bin
Universal Wheel
Charging Contacts
Side Brushes
3
Start/ Pause Button
Dust Bin
2.Product Composition
Charging Dock
Multi-Function
Cleaning Tool
Power Indicator Light
Power Adapter
Charging Dock Pins
Power Adapter Port
Remote Control
Indicator Light
Return to Charger
Mode Button
Direction Control
Buttons
Edge Cleaning
Button
Mode Button
Suction- power
Up Button
4
Programmed Cleaning
Spot Cleaning
Mode Button
Suction- power
Down Button
AUTO Mode Button
START/ PAUSE Button
5
2.Product Composition
Dust Bin
Filter Net
Sponge Filter
High Efficiency Filer(HEPA)
Dust Bin Cover
Dust Bin Release Button
3.Operating and Programming
3.1Notes Before Cleaning
Please refer to the following guidelines to check the cleaning area before
using the robot.
The product is not suitable for use on long- pile
carpet. Before using the product near an area rug
or on a short- pile area rug with tasseled edges,
please fold area rug edges under themselves.
If there is a step or stairs in the cleaning area,
please operate robot to ensure its Anti- Drop Sensors
can detect the drop off . It may be necessary to place
a physical barrier at the edge of the drop off to keep
the unit from falling over the edge.
6
Please be aware that the robot needs at least an
8 cm ( 3 ” ) clearance to clean under furniture without
complications.
Remove power cords and small objects from the
Floor that could entangle the products.
7
3.Operating and Programming

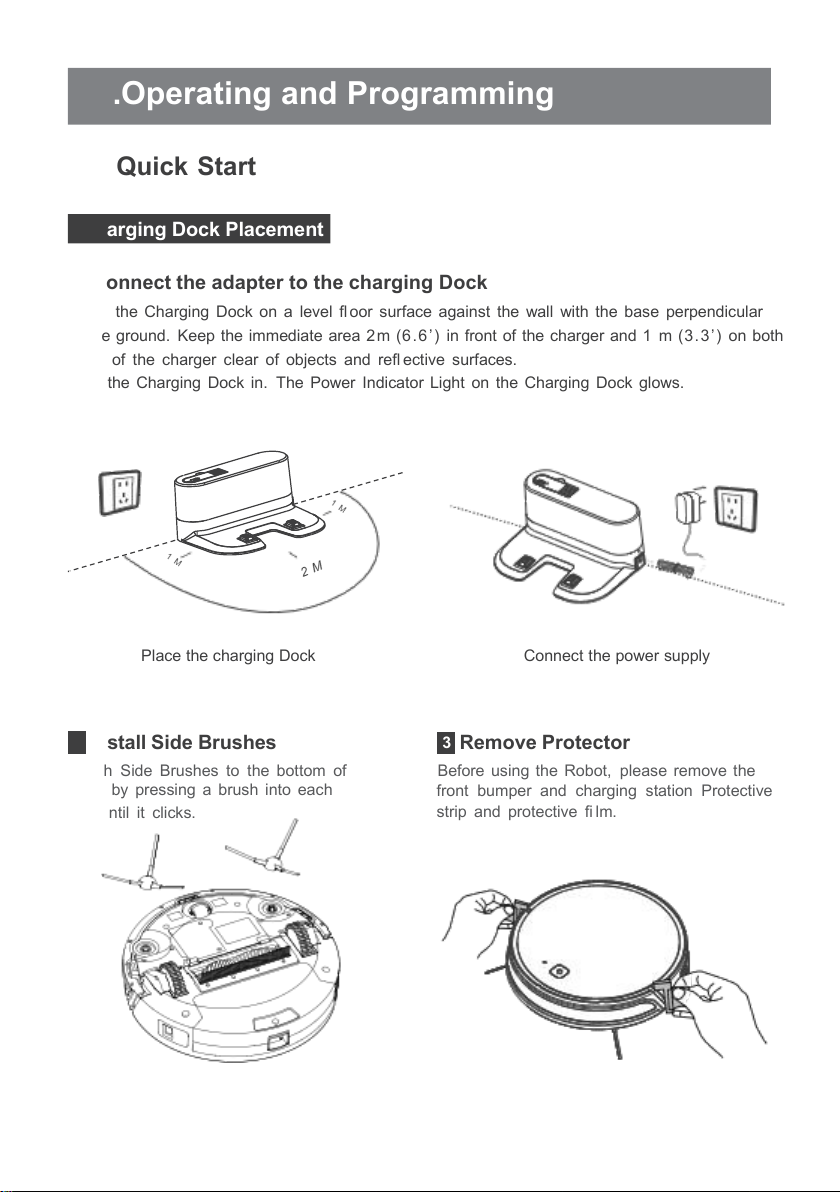

3.2 Quick Start
Charging Dock Placement
1Connect the adapter to the charging Dock
Place the Charging Dock on a level fl oor surface against the wall with the base perpendicular
to the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3 ’ ) on both
sides of the charger clear of objects and refl ective surfaces.
Plug the Charging Dock in. The Power Indicator Light on the Charging Dock glows.
Place the charging Dock Connect the power supply
2Install Side Brushes
Attach Side Brushes to the bottom of
robot by pressing a brush into each
slot until it clicks.
3Remove Protector
Before using the Robot, please remove the
front bumper and charging station Protective
strip and protective fi lm.
8
3.Operating and Programming
Start to Charge
1Turn on the Robot
Turn the robot’ s Side Power Switch to the ON
position. “ - ” indicates ON and“ O” indicates OFF.
Robot is powered ON when button glows a
continuous BLUE.
2Charge Robot
Place robot on the Charging Dock making sure the
Charging Contacts on robot and the Charging Dock
Pins make a connection. Charge Robot for at least
4 hours before the fi rst use.
making sure the Charging
Contacts on robot and
the Charging Dock Pins
make a connection.
* Usually take 5.5 hours from low battery mode to fully charged.
* button in breathing status when robot is charging. button stops glowing after
robot is fully charged.
9
3.Operating and Programming
Start Cleaning
Press the button on Robot or on the Remote Control. robot starts to work
immediately in AUTO Cleaning Mode.
The robot will enters sleep mode after standby for 1 0 minutes, and the Start/ Pause button
light goes off . If you need to select another mode, please refer to the section (mode selection).
Pause
Pause robot by pressing the button on robot or the
button on the Remote Control.
* when the Robot is Pause, the robot can be moved
forward or left or right by remote control as needed.
10
3.Operating and Programming
3.3 Cleaning Mode Selection
The Robot has several cleaning modes to choose from to effectively clean different floors.
Cleaning modes are selected using the Remote Control.
Spot Cleaning Mode
This mode is applicable for an area of highly concentrated
dirt or duct. In Sport Cleaning Mode, Robot focuses on a
speciic area to clean. Robot cleans the area in a spiral
pattern using MAX suction power and stops when it
completes Spot Cleaning.
To start Spot Cleaning Mode, press Spot Cleaning Mode
on the Remote Control
Edge Cleaning Mode
This mode is good for cleaning the edges and corners
of a room. In Edge Cleaning Mode, Robot cleans along
a border using MAX suction power (e.g. wall).
To start Edge Cleaning Mode, press the Edge Cleaning
Mode Button on the Remote Control.
Programmed Cleaning Mode
Robot will clean in Programmed Cleaning Pattern
optimized for hard floors.
Return to Charger Mode
When battery power gets low, Robot automatically
switches to Return to Charger Mode and returns to
the Charging Dock to recharge itself. Alternatively double
click on the Start/ Pause button on the robot to start
the Return to Charger Mode.
*Robot can also be sent back to the Charging Dock
at any time by pressing the Return to Charger Button
on the Remote Control.
(Less than 3 minutes)
3.Operating and Programming
3.4 APP download and network configuration
Scan the QR code to download and install
the app
This app is compatible with IOS9.0 and Android 4.0 or above.
ios system: Please search“ OKP life” in the app store.
Android system: Please scan the QR code or search
“ OKP Life” on google play to download.
Connect to your Indoor 2.4G WIFI network
Make sure the mobile device is connected to the indoor 2 . 4 G
WIFI network, and the signal quality is good enough, register
and log in to the mobile app.
OKP_2.4G
EZ MODE
Network paring EZ mode ( Only works with 2 . 4 G WIFI)
Press and hold the START/ PAUSE button
simultaneously for about 3 seconds until you hear a
beep.
The WiFi indicator flashes quickly and the ROBOT
enters into EZ network confi guration mode.
11
Turn on the POWER switch on the side to turn on the
ROBOT.
1

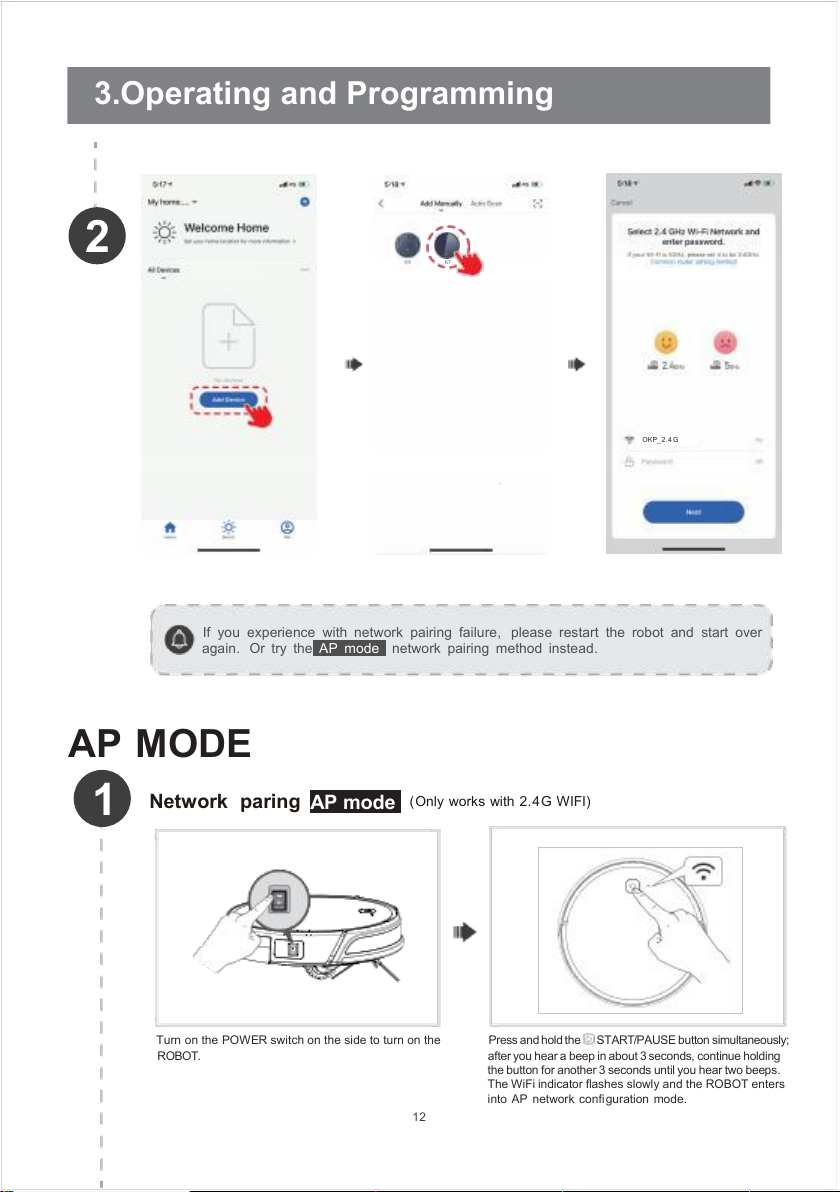

3.Operating and Programming
OKP_2. 4 G
If you experience with network pairing failure, please restart the robot and start over
again. Or try the AP mode network pairing method instead.
AP MODE
1
Turn on the POWER switch on the side to turn on the
ROBOT.
12
K7
after you hear a beep in about 3 seconds, continue holding
the button for another 3 seconds until you hear two beeps.
The WiFi indicator flashes slowly and the ROBOT enters
into AP network configuration mode.
Press and hold the START/PAUSE button simultaneously;
2
Network paring
(Only works with 2.4G WIFI)
AP mode
3.Operating and Programming
2
OKP_ 2.4 G
Turn on the POWER switch on the side to turn on
the ROBOT.
13
Press and hold the START/PAUSE button
simultaneously; after you hear a beep in about 3
seconds, continue holding the button for another 3
seconds until you hear two beeps.
The WiFi indicator fl ashes slowly and the ROBOT
enters into AP network confi guration mode.
Add Manually- Wi-Fi-AP Mode
K7
14
3.Operating and Programming
Connect your phone to a Wi-Fi that starts with then
name“ SmartLife” .
After successfully connecting to the Wi-Fi, return the the APP
and start the network confi guration.
K7
Done
4
3
Other manuals for K7
1
Table of contents
Other OKP Vacuum Cleaner manuals
