Olarm PRO IDS X Series User manual

www.Olarm.co

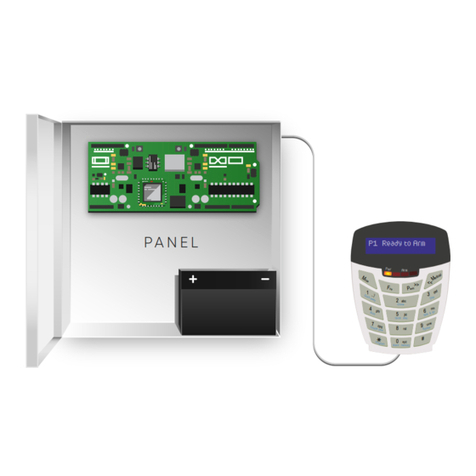

Locate your alarm panel
Note that the alarm panel is not the keypad. Alarm
panels are typically installed in a hidden location
in the home such as a cupboard or basement.
Download the Olarm mobile app and
register your device
Scan QR code, or navigate to your
App Store on your device and search
for “Olarm”.
Check your Olarm PRO’s status
STEP 1
STEP 3
STEP 4
STEP 9
KEYPAD
PANEL
Helpdesk - Feel free to call us on [phone] or email [e-mail]
www.olarm.co/start
IDS X-Series Install Guide
Colour
White
Flashing Green
Flashing Blue
Blue
Red
Orange
Yellow
Purple
Status
Booting Up
Connecting to alarm panel
Connecting to cloud
Connected, all okay
Cannot connect to alarm panel
Cannot connect to cloud
WiFi pairing active
Firmware upgrading - do not
power the device o
Verify the alarm panel’s firmware version
Olarm PRO only supports IDS X-Series alarm
panels with firmware with version 2.5 and up. An
alarm installer should be able to upgrade the
alarm panel firmware if required. See the end
of this manual for tips on how to view the alarm
panel firmware version via the keypad.
STEP 2
Unbox your Olarm PRO
The Olarm PRO box includes the following:
• 1x Olarm PRO device
• 1x Connector cable
• 1x Drill hole template and LED colour legend
• 2x Screws and wall plugs
• 1x External antenna (selected Olarm PRO models only)
Power down the alarm panel
Turn the power to your IDS X-Series alarm panel o
at the mains and disconnect the battery.
STEP 5
STEP 6
Connect to the X-Series adaptor board to
the alarm panel
Connect the Olarm IDS X-Series adapter board to
the IDS X-Series Alarm panel as indicated below.
Wire the red 12V wire from the Olarm IDS X-Series
adapter board into one of the AUX+ terminals on
the alarm panel as illustrated below.
STEP 7
Connect the serial cable
Connect the 4-pin side of the
supplied cable to the Universal
port on the Olarm PRO.
Connect the 5-pin side of the
supplied cable to an Olarm PRO
IDS X-Series adapter board.
These adapter boards are sold
seperately to the Olarm PRO and
can be purchased directly from
Olarm.
Please contact [e-mail]
should you want to order.
Turn the alarm panel back on
Power your IDS X-Series alarm panel on again. The
Olarm PRO should light up as per the chart below.
STEP 8
Pwr
Arm
P
anic
F
ire
>>
8rst
0xyz
Alarm memory
5jkl
Quick stay
2abc
Chime
edical
M
<<
M
ode
3
def
Stay
6
mn
Stay & go
9
#
uvw
Bypass
*
Program
1
_’|
Quick away
4
ghi
Buzz
7
opq
Troubleview
P1 Ready to Arm

Helpdesk - Feel free to call us on [phone] or email [e-mail] www.Olarm.co
This section will guide you through entering a
series of codes / settings to allow the Alarm Panel
and Olarm PRO to communicate.
The IDS X-Series alarm system caters for a range
of keypads and they all work slightly dierent.
Please follow the instructions relating to your
keypad.
Configure the alarm panel
1. Ensure that the alarm system is powered up
and on.
2. Ensure the alarm is disarmed.
3. Press # to clear the keypad.
4. Enter the installer menu by typing the installer
code followed by a *.
a. The default installer code is 9999 or 999999.
b. If these do not work, please contact the
alarm installer who installed / manages
the alarm system.
5. From the installer menu, enter the code 196
followed by *.
Revision: 2.2
Troubleshooting
If your device LED remains flashing Green
for more than 3 minutes - Please check the
connection between the Olarm PRO and the
alarm panel.
If your device LED is Red - Please check the
connection between the Olarm PRO and the
alarm panel.
If your device LED is Orange - Please ensure
that the Olarm PRO is located in an area with
good Vodacom and/or MTN signal strength.
If it is not, please ensure that your device is
connected to Wifi using the wizard inside the
Olarm app.
If your device LED is not coming on - Please
check the connection between the Olarm PRO
and the alarm panel and that the alarm panel is
connected to power.
If your device LED remains purple for more
than 15 minutes - Please contact Olarm Support.
We suggest mounting the Olarm PRO device
on a wall or on the outside of the alarm panel.
Please do NOT mount the Olarm PRO inside the
alarm box or near any other radio equiprment
as it will reduce the signal strength and result in
your device not functioning correctly.
Mount the Olarm PRO
Mount your device using the screws and drill
template provided.
STEP 11
STEP 10
-’! abc def
ghi jkl mn
opq rst uvw
xyz
quick away
quick stay stay & go stay
switch
bypass
chime
partition
memory
buzz
trouble
panic
1 2 3
4 5 6
7 8
0
<< >>
#
*
9
P1 Ready 08:41
9. The Olarm PRO should turn a solid blue colour
within 2 minutes.
6. Enter the serial security code 123456
followed by *.
7. Press # button 2 to 3 times until you hear 4 to 5
beeps from the keypad, this will take you out of
the installer menu.
8. The keypad will then display:
ARMED
READY
AWAY
POWER
1 2 3
4 5 6
7 8 9
0
F M P
#
Quick away Chime Stay
Stay & goQuick stay
Troubleview
Bypass Alarmmemory
Buzz
M
O
D
E
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
X-SERIES
INSTALLER MENU
Location: 196
Serial Code
User Code: 123456
Updating Panel
Please Wait...
User Menu
Master Code + *
Master Code + *
FW 2.41
