Olide SD3108 User manual

Automatic Swing door Operator
SD3108
Product manual
△
△△
△ Notes: please keep the manual properly for reference. Do
carefully read this manual before use.

Safety Warning!
Please read carefully the instructions before installing the door operator, we
do not take responsibility for the loss or damage due to the improper use
disobeying the following cautions.
△
△△
△ Do use the power conforming to the regulations! Or otherwise, it may result in
the damage of electronic component of partial circuit of machine.
△
△△
△ Maintain the reliable grounding! The enclosure of automatic door operator
shall be made of metal material which is the sound electrical conductor. The
grounding of automatic door operator must be well done, especially the metal
door body on operator, as the conductor, must be reliably grounded.
△
△△
△ Prevent vapor from intrusion! The automatic door operator is inbuilt with the
complicated and precise electronic components to prevent from vapor. The
machine enclosure is unsealed for maintaining the automatic door operator.
△
△△
△ Prohibit rapidly opening and closing automatic door by hand or rudely! No
matter on operation or power failure, prohibit rapidly opening and closing
automatic door by hand or rudely to avoid the mechanical damage due to
overload of automatic door!
△
△△
△ The safety beam detector is highly recommended to avoid the probability of
collision with pedestrian! If you haven’t the safety beam detector installed, You
might be touched in the door operation area. So please use the safety beam
detector where there are elder and children, and please also lower the
opening/closing speed with the longer hold-opening times.
△
△△
△ The safety beam detector is highly recommended to avoid the probability for
hands to be nipped by the closing door. Do not worry if you haven’t the safety
beam detector installed, because the door operator gives the buffer action and
moves very slowly when the door closes to the 7-12°angle, please also adjust the
inching latching force to a small range for the 100% safety for your children.
△
△△
△ The person unauthorized by the company shall not repair or modify the
spare part! If any problem of automatic door operator is found, the
automatic door operator shall not be directly repaired without permission!
Any modification to the automatic door operator may result in the serious
consequences!

Content
1. Product Overview
1.1 Product Procedure
1.2 LED Indicator
1.3 Main Parameters
2. Installation
2.1 Installation Notice
2.2 Want your door to be
2.3 Installation measurement and mode
3. Wiring diagram
4. Debugging
4.1 Control programmer debugging
4.2 Remote control function debugging and management
5. Trouble shooting

1.Product Overview
Cover
Sliding arm

Articulated arm
Please carefully read this instruction for better use this equipment.
The automatic swing door operator SD3108 is intelligent equipment
controlled by the microcomputer, enjoys excellent capability and strong
function.
△
△△
△ Surface mounting
△
△△
△ Push-Go: Automatic activation by pushing or pulling door panel
△
△△
△ Operators can be integrated with security systems, card readers, etc.
△
△△
△ Quiet and aesthetically pleasing
△
△△
△ Electric strike integration
△
△△
△ Reversing and obstruction sensing
△
△△
△ Efficient and cost-effective
△
△△
△ Battery Convenience Mode-operator can be activated by battery power for
continuous operation in the event of a power failure.

△
△△
△ Easily adjustable opening &closing speeds
△
△△
△ Manual operation in case of power failure
1.1 Operation Procedure
Activated by the signals from external control device, unlock →open →buffer
action&stop→hold-open→close→buffer action&stop→lock and seal.
1.2 LED Indicator
Green lighting LED: Operation status
Red LED lighting LED: The operator is supplier with power
1.3 Main performance parameter
Applicable for single leaf swing door: Max weight 120Kg (264 lb) & Max width
1200mm (48 " )
Installation method: surface mounting (external)
Opening angle: 60°~120°adjustable
Speed of opening/closing: 30-100M/S adjustable
Hold open time: 0-120S adjustable
Working noise: ≤60db
Power supply: 220V±10% 50~60HZ
Safety system: the automatic protection device against overheat, overvoltage, over
current and obstacle-encountering
Rated power: 45W
Static power: 4.8W
Output voltage of power: DC24-12V for the optional accessories, such as body sensor;
access device, safety beam, electric strike and others.

2Installation
2.1 Installation Notice
◆The operator is available both for the left handing and right handing door ( can
mounted on the hinge side or not the opposite hinge side.)
Articulated arm and sliding arm both can be used to this operator.

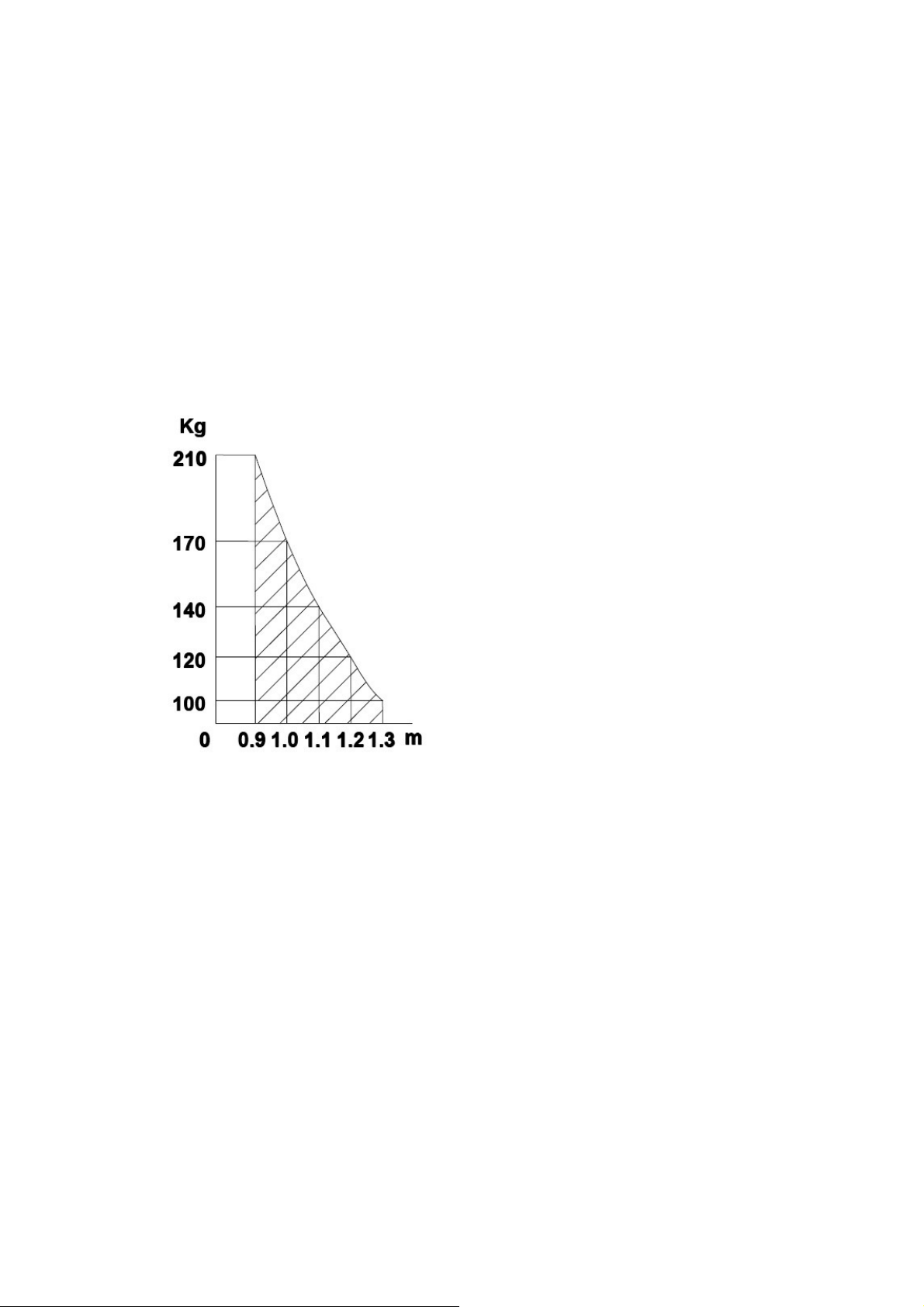

◆Door leaf max weight and width: Please refer to the max limit of the door
application; overweight will affect the capacity of the operator. (See below diagram)
◆Installation measurement: The operator must be installed exactly as the
measurements stipulated by the instruction manual, the improper installation will
decrease the operation of the operator, even cause malfunction and damage.
◆When the operator is supplied with power, the driving axis willrotate360゜. This is
normal action, when it is fixed onto the door leaf, it will perform normally.

2.2 What your door to be
◆Become inductive automatic door by connecting sensor inductor.
◆Become identifying automatic door by connecting code remote control or card
reader and other door access control system.
◆Become apartment automatic door by connecting building intercom system.
◆Become long-distance wiring control automatic door by connecting push button on
the table or wall.
◆Automatic open/close set as required when on fire by connecting to fire alarm
equipment.
◆Automatic close on pilferage by connecting to theft alarm equipment.
◆Become double leaf automatic doors by simultaneous performance of 2 operators.

2.3
Installation measurement and mode
·
A. Sliding arm model
Sliding arm model, left outward opening installation
Sliding arm model, right outward opening installation
Installation measurement and mode
(The measurement is in
millimeter
A. Sliding arm model
Sliding arm model, left outward opening installation
Sliding arm model, right outward opening installation
millimeter
)

· B. Articulated arm
model
·
Articulated
arm model, left
Articulated
arm model, right
model
arm model, left
handing, out
ward opening installation
arm model, right
handing,
inward opening installation
ward opening installation
inward opening installation

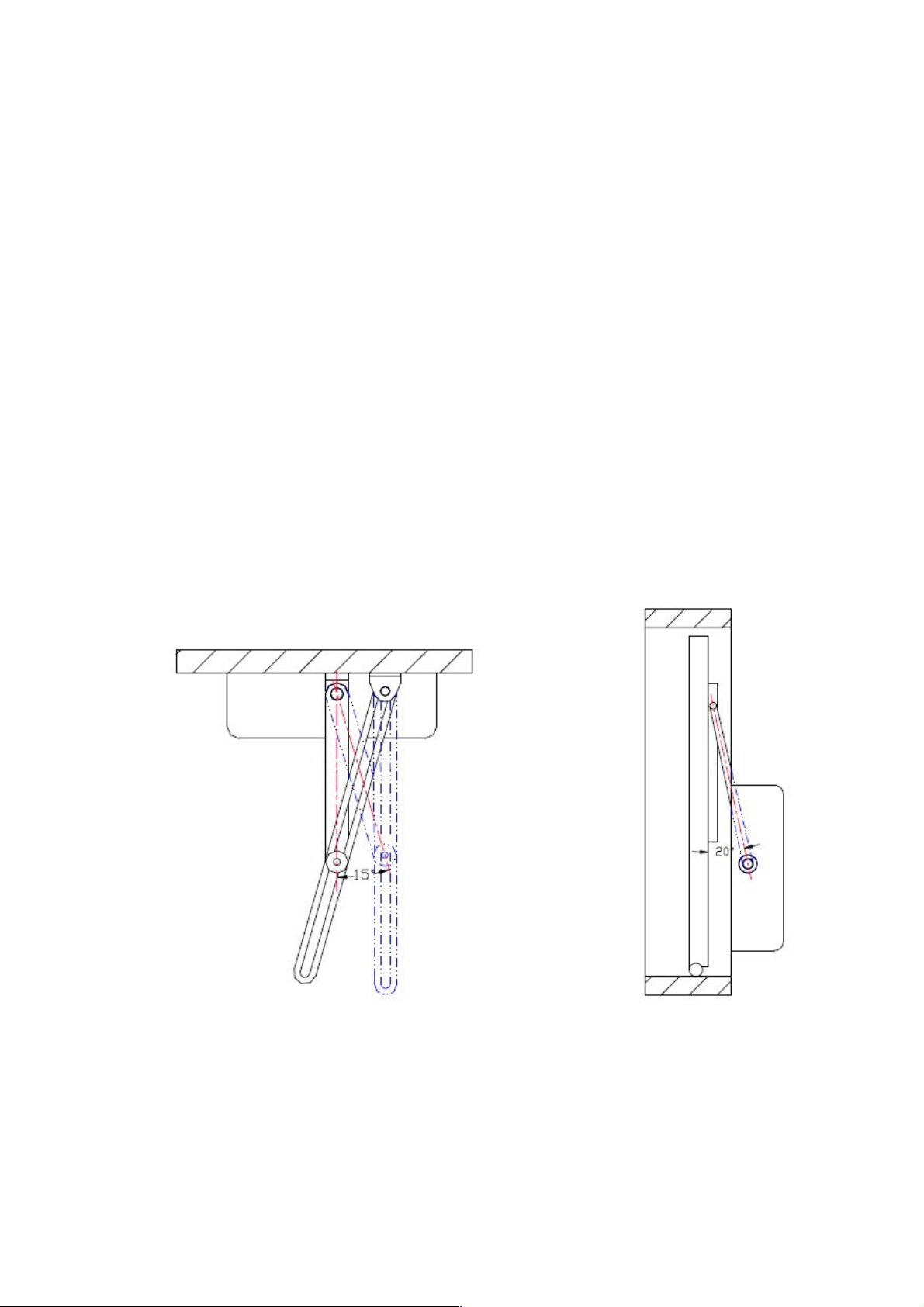

2.3.1 Supplement Notice
It is suggested to fix the driving arm to the door frame vertically, or fix
at a 15°
°°
°angle with the vertical line. When the door leaf and door frame are
on the same plane;
If the door is fixed at the different depth of the door frame, it should be
noticed that for articulated arm model, the linkage arm should be lengthened;
for sliding arm model, for sliding rail may be not long enough.
Note: Figure 4, the door leaf depth shall be less than 80mm for the
normal existing linkage arm; Figure 5, the linkage arm shall be specially
tailored longer if the door leaf depth is more than 80mm. (Please inquire your
distributor for the special longer linkage arm)
Articulated arm correct angle Utmost angle for sliding arm model
Figure 1 Figure 2

On the edge of inner frame In the middle of frame
Figure 3 Figure 4
On the edge of outer frame
Figure 5

Notes to installation
Do install in accordance with the dimension stated in this manual; the incorrect
installation will directly affect the machine operation even cause failure
damaging the machine.
When the equipment is being installed, do tighten reliably to prevent the
machine from loosening to result in the incorrect identification of door and cause
vibration; meanwhile, it will also influence the door operation and service life of
machine.

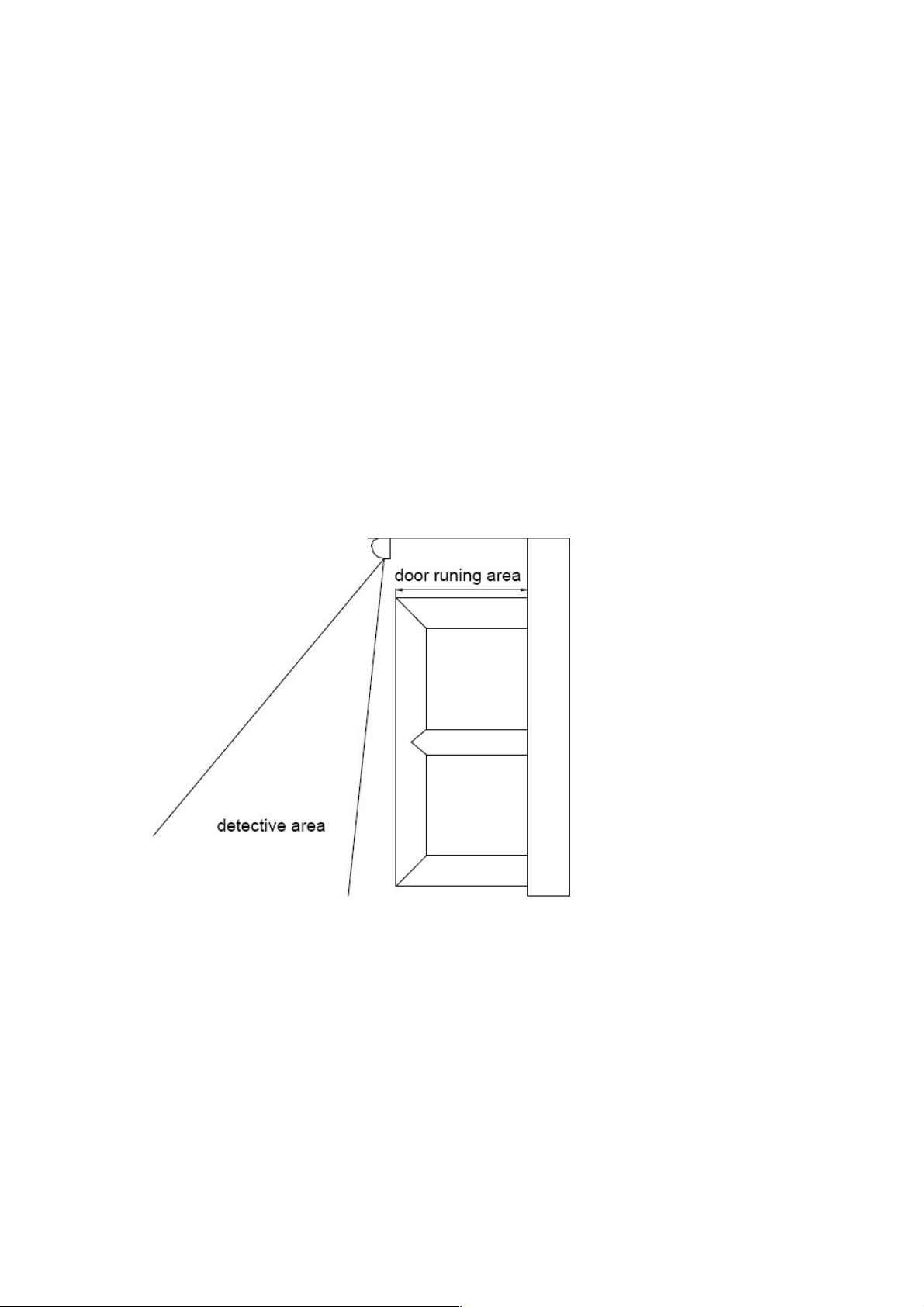

The body sensor can induce the movement of human body only. while, the other
types of sensor can induce all the moving objects. As long as the object moves,
the sensor will react; therefore, the automatic door operator will be triggered to
operate. All the other moving objects installed in the door body shall avoid the
detection scope.

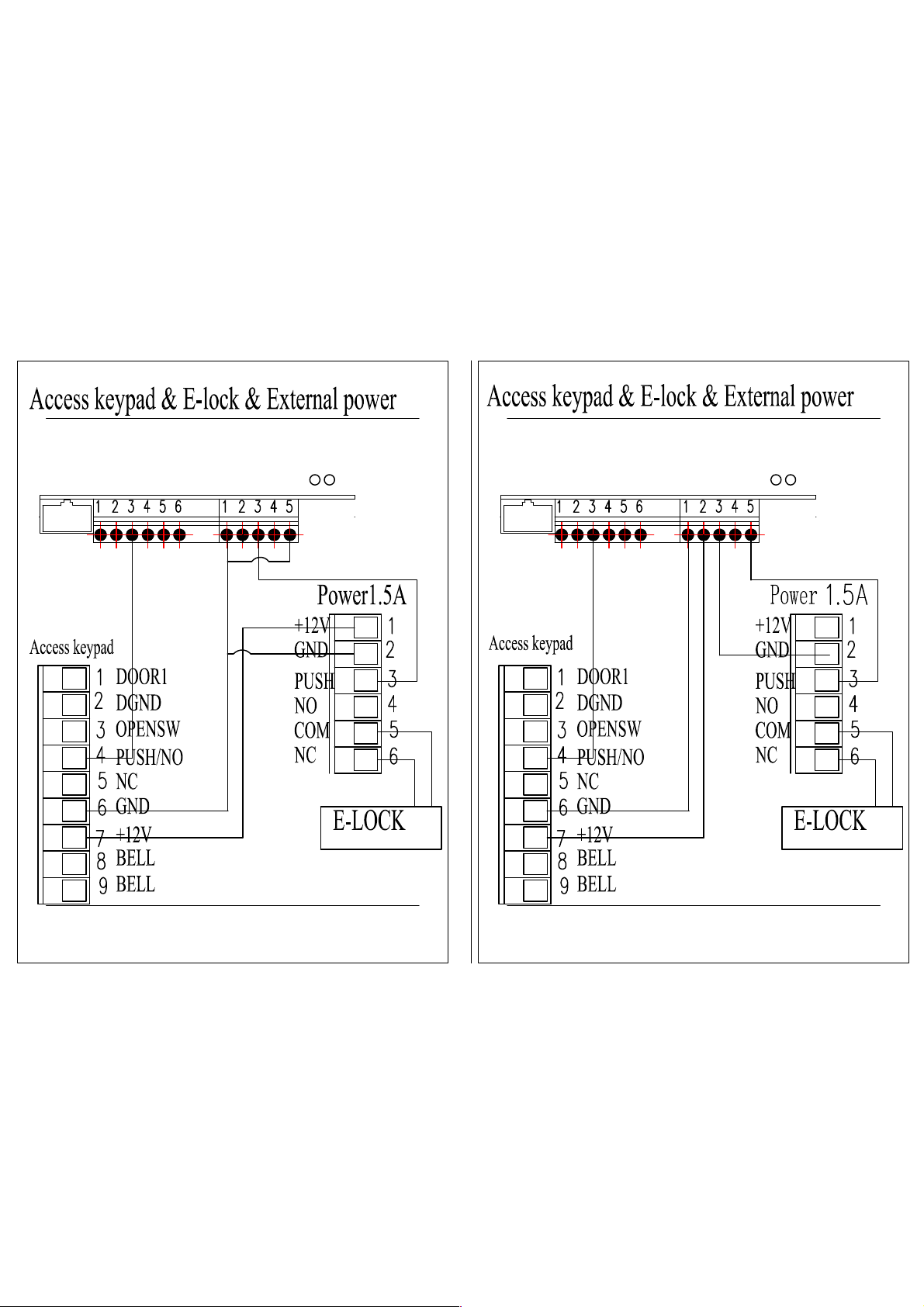

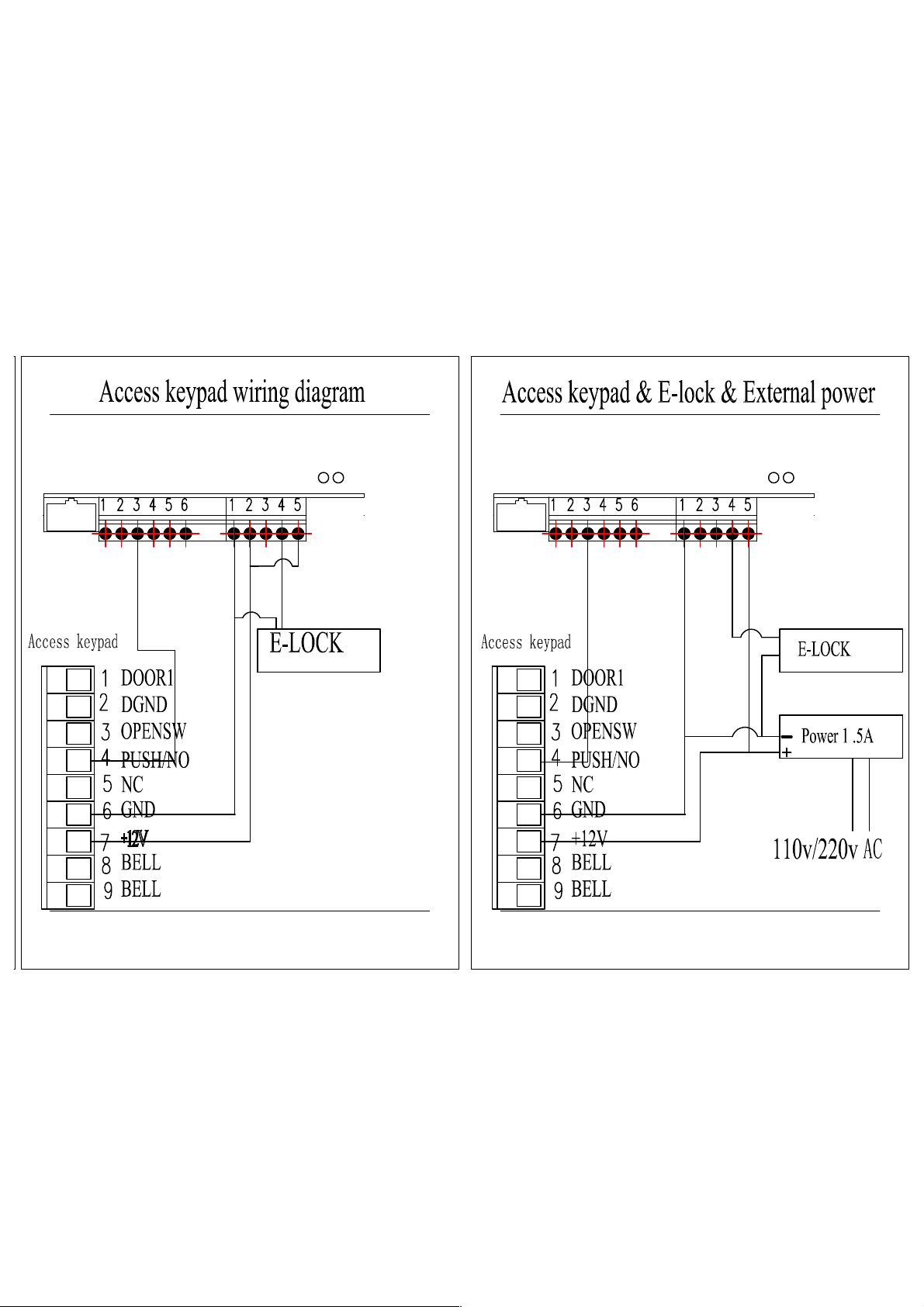

3. Wiring Diagram

4. Debugging
4.1 Control programmer debugging
Notes:
Do not inset or draw out the debugger with power; do after power disconnection.

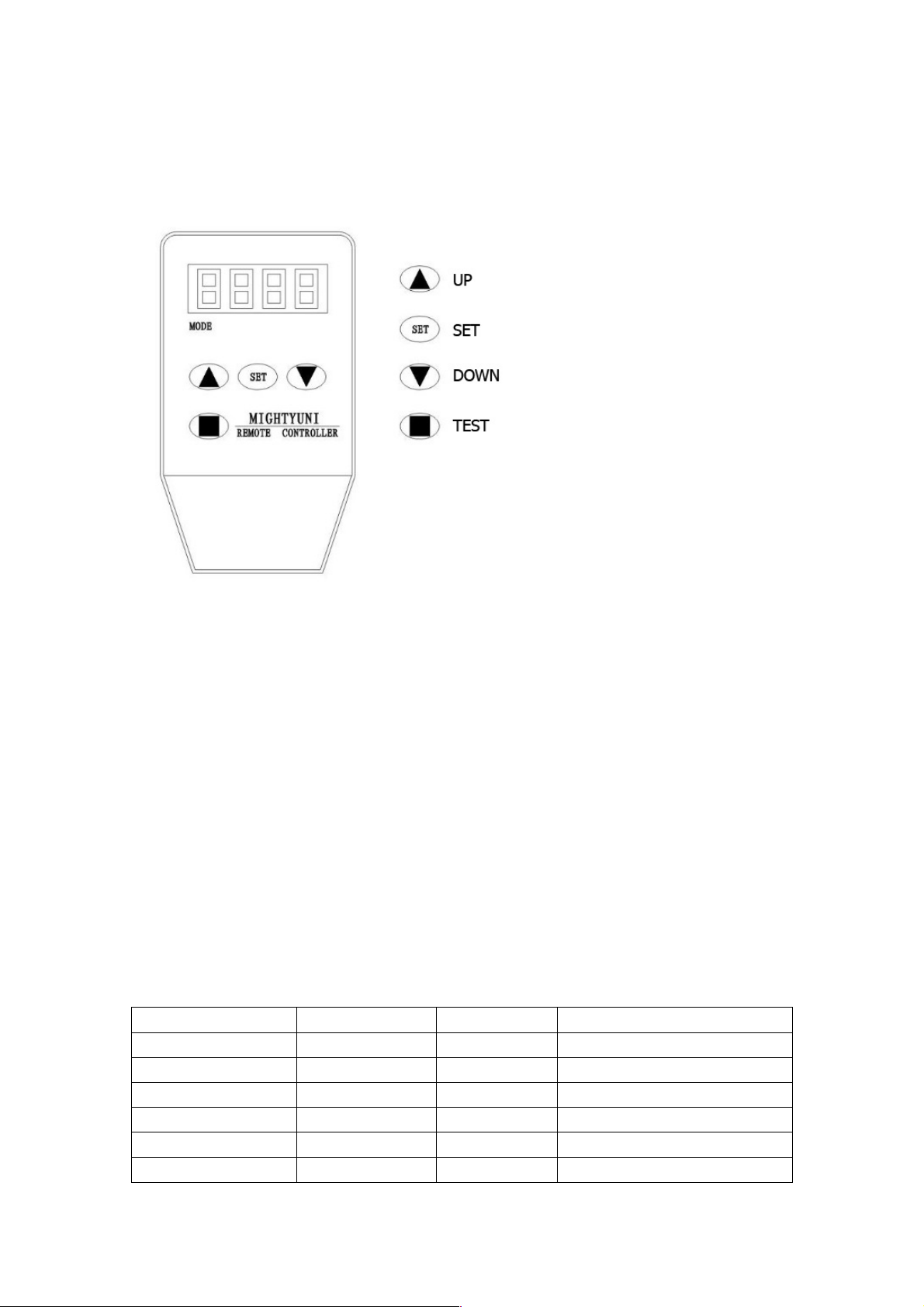

Debugger operation:
The debugger is connected to the telecommunication interface of controller to display
XXXX-XXXXXXX characters; enter the menu of parameter of automatic door by
pressing SET and adjust UP or DOWN; open the door by TEST.
If no pressing after 30s, back to the menu displaying XXXX-XXXXXXX characters;
When the S/N is being selected by SET, press UP/DOWN to adjust the number scope
and SET to save.
Operation Procedure
Activated by the signals from external control device, unlock→open→damping
action&stop→hold-open→close→damping action&stop→lock and seal.
Debugging
S/N Value scope Initial value Function description
1 10-100 65 Opening speed `
2 10-100 55 Closing speed
3 1-10 2 Damping opening speed
4 1-10 2 Damping closing speed
5 1-60 20 Damping opening distance
6 1-60 20 Damping closing distance
