Oliver 6910 User manual

6910 Spindle Sander
Owner’s Manual
Oliver Machinery M-6910 12/2003
Seattle, WA  Copyright 2005
www.olivermachinery.net

2Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
WELCOME!
This manual has been prepared for the owner and operators of a 6910 Spindle Sander. Its purpose, aside
from machine operation, is to promote safety through the use of accepted correct operating and maintenance
procedures. Completely read the safety and maintenance instructions before operating or servicing the machine.
To obtain maximum life and efficiency from your OLIVER Sander, and to aid in using the machine safely, read this
manual thoroughly and follow instructions carefully.
Warranty & Service
OLIVER warrants every product it sells. If one of our tools needs service or repair, please contact Oliver
Machinery before embarking on the repair. Failure to do so could void the warrantee. To contact Oliver
Machinery, please call 1-800-559-5065, or visit www.olivermachinery.net.
More Information
Remember, OLIVER is consistently adding new products to the line. For complete, up-to-date product information,
check with your local OLIVER distributor, or visit www.olivermachinery.net
OLIVER Warranty
OLIVER makes every effort to assure that its products meet high quality and durability standards and warrants
to the original retail consumer/purchaser of our products that each product be free from defects in materials and
workmanship as follow: 2 YEAR LIMITED WARRANTY ON ALL PRODUCTS UNLESS SPECIFIED OTHERWISE.
This Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents,
normal wear-and-tear, repair or alterations outside our facilities, or to a lack of maintenance.
OLIVER LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED ABOVE, FROM THE DATE THE
PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTIBILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
OLIVER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
To take advantage of this warranty, the product or part must be returned for examination, to Oliver headquarters
in Seattle. An explanation of the complaint must accompany the merchandise. If our inspection discloses a defect,
we will either repair or replace the product, or refund the purchase price if we cannot readily and quickly provide
a repair or replacement, if you are willing to accept a refund. We will return repaired product or replacement at
OLIVER’S expense, but if it is determined there is no defect, or that the defect resulted from causes not within
the scope of OLIVER’S warranty, then the user must bear the cost of storing and returning the product. This
warranty gives you specific legal rights; you may also have other rights which vary from state to state. OLIVER
sells through distributors only. Members of the OLIVER reserve the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever.

3
Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
WARNING
• Wear eye protection.
• Always keep guards in place and in proper operating condition. Do not operate the machine without the
guards for any reason.
• This sander is intended to be used with wood and wood products only. Use of this sander and a dust
collector with metal products is a potential fire hazard.
• Support the workpiece adequately at all times during operation; maintain control of the work at all times.
• This sander is designed and intended for use by properly trained and experienced personnel only.
• If you are not familiar with the proper and safe operation of a sander, do not use until proper training and
knowledge has been obtained.
• REMOVE ADJUSTING KEYS AND WRENCHES. Form a habit of checking to see that keys and adjusting
wrenches are removed from the machine before turning it on.
• KEEP THE WORK AREA CLEAN. Cluttered areas and benches invite accidents.
• DON’T USE IN A DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations,or expose
them to rain. Keep work area well lighted.
• KEEP CHILDREN AWAY. All visitors should be kept a safe distance from the work area.
• MAKE THE WORKSHOP KIDPROOF with padlocks, master swatches, or by removing starter keys.
• DON’T FORCE THE MACHINE. It will do the job better and safer at the rate for which it was designed.
• USE THE RIGHT TOOL. Don’t force a machine or attachment to do a job for which it was not designed.
• USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry the current your machine will draw. An undersized
cord will cause a drop in the line voltage resulting in power loss and overheating. The table following shows the
correct size to use depending on the cord length and nameplate ampere rating. If in doubt, use the next heavier
gauge. Remember, the smaller the gauge number, the heavier the cord.
Volts Total Length of Cord in Feet
120V
25 50
AWG
16 14
• WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry
which may get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering to
contain long hair.
• ALWAYS USE SAFETY GLASSES. Also use face or dust masks if the cutting operation is dusty. Everyday
eyeglasses only have impact resistant lenses; they are not safety glasses.
• DON’T OVERREACH. Keep proper footing and balance at all times.
• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
• ALWAYS DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE SERVICING.
• REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure the switch is in the off position before
plugging in.

4Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
• USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by
OLIVER may cause hazards or risk of injury to persons.
• NEVER STAND ON A MACHINE. Serious injury could occur if the machine is tipped.
• CHECK DAMAGED PARTS. Before further use of the machine, a guard or other part that is damaged should
be carefully checked to determine that it will operate properly and perform its intended function - check for
alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that
may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.
• NEVER LEAVE THE MACHINE RUNNING UNATTENDED. TURN POWER OFF. Don’t leave the machine until
it comes to a complete stop.
• SOME DUST CREATED by power sanding, sawing, grinding, drilling and other construction activities contains
chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals
are:
• Lead from lead based paint
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from those exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as
those dust masks that are specifically designed to filter out microscopic particles
• DO NOT operate tool while under the influence of drugs, alcohol or any medication.
• AVOID kickback by sanding in accordance with directional arrows.
• DO NOT sand pieces of material that are too small to be safely supported.
• WHEN sanding a large workpiece, provide additional support at table height.
• ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available from the
National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201, in the Accident Prevention Manual
for Industrial Operations and also in the safety Data Sheets provided by the NSC. Please also refer to the
American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machinery and the
U.S. Department of Labor OSHA 1910.213 Regulations.
• SAVE THESE INSTRUCTIONS refer to them often and use them to instruct others.
GROUNDING INSTRUCTIONS
Caution: This tool must be grounded while in use to protect the operator from electric shock.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current

5
Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualifiedelectrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor,
with insulation having an outer surface that is green with or without yellow stripes, is the equipment-grounding
conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely understood,
or if in doubt as to whether the tool is properly grounded. Use only three wire extension cords that have three-
prong grounding plugs and three-pole receptacles that accept the tool’s plug.
Repair or replace a damaged or worn cord immediately.
115 Volt Operation
As received from the factory, your sander is ready to run at 115 volt operation. This sander, when wired for
115 volt, is intended for use on a circuit that has an outlet and a plug that looks like the one illustrated in (A). A
temporary adapter, which looks like the adapter as illustrated in (B), may be used to connect this plug to a two-
pole receptacle, as shown in (B) if a properly grounded outlet is not available. The temporary adapter should only
be used until a properly grounded outlet can be installed by a qualified electrician. This adapter is not applicable in
Canada. The green colored rigid ear, lug, or tab, extending from the adapter, must be connected to a permanent
ground such as a properly grounded outlet box, as shown in (B).
5
Grounding Instructions
Caution: This tool must be grounded while in use to protect the operator from electric shock.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified
electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
conductor, with insulation having an outer surface that is green with or without yellow stripes, is the
equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded. Use only three wire extension
cords that have three-prong grounding plugs and three-pole receptacles that accept the tool’s plug.
Repair or replace a damaged or worn cord immediately.
115 Volt Operation
As received from the factory, your sander is ready to run at 115 volt operation. This sander, when wired
for 115 volt, is intended for use on a circuit that has an outlet and a plug that looks like the one illustrated
in (A). A temporary adapter, which looks like the adapter as illustrated in (B), may be used to connect
this plug to a two-pole receptacle, as shown in (B) if a properly grounded outlet is not available. The
temporary adapter should only be used until a properly grounded outlet can be installed by a qualified
electrician. This adapter is not applicable in Canada. The green colored rigid ear, lug, or tab,
extending from the adapter, must be connected to a permanent ground such as a properly grounded
outlet box, as shown in (B).

6Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
SPECIFICATIONS OLIVER 6910
Stock Number.....................................................................................................................…... 6910
Table Size .....................................................................................................................24”W x 24”L
Table Tilt (down) ..........................................................................................................................45°
Dust Chute Diameter .....................................................................................................................4”
Spindle Speed (RPM) ............................................................................................................. 1,725
Oscillations Per Minute .................................................................................................................75
Length of Oscillation ................................................................................................................1-1/2”
Motor (TEFC)......................................................................................................................2HP, 1Ph
................................................................................................................... 115/230V Prewired 115V
Net Weight (approx.)............................................................................................................298 Lbs.
TABLE OF CONTENTS
Warranty..........................................................................................................................................2
Warnings ......................................................................................................................................3-4
Grounding Instructions.....................................................................................................................5
115V Operation ...............................................................................................................................5
Specifications ..................................................................................................................................6
Table of Contents ............................................................................................................................6
Contents of the Shipping Container.................................................................................................7
Tools Required for Assembly & Adjustments...................................................................................7
Unpacking .......................................................................................................................................7
Mounting Sanding Sleeves .............................................................................................................8
Installing Sanding Assemblies.........................................................................................................8
Removing Sanding Assemblies.......................................................................................................8
Table Insert .....................................................................................................................................9
Sanding Assembly 90° to Table ......................................................................................................9
Replacing Sanding Sleeves ..........................................................................................................10
Dust Collection ..............................................................................................................................10
Maintenance..................................................................................................................................10
Troubleshooting.............................................................................................................................11
Breakdown and Parts List ........................................................................................................12-17
Wiring Diagram..............................................................................................................................18
The specifications in this manual are given as general information and are not binding. OLIVER
reserves the right to effect, at any time and without prior notice, changes or alterations to parts,
fittings, and accessory equipment deemed necessary for any reason whatsoever.

7
Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
CONTENTS OF THE SHIPPING CONTAINER
1. Sander
3. Table Insert Rings
2. Spindle Wrenches
1. 2mm Hex Wrench
10 Removable Spindles
1/4” x 5” Steel and Sanding Sleeve
3/8” x 6” Steel and Sanding Sleeve
1/2” x 6” Steel and Sanding Sleeve
5/8” x 6” Steel and Sanding Sleeve
3/4” x 9” Steel and Sanding Sleeve
1” x 9” Rubber and Sanding Sleeve
1-1/2” x 9” Rubber and Sanding Sleeve
2” x 9” Rubber and Sanding Sleeve
3” x 9” Rubber and Sanding Sleeve
4” x 9” Rubber and Sanding Sleeve
1 Owner’s Manual
1 Warranty Card
Tools Required for Assembly &
Adjustments
1. 26mm Wrench or Large Adjustable Wrench
1. 6mm Hex Wrench
1. Square
WARNING
Read and understand the entire contents of this
manual before attempting assembly or operation
of the sander!
Failure to comply may cause serious injury!
UNPACKING
1. Remove all contents from shipping carton.
2. Report any damage to your distributor.
3. Do not discard any shipping material until the sander has
been assembled and is running properly.
4. With help from another person move the sander off of the
pallet and into the desired position.
5. Remove the protective coating found on the table with
a putty knife and a cleaning solvent that will not damage
painted surfaces.
7
Contents of the Shipping Container
1. Sander
3. Table Insert Rings
2. Spindle Wrenches
1. 2mm Hex Wrench
10 Removable Spindles
1/4” x 5” Steel and Sanding Sleeve
3/8” x 6” Steel and Sanding Sleeve
1/2” x 6” Steel and Sanding Sleeve
5/8” x 6” Steel and Sanding Sleeve
3/4” x 9” Steel and Sanding Sleeve
1” x 9” Rubber and Sanding Sleeve
1-1/2” x 9” Rubber and Sanding Sleeve
2” x 9” Rubber and Sanding Sleeve
3” x 9” Rubber and Sanding Sleeve
4” x 9” Rubber and Sanding Sleeve
1 Owner's Manual
1 Warranty Card
Tools Required for Assembly &
Adjustments
1. 26mm Wrench or Large Adjustable Wrench
1. 6mm Hex Wrench
1. Square
WARNING
Read and understand the entire contents of
this manual before attempting assembly or
operation of the sander!
Failure to comply may cause serious injury!
Unpacking
1. Remove all contents from shipping carton.
2. Report any damage to your distributor.
3. Do not discard any shipping material until
the sander has been assembled and is
running properly.
4. With help from another person move the
sander off of the pallet and into the desired
position.
5. Remove the protective coating found on the
table with a putty knife and a cleaning
solvent that will not damage painted
surfaces.
Note: Now is a perfect time to set your sander
up on a mobile base. It will make life easier in
the woodshop. JET has a Heavy Duty Universal
Mobile Base that will fit this sander. JET also
has a variety of Dust Collectors and Air Filtration
Units that will work nicely with your new sander.

8Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net

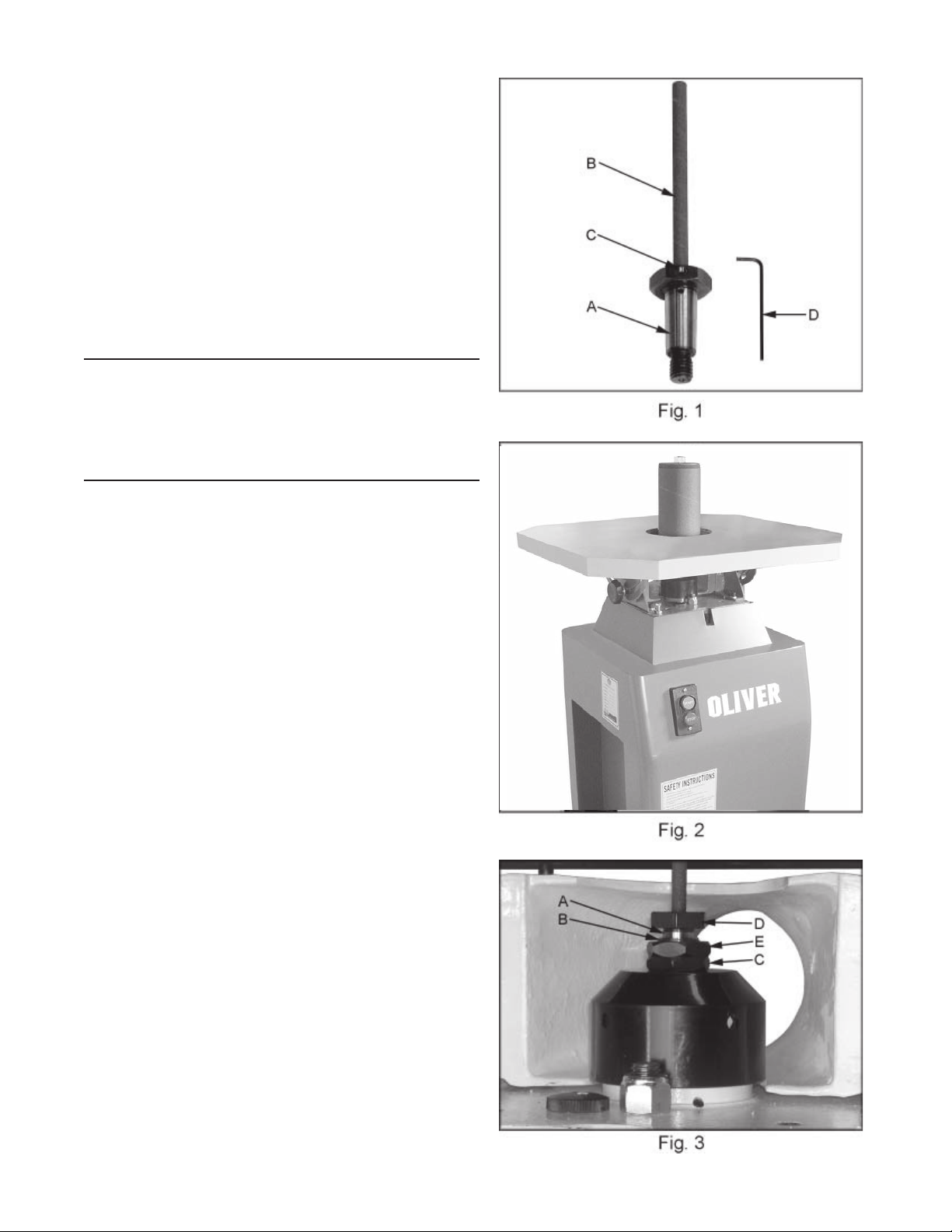

Mounting Sanding Sleeves
1.Thoroughly clean the arbors (A, Fig. 1) on all of the
spindle assemblies. Also clean the arbor housing on
the sander.
2.Slip the sanding sleeve (B, Fig. 1) over the spindle and
hold in place by tightening the set screw (C, Fig. 1) with
the supplied 2mm hex wrench.
3. Repeat for all of the steel spindle assemblies.
4.To protect the sanding assemblies place them in the
holders found on the sides of the sander, see Figure 2.
Installing Sanding Assemblies
WARNING
Disconnect the sander from the power
source when installing or removing sanding
assemblies.
Failure to comply may cause serious injury!
1. Thoroughly clean the arbor and arbor housing before
installing the sanding assemblies.
2. Thread the arbor (A, Fig. 3) into the arbor housing (B,
Fig. 3).
3. Use the provided wrenches to hold the lower arbor
housing nut (C, Fig. 3) while turning the arbor nut (D,
Fig. 3) clockwise.
Removing Sanding Assemblies
1. Disconnect the sander form the power source,
unplug.
2. Use the provided wrenches to hold the upper arbor
housing nut (E, Fig. 3) while turning the arbor nut (D,
Fig. 3) counterclockwise.
8
Mounting Sanding Sleeves
1. Thoroughly clean the arbors (A, Fig. 1) on all
of the spindle assemblies. Also clean the
arbor housing on the sander.
2. Slip the sanding sleeve (B, Fig. 1) over the
spindle and hold in place by tightening the
set screw (C, Fig. 1) with the supplied 2mm
hex wrench.
3. Repeat for all of the steel spindle
assemblies.
4. To protect the sanding assemblies place
them in the holders found on the sides of the
sander, see Figure 2.
Installing Sanding Assemblies
WARNING
Disconnect the sander from the power
source when installing or removing sanding
assemblies.
Failure to comply may cause serious injury!
1. Thoroughly clean the arbor and arbor
housing before installing the sanding
assemblies.
2. Thread the arbor (A, Fig. 3) into the arbor
housing (B, Fig. 3).
3. Use the provided wrenches to hold the lower
arbor housing nut (C, Fig. 3) while turning
the arbor nut (D, Fig. 3) clockwise.
Removing Sanding Assemblies
1. Disconnect the sander form the power
source, unplug.
2. Use the provided wrenches to hold the
upper arbor housing nut (E, Fig. 3) while
turning the arbor nut (D, Fig. 3) counter-
clockwise.

9
Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
Table Insert
1. Disconnect the sander form the power source,
unplug.
2. Choose the insert (A, Fig. 4) that most closely
matches the diameter of the sanding drum.
3. Line up the notch in the insert with the spring pin in
the table (B, Fig. 4), and press in place.
4. Remove the insert by pressing up from underneath.
Note: Keep the opening in the table clean so that
the insert can be easilyput in place, and removed.
Sanding Assembly 90° to Table
1. Loosen the lock knobs (C, Fig. 5) on trunnions and
position the table so that it rests against the 90° stop
(D, Fig. 6). Tighten lock knobs.
2. Place a square (E, Fig. 5) on the working side
of the table, and make sure the sanding drum is
perpendicular to the table.
3. If an adjustment needs to be made loosen the hex
nut (F, Fig. 6).
4. Loosen lock knobs.
5. Rotate the 90° stop in the appropriate direction until
the table rests 90° to the sanding drum.
6. Tighten the hex nut while holding the stop.
7. Adjust pointer (G, Fig. 6) so that it indicates the “0”
position on the scale.
9
Table Insert
1. Disconnect the sander form the power
source, unplug.
2. Choose the insert (A, Fig. 4) that most
closely matches the diameter of the sanding
drum.
3. Line up the notch in the insert with the
spring pin in the table (B, Fig. 4), and press
in place.
4. Remove the insert by pressing up from
underneath. Note: Keep the opening in the
table clean so that the insert can be easily
put in place, and removed.
Sanding Assembly 90° to Table
1. Loosen the lock knobs (C, Fig. 5) on
trunnions and position the table so that it
rests against the 90° stop (D, Fig. 6).
Tighten lock knobs.
2. Place a square (E, Fig. 5) on the working
side of the table, and make sure the sanding
drum is perpendicular to the table.
3. If an adjustment needs to be made loosen
the hex nut (F, Fig. 6).
4. Loosen lock knobs.
5. Rotate the 90° stop in the appropriate
direction until the table rests 90° to the
sanding drum.
6. Tighten the hex nut while holding the stop.
7. Adjust pointer (G, Fig. 6) so that it indicates
the “0” position on the scale.

10 Oliver Machinery Seattle, WA |  Copyright 2005 | www.olivermachinery.net
Replacing Sanding Sleeves
1. Loosen hex nut (A, Fig. 7) with a 26mm wrench, or
large adjustable wrench.
2. Slide the sanding sleeve (B, Fig. 7) off the drum and
replace with a new sanding sleeve.
Note: If the sanding sleeve is not easily
removed cut the sleeve off and clean the drum
before reinstalling a new sleeve.
3. If you are replacing the sanding sleeves on the steel
spindles loosen the set screw found on the arbor nut.
4. Remove sanding sleeve from the spindle and replace
with a new sanding sleeve.
Note: If the sanding sleeve is not easily
removed cut the sleeve off and clean the
drum before reinstalling a new sleeve.
5. Tighten the set screw.
Dust Collection
In order to collect wood dust; attach a dust collection
hose to the dust port.
MAINTENANCE
The manufacturer recommends replacing the 90
SAE gear lube at 800 hours of use.
1. Open the door on the back side of the machine to
access the drain plug (C, Fig. 8). Use a 6mm hex
wrench to remove the drain plug.
2. Refill oil through the oil cap (D, Fig. 9). Theoil capacity
is two quarts.
3. The oil sight glass (E, Fig. 8) should read between
the “high” and “low” marks. Keep the machine and all
attachments clean.
All bearings are permanently lubricated and require no
further service.
10
Replacing Sanding Sleeves
1. Loosen hex nut (A, Fig. 7) with a 26mm
wrench, or large adjustable wrench.
2. Slide the sanding sleeve (B, Fig. 7) off the
drum and replace with a new sanding
sleeve. Note: If the sanding sleeve is not
easily removed cut the sleeve off and clean
the drum before reinstalling a new sleeve.
3. If you are replacing the sanding sleeves on
the steel spindles loosen the set screw
found on the arbor nut.
4. Remove sanding sleeve from the spindle
and replace with a new sanding sleeve.
Note: If the sanding sleeve is not easily
removed cut the sleeve off and clean the
drum before reinstalling a new sleeve.
5. Tighten the set screw.
Dust Collection
In order to collect wood dust; attach a dust
collection hose to the dust port. JET has a
variety of dust collectors, air filtration units,
hoses and adaptors, etc. that will work nicely
with your new sander. Contact your local JET
Distributor for more information.
Maintenance
The manufacturer recommends replacing the 90
SAE gear lube at 800 hours of use.
1. Open the door on the back side of the
