Olympus FL-900R User manual

2
Information for Your Safety
IMPORTANT
SAFETY
INSTRUCTIONS
When using your photographic equipment, basic safety precautions
should always be followed, including the following:
• Read and understand all instructions before using.
• Close supervision is necessary when any flash
is
used by or near
children. Do not leave flash unattended while
in
use.
• Care must be taken as burns can occur from touching hot parts.
• Do not operate if the flash has been dropped or damaged -until it has
been examined by qualified service personnel.
• Let flash cool completely before putting away.
•
To
reduce the risk of electric shock, do not immerse this flash
in
water or
other liquids.
•
To
reduce the risk
of
electric shock, do not disassemble this flash, but
take it to qualified service personnel when service or repair work is
required. Incorrect reassembly can cause electric shock when the flash
is
used subsequently.
• The use
of
an accessory attachment not recommended by the
manufacturer may cause a risk
of
fire, electric shock, or injury to
persons.
SAVE THESE INSTRUCTIONS
The following importer description applies to products imported into
the
EU
directly by OLYMPUS EUROPA SE
&
Co. KG only.
OLYMPUS EUROPA SE
&
Co.
KG
Wendenstrasse 14-18, 20097 Hamburg, Germany

22
EN
Thank you for purchasing this Olympus product.
To
ensure your safety, please
read this instruction manual before use, and keep it handy for future reference.
@
CD
Wide panel....................................
P.
32
@ Latch release..........................
P.
24,
30
® Light-emitting area
@)
Latch.......................................
P.
24,
30
@
Remote sensor
@)
Dial
@
AF
illuminator/LED window
a:
ZOOM
button(~)
....................
P.
28
@Auto
light receptor
b:
flash compensation button (
<])
® Catch light plate............................
P.
32
.................................................
P.
28
(j) Control panel ................................
P:
23
c:
LED light button ([>) ................
P.
28
@ MODE button................................
P.
26
d:
MENU/i
button
('\7)..........
P.
28, 34
®TEST
button/CHARGE lamp
@Flash
stand
FLST-1
....
:
.................
P.
30
@)
OK button
@)
Bounce adapter............................
P.
33
®Bounce
lock release button ..........
P.
32
@)
IR
filter ........
..
................................
P.
33
@AUTO
CHECK lamp . ® Flash case
@ ON/OFF button .............................
P.
25

Control Panel
Slave mode
TTL-AUTO and AUTO
modes Mmode
~~~09-_1 __ 2_.3 __ m ______ ~l ~3 ____
1
1_
1
1i._7_~------~
~ @ ®
MULTI mode RC mode
lr
[m
500'" I
~·1•1~ ~
.9
10
@ @
~ . ® ®
CD Super FP flash
@) Control lock................................... P. 28
®Flash control mode....................... P. 26 ®Slave ............................................. P. 36
®Flash intensity control................... P. 28 @ Range...........................................
P. 25
@ FOUR THIRDS @ Guide number (GN)......................
P. 36
®Zoom mode .................................. P. 28 @Optimal shooting distance ............ P. 26
@ Zoom position @) Frequency..................................... P. 26
(angle
of illumination) ................... P. 28 @ Number of flashes ........................ P. 26
(j) LED light mode.... ~ ........................ P. 34 @ RC mode group ......
~ ..................... P. 30
@ LED light....................................... P. 28
@) RC mode channel......................... P. 30
·®Temperature warning
23
EN

24
EN
f!:!P-aring·a BatterY_(Sold SeP-arate I~).._ ______ _
Choose from the below batteries:
AA (R6) NiMH batteries (x 4) AA (R6) alkaline batteries
(x 4)
• AA (R6) manganese batteries cannot be used.
Loading Batteries
1 Open the battery compartment cover.
2 Insert the batteries with correct +/- .
polarity.
3 Close the battery compartment cover.
Attaching to the Camera
Confirm that both the camera and electronic flash are off. Attaching or removing
the electronic flash while either the flash or the camera is
on may result in
malfunction.
• Dirt or water
on the contacts can cause malfunction. Remove dirt, water, and
other foreign matter before attaching the unit to the camera.
1 Keeping the latch release pressed, slide the latch
in the direction opposite
to that shown by the
[LOCK~] arrow to undo the latch (G)).
2 Slide the flash into the hot shoe until it clicks
securely into place (®).
3 Slide the latch to the [LOCK~] position (@).
• To remove the flash, undo the latch as described in Step
1 and slide the unit from tne camera.

Turning on the Electronic Flash
Attach an electronic flash to the camera, and then turn the camera on.
1 Press
the
ON/OFF
button.
• The control panel display will turn on.
•
To
turn the flash off, press the ON/OFF button
again.
• Replace the batteries ifthe CHARGE lamp does
not light after:
10
seconds (NiMH batteries)
30
seconds (Alkaline batteries)
• Ifthe CHARGE lamp and AUTO CHECK lamp
blink simultaneously, batteries are running low.
Replace the batteries.
Control AUTO CHECK
panel lamp
[I
lamp button
• The flash will enter sleep mode whenever the camera enters sleep mode.
• If no operations are performed for approximately 60 minutes, the flash will turn
off automatically. Press the ON/OFF button to turn it on.
Shooting
1 Use
camera
controls
to
choose
the
flash
mode.
• See the camera manual for details.
2
Choose
a flash control
mode
(P.
26).
3
Press
the
shutter
button halfway.
• The camera and flash will exchange shooting
information and the flash range will
be
displayed
in
the control panel.
• Flash range varies with camera settings (ISO
sensitivity, aperture, and lens focal length).
Light control range
AUTO CHECK lamp
*
Displayed according to the
focal length
of
the lens.
25
EN

26
EN
4 Press the shutter button the rest
of
the
way
down
to take the picture.
• The AUTO CHECK lamp blinks for about 5 s after shooting to indicate that
the flash has fired successfully.
• When using a flash, flash light may
be
blocked by the lens body, lens hood, etc.
• The flash may become hot when fired many times
in
succession, resulting
in
damage or malfunction. The flash should be fired no more than
50
times
in
succession at intervals of 2.5 seconds, after which it should be left unused for
at least 1
0 minutes.
Test Flash
To
fire a test flash, press the TEST button while the CHARGE lamp is lit. The
AUTO CHECK lamp blinks for about 5 s to indicate that the flash has fired
successfully. Ifthe lamp does not blink, adjust settings or change the distance to
the subject.
Choosing a Flash Control Mode
Choose a flash control mode according to your subject and shooting conditions.
1 Press the
MODE
button.
• Settings will be displayed.
2 Rotate the dial to
choose
a flash control mode.
r:r:~r-l
Value
ffim
Set
003
• The flash control mode can also
be
selected by pressing the MODE button.
• Related settings (if displayed) can
be
highlighted by pressing
<ll>
and
changed by rotating the dial.
3 Press the
OK
button to put the changes into effect.
• I
••
TTL-AUTO
TTL!
0.0
ILWj2Smm
l1l'.i.'mffil
0.7
-8.0m
.I:L
A
OFF
The flash light intensity is controlled
automatically according to the camera's
setup. The flash will be adjusted based on
the brightness taken through the camera's
lens. Usually use this mode with a camera
with communication capability.

· AUTO
. MANUAL
FP
TTLAUT0*
1
••
A
I
0.0
I
40
-
lvm
A• • I .EIA
25mm10FF
l•lt;.ii·Utllij
2.5m
The flash will be adjusted based
on
the
brightness captured by auto light receptor
on the electronic flash. If the camera
has communication capability, this mode
can be used only when the camera is an
AUTO-compatible model.
The flash fires at the selected output.
The display shows the optimal shooting
distance based on the selected output and
camera settings.
Super FP
*
3 allows the flash to be used at
shutter speeds faster than the flash sync
speed.
-----~fi~ijiiiiij!i~iii~
•
~is
displayed in [FP TTLAUTO] and
rai~TT·
•
•LI
IVBJA•
• A
[FP MANUAL] modes.
FP
MANUAL*2
MULTI
RC
·
sLAUT0*
4
-
28mm
OFF
•
In
[FP MANUAL] mode, choose the flash
~
t.n:tt·1~tli#l
3.9
7.1
m output.
• •
IJ:EOJ
-
IVBJA
I
A
24mmiOFF
~
11
••
Rei-
~[!G]
A 1
rm
mm
4 8
• • • •
.E[
§!_
I
IVBJM
J
A
A
0.0
28mm
OFF
The flash fires multiple times at a set
frequency.
You
can choose the flash level,
frequency, and the number
of
times the
flash fires. The maximum number
of
times
the flash can fire varies with flash level.
Choose for wireless flash control.
~"Wireless
Flash Control"
(P.
30)
'roo
~.S
The flash fires in slave mode.
--------+-------~
•
£§Dis
displayed in [SLAUTO] and
SL MANUAL*2
I I I I
I I
VBJM
A
M -
25mm
OFF
~
40
[SL MANUAL] modes.
~"Slave
Mode"
(P.
36)
*1
Flash control operation is identical to [TTL-AUTO] mode.
*2
Flash control operation is identical to [MANUAL] mode.
*3
Maximum output is reduced,.resulting
in
a lower flash range. Flash range also
diminishes as shutter speed increases.
*4
Flash control operation is identical to [AUTO] mode.
27
EN

28
EN
Using the Selector
Frequently-used options can be accessed via the selector.
ZOOM
(L}.)
1~-zl
(<l)
MENU/i
(\7)
Press ZOOM (..6.) button to display settings and'rotate the dial to adjust
the angle
of illumination manually. Press OK button to put the changes
into effect.
•
"M" appears in the display when the angle of illumination is adjusted
manually.
Press
~ill ( <l) button to display settings and rotate the dial to adjust flash
compensation by up to ±5. Press OK button to put the changes into effect.
• This value is combined with adjustments to flash compensation made
using the camera.
If you first press the
MENU/i (\7) button and select [Manual] for [LED
Mode]
(P. 34), you can turn the LED light on and off manually. Press the
IP• (t>) button once to turn the LED light on and again to turn it off.
A
• A ~N icon is displayed when the LED light is on.
Pressing the
MENU/i (\7) button displays custom settings. See "Using
the Menus"
on page 34. Pressing the MENU/i (\7) button for 2 s locks flash
controls (control lock). The controls can be unlocked by again pressing the
MENU/i (\7) button for 2 s.
• A i icon is displayed when controls are locked.
• The LED light function
of the -p, ([>)button and the test flash function of
the TEST button are not affected by control lock.
Using the Control Panel
The control panel can be used to select items and choose options, for example
when adjusting related settings after choosing a flash control mode using the
MODE button.
1 Press the OK button.
• The most recently selected item will be
highlighted. ·
2 Press ~ V <l [> to highlight items and press
the OK button to select.
MODE I S +!- I ZOOM
I L\iA
[IJill) -I 25mm
. •ml" l•1!#it·WI!#!
40 2.5m
";r:,w~:~
~ l•lh.ii·1NII3
40 2.5m

·Settings
will be displayed. r:;,m
3 Rotate the dial to change the highlighted ·
item.
• Other settings (if displayed) can
be
selected by
pressing
<l
[>.
4
Press OK button to put the changes into effect.
Available OP-tions
MODE (flash control mode) Choose the flash control mode
(P.
26).
ZOOM (angle of illumination) Choose the angle of illumination
(P.
28).
t
+/-(flash
compensation) Adjust flash compensation
(P.
28).
Gno (guide number) Adjust flash level
(P.
26).
Value
l:!11illJ
Set
003
_H_z_(fr_e_q_ue_n_c_y_)
--------1
Choose the frequency and number offlashes for
TIME (number offlashes) MULTI mode·
(P.
26).
GROUP (group) Choose a group and communications channel for
--------------1
CH
(channel)
RC
mode
(P.
30).
ISO (ISO sensitivity) Select the ISO sensitivity and aperture for cameras
---------------1
that do not exchange shooting information with the
F (aperture) flash
(P.
36).
29
EN

30
EN
Wireless control
is
available with Olympus digital cameras that support
RC
mode.
The unit
is
controlled by means
of
a flash mounted qn the camera. It can also be
mounted on a camera for wireless control
of
multiple remote flash units.
• Since the communication is performed with the flash emission
of
the camera,
the flash positioning range varies with camera. For information on cameras that
support this system, see the camera
manu~l.
Controlling the Flash RemotelY.,_
_________
_
Flash Settings
1 Select
RC
mode on the camera.
2 Choose [RC] as the flash control mode
(P.
26).
• Press MODE and rotate the dial to select a flash
control mode.
3
Use the flash to select the channel and group.
• Highlight settings using
<l
[> and rotate the dial
to change.
r:r;:·~r~=,
Value~
Set
[!]3
r:~r;:·'~J
Value~
Set
[!]3
The camera can adjust flash settings separately for
up to 3 groups; choose the group to which the flash
belongs.
Set the camera and flash to the same channel.
4 Press the OK button to put the changes into effect.
• Settings for each group, Including flash control mode, flash level, and flash
compensation, can be adjusted from the camera.
Placing Wireless Flash Units
1
Attach the stand provided.
• Keeping the latch release pressed, slide the latch
in
the direction opposite to that shown by the
[LOCK~]
arrow to undo the latch (G)).

• Slide the flash securely onto the
stand(@).
• Slide the latch to the [LOCK
..,._
] position to latch the
flash
in
place.
•
To
remove the flash, undo the latch and slide the
unit from the stand
__
2 Position the flash with the remote sensor facing the camera.
• We recommend using a single group
of
up to three remote flash units.
• Take a test shot after positioning.
• Flash may not fire due to the angle or distance between the camera and
the object.
Using the Flash to Control Other Units
Adjusting Camera and Flash Settings
1 Attach the flash to the camera
(P.
24
).
2 Select RC mode on the camera.
3 Choose [TTL-AUTO] as the flash control mode
(P.
26).
..
[:*n-1
Value
l!l1".i.B
Set
ID:t
31
EN

32
EN
Fixing the Irradiation
Ang
~
le
....._
___________
_
Point the flash head at a wall or ceiling for
bounce flash photography. The area illuminated
at ranges
of
0.6-1.0 m (2.0-3.3 ft.) will not be
correct; point the flash down.
1 Pressing
the
bounce
lock
release
button,
turn
the
light-emitting section
up/down
and
left/right.
Using the Wide Panel
Use for angles
of
illumination wider than 12 mm (24 mm
in
135 format). The
ZOOM display will blink ifthe lens focal length is under
12
mm.
1 Slide
out
the
wide
panel
and
place
it
on
the
light-emitting area.
• The estimated range display chqnges when the
wide panel is used.
• Choose from angles
of
10,
8,
and 7 mm.
• Do not tilt the wide panel up.
• The ZOOM display will blink
if
the lens has a focal
length
of
12
mm
or
more.
~~~t•l•J#IMIUI
rY~J
rrd
o.o
li1.i.!m§
0.6-4.8m
ill[]
A
)FF
Using the Catch
LigiJ..ilih
...
t
.._
P
....
Ia
....
te
..._
__________
_
The catch light plate reflects light from the flash to create a catch light effect.
1
Slide
out
the
catch
light plate.
2
Pressing
the
bounce
lock
release
button,
angle
the
flash
head
straight
up.

Using the Bounce AdaP-ter
Attaching the supplied bounce adapter diffuses the light from the flash over a
wider area for softer bounce lighting.
• Insert the tabs on the interior
of
the bounce adapter into the matching slots
on
top
of
the flash and attach the adapter as shown. ·
·• Attaching the adapter reduces flash output.
•
To
remove the adapter, pull the tab on the bottom toward you
as shown.
Using the IR Filter
Attach the IR filter when using the flash to control other units
in
RC
mode.
• Insert the tabs on the interior
of
the IR filter into the matching slots on top
of
the
flash and attach the filter as shown.
•
To
remove the filter, pull the tab on the bottom toward you as
shown.
33
EN

34
EN
Use the menus to adjust settings for ease of use.
1 Press the MENU/i Cv) button. . .
....
LED Mode Off ~
• The menu will be displayed. LED Bri
htness 1/8 o
1-=--~-~--+-::----1 0
Front Charge Ind. Auto .,
Value [!lm Set 003
2 Use ~ V to highlight items and rotate the dial
to change.
3 Press the OK button to put the changes into
effect.
Available OP-tions
Default settings shown by ·
AF Ilium. Mode
(AF illuminator)
LED Mode
(LED light mode)
LED Brightness
(LED light
brightness)
Front Charge Ind.
(charge indicator)
Back Light Mode
(backlight mode)
Back Light Timer
(auto off timer)
Off
Auto
Manual
1/1 -1/32
(Default: 1/8)
Off
On
Off
1s -15s
(Default: 5s)
The camera controls the AF illuminator.
AF illuminator off.
The LED light lights automatically during
movie recording.
The LED light
([>) button turns the LED light
on and off.
LED light off.
Adjust LED brightness.
The LED light blinks when the flash is ready
for use ([RC], [SL AUTO], and [SL MANUAL]
modes only).
Charge indicator disabled; the LED light does
not blink when the flash
is ready for use.
The backlight turns on when flash controls
are used.
The backlight remains on at all times.
Backlight off.
Choose the time (in seconds) before the
backlight turns off automatically when no
operations are performed.

Slave Mode
(slave mode
display)
Flash Cable
(flash cable)
Zoom Display
(zoom display)
m/ft
(distance units)
Wide Panel
(wide panel
detection)
GN
(guide number
display)
Auto Mode
Source
(flash control)
Reset
(reset)
Off
On
•
135F
ft
•:
"
••••
1
Off
II
Off
Flash
No
Yes
Flash control display shows slave mode.
Flash control display does not show slave
mode.
Flash cable used.
Flash cable not used.
Display focal length values for FOUR
THIRDS lenses.
Display 135 format equivalent values.
Distances displayed
in
meters.
Distances displayed in feet.
Flash detects position
of
wide panel. Angle
of
illumination adjusted automatically.
Flash does not detect wide panel position.
Flash output is shown
as
a guide number.
Flash output is shown as a relative value.
• I L
M I -I
2SmmoF:
,.~.7~
l'2~;,:ij
3
Show the flash range.calculated by the
camera in AUTO flash control mode.
Show the current aperture and ISO sensitivity.
~"Cameras
That Do Not Communicate
with the Flash"
(P.
36)
I I
A
I
0.0
I
IToo
~.s
Default settings are not restored.
Restore default settings.
35
EN

36
EN
When the unit
is
attached to a camera that does not supply shooting information,
flash output can be set to the value metered by the flash or adjusted
in
advance
using flash controls. The unit can also
be
configured for use as a slave flash for
use with cameras that do not offer
an
RC
mode.
AUTO
The flash automatically adjusts flash output for optimal results.
1 Set the flash control
mode
to [AUTO]
(P.
26).
2
3 Match the angle
of
illumination to the focal length
of
the lens
(P.
28).
Select
[Flash]
for
[Auto
Mode
Source] in the
menu display
(P.
35).
• ISO sensitivity and aperture are displayed.
4
Adjust aperture and ISO sensitivity
(P.
28).
..
~·.::.~.~•
--...~
A I 0.0 I
2Smm
oF:
~Too
S.s)
• Ifthe selected values are out ofthe flash control range, [ISO] and [F] will
blink
in
the display. The AUTO CHECK lamp blinks for about 5 s after the
shutter
is
released to show that the flash has fired successfully.
MANUAL
Choose the guide number.
1
Set
the flash control
mode
to
[MANUAL]
(P.
26).
2
Adjust
flash level
(P.
28).
Slave Mode
The flash can
be
fired remotely
in
sync with any flash fired by other units.
1
Set
the flash control
mode
~o
[SL
AUTO]
or
[SL
MANUAL]
(P.
26).
2
Position the flash.
• The flash can not be used with cameras that require a pre-flash.
• The flash may fire
in
response to flash units used by other photographers.

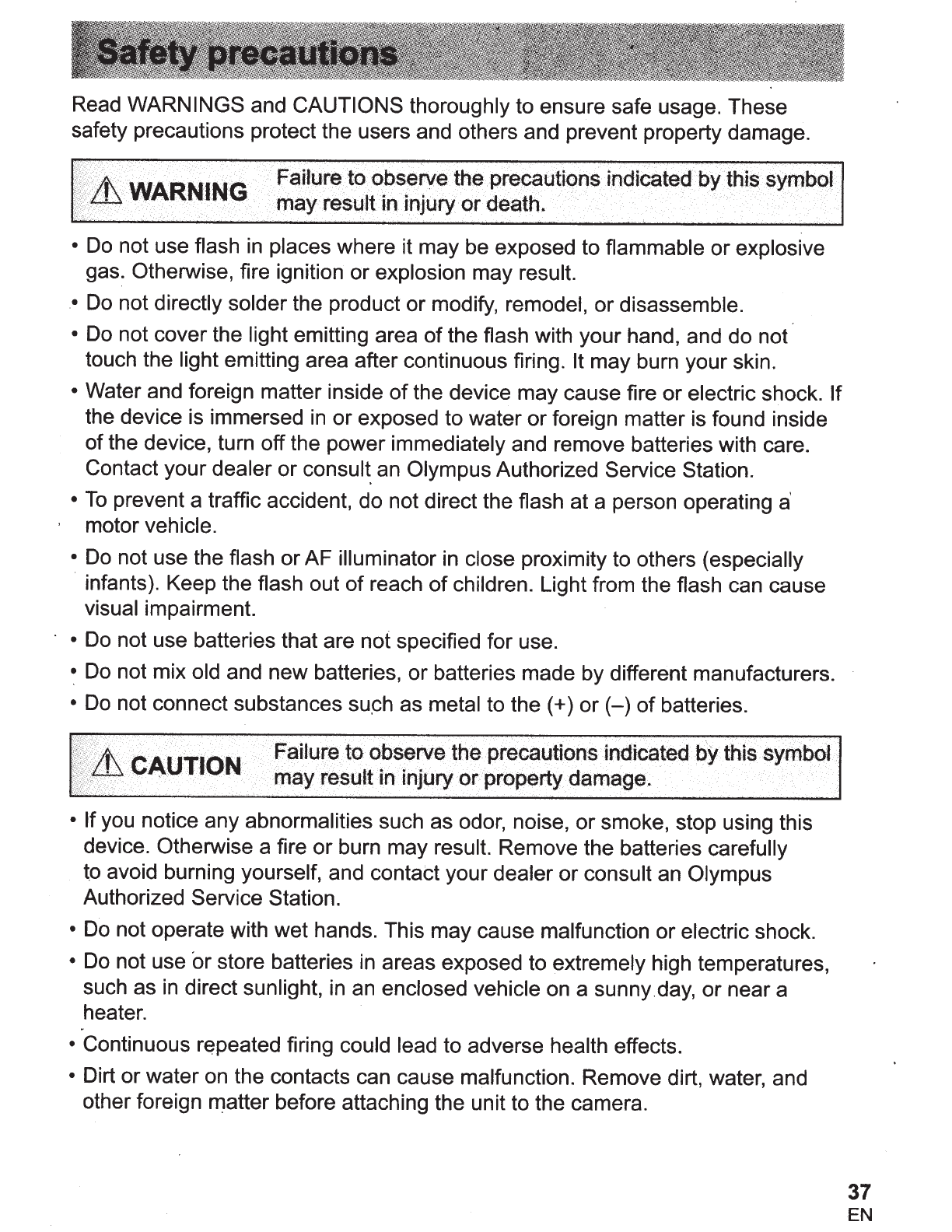

Read WARNINGS and CAUTIONS thoroughly to ensure safe usage. These
safety precautions protect the users and others and prevent property damage.
&WARNING
Faitvr~
.
to
obs~rye
the
prep(luti()ns
indicatecj
.
bythJs.
syrvbol
may
result
in
injury
or
death.
··.
•
Do
not use flash
in
places where it may be exposed to flammable or explosive
gas. Otherwise, fire ignition or explosion may result.
•
Do
not directly solder the product or modify, remodel, or disassemble.
•
Do
not cover the light emitting area
of
the flash with your hand, and do not
touch the light emitting area after continuous firing. It may burn your skin.
• Water and foreign matter inside
of
the device may cause fire
or
electric shock. If
the device is immersed
in
or exposed to water
or
foreign matter
is
found inside
ofthe device, turn off the power immediately and remove batteries with care.
Contact your dealer or consult.
an
Olympus Authorized Service Station.
•
To
prevent a traffic accident, do not direct the flash at a person operating a'
motor vehicle.
•
Do
not use the flash
or
AF illuminator
in
close proximity to others (especially
infants). Keep the flash out
of
reach
of
children. Light from the flash can cause
visual impairment.
•
Do
not use batteries that are not specified for use.
•
Do
not mix old and new batteries,
or
batteries made by different manufacturers.
•
Do
not connect substances
su~h
as metal to
the(+)
or(-)
of batteries.
....
anur·e
to
observe
the
precautions indic.ated
by
may
result
in injury
or
property damage. symbol
• If you notice any abnormalities such as odor, noise,
or
smoke, stop using this
device. Otherwise a fire
or
burn may result. Remove the batteries carefully
to
avoid burning yourself, and contact your dealer
or
consult an Olympus
Authorized Service Station.
•
Do
not operate with wet hands. This may cause malfunction
or
electric shock.
•
Do
not use
or
store batteries
in
areas exposed to extremely high temperatures,
such as
in
direct sunlight, in
an
enclosed vehicle on a sunny
day,
or near a
heater.
• Continuous repeated firing could lead to adverse health effects.
• Dirt or water on the contacts can cause malfunction. Remove dirt, water, and
other foreign matter before attaching the unit to the camera.
37
EN

38
EN
MODEL NO. FL-900R
Product type
~xternal
electronic flash for digital still camera
Guide number 58 (IS0100), 14 (180100, using the wide panel)
Firing angle Covers the angle
of
view
of
12-1
00 mm lenses (equivalent
to
24-200
mm in 135 format)
(With wide panel: 7 mm lens, equivalent to 14 mm in 135
format)
Flash modes TTL-AUTO, AUTO, MANUAL, FP TTLAUTO, FP MANUAL,
MULTI,
RC,
SLAUTO, SL MANUAL
Flash emission period Approx. 1/20000 to 1/500 seconds (except in Super
FP
flash)
Flash emission count Approx. 200 times (using AA (R6) NiMH batteries)
(at full activation)* Approx. 160 times (using AA (R6) alkaline batteries)
Recharge time Approx. 2.5 seconds (using AA
(R6)
NiMH batteries)
Approx. 4.5 seconds (using
AA
(R6) alkaline batteries)
(from full activation to CHARGE lamp lighting)*
AF illuminator Effective range: Approximately
1-5m
(varies with camera
and lens used)
Liquid ingress Class 1 (IPX1
),
equivalent to JISC0920/IEC60529 (in-house
protection (class) measurements)
Operating Temperature:
-10
to 40°C (14 to 104°F)
environment Humidity: 30 to 90%
Dimensions 81.2 (W) x 121.4 (H) x 125.2 (D) mm/3.2 x 4.8 x 4.9
in.
(excluding protrusions)
Weight 382 g (13.5 oz.) (excluding batteries)
* Measurements obtained from in-house tests at Olympus. Actual figures may
vary depending on shooting conditions.
Specifications are subject to change without any notice
or
·oblig9tion
on
the part
of
the manufacturer.

For customers
in
North America, Central America, South America and
the Caribbean
FCC Notice
~
This device complies with part 15
of
the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any unauthorized changes or modifications to this equipment would void the
user's authority to operate.
For customers
in
Europe
~
This symbol [crossed-out wheeled bin WEEE Annex IV] indicates
A separate collection
of
waste electrical and electronic equipment in the
EU
countries.
-Please do not throw the equipment into the domestic refuse.
Please use the return and collection systems available
in
your
country for the disposal
of
this product.
Technical Support (U.S.A.
I
Canada)
24/7 online automated help: http://www.olympusamerica.com/support
Phone customer support: Tel.[phone] (Toll-free)
Our phone customer support is available from 9 am to 9
pm
(Monday to Friday) ET
E-Mail: [email protected]
European Technical Customer Support
Please visit our homepage
http://www.olympus-europa.com
-or call:
Tel.
00800 -67 10 83 00 (Toll-free)
[phone]
899.
(Charged)
39
EN
