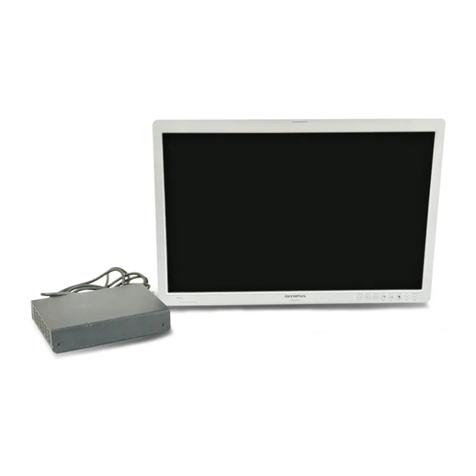

Olympus OEV262H User manual

Instructions for Use
HIGH DEFINITION LCD MONITOR
OEV262H
____
USA: CAUTION: Federal law restricts this device to sale by or on the order of a physician.
Table of Contents
Labels and Symbols
Important Information —
Please Read Before Use
Features 1
Location and Function
of Parts and Controls 2
Installation and
Connection 3
Inspection 4
Setting 5
Troubleshooting 6
Appendix

____
OEV262H
2

____
OEV262H
Table of Contents 3
Table of Contents
Labels and Symbols
Important Information — Please
Read Before Use
Intended use ..........................................................5
Instruction manual ...............................................5
Terms used in this manual ...................................5
Instrument compatibility .....................................5
Repair and modification ......................................5
On Safety ...............................................................5
On Installation ......................................................6
About the LCD Panel ...........................................6
On Cleaning ..........................................................6
Disposal of the Unit ..............................................6
Recommendation to Use more than One
Unit ........................................................................6
On Repacking .......................................................7
On Fan Error ........................................................7
On Moisture Condensation ..................................7
Signal Words .........................................................7
Warnings and Cautions ........................................7
1. Features
1.1 Features .........................................................12
2. Location and Function of Parts
and Controls
2.1 Front Panel ....................................................14
2.2 Input Signals and Adjustable/
Setting Items .................................................16
2.3 Rear Panel .....................................................17
3. Installation and Connection
3.1 Installing the monitor ..................................19
Installation on a mobile workstation ................19
3.2 Connecting the AC Power Cord .................19
When the mobile workstation (WM-NP2, WM-
DP2, WM-NP1, WM-WP1, and WM-DP1) is
used ................................................................20
To use the AC IN socket on the monitor ..........21
To use the optional AC adapter ........................22
3.3 About the Connecting Cables ......................23
4. Inspection
4.1 Power supply .................................................24
Inspecting the power supply .............................24
If the power fails to turn on ..............................24
4.2 Inspection of the displayed image ...............24
5. Setting
5.1 Selecting the Menu Language ......................25
5.2 Using the Menu .............................................26
5.3 Adjustment Using the Menus ......................27
Items ..................................................................27
Adjusting and changing the settings .................28
6. Troubleshooting
6.1 Troubleshooting guide ..................................36
6.2 Returning the monitor for repair ................37
Appendix
System chart .........................................................38
EVIS video system chart ...................................39
Camera control unit system chart .....................40
Connection cable for OEV262H .......................41
Specifications ........................................................42
Dimensions ............................................................47
EMC information .................................................48
Maintenance .........................................................52

____g
OEV262H
Labels and Symbols
Labels and Symbols
4
Labels and Symbols
Safety-related labels and symbols are attached to the
instrument at the locations shown below. If labels or
symbols are missing or illegible, contact Olympus.
High definition LCD monitor
Symbols on the unit
Refer to the operating instructions
Follow the directions in the operating
instructions for parts of the unit on which this
mark appears.
This symbol indicates the manufacturer and
appears next to the manufacturer’s name and
address.
Medical Devices Directive
This device complies with the requirements of
Directive 93/42/EEC concerning medical
devices.
Classification: Class 1
WEEE Directive
In accordance with European Directive 2002/
96/EC on Waste Electrical and Electronic
Equipment, this symbol indicates that the
product must not be disposed of as unsorted
municipal waste, but should be collected
separately.
Refer to your local Olympus distributor for
return and/or collection systems available in
your country.
Manufacturing date
Serial number
Function earth
terminal
Electrical rating, serial number,
and caution
Potential equalization
terminal
Symbol Location This symbol indicates
Rear Power switch.
Press to turn the monitor
on.
Rear Power switch.
Press to turn the monitor
off.
Rear The equipotential
terminal which brings the
various parts of a system
to the same potential.
Rear Functional earth terminal

____g
OEV262H
Important Information — Please Read Before Use 5
Important Information — Please Read Before Use
Important Information —
Please Read Before Use
Intended use
This instrument has been designed to be used with
Olympus endoscopes, light sources, video system
centers, camera control units and endoscopic ultrasound
centers for endoscopic diagnosis and video observation.
Do not use this instrument for any purpose other than its
intended use.
Instruction manual
This instruction manual contains essential information
on using this instrument safely and effectively. Before
use, thoroughly review this manual and the manuals for
all equipment that will be used during the procedure and
use the equipment as instructed.
Keep this and all related instruction manuals in a safe,
accessible location. If you have any questions or
comments about any information in this manual, contact
Olympus.
Terms used in this manual
Video system center:
The video system center is a device that converts signals
from a videoscope or video converter into monitor
images.
Camera control unit:
The camera control unit is a device that converts signals
from a fiberscope or rigid endoscope into monitor
images.
Ultrasound center:
The ultrasound center converts the ultrasonic signals
from an ultrasound endoscope or probe into monitor
images.
Light source:
The light source provides light and electrical signals to
the endoscope.
Wall mains socket outlet:
An electrical outlet that has a terminal used exclusively
for grounding.
Aspect ratio:
It is a unit that expresses a rate of a screen side and a
vertical length.
The aspect ratio of 4:3 is used usually for SDTV.
The aspect ratio of 16:9 is used usually for HDTV.
VESA mounting standards:
These are the standards to be applied when mounting an
LCD panel on a monitor mount or stand. These
standards were defined by the Video Electronics
Standards Association (VESA), a US-based
organization concerned with computer display devices.
Mobile workstation:
The mobile workstation is a special trolley on which this
monitor is placed.
PIP (Picture in Picture):
The sub display is located within the main display.
POP (Picture out Picture):
The sub display and main display are side by side.
Instrument compatibility
Refer to the “System chart” in the Appendix to confirm
that this instrument is compatible with the ancillary
equipment being used. Using incompatible equipment
can result in patient or operator injury and/or equipment
damage. It may also impair the functionality of the
instrument.
This instrument complies with medical electrical
equipment edition 3 (IEC 60601-1-2: 2007). However
when connecting with an instrument that complies with
medical electrical equipment edition 1 (IEC 60601-1-2:
1993), the whole system complies with edition 1.
See, ?EMC information? on page 48 for EMC
compliance level.
Repair and modification
This monitor does not contain any user-serviceable
parts. Do not disassemble, modify or attempt to repair it;
patient or operator injury, equipment damage and/or the
impossibility to obtain the expected functionality can
result. Some problems that appear to be malfunctions may
be correctable by referring to Chapter 6,
“Troubleshooting.” If the problem cannot be resolved
using the information in Chapter 6, contact Olympus. This
monitor is to be repaired by Olympus technicians only.
Olympus is not liable for any injury or damage which
occurs as a result of repairs attempted by non-Olympus
personnel.
On Safety
• Operate the unit on 100-240 V AC only.
• The nameplate indicating operating voltage, etc. is
located on the rear panel.
• Should any solid object or liquid fall into the cabinet,
unplug the unit and have it checked by qualified
personnel before operating it any further.

____g
OEV262H
Important Information — Please Read Before Use
Important Information — Please Read Before Use
6
• Unplug the unit from the wall outlet if it is not to be
used for several days or more.
• To disconnect the AC power cord, pull it out by
grasping the plug. Never pull the cord itself.
• Thesocket-outletshallbeinstalledneartheequipment
and shall be easily accessible.
• Avoid plugging the AC power cord into the AC IN
socket while connecting the optional Sony’s AC
adapter (AC-110MD) to the DC IN connector.
On Installation
• Prevent internal heat build-up allowing adequate air
circulation.
Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block
the ventilation holes.
• Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration or
shock.
• Do not place the monitor near equipment which
generates magnetism, such as a transformer or high
voltage power lines.
About the LCD Panel
• The LCD panel fitted to this unit is manufactured with
high precision technology, giving a functioning pixel
ratio of at least 99.99%. Thus a very small proportion
of pixels may be “stuck,” either always off (black),
always on (red, green, or blue), or flashing. In
addition, over a long period of use, because of the
physical characteristics of the liquid crystal display,
such “stuck” pixels may appear spontaneously. These
problems are not a malfunction.
• Do not leave the LCD screen facing the sun as it can
damagethe LCD screen. Takecarewhenyouplacethe
unit by a window.
• Do not push or scratch the LCD screen. Do not place
a heavy object on the LCD screen. This may cause the
screen to lose uniformity.
• If the unit is used in a cold place, a residual image may
appear on the screen. This is not a malfunction. When
the monitor becomes warm, the screen returns to
normal.
• If a fixed picture such as a frame of a divided picture
or time code, or a still picture is displayed for a long
time, an image may remain on the screen and be
superimposed as a ghosting image.
• The screen and the cabinet become warm during
operation. This is not a malfunction.
On Cleaning
Before cleaning
Be sure to disconnect the AC power cord from the AC
outlet.
On cleaning the monitor
A material that withstands disinfection is used for the
front protection plate of the medical use LCD monitor.
The protection plate surface is especially treated to
reduce reflection of light. When solvents such as
benzene or thinner, or acid, alkaline or abrasive
detergent, or chemical cleaning cloth are used for the
protection plate surface/monitor surface, the
performance of the monitor may be impaired or the
finish of the surface may be damaged. Take care with
respect to the following:
• Clean the protection plate surface/monitor surface
with a 50 to 70 v/v% concentration of isopropyl
alcohol or a 76.9 to 81.4 v/v% concentration of
ethanol using a swab method. Wipe the protection
plate surface gently (wipe using less than 1 N force).
• Stubborn stains may be removed with a soft cloth such
as a cleaning cloth lightly dampened with mild
detergentsolutionusingaswabmethodand then clean
using the above chemical solution.
Never use solvents such as benzene or thinner, or acid,
alkaline or abrasive detergent, or chemical cleaning
cloth for cleaning or disinfection, as they will damage
the protection plate surface/monitor surface.
• Do not use unnecessary force to rub the protection
plate surface/monitor surface witha stained cloth. The
protection plate surface/monitor surface may be
scratched.
• Do not keep the protection plate surface/monitor
surface in contact with a rubber or vinyl resin product
for a long period of time. The finish of the surface may
deteriorate or the coating may come off.
Disposal of the Unit
When disposing of this monitor or any of its
components, follow all applicable national and local
laws and guidelines.
RecommendationtoUse morethan
One Unit
As problems can occasionally occur for the monitor,
when the monitor is used for safety control of personnel,
assets or stable picture, or for emergencies, we strongly
recommend you use more than one unit or prepare a
spare unit.

____g
OEV262H
Important Information — Please Read Before Use 7
Important Information — Please Read Before Use
On Repacking
Do not throw away the carton and packing materials.
They make an ideal container in which to transport the
unit.
If you have any questions about this unit, contact
Olympus.
On Fan Error
The fan for cooling the unit is built in. When the fan
stops and “Fan error” appears on the display, turn off the
power and contact Olympus.
On Moisture Condensation
Iftheunit is broughtdirectlyfrom a coldplacetoa warm
place, or the unit is warm and the ambient temperature
cools suddenly (by air-conditioning, for example),
moisture may condense on the surface or inside of the
unit, or create a mist residue inside the protection plate.
This is called moisture condensation, and is not a
malfunction of the product itself, although it may cause
damage to the unit.
Leave the unit in a condensation free area.
If moisture condensation has occurred, turn off the unit
and do not use it until moisture condensation has
evaporated.
Signal Words
The following signal words are used throughout this
manual:
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may
also be used to alert against unsafe practices or potential
equipment damage.
NOTE
Indicates additional helpful information.
Warnings and Cautions
Follow the warnings and cautions given below when
handling this instrument. This information is to be
supplemented by the warnings and cautions given in
each chapter.
Especially, about a power supply, refer to ?3.2
Connecting the AC Power Cord? (page 19).
WARNING
• Never install and operate this monitor in locations
where:
– The concentration of oxygen is high.
– Oxidizing agents (such as nitrous oxide (N2O)) are
present in the atmosphere.
– Flammable anesthetics are present in the
atmosphere.
– Flammable liquids are near.
Otherwise, explosion or fire may result because this
monitor is not explosion-proof.
• Strictly observe the following precautions. Failure to
do so may place the patient and medical personnel in
danger of an electric shock:
– Keep fluids away from all electrical equipment. If
fluidsarespilledonorintothemonitor,immediately
stop operating it and contact Olympus.
– Do not prepare, inspect or use this monitor with wet
hands.
• Ifanirregularityisobserved during use of the monitor,
stop operation of the monitor. Some problems may be
correctable by referring to the following procedure.
Damage or irregularity in the monitor may
compromise patient or operator safety and may result
in more severe equipment damage.
– In case of a loss of the endoscopic image or a frozen
image:
Turn off the monitor, and turn it on again after
several seconds. Also turn off the ancillary
equipment to be used in combination with this
monitor and turn it on again, as described in the
instruction manuals for the equipment. If the
problem cannot be resolved by the described
remedial action, stop using the monitor and gently
withdraw the videoscope, fiberscope, rigid
endoscope or ultrasonic endoscope from the
patient’s body as indicated in the endoscope’s
instruction manual.
– In case of other irregularity:
Immediately stop operation of the monitor,
withdraw the videoscope, fiberscope, rigid
endoscope or ultrasonic endoscope from the patient
as indicated in the endoscope’s instruction manual.
• When installing this monitor on the mobile
workstation or a trolley with a clamping table, be sure
to provide the mobile workstation or trolley with a
toppling/movement prevention measure. If such a
measure is not taken, the mobile workstation or trolley
could move or fall during the procedure, which could
cause patient and/or operator injury.
• Before using high-frequency electrosurgical
equipment, make sure that any signal noise emitted
from the equipment does not affect the observation of
the surgical procedures. If high-frequency

____g
OEV262H
Important Information — Please Read Before Use
Important Information — Please Read Before Use
8
electrosurgical equipment is used without such
confirmation, patient injury may result.
• It is recommended that only Olympus high-frequency
electrosurgical equipment will be used with this unit.
Non-Olympus equipment can cause interference on
the monitor display or a loss of the endoscopic image.
• Always establish the system with equipment that
complies with relevant EMC standards for safety
reasons. Equipment that does not comply with EMC
standards may cause interference and its function or
performance may be affected.
• Electromagnetic interference may occur to this
monitorwhenitis placednear equipment marked with
the following symbol or other portable and mobile
communicationsequipment such as cellularphones.If
radio interference occurs, mitigation measures may be
necessary, such as reorienting or relocating this
monitor or shielding the location.
• Be sure that this monitor is not used adjacent to or
stacked with other equipment (other than the
components of this monitor or system) to avoid
electromagnetic interference.
• Do not use this monitor in any place where it may be
subject to strong electromagnetic radiation (for
example, in the vicinity of a microwave therapeutic
equipment, MRI, wireless set, short-wave therapeutic
equipment, cellular/portable phone, etc.). This may
impair the performance of this monitor.
• To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
• To reduce the risk of fire or electric shock, keep this
monitor away from all liquids. Use and store only in
locations which are not exposed to the risk of dripping
or splashing liquids, and do not place any liquid
containers on top of this monitor.
• Be sure to use option AC adapter listed in this
instruction manual. Do not use option AC adapter to
other devices. This monitor or option AC adapter will
cause failure.
• In case of this monitor’s failure or malfunction,
always keep another monitor in the room ready for
use.
• Strictly observe the following precautions for the
power cord. Damaging the power cord may result in
fire or an electric shock:
– When placing the power cord, take care that it isnot
crushed in the space between this monitor and a
wall, mobile workstation or a shelf.
– Do not modify or damage the power cord.
– Do not stretch or place a heavy object on the power
cord.
– Do not place the power cord near heating equipment
or expose it to excessive heat.
– Always grasp and pull the plug when unplugging
the power cord. Do not pull on the cord itself.
• Do not use this monitor beyond the rated outlets and
wiring, otherwise it may result in fire or an electrical
shock.
• Always use the power cord that was shipped with the
monitor or mobile workstation. Using other power
cords may result in an electric shock or malfunction.
• Confirm that the wall mains outlet or the mobile
workstation has adequate electrical capacity. Failure
to do so may cause fire or power fluctuation.
• Do not move the monitor while the power cord and
connection cables are connected. Otherwise, damage
to the monitor, power cord and connection cables, fire
or an electric shock may result.
• This monitor must be grounded.
• Use only a grounded wall mains outlet when
connecting the monitor. Failure to do so may cause an
electric shock or fire.
• Use of a power supply with insufficient electrical
capacities may cause malfunction of this monitor.
• Always power the monitor with the voltage specified
in this instruction manual. Supplying a nonspecified
voltage to the monitor may result in fire or an electric
shock.
• Be sure to connect the power plug securely.
Otherwise, this monitor will not function.
• To completelydisconnectthis monitorfromthepower
AC mains, disconnect the power cord plug from the
AC receptacle.
• The mains plug of the power supply cord shall remain
readily operable. The AC receptacle (mains socket
outlet) shall be installed near the equipment and shall
be easily accessible.
• To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
• No modification of this apparatus is allowed.
• To disconnect the main power, unplug the AC plug.
• Do not install the appliance in a confined space, such
as book case or built-in cabinet.
• Make sure the surface is wide enough so that this
apparatus’s width anddepthdon’texceed the surface’s
edges. If not, this apparatus may lean or fall over and
cause an injury.
• When installing the unit, incorporate a readily
accessible disconnect device in the fixed wiring, or
connect the power plug to an easily accessible socket
outlet near the unit. If a fault should occur during
operation of the unit, operate the disconnect device to
switch the power supply off, or disconnect the power
plug.
• Do not modify this equipment without authorization
of the MANUFACTURER.
• If this equipment is modified, appropriate inspection
and testing must be conducted to ensure continued
safe use of the equipment.
• To avoid risk of electric shock, this equipment must
only be connected to a supply mains with protective
earth.

____g
OEV262H
Important Information — Please Read Before Use 9
Important Information — Please Read Before Use
• This unit has been certified according to Standard
CAN/CSA-C22.2 No. 60601-1.
• Using this unit at a voltage other than 120 V may
require the use of a different line cord or attachment
plug, or both. To reduce the risk of fire or electric
shock, refer servicing to qualified service personnel.
For the customers in the U.S.A and Canada
• When you use this product connected to 240 V single
phase, be sure to connect this product to a center
tapped circuit.
Important safeguards/notices for use in the
medical environments
1.All the equipments connected to this unit shall be
certified according to standard IEC60601-1,
IEC60950-1, IEC60065 or other IEC/ISO standards
applicable to the equipments.
2.Furthermore all configurations shall comply with the
system standard IEC60601-1-1. Everybody who
connects additional equipment to the signal input part
or signal output part configures a medical system, and
is therefore responsible that the system complies with
the requirements of the system standard IEC60601-1-
1. If in doubt, consult the qualified service personnel.
3.The leakage current could increase when connected to
other equipment.
4.Forthisparticularequipment,allaccessoryequipment
connected as noted above must be connected to mains
via an additional isolation transformer conforming to
the construction requirements of IEC60601-1 and
providing at least Basic Insulation.
5.This equipment generates, uses, and can radiate radio
frequency energy. If it is not installed and used in
accordance with the instruction manual, it may cause
interference to other equipment. If this unit causes
interference (which can be determined by unplugging
the power cord from the unit), try these measures:
Relocate the unit with respect to the susceptible
equipment.
Plug this unit and the susceptible equipment into
different branch circuit. Consult your dealer.
(According to standard EN60601-1-2 and CISPR11,
Class A, Group 1)
6.Model OEV262H is a monitor intended for use in a
medical environment to displaypictures from cameras
or other systems, other than diagnostic X-ray
equipment.
WARNING on power connection
Use a proper power cord for your local power supply.
1.Use the approved Power Cord (3-core mains lead) /
Appliance Connector / Plug with earthing-contacts
that conforms to the safety regulations of each country
if applicable.
2.Use the Power Cord (3-core mains lead) / Appliance
Connector / Plug conforming to the proper ratings
(Voltage, Ampere).
If you have questions on the use of the above Power
Cord / Appliance Connector / Plug, please consult a
qualified service personnel.
WARNING on power connection for medical
use
• Please use the following power supply cord. With
connectors (plug or female) and cord types other than
thoseindicatedinthistable, use thepowersupplycord
that is approved for use in your area.
WARNING
• The use of accessories and cables other than those
specified may result in increased emissions or
decreased immunity of the OEV262H.
• If this monitor should be used adjacent to or stacked
with other equipment, it should be observed to verify
normal operation in the configuration in which it will
be used.
• Do not use this monitor whlie “Fan Error” appears on
the display. The fan for cooling this monitor is built in,
and operates when the temperature inside this monitor
is high. If the fan does not operate in spite of the
temperature inside this monitor is high, “Fan Error”is
displayed. Using this monitor after displaying “Fan
Error,” inside of this monitor is filled with heat, it may
cause fire.
CAUTION
• When installing or using this monitor, take care not to
strike against a corner of the monitor. Otherwise,
injury may result.
• Donotuse apointedor hard objecttopressthebuttons
on the front panel. This may damage the buttons.
• When installing the monitor, reserve a space of 10 cm
or larger between this monitor and any walls or other
equipment. Lack of such a space will interfere with
this monitor’s internal cooling and may lead to
malfunction or instrument damage.
• To maintain adequate ventilation, do not install or
place this unit in a bookcase, built-in cabinet or any
other confined space. To prevent risk of electric shock
or fire hazard due to overheating, ensure that curtains
and any other materials do not obstruct the ventilation.
• This monitor is heavy; care must be taken when
installingit.Otherwise,injuryto theinstaller(s)and/or
damage to the monitor may result.
• Ensure that this monitor is fixed firmly to the LCD
monitor mount. Otherwise, this monitor may drop and
cause injury to the operator or damage this monitor.
• Use a monitor mount with sufficient load resistance to
support the weight of this monitor. If this monitor
falls, patient or operator injury and/or equipment
damage may result.
• Check the fixing state of this monitor at least once a
year. If this monitor is fixed improperly, this monitor

____g
OEV262H
Important Information — Please Read Before Use
Important Information — Please Read Before Use
10
may drop and cause injury to the operator or damage
this monitor.
• Do not install this monitor on mobile workstations
other than those listed in this instruction manual.
Otherwise, the mobile workstation may tip, injury to
the operator or damage of this monitor/equipment on
the mobile workstation may result.
• This monitor should only be used with a specified
monitor stand. For information on suitable stands,
refer to “Specifications.” Installation of the monitor
on any other stand may result in instability, possibly
leading to injury.
• Do not install the monitor in a place exposed to direct
sunlight, high temperature (more than 60 °C).
Otherwise,it maydamagethecabinetorinternalparts,
result in fire.
• The cables should not be sharply bent, pulled, twisted
or crushed.
• Donotcleanthismonitorwithadisinfectantthatis not
specified with this instruction manual.
Otherwise the character and symbol of the label may
erase and misconnection or misoperation may occur.
• Alwaysusethemonitor cableslistedinthis instruction
manual. Using non-listed monitor cables may result in
monitornoiseat alevelthatmayaffectthe observation
and treatment or loss of observation image.
• Attach this monitor to the wall by a professional
companyonly. Otherwise,this monitormayfalldue to
improper attachment, and injury may result.
• Remove the wall-hanging bracket that is not used.
Otherwise, injury may result.
• This monitor is intended for use in an electromagnetic
environmentspecifiedin?EMC information?onpage
48.
• Do not try to lift the monitor by grabbing the panel.
• Do not expose the LCD panel to heavy pressure or
pressure from pointed objects. Take care especially
during transportation. Exposing the LCD panel to
heavy pressure may result in blurring or other damage.
• Do not move the monitor by grasping the switches on
the front panel. This method will cause damage to
switches on the front panel and break them.
• Do not clean terminals and AC inlets. Contact with
cleaning liquid may result in deformation or corrosion
leading to contact failure or equipment breakdown.
• Do not autoclave or gas sterilize the monitor. These
methods will damage it.
• Do not wipe the external surface with hard or abrasive
wiping material. The screen and the panels will be
scratched.
• When disposing of this monitor or any of its
components, follow all applicable national and local
laws and guidelines.
• When using an AC cord of the mobile workstation by
connecting multiple AC cords, avoid positioning the
connected portion of the AC cord in the moving part
of the LCD arm of the mobile workstation. It may
cause disconnection of the AC cord when the monitor
is moved.
• When using an optional AC adapter, do not place it in
an unstable position. It will cause failure and damage
it.
• When the mobile workstation moves, protect the
monitor from the scope hanger.
• When installing/removing this monitor to monitor
mount/stand,to avoiddamageto the connectorsonthe
back, placing on a desk with the bottom screen of the
monitor.
• Unplug the power cord if the monitor is not used for a
long time. Otherwise, it may result in fire.
• Remove the dust on the plug of the power cord
regularly. Otherwise, it may result in fire and electric
shock.
• Be sure to turn the monitor OFF and unplug the power
cord before proceeding to maintain the monitor. If the
power cord is left plugged in, an electric shock may
result.
• Exposing the LCD screen to intense light sources will
impair its characteristics and lower image quality.
• In an environment exposed to drastic temperature
fluctuations, condensation may build up on inside the
LCD screen. This may lower the quality of the screen
and may damage it.
• The apparatus shall not be exposed to dripping or
splashing. No objects filled with liquids, such as
vases, shall be placed on the apparatus.
• Consult with qualified personnel for mounting arm,
wall or ceiling mount installation.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
• When you dispose of the unit or accessories, you must
obey the laws in the relative area or country and the
regulations in the relative hospital.
• When using this equipment in domestic environments
and connected to the public mains network,
electromagnetic interference with other devices may
occur. If electromagnetic interference occurs,
mitigation measures may be necessary, such as
reorienting or relocating this equipment, or shielding
the location.
NOTE
• The response speed and brightness of liquid crystal
varies with ambient temperatures.
• Some video images may appear blurred on the screen.

____g
OEV262H
Important Information — Please Read Before Use 11
Important Information — Please Read Before Use
• Leaving the unit in a location exposed to high
temperature and humidity for an extended period of
time may damage the LCD screen and cause blurring.
• This monitor may become hot after an extended
period of operation, but this does not indicate a
malfunction.
• High-frequency electrosurgical equipment can cause
slight interference on the monitor display.
For the customers in U.S.A.
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of part 15 of FCC Rules.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
For the customers in Canada
CAN ICES-3 (A)/NMB-3(A)

____
OEV262H
1. Features
1
1.1 Features
12
1.1 Features
Compliance with medical safety
standards in U.S.A., Canada and Europe
IEC 60601-1 and product safety standards in the U.S.A.,
Canada and Europe have been obtained for this monitor.
The monitor is designed for use in medical treatment,
with the sheet switch, screen protect panel, etc.
Fully digital 10-bit signal processing circuit
As well as digital signals, all signals including analog
signals are converted into digital signals. All signals are
processed using a fully digital 10-bit processing circuit
so that an image is produced in smooth gradation
without any deterioration of quality.
Two color systems available
The monitor can display NTSC and PAL signals by
connecting this unit.
High image-quality/high-resolution Full HD
panel
A Full HD high-resolution (1920 × 1080dots) panel and
high brightness/ultra-wide field of view technology
enable you to use the monitor under various lighting
conditions and in numerous ways (installing on wall,
using several monitors to view an image, and so on.).
Because a color filter with wide-color reproduction and
LCD materials with high response speed are used, the
motion picture of the video signal is displayed more
clearly.
This monitor also performs sampling of signals at high
frequencies and provides a high resolution during the
RGB or component signal input.
Input
The monitor has the variety of input connectors and is
compatible with the various types of signal.
Input connectors
COMPOSITE input connector × 1
Y/C input connector × 1
HD15 input connector (RGB/COMPONENT
compatible) × 1
SDI input connector (3G/HD/SD compatible) × 2
DVI input connector (DVI-D/ANALOG RGB) × 2
Compatible signals
Analog signal/Digital signal/Analog PC signal VESA
(DMT)/Analog PC signal VESA (CVT)/Digital PC
signal/X-ray equipment signal
* For details of the compatible signals for each
connector, see ?Available signal formats? (page 44).
You can set the Color Temperature, Gamma, Scan Size,
Mono, Phase, Chroma, Brightness, Contrast, Sharpness,
A.I.M.E., Input Name, Input Skip, Flip Pattern, RGB
Range, RGB/YPbPr, Sync Detect, ACC, CTI, NTSC
Setup, and SD Aspect settings for each connector.
* Depending on the input connector, some items
cannot be set. For details of the setup items, see?2.2
Input Signals and Adjustable/Setting Items?
(page 16).
Output
Themonitorhas output connectors that are equivalent of
the input connectors, and outputs the corresponding
signal.
Output connectors
COMPOSITE output connector × 1
Y/C output connector × 1
HD15 output connector (RGB/COMPONENT
compatible) × 1
SDI output connector (3G/HD/SD compatible) × 2
DVI output connector (DVI-D (does not support
HDCP)/ANALOG RGB) × 2
Dedicated output for the recording equipment
(CLONE OUT connector)
The monitor can output pictures that appear on the
display to the second or third monitor, or recording
equipment, from the recording equipment output
connector (HD-SDI, 3G-SDI). Pictures are output in the
preset format, regardless of the type of input signal or
format. When displaying the Flip, you can select the
picture for output (Flip picture or upright picture).
* For details of the output setting, see page 30.
1. Features

____
OEV262H
1. Features
1
1.1 Features 13
Functions
Scan size switching function
You can set the desired scan size suited for aspect ratio
and resolution of the input signal to watch in full screen
during intraoperative monitoring.
Even when the optimal setting value is different,
depending on the modality, the monitor can select the
optimal scan size according to the input.
Select color temperature and gamma mode
You can select from two color temperature settings
(“D65,” “D93”), or seven gamma settings
(“Endoscope,” “1.8,” “2.0,” “2.2,” “2.4,” “2.6,”
“DICOM”), depending on your preferences and usage.
You can also adjust the color temperature in R/G/B.
Backlight brightness adjustment
You can select a suitable brightness setting for each
room, since lighting conditions differ, depending on the
facility or usage.
PIP/POP display
You can previously assign pictures for multi-image
display to the input connectors. By pressing the PIP/
POP button, you can easily display the pictures that are
input from the assigned input connectors in a multi-
image display.
Invert view function
The monitor has the mirror image reversal and 180
degrees rotation function that allows you to match the
vertical direction between surgeon perspective and
endoscope.
Power saving function
You can reduce the power consumption by lowering the
backlight brightness (such as when using the monitor in
a dark room).
A.I.M.E. function
This function enables sharper images by adjusting color
and contrast. You can select the mode best suited for the
resolution of the equipment used.
Sleep function
The monitor enters into power saving mode when the
specified conditions are met, and the monitor returns to
the normal status when a signal is input. This reduces
power consumption.
Select language display
You can select the display language from English,
French, German, Spanish, Italian, and Japanese.
Control Lock function
You can use the Control Lock function to prevent
malfunction.
User memory function
You can save up to 20 settings for a picture and label
those settings with a name.
External remote function
The input signal is selected or various items are adjusted
by using GPIO. You can connect this unit to the monitor
by the serial remote connection (RS-232C) and control
it remotely.
Control panel
Functionsthatareoperatedfrequentlycanbeassignedto
buttons on the front panel of the monitor. The monitor
has usable interface for operation by the navigation by
the emitting color and status of the button.
* A.I.M.E. is a registered trademark of Sony
Corporation.

____
OEV262H
2. Location and Function of Parts and Controls
2
2.1 Front Panel
14
2.1 Front Panel
aTally lamp
The tally lamp lights in green according to the setting of
PARALLEL REMOTE in the REMOTE menu.
bDISPLAY button
Press to display the buttons on the front panel. Press
again to clear.
cPower indicator
When the power is turned on, the power indicator lights
in green.
dOSD menu operation buttons
Displays or sets the on-screen menu.
MENU button
Press to display the on-screen menu.
Press again to clear the menu.
v/Vbuttons
Press to select the items.
b/Bbuttons
Press to select the items and setting values.
eCUSTOM button
Turns on or off the assigned function. You can adjustthe
assigned function by pressing the b/B buttons.
The following functions are assigned in the default
setting.
CUSTOM 1: Contrast
CUSTOM 2: Brightness
You can assign the following functions by using the
Custom Button setting in the System Configuration or
Initial Setup menu (pages 31, 32).
Scan Size, Flip, POP Sub Screen Position, APA,
Gamma, Mono, Phase, Chroma, Brightness, Contrast
fA.I.M.E. button
Adjusts the A.I.M.E. setting by pressing the b/B buttons.
gMulti-image display setting buttons
Press to display the multi-image display or switch the
multi-image display mode.
PIP/POP: For displaying the multi-image display or
switching the multi-image display mode.
SWAP: For swapping between the main display and
the sub display.
2. Location and Function of Parts and Controls

____
OEV262H
2. Location and Function of Parts and Controls
2
2.1 Front Panel 15
hInput select buttons
Press the button to monitor the signal input to each
connector.
PORT A: Press to monitor the signal assigned to
PORT A.
PORT B: Press to monitor the signal assigned to
PORT B.
AUXIN:Pressto monitorthe signalthroughthe AUX
IN input connector.

____
OEV262H
2. Location and Function of Parts and Controls
2
2.2 Input Signals and Adjustable/Setting Items
16
2.2 Input Signals and Adjustable/Setting Items
a: Can be adjusted/set
×: Cannot be adjusted/set
*1 SD aspect is reflected to the screen only when the SD signal is input.
*2 The setting value can be changed but is not applied to the screen when the PC signal is input.
*3 The setting value can be changed but is not applied to the screen when the analog PC signal is input.
*4 Sync Detect can be switched but is not applied when the HD15/DVI or analog PC signal is input.
*5 The setting value can be changed but is not applied to the screen when the DVI or analog PC signal is input.
Input signal
Item Composite YC
(See page 44.) HD15 DVI SDI (See
page 44.)
Video,
Y/C B & W Video (See page 44.) PC (See
page 45.)
RGB
video
(See
page 44.)
PC (See page 45.)
Component RGB Digital Digital Analog
Contrast aaaaaaaaa
Brightness aaaaaaaaa
Chroma a×aaaaaaa
Phase a×aaaaaaa
ColorTemperatureaaaaaaaaa
ACC a××××××××
CTI a××××××××
SharpnessV aaaaaaaaa
SharpnessH aaaaaaaaa
NTSC Setup a
(NTSC) a (480/60I) ×××××××
•SDScanSize
• HD Scan Size aaaa×*
2a×* 2×*2a
Gamma aaaaaaaaa
SD Aspect a a a*1a*1×*1a*1×*1×*1a*1
Mono a×aaaaaaa
APA ××××a××a×
Shift H/Shift V × × ×*3×*3a×*
3×*3a×
Dot Pitch × × ×*3×*3a×*
3×*3a×
Dot Phase × × ×*3×*3a×*
3×*3a×
Sync Detect × × a a ×*4××××
RGBRange ×××××aa×*
5×
A.I.M.E. aaaaaaaaa
FlipPattern aaaaaaaaa

____
OEV262H
2. Location and Function of Parts and Controls
2
2.3 Rear Panel 17
2.3 Rear Panel
aAC IN socket
For the supplied AC power cord.
bDC 5V/24V IN connector
For the DC connector of the optional AC adapter.
cCOMPOSITE input/output connector (BNC)
IN connector
Input connector for composite signals.
OUT connector
Loop-through output connector.
dY/C input/output connector (4-pin mini-DIN)
IN connector
Input connector for Y/C signals.
OUT connector
Active through output connector.
CAUTION
• A signal is output from the OUT connector only when
the monitor is turned on. When the monitor is turned
off, the signal is not output from the OUT connector.
• Be sure to connect the equipmentor cable specifiedby
this operating instructions to the OUT connector. If
you connect the equipment or cable that is not
specified by this operating instructions to the OUT
connector, the monitor may affect the operation of the
connected equipment.
eHD15 input/output connector (D-sub 15-pin,
female)
The Plug & Play function corresponds to DDC2B.
IN connector
Input connector for HD15 signals.
OUT connector
Active through output connector.
CAUTION
• A signal is output from the OUT connector only when
the monitor is turned on. When the monitor is turned
off, the signal is not output from the OUT connector.
• Besuretoconnect the equipment or cable specified by
this operating instructions to the OUT connector. If
you connect the equipment or cable that is not
specified by this operating instructions to the OUT
connector, the monitor may affect the operation of the
connected equipment.
fSERIAL REMOTE RS-232C connector (D-sub
9-pin, female)
Connect to the RS-232C control connector on external
equipmentconnected to the monitor. The monitor canbe
operated according to control commands sent from
connected external equipment.
qf

____
OEV262H
2. Location and Function of Parts and Controls
2
2.3 Rear Panel
18
gPARALLEL REMOTE connector (modular
connector, 8-pin)
Controls the monitor externally using a parallel remote
signal.
For details on the pin assignment and factory setting
function assigned to each pin, see page 44.
CAUTION
For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port. Refer to the instructions for this port.
hAUX IN connector (SDI, BNC type), CLONE
OUT connector (SDI, BNC type)
IN connector (AUX in)
Input connector for serial digital component signals of
the external equipment.
OUT connector (Clone out)
Active through output connector for serial digital
component signals of the external equipment.
Outputs the displayed picture on the panel as an SDI
signal.
CAUTION
• A signal is output from the OUT connector only when
the monitor is turned on. When the monitor is turned
off, the signal is not output from the OUT connector.
• Besuretoconnect the equipment or cable specified by
this operating instructions to the OUT connector. If
you connect the equipment or cable that is not
specified by this operating instructions to the OUT
connector, the monitor may affect the operation of the
connected equipment.
• Connect recorded output from recording devices to
the AUX in terminal. If connected to other input
terminals, image loop will happen when the input
terminal is selected as displayed image on the monitor.
• WhenselectingAUX interminalondisplay,Cloneout
will cut the signal output to avoid video loop. When
the sub monitor is connected to Clone out, the
displayed image will turn to black in this case. When
the recording device is connected to Clone out, the
recorded file will be divided depending on the model.
Please be careful about this specification of AUX in
and Clone out.
• When AUX in terminal is selected to displayed signal,
the monitor cut the signal of Clone out. But it is not a
failure.
iDVI input/output connector (DVI-I)
[1] IN connector, [2] IN connector
InputDVIRev.1.0applicabledigitalsignal,analogRGB
signal (0.7 Vp-p, positive), or sync signal (HV SYNC).
[1] OUT connector, [2] OUT connector
Active through output connector.
Output DVI digital signal, analog RGB signal, or sync
signal (HV SYNC).
CAUTION
• A signal is output from the OUT connector only when
the monitor is turned on. When the monitor is turned
off, the signal is not output from the OUT connector.
• Be sure to connect the equipment or cable specified by
this operating instructions to the OUT connector. If
you connect the equipment or cable that is not
specified by this operating instructions to the OUT
connector, the monitor may affect the operation of the
connected equipment.
jSDI input/output connector (BNC type)
[1] IN connector, [2] IN connector
Input connector for serial digital component signals.
[1] OUT connector, [2] OUT connector
Active through output connector for serial digital
component signals.
CAUTION
• A signal is output from the OUT connector only when
the monitor is turned on. When the monitor is turned
off, the signal is not output from the OUT connector.
• Be sure to connect the equipment or cable specified by
this operating instructions to the OUT connector. If
you connect the equipment or cable that is not
specified by this operating instructions to the OUT
connector, the monitor may affect the operation of the
connected equipment.
k/I(Equipotential/Function Earth) terminal
(equipotential) terminal
Connects the equipotential plug.
I (function earth) terminal
Connects the earth cable.
l/ (power) switch
The power is turned on or off.
The monitor is turned on by pressing the side button .
m5 V OUT connector
Outputs 5 volts for connected external equipment.
nScrew hole for fixing an AC power cord
Use for fixing an AC power cord of a work station by
using the supplied cord holder.

____
OEV262H
3. Installation and Connection
3
3.1 Installing the monitor / 3.2 Connecting the AC Power Cord 19
3.1 Installing the
monitor
Installation on a mobile workstation
When using a LCD monitor mount, prepare a 100 × 200
mm or 100 × 100 mm monitor mount that complies with
VESA mount standards.
Fix the monitor onto a 100 × 200 mm monitor mount
using the six screws provided. Or fix the monitor onto a
100 × 100 mm monitor mount using the four screws
provided. For installation procedures, refer to the
instruction manual for the monitor mount.
1 Align the LCD monitor mounting screw holes on
the rear of the instrument with the mounting screw
holes on the LCD monitor mount (see upper
figure).
2 Fix the monitor onto the LCD monitor mount using
the six screws provided with the monitor.
CAUTION
•Use a 100 × 100 mm screw hole to fix this monitor to the
VESA mount. If using a 100 × 200 mm screw hole to fix
this monitor to the VESA mount, it may fall.
• If a trolley other than the mobile workstation (WM-NP2,
WM-DP2, WM-NP1, WM-WP1, or WM-DP1) is used,
confirm that the trolley can withstand the weight of the
equipment installed on it.
3.2 Connecting the AC
Power Cord
Connect the supplied AC power cord as illustrated.
NOTE
Avoid plugging the AC power cord into the AC IN
socket while connecting the optional Sony’s AC adapter
(AC-110MD) to the DC IN connector.
3. Installation and Connection
100 × 100 mm
Screw hole for attaching LCD arm
(for VESA)
100 × 200 mm
Screw hole for attaching LCD arm
(for WVESA)

____
OEV262H
3. Installation and Connection
3
3.2 Connecting the AC Power Cord
20
When the mobile workstation (WM-NP2, WM-DP2, WM-NP1, WM-WP1, and
WM-DP1) is used
1 Place the mobile workstation on level surface. Lock the caster brakes by pushing them down.
2 Confirm that the monitor is OFF.
3 Connect the power cord provided with the mobile workstation to the AC power inlet of the monitor and the power
socket of the mobile workstation.
AC IN
Mobile workstation
Power cord of the mobile workstation
Power socket Power cord provided with the mobile workstation
to the wall mains outlet
OEV262H
Caster
Engaging the caster
brakes Releasing the caster brakes
Caster brake
m
