Omcan BS-VE-3200-SS User manual

Bandsaw
Model BS-VE-3200-SS
Item 45979
Instruction Manual
Revised - 11/21/2023
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6 - 7
----------------------------------------------------------------------------------------- 7
----------------------------------------------------------------------------- 8 - 17
---------------------------------------------------------------------------- 18
---------------------------------------------------------------------------- 19
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Parts Breakdown
Electrical Schematics
Warranty Registration
Model BS-VE-3200-SS

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
IMPORTANT NOTES
When the upper door is opened where the upper cylindrical ywheel is located, this door is constantly pressing
an upper micro switch which goes from NC (normally closed) to NO (normally open), whereby the engine of the
machine stops immediately.
When the lower door is opened where the lower conical ywheel is located, this door is constantly pressing a
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
General Information

5
Safety and Warranty
lower micro switch which goes from NC (normally closed) to NO (normally open) so the machine motor stops
immediately.
As an extreme precaution, the emergency button should be pressed to carry out cleaning, maintenance, meat
thickness supervision work.
RESIDENTIAL USERS: vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
A band saw is a machine for cutting bones and cutting meat that is very necessary in butchers,
slaughterhouses and delicatessens as they e󰀨ortlessly and very cleanly cut large bones and pieces of meat.
These saws are also widely used in industrial kitchens as well as in hotels and restaurants.
These meat and bone cutting machines o󰀨er excellent performance when working with them in addition to the
security that is needed for the person who is working with them, do not su󰀨er any mishap or run the risk of
accidentally cutting themselves.
With this meat cutting saw you can regulate the thickness of the piece to be cut as well as a tray that slides to
be able to remove the pieces already cut in a practical and safe way.
In addition, the waste obtained with this meat saw can be removed very easily thanks to the box it has.
Using this electric saw to cut meat in the correct and proper way will provide good quality, safe and hygienic
cuts. In addition, its butcher’s saw blade can cut any type of bone or meat with amazing ease.
GENERAL TIPS
It is necessary to pay attention to a series of tips to correctly use this saw to cut bone and meat that, in addition
to facilitating this task, will give the security that is needed when operating with it.
It is essential to wear protective gloves whenever it is going to be used. They have to be adapted to the food
industry, as well as provided with protection against cuts. The use of metal mesh gloves is prohibited as there
Operation
Model BS-VE-3200-SS
Blade Length 126” / 3200mm
Blade Saw Dimensions 0.8” x 12.6” / 20 x 320mm
Cutting Capacity 15” x 18” / 381 x 457mm
Cutting Table Sliding
Power 3 HP / 2237 W
Electrical 220V / 60Hz / 3
Weight 418.9 lbs. / 190 kgs.
Dimensions 41.4” x 36” x 75.6” / 1052 x 914 x 1920mm
Packaging Weight 525 lbs. / 238.1 kgs.
Packaging Dimensions 48” x 40” x 84” / 1219 x 1016 x 2134mm
Item Number 45979
Technical Specications

7
is a risk of them catching on the tape.
Before starting to use the butcher bone cutter, carefully read the instructions given by the manufacturer
regarding the limits of the thickness, hardness and size of the elements of this machine, which by the way, only
you can use to cut the materials indicated in the instructions.
When making the cut, do not push the saw blade to the piece to be cut. It must be the blade that moves by
itself through the meat or bone with the help of light pressure. Forcing the cut too much can cause the saw
blade to break.
HOW TO CLEAN
One of the most important steps for the proper functioning of a band butcher saw is cleaning it. The continuous
cutting of materials creates waste that can accumulate in the spaces of the machine.
A handheld vacuum cleaner can be used to remove the remains of the pieces that have been cut on the band
saw, or even special brushes for this.
It is important to check each corner and space to make sure that everything is very clean, especially the gap in
which the saw crosses, since many debris accumulate there. It is advisable to do this every time the cutter is
used.
MAINTENANCE
To keep the band saw ready to work at all times and to ensure that its life is longer, it is necessary to carry out
periodic inspections in addition to maintaining its good conservation.
To keep the saw in the correct position and to ensure smooth and clean cuts, the positioning of its guides
should be checked. To do this, check that they are only touching the body of the saw. If they have lost
thickness or are too tight, they will have to be changed or added some sheets that can compensate for wear.
This will make precise cuts.
Another part that must be taken care of to ensure that the band saw does its job well is aligning the ywheels,
which are responsible for supporting the main body of the machine. You have to achieve equality between
the two so that they hold and keep the band saw in place. The tools that are in charge of holding the piece to
be cut are the dams and they have to remain with a level of rmness and correct adjustment. In this way the
material will stay in place, so its correct maintenance is also essential.
Operation
Maintenance

8

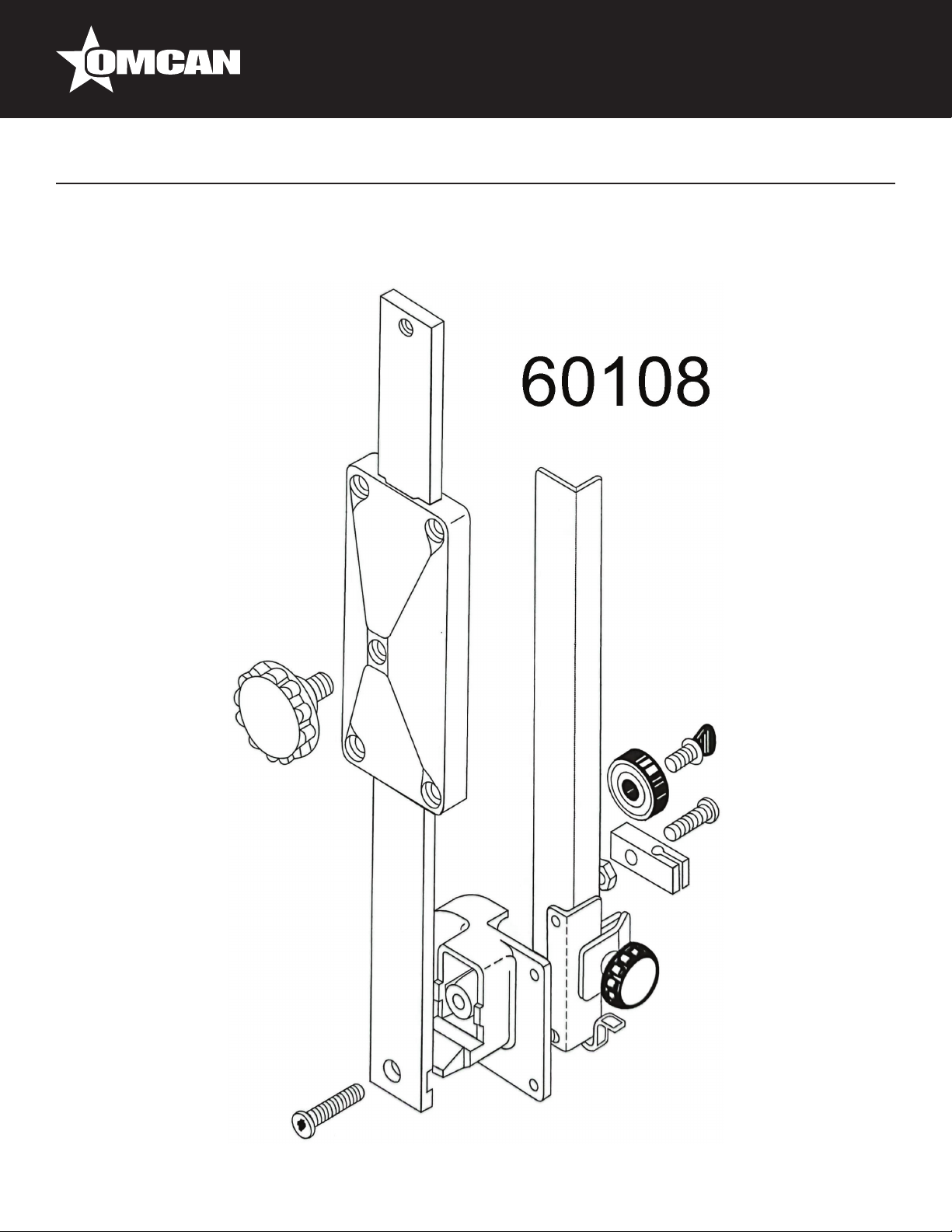

Parts Breakdown
Model BS-VE-3200-SS 45979

9
Parts Breakdown
Model BS-VE-3200-SS 45979

10
Parts Breakdown
Model BS-VE-3200-SS 45979

11
Parts Breakdown
Model BS-VE-3200-SS 45979

12
Parts Breakdown
Model BS-VE-3200-SS 45979

13
Parts Breakdown
Model BS-VE-3200-SS 45979

14
Parts Breakdown
Model BS-VE-3200-SS 45979

15
Parts Breakdown
Model BS-VE-3200-SS 45979

16
Parts Breakdown
Model BS-VE-3200-SS 45979

17
Parts Breakdown
Model BS-VE-3200-SS 45979
Item No. Description Position Item No. Description Position Item No. Description Position
62061 Long Door Hinge for 45979 60014 AO952 Aluminum Guide for 45979 60117 40168 Seal Model 30 to 36 for 45979 60217
AO935 Collection Tray for 45979 60026AT 64594 Nylon Guide for 45979 60120 64566 Aluminum Support for 45979 60222
AO936 Collection Tray for 45979 60028HI 64586 Fork for 45979 60122 64574 Flywheel Front Cover for 45979 60230
AO937 Base with Steel or Iron Facial Roller
for 45979 60029AT 64578 Cleaning Strap for 45979 60125 AO964 Front Cover for Steering Wheel for 45979 60230AT
AO938 Iron Base for Motor for 45979 60031AT 64579 Scraper for 45979 60126 AO965 Hinge for 45979 60245
AO939 Iron Base for Motor for 45979 60035HI AO953 Single Handle for 45979 60128AT AO966 Sealed Steering Wheel Cover for 45979 60246AT
AO940 Belt for 45979 60060 AO954 Single Handle for 45979 60130HI 64570 Tension Screw for 45979 60249
64592 Upper Steel Guide for 45979 60061 AO955 Complete Box + Start & Stop Button
for 45979 60134 AO967 Back Cover for Waiter for 45979 60251AT
62184 Spacer for 45979 60062 17710 Clip for 45979 60139 AO968 Green Button for 45979 60253
64583 Lower Shaft of Mozo for 45979 60065 AO956 Iron Pin for 45979 60141AT AO969 Red Button for 45979 60254
AO941 Cart Wheel Axle for 45979 60075AT AO957 Iron Pin for 45979 60143HI 62143 Screw for Roller Port Guide for 45979 60255
AO942 Switch for 45979 60076 64571 Front Knob for 45979 60151 AJ915 Screw for 45979 60257
AO943 Cart Wheel Axle for 45979 60079HI 16869 Knob for 45979 60153 62197 Complete Car Iron Wheel for 45979 60259
AO944 Upper Steering Wheel Axle for 45979 60083 64569 Front Platinum for 45979 60160 AO970 Graduation Screw for Top Steering
Wheel for 45979 60263
AO945 Iron Squares for 45979 60086AT AO958 Plate to Hold the Steering Wheel Wiper
for 45979 60163 AO971 Screw to Tension the Motor for 45979 60269AT
AO946 Micro Switch for 45979 60089 62203 Motor Pulley for 45979 60169 64564 Lower Flywheel for 45979 60275
AO947 Iron Squares for 45979 60090 61399 Roller Door for Complete Guide for 45979 60171 AO972 Screw to Tension the Motor for 45979 60278
AO948 Aluminum Flank for 45979 60098T.AT 64190 Complete Guide Door for 45979 60172 AO973 Upper Flywheel with Built-in Axle for
45979 60281
AO949 Aluminum Flank for 45979 60099T.HI AO959 Tape Protector for 45979 60174 64577 Upper Flywheel for 45979 60291
62066 Aluminum Front for 45979 60105 62173 Motor Tension Screw for 45979 60189 64580 Trapezoidal Flywheel for 45979 60299
AO950 Full Front for 45979 60108 AO960 Seal for Upper Shaft for 45979 60192 62151 Motor Base Rubber for 45979 60300
64563 Door Hook for 45979 60112 AO961 Seal for Upper Shaft for 45979 60193 AJ570 Rubber Stopper for 45979 60301
15587 Fluted Guide for 45979 60113 AO962 6200 Belt Roller for 45979 60203 AO974 Base with Steel or Iron Facial Roller
for 45979 60317HI
AO951 Grooved Guide for Fork for 45979 60114HI AO963 Roller Bearing 6206 for Upper Steering
Wheel for 45979 60205 AO975 Push Button Case Only for 45979 60353
64593 Lower Steel Guide for 45979 60115 64815 Complete Grooved Wheel for 45979 60208
64592 Upper Steel Guide for 45979 60116 62194 Complete Flat Wheel for 45979 60212

18
Electrical Schematics
Model BS-VE-3200-SS 45979

19
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 6,500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 6500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 6,500 productos con origen a nivel mundial.
