Omcan Elite Series User manual

Revised - 01/20/2022
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Bandsaw
Model BS-BR-1880
Item 10274
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
-------------------------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6 - 7
------------------------------------------------------------------------------------- 7 - 8
------------------------------------------------------------------------------ 9 - 11
---------------------------------------------------------------------------- 12
------------------------------------------------------------------------------------------- 13 - 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Parts Breakdown

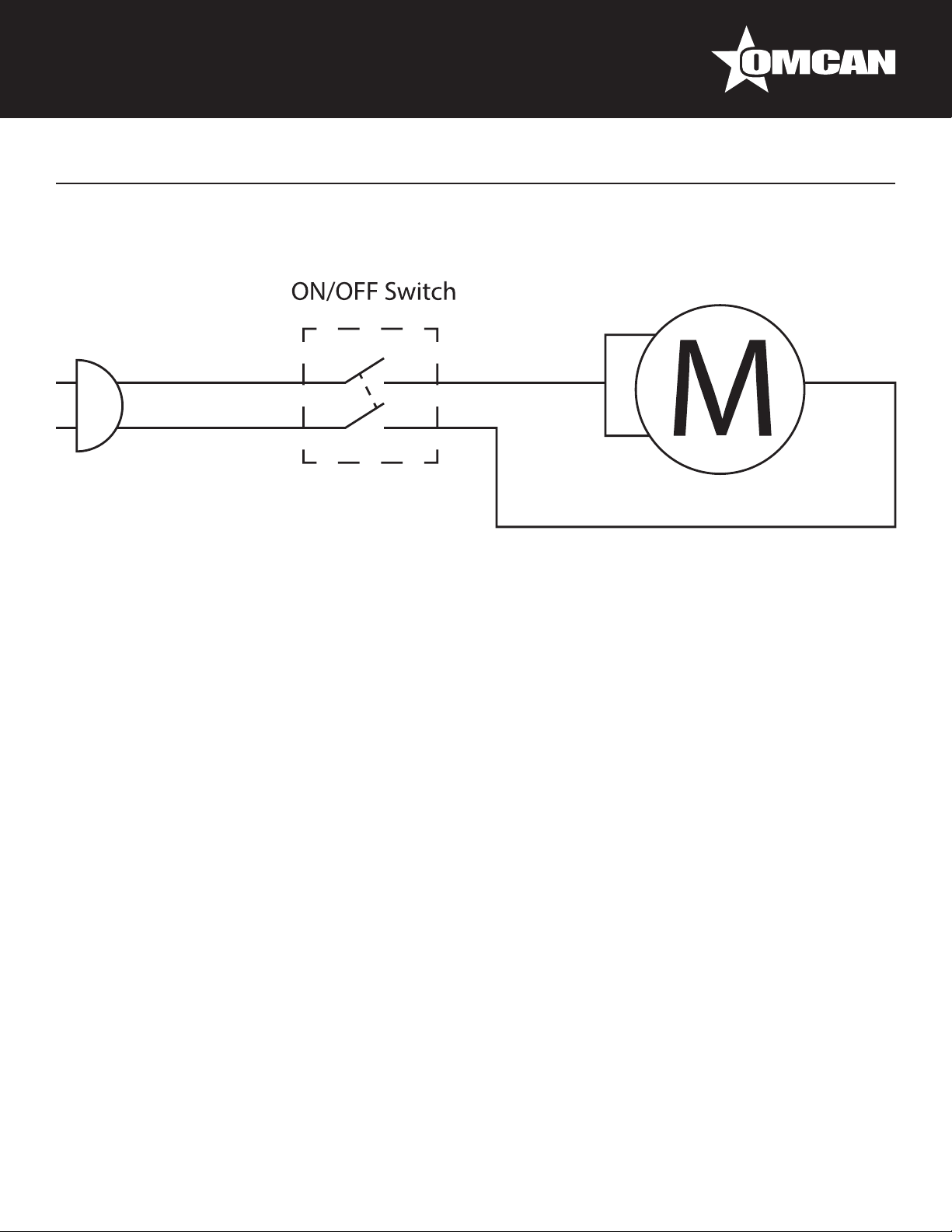

Electrical Schematics
Notes
Warranty Registration
Model BS-BR-1880

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
CAUTION - NOT MEANT FOR FROZEN PRODUCT
MAIN PRECAUTIONS
When incorrectly used, a bandsaw can be a potentially dangerous machine. Cleaning, maintenance or service
must always be done by experienced operators, and with the machine disconnected from the electricity supply.
General Information
Safety and Warranty

5
Safety and Warranty
• NEVER use tools not belonging to the machine to help operation.
• KEEP hands off the moving parts of the machine.
• NEVER connect the power source with wet hands or wet clothes.
• ALWAYS ground the machine properly.
• NEVER touch the blade even when it is not in use because its edge is very sharp, it can cause serious
cuttings.
• NEVER adjust the cutting regulator (optional) with the blade in motion.
• NEVER use clothes with loosen sleeves specially near the wrist during the cutting operation.
• USE steel gloves during the cutting operation.
• NEVER switch on the machine with one of its doors opened.
• NEVER spray water or other liquid substances directly at motor, power switch or any other electrical
components.
• KEEP your working area clean and dry to prevent it from becoming slippery.
• ALWAYS install equipment in working area with adequate light and space away from CHILDREN and
visitors.
• NEVER operate without all warning labels attached and owner/operator manual available to operator.
• NEVER leave unattended while operating.
• STOP the machine immediately if you hear abnormal noises, of fear that injuries may occur.
• CONTACT your Distributor if you have any problems with the installation and operation of this machine.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
Installation
Operation
The mini bandsaws have to be installed on a working surface with a recommended height of 850mm. The
surface length should be 120cm (with cutting regulator) or 70cm (without cutting regulator).
Grounding wire must always be connected.
IMPORTANT: Check the tension of the blade by turning the handle clockwise before operating it.
BEFORE OPERATION
Check if the machine is rm, no movement is allowed on the supporting surface. Wash with warm water and
soap all the food-contact parts, and wipe dry. To do it proceed as follows:
1. First of all switch the machine off and disconnect it from the power source.
2. Open the upper door and lower door by pulling the handle.
3. Loosen the blade turning the handle or calibrator (optional) clockwise and take it out from the upper and
lower wheels.
4. Take out the staples which are in front of the upper and lower wheels to be able to pull them out.
5. Assemble the components following the inverse steps.
IMPORTANT: The blade must be well calibrated. Use the handle turning it clockwise to get the right
tension of the blade. Keep the machine off to adjust the cutting regulator.
Technical Specications
Model BS-BR-1880
Blade Length 74” / 1880mm
Cutting Capacity 10” x 8.5” / 254 x 216mm
Power 0.5 HP / 0.37 kW
Electrical 110V / 60Hz / 1
Weight 77 lbs. / 35 kgs.
Packaging Weight 131 lbs. / 59 kgs.
Dimensions 19.7” x 25.2” x 38.6” / 500 x 640 x 980mm
Packaging Dimensions 32” x 27” x 42” / 813 x 686 x 1067mm
Item Number 10274

7
Operation
Maintenance
OPERATION
Switch on the machine pressing the on/off switch.
Put the product to be processed onto the xed table or onto the movable table (optional), pushing it to the
direction of the blade lined up by the cutting regulator (optional), maintaining the thickness of the slice desired.
When pulling back the product do not touch the blade avoiding disconnecting it from the wheels.
COMPONENTS ADJUSTMENT
PULLEY BELT
• The belt must be rmly xed to prevent it from skidding. Do not tighten it too much because it can wear out
quickly.
• To have access to the belt remove the screws with a screwdriver from the inferior back lid and take it out.
• With a screw-wrench loosen the screws turning it counter-clockwise. To stretch out the belt you have to
push the motor with the wood lever tightening the screws.
IMPORTANT: The pulleys must be lined up.
UPPER BEARING ADJUSTMENTS
• The purpose of this adjustment is to centralize the blade on the gear and avoid it falling down.
• First of all disconnect the machine from the electricity supply. Then loosen blade turning handle counter-
clockwise.
• Take out upper back lid by removing screws using the screwdriver. Loosen the three screw-nuts using a
10mm screw-wrench.
• Using the screwdriver turn the screw-nut ¼ counter-clockwise if the wheel is inclined towards the front or
turn it ¼ clockwise if it is inclined backwards. Tighten the three screw-nut previously loosen. Calibrate the
blade according to pre-operation.
• Turn the wheels manually to check if the blade is centralized, if it is not keep turning the wheels until the
blade is centralized.
CUTTING REGULATOR
• The cutting regulator (optional) was designed to provide cuts with the same thickness and also to protect
the operator from getting injured.
• To adjust the cutting regulator proceed as follows:
Turn locking knob counter-clockwise to be able to move the cutting regulator to the left and right according
to the distance you want to leave from it to the blade.
• Then turn the locking knob clockwise to x the cutting regulator in the desired position.

8
Maintenance
CLEANING
First of all disconnect the machine from power source.
• Remove the upper door by unscrewing the screws of the hinges.
• Remove the lower door doing as above.
• Remove the blade by turning blade calibrator knob counter-clockwise, then loosen the blade and pull it out.
• Take out upper and lower wheels by pulling staples out, which are located in front of the wheels.
• Never use hard tools such as: knives, forks, hooks, or others to remove stuck pieces of cut meat from the
upper and lower doors. To do that use a plastic brush.
• Assemble the components following the inverse steps.
NOTE: The sharp edge of the blade must be facing the front of the machine.
All removable components must be washed with warm water and neutral soap. Be careful when washing the
blade. It has a sharp edge that could cause serious irreparable injuries to the hands.
CAUTION: The machine is not protected against water jets. Do not clean it with steam jets, or high
pressure blasts or similar methods. Under no circumstances should the bandsaw be hose rinsed as
this may result in short circuit or serious damage to the machine.
Clean the body of the machine with a damp clean cloth and wipe dry.

9
Parts Breakdown
Model BS-BR-1880 10274
Optional Trim Regulator
Optional Mobile Table
Complete Upper Bearing
Complete Lower Bearing
Blade Gauge
Complete Scraper Optional
Optional Meat Pusher

10
Parts Breakdown
Model BS-BR-1880 10274
Item No. Description Position Item No. Description Position Item No. Description Position
AF877 Shaft Retainer Ring 20x1.2 DIN 471
for 10274 00105.8 38458 Large Rubber Ring for 10274 10975.4 38444 Driven Pulley for 10274 12972.0
69355 Helmet K22 (T-50R) (Half) (Comp) for
10274 00210.0 38487 Spring Diam.16x27 12500603 for 10274 12305.6 38443 Flange (Branco) for 10274 12974.7
16396 Ball Bearing 6204 Z for 10274 00238.0 38485 Threaded Pin SK/L for 10274 12306.4 38449 PFS M8x20 DIN 965 ZB for 10274 12976.3
38255 Pedal Caps 20x20 for 10274 00369.7 38492 Body SK/SKL for 10274 12307.2 38447 Bearing Plate (White) for 10274 12978.0
38417 Hinges 2” for 10274 00419.7 38426 SK/SKL Divider for 10274 12320.0 38445 Lower Shaft for 10274 12979.8
21836 Clip for 10274 00435.9 38451 Parafuso C/Zinc for 10274 12321.8 20454 Table Guide for 10274 12981.0
38453 Motor Pulley (Primer) for 10274 00447.2 38207 Washer.L.A10.5 DIN 125 Stainless Steel
for 10274 12347.1 38420 Reinforcement L (White) for 10274 12982.8
38112 Screw 1 4x5 8 for 10274 00544.4 38489 Nut M10 DIN 934 Stainless Steel for
10274 12350.1 38430 Reinforcement (White) for 10274 12984.4
38502 Seal 01604BR for 10274 00741.2 38493 PFS M4x6 DIN 913 Inox for 10274 12351.0 38419 Stationary Table for 10274 12985.2
38470 Cushioning Ring for 10274 01144.4 38490 Screw M6x8 DIN 913 Stainless Steel
for 10274 12352.8 38418 Blade Cover for 10274 12986.0
20455 Belt A 26 for 10274 01628.4 38491 Guide Pin 3M6x36 DIN 6325 for 10274 12353.6 38471 Shaft Axis for 10274 13011.7
21838 Sphere with Hole 1/2 for 10274 01661.6 38494 Elastic Pin 3x40 for 10274 12354.4 AI940 CS Mobile Table for 10274 13012.5
21835 Cut Regulator for 10274 02180.6 38495 Bearing No.51100 DIN 71 for 10274 12355.2 38434 Stretching Plate for 10274 13044.3
38469 Cover for 10274 02313.2 38475 PFS M8x30 DIN 965 Inox for 10274 12379.0 38455 Screw M6x40 DIN 933 ZB for 10274 13045.1
38507 Term. Pre Isol.NA 4503 for 10274 02949.1 38472 Bearing Plate SK/L/10274/L for 10274 12383.8 76402 Complete Cutting Regulator Optional
for 10274 13049.4
38180 Screw Nut M6 DIN 934 ZB for 10274 03099.6 16416 Screw M6x12 DIN 933 Stainless Steel
for 10274 12384.6 21837 Adjustable Guide 1/2x318mm for 10274 13050.8
16403 Washer L 3/8 Stainless Steel for 10274 03213.1 38433 PCA N M6 DIN 985 ZB for 10274 12394.3 16427 Screw M6x25 for 10274 13070.2
27696 Nylon Cover CN 4478 for 10274 03678.1 38474 Double Pulley SK/SKL for 10274 12414.1 78971 Screw M8x20 for 10274 13079.6
38464 Door Knob for 10274 03792.3 16419 Washer L.A6 4 125 Inox for 10274 12442.7 38442 Motor Pulley for 10274 13106.7
78587 PFS M6x16 DIN 916 FOSF. for 10274 03856.3 16421 Screw Nut M8 934 Inox for 10274 12445.1 38484 Blade Tension Gauge for 10274 13259.4
30236 Washer L.A6 4 for 10274 03950.0 38281 Screw Nut M6 DIN934 Inox for 10274 12448.6 38496 Haste for 10274 13260.8
30341 Screw Nut 1 4 for 10274 04035.5 16422 Screw M8x20 DIN 933 Stainless Steel
for 10274 12455.9 38483 Pusher for 10274 13261.6
27700 Screw M8x20 DIN 933 ZB for 10274 04474.1 16423 Washer L.A8.4 Stainless Steel for 10274 12460.5 31402 Complete Pusher for 10274 13262.4
38432 Knob for Shield for 10274 04627.2 38477 Knob M8x30 for 10274 12473.7 38439 Key Connection Wire for 10274 13265.9
14801 Central Shaft Pin 4x50 DIN 1481 for
10274 04894.1 38448 Bearing 6204 RS1 DIN625 for 10274 12565.2 16430 Complete Scraper for 10274 13299.3
38437 Pin Elast.4x20 DIN 1481 for 10274 04899.2 78946 V Scraper for 10274 12643.8 16432 Screw 1/4x1/2 for 10274 13361.2
AI939 Rubber Prole U 5x8 Gray for 10274 08772.6 78947 V Shaver for 10274 12644.6 44761 Wheel Diam. 225 for 10274 14128.3
38480 Bushing Guide for 10274 08821.8 78948 V Pine FO Scraper for 10274 12645.4 38503 Alainham Bearing (White) for 10274 14188.7
38479 Support for Pusher for 10274 09131.6 38446 Flanged Bearing for 10274 12936.4 16435 Screw M4x10 for 10274 14463.0
38481 Push Shaft for 10274 09137.5 78951 Key Switch Complete for 10274 12943.7 78987 Blade MK5/8x6 for 10274 14909.8
38456 Foot 112429 for 10274 09169.3 17884 Blade Cover for 10274 12954.2 38504 Upper Tree for 10274 15267.6
38482 Screw M5x10 DIN 84 Inox for 10274 09197.9 24201 Blade Guide for 10274 12964.0 38501 Complete Aligning Bearing for 10274 15270.6
38404 Nut M4 DIN 934 for 10274 09205.3 38423 Cover TS (White) for 10274 12965.8 65890 Full Calibrator Manipulation for 10274 15625.6
27703 Ring 47x1.75 DIN 472 for 10274 09217.7 38460 Door S (White) for 10274 12966.6 30048 Cable 3x0,75mm for 10274 16798.3
27704 ID Label Motor/Resist for 10274 10204.0 38463 Door I (White) for 10274 12969.0 38050 Caution Label for 10274 22814.1
38055 Nut M5 DIN 934 Stainless Steel for
10274 10471.0 38427 Door TI (White) for 10274 12971.2 27720 Omcan Logo (Machines) for 10274 27154.3
