Omcan Ce-cn-0351 User manual

Revised - 09/01/2016

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Wafe Maker

Model CE-CN-0351

Item 39578

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 5

--------------------------------------------------------------------------------------- 5 - 6

--------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------- 7 - 8

----------------------------------------------------------------------------- 8

-------------------------------------------------------------------------------------------- 9 - 10

---------------------------------------------------------------------------- 11

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

Model CE-CN-0351

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

Safety and Warranty

General Information

• Please take notice that the unit will still be too hot to handle immediately after use.

• The Wafe Maker has a thermal cut-off safety device to avoid over heating.

• If the power cord is damaged, it must be replaced by qualied technician.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5

Safety and Warranty

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste

and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model CE-CN-0351

Power 1600W

Electrical 120V / 60Hz

Temperature Range 140 - 572°F / 60 - 300°C

Cooking Area 201 x 201mm / 7.9” x 7.9”

Weight 17 kgs. / 37.5 lbs.

Dimensions 419 x 300 x 269mm / 16.5” x 11.8” x 10.6”

Item Number 39578

Installation

Take out the wafe maker from the packaging and locate the unit on a rm level surface.

When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative

nished, etc., it is recommended that they be made of non-combustible material, if not, they shall be clad with

a suitable non-combustible heat-insulating material, and that the closet attention be paid to re prevention

regulations.

6

Installation

Operation

Maintenance

Once the Wafe Maker has been placed in position by consulting International Standards and regulations.

Cleaning the cast iron plate thoroughly is advised. Warm up the cast iron plate for 10 minutes, Switch off the

switch, then use warm, soapy water to clean. After cleaning, The Wafe Maker is ready to operate.

Plug in the power cord and turn on the switch.

Turn on the unit prior to allow the cooking surface to warm up about 15 minutes.

Pour the sleep powder on the bottom plate and keep 1 minute, then put the top plate down, and cook. For

4-6 minutes. General cooking temperature is between 200°C and 220°C. When not cooking, tune off the

thermostat and switch off the power.

Note: Please take off the plastic lm from the unit.

The Wafe Maker should be cleaned using warm, soapy water after each day’s operation.

For cleaning cast iron plate, please use warm soapy water while still warm. Do not use cold water on warm

plate.

After cleaning, be sure the tray should be dry before putting them back to the unit.

• Do not immerse completely in water to clean.

• The appliance is not to be cleaned with a water jet.

HELP

If the Wafe Maker does not work, please check the following:

1. The power supply is correct and the thermostat is turned on.

2. The positions of switch and thermostat are correct.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

39578 CE-CN-0351 Wafe Maker 14” x 14” /

351mm x 351mm Plate 120V/60/1 PA10180

7

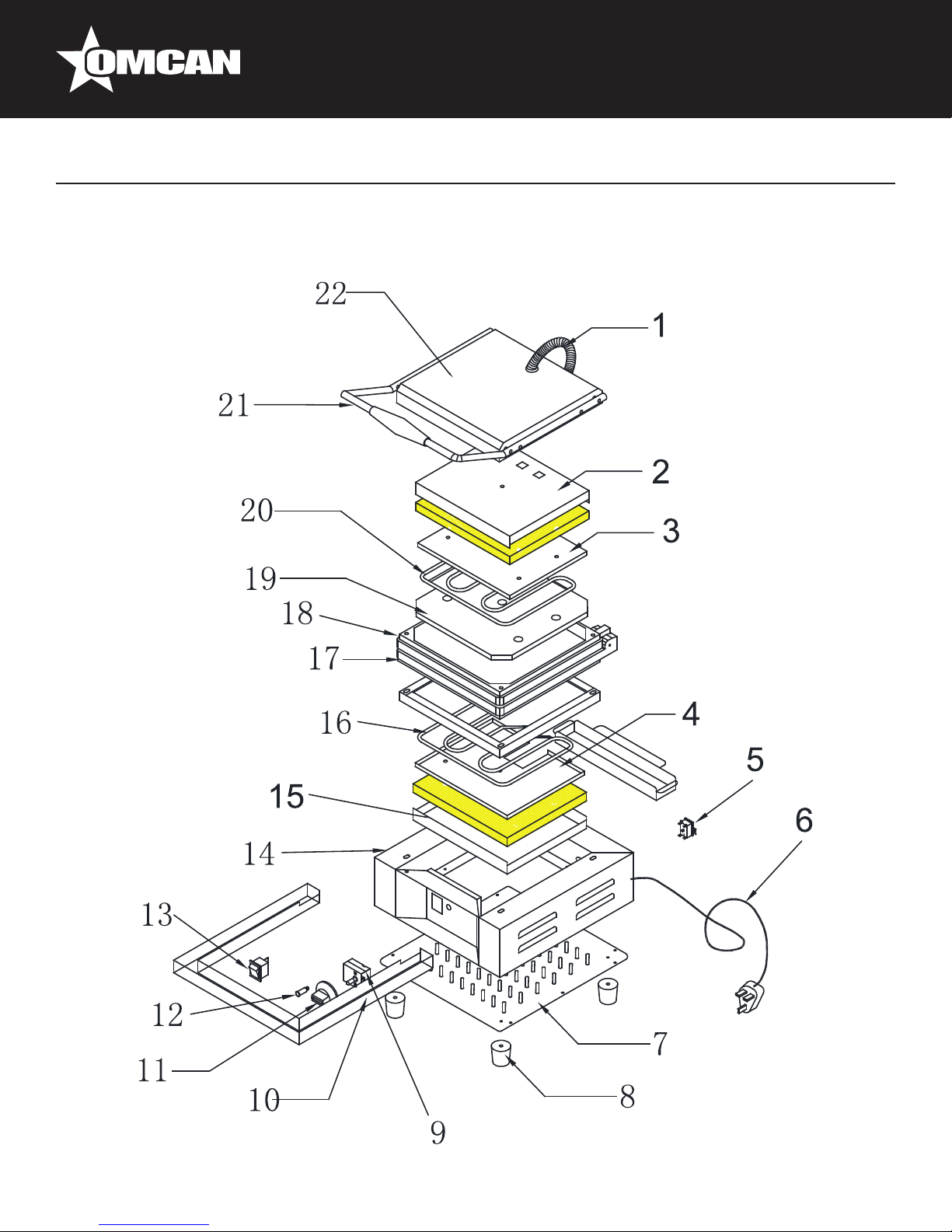

Parts Breakdown

Model CE-CN-0351 39578

8

Parts Breakdown

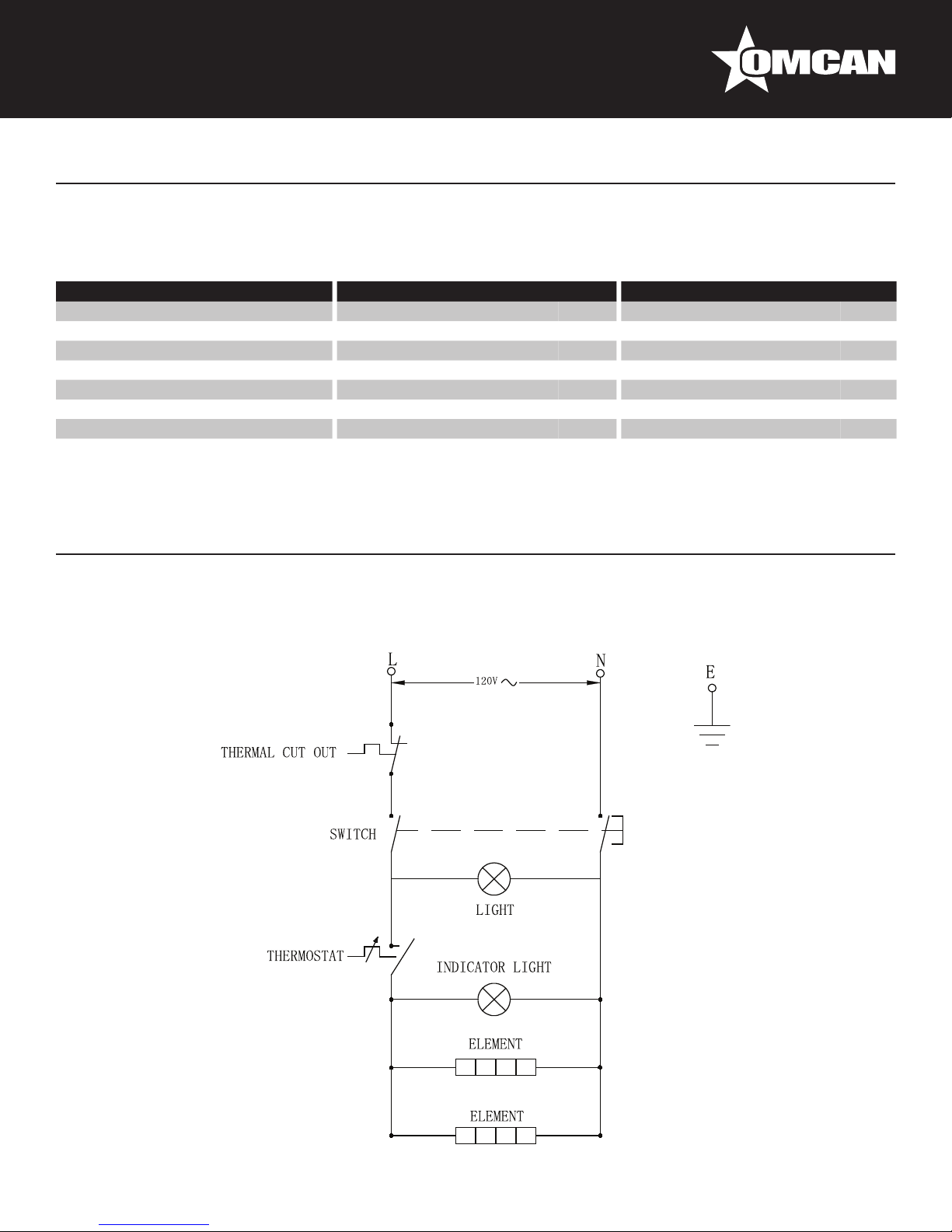

Electrical Schematics

Model CE-CN-0351 39578

Item No. Description Position Item No. Description Position Item No. Description Position

78386 Spring for PA10180 1 78394 Thermostat for PA10180 9 78402 Grilling Plate (Bottom) for PA10180 17

78387 Insulation Plate (Top) for PA10180 2 78395 Oil Tray for PA10180 10 78403 Grilling Plate (Top) for PA10180 18

78388 Fixing Plate (Top) for PA10180 3 78396 Knob for PA10180 11 78404 AL Plate for PA10180 19

78389 Fixing Plate (Bottom) for PA10180 4 78397 Indicator Light for PA10180 12 78405 Element (Top) for PA10180 20

78390 Limiting Thermostat for PA10180 5 78398 Power Switch for PA10180 13 78406 Big Handle for PA10180 21

78391 Plug and Lead for PA10180 6 78399 Body for PA10180 14 78407 Lid for PA10180 22

78392 Cover for PA10180 7 78400 Insulation Plate (Bottom) for PA10180 15

78393 Feet for PA10180 8 78401 Element (Bottom) for PA10180 16

9

Notes

________________________________________________________________________________________

10

Notes

________________________________________________________________________________________

11

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

www.omcan.com/warrantyregistration.html

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan CE-CN-0351 User manual

Popular Waffle Maker manuals by other brands
