Omega OFDF462X User manual

Instruction Manual
Fridge Freezer
French Door 462L
OFDF462X

2
Thank you for purchasing an Omega appliance
Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a
welcome addition to the family.
Omega caters to style-savvy customers who look for balance between stunning form and clever function.
This means a combination of sleek, chic, sophisticated design yet effortless functionality.
And we source from the best. The best craftsmanship. The best innovation. From the best international
design-houses.
All brought together under an appliance that stands for design-led balance.
Please take the time to read through the following instruction manual to familiarise yourself with the
installation, operation requirements and maintenance to ensure optimum performance.
Further Information
For important information about your Omega Appliance such as warranty registration, manuals, features,
and specifications please visit omegaappliances.com.au (if you are in Australia) and
omegaappliances.co.nz (if you are in New Zealand) or contact our Customer Care team on the below email
or phone numbers.
Registering Your Warranty
For peace of mind you can register your warranty at omegaappliances.com.au. Further information on the
Warranty can be found at the end of this manual.
Contact Us
Our customer service team is here to help you with any question or concern.
Both teams are on call Monday to Friday 8.30am to 5.00pm and of course you can always send an email at
your convenience.
Australia Contact Details
Monday to Friday 8.30am –5.00pm
Email: [e-mail]
Phone: [phone]
New Zealand Contact Details
Monday to Friday 8.30am –5.00pm
Email: [e-mail]
Phone: [phone]
To stay up to date and find simple and easy recipes, follow us on our socials:
facebook.com/omegaappliances
instagram.com/omegaappliances_aus

3
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE AP P LIAN CE.
It is important that you retain these instructions, proof of purchase as well as other important documents about
this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect
installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances without
notice.
Contents
Important Safety Warnings.............................................................................................................................................. 4
Installation Instruction ..................................................................................................................................................... 6
Operation Instruction....................................................................................................................................................... 9
Care and Maintenance……………………………………………………………………………………………………………………………………………..15
Trouble Shooting ............................................................................................................................................................ 16
New Zealand Product Warranty Statements of Standard Warranty Conditions ......................................................... 17
Disposal Information
Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them into appropriate collection containers.
If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

4
Important Safety Warnings
Read the safety precautions and assembly instruction section of this booklet carefully before removing the contents of
this carton.
1. This appliance is not to be use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
2. The appliance must be disconnected from the source of electrical supply before attempting the installation of
accessory.
3. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
5. WARNING: Do not damage the refrigerant circuit.
6. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance.
7. When disposing of this appliance, please do so according to local regulations as it contains flammable gas and
refrigerant.
8. Do not store explosive substances such as aerosol cans with flammable propellant in this appliance. Do not
modify this appliance.
9. This appliance is intended to be used in household and similar applications such as:
-Staff kitchen areas in shops, offices and other working environment.
-Farm house.
-By clients in hotels, motels and other residential type environments.
-Bed and breakfast type environments.
-Areas for communal use in blocks of flats or in launderettes.
10. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damage.
11. WARNING: Power plug must be accessible after installation.
12. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
13. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or a
similarly qualified person in order to avoid a hazard.
14. Follow the installation requirements in this manual. Avoid prolonged exposure to direct sunlight.
15. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
16. Do not place hot items on plastic areas of appliance. Do not refreeze food once defrosted. Store pre‐packed
frozen food in accordance to the manufactures instructions. Take care when freezing liquids as sealed
containers can explode under pressure.
17. The refrigerant isobutene (R600a) contained within the refrigerant circuit of the appliance is a natural gas with a
high level of environmental compatibility, which is nevertheless flammable.
18. During transportation, installation and servicing of the appliance ensure that none of the components of the
refrigerant circuit are damaged.
19. Avoid open flames and sources of ignition.
WARNING: Risk of fire / flammable materials

5
Warnings for Disposal
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore when the
refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering
company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the
environment or any other harm.
When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves, put the doors
and shelves in a proper place, so as to prevent trapping hazard.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

6
Installation Instruction
Unpacking the appliance
Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the
refrigerator; tear off the protective film on the doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent
rust or reduction of insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with
water so as not to affect the electrical insulation properties of the refrigerator.
The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.
Electrical and product Details
Rated Voltage/Frequency
220~240V/50Hz
Rated Defrost Power
220 W（230V）
Rated Current
0.8 A
Refrigerant
R600a
Insulation Blow Gas
Cyclopentane
Product Dimensions WxDxH
713x731x1808mm
Net Weight
89Kg
Location
When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated.
Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase
the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This
unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 10cmof free space is left at both sides, 10cm at the rear and 30 cm at the top of
the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

7
Installation Instruction
Levelling feet
1. Precautions before operation:
Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power.
Before adjusting the levelling feet, precaution shall be taken to prevent any personal injury.
2. Schematic diagram of the levelling feet
3. Adjusting procedures:
Turn the feet clockwise to raise the refrigerator.
Turn the feet counter-clockwise to lower the refrigerator.
Adjust the right and left feet based on the procedures above to a horizontal level.

8
Installation Instruction
Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent
or similar qualified person.
Before using your unit
Do not damage the power cord under any condition so as to ensure safety use, do not use when the power
cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to
the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the
freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to
allow it time to fall to the correct temperature. Your unit should not be overfilled.
Do not store or place dry ice in the refrigerator.
You must check that you have a socket which is compatible with the plug supplied with the unit.
Do not turn on until two hours after moving the unit.

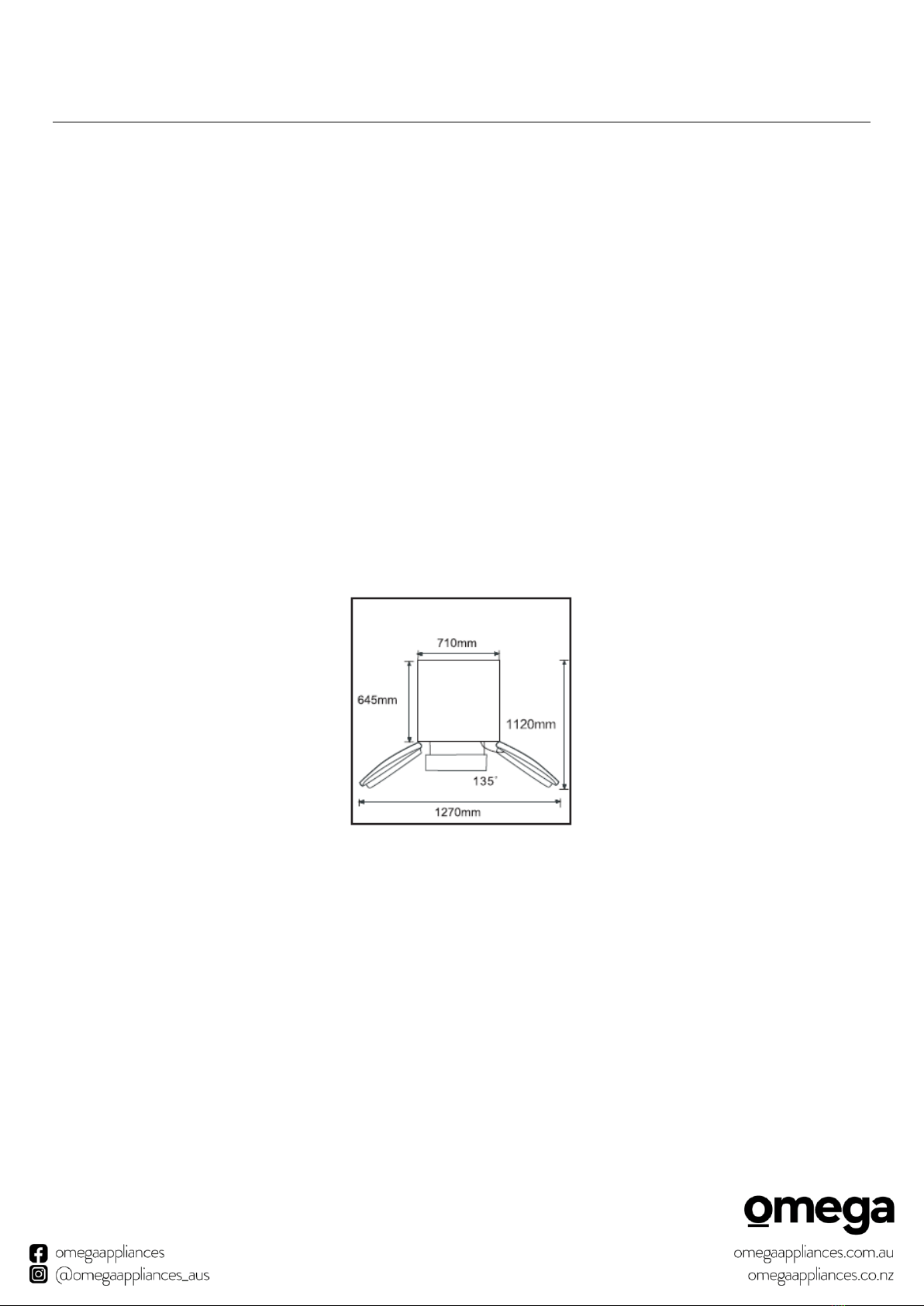

Spare enough space for convenient opening of the doors and drawers.
Energy saving tips
• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating
ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on
frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with
cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at
one time, and close the door as soon as possible.

9
Operation Instruction
Refrigerating chamber
• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food
consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.
.

10
Operation Instruction
Freezing chamber
• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen
foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short
term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be
consumed within the shelf time.
Preservation drawer

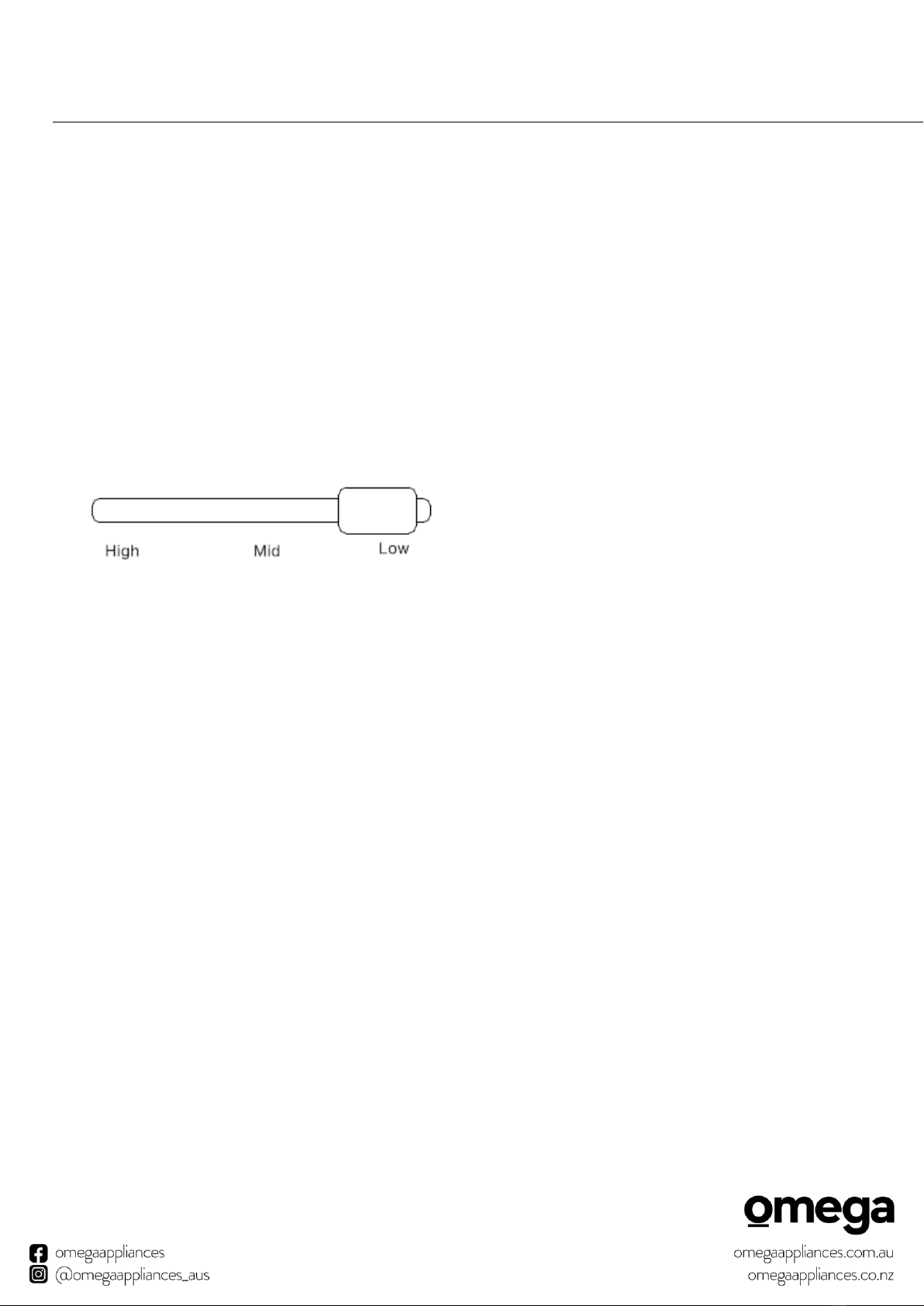

• Adjust preservation drawer adjustment device to change temperature in preservation drawer.
• The drawer is divided into three sections: High, Mid, Low (from left to right)
High: This section is used for storing all kinds of vegetables and fruits to keep their moisture and freshness.
Mid: This section is used for storing instant food, the food will be kept extreme cold, but not frozen. This is the best
choice for fresh instant food.
Low: This section is designed for storing seafood and meat, keeping food fresh under 0°C for a short term and
locking nutrition in. It's recommended to set the temperature of freezer under 2°C for a better effect.
Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing
effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be
adversely affected.

11
Operation Instruction
Functions
Display screen
1. Refrigerating icon
4. Super refrigerating icon
7. Vacation icon
2. OFF icon
5. Freezing icon
8. Super freezing icon
3. Temperature display area
6. Lock/unlock icon

12
Operation Instruction
Display
When power is turned on for the first time, the display screen will remain for 3 seconds in total. Meanwhile the starting
up bell rings and then the screen enters the normal display of the operation.
The first lime for using the refrigerator, the default temperature of refrigerating chamber and freezing chamber is
5 °C/-18 °C respectively.
When the error occurs, the display shows the error code; during normal operation, the display shows the set
temperature of the refrigerating chamber or freezing chamber.
Under normal circumstances, if there is no operation on display panel or door opening action within 30s, then the
display shows the lock state and the display goes out after the lock state continued for 30s.
Lock/unlock
In the unlocked state, continue to press the lock button for 3 seconds, enter the lock state,
The logo lights up and buzzer sounds, it means the display panel is locked, at this time, button operation cannot
be implemented;
In the locked state, continue to press the lock button for 3 seconds, enter the unlocked state,
The logo go out and buzzer sounds, it means the display panel is unlocked, at this time, button operation can be
implemented;
Temperature setting of refrigerating chamber
Press temperature adjusting button of the refrigerating chamber to change the setting temperature of
refrigerating chamber, and then each press of temperature adjusting button of the refrigerating chamber will reduce
the temperature for 1 °C. The temperature setting range for refrigerating chamber is 2~8 °C. When the temperature is
2 °C, press the button again, and the temperature of refrigerating chamber will be set at 8 °C, and it circulates
accordingly.
Temperature setting of freezing chamber
Press temperature adjusting button of the freezing chamber to change the setting temperature of
freezing chamber, and then each press of temperature adjusting button of the freezing chamber will reduce the
temperature for 1 °C. The temperature setting range for freezing chamber is -24 °C ~ -16 °C). When the temperature
is -24 °C, press the button again, and the temperature of freezing chamber will be set at -16 °C, and it circulates again
and again.

13
Operation Instruction
Mode setting
Press mode button to select different control mode. Control mode is cycled according to the following
regulation:
Super refrigerating super freezing super refrigerating and super freezing vacation
Vacation none super refrigerating .
When super refrigerating mode is set, temperature of refrigerating chamber will automatically set at 2 °C; Exit
super refrigerating mode, temperature of refrigerating chamber will automatically return back to temperature set
before super refrigerating mode.
When super freezing mode is set, temperature of freezing chamber will automatically set at -24 °C;
Exit super freezing mode, temperature of freezing chamber will automatically return back to temperature set
before super freezing mode. Time setting of super freezing:
After setting the super freezing mode, long press the freezing temperature adjusting button for 3
seconds, the display shows "48", which means that time of super freezing has been set at 48 hours. And press
freezing temperature adjusting button , the display shows "6", which means that time of super freezing has
been set at 6 hours. When the time arrives, it will exit the super refrigerating mode automatically.
After setting the super refrigerating mode, the super refrigerating lime setting is 2.5 hours by acquiescence, and
the super refrigerating mode will exit automatically when the time arrives.
When vacation mode VACATION is set, temperature of freezing chamber will be automatically set at -18 °C, the
temperature of refrigerating chamber is turned off, and the icon (OFF) flashes.
Storage upon power failure
In case of power failure, the instant working state will be keeping the unit locked and maintained till the power is back
on.
Opening warning and alarm control
When the refrigerator doors open, the opening music will play. If the door is not closed in two minutes,
the buzzer will sound once every minute until the door is closed. Press any button to stop the buzzer alarm.
Fault indication
The following warnings appeared on the display screen indicate corresponding faults of the refrigerator. Even if the
refrigerator may still have cold storage function with the following faults, the user shall contact a qualified specialist for
maintenance to ensure optimized operation of the appliance.
Fault Code
Fault Description
E1
Temperature sensor failure of refrigerating chamber
E2
Temperature sensor failure of freezing chamber
E4
Failure of defrosting sensor in refrigerating chamber
E5
Failure of defrosting sensor in freezing chamber
E6
Communication error
E7
Failure of ambient temperature sensor
EH
Failure of humidity sensor

14
Operation Instruction
Cleaning the Interior and the Exterior of the Unit
Warning: Unplug the refrigerator for defrost and cleaning.
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and
energy saving.
Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth
dampened with soapy water or diluted detergent.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers, etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a
quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry
naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is
recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with
some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the
refrigerator or contaminated food.
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent.
Dry with a soft cloth or dry naturally.
Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and
then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents
(such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge
surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical
insulation after immersion.
Cleaning of freezer drawer partition
1. Remove partition:
Pull out partition, pressing inner wall of drawer with one hand and pulling the middle partition out with another hand.
2. Install partition:
Press partition slowly down the slot until you hear a click.
There are two slots in the drawer for your option.

15
Care and Maitanence
Cleaning of door tray
Cleaning steps:
a. In order to take the tray off more conveniently, punch the bottom of right part of tray for several times and again
punch the bottom of left part of tray for several times, as shown below.
b. The tray can be smoothly taken off after it has been loosened.
Defrosting
The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed
due to change of season or temperature may also be manually removed by disconnection of the appliance from power
supply or by wiping with a dry towel.
Out of operation
• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several
hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put
into the appliance.
• Long-time non-use: The appliance shall be unplugged and then cleaned; then the doors are left open
to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder,
freezing chamber drawers and etc. with tape, and tighten the levelling feet; close the doors and fix them with tape.
During moving, the appliance shall not be laid upside down or horizontally, or be vibrated;
the inclination during movement shall be no more than 45°.

16
Trouble Shooting
You may try to solve the following simple problems by yourself. If they cannot be solved, please contact customer
service.
Failed operation
Check whether the appliance is connected to power or
whether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have
tripped
Odor
Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Long-time operation of the
compressor
Long operation of the refrigerator is normal in summer
When the ambient temperature is high
It is not recommended having too much food in the appliance at
the same time
Food shall get cool before being put into the appliance
The doors are opened too frequently
Light fails to get lit
Check whether the refrigerator is connected to power supply and
Whether the illuminating light is damaged
Doors cannot be properly
closed
The door is stuck by food packages
The refrigerator is tilted
Loud noise
Check whether the floor is level and whether the refrigerator is
placed stably
Check whether accessories are placed at proper locations
Door seal fails to be tight
Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration
(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows
There is too much food in the chamber or food stored contains
too much water.resulting in heavy defrosting
The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting
Hot housing
Heat dissipation of the built-in condenser via the housing, which
is normal.
When housing becomes hot due to high ambient temperature and
storage of too much food,it is recommended to provide sound
ventilation to facilitate heat dissipation.
Surface condensation
Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high. Just
wipe the condensate with a clean towel.
Abnormal noise
Buzz: The compressor may produce buzzes during operation,
and the buzze! are loud particularly upon start or stop. This is
normal.
Creak: Refrigerant flowing inside of the appliance may produce
creak, which is normal.

17
New Zealand Product Warranty Statements of Standard Warranty Conditions
Nothing herein contained shall be construed in any way as
excluding or limiting your rights under the Consumer
Guarantee Act 1993. OUR WARRANTY
This product is also covered by the manufacturer's warranty
set out in this document (Our Warranty).
Our Warranty is for a period of forty eight (48) months from
the date of purchase.
This is in addition to (and does not exclude, restrict or
modify) any rights or remedies to which you may already be
entitled to under the New Zealand Consumer Guarantee act
1993 relating to this product.
Our warranty (which is subject to the conditions below)
covers rectification free of charge of any fault arising from
defective materials or components or faulty workmanship.
The product will be repaired or replaced at the option of
Omega.
Our warranty is subject to the following conditions:
1. That the purchaser contacts Omega prior to any product
repair.
2. That the purchaser carefully follows all instructions
provided with the product and complies with all relevant
electrical & plumbing regulations when installing the
product.
3. That the purchaser carefully follows the instructions
provided in the owner's handbook relating to the proper
use and care of the product and does not use the
product for any purpose other than the DOMESTIC use
for which it has been designed.
WHAT IS COVERED: By Our Warranty
During the warranty period, Omega or its authorised Service
Centre will, at no extra charge, if your appliance is readily
accessible without the need of special equipment and subject
to the terms and conditions of this warranty, repair or replace
any parts which it considers defective.
WHAT IS NOT COVERED: By Our Warranty
1. Products installed damaged or incomplete or not in
compliance with the relevant electrical & plumbing
regulations in their State.
2. Normal wear and tear e.g. cleaning, light globes, filters
etc.
3. Failure resulting from power surges and electrical
storms.
4. Insect or vermin infestation.
5. Unauthorised repairs or use of non- genuine Omega
parts.
6. Any failure caused by the product not being used in
accordance with the instruction and the installation
manual provided with the product.
7. Misuse or abuse, including failure to properly maintain or
service.
8. The clearing of blockages in pumps and hoses.
9. Damage which occurs during delivery or installation.
10. Claims to product surface coating due to liquid or solid
spill-overs, accidental damage or damage caused from
cleaning products not recommended by Omega.
HOW TO CLAIM YOUR WARRANTY
Please refer to our website address below for Omega to
register your warranty online.
If you are contacting Omega regarding any warranty claims
and spare parts inquiries, please make sure you have the
following information on hand:
1. Product Name/Model Number
2. Serial Number/s
3. Purchase Date (as per invoice or proof of purchase)
4. Purchased From
5. Warranty Registration Number
www.omegaappliances.co.nz
Omega is division of Monaco Corporation Limited (Member
of Shriro Australia PTY LTD)
Phone: [phone]
Email: [email protected]

1
