Omega OBMF468X User manual

Instruction Manual
Fridge Freezer
Bottom Mount 486L
OBMF468X

2
Thank you for purchasing an Omega appliance
Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a
welcome addition to the family.
Omega caters to style-savvy customers who look for balance between stunning form and clever function.
This means a combination of sleek, chic, sophisticated design yet effortless functionality.
And we source from the best. The best craftsmanship. The best innovation. From the best international
design-houses.
All brought together under an appliance that stands for design-led balance.
Please take the time to read through the following instruction manual to familiarise yourself with the
installation, operation requirements and maintenance to ensure optimum performance.
Further Information
For important information about your Omega Appliance such as warranty registration, manuals, features,
and specifications please visit omegaappliances.com.au (if you are in Australia) and
omegaappliances.co.nz (if you are in New Zealand) or contact our Customer Care team on the below email
or phone numbers.
Registering Your Warranty
For peace of mind you can register your warranty at omegaappliances.com.au. Further information on the
Warranty can be found at the end of this manual.
Contact Us
Our customer service team is here to help you with any question or concern.
Both teams are on call Monday to Friday 8.30am to 5.00pm and of course you can always send an email at
your convenience.
Australia Contact Details
Monday to Friday 8.30am –5.00pm
Email: [e-mail]
Phone: [phone]
New Zealand Contact Details
Monday to Friday 8.30am –5.00pm
Email: [e-mail]
Phone: [phone]
To stay up to date and find simple and easy recipes, follow us on our socials:
facebook.com/omegaappliances
instagram.com/omegaappliances_aus

3
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE AP P LIAN CE.
It is important that you retain these instructions, proof of purchase as well as other important documents about
this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect
installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances without
notice.
Contents
Important Safety Warnings.............................................................................................................................................. 4
Installation Instruction ..................................................................................................................................................... 6
Operation Instruction..................................................................................................................................................... 14
Care and Maintenance…………………………………………………………………………………………………………………………………………… 18
Trouble Shooting ............................................................................................................................................................ 20
New Zealand Product Warranty Statements of Standard Warranty Conditions ......................................................... 21
Disposal Information
Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them into appropriate collection containers.
If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

4
Important Safety Warnings
Read the safety precautions and assembly instruction section of this booklet carefully before removing the contents of
this carton.
1. This appliance is not to be use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
2. The appliance must be disconnected from the source of electrical supply before attempting the installation of
accessory.
3. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
5. WARNING: Do not damage the refrigerant circuit.
6. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance.
7. When disposing of this appliance, please do so according to local regulations as it contains flammable gas and
refrigerant.
8. Do not store explosive substances such as aerosol cans with flammable propellant in this appliance. Do not
modify this appliance.
9. This appliance is intended to be used in household and similar applications such as:
-Staff kitchen areas in shops, offices and other working environment.
-Farm house.
-By clients in hotels, motels and other residential type environments.
-Bed and breakfast type environments.
-Areas for communal use in blocks of flats or in launderettes.
10. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damage.
11. WARNING: Power plug must be accessible after installation.
12. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
13. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or a
similarly qualified person in order to avoid a hazard.
14. Follow the installation requirements in this manual. Avoid prolonged exposure to direct sunlight.
15. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
16. Do not place hot items on plastic areas of appliance. Do not refreeze food once defrosted. Store pre‐packed
frozen food in accordance to the manufactures instructions. Take care when freezing liquids as sealed
containers can explode under pressure.
17. The refrigerant isobutene (R600a) contained within the refrigerant circuit of the appliance is a natural gas with a
high level of environmental compatibility, which is nevertheless flammable.
18. During transportation, installation and servicing of the appliance ensure that none of the components of the
refrigerant circuit are damaged.
19. Avoid open flames and sources of ignition.
WARNING: Risk of fire / flammable materials

5
Warnings for Disposal
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore when the
refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering
company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the
environment or any other harm.
When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves, put the doors
and shelves in a proper place, so as to prevent trapping hazard.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

6
Installation Instruction
Unpacking the appliance
Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the
refrigerator; tear off the protective film on the doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent
rust or reduction of insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with
water so as not to affect the electrical insulation properties of the refrigerator.
The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.
Electrical and product Details
Rated Voltage/Frequency
220~240V/50Hz
Rated Defrost Power
220 W（230V）
Rated Current
0.8 A
Rated Defrost Power
220 W
Refrigerant
R600a
Insulation Blow Gas
Cyclopentane
Product Dimensions WxDxH
700x666x1880mm
Net Weight
87Kg
Location
When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated.
Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase
the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This
unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 10cmof free space is left at both sides, 10cm at the rear and 30 cm at the top of
the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

7
Installation Instruction
Door space requirement
The fridge’s door must be able to open fully as shown below. W×D≥1080×1215mm
Door handle installation
Precaution shall be taken be taken to prevent fall of the handle from causing any personal injury.
List of tools to be provided by the user
Allen wrench

8
Installation Instruction
Levelling feet
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator.
b. Turn the feet counter-clockwise to lower the refrigerator.
c. Adjust the right and left based on the procedures above to a horizontal level.
Door right-left change
List of tools to be provided by the user
Phillips head screwdriver
Putty knife thin-blade
screws driver
5/16” socket and ratchet
Masking tape
1. Unplug the appliance before conduct this operation. Remove all food from the door shelves. Fix the door by tapes.

9
Installation Instruction
2. Dismantle the upper decorative cover, screws and upper hinge. Unplug the wiring connector of the top right side of
refrigerator (1 and 2 wiring connector).
3. Take off refrigerating chamber door, middle hinge (use an alien wrench to remove the middle hinge screw) and
hole cap of other side.

10
Installation Instruction

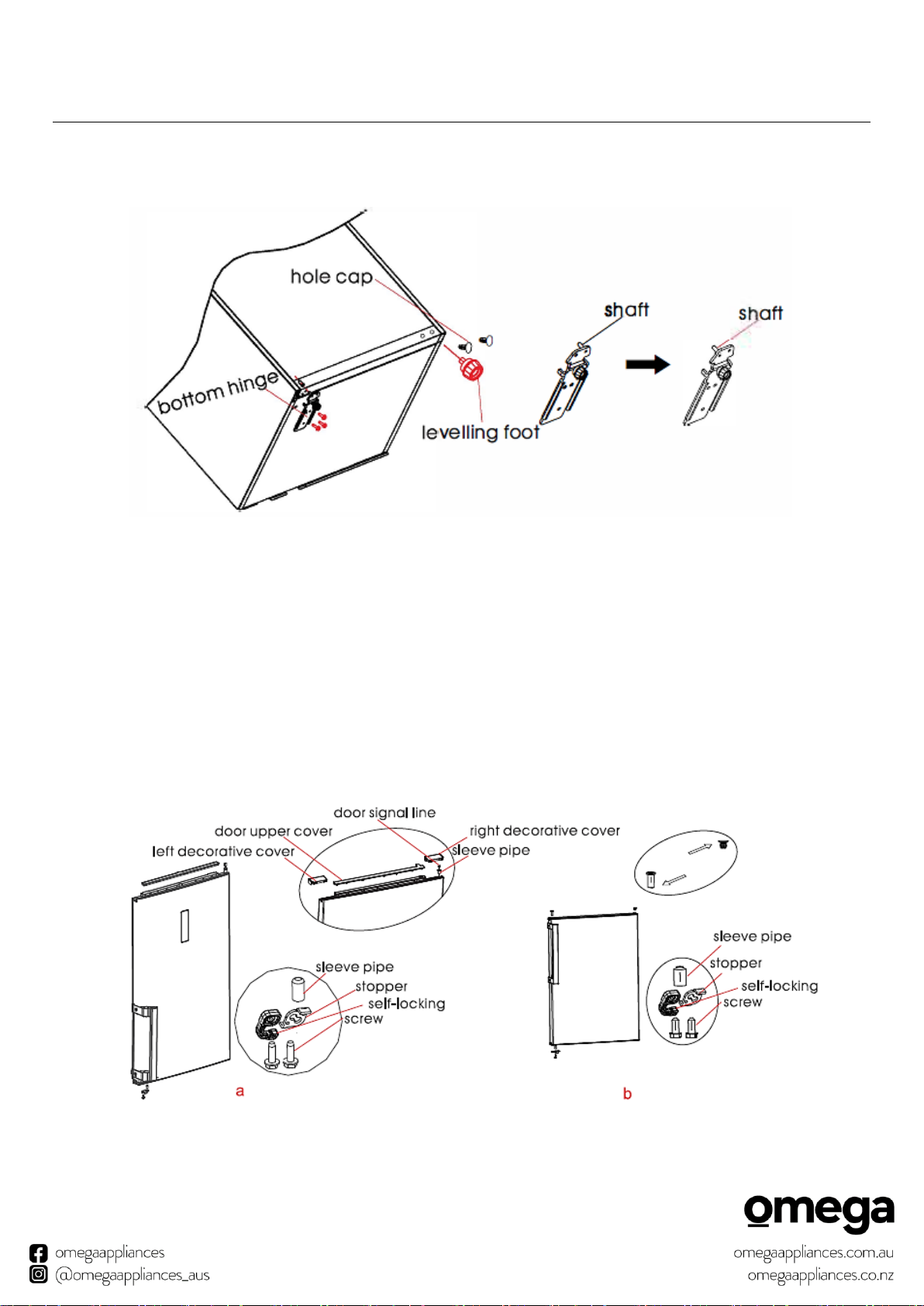

4. Take off freezing chamber door, dismantle bottom hinge, hole caps, levelling foot, Install shaft of bottom hinge on
the other side and install the bottom hinge on the other side.
5. a) Remove the upper cover of refrigerating chamber door and the left decorative cover, install the upper hinge
sleeve, door signal line to the other side and install the door upper cover. Dismantle the stopper, self-locking and
sleeve pipe of refrigerating chamber door. Take out left self-locking of refrigerating chamber door and right
decorative cover from accessory bag, assemble the sleeve pipe, left self-locking and stopper on bottom left of door
with screw, and then install the right decorative cover.
b) Dismantle the stopper and sleeve pipe from the bottom right of freezing chamber door, assemble the sleeve
pipe, left self-locking and stopper on bottom left of door by screw.

11
Installation Instruction
6. Put freezing door on bottom hinge and install middle hinge, hole caps
7. Dismantle the right hinge cover from the decorative cover, then take out left hinge cover from accessory bag,
install left hinge cover on the left side of decorative cover.

12
Installation Instruction
8. Take out the top left hinge from accessory bag.
Put refrigerating chamber door on middle hinge, install top left hinge. Connect signal line terminal 4 with signal line
terminal 1, connect signal line terminal2 with signal line terminal3; Install top hinge cover.
For the assembly of handle, please refer to Door handle installation.
Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent
or similar qualified person.

13
Installation Instruction
Before using your unit
Do not damage the power cord under any condition so as to ensure safety use, do not use when the power
cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to
the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the
freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to
allow it time to fall to the correct temperature. Your unit should not be overfilled.
Do not store or place dry ice in the refrigerator.
You must check that you have a socket which is compatible with the plug supplied with the unit.
Do not turn on until two hours after moving the unit.
Spare enough space for convenient opening of the doors and drawers or statement by the distributor.
Energy saving tips
• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating
ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on
frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with
cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at
one time, and close the door as soon as possible.

14
Operation Instruction
Refrigerating chamber
• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food
consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.
Freezing chamber
• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen
foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short
term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be
consumed within the shelf time.
Meat and Fish zone
• Suitable for short term (1-3 days) to store fresh fish, fresh meat, fresh food, etc.
• Near to the back and bottom of the drawer, food may be frozen slightly, the food what should not be frozen cannot
be placed in.

15
Operation Instruction

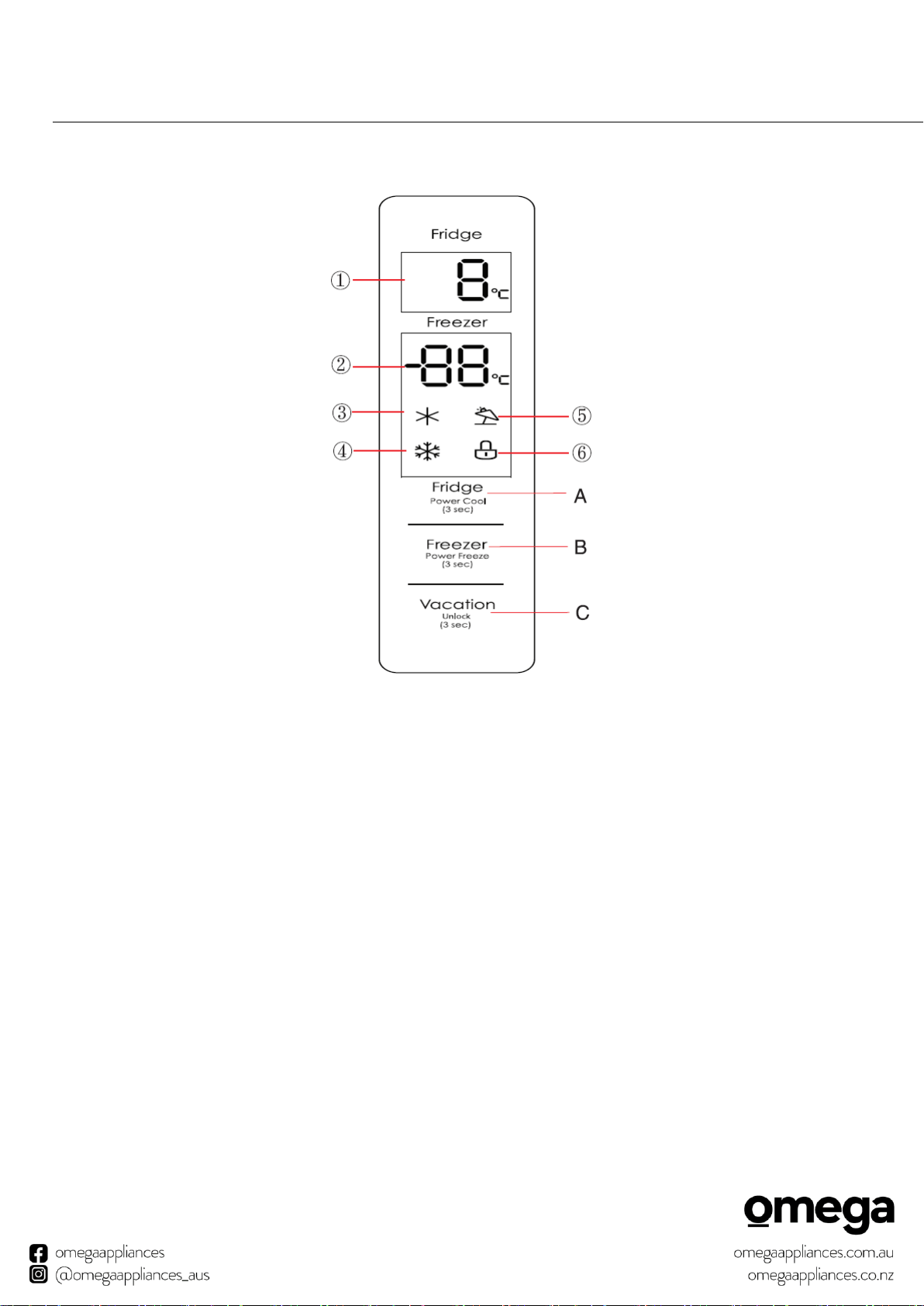

Functions
Display screen
1. Refrigerating chamber temperature display area
4. Quick freeze icon
2. Freezing chamber temperature display area
5. Vacation icon
3. Quick cool icon
6. Lock icon
Operation button
A. Temperature setting button of refrigerating chamber
B. Temperature setting button of freezing chamber
C. Vacation/lock button
Display
When power on, the refrigerator for the first time, the whole display panel will light up for 3 seconds. Then the display
panel enters the normal display. The first time for using the refrigerator, the default set temperatures of refrigerating
chamber, freezing chamber is 5° C/-18 °C respectively.
When the error occurs, the display panel shows the error code; during normal running, the display panel shows the set
temperature of refrigerating chamber, freezing chamber.
Under normal running, if there is no operation or opening door action within 30s, the display panel will be locked, the
light of display panel will go out after the locked state 8 continued for 30s.

16
Operation Instruction
Lock /unlock
In the unlock state, long press the lock button for 3 seconds, enter the lock state, the icon lights
up and buzzer sounds, it means the display panel is locked, at this time, button operation cannot be implemented;
In the lock state, long press the lock button for 3 seconds, enter the unlock state, the icon goes
out and buzzer sounds, it means the display panel is unlocked, at this time, button operation can be implemented.
Temperature setting of refrigerating chamber
Press the button to change the set temperature of refrigerating chamber, each press of temperature
adjusting button of the refrigerating chamber, the set temperature will be reduced 1 ° C. The temperature setting range
of refrigerating chamber is 2-8 'C. When the set temperature is 2° C,
Temperature setting of freezing chamber
Click the button to change the set temperature of freezing chamber, each click of temperature adjusting
button of the freezing chamber, the set temperature will be reduced 1 ° C. The temperature setting range for freezing
chamber is -24- -16° C. When the temperature is -24 ° C, click the button again, the set temperature of freezing
chamber will switch to -16 ° C.
Mode setting
Quick cool mode
Long press the button for 3s to set Quick cool mode, the icon lights up. The refrigerating
chamber temperature displays -24 ° C, it enters the Quick cool mode.
Under Quick cool mode, press and hold button for 3 seconds or press briefly, the icon
goes out, it exits Quick cool mode. The temperature setting of refrigerating chamber will automatically switch
back to set temperature before.
In Quick cool mode. When set vacation mode, it exits Quick cool mode.

17
Operation Instruction
Vacation model
Press the button to set vacation model, the icon lights up. The refrigerating chamber
temperature display goes out, the freezing chamber temperature display -18° C. Under vacation mode, press the
button again, the icon goes out, it exits in Quick freeze mode. The temperature setting of
refrigerating chamber and freezing chamber will automatically switch back to set temperature before vacation mode.
When set to Quick cool model and Quick freeze mode, it exits vacation mode.
Opening warning and alarm control
When open the refrigerator door, the door open music will play. If the door is not closed in two minutes, the buzzer will
sound until the door is closed. Press any one button to stop the buzzer alarm.
When open the door, the display panel will wake up and internal lamp will light up.
Fault indication
The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the
refrigerator may still have cold storage function with the following faults, the user shall contact a qualified specialist for
maintenance, so as to ensure optimized operation of the appliance.
Fault Code
Fault Description
E1
Temperature sensor failure of refrigerating chamber
E2
Temperature sensor failure of freezing chamber
E3
Temperature sensor failure of meat and fish zone
E5
Freezing defrost sensor detection circuit error
E6
Communication error
E7
Ambient temperature sensor error

18
Care and Maitanence
Cleaning the Interior and the Exterior of the Unit
Warning: Unplug the refrigerator for defrost and cleaning.
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and
energy saving.
Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth
dampened with soapy water or diluted detergent.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers, etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a
quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry
naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is
recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with
some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the
refrigerator or contaminated food.
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent.
Dry with a soft cloth or dry naturally.
Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and
then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents
(such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge
surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical
insulation after immersion.
Cleaning the glass shelf
• Remove the drawer on the glass shelf;
• Lift up the front of glass shelf (about 60 degree), and then pull out;
• Remove the glass shelf and clean as needed;
• The reverse operation is for installation of glass shelf.
How to take out the pearl cotton block inside humidification shelf components
The pearl cotton is used to separate the humidity conditioning shelf from the moisture-proof cover (to prevent the
moisture-proof cover from falling off during transportation). After unpacking, the user needs to remove this pearl cotton
from the moisture-retaining shelf assembly. Removal method: grip both sides of the pearl cotton by hand and pulls out
hard until the pearl cotton completely leaves the moisturizing shelf assembly.

19
Care and Maitanence
Changing the Internal Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or
similar qualified person.
Defrosting
The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed
due to change of season or temperature may also be manually removed by disconnection of the appliance from power
supply or by wiping with a dry towel.
Out of operation
• Power failure: In case of power failure, even if ii is in summer, foods inside the appliance can be kept for several
hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put
into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent
odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder,
freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape.
During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during
movement shall be no more than 45°.
Note: The appliance shall run continuously once ii is started. Generally, the operation of the appliance shall not be
interrupted. Otherwise, the service life may be impaired.

20
Trouble Shooting
You may try to solve the following simple problems by yourself. If they cannot be solved, please contact customer
service.
Failed operation
Check whether the appliance is connected to power or
whether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have
tripped
Odor
Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Long-time operation of the
compressor
Long operation of the refrigerator is normal in summer
when the ambient temperature is high
It is not recommended having too much food in the appliance at
the same time
Food shall get cool before being put into the appliance
The doors are opened too frequently
Light fails to get lit
Check whether the refrigerator is connected to power supply and
whether the illuminating light is damaged
Doors cannot be properly
closed
The door is stuck by food packages
The refrigerator is tilted
Loud noise
Check whether the floor is level and whether the refrigerator is
placed stably
Check whether accessories are placed at proper locations
Door seal fails to be tight
Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration
(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows
There is too much food in the chamber or food stored contains
too much water.resulting in heavy defrosting
The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting
Hot housing
Heat dissipation of the built-in condenser via the housing, which
is normal.
When housing becomes hot due to high ambient temperature and
storage of too much food,it is recommended to provide sound
ventilation to facilitate heat dissipation.
Surface condensation
Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high. Just
wipe the condensate with a clean towel.
Abnormal noise
Buzz: The compressor may produce buzzes during operation,
and the buzze! are loud particularly upon start or stop. This is
normal.
Creak: Refrigerant flowing inside of the appliance may produce
creak, which is normal.
